McCulloch MB320BV 41AS320G977 Gas Blower

Model: MB320BV 41AS320G977 41AS320G977 MB320BV

Back To Assemblies

Save Part Not Listed?
product name

Engine Parts

...
...
1
Air Cleaner/Muffler Cover Assembly (includes 2 & 32) MTD-753-04511
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
5
ASSEMBLY, CHOKE KNOB & MTD-791-182202
...
6
CHOKE LEVER ASSEMBLY:W/ MTD-753-04418
...
7
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
8
Carburetor Assembly (includes 9 & 20) MTD-753-04408
...
9
CARBURETOR GASKET MTD-791P610675
...
10
SCREW, 10-24X.75 T-2 MTD-791-181860
...
11
Primer and Hose Assembly MTD-791-683974B
...
12
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
13
REED VALVE ASSEMBLY MTD-791-684451
...
14
Carburetor Mount Gasket MTD-753-1208
...
15
CRANKCASE & PSHF ASSEMBLY MTD-753-04328
...
16
PAD, REAR MOUNT PAD MTD-791-612134
...
17
TANK ASSEMBLY:BK CAP W/ MTD-753-04310
...
18
Fuel Cap Assembly MTD-791-182612
...
19
Fuel Return Line MTD-791-181086
...
20
Fuel Line Assembly MTD-791-682039
...
21
PAD, FRONT MOUNTING MTD-791-145308
...
22
EXT ASSEMBLY:SHRD MTD-753-05091
...
23
Flywheel Assembly MTD-753-05240
...
24
SPACER MTD-750-04245
...
25
PULLEY:START MTD-753-1199
...
26
Recoil Spring MTD-791-613102
...
27
Rope Guide MTD-791-611061
...
28
ASSEMBLY, PULLEY RETAINER MTD-791-180930
...
29
Pull Handle MTD-631-04164B
...
30
Rope MTD-791-613103
...
31
SCREW:10-32X.5 MTD-1964
...
32
Cover Screw MTD-791-181345
...
33
ASSEMBLY, STARTER HOUSING MTD-791-181931
...
34
LEAD, WIRE 10.5" B MTD-791-182402
...
35
PULSE MDL ASSEMBLY:W/HD MTD-753-04336
...
36
Spark Plug MTD-791-610311B
...
37
Exhaust Gasket MTD-753-04619
...
38
Muffler Mounting Bolts MTD-710-04188A
...
39
MUFFLER ASM CAT NLAUD MTD-753-05169
...
40
Cylinder Assembly (includes 42 & 43) MTD-753-04814
...
41
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
42
Cylinder Gasket MTD-753-04182
...
43
Cylinder Bolt MTD-791-182723
...
44
NUT, DRIVE IMPELLE MTD-791-181524
...
45
Washer MTD-9162-1
...
xx
SCREEN-SPA MTD-753-04689
...
xx
Piston Ring Set (NOT SHOWN) MTD-753-1209
...
xx
SHORTBLOCK:31CC:BLO:-9 MTD-753-04895

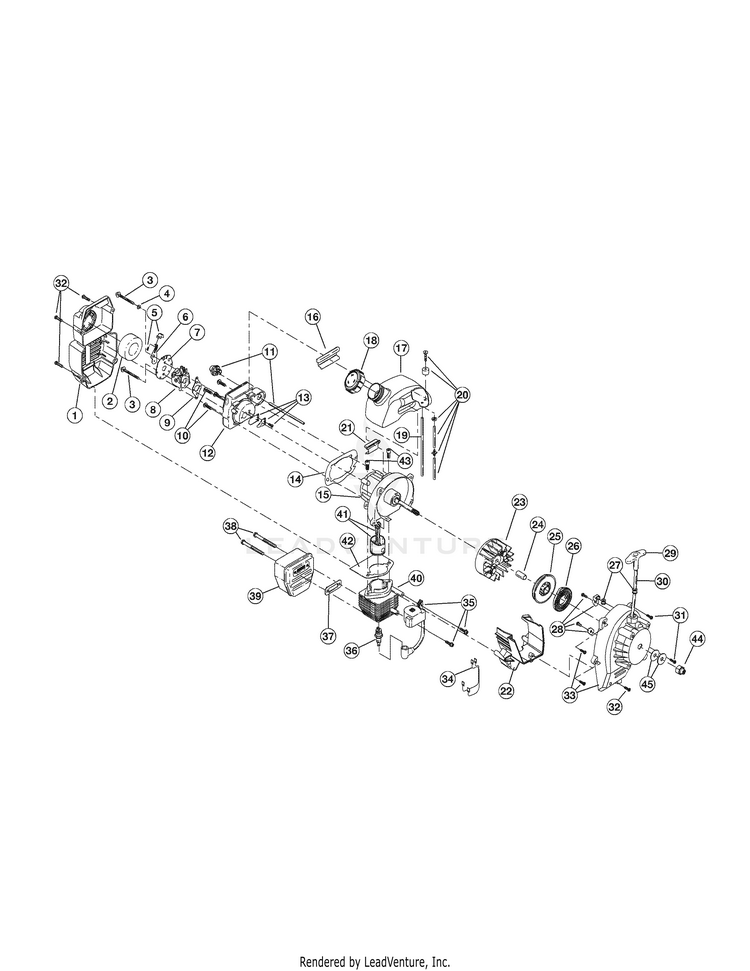

Schematic Image Zoomed
