McCulloch MB320BV 41AS320G977 Gas Blower

McCulloch MB320BV 41AS320G977 Gas Blower

Model: MB320BV 41AS320G977 41AS320G977 MB320BV

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Switch, Momentary On/O MTD-791-182405

Screw, MTD-791-181345

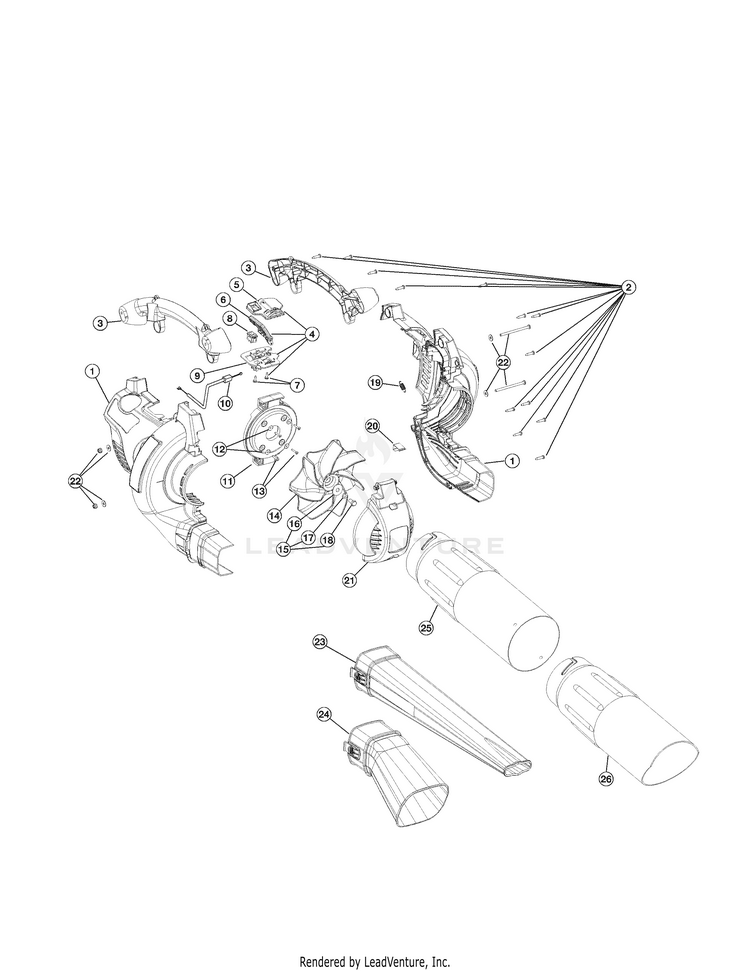

Housing Parts

1

COVER ASSEMBLY MTD-753-05055

2

Screw MTD-791-181345

3

BLOWER HANDLE ASSEMBLY MTD-753-05047

4

LEVER ASSEMBLY MTD-791-00047

5

LEVER ASSEMBLY:THRO MTD-791-182420

6

Throttle Control Lever MTD-791-00048

7

SCREW, 6X.375X1/2 PL MTD-791-182423

8

Rocker Switch Assm MTD-791-182405

9

LEVER ASSEMBLY:THRO MTD-791-182422

10

THROTTLE CABLE MTD-791-00049

11

ADAPTER-ENG MOUNT MTD-753-04483

12

Washer MTD-791-182409

13

SCREW, 10-9X1.00 PH MTD-791-181903

14

Impeller Blade MTD-731-04275

15

HDWE-IMPELLER MTD-753-04482

16

Washer MTD-736-04107

17

Lock Washer MTD-736-04110A

18

Bolt MTD-791-182414

19

SPRING-DOOR MTD-753-04456

20

DOOR LOCK CLIP MTD-732-04092A

21

DOOR-VAC MTD-753-04454

22

MOUNTING PLATE HARDWARE MTD-791-182424

23

TUBE, BLOWER (HIGH MTD-791-182647

24

Vacuum Bag Adaptor MTD-791-182477

25

TUBE, UPPER VACUUM (ELEC BLWR- MTD-791-180466

26

Lower Vacuum Tube MTD-791-180467

xx

CLAMP, BAG NYLON MTD-791-612930

xx

BAG ASSEMBLY-VAC W/BAG & CABLE TIE MTD-753-04458

xx

Shoulder Strap (NOT SHOWN) MTD-791-682075B
