McCulloch MB290 41AR290G777 Gas Blower

Model: MB290 41AR290G777 41AR290G777 MB290

Save Part Not Listed?
product name

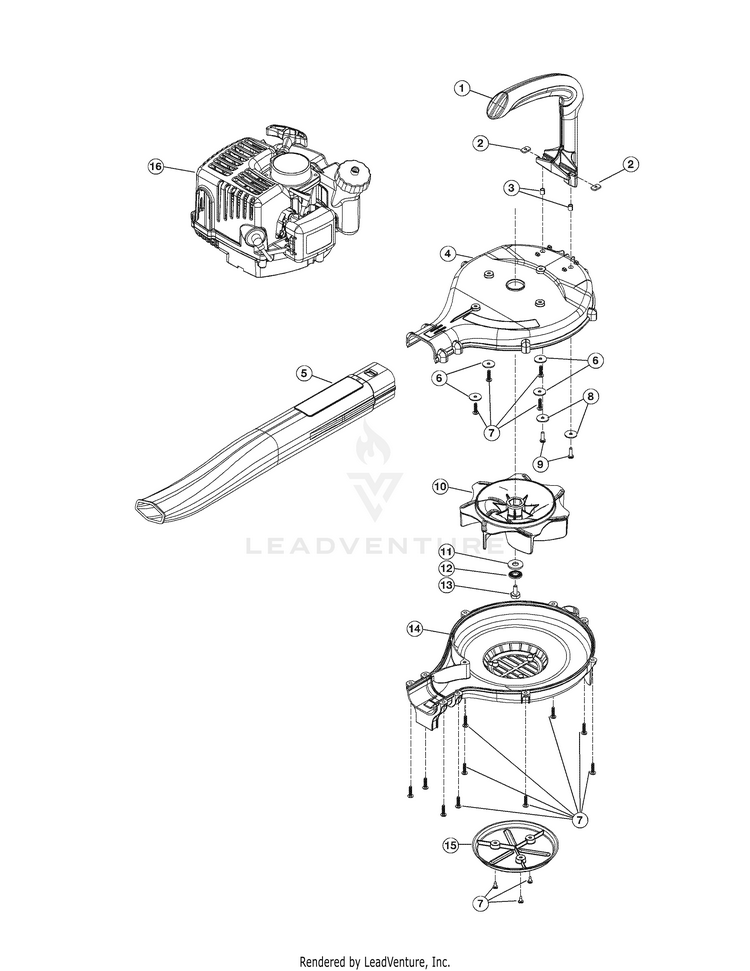

Engine and Housing Parts

...
...
1
BLOWER HANDLE MTD-731-04452
...
2
WELDNUT:RN1510 #10 MTD-753-04186
...
3
SPACER-SPLIT MTD-797-00015
...
4
UPPER IMPELLER HOUSING MTD-753-04593
...
5
BLOWER TUBE MTD-731-04444
...
6
Washer MTD-791-182409
...
7
Screw MTD-710-04194
...
8
WASH, BLAC MTD-791-181904
...
9
ASSEMBLY, COUPLING BOLT MTD-791-683606
...
10
Impeller Blade MTD-731-04275
...
11
FLAT WASHER 1.0 OD:.331 ID MTD-736-04117
...
12
LOCK WASHER MTD-736-04118
...
13
BOLT 8 x 1-16MM MTD-710-04218
...
14
HOUSING-LOWER I MTD-753-04600
...
15
INTAKE DEFLECTOR MTD-753-04601
...
16
Engine Assembly MTD-753-05005
...
xx
Fuel Tank Cap MTD-791-182612
...
xx
Air Cleaner Filter (NOT SHOWN) MTD-791-181757
...
xx
Spark Plug MTD-791-610311B
