McCulloch MAC320B 41BS321G077 Gas Blower

Model: MAC320B 41BS321G077 41BS321G077 MAC320B

Save Part Not Listed?
product name

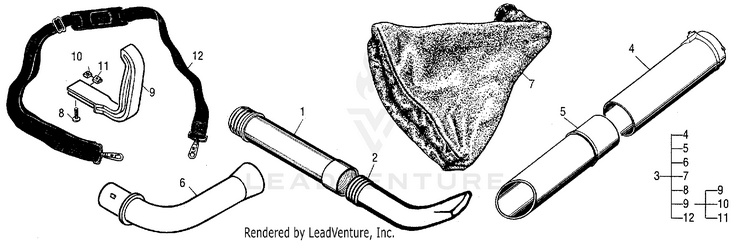

Accessories

...
...
1
BLOWER TUBE MTD-MC-219173-02
...
2
NOZZLE:FIS MTD-MC-324054-00
...
3
Kit, Vacuum MAC 320B optional accessory, MAC 320BV, SE 32OBV accessory MTD-MC-302433-00
...
4
TUBE - SUC MTD-MC-223798-00
...
5
TUBE - OUT MTD-MC-223799-00
...
6
TUBE:BLOWE MTD-MC-322423-00
...
7
BAG ASSEMBLY-BLOWER MTD-MC-9279-320101
...
8
Screw, 10-24 x .62 Tr HD Torx MTD-MC-219881-00
...
9
KIT-SIDE H MTD-MC-224708-00
...
10
NUT MTD-MC-218005-00
...
11
NUT - RETAINER MTD-MC-9014-310001
...
12
HARNESS MTD-MC-218666-00

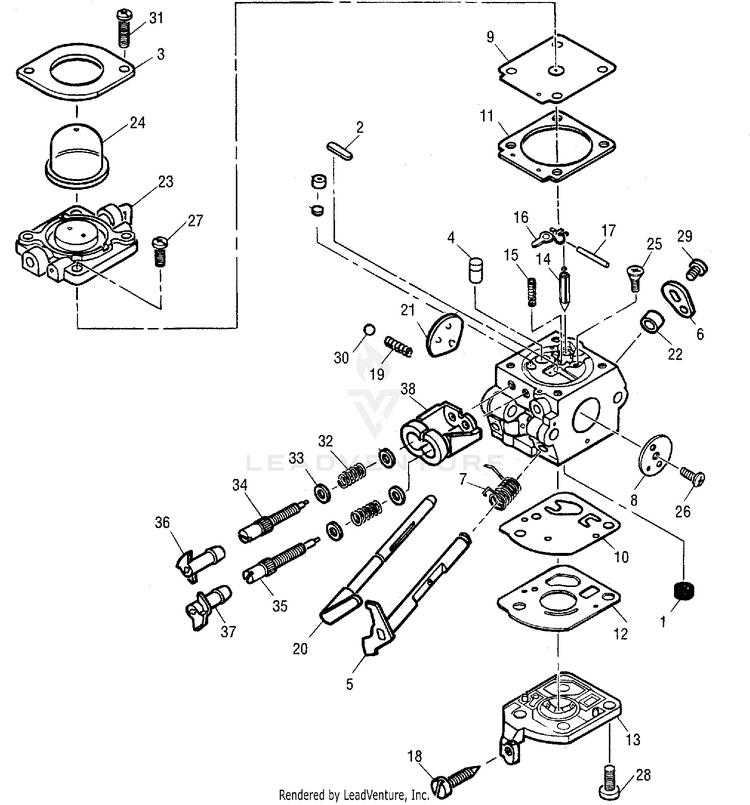

Carburetor Assembly

...
...
xx
CARBURETOR MTD-MC-322410-01
...
1
Strainer 224711 - Kit, Major Repair (RB-29) MTD-NA
...
2
Plug, Welch 224711 - Kit, Major Repair (RB-29) MTD-NA
...
3
Retainer, Prime MTD-NA
...
4
Nozzle Asy, Check Valve MTD-NA
...
5
Shaft Asy, Throttle MTD-NA
...
6
Lever, Throttle MTD-NA
...
7
Spring, Throttle Return MTD-NA
...
8
Valve, Throttle MTD-NA
...
9
Diaphragm Asy, Metering 224711 - Kit, Major Repair (RB-29) & 300472 - Kit, Gasket/Diaphragm (GND-12) MTD-NA
...
10
Diaphragm, Pump 224711 - Kit, Major Repair (RB-29) & 300472 - Kit, Gasket/Diaphragm (GND-12) MTD-NA
...
11
Gasket, Metering Chamber 224711 - Kit, Major Repair (RB-29) & 300472 - Kit, Gasket/Diaphragm (GND-12) MTD-NA
...
12
Gasket, Pump 224711 - Kit, Major Repair (RB-29) & 300472 - Kit, Gasket/Diaphragm (GND-12) MTD-NA
...
13
Cover, Pump MTD-NA
...
14
Valve, Inlet Needle 224711 - Kit, Major Repair (RB-29) MTD-NA
...
15
Spring, Metering Lever 224711 - Kit, Major Repair (RB-29) MTD-NA
...
16
Lever, Metering 224711 - Kit, Major Repair (RB-29) MTD-NA
...
17
Pin 224711 - Kit, Major Repair (RB-29) MTD-NA
...
18
Screw, Throttle Adjust MTD-NA
...
19
Spring, Friction MTD-NA
...
20
Shaft Asy, Choke MTD-NA
...
21
Valve, Choke MTD-NA
...
22
Collar MTD-NA
...
23
Base Asy, Primer MTD-NA
...
24A
PRIMER BULB MTD-MC-223756-00
...
25
Screw, Pin MTD-NA
...
26
Screw, Throttle Valve MTD-NA
...
27
Screw, Metering Cover MTD-NA
...
28
Screw, Pump Cover MTD-NA
...
29
Screw, Throttle Lever MTD-NA
...
30
Ball, Steel MTD-NA
...
31
Screw, Retainer MTD-NA
...
32
Spring, Adjust Screw MTD-NA
...
33
Washer, Limiter MTD-NA
...
34
Screw, Hi Speed MTD-NA
...
35
Screw, Low Speed MTD-NA
...
36
Limiter Cap, High MTD-NA
...
37
Limiter Cap, Low MTD-NA
...
38
Retainer, Limiter MTD-NA

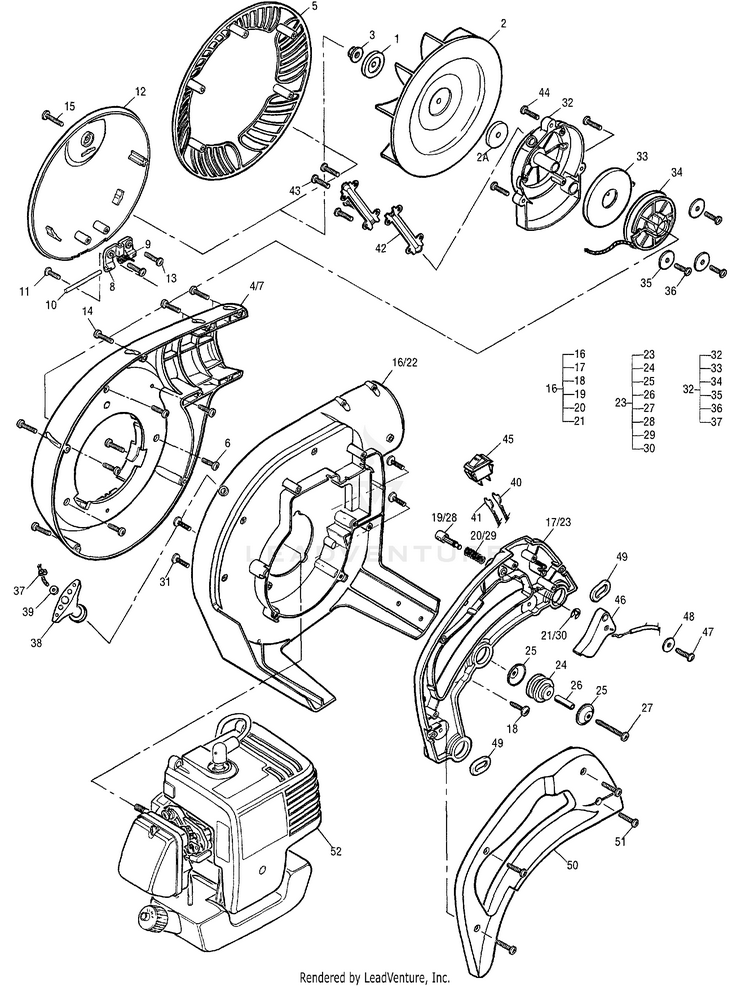

General Assembly

...
...
1
DISC-DRIVE MTD-MC-218655-00
...
2
KIT, IMPELLAR, BLOWER MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV MTD-MC-540002-00
...
2A
DISK-FIXED MTD-MC-9122-320001
...
3
NUT MTD-MC-110961-00
...
4
HOUSING-OU MAC 2808 only MTD-MC-322402-60
...
4
Outer Housing (Grey) SE 320B MTD-MC-322402-63
...
5
COVER-IMPE MAC 2808 only MTD-MC-323780-60
...
5
Cover, Impellar (Grey) SE 320B MTD-MC-323780-63
...
6
SCREW 8/16-0.75 MAC 2808 & SE 320B MTD-710-04232
...
7
HOUSING-OU MB3200, MAC 320B, MB3201 & MAC 32OBV only MTD-MC-323781-60
...
7
Outer Housing, Blo/Vac (Grey) SE 320BV MTD-MC-323781-63
...
8
HINGE MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV MTD-MC-322411-00
...
9
SPRING-TOR MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV MTD-MC-322438-00
...
10
PIN-COVER MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV MTD-MC-218538-00
...
11
SCREW MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV MTD-MC-111055-00
...
12
COVER-FAN MB3200, MAC 320B, MB3201 & MAC 32OBV only MTD-MC-322401-60
...
12
Cover, Fan (Grey) SE 320BV MTD-MC-322401-63
...
13
SCREW 8/16-0.75 MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV MTD-710-04232
...
14
SCREW 8/16-0.75 MTD-710-04232
...
15
SCREW, 10-24 x .875 TAPTITE MTD-MC-111203-00
...
16
HANDLE-LEF MAC 2808 & SE 320B MTD-MC-224709-00
...
17
HANDLE-LEFT MTD-MC-322406-61
...
18
SCREW 10/14-0.75 MTD-710-04544
...
19
LOCK-THROT MTD-MC-322408-00
...
20
Spring, Compression MTD-MC-322430-00
...
21
RING-RETAI MTD-MC-111195-00
...
22
HOUSING ASSEMBLY-IN MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV MTD-MC-302060-00
...
23
HANDLE-LEF MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV MTD-MC-322412-61
...
24
ISOLATOR-R MTD-MC-322399-00
...
25
Washer, Isolator MTD-MC-322398-90
...
26
SPACER MTD-MC-9124-310101
...
27
SCREW 10-24-1.75 MTD-710-04552
...
28
LOCK-THROT MTD-MC-322408-00
...
29
Spring, Compression MTD-MC-322430-00
...
30
RING-RETAI MTD-MC-111195-00
...
31
SCREW 10/24-0.63 MTD-710-04287
...
32
KIT-START HOUSING MTD-MC-224710-00
...
33
SPRING ASY, PACKAGE MTD-MC-300475-00
...
34
DRUM ROPE MTD-MC-300872-00
...
35
WASHER MTD-MC-322176-00
...
36
SCREW 8/16-0.75 MTD-710-04232
...
37
ROPE-START MTD-MC-323131-00
...
38
HANDLE-STARTER MTD-MC-216792-00
...
39
WASHER-NYL MTD-MC-218941-00
...
40
WIRE ASSEMBLY-G MTD-MC-302057-00
...
41
WIRE ASSEMBLY-S MTD-MC-302058-00
...
42
COVER-ROPE MTD-MC-322435-00
...
43
SCREW 8/16-0.75 MTD-710-04232
...
44
SCREW 8/16-0.75 MTD-710-04232
...
45
SWITCH MTD-MC-223241-00
...
46
TRIGGER-TH MTD-MC-322407-00
...
47
SCREW 8/16-0.75 MTD-710-04232
...
48
WASHER MTD-MC-300297-00
...
49
LINK-HARNE MTD-MC-218667-00
...
50
HANDLE MTD-MC-322405-61
...
51
SCREW 8/16-0.75 MTD-710-04232
...
52
Powerhead Asy See "Powerhead Assembly" MTD-NA

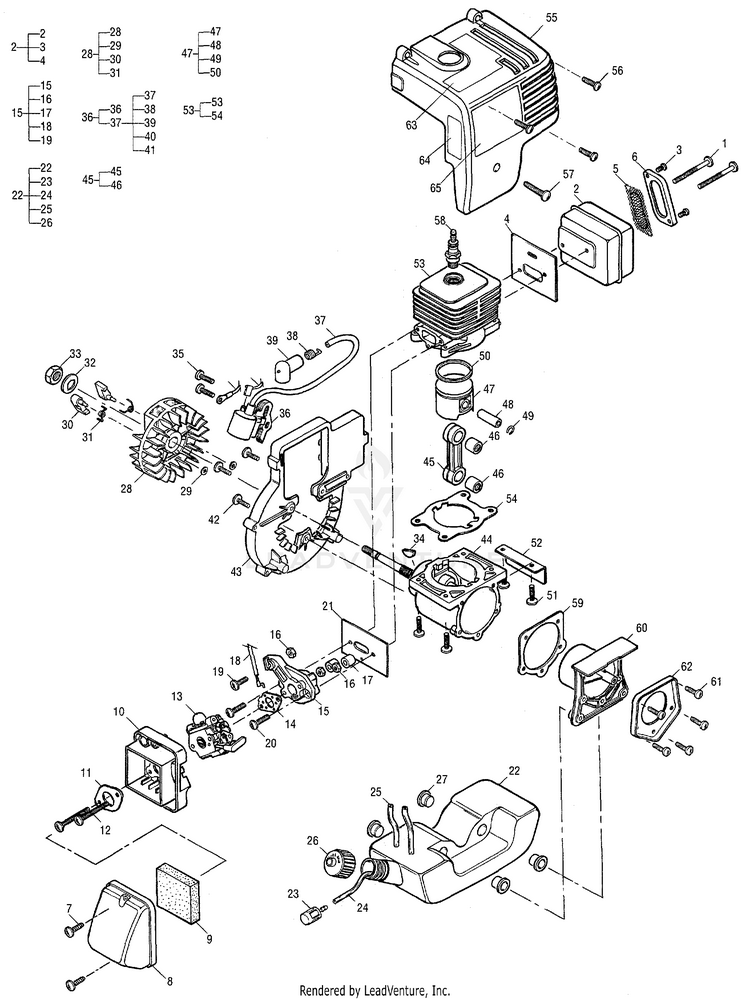

Powerhead Assembly

...
...
1
SCREW MTD-MC-111159-00
...
2
KIT-MUFFLER MTD-MC-224707-00
...
3
Screw MTD-NA
...
4
PLATE-MUFF MTD-MC-322420-01
...
5
SCREEN-SPARK ARRES MTD-MC-322413-00
...
6
COVER-SPARK ARREST MTD-MC-322414-90
...
7
SCREW 8/16-0.75 MTD-710-04232
...
8
COVER-AIR BOX MTD-MC-9017-320004
...
9
FILTER, AIR MTD-MC-224239-00
...
10
BOX-AIR FI MTD-MC-322436-61
...
11
PLATE-AIR MTD-MC-322425-90
...
12
SCREW 10/24-2 MTD-710-04553
...
13
Carburetor Assembly See "Carburetor Assembly" MTD-NA
...
14
CARBURETOR GASKET MTD-MC-9014-320004
...
15
MANIFOLD-C MTD-MC-322434-00
...
16
NUT MTD-MC-218315-00
...
17
SPACER MTD-MC-322188-00
...
18
CABLE, THROTTLE MTD-MC-322409-00
...
19
Screw, 10-24 x .62 Tr Hd Torx MTD-MC-219881-00
...
20
SCREW, 10-24 x .875 TAPTITE MTD-MC-111203-00
...
21
GASKET-MANIFOLD MTD-MC-9014-320003
...
22
FUEL TANK ASY MTD-MC-302349-00
...
23
Filter, Fuel MTD-MC-93720-00
...
24
HOSE, FUEL MTD-MC-225162-00
...
25
HOSE MTD-MC-225163-00
...
26
FUEL CAP MTD-MC-223508-00
...
27
ISOLATOR-F MTD-MC-322105-00
...
28
FLYWHEEL ASSEMBLY MTD-MC-301352-01
...
29
Pawl Kit MTD-MC-550001
...
29
Retainer Ring MTD-NA
...
30
Pawl, Starter MTD-NA
...
31
MC-550001- MTD-MC-322835-00
...
32
WASHER-SPR MTD-MC-111205-00
...
33
NUT MTD-MC-111085-00
...
34
KEY, FLYWHEEL MTD-MC-102164-00
...
35
SCREW, 10-24 x .875 TAPTITE MTD-MC-111203-00
...
36
COIL-IGNIT MTD-MC-302138-00
...
37
COIL-IGNIT MTD-MC-223884-00
...
38
Connector, Spark MTD-MC-102556-00
...
39
Boot, Spark Plug MTD-MC-95266-00
...
40
GROMMET Not shown -- Not used on these models MTD-MC-9012-330301
...
41
Grommet, S/Plug Wire Not shown -- Not used on these models MTD-MC-110995-00
...
42
SCREW 10/24-0.63 MTD-710-04287
...
43
SHROUD-ENG MTD-MC-322396-00
...
44
SHORT BLOCK MTD-MC-9228-320003
...
xx
C'case Asy MTD-NA
...
xx
C'case, Machined MTD-NA
...
xx
Bearing 6202 MTD-NA
...
xx
Bearing 6202RS MTD-NA
...
xx
Seal MTD-NA
...
xx
Spacer MTD-NA
...
xx
O-ring MTD-NA
...
45
Connecting Rod Asy MTD-NA
...
46
Bearing MTD-NA
...
47
Kit, Piston, 28cc MAC 280B only MTD-NA
...
48
Piston Pin, C'shaft (10mm dia) MAC 280B only MTD-NA
...
49
Ring, Retaining MAC 280B only MTD-NA
...
50
Ring, Piston, 35mm MAC 280B only MTD-NA
...
47
Kit, Piston, 32cc MAC 320B, MAC 320BV, SE 320B & SE 320BV MTD-NA
...
48
Piston Pin, C'shaft (10mm dia) MAC 320B, MAC 320BV, SE 320B & SE 320BV MTD-NA
...
49
Ring, Retaining MAC 320B, MAC 320BV, SE 320B & SE 320BV MTD-NA
...
50
Ring, Piston MAC 320B, MAC 320BV, SE 320B & SE 320BV MTD-NA
...
51
SCREW 10/24-.688 MTD-710-04536
...
52
SHIELD-MUF MTD-MC-322426-90
...
53
Kit, Cylinder/Gasket, 28cc MAC 280B only MTD-NA
...
53
Kit, Cylinder/Gasket, 32cc MAC 320B, MAC 320BV, SE 320B & SE 320BV MTD-NA
...
54
CYLINDER HEAD GASKET MAC 320B, MAC 320BV, SE 320B & SE 320BV MTD-MC-9014-320001
...
55
COVER-CYLI MTD-MC-322432-61
...
56
SCREW 8/16-0.75 MTD-710-04232
...
57
SCREW 10/14-0.75 MTD-710-04544
...
58
SPARK PLU MTD-MC-92879-00
...
59
GASKET MTD-MC-9014-320002
...
60
PLUG, C'CASE MTD-MC-224024-01
...
61
SCREW 10/24-.688 MTD-710-04536
...
62
PLATE MTD-MC-322437-90
...
63
Starting Instr, Eng/Fr MTD-MC-46761-15-00
...
63
Starting Instr, Eng/Sp MTD-MC-46761-36-00
...
64
Choke Label MTD-MC-46760-69-00
...
65
Decal, Warning, Tri MTD-MC-46761-16-00

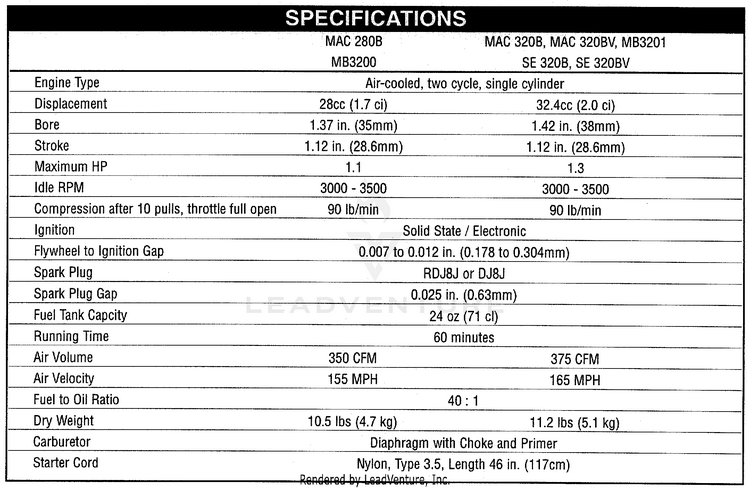

Specifications

...

No Parts Available for this Schematic

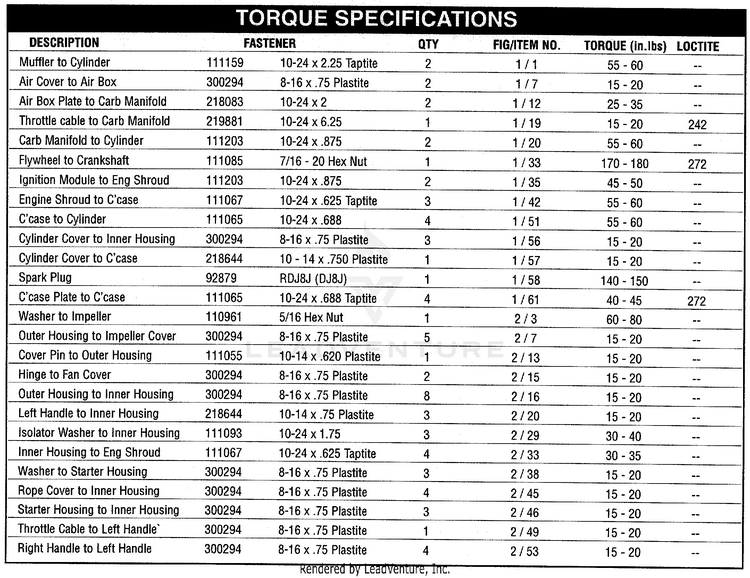

Torque Specifications

...

No Parts Available for this Schematic
