product name

Maytag YMMV4207JZ00

Model: YMMV4207JZ00

Save Part Not Listed?
product name

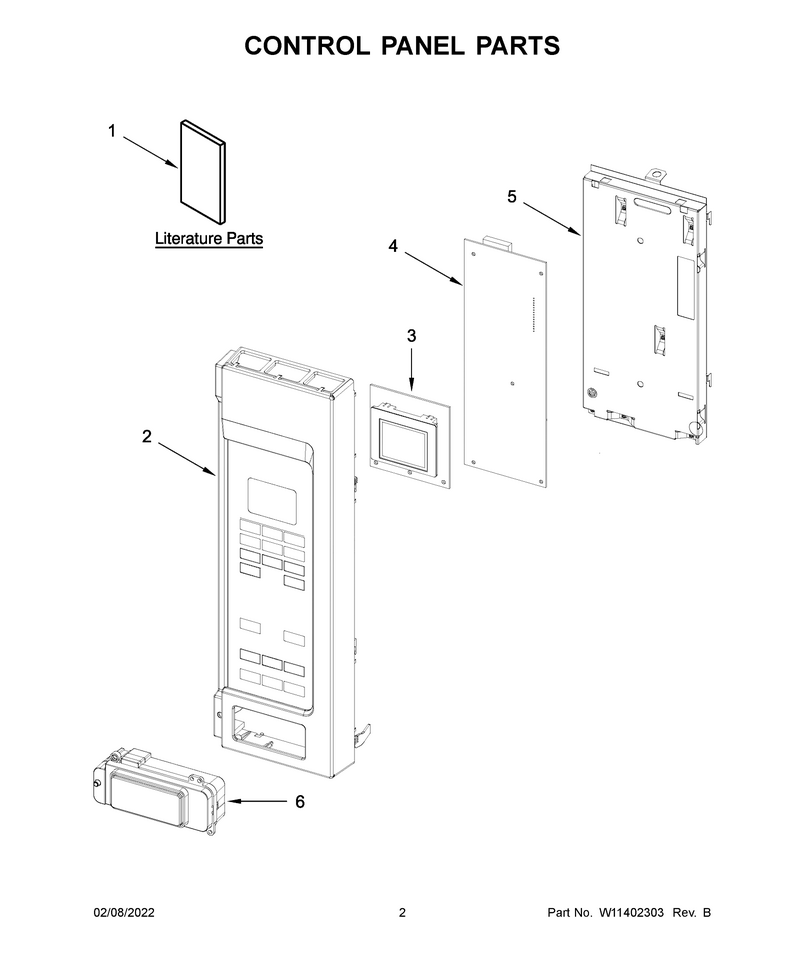

02 - Control Panel Parts

...
...
1
Installation Instructions WPL-W11199603
...
1B
Tech Sheet WPL-W11297783
...
1A
Use And Care Guide WPL-W11297793
...
2
Assembly, Control Panel (White) WPL-W11386307
...
2C
Assembly, Control Panel (Cast Iron Black) WPL-W11386250
...
2A
Assembly, Control Panel (Black) WPL-W11386294
...
2B
Assembly, Control Panel (Stainless) WPL-W11386249
...
3
Cntrl-Elec WPL-W11391719
...
4
Cntrl-Elec WPL-W11482053
...
5
Backer, Control WPL-W11292180
...
6C
Assembly, Push Button (Cast Iron Black) WPL-W11386319
...
6B
Assembly, Push Button (Stainless) WPL-W11386323
...
6A
Assembly, Push Button (Black) WPL-W11386320
...
6
Assembly, Push Button (White) WPL-W11386322

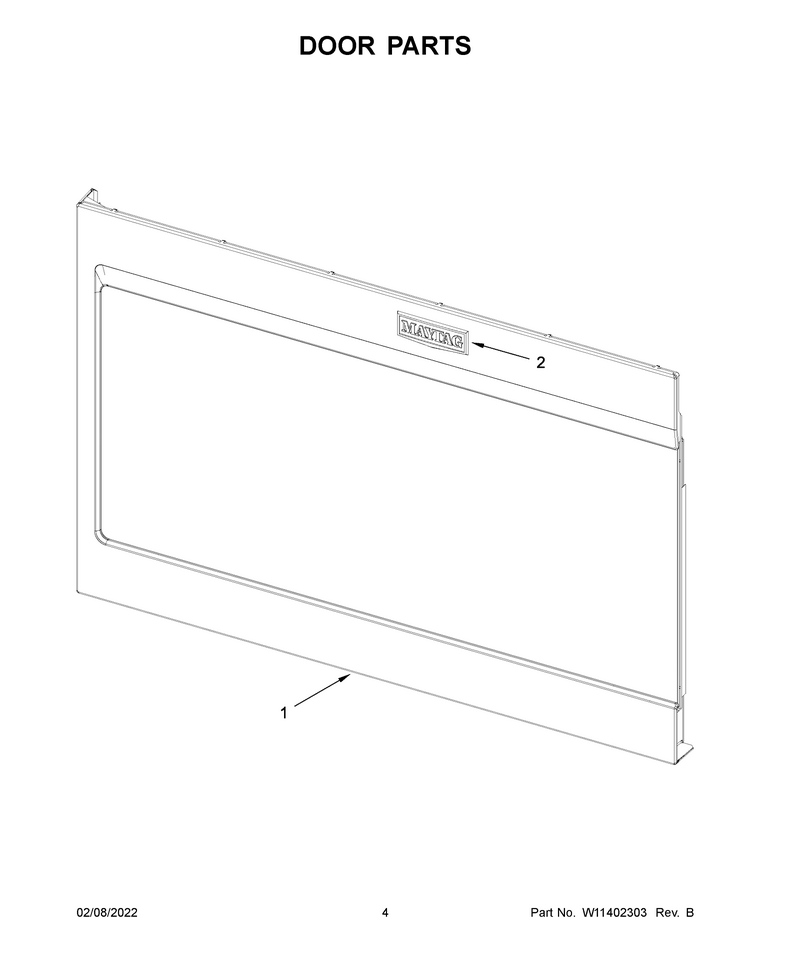

03 - Door Parts

...
...
1
Door, Complete (White) WPL-W11387162
...
1A
Door, Complete (Black) WPL-W11387165
...
1B
Door, Complete (Stainless) WPL-W11387160
...
1C
Door, Complete (Cast Iron Black) WPL-W11387167
...
2
Nameplate WPL-W11700249

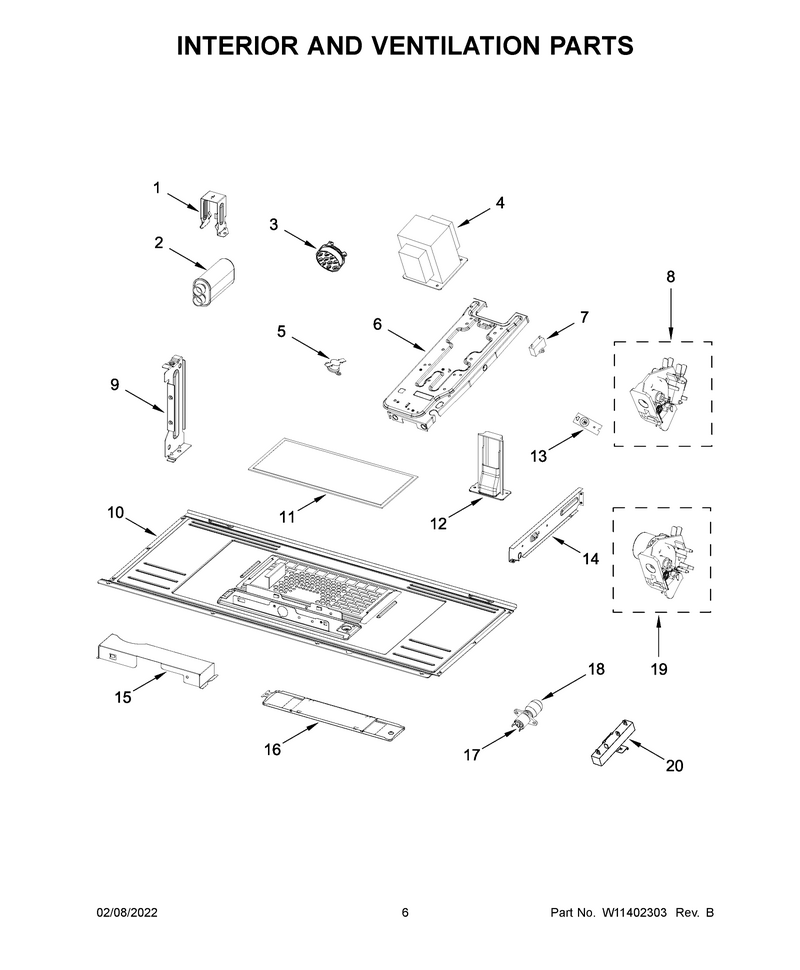

04 - Interior And Ventilation Parts

...
...
1
Bracket, Capacitor WPL-W11265233
...
2
Capacitor, High Voltage WPL-8206562
...
3
Sensor, Humidity WPL-W10557536
...
4
Transformer, High Voltage WPL-W11460699
...
5
Thermostat, Cavity WPL-W10668273
...
6
Plate, Chassis WPL-W11268348
...
7
Capacitor, Motor WPL-W11405831
...
8
Interlock WPL-W11182140
...
9
Bracket, Top Cavity WPL-W10313275
...
10
Panel, Bottom WPL-W11295401
...
11
Filter WPL-W11391715
...
12
Plate, Waterproof WPL-W11376573
...
13
Thermistor WPL-W10163422
...
14
Support, Ntc WPL-W11295335
...
15
Reflector, Lamp WPL-W11361503
...
16
Cover, Lamp WPL-W11295403
...
17
Holder, Lamp WPL-W10210871
...
18
Bulb-Light WPL-8206232A
...
19
Interlock WPL-W11182141
...
20
Resistor, Cement WPL-W11259892

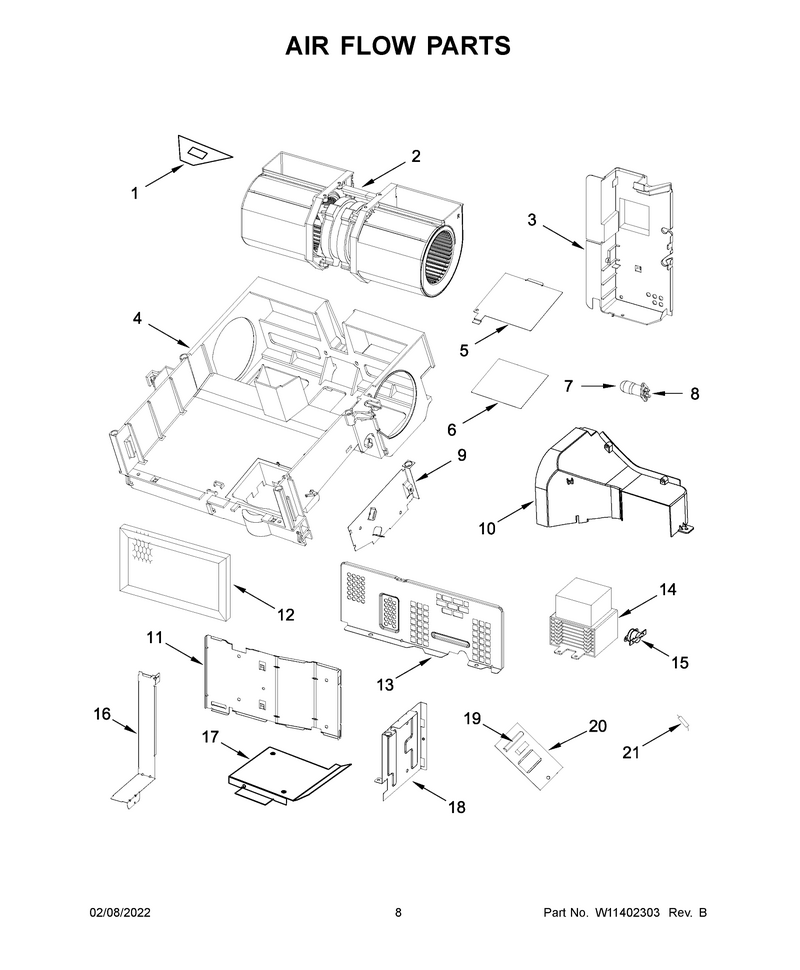

05 - Air Flow Parts

...
...
1
Socket, Motor Wire WPL-W10810142
...
2
Motor-Fan WPL-W11442100
...
3
Air Guide, Lower WPL-W11292618
...
4
Baseplate, Air Guide WPL-W11268295
...
5
Cover, Lamp WPL-8206382
...
6
Glass-Lamp WPL-W11391720
...
7
Bulb-Light WPL-8206232A
...
8
Housng-Lmp WPL-WPW10210878
...
9
Cover, Right Duct WPL-W11293488
...
10
Deflector, Air WPL-W11283720
...
11
Plate, Air Guide Sealing WPL-W11268306
...
12
Filter WPL-W10892387
...
13
Shield, Finger WPL-W10342991
...
14
Magnetron WPL-W11391717
...
15
Thrmst-Fix WPL-W11679669
...
16
Cover, Airguide Inlet WPL-W10828038
...
17
Support, Sensor WPL-W11314197
...
18
Guide, Air WPL-W11268304
...
19
Fuse-Thrml WPL-W11707984
...
20
Filter WPL-WPW10531156
...
21
Diode WPL-W11256462

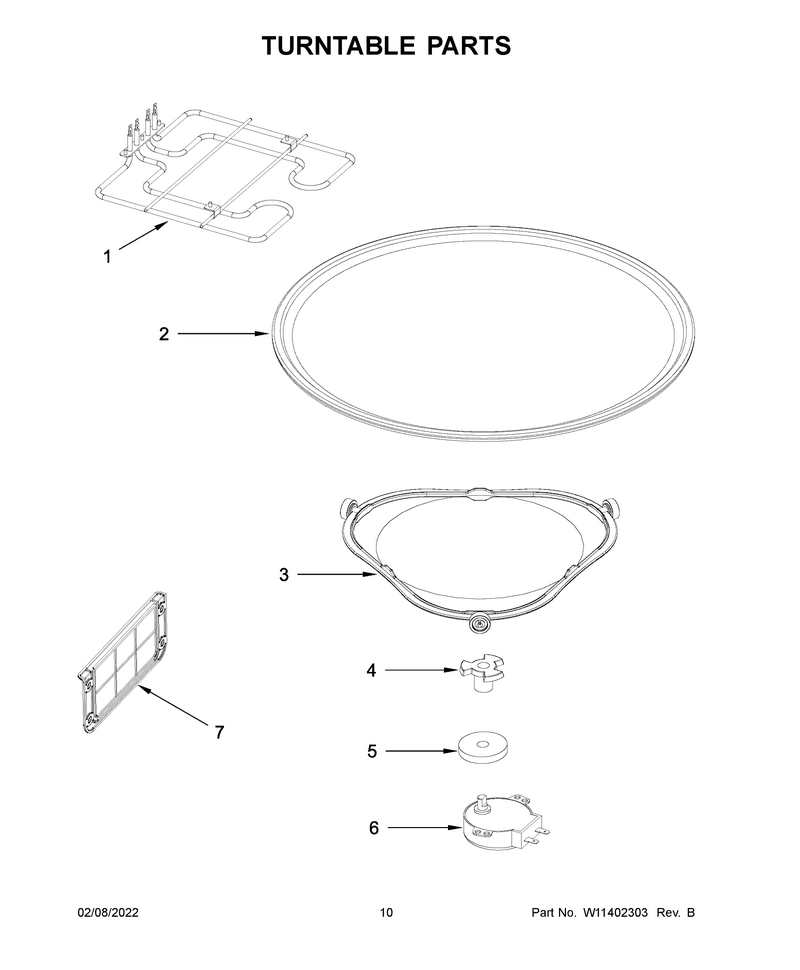

06 - Turntable Parts

...
...
1
Element, Grill WPL-W11268380
...
2
Tray-Cook WPL-W11367904
...
3
Ring-Turn WPL-W11252182
...
4
Driver, Turntable WPL-W11319884
...
5
Seal, Waterproof WPL-8184109
...
6
Motor, Turntable WPL-W10642989
...
7
Cover, Waveguide WPL-W11268343

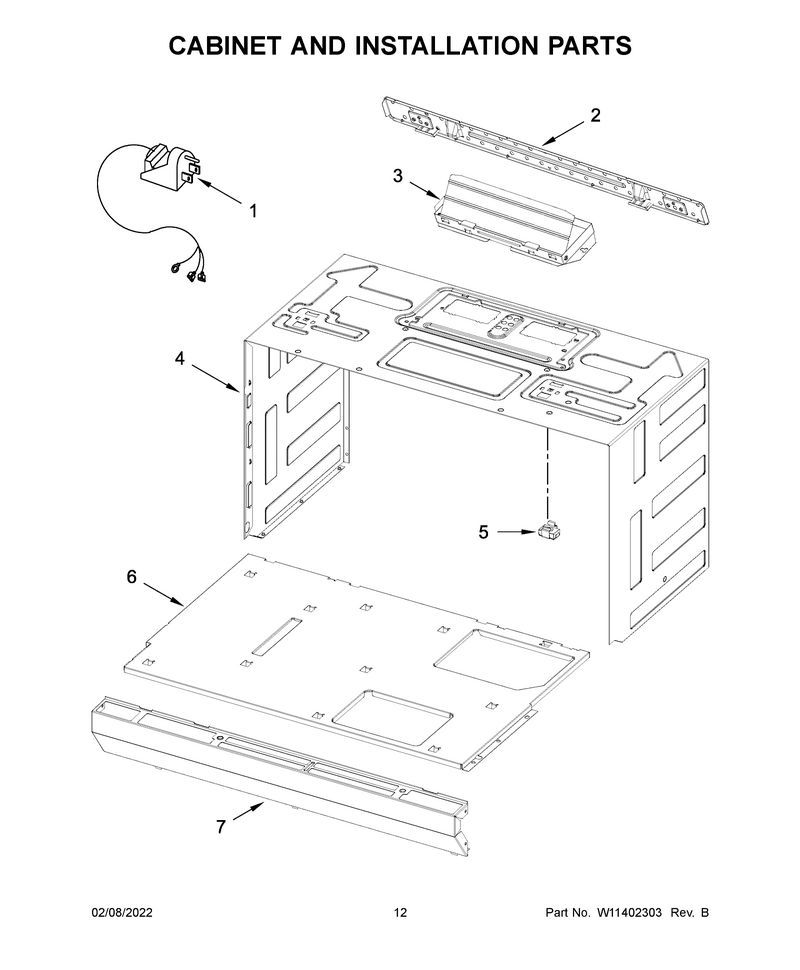

07 - Cabinet And Installation Parts

...
...
NI
Miscellaneous Parts, Harness, Magnetron To Hvt WPL-W11334600
...
1
Cord, Power WPL-W10708076
...
2
Plate, Mounting WPL-W11025649
...
3
Damper WPL-W10843943
...
4
Case, Outer (White) WPL-W11446917
...
4A
Case, Outer (Black) WPL-W11446916
...
5
Assembly, Mounting Nut WPL-W11122643
...
6
Assembly, Top Insulation WPL-W11268327
...
7
Grille, Vent (White) WPL-W10845642
...
7A
Grille, Vent (Black) WPL-W10845643
