Maytag YMER8800FW6

Model: YMER8800FW6

Save Part Not Listed?
product name

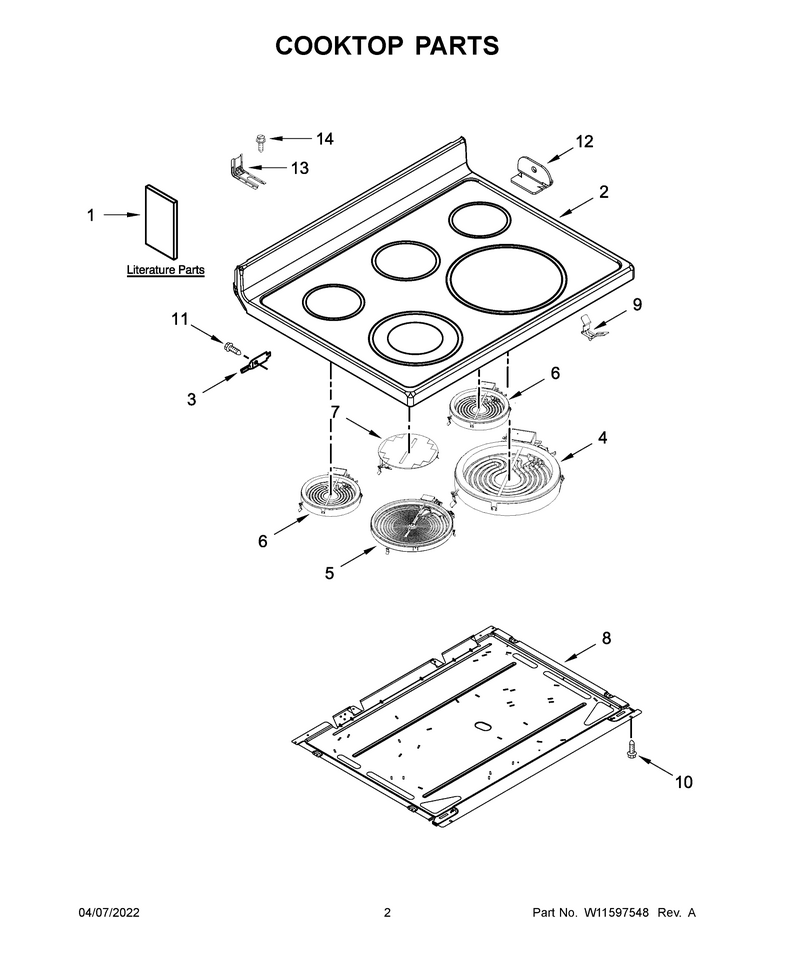

02 - Cooktop Parts

...
...
NI
Harness, Sensor WPL-W11212183
...
1
Owners Manual WPL-W11432242
...
1A
Quick Start Guide WPL-W11469630
...
2
Cooktop WPL-W10691697
...
3
Pin-Cooktp WPL-WP3195060
...
4
Elmnt-Surf WPL-WPW10251108
...
5
Elmnt-Surf WPL-WPW10535150
...
6
Elmnt-Surf WPL-W11171119
...
7
Elmnt-Surf WPL-W11041453
...
8
Pan WPL-W11244088
...
9
Spring WPL-WPW10225448
...
10
Screw WPL-WP3196557
...
11
Screw WPL-W11233072
...
12
Bracket, Cooktop (Left) WPL-W10607641
...
12A
Bracket, Cooktop (Right) WPL-W10607642
...
13
Anchor-Tip WPL-W11447673
...
14
Anchor-Tip WPL-WP7101P485-60

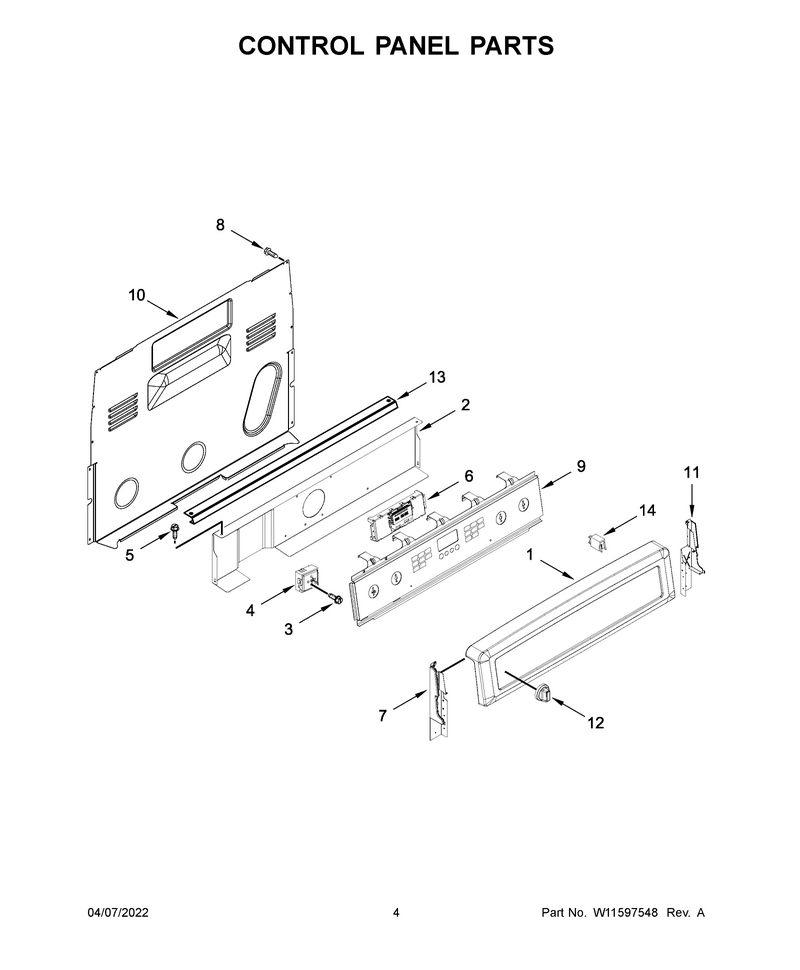

03 - Control Panel Parts

...
...
1
Console (White) WPL-W10645847
...
2
Shield, Heat WPL-W10134247
...
3
Screw WPL-WP3400882
...
4
Switch-Inf WPL-W10857622
...
4A
Switch-Inf WPL-W10911303
...
4B
Switch-Inf WPL-W10917724
...
5
Screw WPL-W11233072
...
6
Cntrl-Elec WPL-W11594263
...
7
Endcap-Pnl WPL-W11219365
...
8
Screw WPL-W11245710
...
9
Overlay, Active (White) WPL-W11456547
...
10
Cover-Rear WPL-WP8272473
...
11
Endcap-Pnl WPL-W11219370
...
12
Knob WPL-W11039092
...
13
Bracket, Console Mounting WPL-W10525121
...
14
Light-Ind WPL-WP8523265

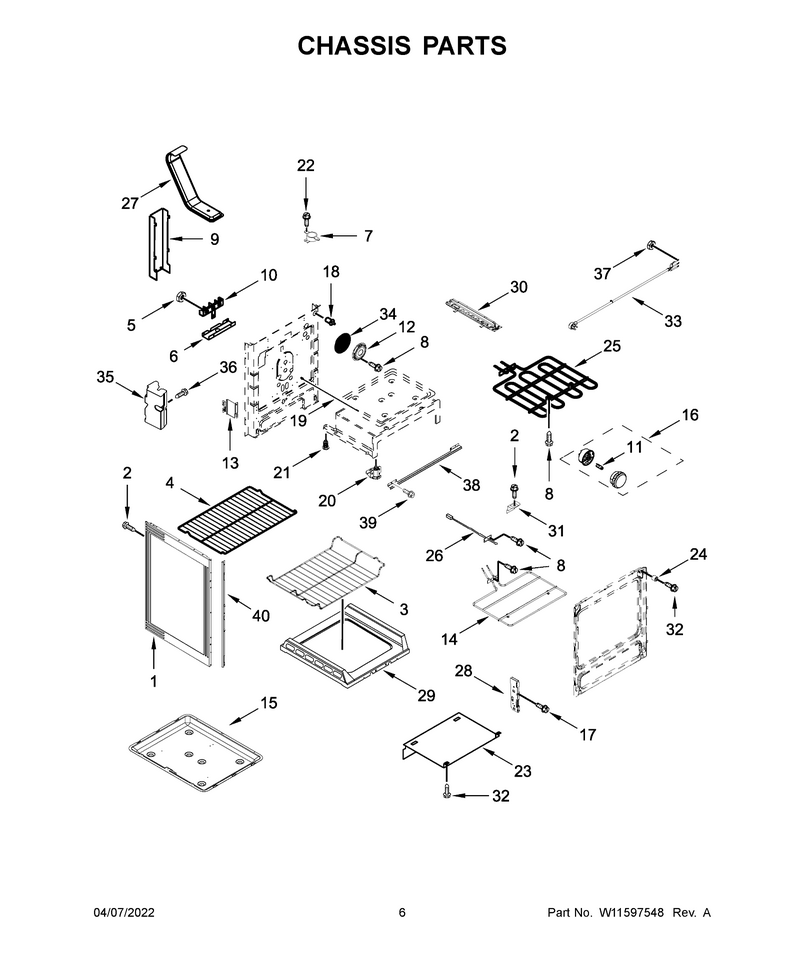

04 - Chassis Parts

...
...
NI
Insulation, Strap WPL-4820F015-59
...
1
Panel-Side WPL-WPW10575396
...
2
Screw WPL-W11233072
...
3
Rack-Oven WPL-WPW10289145
...
4
Rack-Oven WPL-WPW10531060
...
5
Nut WPL-WP3400029
...
6
Brkt-Srvce WPL-W11728255
...
7
Fuse-Thrml WPL-WP3196548
...
8
Screw WPL-W11233072
...
9
Cover-Blck WPL-WPW10326122
...
10
Block-Term WPL-WP8203546
...
11
Bulb-Light WPL-WPW10571723
...
12
Cover WPL-WPW10346154
...
13
Bracket, Oven Support WPL-W10273002
...
14
Elmnt-Bake WPL-W10779716
...
15
Bake Pan WPL-W11379357
...
16
Sockt-Lite WPL-W11594170
...
17
Screw WPL-W10777162
...
18
Swtch-Lite WPL-WP9757262
...
19
Rod, Door Switch WPL-W10273192
...
20
Foot-Level WPL-WPW10341186
...
21
Foot-Level WPL-WPW10058460
...
22
Screw WPL-3196172
...
23
Shield, Heat WPL-W10726740
...
24
Spacer WPL-W10877054
...
25
Elmnt-Brol WPL-W11321472
...
26
Sensor WPL-W10833885
...
27
Tube-Vent WPL-WPW10134285
...
28
Hinge-Recv WPL-W10647259
...
29
Bottm-Oven WPL-W10777210
...
30
Rail-Base WPL-WPW10306546
...
30A
Rail-Base WPL-WPW10306546
...
31
Support, Oven Bottom WPL-W10035900
...
32
Screw WPL-W10516115
...
33
Cord-Power WPL-W11226497
...
34
Fan-Convct WPL-W10903746
...
35
Anchor-Tip WPL-W11135752
...
36
Screw-Torx WPL-W11135756
...
37
Nut WPL-WP7103P027-60
...
38
Bracket, Front Frame WPL-W11464548
...
39
Screw WPL-W11169708
...
40
Rail-Mtg WPL-W11594227

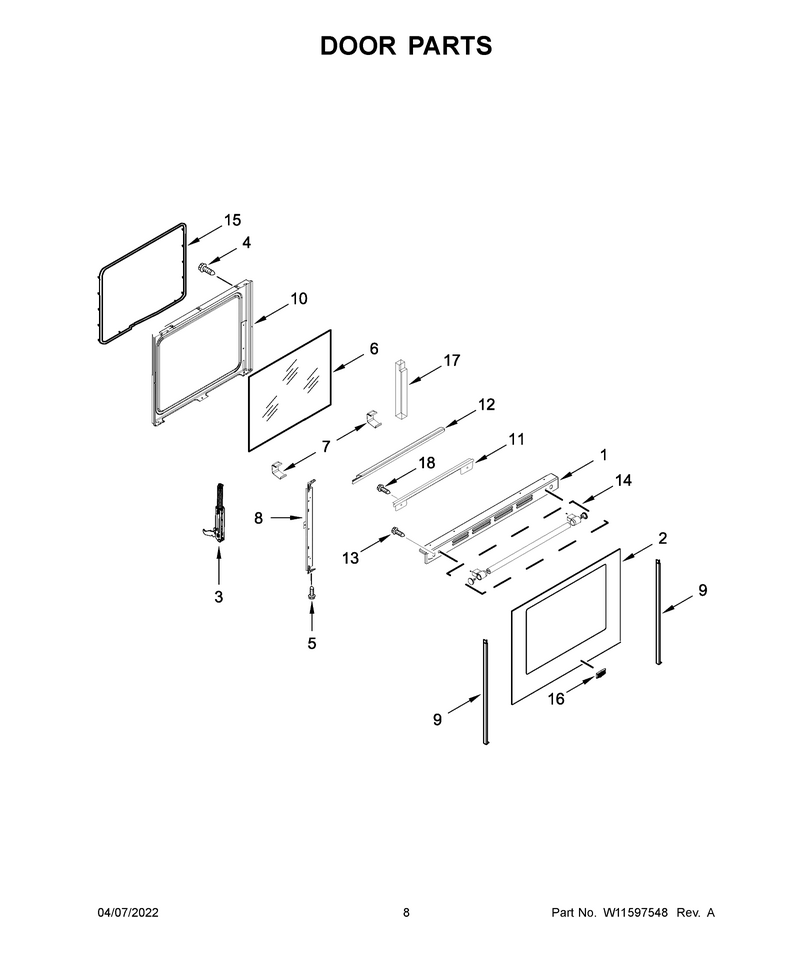

05 - Door Parts

...
...
1
Trim-Vent WPL-WPW10335331
...
2
Panel-Door WPL-WPW10495962
...
3
Hinge-Door WPL-WPW10440013
...
4
Screw WPL-WPW10031790
...
5
Screw WPL-W11233072
...
6
Glass-Door WPL-WPW10300487
...
7
Clip, Panel WPL-W10137382
...
8
Brkt-Suprt WPL-W11116956
...
9
Trim, Door Side (White) WPL-W10334003
...
10
Liner-Door WPL-WPW10297318
...
11
Brkt-Glass WPL-WPW10333990
...
12
Bracket, Glass Liner WPL-W10294853
...
13
Screw WPL-W10831019
...
14
Hndle-Door WPL-W10920643
...
15
Gaskt-Door WPL-W11562931
...
16
Nameplate WPL-WPW10612925
...
17
Insulation WPL-W11688565
...
18
Screw WPL-WP355214

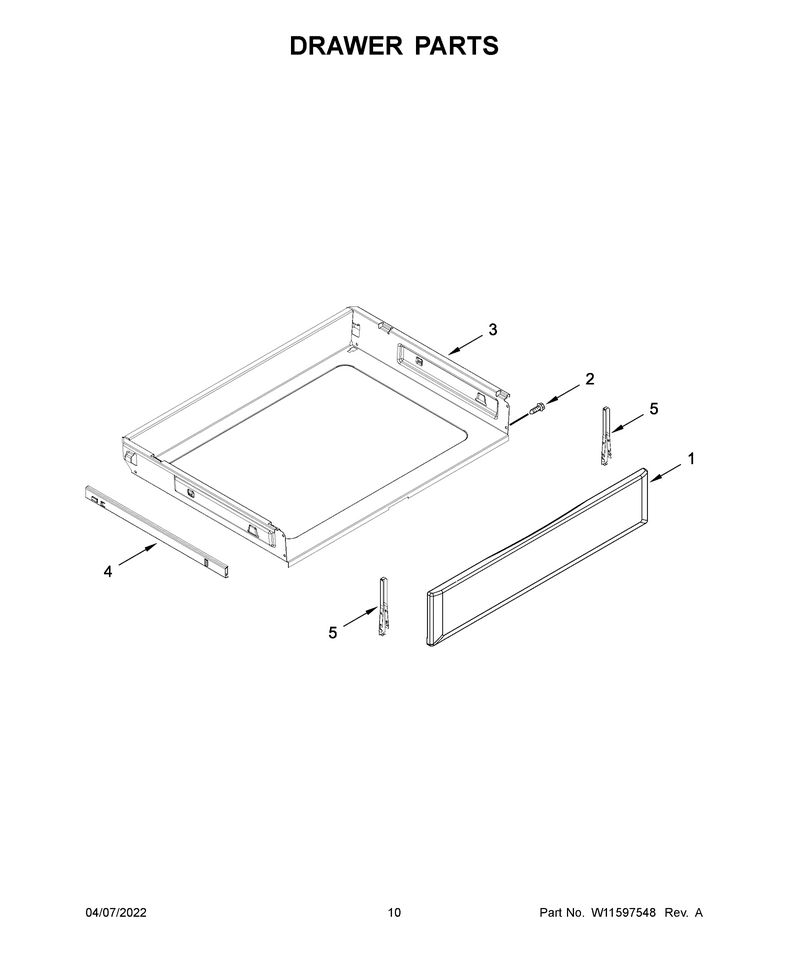

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11297552
...
2
Screw WPL-WP3196557
...
3
Drawr-Util WPL-W10813962
...
4
Slide-Drwr WPL-WPW10441804
...
4A
Slide-Drwr WPL-WPW10441805
...
5
Brkt-Mntg WPL-WPW10318027

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
