Maytag YMER6600FW3

Model: YMER6600FW3

Save Part Not Listed?
product name

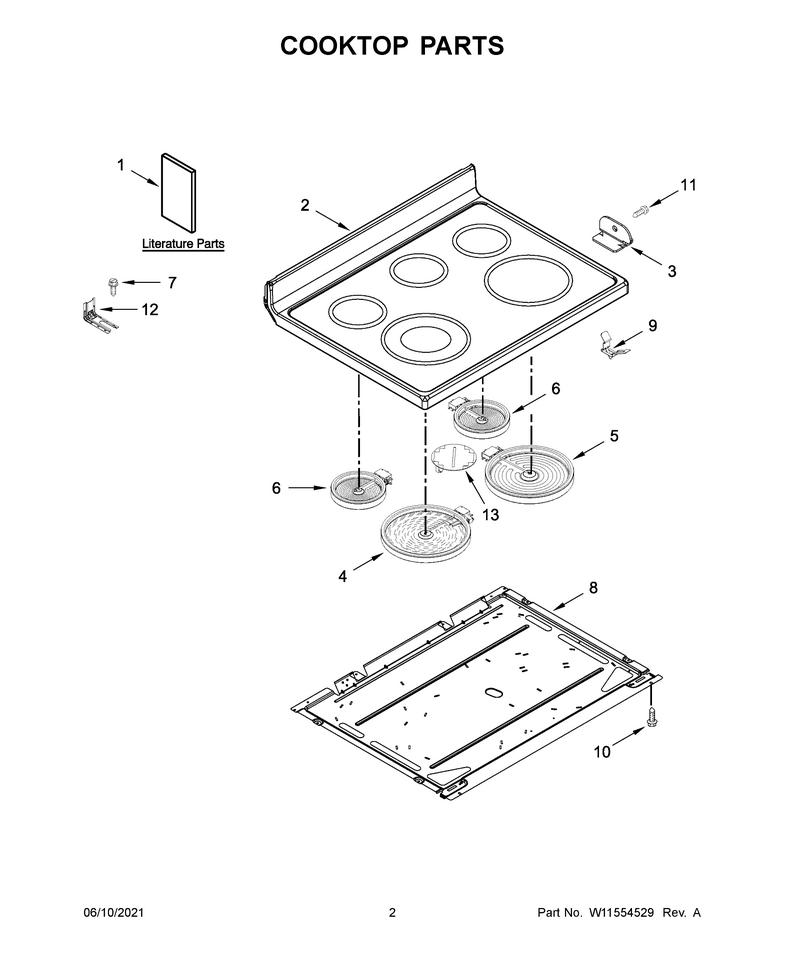

02 - Cooktop Parts

...
...
NI
Connector WPL-WPW10281322
...
1
Use And Care Guide (English) WPL-W11037227
...
1A
Use And Care Guide (French) WPL-W11037228
...
1B
Installation Instructions WPL-W10877842
...
1C
Tech Sheet WPL-W11326824
...
2
Cooktop WPL-W11091928
...
3
Bracket, Cooktop (Left) WPL-W10607641
...
3A
Bracket, Cooktop (Right) WPL-W10607642
...
4
Elmnt-Surf WPL-W11517959
...
5
Elmnt-Surf WPL-W11047722
...
6
Elmnt-Surf WPL-W11171119
...
7
Anchor-Tip WPL-WP7101P485-60
...
8
Pan WPL-W11244088
...
9
Spring WPL-WPW10225448
...
10
Screw WPL-WP3196175
...
11
Screw WPL-W11233072
...
12
Anchor-Tip WPL-W11447673
...
13
Elmnt-Surf WPL-W11041453

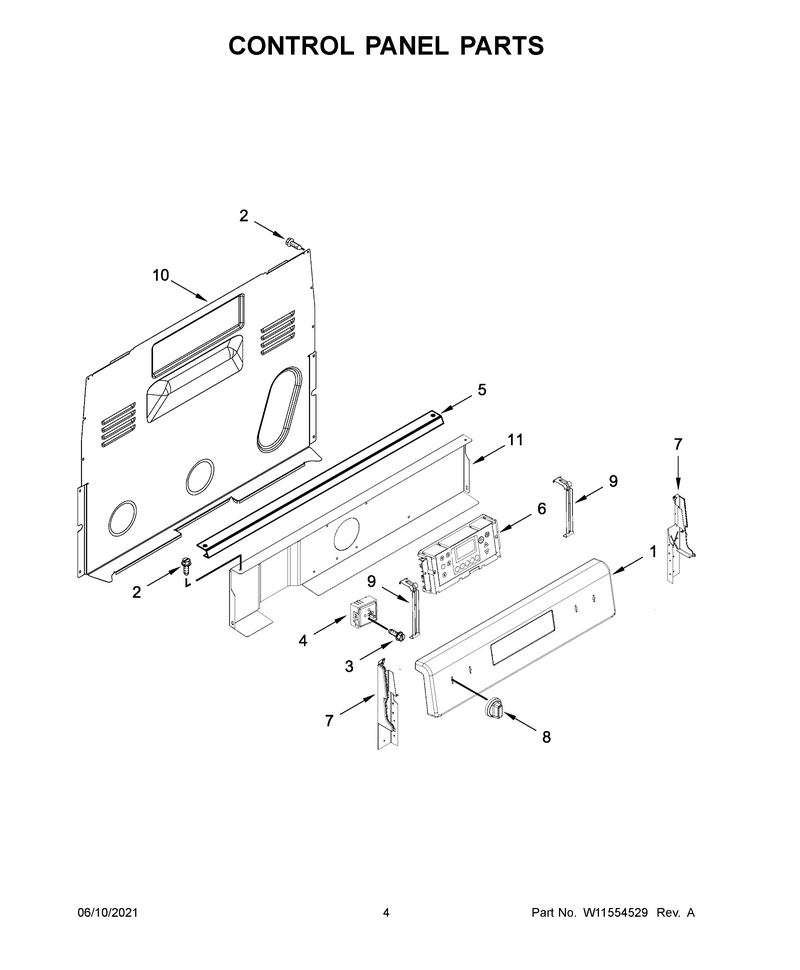

03 - Control Panel Parts

...
...
1
Panl-Cntrl WPL-W11092069
...
2
Screw WPL-W11233072
...
3
Screw WPL-WP3400882
...
4
Switch-Inf WPL-WPW10434452
...
4A
Switch-Inf WPL-WP3149404
...
4B
Switch-Inf WPL-WP3149400
...
5
Bracket, Console Mounting WPL-W10525121
...
6
Cntrl-Elec WPL-W11536808
...
7
Endcap-Pnl WPL-W11219365
...
7A
Endcap-Pnl WPL-W11219370
...
8
Knob WPL-W11092477
...
9
Brkt-Mntg WPL-W11230932
...
10
Cover-Rear WPL-WP8272473
...
11
Shield, Heat WPL-W10134247

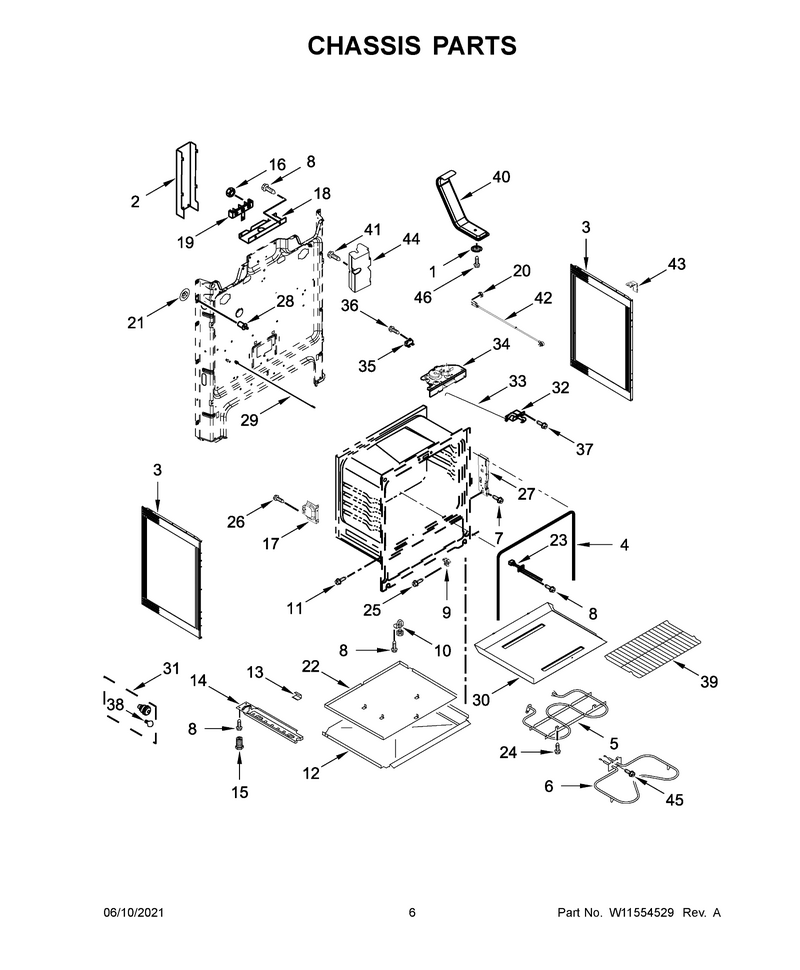

04 - Chassis Parts

...
...
NI
Insulation WPL-W11684918
...
1
Screen WPL-W11268772
...
2
Cover-Blck WPL-WPW10326122
...
3
Panel-Side WPL-WPW10575396
...
4
Gaskt-Door WPL-W11542153
...
5
Elmnt-Brol WPL-W10856603
...
6
Elmnt-Bake WPL-WP9755770
...
7
Screw WPL-W10777162
...
8
Screw WPL-W11233072
...
9
Glide-Drwr WPL-W10807823
...
10
Foot-Level WPL-WPW10341186
...
11
Screw WPL-WPW10067840
...
12
Tray, Insulation WPL-W10134121
...
13
Clip, Panel WPL-W10137382
...
14
Rail-Base WPL-WPW10306546
...
14A
Rail-Base WPL-WPW10306546
...
15
Foot-Level WPL-WPW10058460
...
16
Nut WPL-WP3400029
...
17
Clip, Oven Support WPL-W10404688
...
18
Brkt-Srvce WPL-W11728255
...
19
Block-Term WPL-WP8203546
...
20
Nut WPL-WP7103P027-60
...
21
Nut WPL-WP3400968
...
22
Shield, Heat WPL-W10134125
...
23
Sensor WPL-WPW10181986
...
24
Screw WPL-WP3196154
...
25
Screw WPL-W11684512
...
26
Screw WPL-WP3196557
...
27
Hinge-Recv WPL-W10647259
...
28
Swtch-Lite WPL-WP9757262
...
29
Rod, Door Switch WPL-W11370462
...
30
Tray, Hidden Bake WPL-W10183712
...
31
Sockt-Lite WPL-W11594170
...
32
Latch-Door WPL-WP9761013
...
33
Rod, Latch WPL-W10078380
...
34
Latch-Door WPL-WPW10107840
...
35
Fuse-Thrml WPL-WP3196548
...
36
Screw WPL-3196172
...
37
Screw WPL-W11169708
...
38
Bulb-Light WPL-WPW10571723
...
39
Rack-Oven WPL-W11520287
...
40
Tube-Vent WPL-WPW10134285
...
41
Screw-Torx WPL-W11135756
...
42
Cord-Power WPL-W11226497
...
43
Clip, Spring Steel WPL-W10183541
...
44
Anchor-Tip WPL-W11135752
...
45
Screw WPL-WP3196174
...
46
Screw WPL-W11233072

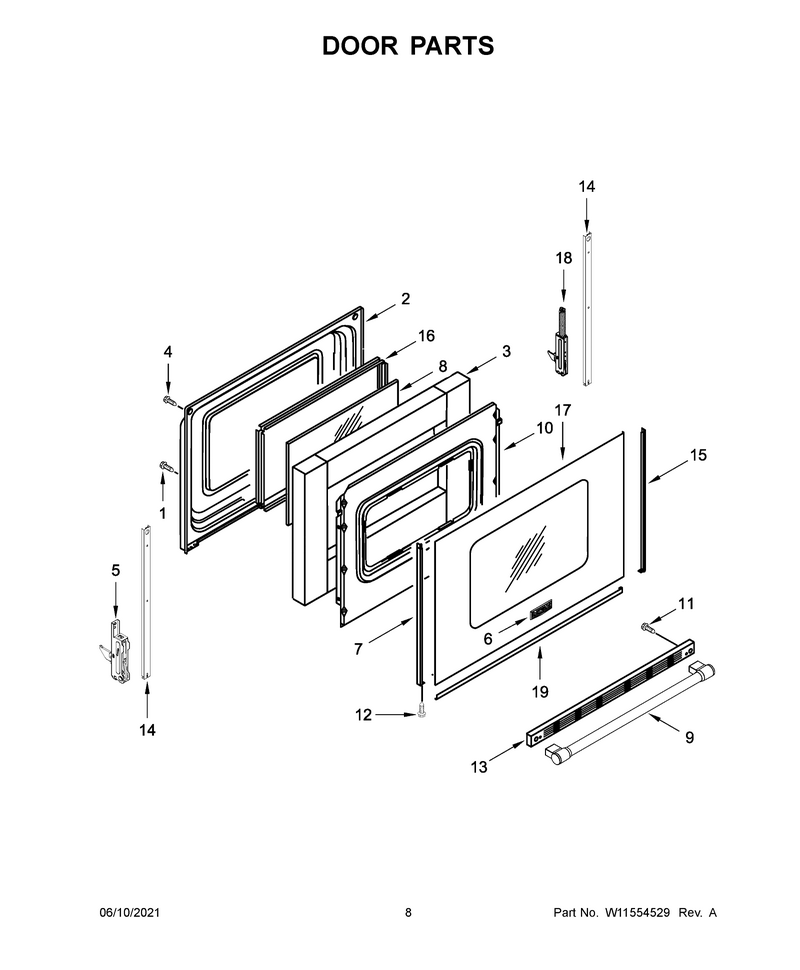

05 - Door Parts

...
...
1
Screw WPL-WPW10031790
...
2
Liner-Door WPL-WP9761344
...
3
Insulation WPL-WPW10278991
...
4
Screw WPL-WPW10200660
...
5
Hinge-Door WPL-WPW10299227
...
6
Nameplate WPL-WPW10612925
...
7
Trim-Door WPL-WP8523166
...
8
Glass-Door WPL-WP8053948
...
9
Hndle-Door WPL-W10920643
...
10
Retainer WPL-W11539580
...
11
Screw WPL-W10831019
...
12
Screw WPL-WP355214
...
13
Trim-Vent WPL-W11093912
...
14
Brkt-Suprt WPL-W11502236
...
15
Trim-Door WPL-WP8523172
...
16
Frame-Wndw WPL-WPW10316950
...
17
Glass-Door WPL-WPW10409945
...
18
Hinge-Door WPL-WPW10299226
...
19
Trim-Door WPL-WP8523175

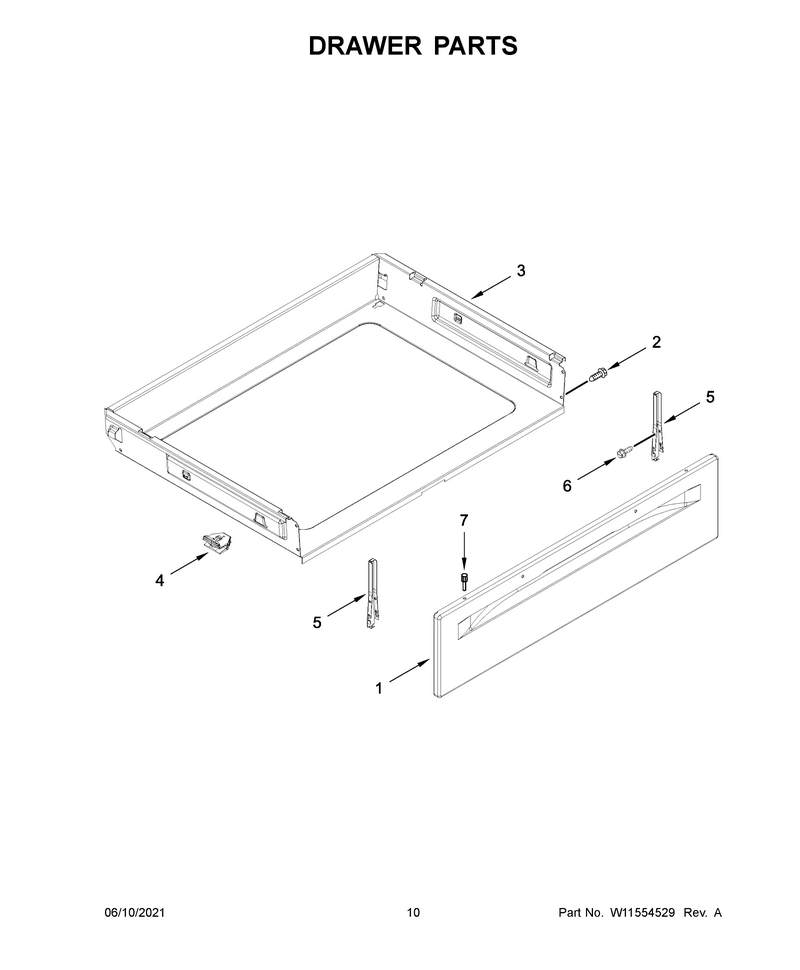

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11219377
...
2
Screw WPL-WP3196175
...
3
Drawr-Util WPL-W10813962
...
4
Glide-Drwr WPL-W10807828
...
5
Brkt-Mntg WPL-WPW10462912
...
6
Screw WPL-WP3196557
...
7
Rivet WPL-WP3196814

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
