Maytag YMED5030MW0

Model: YMED5030MW0

Save Part Not Listed?
product name

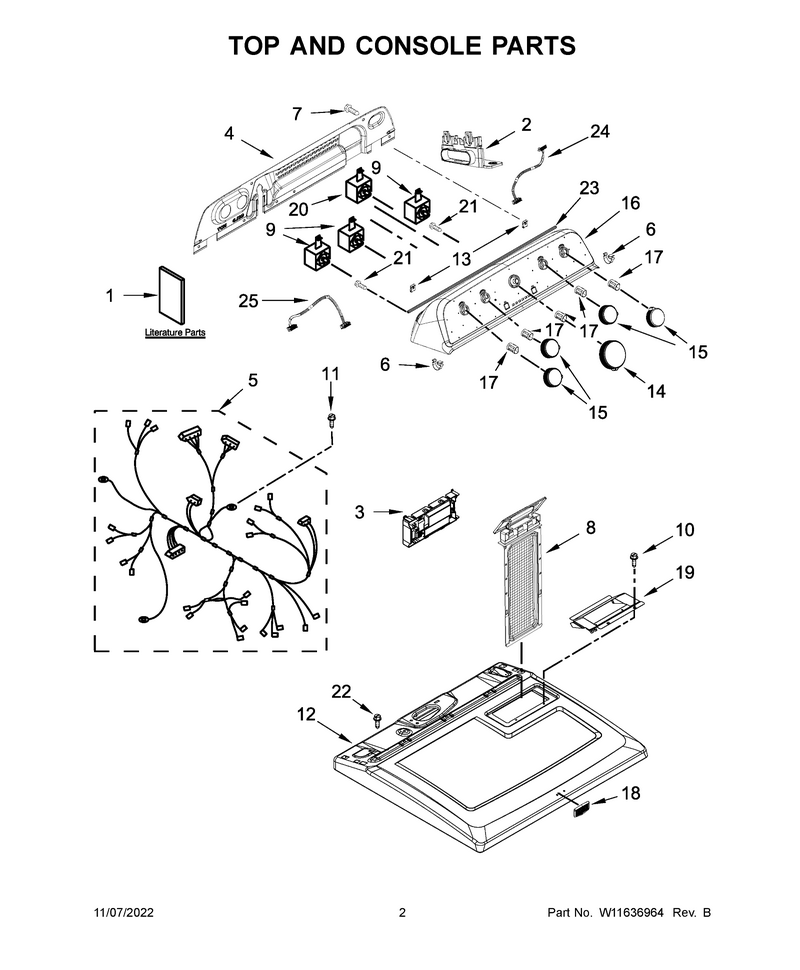

02 - Top And Console Parts

...
...
1
Owners Manual WPL-W11555817
...
1A
Tech Sheet WPL-W11495041
...
1B
Quick Start Guide WPL-W11466172
...
2
Connector WPL-W11627417
...
3
Cntrl-Elec WPL-W11728011
...
4
Panel, Rear WPL-W10775189
...
5
Harness, Main WPL-W11437792
...
6
Clip WPL-WP8312709
...
7
Screw WPL-WP681414
...
8
Screen WPL-W11603116
...
9
Switch-Cyc WPL-W11168256
...
10
Screw WPL-W11693756
...
11
Screw WPL-WP90767
...
12
Top WPL-W11222514
...
13
Nut WPL-W11213336
...
14
Knob WPL-W11675852
...
15
Knob WPL-W11625514
...
16
Console WPL-W11627418
...
17
Clip WPL-WP688805
...
18
Nameplate WPL-WPW10612925
...
19
Collar, Lint Chute WPL-W10662472
...
20
Switch-Cyc WPL-WPW10414397
...
21
Screw WPL-WP9740848
...
22
Screw WPL-WP681414
...
23
Seal WPL-W11721376
...
24
Harness, Upper Encoder Rs WPL-W11486550
...
25
Harness, Upper Encoder WPL-W11437795

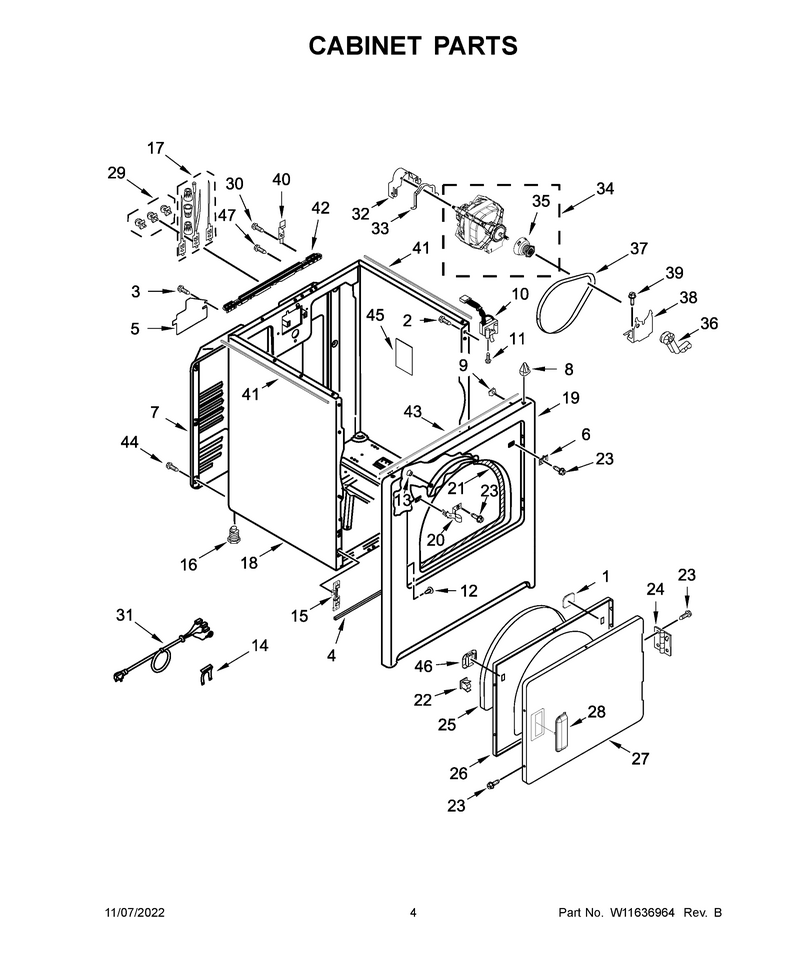

03 - Cabinet Parts

...
...
1
Cover WPL-W11173656
...
2
Screw WPL-WP3390631
...
3
Screw WPL-WP693995
...
4
Seal WPL-W11596046
...
5
Cover WPL-W11298298
...
6
Plug WPL-W11684591
...
7
Panel-Rear WPL-W11626083
...
8
Lock WPL-WP8066092
...
9
Nut WPL-WP98234
...
10
Switch-Dor WPL-WP3406107
...
11
Screw WPL-WP3395530
...
12
Plug WPL-W11481394
...
13
Clip WPL-279220
...
14
Cord-Power WPL-W11710615
...
15
Clip WPL-W10854425
...
16
Feet-Lvlng WPL-W11025920
...
17
Terminal, Brass And Tinned (Includes Terminal Block Screw Kit) WPL-279318
...
18
Cabinet WPL-8533643
...
19
Panel WPL-W10806345
...
20
Strike WPL-W11429589
...
21
Brng&seal WPL-W11035878
...
22
Catch WPL-W11429587
...
23
Screw WPL-WP488627
...
24
Hinge WPL-WPW10362431
...
25
Seal-Door WPL-W10861521
...
26
Door WPL-WPW10463967
...
27
Door WPL-W10861224
...
28
Handle WPL-W10861225
...
29
Screw Kit, Terminal Block WPL-279393
...
30
Screw WPL-W10850756
...
31
Clip WPL-W11712577
...
32
Clamp WPL-WP3404162
...
33
Clamp WPL-WPW10121316
...
34
Motor-Drve WPL-279827
...
35
Pulley-Mtr WPL-WP8066184
...
36
Pulley-Idr WPL-WP691366
...
37
Belt, Drive WPL-341241
...
38
Base WPL-WP348780
...
39
Bolt WPL-3400500
...
40
Hinge WPL-W11715722
...
41
Seal-Foam WPL-WPW10157932
...
42
Bracket, Rear WPL-W10641295
...
43
Seal, Spill Guard WPL-W10316619
...
44
Screw WPL-WP9740848
...
45
Pad WPL-W11409002
...
46
Catch WPL-WPW10529197
...
47
Screw WPL-WP681414

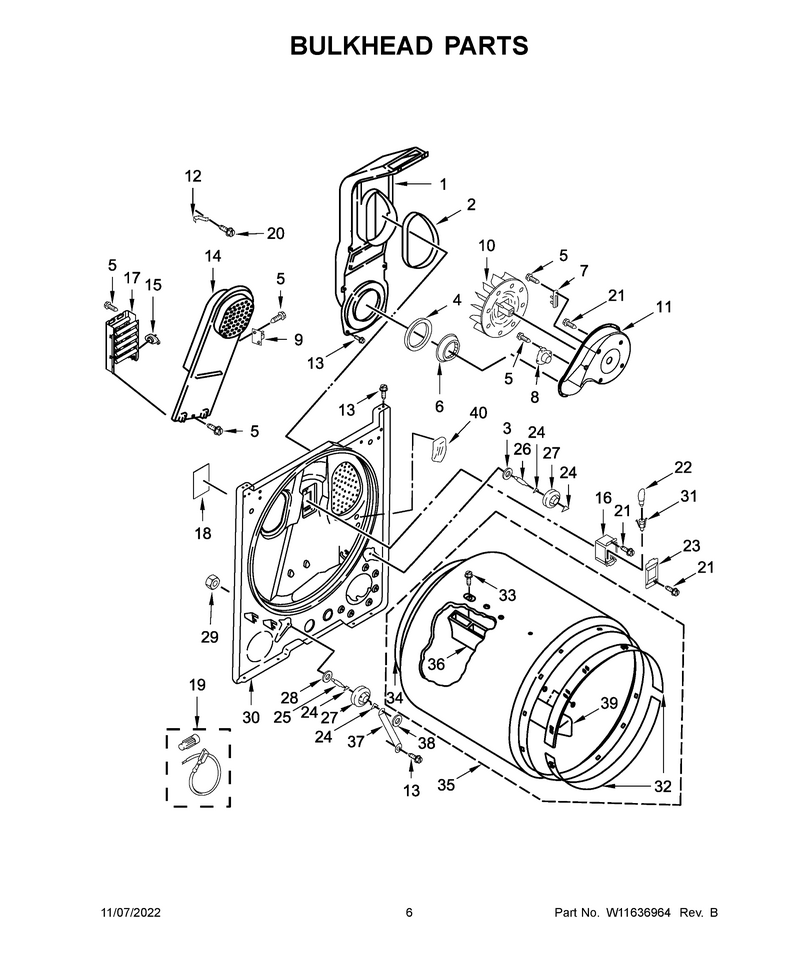

04 - Bulkhead Parts

...
...
1
Chute WPL-W11117429
...
2
Seal WPL-WP339956
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Shield WPL-W11233063
...
7
Fuse-Thrml WPL-WP3392519
...
8
Thermistor WPL-WP8577274
...
9
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W10900067
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP3390631
...
14
Box WPL-W11676909
...
15
Thrmst-Fix WPL-WP3977767
...
16
Bracket, Drum Light WPL-3977373
...
17
Element WPL-279838
...
18
Pad WPL-W11409002
...
19
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
20
Screw WPL-WP489463
...
21
Screw WPL-WP488729
...
22
Bulb-Light WPL-WP22002263
...
23
Lens WPL-W11226088
...
24
Ring WPL-WPW10512946
...
25
Shaft WPL-WPW10359270
...
26
Shaft WPL-WPW10359269
...
27
Support WPL-349241T
...
28
Washer WPL-WP348197
...
29
Nut WPL-W11229607
...
30
Bulkhead WPL-W10828905
...
31
Socket WPL-W11222979
...
32
Ring, Bearing WPL-279441
...
33
Screw WPL-W10853898
...
34
Seal WPL-W10612022
...
35
Assembly, Drum (Complete) WPL-W10899578
...
36
Baffle-Drm WPL-WP692490
...
37
Bracket WPL-W11684613
...
38
Clip WPL-WP90296
...
39
Baffle-Drm WPL-WP3403636
...
40
Sensor WPL-W11545746

...
...
NI
Power Cord, 4', 30 Amp, 3 Wire, Dryer Cord WPL-PT220L
