product name

Maytag RTW22E0CAL (BOM: DH87C)

Model: RTW22E0CAL (BOM: DH87C)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Ice & Water Dispenser

...
...
NI
Wire Harness, Fountain WPL-69903-1
...
1
Kit, Fountain WPL-12000062
...
3
Screw WPL-65275-81
...
4
Grill,fountain WPL-67223-1
...
6
Switch, Ice & Water WPL-55440-2
...
7
Screw WPL-415041-35
...
8
Bracket, Actuator Switch WPL-70044-1
...
9
Screw WPL-415013-35
...
11
Guard, Chip WPL-70023-2
...
13
Board, Pc (115v) WPL-69751-3
...
14
Socket, Light (w/nut) WPL-67293-1
...
15
Bulb-Light WPL-W10857122
...
16
Switch, Light WPL-69832-3
...
17
Switch, Rocker (blk) WPL-7403P067-60
...
18
Seal, Ice Chute WPL-52077-27
...
19
Screw WPL-415041-35
...
20
Heater, Fountain (upper) WPL-69855-1
...
21
Heater, Fountain WPL-69797-1
...
22
Retainer, Tube WPL-69941-1
...
23
Screw WPL-415013-35
...
24
Strike, Ice Door WPL-69675-7
...
25
Door, Ice WPL-68957-2
...
26
Retainer WPL-68566-1
...
27
Screw WPL-405116-35
...
28
Insulation, Ice Door WPL-68557-1
...
29
Seal- Ice WPL-WP69867-1
...
30
Spring, Ice Door WPL-69868-1
...
31
Spring, Extension WPL-67339-1
...
32
Foil, Fontain Front WPL-69854-1
...
33
Solenoid WPL-WP67883-3
...
34
Screw WPL-406033-1
...
35
Link, Solenoid WPL-69688-1
...
36
Screw WPL-415013-35
...
37
Pin, Spring WPL-67291-3
...
38
Coil, Water WPL-67615-1
...
39
Tube-Water WPL-WPW10426709
...
40
Nut WPL-8201513
...
41
Nut, Wire WPL-27116-5

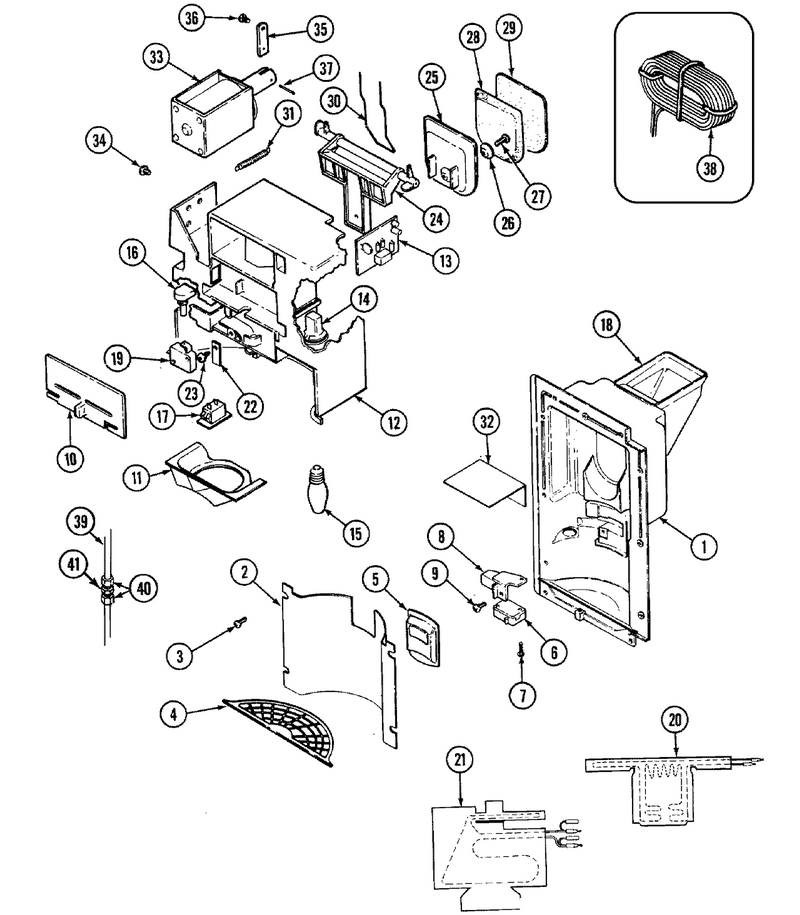

Schematic Image Zoomed
