Maytag RTD2300CAW (BOM: DH95B)

Model: RTD2300CAW (BOM: DH95B)

Save Part Not Listed?
product name

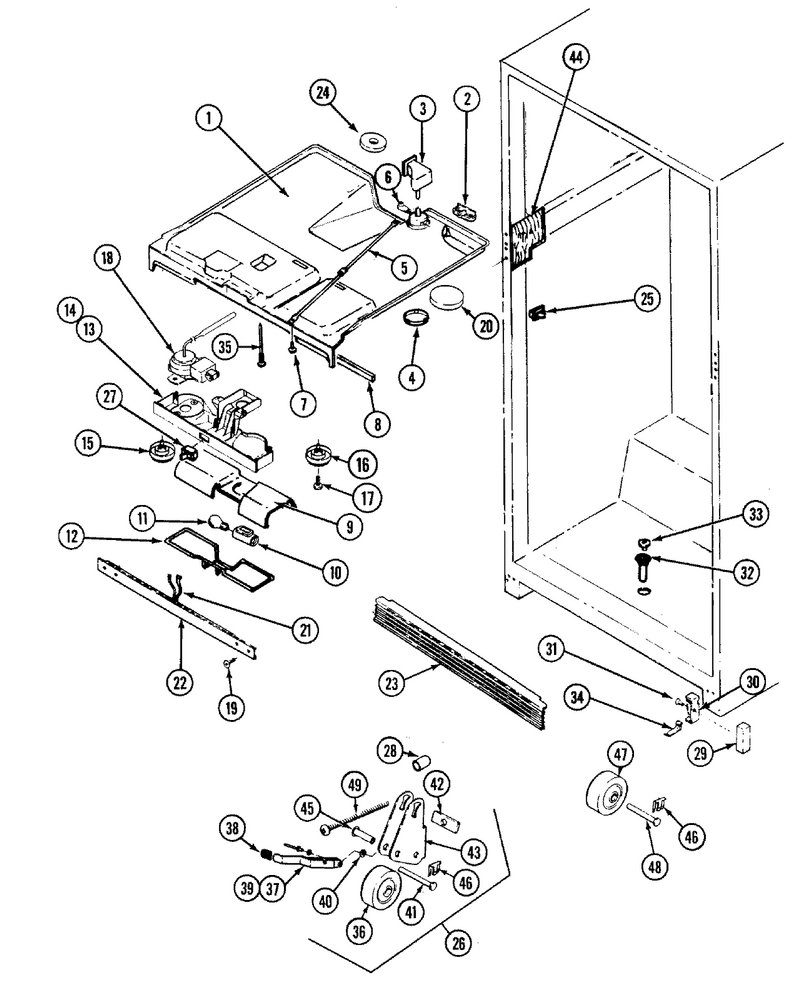

01 - Fresh Food Compartment

...
...
1
Top, F.f. Compartment WPL-69412-1
...
2
Deflector, Air WPL-69623-1
...
3
Orifice Assy., Damper WPL-69811-4
...
4
Cover, Crank WPL-67493-1
...
5
Rod, Frz. Control WPL-69418-4
...
6
Crank, Frz. Control WPL-67636-2
...
7
Washer, Control Rod WPL-420005-1
...
8
Magnet WPL-69413-3
...
9
Shield, Heat WPL-69849-1
...
10
Socket, Light WPL-69425-1
...
11
Bulb-Light WPL-W11679940
...
12
Guard, Light WPL-69426-1
...
13
Cover, Control WPL-69790-2
...
14
Screw WPL-WP4449746
...
15
Knob, Temperature Control WPL-69417-3
...
16
Knob- Cont WPL-WP61006073
...
17
Screw WPL-65275-38
...
18
Screw WPL-406013-1
...
19
Screw WPL-65275-67
...
20
Disc, Crank Cover WPL-69037-1
...
21
Heater, Divider Channel WPL-69617-3
...
22
Wire Harness, Mullion WPL-70118-3
...
24
Seal, Top Tower WPL-68989-1
...
25
Switch WPL-W11384469
...
26
Wheel Assy. (right) WPL-72319-4
...
27
Switch, Heater WPL-67363-2
...
28
Tip, Adjustment Screw WPL-24580-4
...
31
Screw WPL-414013-1
...
32
Tube, Drain WPL-54531-7
...
33
Cap, Drain Tube WPL-65039-1
...
34
Clip, Kickplate WPL-67259-1
...
35
Screw WPL-65275-78
...
36
Wheel WPL-69812-2
...
37
Lever, Lock (right) WPL-67681-2
...
38
Handle, Lock Lever WPL-67528-1
...
39
Screw WPL-406046-1
...
40
Washer WPL-420007-400
...
41
Pin, Wheel WPL-64965-1
...
42
Tapping Plate, Wheel WPL-59101-1
...
43
Bracket, Wheel WPL-67530-1
...
44
Seal, Food Liner (rt) WPL-69416-2
...
45
Pin, Wheel WPL-29835-2
...
46
Clip WPL-60216-1
...
47
Wheel WPL-69812-1
...
48
Pin, Wheel WPL-29835-2
...
49
Screw WPL-71003131
