Maytag RTD19A (BOM: AH59C)

Model: RTD19A (BOM: AH59C)

Save Part Not Listed?
product name

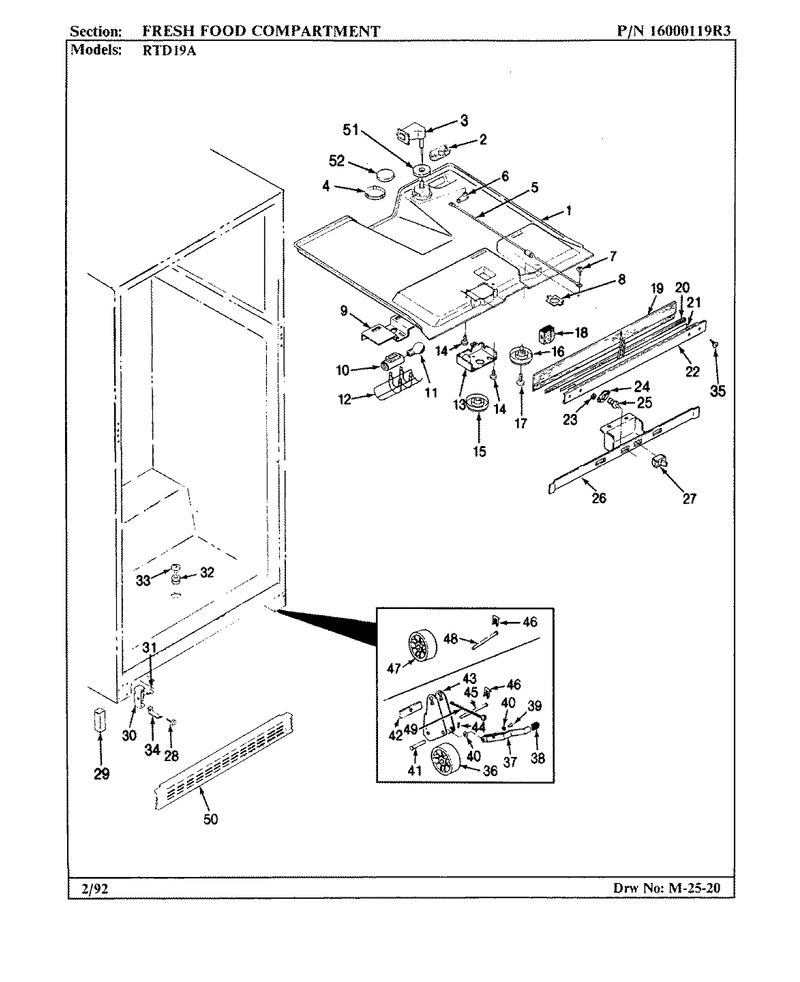

03 - Fresh Food Compartment

...
...
1
Brush-Rug WPL-676207
...
2
Deflector WPL-60120-2
...
3
Gasket WPL-675582
...
4
Cover, Crank WPL-67493-1
...
5
Rod Pad Control WPL-67499-1
...
6
Crank, Frz. Control WPL-67636-1
...
7
Screw WPL-WP59002061
...
8
Rivet WPL-WP210720
...
9
Shield Heat WPL-67481-2
...
10
Holder, Lamp WPL-67369-1
...
11
Light Bulb WPL-8009
...
12
Retainer Light----Na WPL-67541-1
...
13
Cover Thermostat WPL-67169-1
...
14
Screw WPL-WP489478
...
15
Knob, Control WPL-67245-1
...
16
Knob Control WPL-67244-1
...
17
Screw WPL-405016-103
...
18
Screw WPL-406013-1
...
19
Insulation Mullion WPL-67482-2
...
20
Seal, Mullion WPL-67478-2
...
21
Wire Harness WPL-67900-1
...
22
Seal, Flange WPL-67396-2
...
23
Nut, Push-On WPL-431041-505
...
24
Ground Plate WPL-67360-1
...
25
Switch Doo WPL-68970-1
...
26
Screw WPL-400015-103
...
27
Switch, Mullion WPL-67363-1
...
28
Screw WPL-WP489478
...
29
Cover Hinge WPL-67117-3
...
30
End Cap (r) WPL-67854-1
...
31
Screw WPL-WP7101P126-60
...
32
Tube, Drain WPL-54531-7
...
33
Cap, Drain Tube WPL-65039-1
...
34
Clip, Kickplate WPL-67259-1
...
35
Screw, Center Hinge WPL-65275-21
...
36
Wheel Front WPL-67455-1
...
37
Lever, Lock (right) WPL-67681-2
...
38
Handle, Lock Lever WPL-67528-1
...
39
Screw WPL-406046-1
...
40
Washer WPL-420007-400
...
41
Axle Wheel WPL-67529-1
...
42
Tapping Plate, Wheel WPL-59101-1
...
43
Bracket, Wheel WPL-67530-1
...
44
Clip, Retaining Wheel (rear) WPL-62581-1
...
45
Pin, Wheel WPL-29835-2
...
46
Clip WPL-60216-1
...
47
Wheel, Roller WPL-67455-2
...
48
Pin, Wheel WPL-29835-2
...
49
Tip, Adjustment Screw WPL-24580-4
...
50
Grill, Kickplate WPL-67023-3
...
51
Seal, Top Tower WPL-68989-1
...
52
Disc, Crank Cover WPL-69037-1

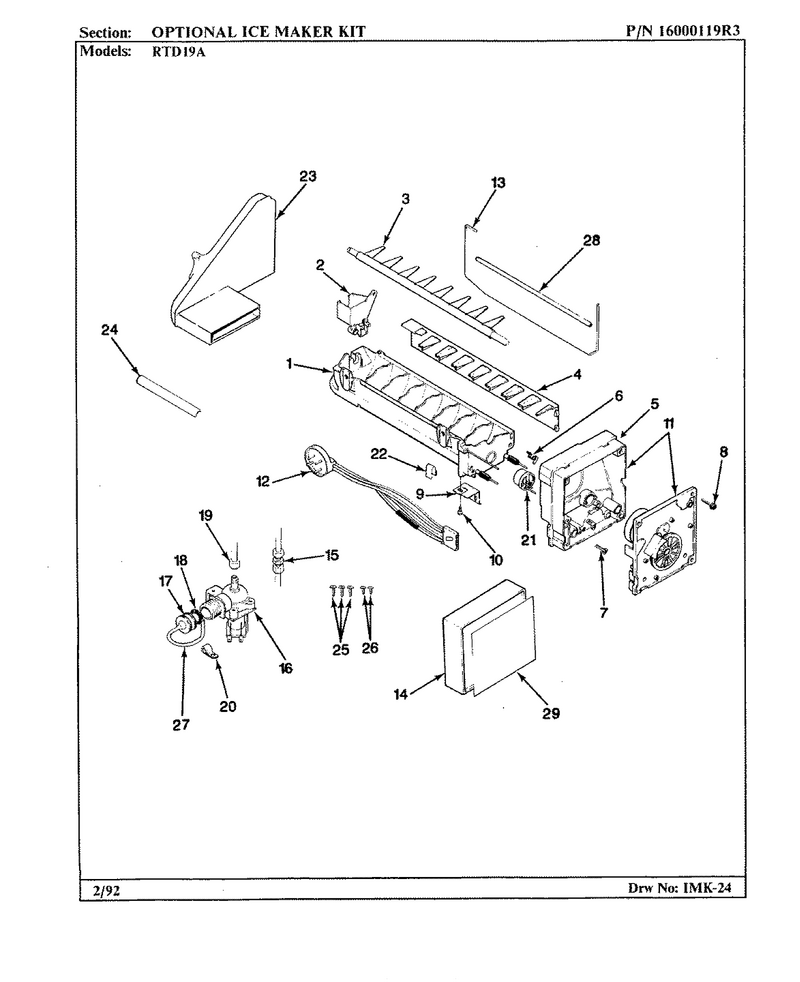

05 - Optional Ice Maker Kit

...
...
NI
Cap Carton WPL-67199-2
...
1
Grease, Silicone WPL-95099-1
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Ejectr WPL-WP627843
...
4
Arm-Stripr WPL-WP2182124
...
5
Housing-Im WPL-WP2195914
...
6
Clip WPL-WP2315522
...
7
Screw WPL-95105-1
...
8
Screw WPL-WP681249
...
9
Bracket WPL-WP2256087
...
10
Screw WPL-WP489128
...
11
Capacitor WPL-876776
...
12
Wire Harness, Ice Maker WPL-67672-1
...
13
Arm, Sensor WPL-68112-1
...
14
Cover-Frnt WPL-WPW10289690
...
15
Connector WPL-WPW10296793A
...
16
Valve-Inlt WPL-4318047
...
17
Nut, Inlet Tubing WPL-24685-1
...
18
Gasket- In WPL-WPY013783
...
19
Nut WPL-WP627018
...
20
Screw WPL-W11233072
...
21
Capacitor WPL-876595
...
22
Clip WPL-WP628379
...
23
Duct, Air (19` & 21` Models) WPL-67061-2
...
24
Tube, Fill WPL-67666-3
...
25
Screw WPL-WP400021-1
...
26
Screw WPL-WP250830
...
27
Inlet Tube Assy WPL-60219-3
...
28
Sleeve, Sensor Arm WPL-67556-1
...
29
Trim, Ice Maker Cover WPL-67428-1

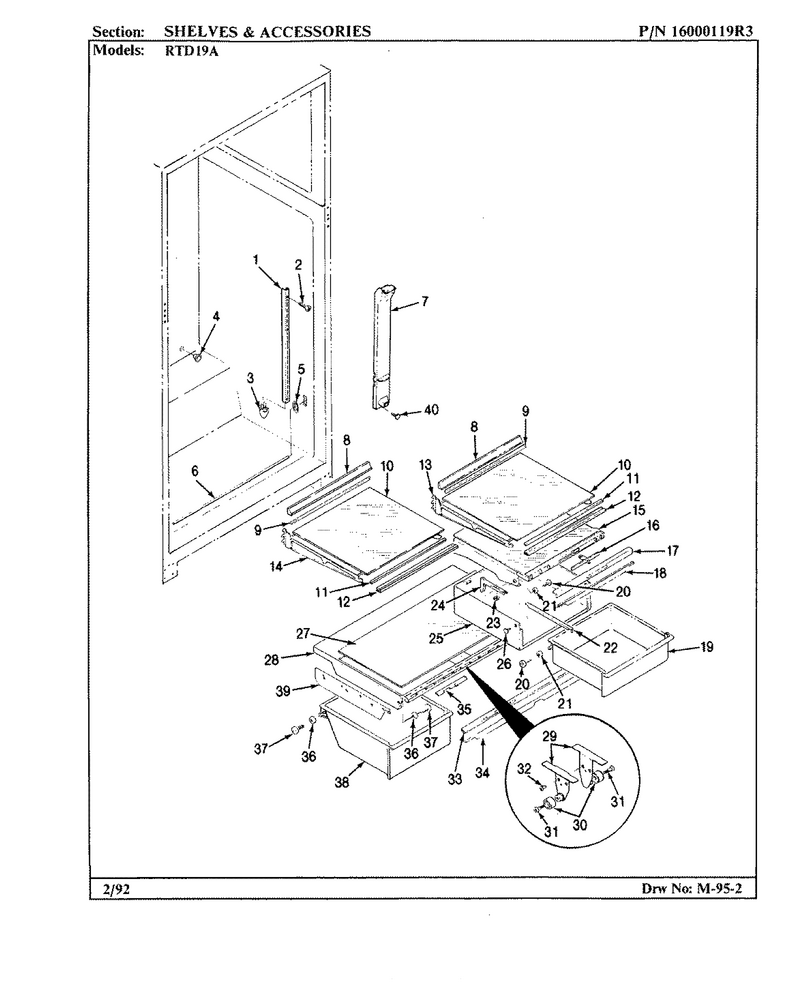

07 - Shelves & Accessories

...
...
1
Rail, Shelf Support (center) WPL-60096-9
...
2
Screw WPL-400037-28
...
3
End Cap, Center Rail WPL-60340-1
...
4
Grommet, Crisper Shelf WPL-67163-1
...
5
Cup, U-Rail Support WPL-68757-1
...
6
U-Rail, Crisper Shelf Support WPL-68756-2
...
7
Tunnel, Air Meat WPL-67525-1
...
8
Trim, Cantilever WPL-67309-2
...
9
Seal, Shelf (rear) WPL-67266-2
...
10
Glass, Cantilever WPL-67267-2
...
11
Seal, Shelf (front) WPL-67265-2
...
12
Trim WPL-67783-2
...
13
Frame, Shelf WPL-67269-2
...
14
Frame, Split Shelf WPL-67270-2
...
15
Meat Keeper Rail WPL-67649-1
...
16
Control, Meat Keeper WPL-67074-1
...
17
Trim, Meat Keeper WPL-67071-2
...
18
Seal, Meat Pan WPL-67677-2
...
19
Meat Pan Assy. WPL-67650-1
...
20
Screw WPL-WP65275-6
...
21
Roller WPL-WP67423-2
...
22
Linkage, Meat Keeper WPL-67073-1
...
23
Nut WPL-431019-511
...
24
Actuator Meat Keeper WPL-67072-5
...
25
Housing, Meat Pan WPL-67069-1
...
26
Plug Button WPL-67688-2
...
27
Glass, Crisper Shelf WPL-67489-2
...
28
Shelf, Crisper WPL-67105-2
...
29
Bracket, Center Roller WPL-67464-2
...
30
Roller WPL-WP67423-2
...
31
Screw WPL-WP65275-6
...
32
Rivet WPL-WP210720
...
33
Trim Crisper WPL-67204-4
...
34
Seal, Crisper Shelf WPL-67731-2
...
35
Humidity Control WPL-67491-1
...
36
Roller WPL-WP67423-2
...
37
Screw WPL-WP65275-6
...
38
Pan, Crisper WPL-67650-7
...
39
Bracket Side Crisper WPL-67465-11
...
40
Screw WPL-W11233072

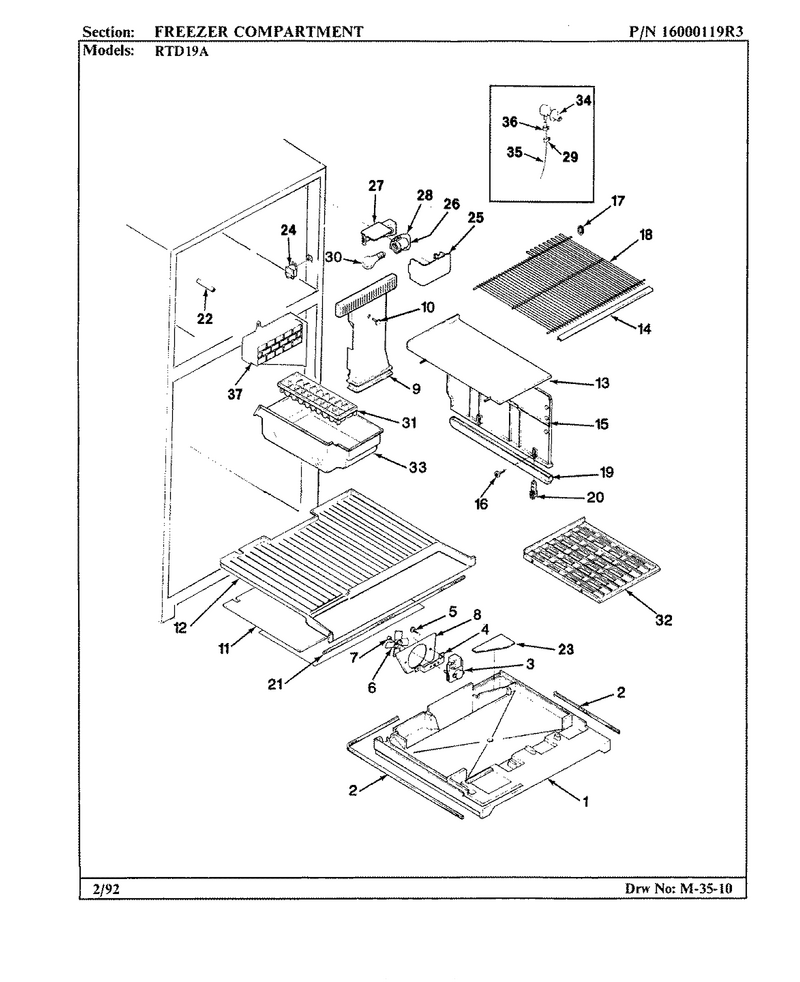

02 - Freezer Compartment

...
...
1
Foam Tray WPL-67519-3
...
2
Seal, Front Corner WPL-67730-1
...
3
Motor, Evaporator Fan WPL-54482-10
...
4
Bracket, Fan Motor WPL-64856-1
...
5
Screw WPL-400015-12
...
6
Blade, Evaporator Fan WPL-64359-1
...
7
Washer, Spring WPL-420092-900
...
8
Orifice, Fan Blade WPL-60608-2
...
9
Tunnel, Air (frz.) WPL-67115-3
...
10
Screw WPL-W11233072
...
11
Cover, Evaporator WPL-66403-9
...
12
Bottom Frost Chest WPL-67129-1
...
13
Shelf, Frz. (plastic) WPL-67142-3
...
14
Trim, Frz Shelf WPL-67176-3
...
15
Divider WPL-67419-1
...
16
Screw WPL-406008-1
...
17
Freezer Shelf Cup WPL-65570-1
...
18
Shelf, Frz. (wire) WPL-67696-4
...
19
Support, Divider WPL-67420-1
...
20
Guide, Divider WPL-67657-3
...
21
Seal, Frost Chest WPL-66325-10
...
22
Plug Fill Tube WPL-67593-2
...
23
Cover, Plenum WPL-66480-5
...
24
Switch WPL-W11384469
...
25
Shield, Light WPL-67240-1
...
26
Base Lamp Holder WPL-67241-1
...
27
Deflector, Light WPL-67361-1
...
28
Holder, Lamp WPL-67368-1
...
29
Screw WPL-W11233072
...
30
Light Bulb WPL-8009
...
31
Tray WPL-WP841180A
...
32
Shelf, Ice Tray WPL-67114-2
...
33
Pan, Ice WPL-67141-1
...
34
Tube-Inlet WPL-12001935
...
35
Tube WPL-WPB5705307
...
36
Clip- Spee WPL-WPM0114003
...
37
Cap, Connector WPL-68187-1

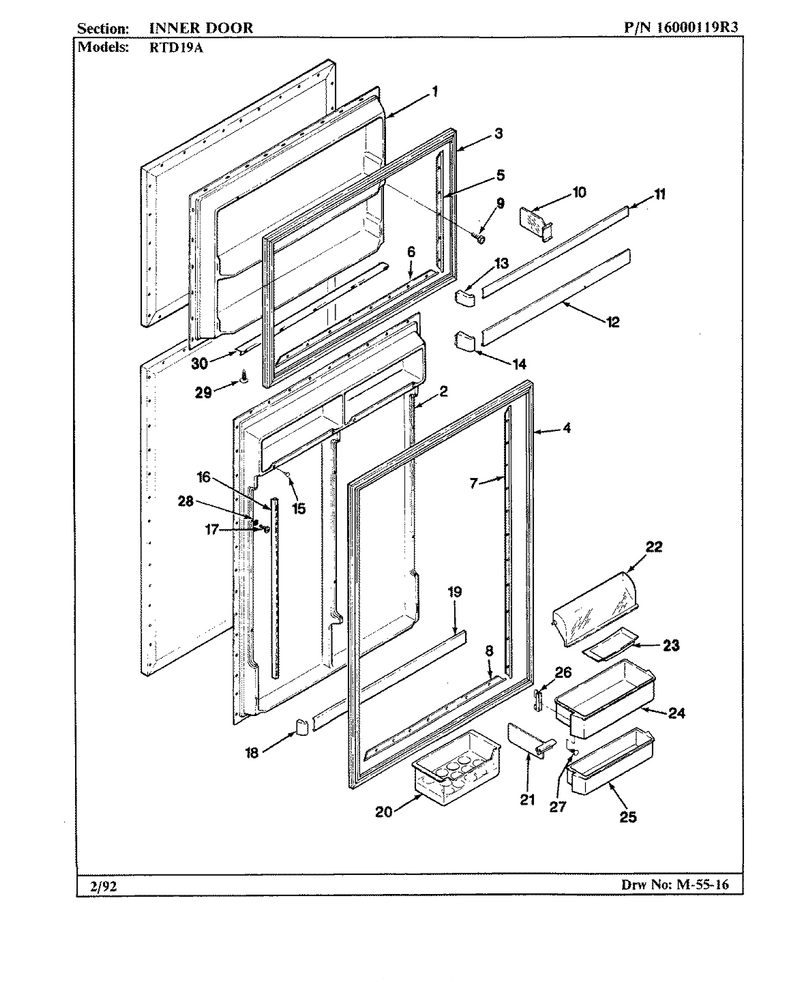

04 - Inner Door

...
...
1
Liner, Door WPL-67006-2
...
2
Liner, F.f. Door WPL-67008-1
...
3
Gasket, Frz. Door WPL-67781-5
...
4
Gasket, F.f. Door WPL-67781-6
...
5
Retainer, Frz. Gasket Side WPL-67033-8
...
6
Retainer, Frz. Door Gasket WPL-67033-6
...
7
Retainer, F.f. Door Gasket WPL-67033-5
...
8
Retainer, Frz. Door Gasket WPL-67033-6
...
9
Screw WPL-61005388
...
10
Organizer WPL-67195-2
...
11
Trim, Door Shelf WPL-67718-7
...
12
Trim, Door Shelf WPL-67718-13
...
13
Endcap, Shelf Trim (sand Beige WPL-67213-1
...
14
Endcap, Shelf Trim WPL-67208-1
...
15
Bumper, Door WPL-28272-6
...
16
Rail, P.o. Shelf WPL-67317-1
...
17
Screw WPL-400027-28
...
18
Endcap, Shelf Trim WPL-67211-1
...
19
Trim, Door Shelf WPL-67718-17
...
20
Tray, Egg WPL-67215-1
...
21
Organizer,p.o. Shelf WPL-67027-1
...
22
Door, Dairy WPL-67041-2
...
23
Tray, Butter WPL-67216-1
...
24
Shelf, Pick Off WPL-67065-5
...
25
Shelf, Pick Off WPL-67065-2
...
26
Hook, Pick Off Shelf WPL-67043-3
...
27
Rivet WPL-WP59920-17
...
28
Grommet, Pick-Off WPL-67144-1
...
29
Clip, Secondary Seal WPL-56686-5
...
30
Gasket WPL-68930-2

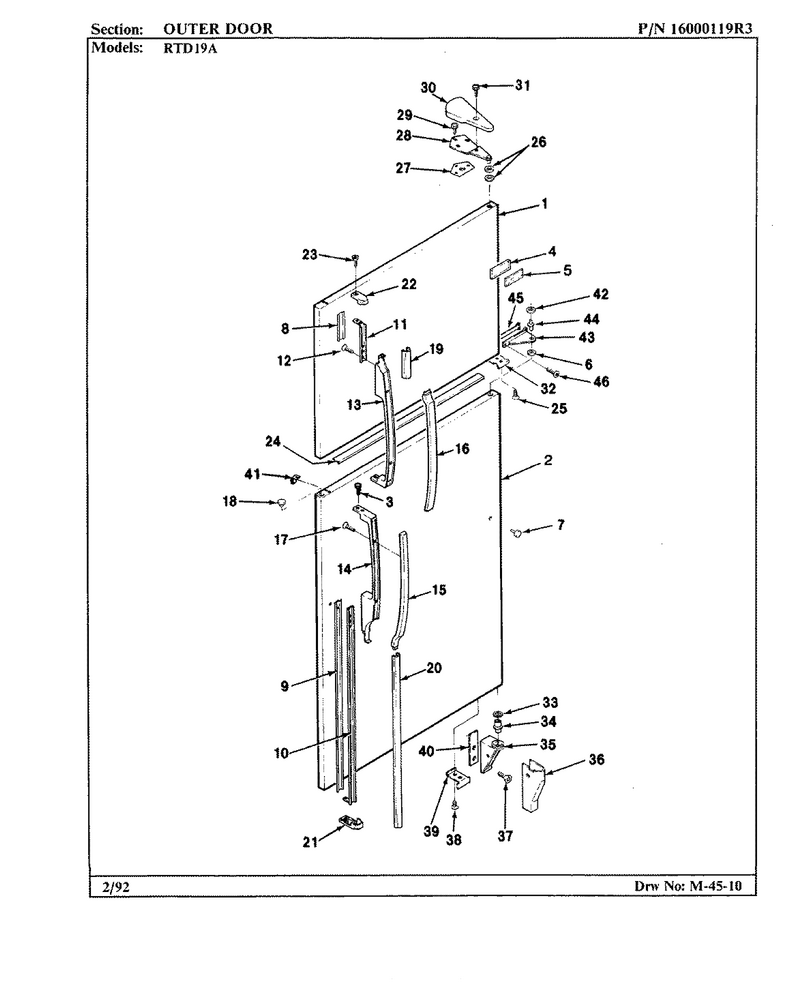

06 - Outer Door

...
...
1
Panel, Frz. Door (wht) WPL-72042-3-WW
...
2
Panel, F.f. Door (wht) WPL-72042-8-WW
...
3
Screw WPL-65275-22
...
4
Bezel, Nameplate WPL-67673-1
...
5
Insert, Nameplate WPL-67194-1
...
6
Washer WPL-61005628
...
7
Plug Button, Handle Top (alm) WPL-67678-3
...
8
Shim, Trim WPL-67746-3
...
9
Shim, Trim WPL-67746-5
...
10
Bracket, Handle WPL-67157-5
...
11
Bracket, Handle WPL-67157-3
...
12
Screw, Bracket To Handle WPL-65275-31
...
13
Handle, Door WPL-67778-1
...
14
Shim Handle WPL-67697-2
...
15
Insert, Handle (fresh Food) WPL-67881-1
...
16
Insert, Handle (fresh Food) WPL-67881-1
...
17
Screw WPL-65275-44
...
18
Plug Button, Hinge Cup (wht) WPL-67634-2
...
19
Trim Handle (frz) WPL-67805-3
...
20
Trim, Extension WPL-67805-5
...
21
Endcap, Handle (f.f. Door) WPL-68818-1
...
22
Endcap, Handle (frz.) WPL-67382-1
...
23
Screw (no.12 X 5/8``) WPL-65275-26
...
24
Trim, Fresh Food Door WPL-66651-6
...
25
Screw, Freezer Stop WPL-65275-18
...
26
Washer WPL-54233-1
...
27
Shim, Upper Hinge WPL-65031-1
...
28
Plug Button, Upper Hinge (wht) WPL-56144-13
...
29
Screw WPL-WP3-24838-048
...
30
Cover, Upper Hinge(wht.) WPL-67229-4
...
31
Screw, Hinge Cover WPL-403060-1
...
32
Stop, Door WPL-67662-1
...
33
Washer, Door Spacer WPL-67483-3
...
34
Pin Lower Hinge WPL-67485-1
...
35
Hinge, Lower WPL-67772-1
...
36
Screw, Cover WPL-401005-4
...
37
Screw WPL-65275-25
...
38
Screw (no.12 X 5/8``) WPL-65275-26
...
39
Door Stop, Fresh Food WPL-67770-1
...
40
Shim, Lower Hinge WPL-67323-1
...
41
Clip, Handle WPL-67386-1
...
42
Washer WPL-61005628
...
43
Hinge, Center WPL-67859-1
...
44
Pin, Center Hinge WPL-67322-1
...
45
Shim, Center Hinge WPL-67857-1
...
46
Screw, Center Hinge WPL-65275-21

...
...
NI
Cap Carton WPL-67199-2

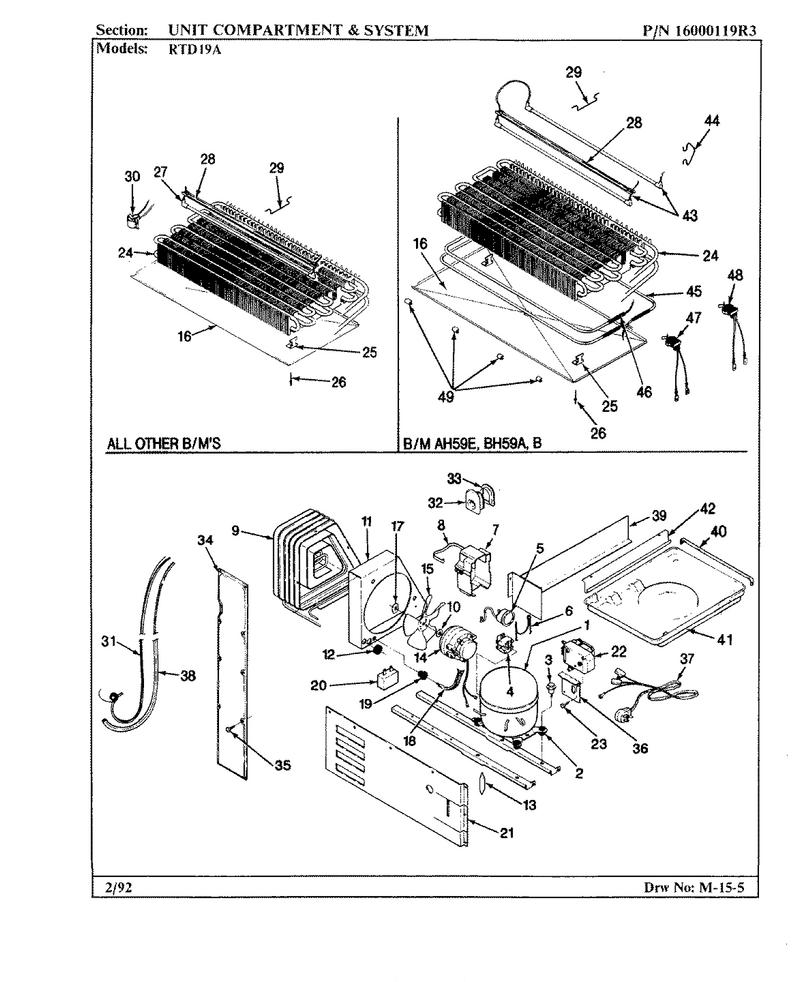

08 - Unit Compartment & System

...
...
1
Compressor WPL-W10439652
...
2
Grommet, Compressor WPL-17245-4
...
3
Screw, Compressor Mounting WPL-65275-9
...
4
Relay WPL-2154436
...
5
Overload WPL-63294-17
...
6
Clip, Overload WPL-65887-1
...
7
Cover, Terminal WPL-66589-2
...
8
Clip, Terminal Cover WPL-65886-1
...
9
U-Nut, Condenser WPL-60408-2
...
10
Washer WPL-19913-4
...
11
Shroud, Condenser WPL-66228-1
...
12
Grommet, Condenser Tubing WPL-53351-1
...
13
Drier-Uv WPL-WPW10143759
...
14
Motor-Cond WPL-833697
...
15
Blade- Con WPL-WP12587601
...
16
Tray, Drip WPL-60101-12
...
17
Nut WPL-WP486692
...
18
Bracket, Fan Motor WPL-66225-1
...
19
Grommet- B WPL-WP61004743
...
20
Screw WPL-WP489478
...
21
Screw WPL-WP488729
...
22
Timer- Def WPL-WP68233-2
...
23
Screw WPL-61005388
...
24
Evaporator WPL-RA43620-11
...
25
Bracket, Coil To Tray WPL-60108-1
...
26
Rivet WPL-WP210720
...
27
Heater- De WPL-WP60106-35
...
28
Shield, Defrost Heater WPL-60109-5
...
29
Clip, Defrost Heater WPL-60263-1
...
30
Thermostat WPL-WP52085-28
...
31
Heat Exchanger WPL-RA43645-14
...
32
Grommet, Tube Entry WPL-60068-1
...
33
Wire Harness, Compressor WPL-68841-1
...
34
Cover, Wire Harness WPL-60110-2
...
35
Screw WPL-WP489069
...
36
Bracket, Defrost Timer WPL-67392-2
...
37
Cord, Power WPL-52890-3
...
38
Cover, Heat Exchanger WPL-65398-1
...
39
Screw WPL-WP489478
...
40
Support WPL-67596-1
...
41
Pan- Drain WPL-WP68236-1
...
42
Rail, Drain Pan (rt) WPL-60555-1
...
49
Manual, Use & Care WPL-104581-1
