Maytag RTD1700CAL (BOM: DH31C)

Model: RTD1700CAL (BOM: DH31C)

Save Part Not Listed?
product name

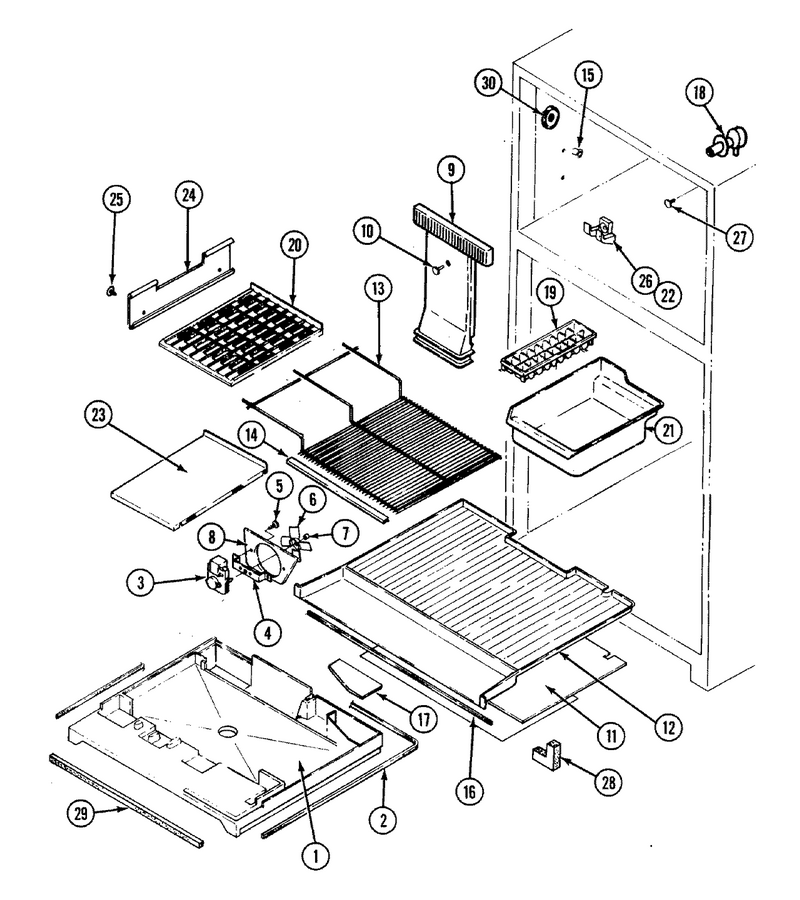

01 - Freezer Compartment

...
...
1
Tray, Styrofoam Mullion WPL-69401-1
...
2
Seal, Mullion Tray WPL-69414-1
...
3
Screw WPL-406062-1
...
4
Bracket, Fan Motor WPL-64856-1
...
5
Screw WPL-400015-36
...
6
Blade, Evaporator Fan WPL-69107-1
...
7
Washer, Spring WPL-420092-900
...
8
Orifice, Fan Blade WPL-60608-2
...
9
Seal, Air Tunnel----Na WPL-66325-34
...
10
Screw WPL-W11233072
...
11
Cover, Evaporator WPL-66403-1
...
12
Bottom, Frz. WPL-69395-1
...
13
Shelf, Frz. (wire) WPL-67348-3
...
14
Trim, Shelf WPL-67176-58
...
15
Cup, Shelf WPL-60313-1
...
16
Magnet WPL-69413-1
...
17
Cover, Plenum WPL-66480-4
...
18
Plug, Grommet WPL-67855-1
...
19
Tray WPL-WP841180A
...
20
Shelf, Ice Tray WPL-67114-4
...
21
Pan-Ice WPL-WP67001255
...
22
Screw WPL-400019-1
...
23
Shelf, Fill-In WPL-67349-1
...
24
Side, Ice Tray Shelf WPL-67147-1
...
25
Fastener, Divider WPL-67150-1
...
26
Stud, Shelf WPL-66101-1
...
27
Plug Button WPL-70146-2
...
28
Seal, Frost Chest Bottom WPL-69563-1
...
29
Seal, Mullion Tray (front) WPL-69562-1
...
30
Cap, Connector WPL-68187-1
