Maytag RSD2200CAW (BOM: DM11A)

Model: RSD2200CAW (BOM: DM11A)

Save Part Not Listed?
product name

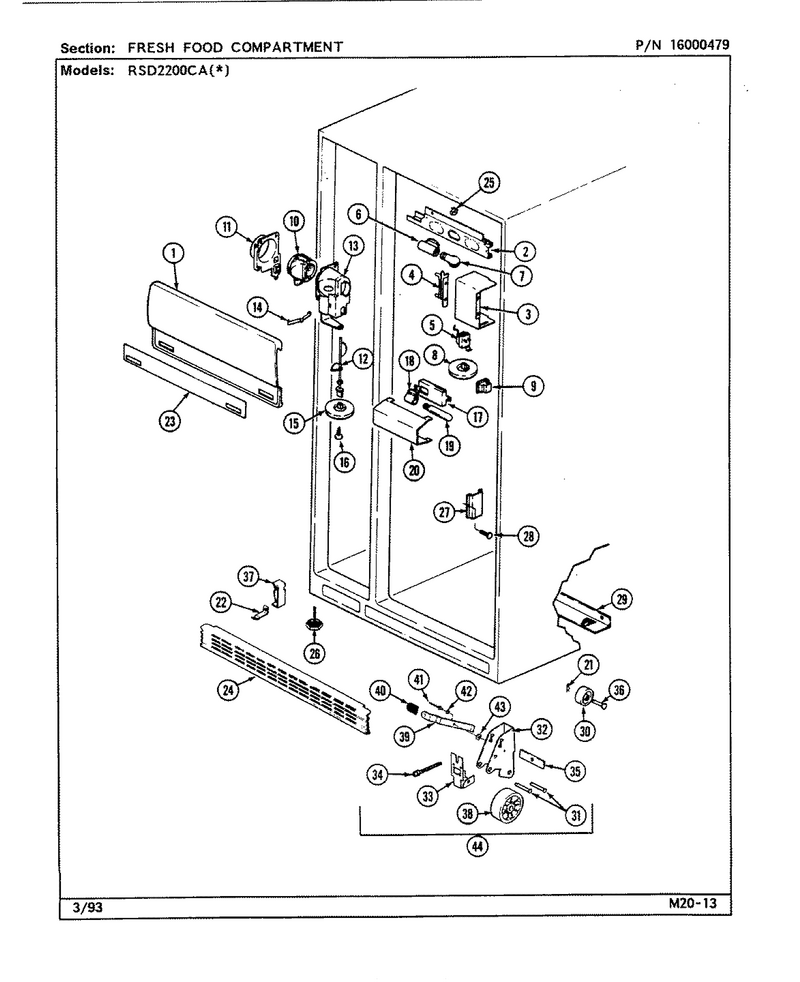

01 - Fresh Food Compartment

...
...
1
Shield, Light WPL-67113-4
...
2
Screw WPL-WP489478
...
3
Screw WPL-WP489478
...
4
Support, Light Shield WPL-67125-1
...
5
Screw WPL-WP489399
...
6
Socket, Light WPL-29813-1
...
7
Bulb-Light WPL-W11679940
...
8
Knob, Control WPL-67145-5
...
9
Switch WPL-W11384469
...
10
Insulation, Housing WPL-58767-1
...
11
Orifice, Frz. Control (inlet) WPL-67351-1
...
12
Baffle WPL-68610-1
...
13
Housing, Frz. Control WPL-67354-1
...
14
Spring, Baffle WPL-52648-1
...
15
Knob, Control WPL-67145-6
...
16
Screw WPL-400001-1
...
17
Base, Light (meat) WPL-67243-1
...
18
Receptacle, Light WPL-29814-2
...
19
Bulb, Light WPL-20174-6
...
20
Shield, Light WPL-67242-1
...
21
Clip, Retaining Wheel (rear) WPL-62581-1
...
22
Screw WPL-WP489478
...
23
Insert, Light Shield WPL-67476-8
...
25
Clip WPL-55042-2
...
26
Leveler WPL-W11117769
...
27
Air Deflector WPL-62128-1
...
29
Support Rail Rear WPL-67255-2
...
30
Wheel WPL-69812-1
...
31
Pin, Wheel WPL-64965-1
...
32
Bracket, Wheel WPL-67806-1
...
33
Faceplate, Bracket WPL-67280-1
...
34
Screw, Wheel Adjustment WPL-56487-5
...
35
Tapping Plate, Wheel WPL-59101-1
...
36
Pin, Wheel (rear) WPL-64965-3
...
38
Wheel WPL-69812-2
...
39
Handle, Lock Lever WPL-67528-1
...
40
Lever, Wheel Lock WPL-67232-1
...
41
Rivet WPL-WP210720
...
42
Lockwasher WPL-420003-905
...
43
Washer WPL-420007-400
...
44
Wheel Assy.(l) WPL-72319-5
