Maytag RSD2000AAL (BOM: CM05A)

Model: RSD2000AAL (BOM: CM05A)

Save Part Not Listed?
product name

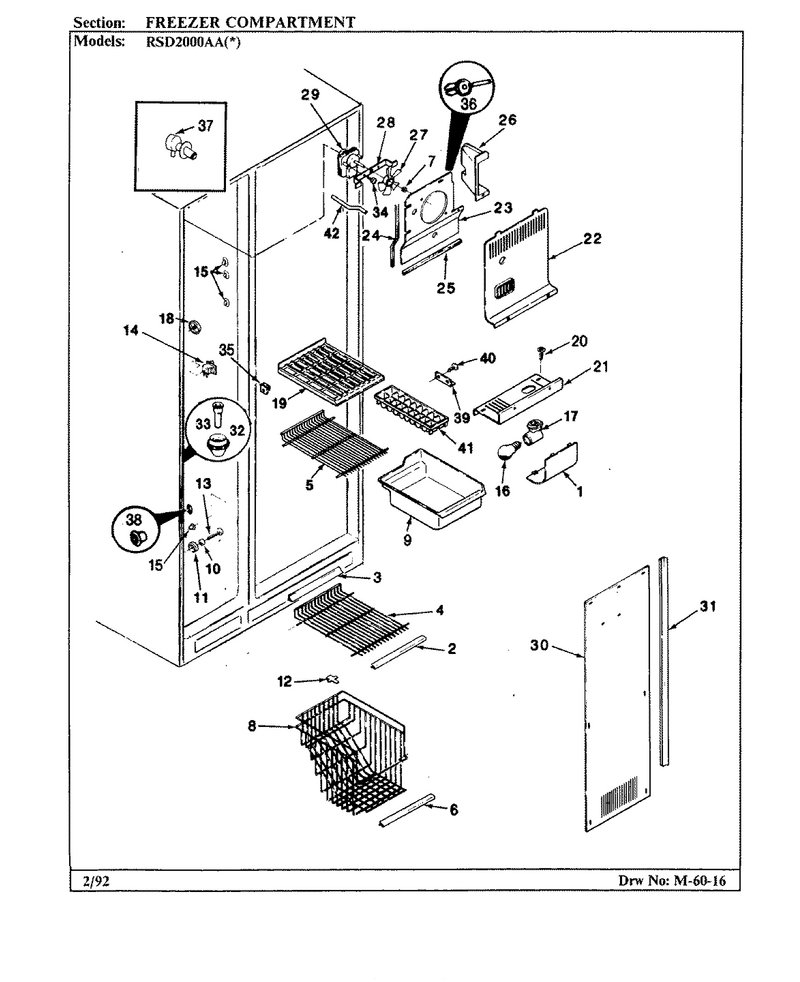

01 - Freezer Compartment

...
...
1
Shield, Light WPL-67292-1
...
2
Trim, Frz. Shelf Front WPL-67176-1
...
3
Trim, Frz. Shelf Front WPL-67177-1
...
4
Shelf, Frz. (no.2,3,4,5) WPL-67178-7
...
5
Shelf, Frz. WPL-67178-9
...
6
Trim WPL-67176-13
...
7
Washer, Spring WPL-420092-900
...
8
Basket, Frz. WPL-69353-1
...
9
Pan-Ice WPL-WP67001255
...
10
Roller,wheel Basket WPL-67123-1
...
11
Space Roller WPL-67124-1
...
12
Clip, Stop WPL-67488-2
...
13
Screw WPL-65275-19
...
14
Switch WPL-W11384469
...
15
Cup, Shelf WPL-67466-1
...
16
Bulb-Light WPL-W11679940
...
17
Receptacle, Light WPL-29814-2
...
18
Cap, Connector WPL-68187-1
...
19
Cup, Shelf WPL-60313-1
...
20
Screw, Support Bracket WPL-400014-12
...
21
Support, Light Shield WPL-67344-1
...
22
Shield, Fan WPL-67225-1
...
23
Cover, Coil WPL-67297-3
...
24
Seal, Foam Tray WPL-66325-14
...
25
Seal (44``) WPL-66325-21
...
26
Shield, Air Directional WPL-67353-1
...
30
Screw WPL-WP400021-1
...
31
Coil Cover, Gasket WPL-67562-1
...
32
Grommet WPL-52526-1
...
33
Drain Tube WPL-26527-9
...
34
Screw WPL-WP488729
...
35
Screw WPL-W11233072
...
36
Stud, Mounting Coil Cover WPL-59920-1
...
37
Tube-Inlet WPL-12001935
...
38
Retainer WPL-67685-1
...
39
Bracket, Mounting WPL-67288-1
...
40
Screw WPL-400026-1
...
41
Tray WPL-WP841180A
...
42
Plug, Tube WPL-67593-3

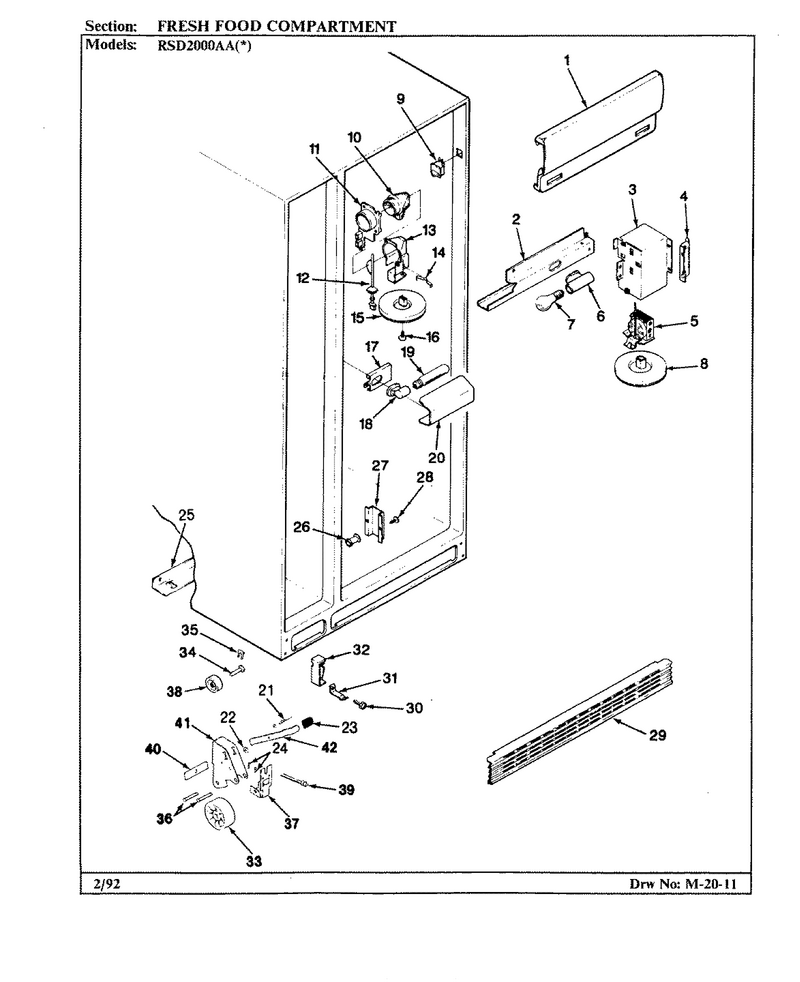

02 - Fresh Food Compartment

...
...
1
Shield, Light WPL-67113-3
...
2
Clip WPL-55042-2
...
3
Housing, Temperature Control WPL-67126-1
...
4
Support, Light Shield WPL-67125-1
...
6
Socket, Light WPL-29813-1
...
7
Light Bulb WPL-8009
...
8
Knob, Control WPL-67145-1
...
9
Switch WPL-W11384469
...
10
Insulation, Housing WPL-58767-1
...
11
Orifice, Frz. Control (inlet) WPL-67351-1
...
12
Damper, Frz. Control WPL-67609-1
...
13
Housing, Frz. Control WPL-67354-1
...
14
Spring, Baffle WPL-52648-1
...
15
Knob, Control WPL-67145-2
...
16
Screw WPL-400001-1
...
17
Wire Harness, Waist WPL-67408-1
...
18
Receptacle, Light WPL-29814-2
...
19
Screw, Control Mounting WPL-401012-1
...
20
Shield, Light WPL-67242-1
...
21
Rivet WPL-WP210720
...
22
Lockwasher WPL-420003-905
...
23
Handle, Lock Lever WPL-67528-1
...
24
Clip, Retaining Wheel (rear) WPL-62581-1
...
25
Screw WPL-3400518
...
26
Tunnel, Air Return WPL-67684-1
...
27
Air Deflector WPL-62128-1
...
28
Tub-Outer WPL-W10772617
...
29
Grill, Kickplate WPL-67023-7
...
30
Screw WPL-WP489478
...
31
Clip, Kickplate WPL-67259-1
...
32
End Cap (r) WPL-67854-1
...
33
Wheel Front WPL-67455-1
...
34
Axle WPL-62580-2
...
35
Clip, Retaining Wheel (rear) WPL-62581-1
...
36
Axle Wheel WPL-67529-1
...
37
Screw WPL-WP489478
...
38
Wheel, Roller WPL-67455-2
...
39
Screw, Wheel Adjustment WPL-56487-2
...
40
Tapping Plate, Wheel WPL-59101-1
...
41
Bracket, Wheel WPL-67806-1
...
42
Lever, Wheel Lock WPL-67232-1
