Maytag RAX3600CXX

Model: RAX3600CXX

Save Part Not Listed?
product name

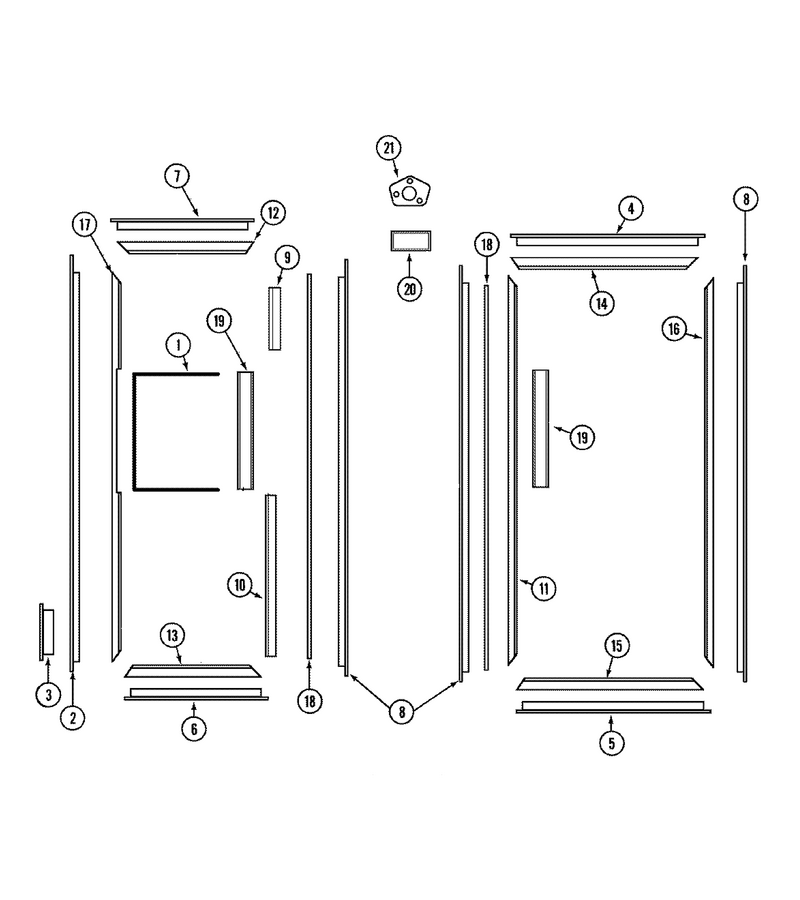

01 - Trim Kit

...
...
1
Frame, Escutcheon WPL-69083-6
...
2
Trim, Side (w/magnet) WPL-69894-15
...
3
Trim, Gauge WPL-69894-14
...
4
Trim, Top (f.f.) WPL-69894-9
...
5
Trim, Bottom (f.f.) WPL-69894-8
...
6
Trim, Bottom (frz.) WPL-69894-7
...
7
Trim, Top (frz.) WPL-69894-6
...
8
Trim, Side WPL-69894-1
...
9
Channel, Frz. Panel (upper) WPL-69890-1
...
10
Channel, Frz. Panel (lower) WPL-69890-2
...
11
Channel, Panel (frz.f.f.) WPL-69890-3
...
12
Trim, H-Section (frz.upper) WPL-69895-3
...
13
Trim, H-Section (frz.lower) WPL-69895-4
...
14
Trim, H-Section (f.f.upper) WPL-69895-5
...
15
Trim, H-Section (f.f.lower) WPL-69895-6
...
16
Trim, H-Section (f.f.+frz. Sid WPL-69895-7
...
17
Trim, H-Section (frz.side) WPL-69895-8
...
18
Filler Strip WPL-69892-1
...
19
Insert, Handle WPL-61001820
...
20
Insert, Nameplate WPL-67194-1
...
21
Shim, Upper Hinge WPL-65031-1
...
22
Screw WPL-65275-63
...
23
Screw WPL-405004-103
