Maytag MZF34X16DW07

Model: MZF34X16DW07

Save Part Not Listed?
product name

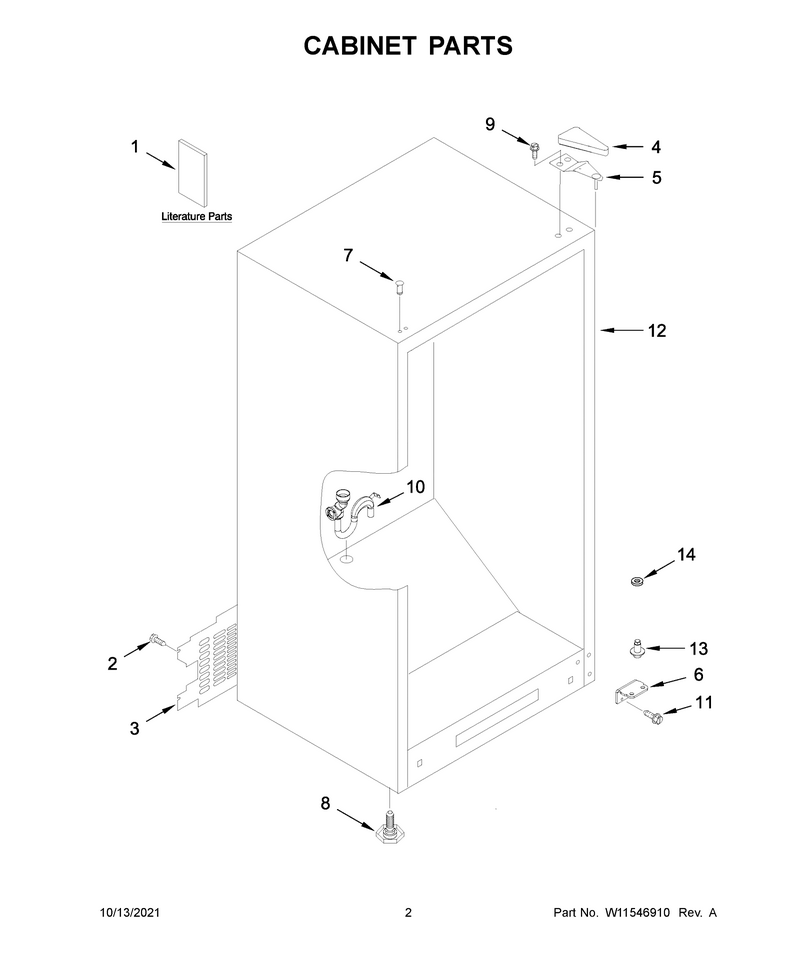

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11320184
...
1B
Tech Sheet WPL-W11408463
...
1A
Energy Guide WPL-W11357352
...
2
Screw WPL-WP489478
...
3
Cover, Unit WPL-W11311062
...
4
Cover WPL-WP2213360
...
5
Hinge-Door WPL-WP2261963
...
6
Plate, Bottom Hinge (White) WPL-W10574264
...
7
Button-Plg WPL-WPW10520304
...
8
Leveler WPL-WP3-82710-001
...
9
Screw WPL-WP489497
...
10
Tube-Drain WPL-W11673435
...
11
Screw (8) WPL-67006564
...
12
Following Parts Not Illustrated WPL-N/P
...
13
Hinge-Pin WPL-W11676609
...
14
Washer WPL-WP487576

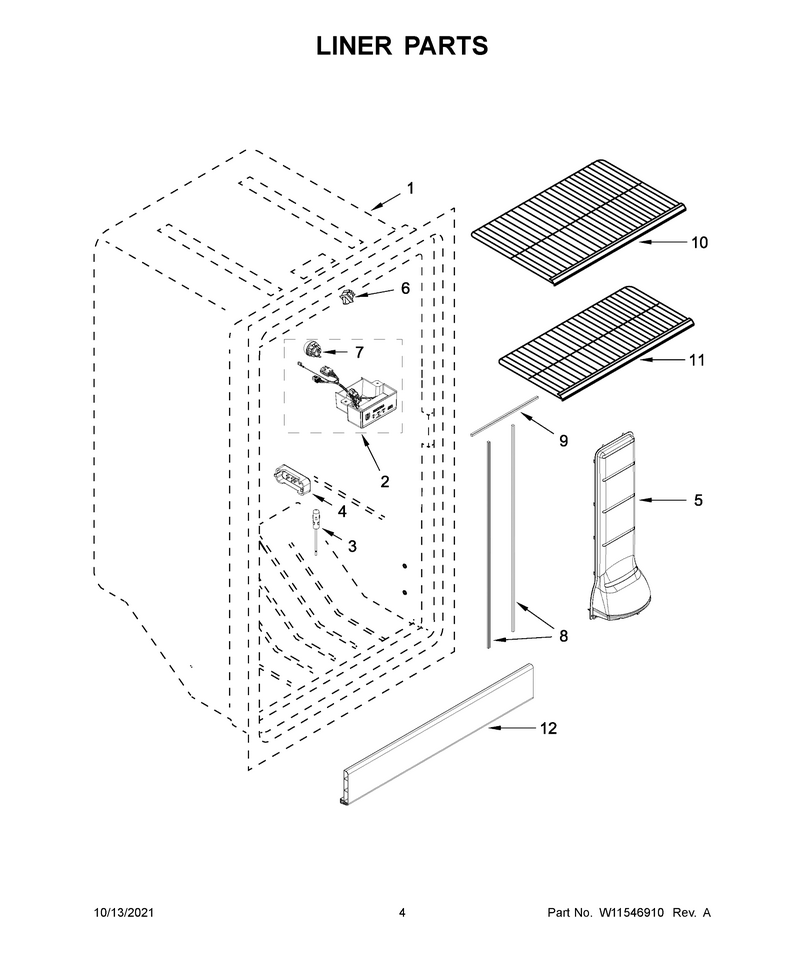

03 - Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Contrl-Box WPL-W11496870
...
3
Thermistor WPL-WPW10384183
...
4
Cover, Thermistor WPL-W10608692
...
5
Air Tower WPL-W10574585
...
6
Switch WPL-W11727836
...
7
Bulb-Light WPL-W11502762
...
8
Gasket WPL-WPW10574368
...
9
Gasket WPL-WPW10574368
...
10
Shelf-Wire WPL-W10836976
...
11
Shelf-Wire WPL-W10838567
...
12
Trim, Door WPL-W10581588

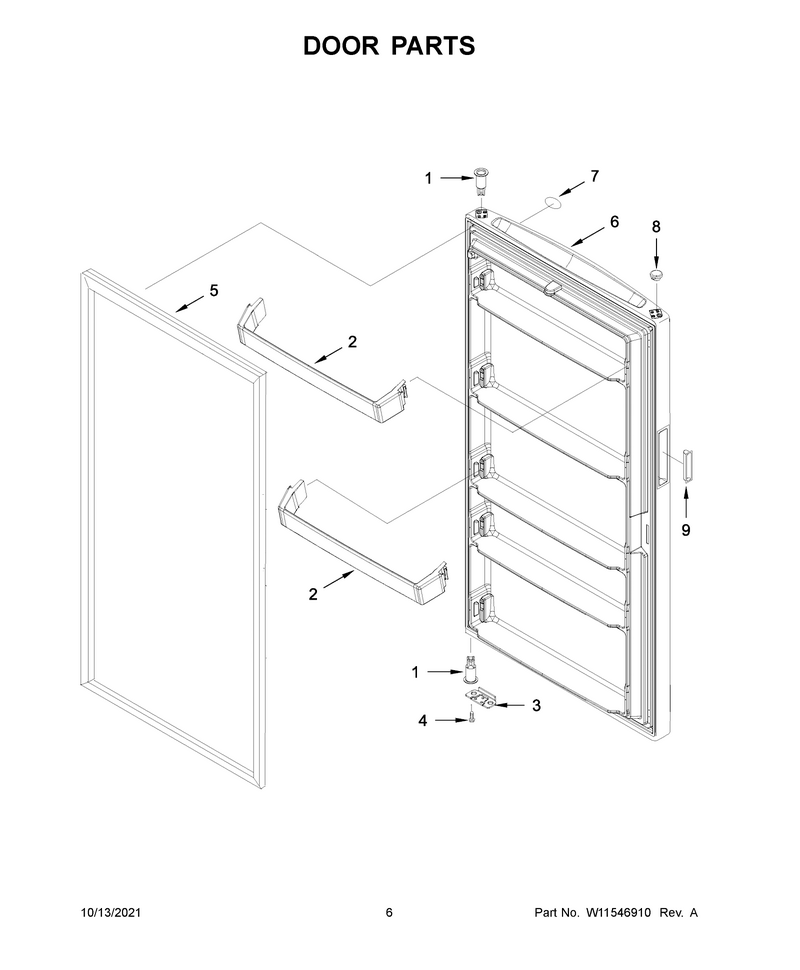

04 - Door Parts

...
...
1
Thimble WPL-WP2314293
...
2
Rail, Door Shelf WPL-W10737497
...
3
Bracket, Door Stop WPL-W10628869
...
4
Screw WPL-WP7101P126-60
...
5
Gasket-Dor WPL-W10850441
...
6
Dor-Fmd WPL-W10746780
...
7
Nameplate WPL-WPW10612925
...
8
Button-Plg WPL-WP2212648
...
9
Handle, Cup (White) WPL-W10352523

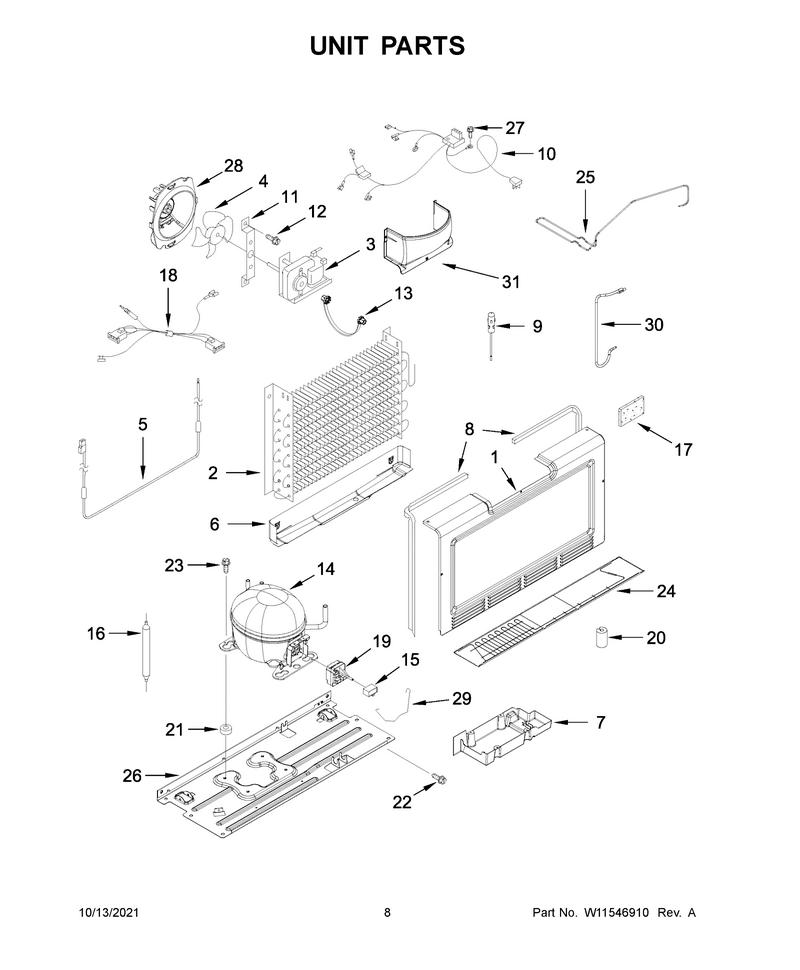

05 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Cover-Evap WPL-W11551256
...
2
Evaporator WPL-W11507067
...
3
Motor-Evap WPL-W11499658
...
4
Blade-Fan WPL-WP2169142
...
5
Heater WPL-WPW10316428
...
6
Shield WPL-WPW10314195
...
7
Pan, Evaporator Drain WPL-W10574291
...
8
Gasket WPL-WPW10574368
...
9
Thermistor WPL-WPW10383615
...
10
Harns-Wire WPL-W11648068
...
11
Clip, Evaporator Motor WPL-13058002
...
12
Screw WPL-W11233072
...
13
Grommet WPL-W11690160
...
14
Compressor WPL-WPW10507886
...
15
Capacitor WPL-WPW10350564
...
16
Drier-Uv WPL-WPW10143759
...
17
Insulation WPL-W11553819
...
18
Harness WPL-W11670030
...
19
Start-Dev WPL-W10873801
...
20
Grommet WPL-W10852725
...
21
Grommet WPL-W11661108
...
22
Screw (6) WPL-3400524
...
23
Screw WPL-W11661574
...
24
Following Parts Not Illustrated WPL-N/P
...
25
Tube, Discharge (Also Order The Following Lokring Parts) WPL-W10574478
...
26
Pan, Compressor WPL-W10574278
...
27
Screw, 8-32 X 3/8 WPL-681390
...
28
Shroud, Evaporator Fan WPL-W10574469
...
29
Clip WPL-W11575357
...
30
Tube, Suction WPL-W10861955
...
31
Cover, Evaporator Fan WPL-W10574581

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
