Maytag MVWP586GW0

Model: MVWP586GW0

Save Part Not Listed?
product name

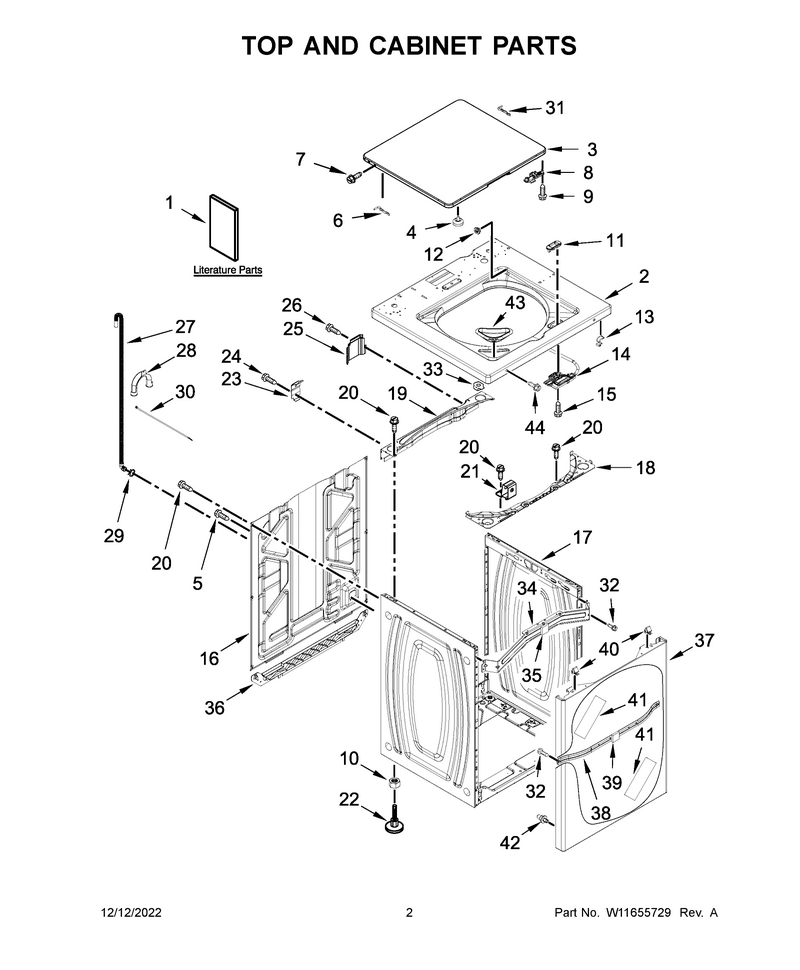

02 - Top And Cabinet Parts

...
...
1
Installation Instructions WPL-W11600470
...
1A
Use And Care Guide WPL-W11600465
...
1B
Tech Sheet WPL-W11602327
...
1C
Quick Start Guide WPL-W11600466
...
1D
Energy Guide WPL-W11626976
...
2
Top (White) WPL-W10461170
...
3
Lid WPL-WPW10338625
...
4
Bumper WPL-W11252488
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-WPW10240513
...
9
Screw WPL-WPW10273971
...
10
Nut WPL-WP3359452
...
11
Bezel WPL-WPW10392041
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-WPW10482836
...
15
Screw WPL-W11679611
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet (White) WPL-W10845574
...
18
Brace WPL-W11695477
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11568617
...
21
Lock, Top WPL-W10461182
...
22
Feet-Lvlng WPL-W10862938
...
23
Hinge, Top WPL-W10461176
...
24
Screw WPL-WP489128
...
25
Cover, Harness WPL-W10461180
...
26
Screw WPL-W10846509
...
27
Hose WPL-W11244231
...
28
Retainer WPL-WPW10280024
...
29
Clamp WPL-WP356138
...
30
Tie-Wire WPL-WPW10339879
...
31
Hinge WPL-WP54583
...
32
Screw WPL-W11685943
...
33
Nut WPL-WP90406
...
34
Bracket, Front Top WPL-W11129581
...
35
Top, Foam Seal WPL-W10161707
...
36
Bracket WPL-W11610868
...
37
Panel WPL-W11704945
...
38
Bracket, Front Panel WPL-W10866521
...
39
Pad WPL-WP8283273
...
40
Lock WPL-W11376161
...
41
Damper, Sound WPL-W11096159
...
42
Locator WPL-W11590580
...
43
Dispenser WPL-WPW10192089
...
44
Screw WPL-W10879744

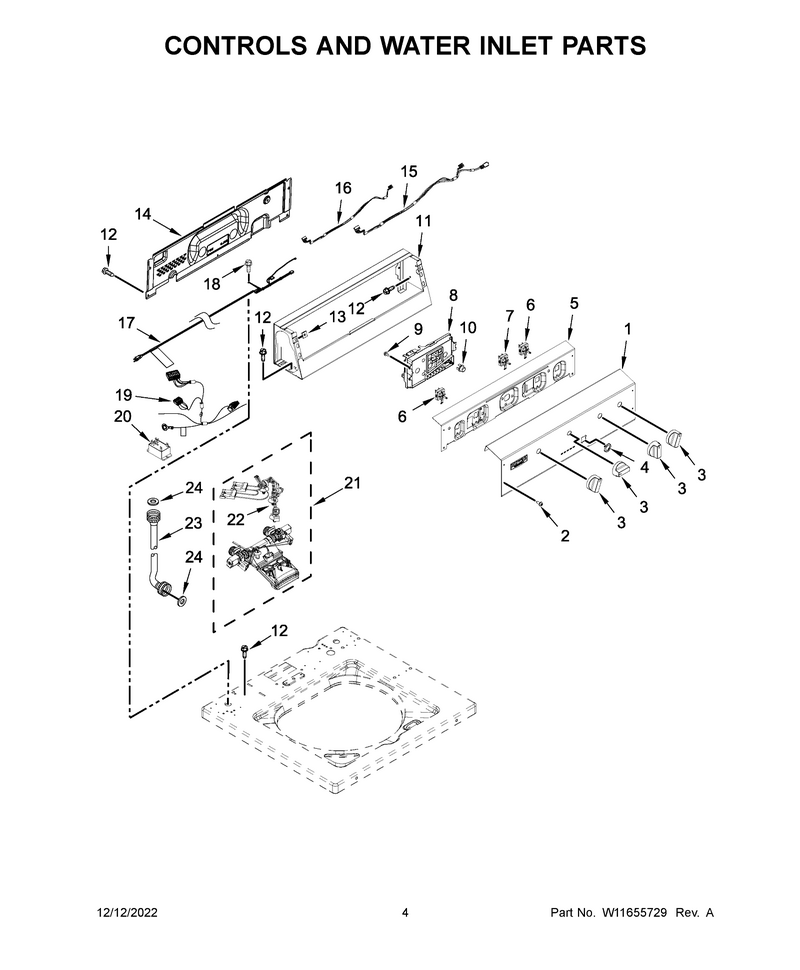

03 - Controls And Water Inlet Parts

...
...
1
Overlay WPL-W11658046
...
2
Screw WPL-WPW10131119
...
3
Knob WPL-W11657966
...
4
Bezel - Pts WPL-W10510149
...
5
Bracket WPL-W11547593
...
6
Switch-Cyc WPL-WPW10285512
...
7
Switch-Cyc WPL-WPW10285518
...
8
Cntrl-Elec WPL-W11657965
...
9
Screw WPL-WP90767
...
10
Pushbutton WPL-W11658045
...
11
Console WPL-W11124005
...
12
Screw WPL-W11685943
...
13
Nut WPL-WPW10131123
...
14
Panel-Rear WPL-WPW10461159
...
15
Harness, Jumper WPL-W11108620
...
16
Harns-Wire WPL-W10694676
...
17
Cord-Power WPL-W11676810
...
18
Screw WPL-W10846509
...
19
Harns-Wire WPL-W11736785
...
20
Relay WPL-W11384790
...
21
Valve WPL-W11205048
...
22
Harness, Valve WPL-W10843398
...
23
Hose-Fill WPL-W11085908
...
23A
Hose-Fill WPL-W11085908
...
24
Washer WPL-WP16123

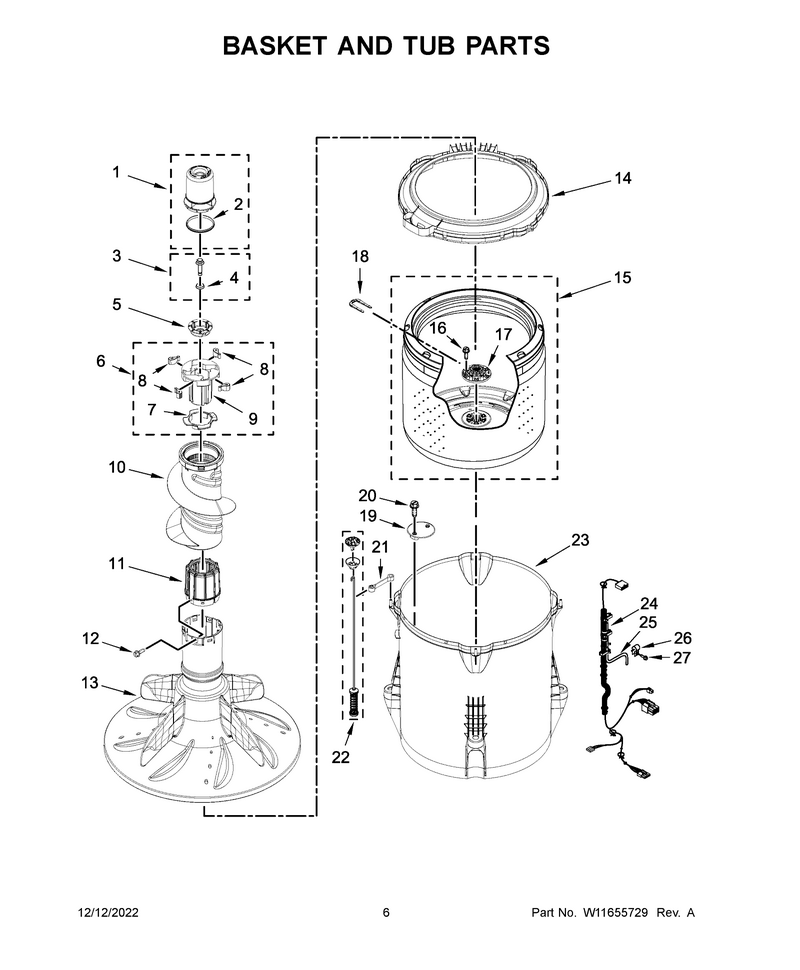

04 - Basket And Tub Parts

...
...
1
Dispenser WPL-W11160642
...
2
Seal WPL-WP358912
...
3
Screw WPL-W10772621
...
4
Washer WPL-WP3949550
...
5
Retainer WPL-W11661945
...
6
Cam-Agit WPL-W11158175
...
7
Bearing WPL-WP8055141
...
8
Dog-Agit WPL-80040
...
9
Cam-Agit WPL-285825
...
10
Auger-Agit WPL-W11480892
...
11
Coupling WPL-W11561052
...
12
Screw WPL-W11596047
...
13
Agitator WPL-W11418231
...
14
Ring-Tub WPL-WPW10556325
...
15
Basket Assembly WPL-W11436991
...
16
Screw WPL-WP8533953
...
17
Hub WPL-W10528947
...
18
Retainer WPL-W11385424
...
19
Filter WPL-WPW10215093
...
20
Screw WPL-WP8533928
...
21
Strap WPL-W11403873
...
22
Suspension WPL-W11682068
...
23
Tub-Outer WPL-W10324648
...
24
Harns-Wire WPL-W11744742
...
25
Hose WPL-WP353244
...
26
Clamp, Cable WPL-W10005430
...
27
Screw WPL-WPW10109200

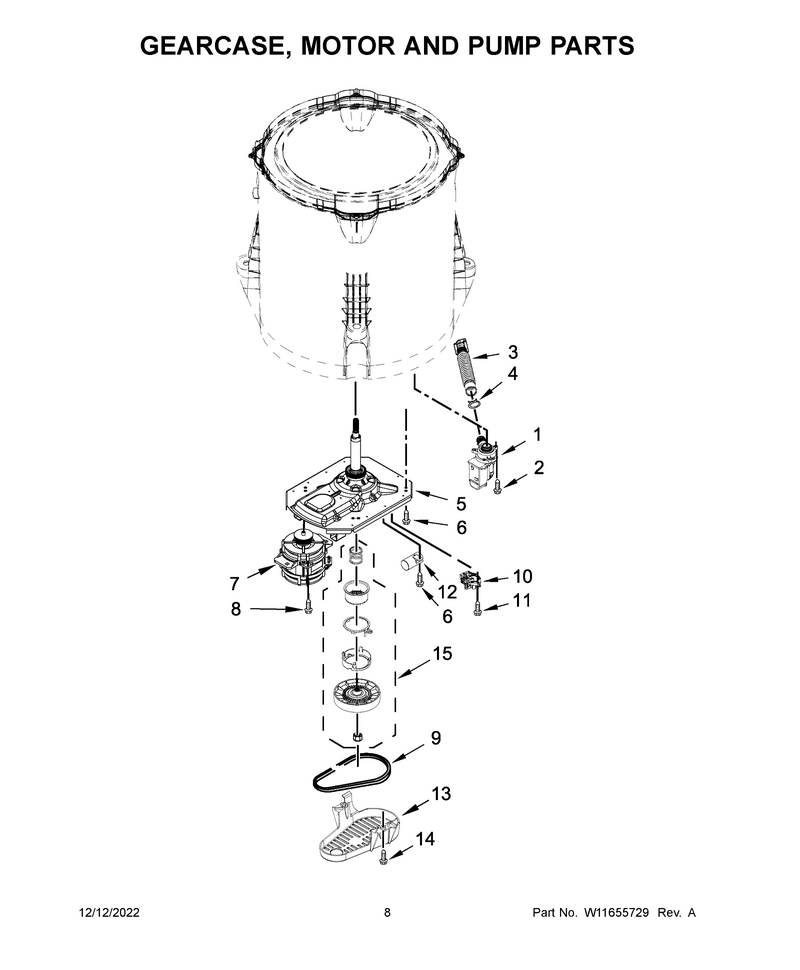

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-WPW10276397
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454738
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-W11222082
...
8
Screw WPL-W11685857
...
9
Belt WPL-W11658047
...
10
Actuator WPL-W11212745
...
11
Screw WPL-W11596033
...
12
Capacitor WPL-W11227944
...
13
Shield WPL-WPW10427633
...
14
Screw WPL-W11573574
...
15
Splutch Kit (60hz) WPL-W10721967

...
...
NI
Accessory Parts, Main Top Rear Support WPL-W10576550
