Maytag MVWC465HW3

Model: MVWC465HW3

Save Part Not Listed?
product name

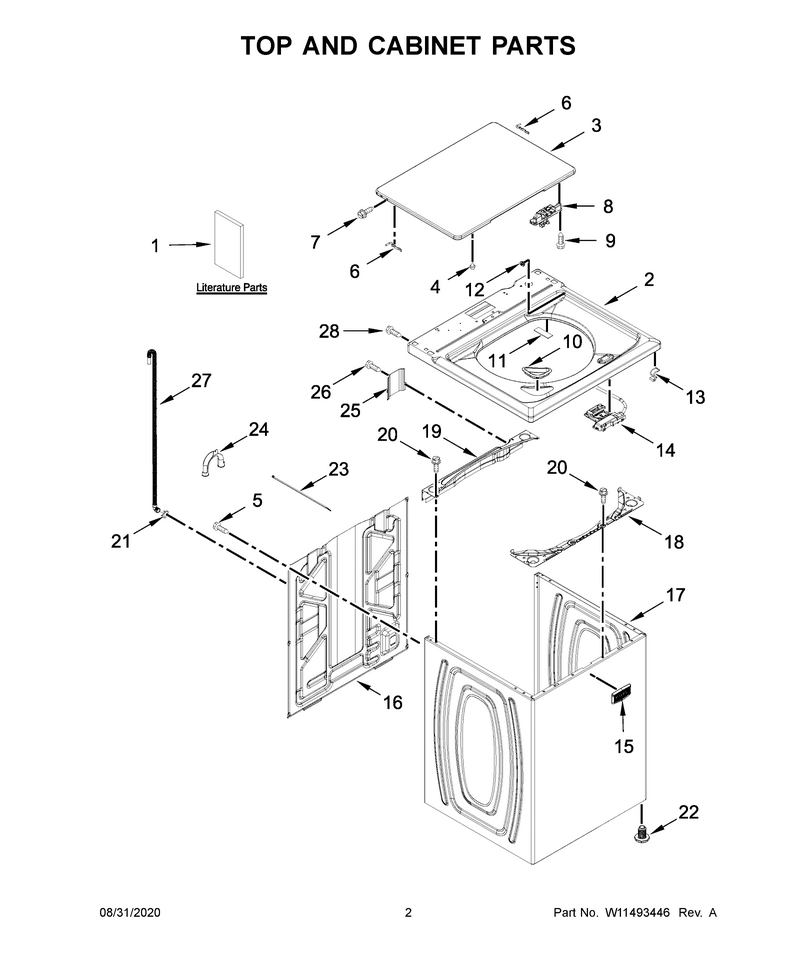

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W11354658
...
1C
Energy Guide WPL-W11360544
...
1A
Tech Sheet WPL-W11447418
...
1B
Quick Start Guide WPL-W11354853
...
2
Top WPL-W11210992
...
3
Lid WPL-W10860912
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
6A
Hinge WPL-WP54583
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-W10837741
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Pad, Lid Hinge WPL-W10684258
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W11307244
...
15
Nameplate WPL-WPW10612925
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11685943
...
21
Clamp WPL-WP356138
...
22
Feet-Lvlng WPL-W11213957
...
23
Tie-Wire WPL-WPW10339879
...
24
Retainer WPL-WPW10280024
...
25
Cover, Harness WPL-W10676061
...
26
Screw WPL-W10846509
...
27
Hose WPL-W11244231
...
28
Screw WPL-W11568617

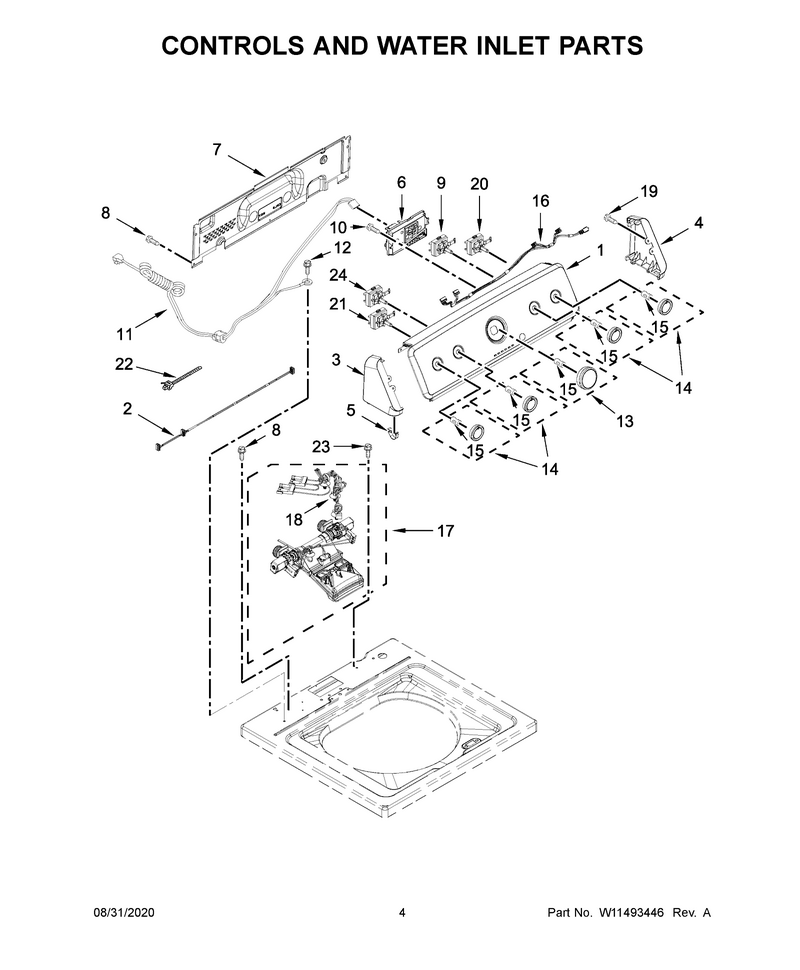

03 - Controls And Water Inlet Parts

...
...
1
Panel-Cntl WPL-W11236321
...
2
Harness, Jumper WPL-W10694669
...
3
Endcap WPL-WPW10193824
...
4
Endcap WPL-WPW10193821
...
5
Clip WPL-WP8312709
...
6
Cntrl-Elec WPL-W11608058
...
7
Panel-Rear WPL-WPW10461159
...
8
Screw WPL-W11685943
...
9
Switch-Cyc WPL-WPW10285512
...
10
Screw WPL-WP90767
...
11
Cord-Power WPL-W10877409
...
12
Screw WPL-W10846509
...
13
Knob WPL-WPW10558463
...
14
Knob WPL-WPW10562155
...
15
Clip WPL-WP688805
...
16
Harness, Upper WPL-W10694685
...
17
Valve WPL-W11038689
...
18
Harness, Valve WPL-W10868094
...
19
Screw WPL-W11693756
...
20
Switch-Cyc WPL-WPW10285511
...
21
Switch-Cyc WPL-WPW10285517
...
22
Cable Tie WPL-W10339680
...
23
Screw WPL-WPW10213953
...
24
Switch-Cyc WPL-WPW10285518

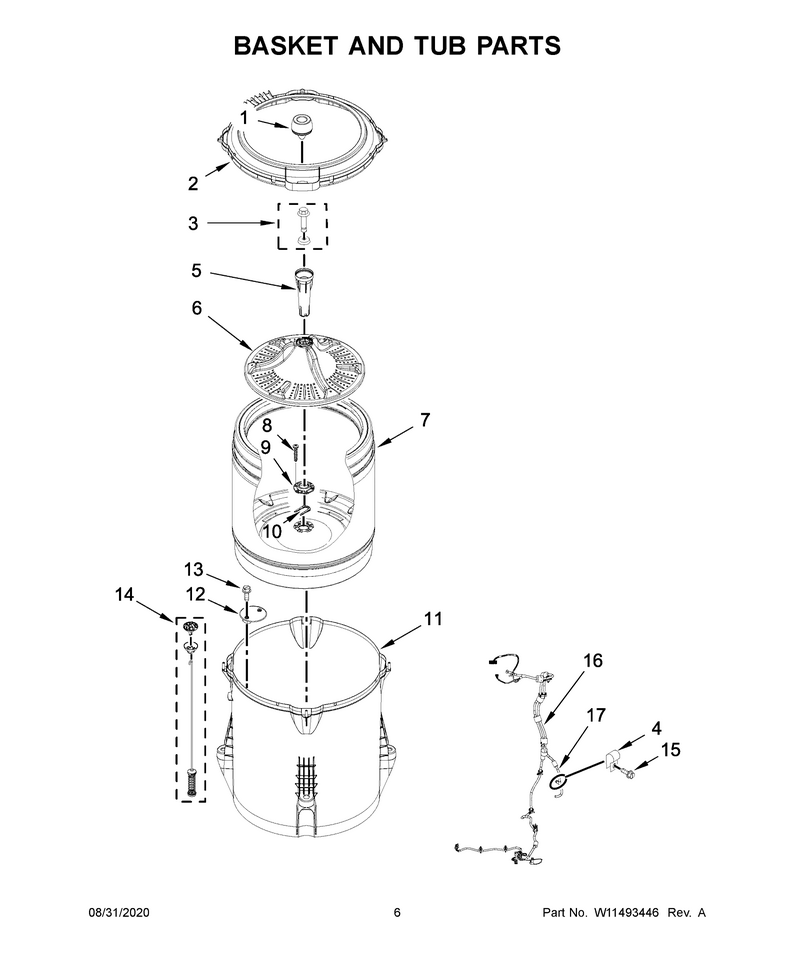

04 - Basket And Tub Parts

...
...
1
Dispenser WPL-W11205050
...
2
Ring-Tub WPL-W11550886
...
3
Screw WPL-W11223765
...
4
Clamp, Cable WPL-W10005430
...
5
Agitator WPL-W10836692
...
6
Washplate WPL-W10919191
...
7
Basket Assembly WPL-W11172199
...
8
Screw WPL-WP8533953
...
9
Hub WPL-W10528947
...
10
Retainer WPL-W11385424
...
11
Tub-Outer WPL-W10371566
...
12
Filter WPL-WPW10215093
...
13
Screw WPL-WP8533928
...
14
Suspension WPL-W11217817
...
15
Screw WPL-WPW10109200
...
16
Harns-Wire WPL-W11665968
...
17
Hose WPL-WP353244

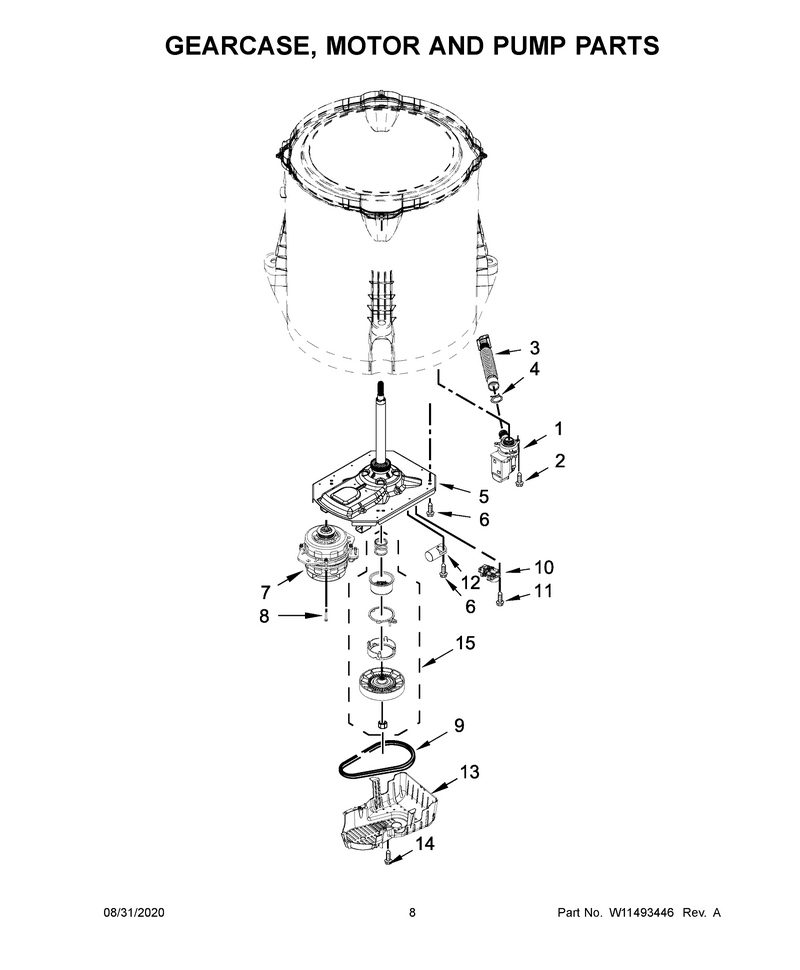

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-W10919003
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454372
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-W11686050
...
8
Screw WPL-W11685857
...
9
Belt WPL-W11239857
...
10
Actuator WPL-W10913953
...
11
Screw WPL-W11596033
...
12
Capacitor WPL-W11428524
...
13
Shield WPL-W11409708
...
14
Screw WPL-W11573574
...
15
Splutch Kit (60hz) WPL-W10721967

...
...
NI
Paint, Spray (White) WPL-350930
