Maytag MVW6230HW2

Model: MVW6230HW2

Save Part Not Listed?
product name

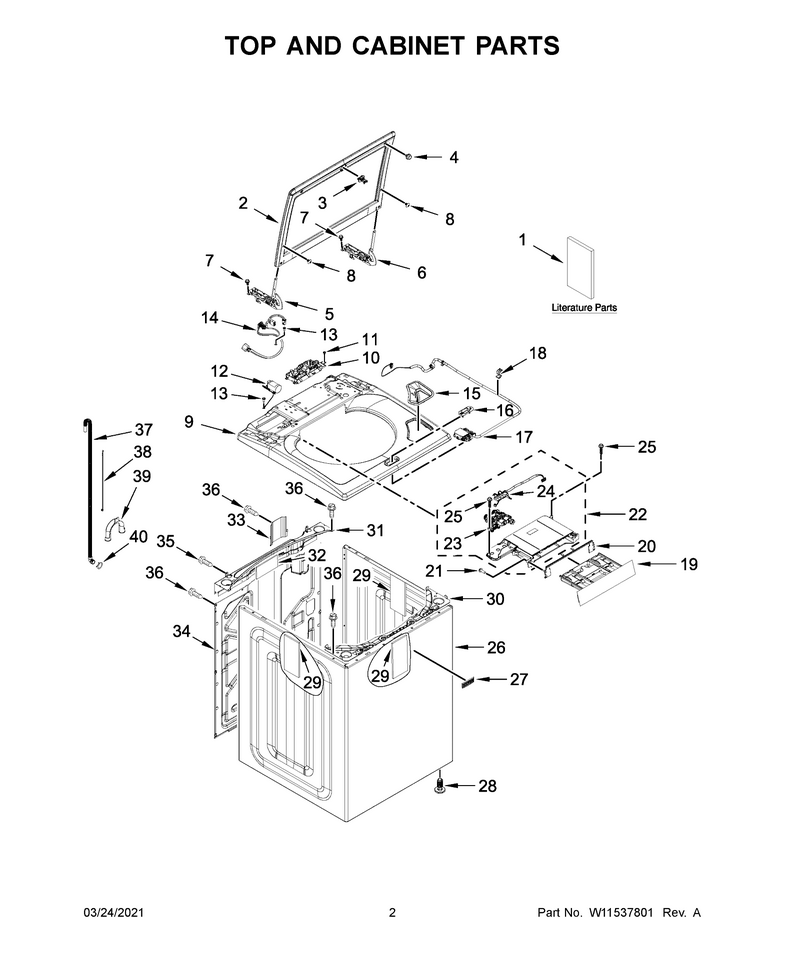

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W11197727
...
1A
Quick Reference Guide WPL-W11445525
...
1B
Energy Guide WPL-W11197666
...
1C
Tech Sheet WPL-W11423870
...
2
Lid WPL-W11470212
...
3
Strike WPL-W11457841
...
4
Bumper WPL-W11398707
...
5
Hinge WPL-W11551369
...
6
Hinge WPL-W11551376
...
7
Screw WPL-WP489128
...
8
Bolt WPL-W11679612
...
9
Top WPL-W11423769
...
9A
Top WPL-W11423768
...
10
Cntrl-Elec WPL-W11567712
...
11
Screw WPL-WP693995
...
12
Filter WPL-W11614635
...
13
Screw WPL-W10846509
...
14
Cord-Power WPL-W11551294
...
15
Bezel, Bleach Dispenser (White) WPL-W11175757
...
15A
Bezel, Bleach Dispenser (Grey) WPL-W11175760
...
16
Bezel WPL-W11545554
...
16A
Bezel WPL-W11559688
...
17
Latch WPL-W11700916
...
18
Clip WPL-WP90016
...
19
Drawer WPL-W10861667
...
19A
Assembly, Dispenser Drawer (Grey) WPL-W11178180
...
20
Assembly, Dispenser Bezel (White) WPL-W10601845
...
20A
Assembly, Dispenser Bezel (Grey) WPL-W11218060
...
21
Screw WPL-W11700520
...
22
Housing WPL-W11396714
...
23
Valve WPL-W11220230
...
24
Harness, Valve WPL-W11198271
...
25
Screw WPL-WPW10109200
...
26
Cabinet (White) WPL-W10676680
...
26A
Cabinet (Chrome Shadow) WPL-W10676681
...
27
Nameplate WPL-WPW10612925
...
28
Feet-Lvlng WPL-W11213957
...
29
Absorber WPL-W11197416
...
30
Channel, Top Front WPL-W11381327
...
30A
Channel, Top Front WPL-W11381327
...
31
Brace WPL-W11712680
...
32
Absorber WPL-WP8564458
...
33
Cover, Harness WPL-W10676061
...
34
Panel-Rear WPL-W11486091
...
35
Screw WPL-W11568617
...
36
Screw WPL-W11685943
...
37
Tie-Wire WPL-WPW10339879
...
38
Hose WPL-W11244231
...
39
Retainer WPL-WPW10280024
...
40
Clamp WPL-WP356138

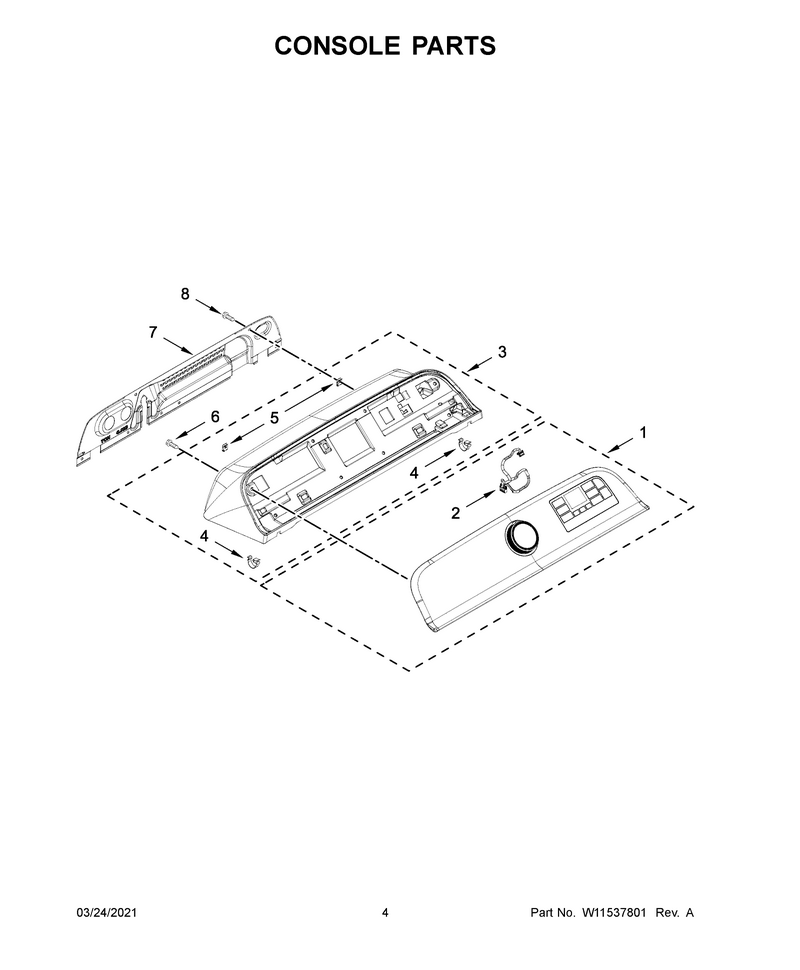

03 - Console Parts

...
...
1
Panel-Ui WPL-W11478524
...
2
Harns-Wire WPL-W11596129
...
3
Console WPL-W11569437
...
3A
Console WPL-W11519741
...
4
Clip WPL-WP8312709
...
5
Nut WPL-W11213336
...
6
Screw WPL-W11311945
...
7
Panel, Console Rear WPL-W11129559
...
8
Screw WPL-W11685943

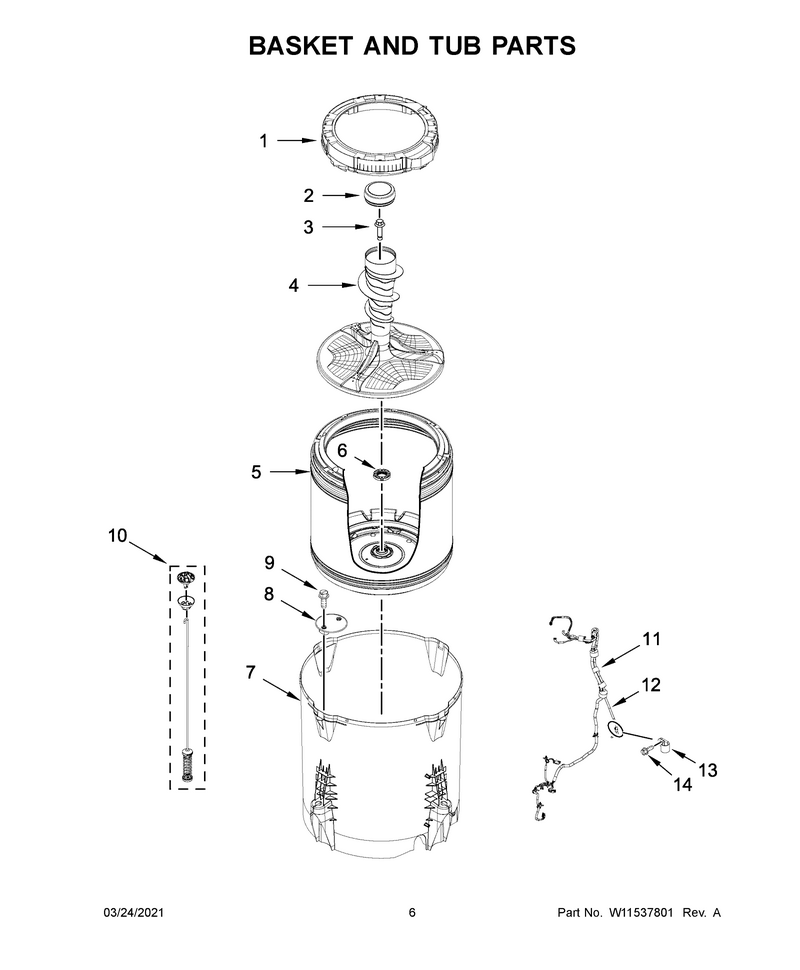

04 - Basket And Tub Parts

...
...
1
Ring-Tub WPL-W11662156
...
2
Cap, Agitator WPL-W11246844
...
3
Screw WPL-W10752187
...
4
Agitator WPL-W11550891
...
5
Basket WPL-W11513243
...
6
Nut-Spaner WPL-W11551646
...
7
Tub WPL-W11219115
...
8
Filter WPL-W11568797
...
9
Screw WPL-WP8533928
...
10
Suspension WPL-W11396716
...
11
Harns-Wire WPL-W11590868
...
12
Hose WPL-WP353244
...
13
Clamp, Cable WPL-W10005430
...
14
Screw WPL-WPW10238319

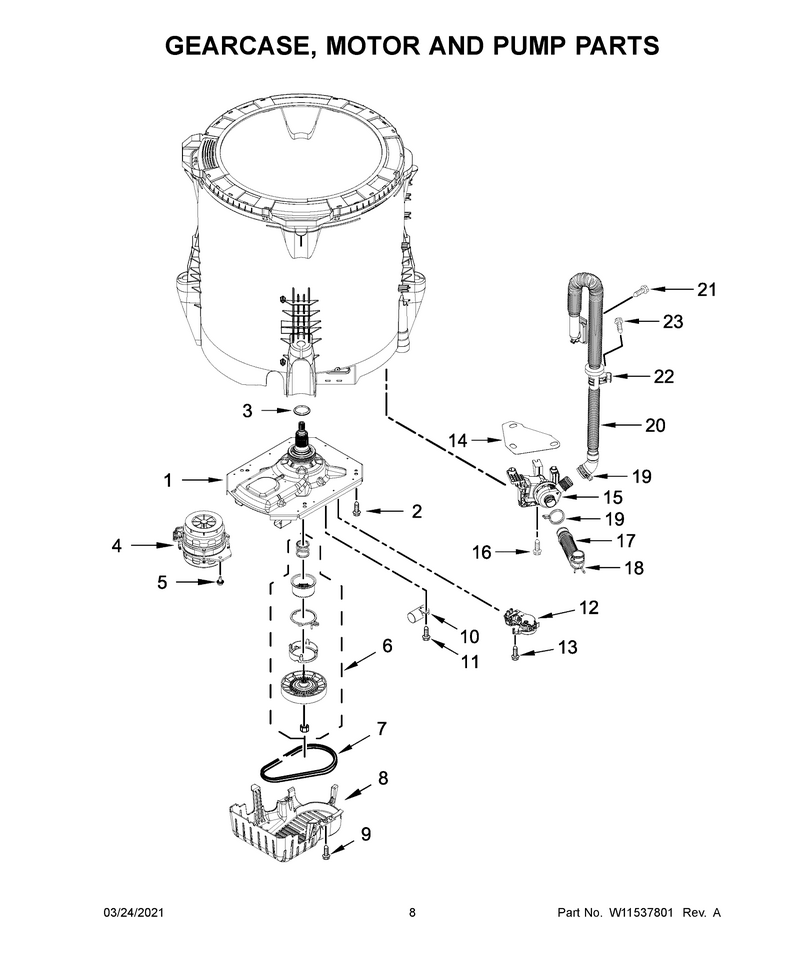

05 - Gearcase, Motor And Pump Parts

...
...
1
Gearcase WPL-W11449840
...
2
Screw WPL-WPW10249633
...
3
Washer WPL-W11553312
...
4
Motor-Drve WPL-W11026785
...
5
Screw WPL-W11685857
...
6
Splutch Kit (60hz) WPL-W10721967
...
7
Belt WPL-W11239857
...
8
Shield WPL-W11409708
...
9
Screw WPL-W11573574
...
10
Capacitor WPL-W11395618
...
11
Screw WPL-WP489128
...
12
Actuator WPL-W11481722
...
13
Screw WPL-W11596033
...
14
Shield, Heat WPL-W10894129
...
15
Pump-Water WPL-W11399437
...
16
Screw WPL-WPW10004910
...
17
Hose WPL-W10802689
...
18
Clamp WPL-WP285655
...
19
Clamp WPL-WP285655
...
20
Hose WPL-W10899966
...
21
Screw WPL-WP9740848
...
22
Clip, Hose WPL-W10652932
...
23
Screw WPL-WPW10109200

...
...
NI
Accessory Parts, 8' Drain Hose W/clamp WPL-285666
