product name

Maytag MVW5430MW2

Model: MVW5430MW2

Save Part Not Listed?
product name

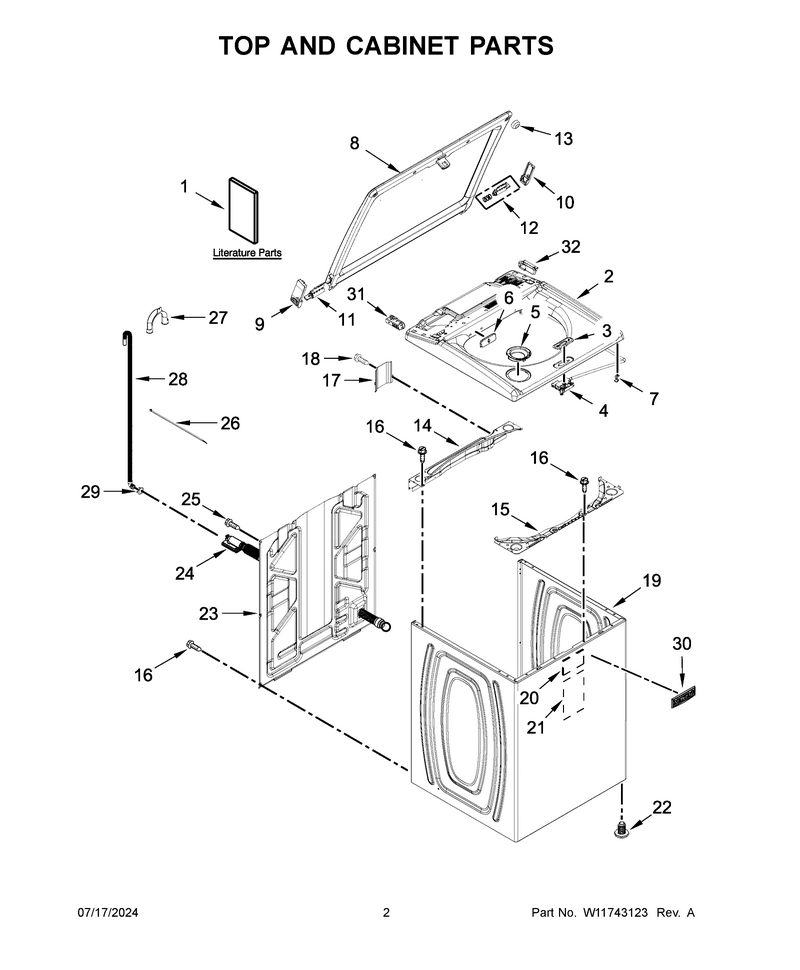

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W11646252
...
1B
Quick Start Guide WPL-W11646245
...
1A
Energy Guide WPL-W11720290
...
2
Top WPL-W11513254
...
3
Bezel WPL-W11643703
...
4
Latch WPL-W11670519
...
5
Dispenser WPL-W11234069
...
6
Bezel, Faucet WPL-W11396263
...
7
Clip WPL-WP90016
...
8
Lid WPL-W11627419
...
9
Cover WPL-W11627504
...
10
Cover WPL-W11627505
...
11
Hinge WPL-W11627502
...
12
Hinge WPL-W11627503
...
13
Bumper, Door WPL-W11483871
...
14
Brace WPL-W11712680
...
15
Channel, Top Front WPL-W11381327
...
16
Screw WPL-W11568617
...
17
Cover, Harness WPL-W10676061
...
18
Screw WPL-W10846509
...
19
Cabinet (White) WPL-W10676680
...
20
Absorber WPL-WP8564458
...
21
Absorber WPL-W11197416
...
22
Feet-Lvlng WPL-W11213957
...
23
Panel-Rear WPL-W11486091
...
24
Hose WPL-W11735315
...
25
Screw WPL-WP9740848
...
26
Tie-Wire WPL-WPW10339879
...
27
Retainer WPL-WPW10280024
...
28
Hose WPL-W11244231
...
29
Clamp WPL-WP356138
...
30
Nameplate WPL-WPW10612925
...
31
Bearing WPL-W11638180
...
32
Bearing WPL-W11638181

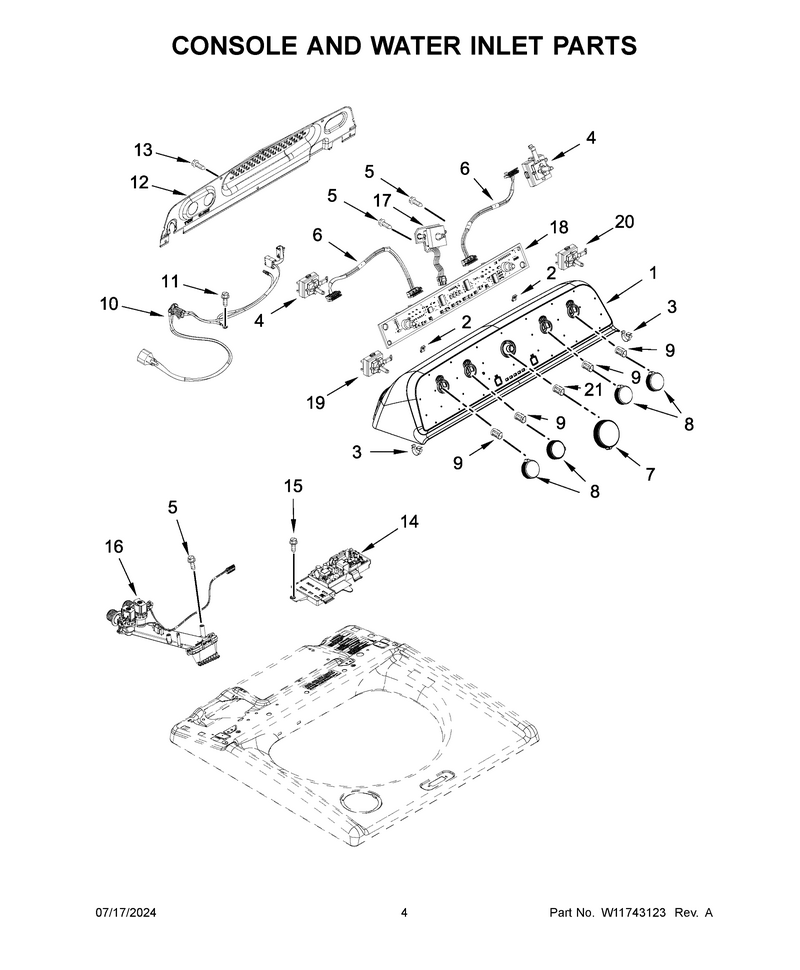

03 - Console And Water Inlet Parts

...
...
1
Panel-Cntl WPL-W11743907
...
2
Nut WPL-W11213336
...
3
Clip WPL-WP8312709
...
4
Switch-Cyc WPL-W10859568
...
5
Screw WPL-WP9740848
...
6
Harness, Upper WPL-W11437973
...
7
Knob WPL-W11675852
...
8
Knob WPL-W11625514
...
9
Clip WPL-WP688805
...
10
Cord-Power WPL-W11513259
...
11
Screw WPL-W10846509
...
12
Panel, Console Rear Cover WPL-W10611544
...
13
Screw WPL-W11685943
...
14
Cntrl-Elec WPL-W11735316
...
15
Screw WPL-WP693995
...
16
Valve WPL-W11513255
...
17
Cntrl-Elec WPL-W11675700
...
18
Cntrl-Elec WPL-W11675701
...
19
Switch-Cyc WPL-W11168256
...
20
Switch-Cyc WPL-WPW10414398
...
21
Clip WPL-WP8536939

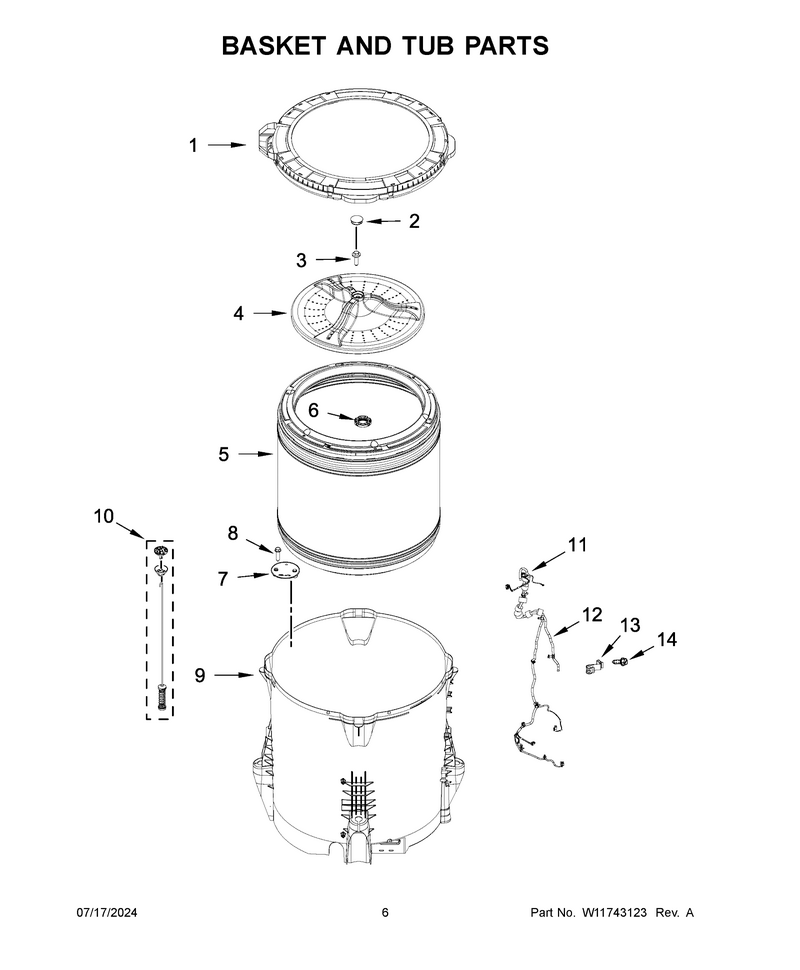

04 - Basket And Tub Parts

...
...
1
Ring-Tub WPL-W11513258
...
2
Cap WPL-W11050804
...
3
Screw WPL-W10752187
...
4
Washplate WPL-W10902814
...
5
Basket WPL-W11513243
...
6
Nut-Spaner WPL-W11551646
...
7
Filter WPL-W11568797
...
8
Screw WPL-WP8533928
...
9
Tub WPL-W11219115
...
10
Suspension WPL-W11396716
...
11
Harns-Wire WPL-W11643701
...
12
Hose WPL-WP353244
...
13
Clip WPL-W11755726
...
14
Screw WPL-WPW10109200

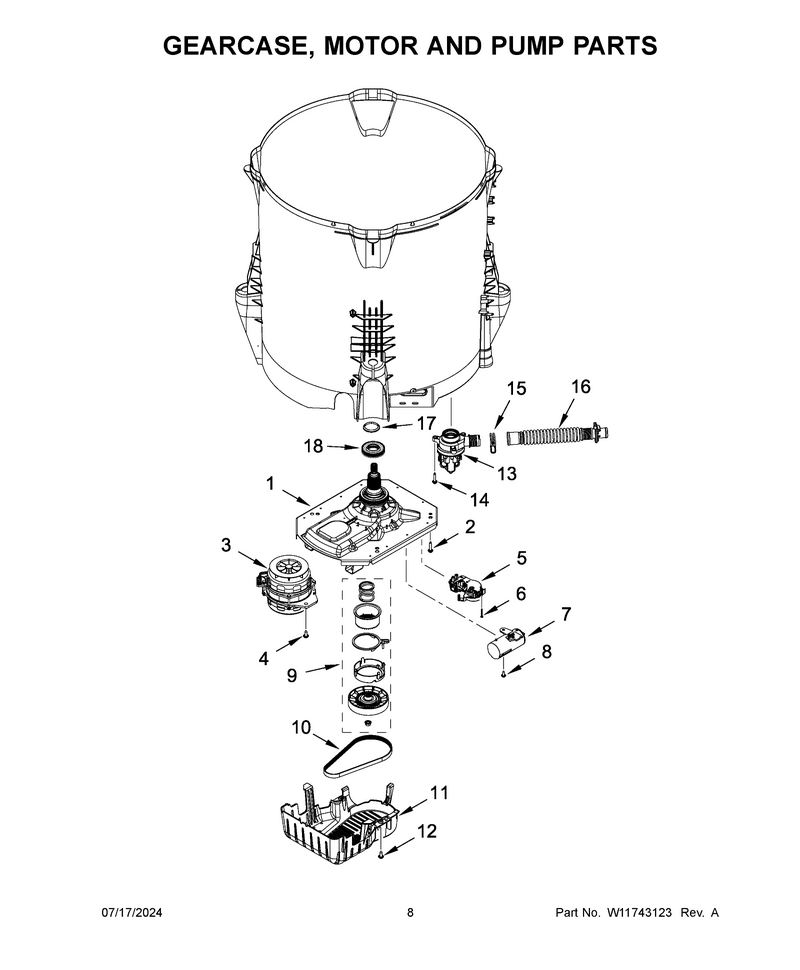

05 - Gearcase, Motor And Pump Parts

...
...
1
Gearcase WPL-W11449840
...
2
Screw WPL-WPW10249633
...
3
Motor-Drve WPL-W11026785
...
4
Screw WPL-W11685857
...
5
Actuator WPL-W11481722
...
6
Screw WPL-W11596033
...
7
Capacitor WPL-W11395618
...
8
Screw WPL-WP489128
...
9
Splutch Kit (60hz) WPL-W10721967
...
10
Belt WPL-W11239857
...
11
Shield WPL-W11409708
...
12
Screw WPL-W11573574
...
13
Pump-Water WPL-W11399437
...
14
Screw WPL-WPW10004910
...
15
Clamp WPL-WP285655
...
16
Hose WPL-W11735315
...
17
Washer WPL-W11553312
...
18
Seal-Tub WPL-W11629599

...
...
NI
Accessory Parts, Hose Screen (Package Of 2) WPL-285452A
