product name

Maytag MUE15MNAYW

Model: MUE15MNAYW

Save Part Not Listed?
product name

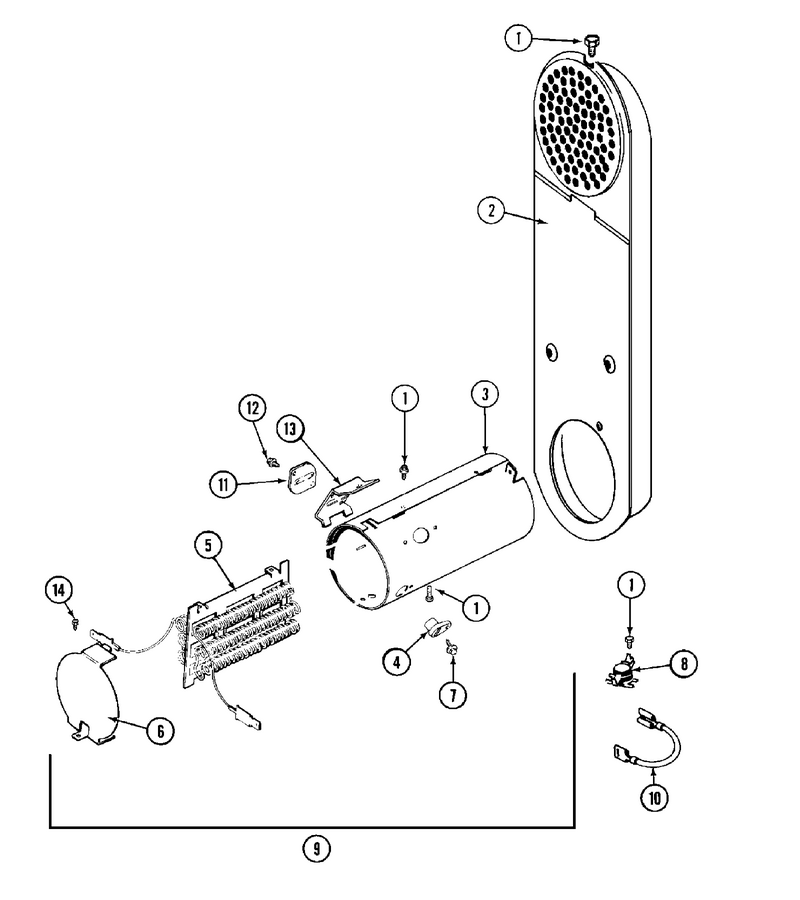

06 - Heater

...
...
001
Screw WPL-WP90767
...
002
Assy,inlet Duct-Elec WPL-33003038
...
003
Heater Enclosure WPL-314995
...
004
Insulator, Terminal WPL-314998
...
005
Element WPL-WP308614
...
006
Shield, Radiant WPL-314999
...
007
Screw WPL-NLA
...
008
Thrmst-Fix WPL-WP303396
...
009
Element WPL-WP308614
...
010
Wire- Jump WPL-WPY307173
...
011
Fuse-Thrml WPL-WP307473
...
012
Screw WPL-NLA
...
013
Bracket, Thermal Fuse WPL-315346
...
014
Screw WPL-WP489128
...
015
Heater WPL-W10116795

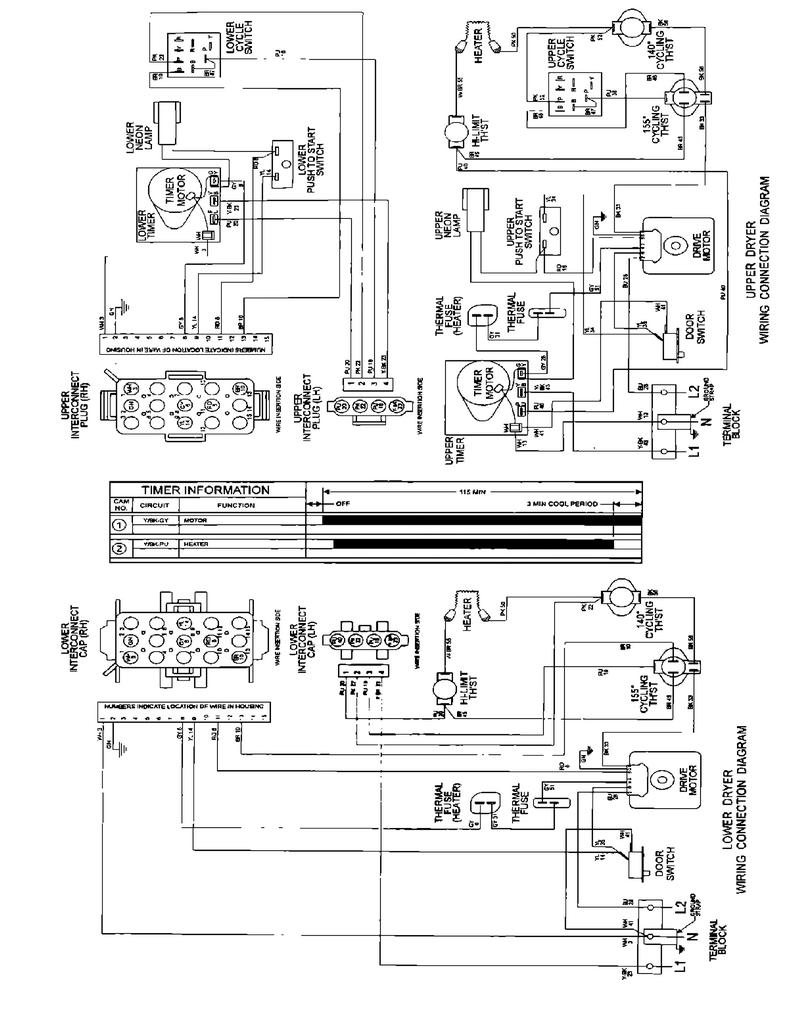

08 - Wiring Information

...
...
001
Wiring Information WPL-NLA

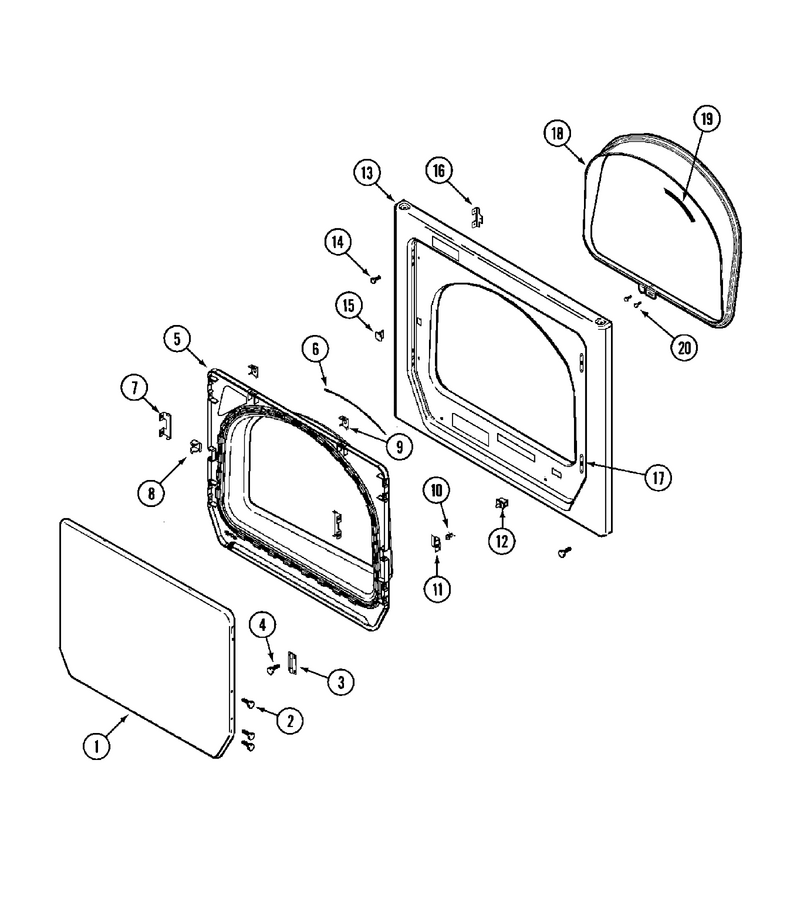

03 - Door (upper)

...
...
001
Panel- Out WPL-33002128
...
002
Screw WPL-WP22002063
...
003
Hinge, Door WPL-33002017
...
004
Screw WPL-WP98006631
...
005
Door, Inner (wht) WPL-33002080
...
006
Seal-Door WPL-WP33002094
...
007
Clip, Door (double) WPL-22002038
...
008
Plug, Inner Door WPL-33001763
...
009
Clip, Inner Door WPL-22002039
...
010
Strike- Do WPL-WP33001761
...
011
Bracket- S WPL-WP33001793
...
012
Switch-Dor WPL-W10169313
...
013
Screw, Front Panel WPL-33002051
...
014
Screw WPL-WP98008544
...
015
Door Latch Kit WPL-306436
...
016
Twin Speednut WPL-33002025
...
017
Cover, Hinge Hole (wht) WPL-33001175
...
018
Extension, Tumbler Front WPL-33002026
...
019
Seal- Shro WPL-WP33001767
...
020
Screw WPL-WP33002917

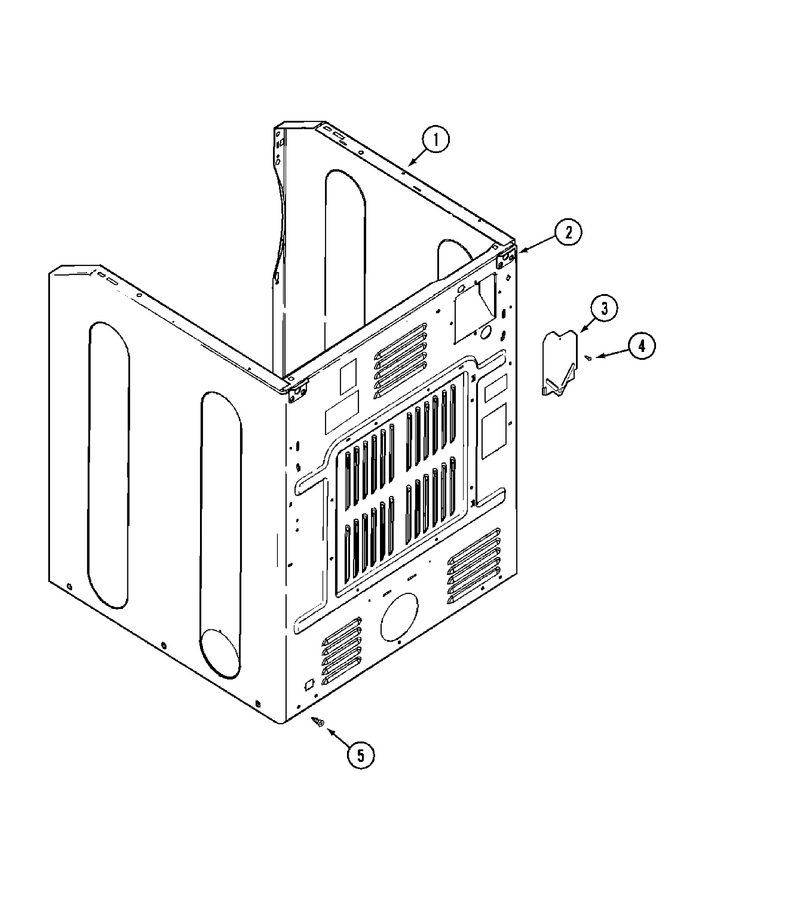

04 - Cabinet-Rear

...
...
001
Plug, Hole WPL-NLA
...
002
Bracket, Cabinet Hinge WPL-NLA
...
003
Cover, Terminal Block WPL-33001795
...
004
Screw WPL-W11573574
...
005
Screw WPL-W11573574

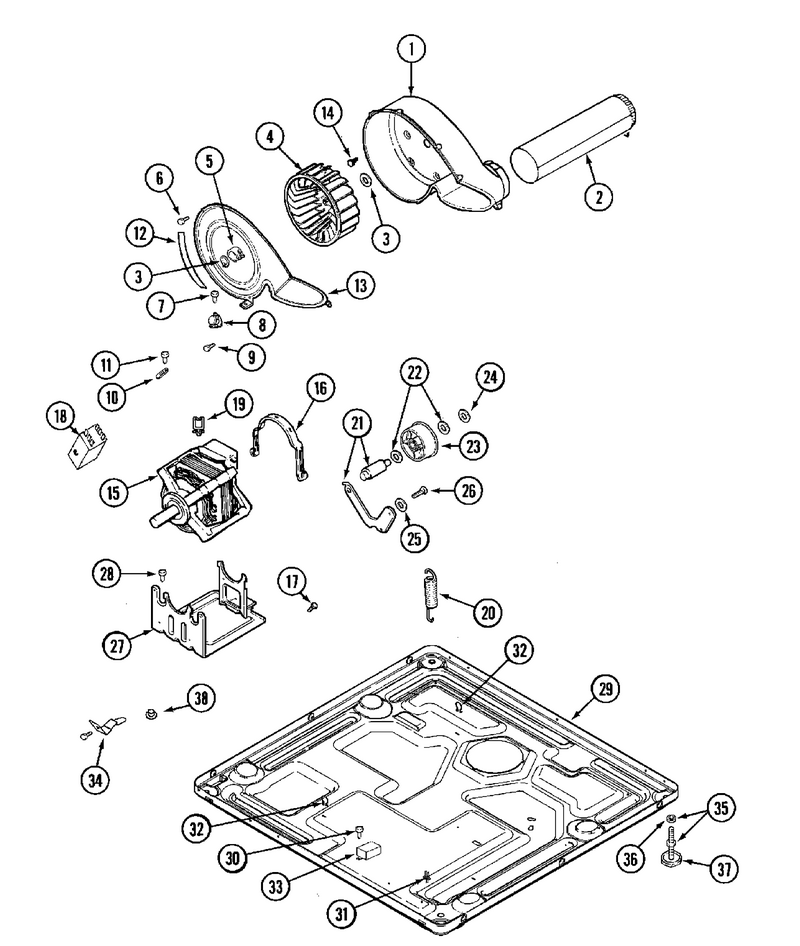

07 - Motor Drive

...
...
001
Housing- B WPL-WP33001789
...
002
Duct Assy., Exhaust WPL-33001800
...
003
Ring-Retnr WPL-WP9703438
...
004
Wheel, Blower WPL-33001790
...
005
Clamp WPL-WP312967
...
006
Screw WPL-WP33002917
...
007
Screw WPL-WPY313561
...
008
Thrmst-Fix WPL-WP694674
...
009
Screw WPL-WP489128
...
010
Fuse- Ther WPL-WP33001762
...
011
Screw, Thermal Cut-Off WPL-NLA
...
012
Seal, Blower Cover WPL-NLA
...
013
Cover, Blower Housing WPL-33002711
...
014
Screw WPL-WP1163839
...
015
Motor-Drve WPL-W10410997
...
016
Clip- Moto WPL-WPY015825
...
017
Screw WPL-WP488234
...
018
Motor-Drve WPL-W10410997
...
019
Clip, Wire Harness WPL-33002040
...
020
Assembly, Spring & Plug WPL-33002459
...
021
Idler Arm WPL-WP6-3705180
...
022
Washer WPL-WPY312527
...
023
Bearing WPL-WP6-3700340
...
024
Ring-E WPL-WP354987
...
025
Sleeve WPL-WP315772
...
026
Screw WPL-WPY014874
...
027
Screw WPL-WPY313561
...
028
Screw WPL-WPY313561
...
029
Base (upr) WPL-33002467
...
030
Screw WPL-WP90767
...
031
Retainer WPL-WP22003298
...
032
Spring, Wire Harness WPL-410490
...
033
Transformer WPL-33001205
...
034
Clip- Lowe WPL-WP22002239
...
035
Foot WPL-WP8563585
...
036
Nut WPL-WP62739
...
037
Pad WPL-WP210684
...
038
Guide WPL-33002044

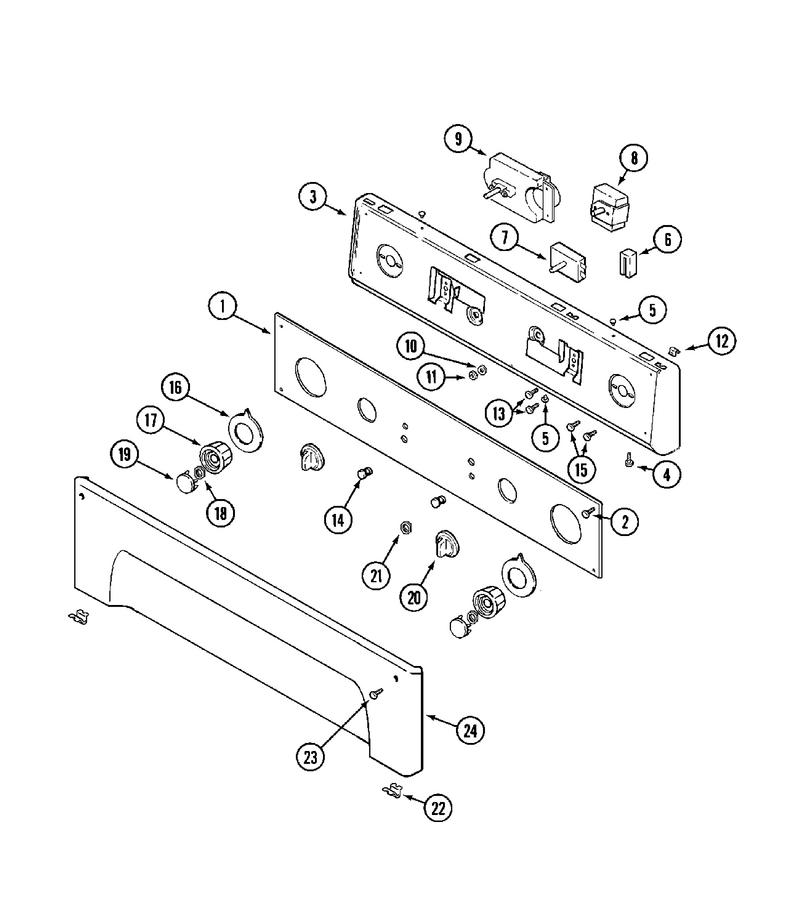

01 - Control Panel

...
...
001
Overlay, Control Panel WPL-33002070
...
002
Screw WPL-WPW10131119
...
003
Fastener Clip, Control Panel WPL-33002003
...
004
Screw WPL-WPW10131119
...
005
(bsq) WPL-33002342
...
006
Lamp, Control Panel WPL-204075
...
007
Switch-Pts WPL-WPW10149462
...
008
Switch, Cycle Selector WPL-307253
...
009
Timer WPL-WPY307296
...
010
Washer WPL-WPW10139799
...
011
Nut, Push To Start Switch WPL-Y312706
...
012
Fastener, Control Panel WPL-33001977
...
013
Screw WPL-WP488234
...
014
Lens- Indi WPL-WP215564
...
015
Screw WPL-WP488234
...
016
Skirt, Dial WPL-33001500
...
017
Knob WPL-W11232017
...
018
Nut, 1/4-28 X WPL-W10155650
...
019
Cap WPL-WPW10133501
...
020
Knob, Cycle Selector WPL-205663
...
021
Knurled Nu WPL-WPY312702
...
022
Fastener, Access Panel WPL-33001980
...
023
Screw WPL-WPW10131119
...
024
Panel, Access (wht) WPL-33002072
...
025
Wire Harness, Main (upr) WPL-NLA

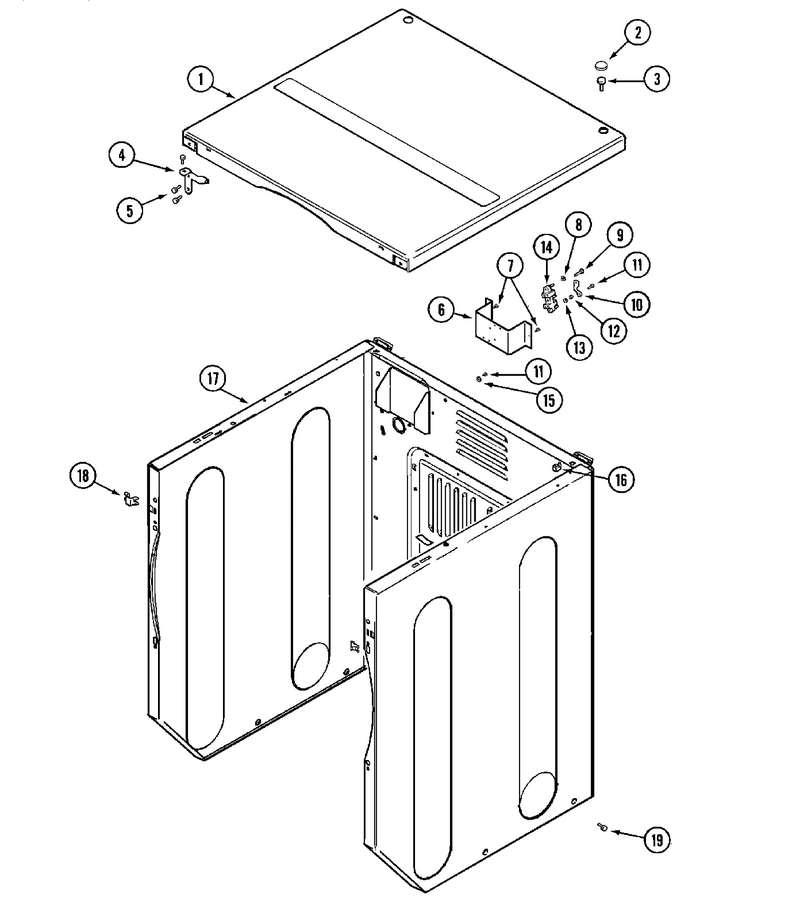

02 - Cabinet-Front (upper)

...
...
001
Screw WPL-WP489128
...
002
Plug, Hole WPL-33001997
...
003
Screw, Top Cover WPL-22001883
...
004
Bracket, Top Cover (lt) WPL-33001998
...
005
Screw WPL-W11573574
...
006
(can) WPL-33002059
...
007
Screw WPL-W11573574
...
008
Washer- Te WPL-WPY311270
...
009
Screw WPL-W11164114
...
010
Strap, Ground WPL-Y312184
...
011
Screw, Ground Strap WPL-NLA
...
012
Nut WPL-WP112432
...
013
Washer- 7 WPL-WP311093
...
014
Block- Ter WPL-W11705611
...
015
Washer, Ground Lug WPL-NLA
...
016
Fastener- WPL-WP22001502
...
017
Cabinet (wht) WPL-NLA
...
018
Clip, Access Panel WPL-33001980
...
019
Screw, Cabinet WPL-213007

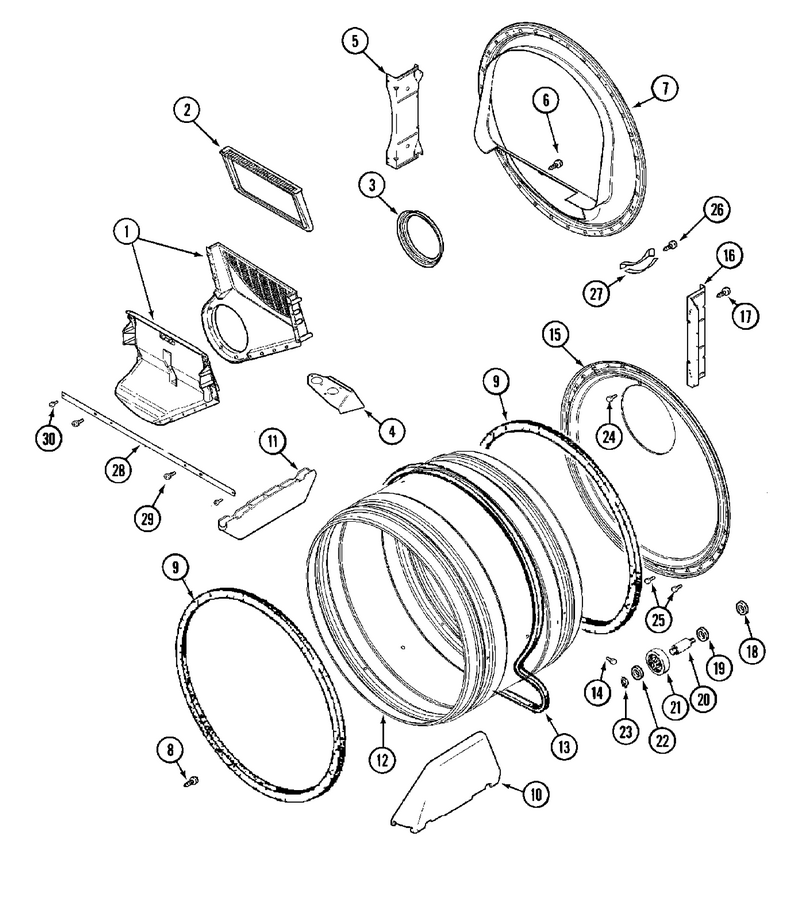

05 - Tumbler

...
...
001
Outlet Duct Assembly WPL-33001799
...
002
Lint Filte WPL-WP33002790
...
003
Seal, Blower WPL-33001758
...
004
Cover, Thermostat (elec Only) WPL-33001837
...
005
Support, Tumbler Front WPL-NLA
...
006
Screw, Outlet Duct WPL-NLA
...
007
Front, Tumbler (w/seal) WPL-33001802
...
008
Screw WPL-WP33002917
...
009
Seal WPL-WP33001807
...
010
Baffle-Drm WPL-WP33002032
...
011
Baffle-Drm WPL-WP33001755
...
012
Tumbler WPL-33001889
...
013
Belt WPL-WP33002535
...
014
Screw, Baffle WPL-33001788
...
015
Back, Tumbler (w/seal) WPL-33001801
...
016
Support, Back WPL-NLA
...
017
Screw WPL-W11573574
...
018
Nut- Hex WPL-WP33001443
...
019
Washer WPL-WP312535
...
020
Shaft WPL-WP6-3129480
...
021
Drum Roller/washer Assy. WPL-12001541
...
022
Washer WPL-WP312535
...
023
Ring-Retnr WPL-WP9703438
...
024
Screw, Inlet Duct WPL-210932
...
025
Screw WPL-WP489128
...
026
Rivet WPL-WP210720
...
027
Tumbler Bearing Kit ----W WPL-306508
...
028
Brace, Tumbler Front WPL-33002039
...
029
Screw, Brace WPL-33001768
...
030
Screw WPL-W11573574
