Maytag MSS25C4MGB06

Model: MSS25C4MGB06

Save Part Not Listed?
product name

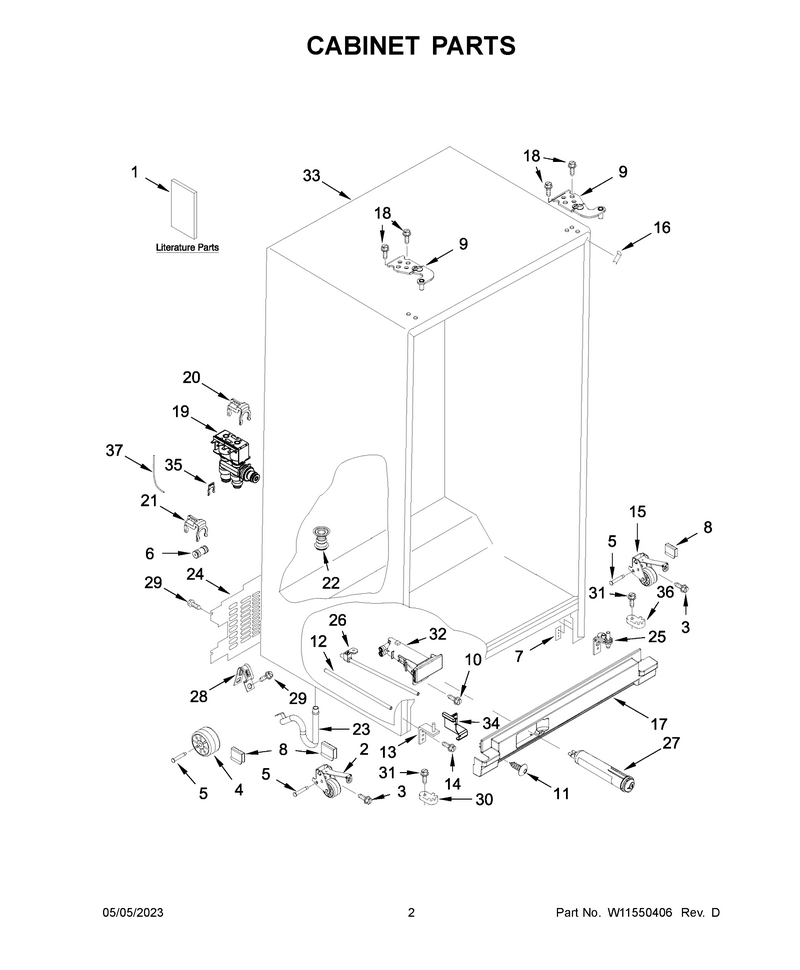

02 - Cabinet Parts

...
...
1
Use & Care Guide WPL-W11484052
...
1A
Tech Sheet (English) WPL-W11641235
...
1B
Tech Sheet (French) WPL-W11641237
...
1C
Energy Guide WPL-W11647254
...
2
Roller-Cab WPL-WPW10304660
...
3
Screw WPL-W11544561
...
4
Roller-Cab WPL-WPW10475495
...
5
Axle WPL-W11594405
...
6
Fitting WPL-WPW10277958
...
7
Plate, Screw (Refrigerator) WPL-W11036715
...
7A
Plate, Screw (Freezer) WPL-W10904380
...
8
Axle WPL-W11594405
...
9
Hinge-Door WPL-W11505709
...
9A
Hinge-Door WPL-W11505710
...
10
Screw WPL-WP489500
...
11
Screw WPL-WPW10142283
...
11A
Screw WPL-WP98008545
...
11B
Screw WPL-WPW10308489
...
12
Tube-Water WPL-W11162036
...
13
Hinge-Door WPL-W11687636
...
14
Screw WPL-WP489497
...
15
Roller-Cab WPL-WPW10304659
...
16
Filler, Wrapper (White) WPL-W11219639
...
16A
Filler, Wrapper (Black) WPL-W11219641
...
16B
Filler, Wrapper (Grey) WPL-W11219642
...
17
Grille WPL-W11282545
...
17A
Grille WPL-W11282546
...
17B
Grille WPL-W11282544
...
18
Assembly, Precooler Formed WPL-SCREW
...
19
Valve-Inlt WPL-WPW10179146
...
20
Double Lock Ring WPL-W11252188
...
21
Connector, Double Lock WPL-W11091654
...
22
Fitting WPL-W11566763
...
23
Trivet WPL-W11512417
...
24
Assembly, Cover WPL-W11613261
...
25
Hinge-Door WPL-W11399415
...
26
Tube-Water WPL-W11162040
...
27
Filter WPL-EDR1RXD1
...
28
Clamp, Plastic WPL-W11234470
...
29
Screw WPL-WPW10141645
...
30
Cam-Door WPL-W11679635
...
31
Screw WPL-WP489483
...
32
Housing WPL-W11162041
...
32A
Housing WPL-W11172791
...
32B
Housing WPL-W11162042
...
33
Following Parts Not Illustrated WPL-N/P
...
34
Assembly, Bracket WPL-W10897565
...
35
Ring WPL-W11676611
...
35A
Ring WPL-W11678575
...
36
Cam-Door WPL-W11398787
...
37
Tube-Water WPL-WPW10238092

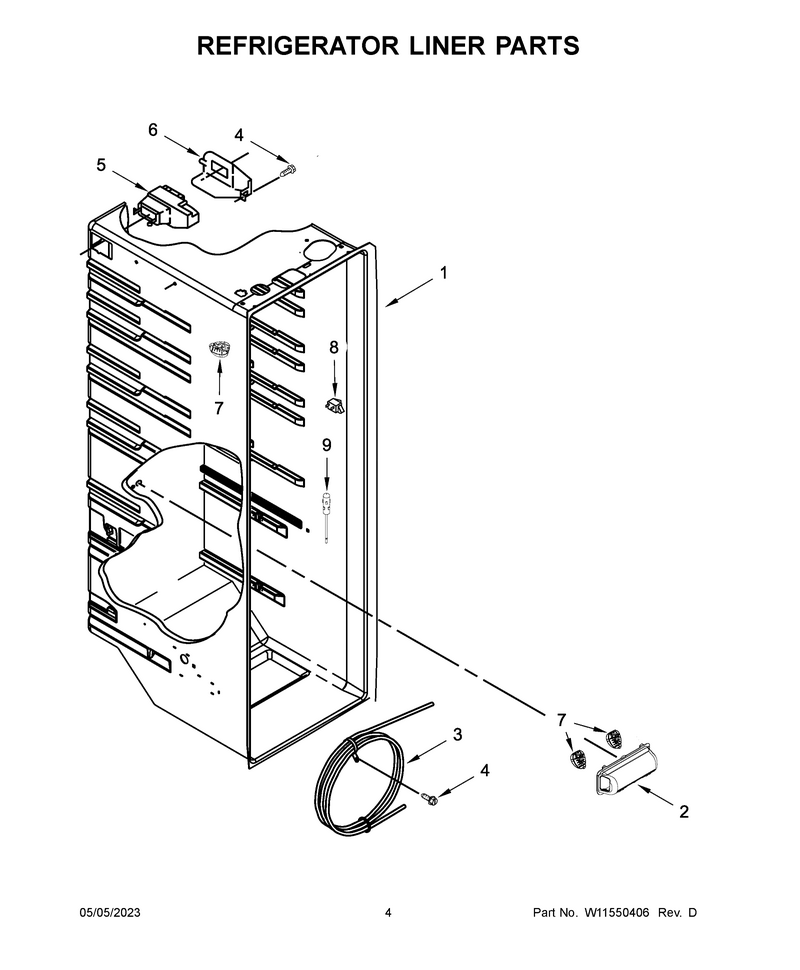

03 - Refrigerator Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Lens-Light WPL-W11239891
...
3
Reservoir WPL-W11566768
...
4
Screw WPL-W10141518
...
5
Diffuser WPL-W11645127
...
6
Cover, Air Diffuser WPL-W11048608
...
7
Module WPL-W11602886
...
8
Switch WPL-W11384469
...
9
Thermistor WPL-WPW10384183

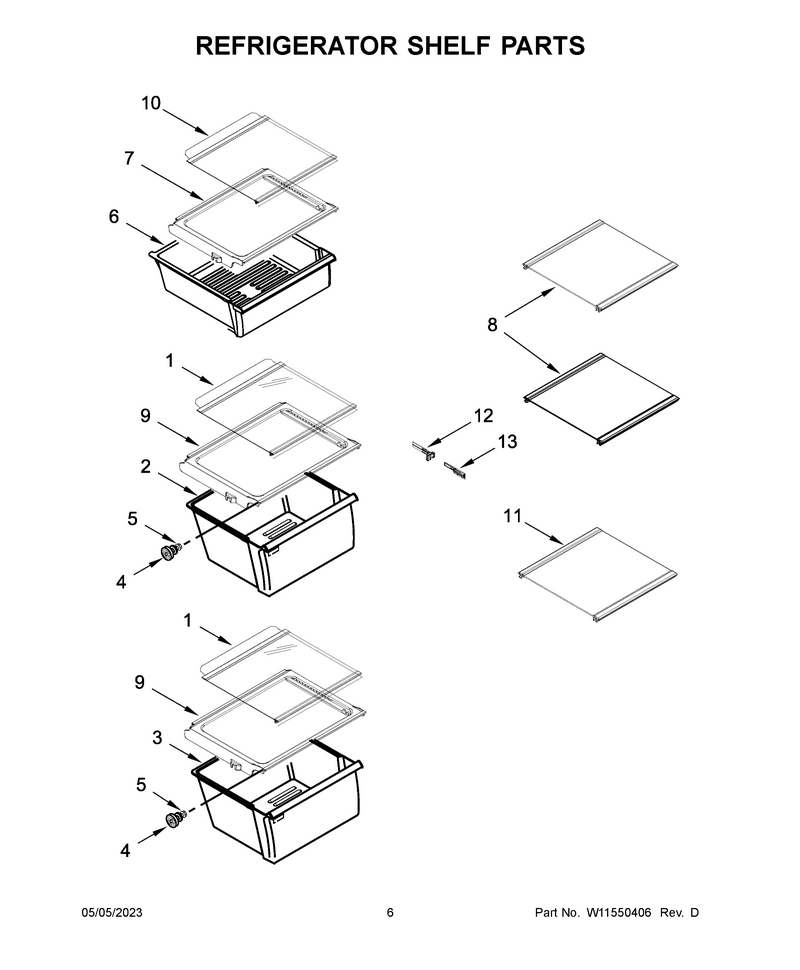

04 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-W11697715
...
2
Cover WPL-W11244431
...
3
Pan-Meat WPL-W11174620
...
4
Stud-Shelf WPL-W11223328
...
5
Screw WPL-WP3-24004-109
...
6
Pan-Snack WPL-W11174621
...
7
Holder WPL-W11371713
...
8
Shelf-Glas WPL-W11174625
...
9
Holder WPL-W11368751
...
10
Shelf-Glas WPL-W11221931
...
11
Shelf-Glas WPL-W11405257
...
12
Slide WPL-W11746089
...
13
Body-Cntrl WPL-WPW10282880

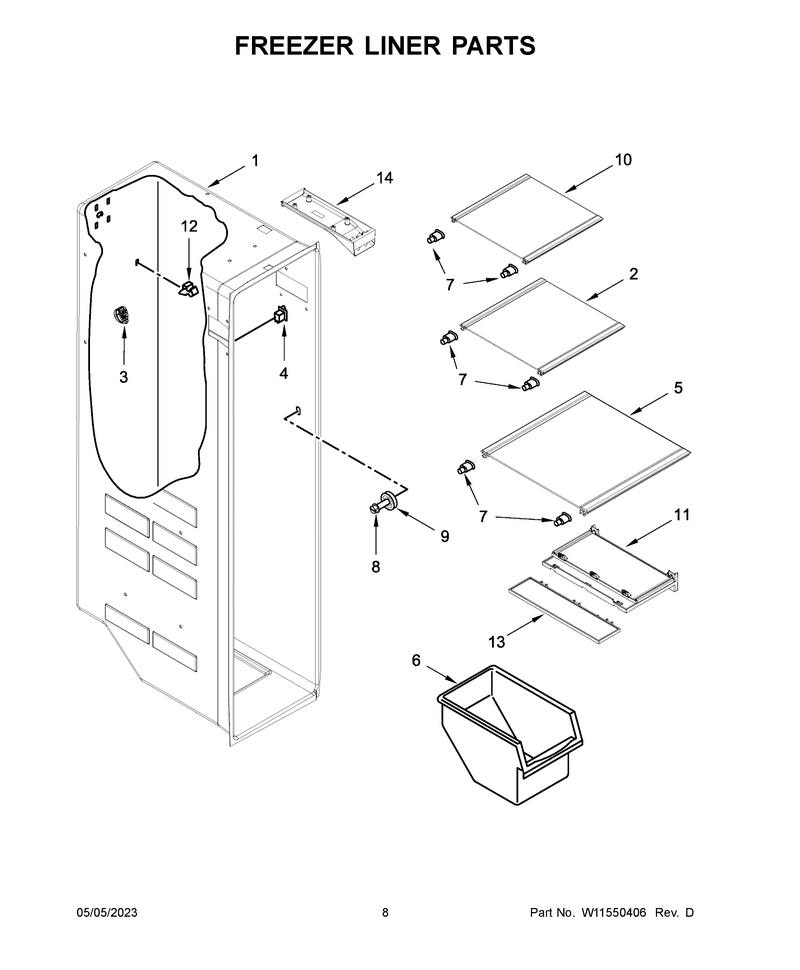

05 - Freezer Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Shelf-Glas WPL-W11174788
...
3
Module WPL-W11602886
...
4
Switch WPL-W11396033
...
5
Shelf-Glas WPL-W11575702
...
6
Bin-Freezr WPL-W11577967
...
7
Cup WPL-WPW10130299
...
8
Screw WPL-WPW10191952
...
9
Stud-Shelf WPL-W11223328
...
10
Shelf-Glas WPL-W11174792
...
11
Rail WPL-W11216934
...
12
Clip-Air, Duct WPL-2215823
...
13
Shelf-Glas WPL-W11318231
...
14
Duct Air, Freezer WPL-W11084314

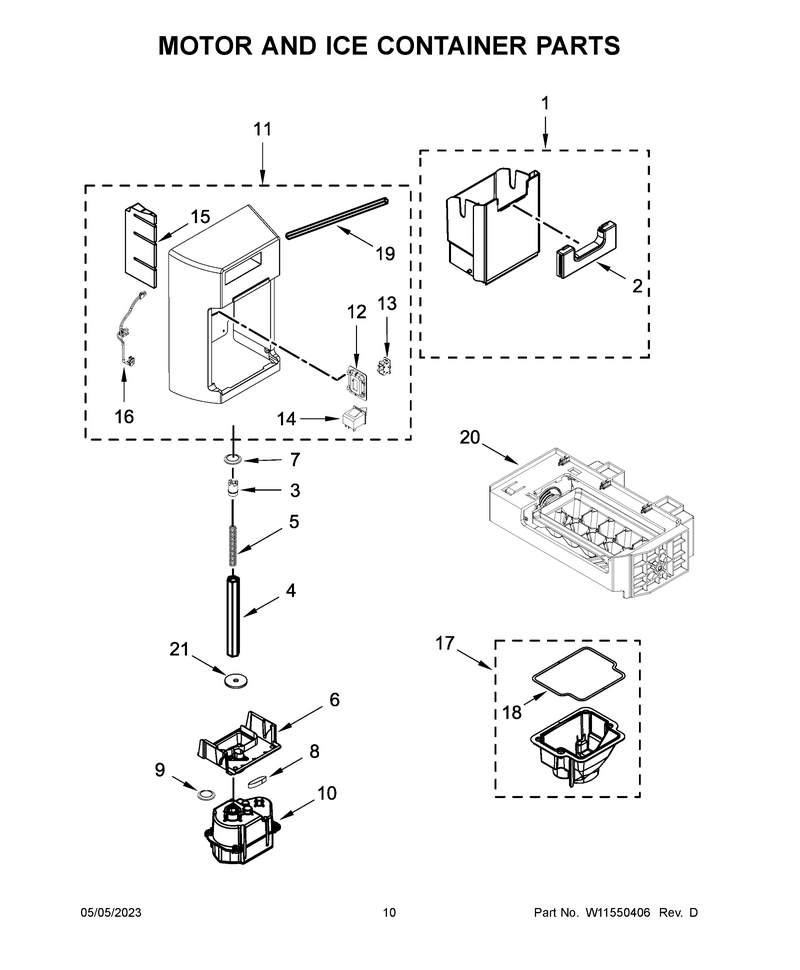

06 - Motor And Ice Container Parts

...
...
1
Ice-Contnr WPL-W11244434
...
2
Latch-Bin WPL-W11652042
...
3
Coupling WPL-WP2220458
...
4
Shaft WPL-WPW10258544
...
5
Spring WPL-W10852956
...
6
Chute WPL-WPW10293212
...
7
Seal WPL-WP2198628
...
8
Seal WPL-WPW10291905
...
9
Washer WPL-WP2212370
...
10
Motor WPL-W11202789
...
11
Cover-Frnt WPL-W11566889
...
12
Plate, Switch WPL-W11341247
...
13
Switch WPL-W11469740
...
14
Switch WPL-W11123943
...
15
Filler, Eps Icemaker Cover WPL-W10905506
...
16
Wire-Jumpr WPL-W11684619
...
17
Bracket WPL-W11708427
...
18
Gasket WPL-W10166854
...
19
Gasket WPL-WPW10400435
...
20
Icemaker WPL-W10873791
...
21
Washer WPL-WP2305382

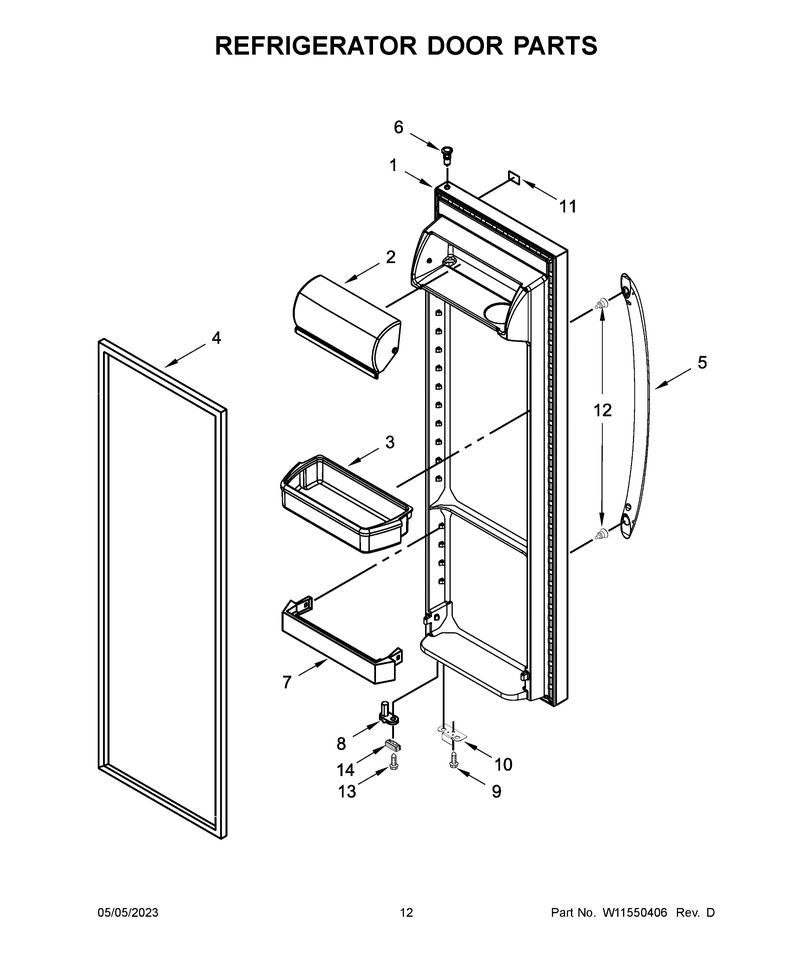

07 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-LW10912118
...
1A
Dor-Fip WPL-LW10912126
...
1B
Dor-Fip WPL-LW10912110
...
2
Door-Comp WPL-WP2256101
...
3
Bin-Cntlvr WPL-W11174793
...
4
Door Gasket, Magnetic (Service) (Mist Beige) WPL-2159074
...
4A
Door Gasket, Magnetic (Service) (Black) WPL-2159082
...
4B
Gasket-Fip WPL-W10136735
...
5
Handle WPL-W10918556
...
5A
Handle WPL-W10918557
...
5B
Handle WPL-W10879677
...
6
Thimble WPL-WP2182181
...
7
Trim-Door WPL-WP2309941
...
8
Cam-Door WPL-W11397972
...
9
Screw WPL-WPW10296816
...
10
Bracket WPL-W11557261
...
11
Nameplate WPL-WPW10612926
...
12
Screw WPL-WPW10661886
...
13
Screw WPL-WPW10296804
...
14
Bumper-Dor WPL-W11687672
...
14A
Bumper, Door (Black) WPL-W10407187
...
14B
Bumper-Dor WPL-W11573367

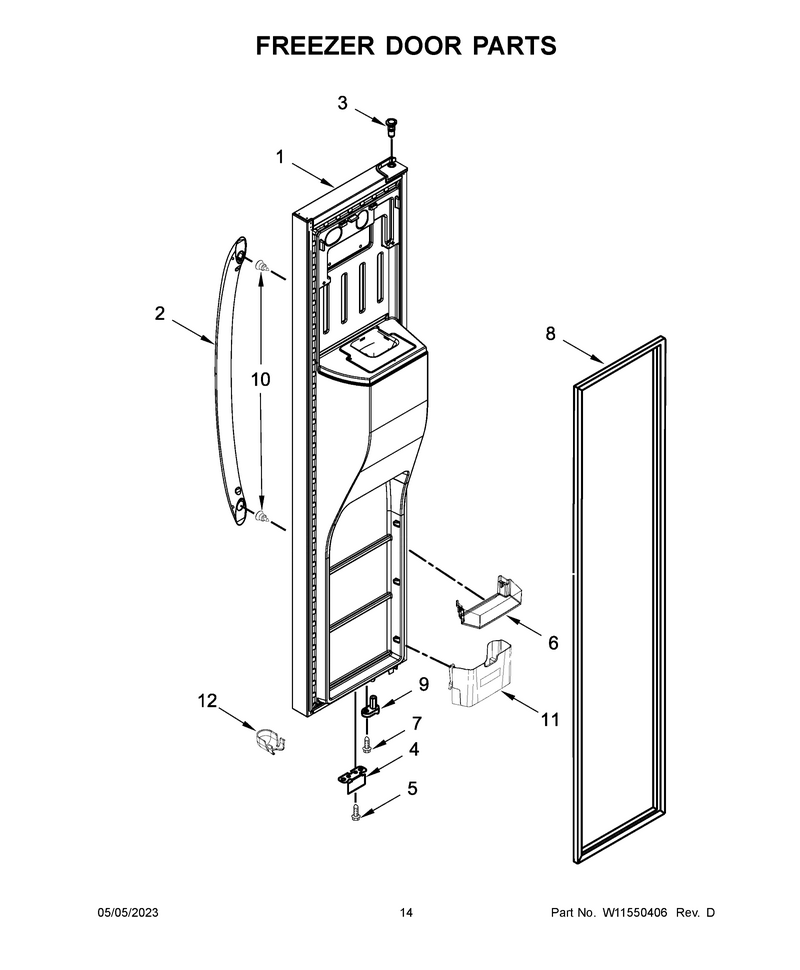

08 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11577822
...
1A
Dor-Fip WPL-W11577824
...
1B
Dor-Fip WPL-W11577825
...
2
Handle WPL-W10918556
...
2A
Handle WPL-W10918557
...
2B
Handle WPL-W10879677
...
3
Thimble WPL-WP2182181
...
4
Bracket WPL-W11557261
...
5
Screw WPL-WPW10296816
...
6
Bin-Freezr WPL-W11226457
...
7
Screw WPL-WPW10296804
...
8
Door Gasket, Magnetic (Service) (Mist Beige) WPL-2159075
...
8A
Door Gasket, Magnetic (Service) (Black) WPL-2159083
...
8B
Gasket-Fip WPL-WPW10136734
...
9
Cam-Door WPL-W11661926
...
10
Screw WPL-WPW10661886
...
11
Bin-Freezr WPL-W11318233
...
12
Cover-Wire WPL-W11566769

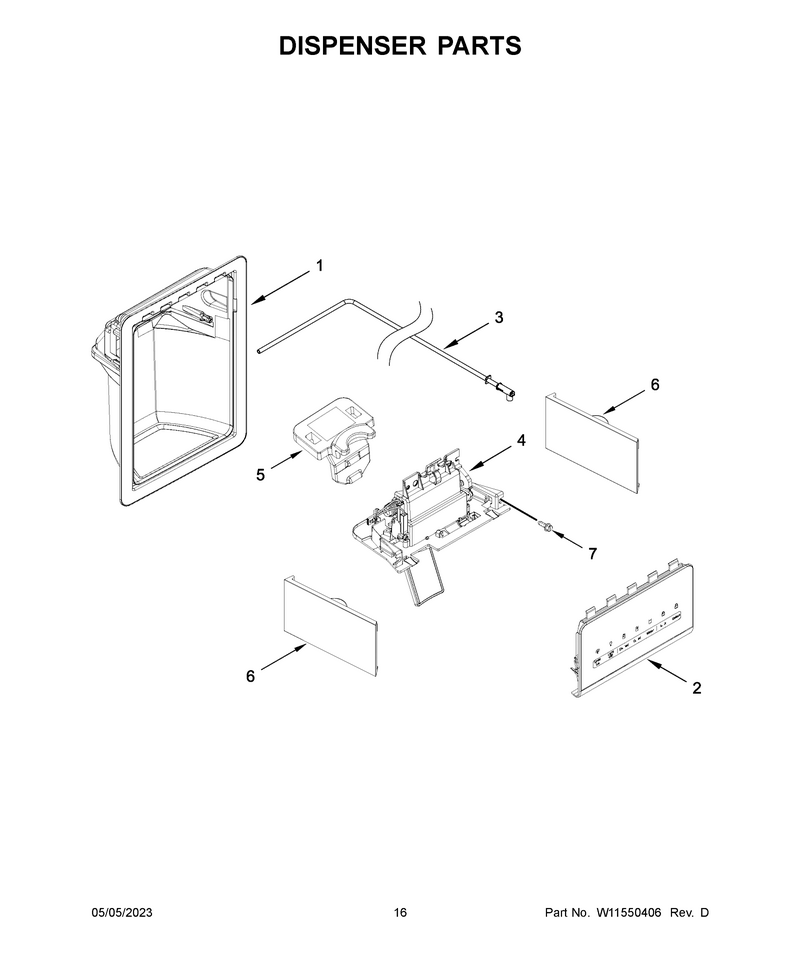

09 - Dispenser Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Panel-Ui WPL-W11575723
...
2A
Panel-Ui WPL-W11575724
...
2B
Cntrl-Elec WPL-W11518203
...
3
Fitting WPL-W11163765
...
4
Door-Ice WPL-W11678834
...
4A
Door-Ice WPL-W11678833
...
4B
Door-Ice WPL-W11678832
...
5
Retainer WPL-W11397167
...
6
Cover WPL-W11311797
...
6A
Cover WPL-W11311798
...
6B
Cover WPL-W11311799
...
6C
Cover WPL-W11311800
...
6D
Cover, Dispenser Front (Neptune Frost (Left Hand)) WPL-W11183319
...
6E
Cover, Dispenser Front (Neptune Frost (Right Hand)) WPL-W11183311
...
7
Screw WPL-WP8281163

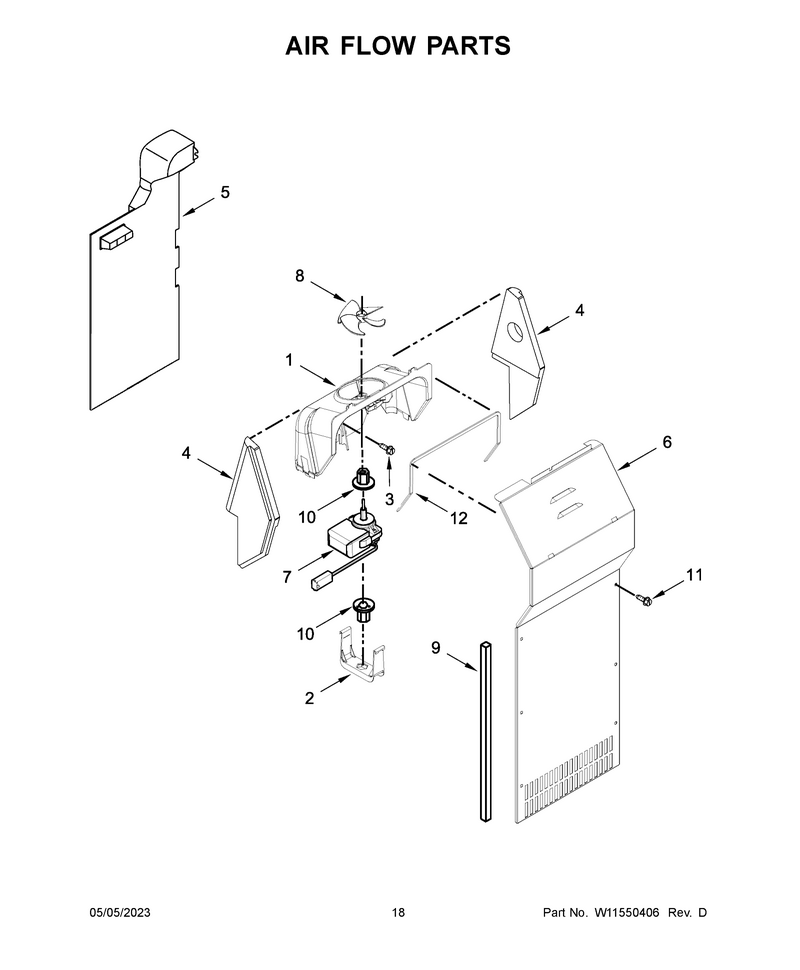

10 - Air Flow Parts

...
...
1
Fan-Scroll WPL-W11263195
...
2
Retainer WPL-W11700295
...
3
Screw WPL-WP489478
...
4
Support Kit (Contains Right And Left) WPL-4388358
...
4A
Support Kit (Contains Right And Left) WPL-4388358
...
5
Duct, Freezer Air WPL-W11084384
...
6
Cover-Evap WPL-W11720796
...
7
Motor-Evap WPL-WP2315549
...
8
Blade-Fan WPL-WP2169142
...
9
Gasket WPL-WP2304241
...
10
Grommet WPL-WP2176759
...
11
Screw WPL-WP693995
...
12
Gasket WPL-WP2155789

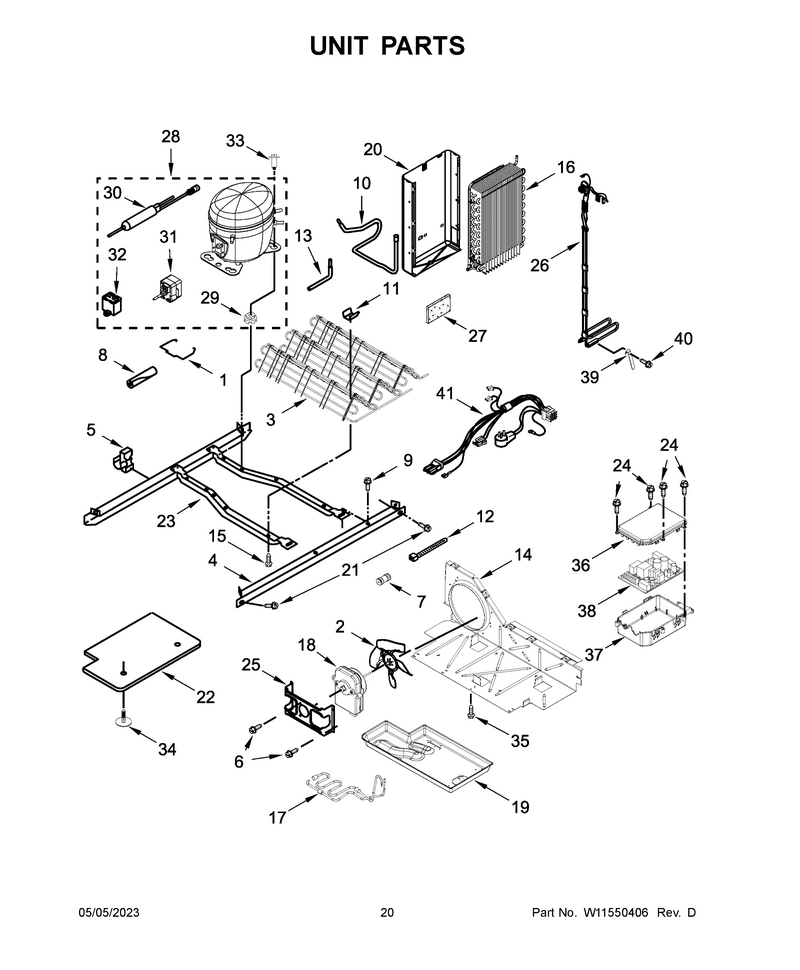

11 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Clip WPL-W11661170
...
2
Blade-Fan WPL-W11458267
...
3
Condenser WPL-W11632924
...
3A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
3B
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
4
Rail, Unit Mounting WPL-W10900442
...
5
Clip WPL-W10812039
...
6
Screw WPL-WP8533993
...
7
Fitting WPL-WP2300868
...
8
Sleeve WPL-W11751592
...
9
Screw WPL-WP489427
...
10
Tube, Suction WPL-W11506460
...
11
Clip WPL-W10683556
...
12
Tie-Wire WPL-WPW10339879
...
13
Tube WPL-W11566476
...
14
Baffle, Air WPL-W10896764
...
15
Screw WPL-W11544659
...
16
Evaporator WPL-W11546692
...
16A
5/1.8 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504448
...
16B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
17
Tube WPL-W11678305
...
18
Motor-Cond WPL-W11578915
...
19
Tray-Evap WPL-W11678304
...
20
Assembly, Heat Shield And Drain Pan WPL-W11400740
...
21
Bolt WPL-489340
...
22
Assembly, Unit Cover (Bottom) WPL-W10897560
...
23
Frame, Unit Mounting (Includes Unit Mounting Rail) WPL-W10900446
...
24
Screw WPL-WPW10171469
...
25
Bracket WPL-WP2181929
...
26
Heater WPL-W11650661
...
27
Insulation WPL-W11553819
...
28
Compressor WPL-W11635510
...
28A
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
8 Nk Ms 00 (Suction Line To Evaporator) WPL-W11506619
...
29
Grommet WPL-WPW10169124
...
30
Drier-Tube WPL-W11109499
...
30A
6/4 Nr Ms 00 (Heat Loop To Drier) WPL-W11504433
...
30B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
31
Start-Dev WPL-WPW10197428
...
32
Capacitor WPL-WPW10662129
...
33
Screw WPL-W11417341
...
34
Clip WPL-489396
...
35
Screw WPL-WP489464
...
36
Cover, Electronic Control WPL-W10313215
...
37
Box, Control WPL-2323186
...
38
Cntrl-Elec WPL-W11566891
...
39
Heat-Probe WPL-W11611126
...
40
Screw WPL-WP489478
...
41
Harns-Wire WPL-W11679642

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
