Maytag MRFF5036PZ00

Model: MRFF5036PZ00

Save Part Not Listed?
product name

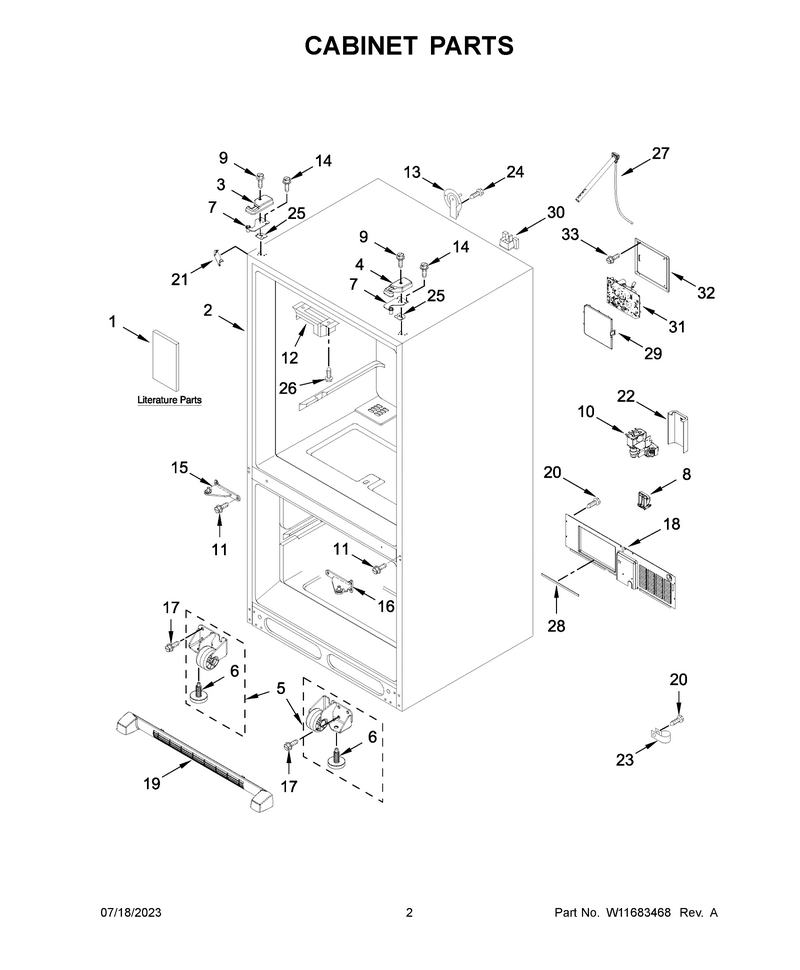

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11468670
...
1A
Energy Guide WPL-W11647521
...
1B
Tech Sheet WPL-W11623343
...
2
Following Parts Not Illustrated WPL-N/P
...
3
Cover WPL-WPW10337648
...
4
Cover WPL-WPW10191117
...
5
Roller-Cab WPL-WPW10515763
...
5A
Roller-Cab WPL-WPW10515762
...
6
Leveler WPL-WPW10141622
...
7
Hinge-Door WPL-W11592375
...
7A
Hinge-Door WPL-W11592374
...
8
Sweep, Dual Tube WPL-W10528513
...
9
Screw WPL-WP8281196
...
10
Valve WPL-W11524655
...
11
Screw WPL-WP489349
...
12
Block- Piv WPL-WP67003405
...
13
Cover, Water Line WPL-12726003
...
14
Screw WPL-WP489349
...
15
Hinge-Door WPL-W10917991
...
16
Hinge-Door WPL-W11747628
...
17
Screw (8) WPL-67006564
...
18
Cover-Back WPL-WPW10211855
...
19
Grille WPL-WPW10534155
...
20
Screw WPL-WPW10141645
...
21
Filler WPL-WP12587703AP
...
22
Guard, Dual Water Valve WPL-W10208593
...
23
Clamp WPL-W11456069
...
24
Screw WPL-WP489128
...
25
Shim, Hinge (Left Hand) WPL-12999501
...
25A
Shim, Hinge (Right Hand) WPL-12999502
...
26
Screw WPL-W11693756
...
27
Tube-Water WPL-W11181718
...
28
Gasket WPL-W11534848
...
29
Cover WPL-W11226688
...
30
Block WPL-W11686793
...
31
Cntrl-Elec WPL-WPW10317076
...
32
Cover, Control Box WPL-12961602
...
33
Screw WPL-W11686675

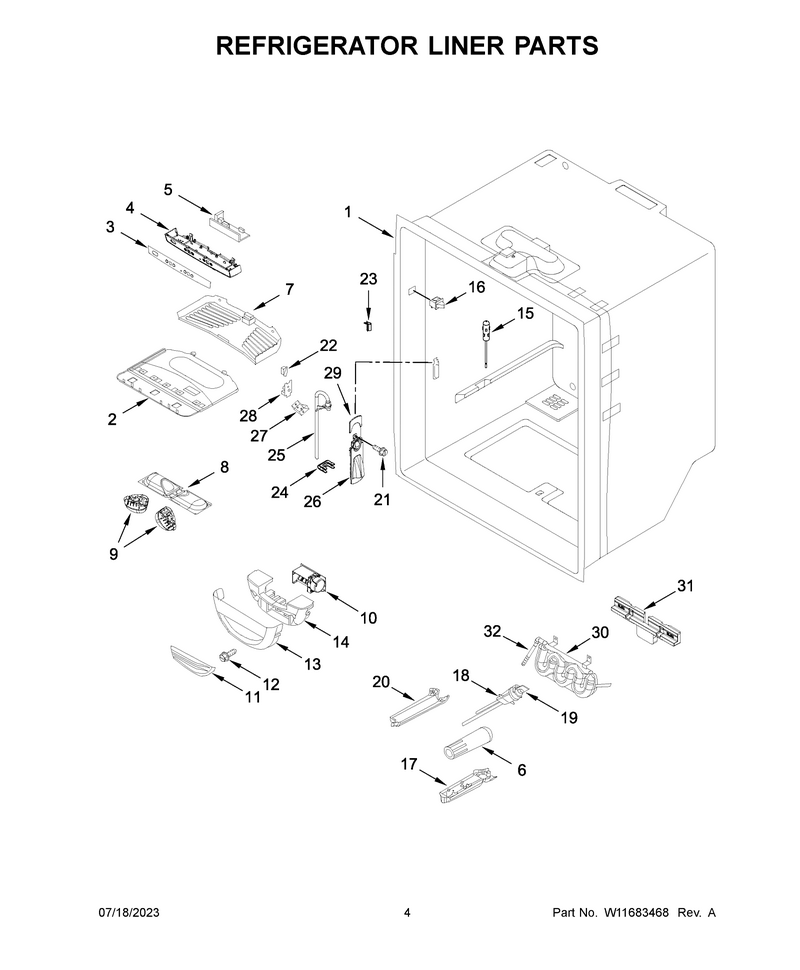

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-W11642013
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Module, Light WPL-W10464764
...
3
Overlay WPL-W11712701
...
4
Housing WPL-W11416469
...
5
Cntrl-Elec WPL-W11642241
...
6
Filter WPL-EDR4RXD1
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-W10443023
...
9
Module WPL-W11602886
...
10
Control WPL-WPW10594329
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Thermistor WPL-W11690896
...
16
Switch WPL-W11384469
...
17
Plate- Fil WPL-WP67001668
...
18
Head-Filtr WPL-W11346623
...
19
Cap-Filter WPL-W11395888
...
20
Cover- Fil WPL-WP12568001
...
21
Screw WPL-W10854958
...
22
Switch WPL-W11527839
...
23
Clip, Waterline WPL-67002816
...
24
Clip WPL-W10819546
...
25
Guide WPL-W11677725
...
26
Cover WPL-W11519867
...
27
Seal-Foam WPL-W11527411
...
28
Plate WPL-W11515355
...
29
Cover WPL-W11519867
...
30
Reservoir WPL-W11229977
...
31
Insulation WPL-W11714300
...
32
Fitting WPL-WP2300868

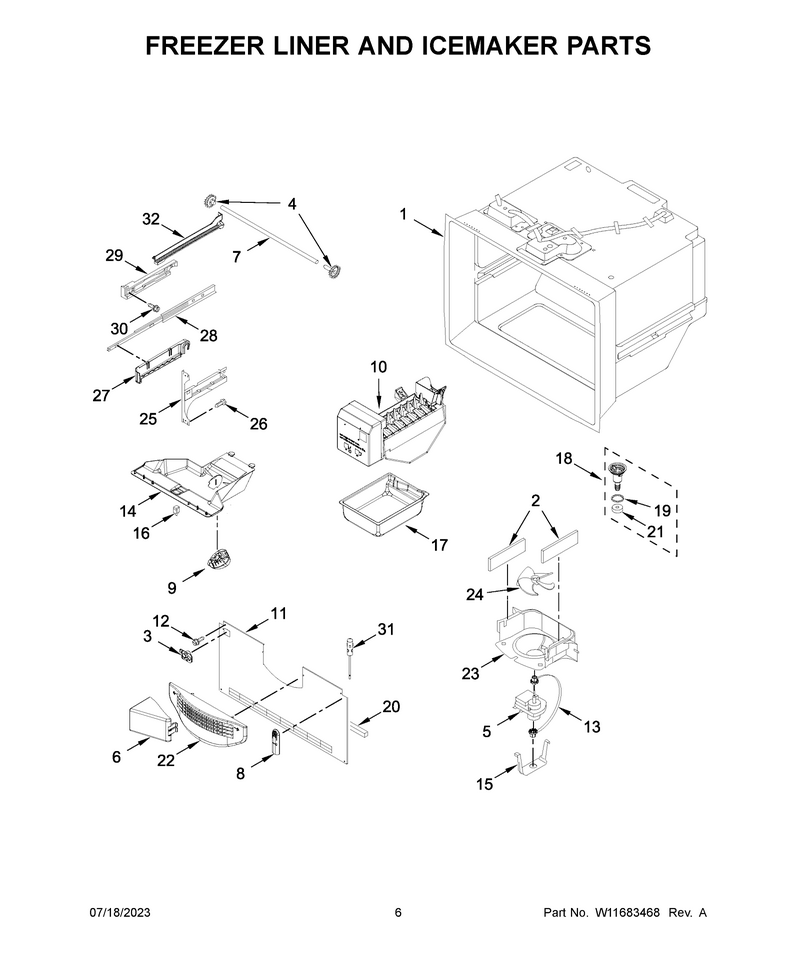

04 - Freezer Liner And Icemaker Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Guide, Fill Tube WPL-W11341630
...
4
Gear WPL-12002497
...
5
Motor-Evap WPL-W11024089
...
6
Diverter, Air WPL-W10157765
...
7
Shaft WPL-W11028221
...
8
Cover- Fz WPL-WP67003924
...
9
Module WPL-W11602886
...
10
Icemaker WPL-W11692144
...
11
Cover-Evap WPL-W11727809
...
12
Screw (3) WPL-67006425
...
13
Grommet WPL-W11690160
...
14
Housing WPL-WPW10277025
...
15
Clip, Evaporator Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Pan-Ice WPL-WPW10171529
...
18
Funnel WPL-W10815413
...
19
Seal- O Ri WPL-WPM0500703
...
20
Gasket WPL-W11159728
...
21
Gasket- Dr WPL-WPB8381501
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Bracket WPL-WPW10330991
...
25A
Bracket WPL-WPW10330993
...
26
Screw WPL-WP98165
...
27
Bracket WPL-WPW10280608
...
27A
Bracket WPL-WPW10280613
...
28
Slide WPL-W11658402
...
29
Bracket WPL-WPW10284684
...
29A
Bracket WPL-WPW10284685
...
30
Screw WPL-WP489474
...
31
Thermistor WPL-W10316760
...
32
Rail WPL-W11489993
...
32A
Rail WPL-W11489994

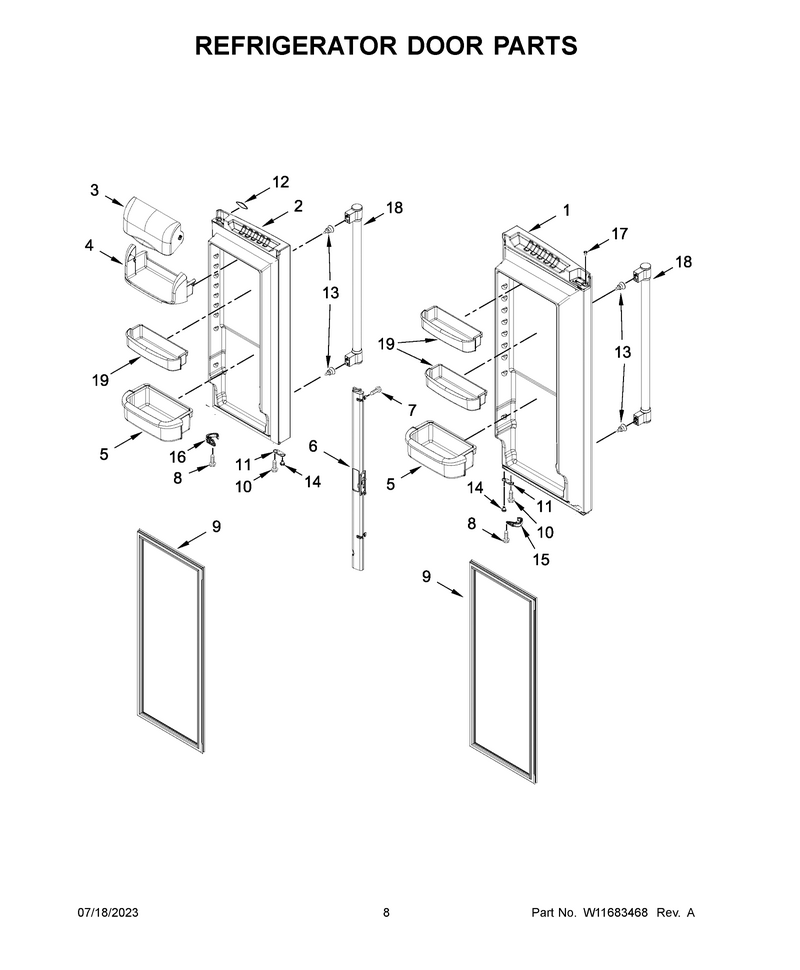

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11661563
...
2
Dor-Fip WPL-W11435333
...
3
Door-Comp WPL-WP67003637
...
4
Tray- Dair WPL-WP67001279
...
5
Bin-Cntlvr WPL-WPW10289497
...
6
Rail-Mulln WPL-WP12722803AP
...
7
Screw WPL-W11311945
...
8
Screw WPL-WP67006908
...
9
Gasket, Door (Grey) WPL-W10830162
...
10
Screw WPL-WP98165
...
11
Stop-Door WPL-W11703060
...
12
Nameplate WPL-WPW10612926
...
13
Screw WPL-W11449276
...
14
Closer WPL-WP12028505AP
...
15
Closer WPL-W10918008
...
16
Closer WPL-W10918010
...
17
Clip, Bushing WPL-12996601
...
18
Handle WPL-W10879677
...
19
Bin-Cntlvr WPL-WPW10371194

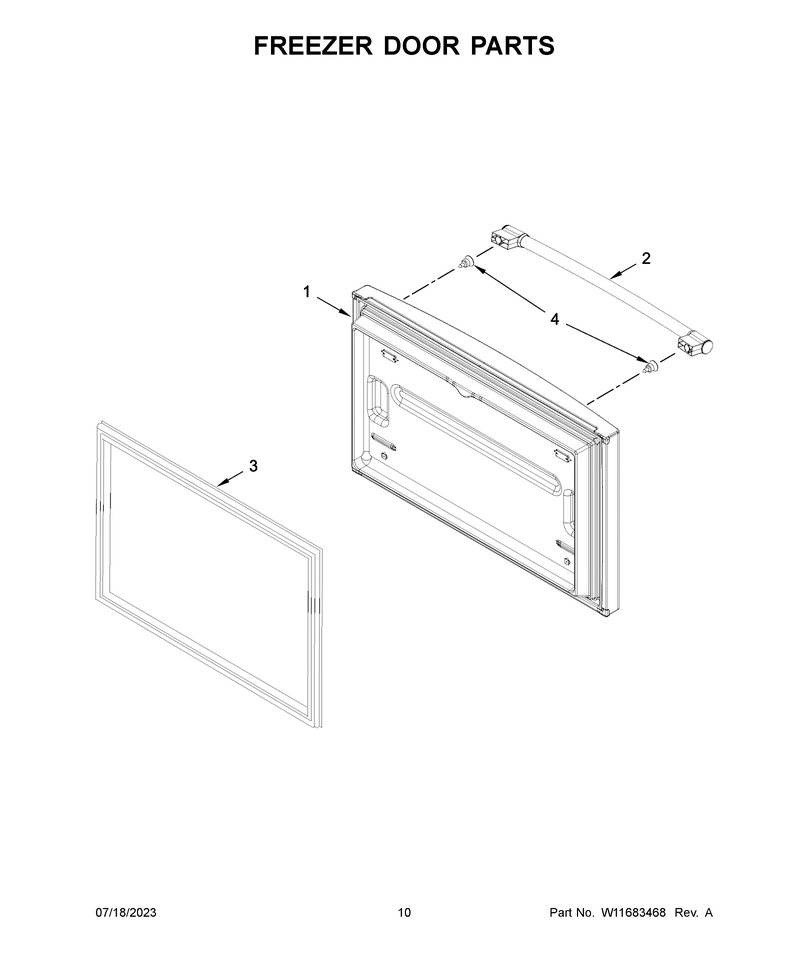

06 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11435329
...
2
Handle WPL-W11102443
...
3
Gasket, Door (Grey) WPL-W10443320
...
4
Screw WPL-W11449276

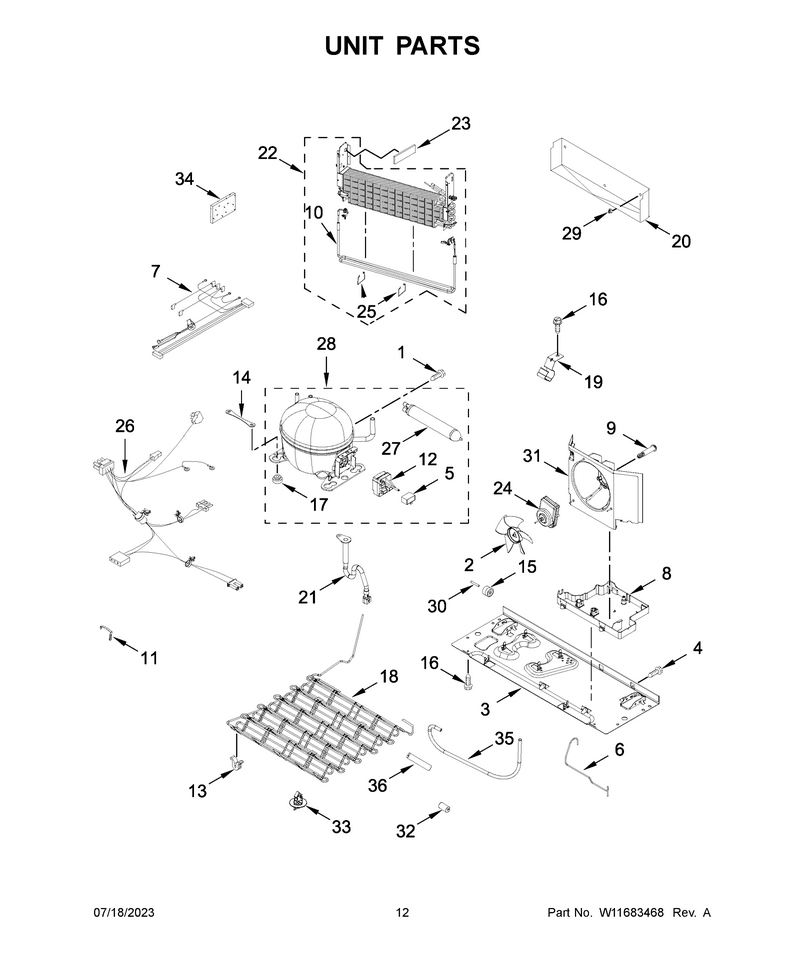

07 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10350564
...
6
Condenser WPL-W11644420
...
7
Harns-Wire WPL-W11708428
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W11547652
...
11
Clip WPL-W11524474
...
12
Start-Dev WPL-W11524472
...
13
Grommet WPL-WPW10137529
...
14
Strap, Compressor WPL-W10236396
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-W11644420
...
18A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
18B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-W11547653
...
21
Tube-Drain WPL-W10619951
...
22
Evap Repar WPL-W11598433
...
22A
8/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504423
...
22B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
23
Gasket WPL-W11451451
...
24
Motor-Cond WPL-W11613295
...
25
Clip, Heater WPL-W11380964
...
26
Harns-Wire WPL-W11752088
...
27
Drier-Tube WPL-W11109499
...
27A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
27B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
28
Compressor WPL-W11547313
...
28A
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
28D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Grommet WPL-W10852725
...
33
Clip, Condenser WPL-W10815863
...
34
Insulation WPL-W11553819
...
35
Tube, Suction WPL-W11566588
...
36
Sleeve WPL-W11751592

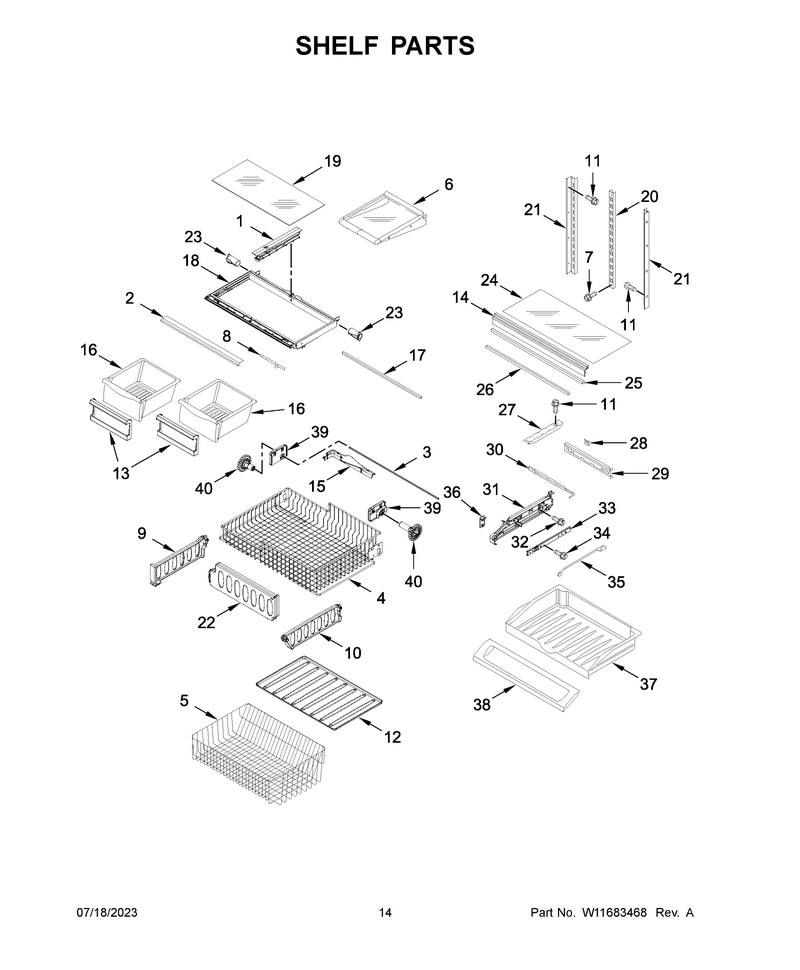

08 - Shelf Parts

...
...
1
Rail-Centr WPL-WPW10326469
...
2
Trim-Shelf WPL-WPW10231345
...
3
Shaft WPL-W11173556
...
4
Basket-Fzr WPL-W11251264
...
5
Basket, Freezer (Lower) WPL-W11115781
...
6
Shelf-Glas WPL-W11540779
...
7
Screw WPL-W10215666
...
8
Slide WPL-WP67005864
...
9
Divider, Basket (Upper) WPL-W10241046
...
10
Divider WPL-W10847995
...
11
Screw (3) WPL-67006425
...
12
Tray WPL-WP67006104
...
13
Front- Cri WPL-WP67005923
...
14
Support, Glass (Includes Pantry Brace) WPL-W10528933
...
15
Lift, Bail Arm WPL-W10149389
...
16
Pan- Crisp WPL-WP67004515
...
17
Brace- Cri WPL-WP12642303WD
...
18
Frame WPL-WPW10329866
...
19
Glass- Cri WPL-WP67006704
...
20
Ladder, Center WPL-W10273463
...
21
Ladder WPL-WPW10569182
...
22
Divider, Basket (Upper) WPL-W10171558
...
23
Support WPL-WP13062602
...
24
Shelf-Glas WPL-W11033333
...
25
Trim-Shelf WPL-W11210956
...
26
Support WPL-WP12227305WD
...
27
Track WPL-WP67001719
...
28
Gasket, Pantry WPL-67002329
...
29
Housing, Control WPL-12656202
...
30
Slide- Tem WPL-WP67003793
...
31
Endcap WPL-W10874836
...
31A
Endcap WPL-W10874836
...
32
Screw WPL-WP98165
...
33
Glide WPL-WPW10235370
...
34
Screw WPL-WP67006415
...
35
Bar- Temp WPL-WP67003795
...
36
Knob WPL-W11498983
...
37
Drawer- Pa WPL-WP67003531
...
38
Cover WPL-W10827015
...
39
Mount, Gear (Left Hand) WPL-W10348259
...
39A
Mount, Gear (Right Hand) WPL-W10348260
...
40
Gear WPL-WPW10474716
...
40A
Gear WPL-WPW10474715

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
