Maytag MOES6027LZ00

Model: MOES6027LZ00

Save Part Not Listed?
product name

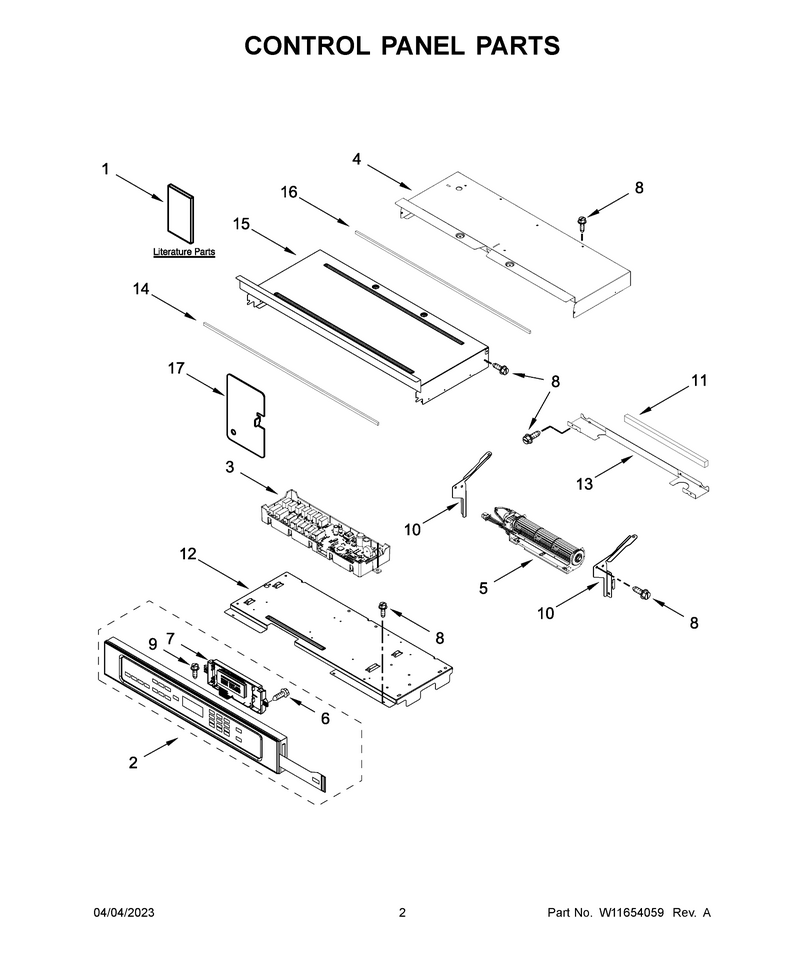

02 - Control Panel Parts

...
...
NI
Hardware WPL-W11607072
...
1A
Quick Start Guide WPL-W11553924
...
1
Owner's Manual WPL-W11555306
...
1B
Tech Sheet WPL-W11604692
...
2
Console WPL-W11659273
...
3
Cntrl-Elec WPL-W11648973
...
4
Cover, Top Back 27 In Chassis WPL-W11244459
...
5
Blower WPL-W11598119
...
6
Screw WPL-WP12990527
...
7
Cntrl-Elec WPL-W10803991
...
8
Screw WPL-WP90767
...
9
Screw WPL-W11602625
...
10A
Bracket, Blower (Right) WPL-W10655462
...
10
Bracket, Blower (Left) WPL-W10655463
...
11
Seal-Foam WPL-W10491987
...
12
Tray, Electronic WPL-W11179509
...
13
Divider, Chassis Back WPL-W11166802
...
14
Seal-Foam WPL-W11226313
...
15
Cover, Top Front 27 In Chassis WPL-W11244469
...
16
Gasket, Rubber WPL-W10728475
...
17
Cover, Wifi WPL-W11533682

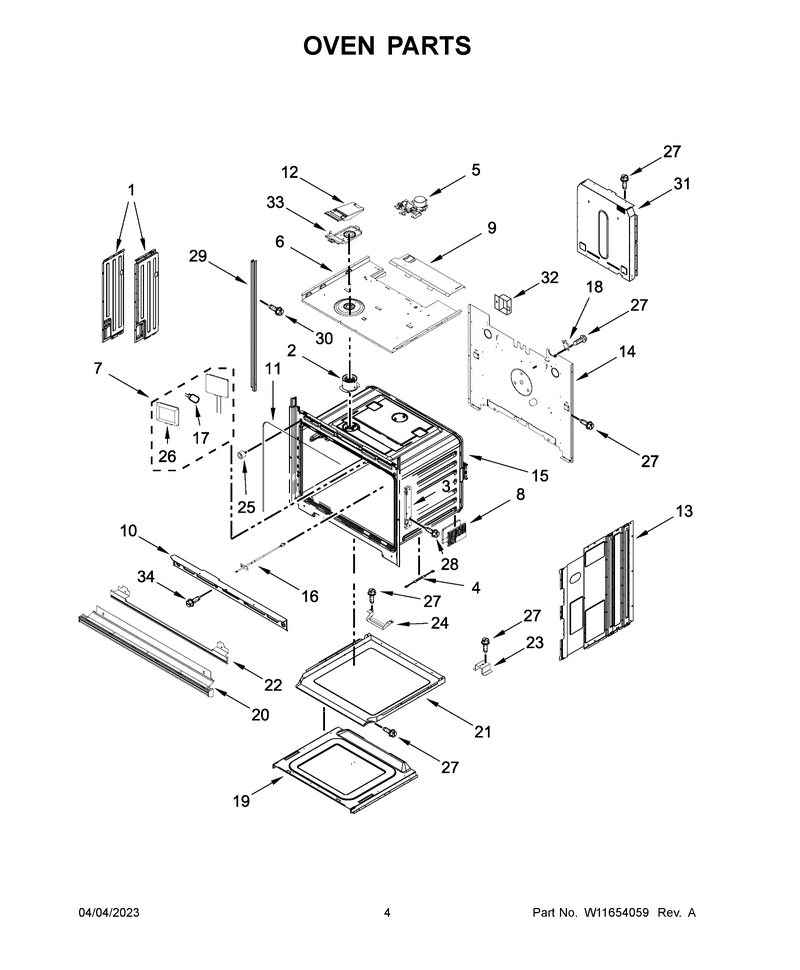

03 - Oven Parts

...
...
NI
Insulation, Back WPL-W11244475
...
1A
Cover-Side WPL-W11598151
...
1
Cover-Side WPL-W11598150
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11752201
...
4
Spacer WPL-W11598152
...
5
Latch-Door WPL-W11686858
...
6
Top, Chassis WPL-W11244456
...
7
Light-Oven WPL-W11292252
...
8
Foot-Level WPL-W11598170
...
9
Deflector, Blower WPL-W10904163
...
10
Vent, Top 27 In WPL-W11334858
...
11
Gasket, Cavity WPL-W11608109
...
12
Cover, Vent Exhaust WPL-W11256424
...
13
Side, Chassis WPL-W11165274
...
14
Following Parts Not Illustrated WPL-N/P
...
15
Following Parts Not Illustrated WPL-N/P
...
16
Thrmst-Fix WPL-W11598120
...
17
Bulb-Light WPL-WPW10472384
...
18
Thrmst-Fix WPL-WP4449751
...
19
Covr-Acess WPL-W11598139
...
20
Vent-Oven WPL-W11658445
...
21
Duct, Bottom Chassis WPL-W11244446
...
22
Trim WPL-W11649128
...
23
Support, Air Channel WPL-W11135135
...
24
Brkt-Suprt WPL-W11731183
...
25
Bumper WPL-W11598125
...
26
Light-Oven WPL-WPW10519866
...
27
Screw WPL-WP90767
...
28
Screw WPL-WPW10254050
...
29
Cover, Side Trim (Black (Left)) WPL-W11235463
...
29A
Cover, Side Trim (Black (Right)) WPL-W11235462
...
30
Screw WPL-W11602623
...
31
Duct, Chassis Back WPL-W11165250
...
32
Cover, Connector WPL-8285593
...
33
Base, Vent Exhaust WPL-W11256423
...
34
Screw WPL-WPY706189

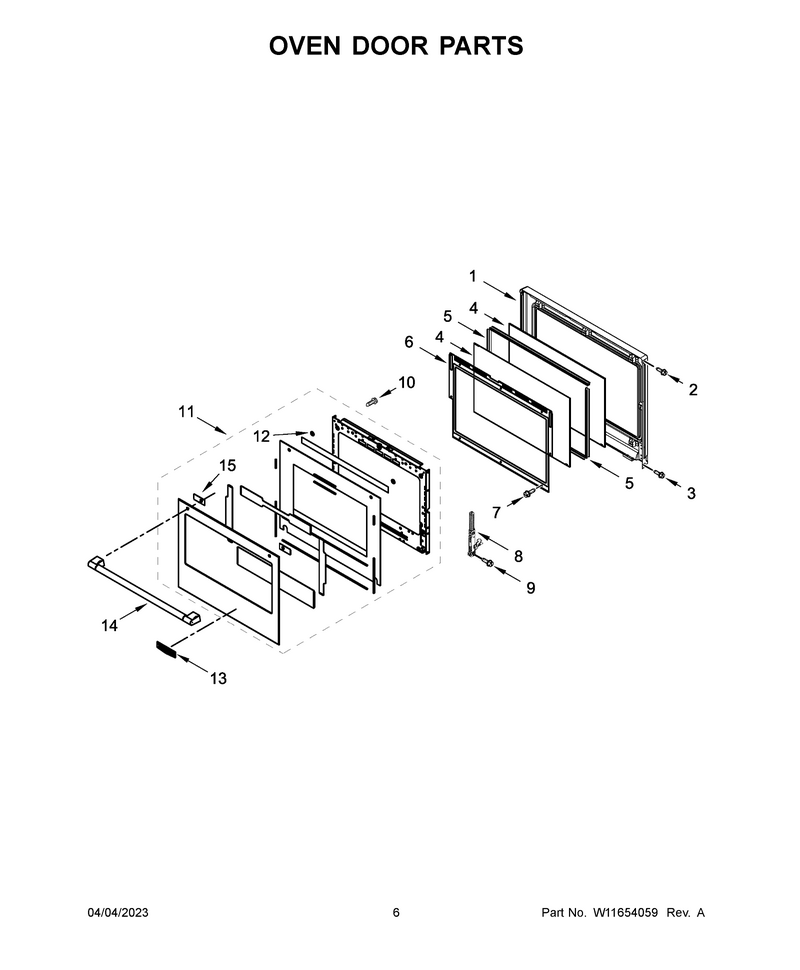

04 - Oven Door Parts

...
...
1
Frame-Glas WPL-W11598186
...
2
Screw (8abx3/8-Blk) WPL-74003975
...
3
Screw WPL-W11617225
...
4
Glass-Door WPL-WPW10284902
...
5
Brkt-Mntg WPL-W11598187
...
6
Retainer WPL-W11598188
...
7
Screw WPL-WP90767
...
8
Hinge-Door WPL-W11617222
...
8A
Hinge-Door WPL-W11617231
...
9
Screw WPL-WP3196183
...
10
Screw WPL-W11602624
...
11
Glass-Door WPL-W11659274
...
12
Washer WPL-W11676355
...
13
Nameplate WPL-W11648754
...
14
Hndle-Door WPL-W11658446
...
15
Spacer, Handle WPL-W10650497

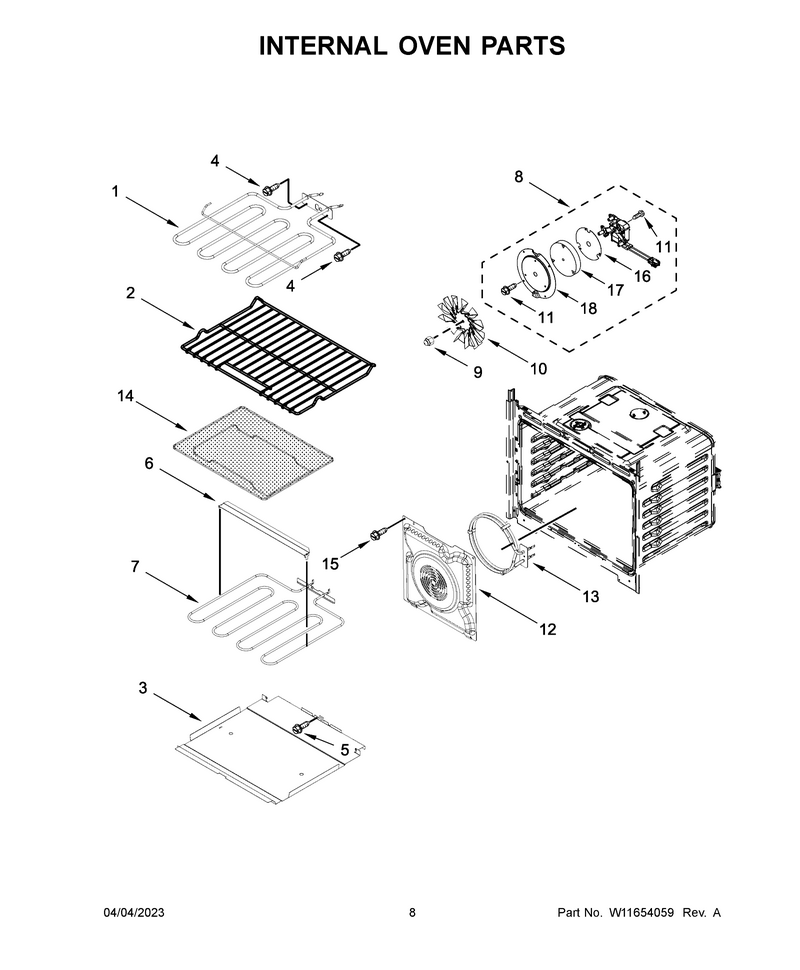

05 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-W11617232
...
2
Rack-Oven WPL-WPW10554529
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Motor-Fan WPL-W11617227
...
9
Nut WPL-W11548755
...
10
Fan-Convct WPL-W11548753
...
11
Screw WPL-W10850807
...
12
Baffle, Convection WPL-W10359278
...
13
Element WPL-WPW10260248
...
14
Accessory Parts, Basket, Air Fry WPL-W11692811
...
15
Screw WPL-WP74003976
...
16
Cover WPL-W11602629
...
17
Insulation WPL-W11706806
...
18
Cover WPL-W11617229

...
...
NI
Accessories, Trim, Bottom Vent (Stainless) WPL-W11570322
