product name

Maytag MHW6630MBK0

Model: MHW6630MBK0

Save Part Not Listed?
product name

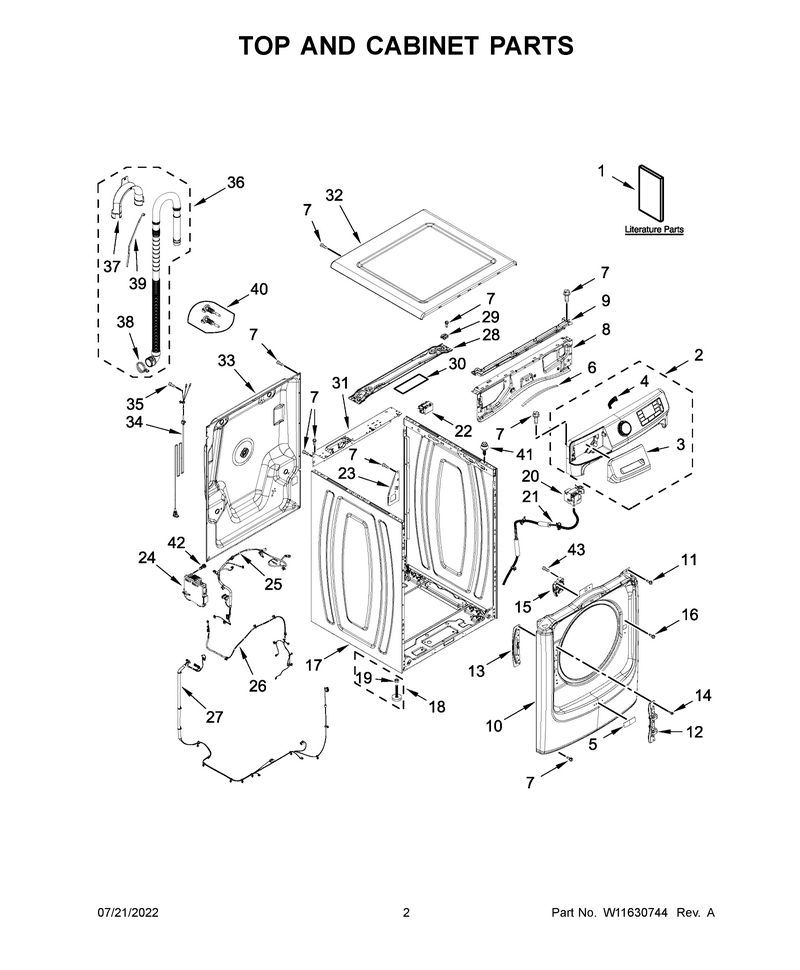

02 - Top And Cabinet Parts

...
...
1
Owner's Manual WPL-W11355369
...
1A
Quick Start Guide WPL-W11355237
...
1B
Energy Guide WPL-W11561251
...
1C
Cycle Guide WPL-W11366244
...
2
Console WPL-W11633356
...
3
Handle, Drawer (Black) WPL-W11580427
...
4
Harns-Wire WPL-W11316625
...
5
Nameplate WPL-WPW10612925
...
6
Protector WPL-W11316770
...
7
Screw WPL-W11568617
...
8
Bracket WPL-W11314678
...
9
Channel WPL-W11458348
...
10
Panel WPL-W11633291
...
11
Screw WPL-W11573574
...
12
Hinge WPL-WPW10208415
...
13
Bracket, Hinge WPL-W10299097
...
14
Screw WPL-W11661566
...
15
Latch WPL-W11565030
...
16
Screw WPL-WP8540282
...
17
Cabinet (Black) WPL-W11353000
...
18
Feet-Lvlng WPL-W10888529
...
19
Nut WPL-WP3359452
...
20
Switch-Wl WPL-W11316246
...
21
Hose WPL-W11456953
...
22
Filter WPL-W11316771
...
23
Bracket WPL-W11316769
...
24
Appliance Control Unit (Acu) WPL-W11550453
...
25
Harns-Wire WPL-W11744014
...
26
Harness, Ntc WPL-W11038118
...
27
Harns-Wire WPL-W11557918
...
28
Brace, Top WPL-W10467484
...
29
Retainer, Spring WPL-W10245452
...
30
Bracket WPL-W11314674
...
31
Bracket, Rear WPL-W11353016
...
32
Top WPL-W11328714
...
33
Panel WPL-W11315708
...
34
Cord-Power WPL-W11316254
...
35
Screw WPL-W10850756
...
36
Hose WPL-W11551765
...
37
Retainer WPL-WPW10280024
...
38
Clamp WPL-WP356138
...
39
Tie-Wire WPL-WPW10339879
...
40
Bolt WPL-W11316629
...
41
Screw And Bushing Assembly WPL-W10208380
...
42
Screw WPL-W11318750
...
43
Screw WPL-W10306501

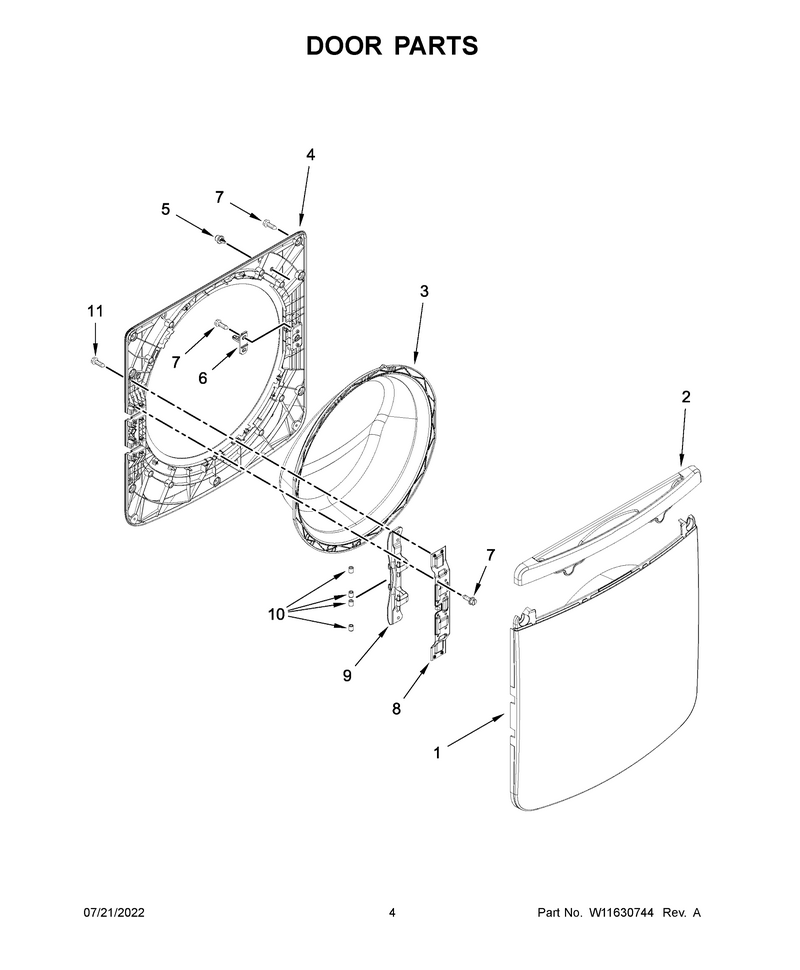

03 - Door Parts

...
...
1
Door-Outer WPL-W11316913
...
2
Handle, Door (Black) WPL-W10626041
...
3
Door-Glass WPL-W11325577
...
4
Door-Inner WPL-W11316776
...
5
Bumper WPL-W11310051
...
6
Strike WPL-W11316914
...
7
Screw WPL-WP8534022
...
8
Bracket WPL-W10839743
...
9
Hinge WPL-WPW10208415
...
10
Cap WPL-WPW10208398
...
11
Screw WPL-W11661566

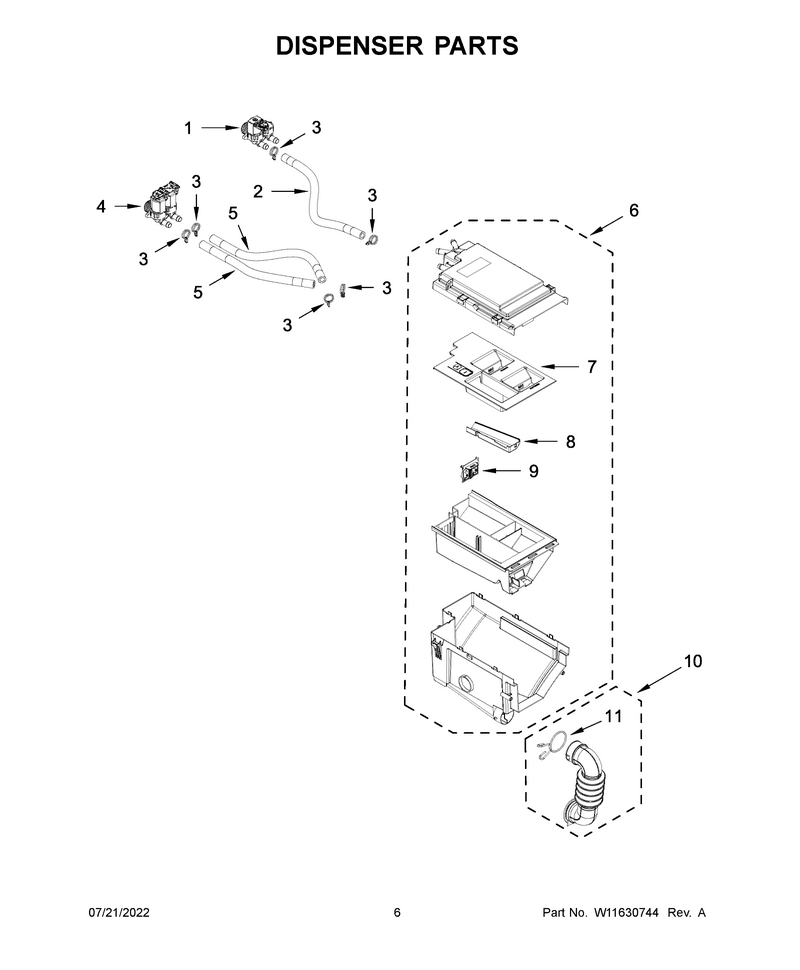

04 - Dispenser Parts

...
...
1
Valve WPL-W11688994
...
2
Hose WPL-W11316257
...
3
Clamp WPL-WP596669
...
4
Valve WPL-W11688995
...
5
Hose WPL-W11316599
...
6
Drawer WPL-W11752344
...
7
Dispenser WPL-W11316601
...
8
Cover WPL-W11316375
...
9
Divider WPL-W11316603
...
10
Hose WPL-W11316604
...
11
Clamp, Hose WPL-W10239910

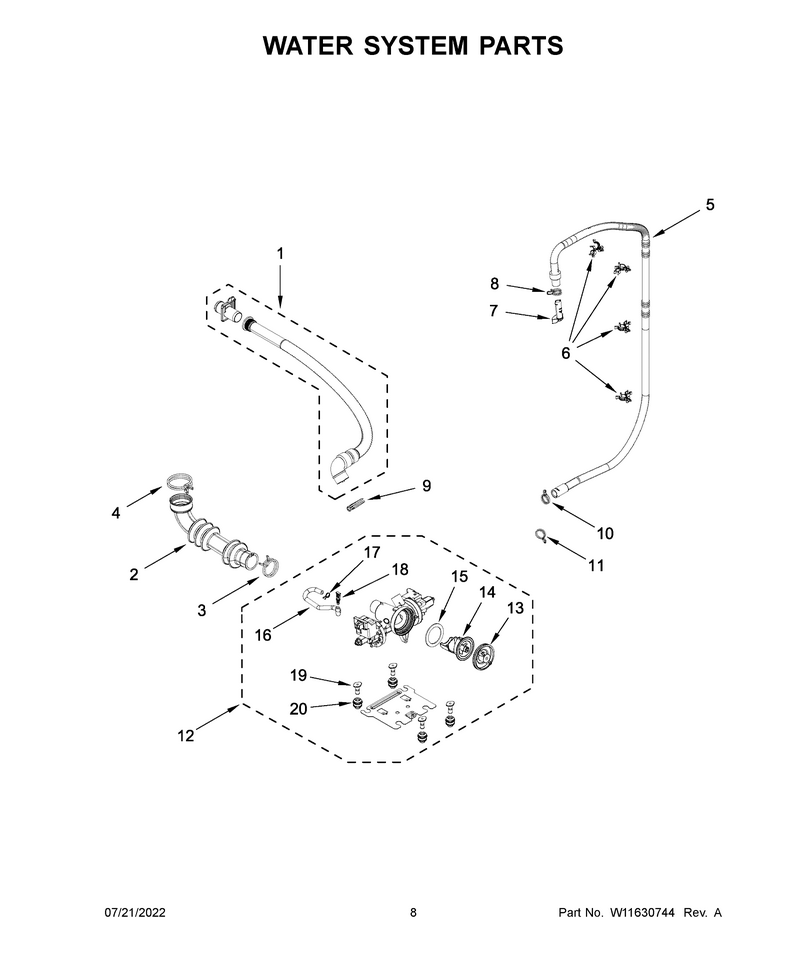

05 - Water System Parts

...
...
1
Hose WPL-W11549455
...
2
Hose WPL-W11316056
...
3
Clamp WPL-WP616099
...
4
Clamp, Vent Hose WPL-W10273034
...
5
Hose WPL-W11316605
...
6
Clip WPL-W11316608
...
7
Nozzle WPL-W11316251
...
8
Clamp WPL-WP596669
...
9
Clamp WPL-WP356138
...
10
Clamp WPL-W11316607
...
11
Clamp WPL-WP596669
...
12
Pump-Water WPL-W11458345
...
13
Cap WPL-W11316610
...
14
Filter WPL-W11458347
...
15
Seal WPL-W11316613
...
16
Hose WPL-W11316662
...
17
Clamp WPL-W11316666
...
18
Plug WPL-W11316669
...
19
Pin WPL-W11316664
...
20
Grommet WPL-W11316663

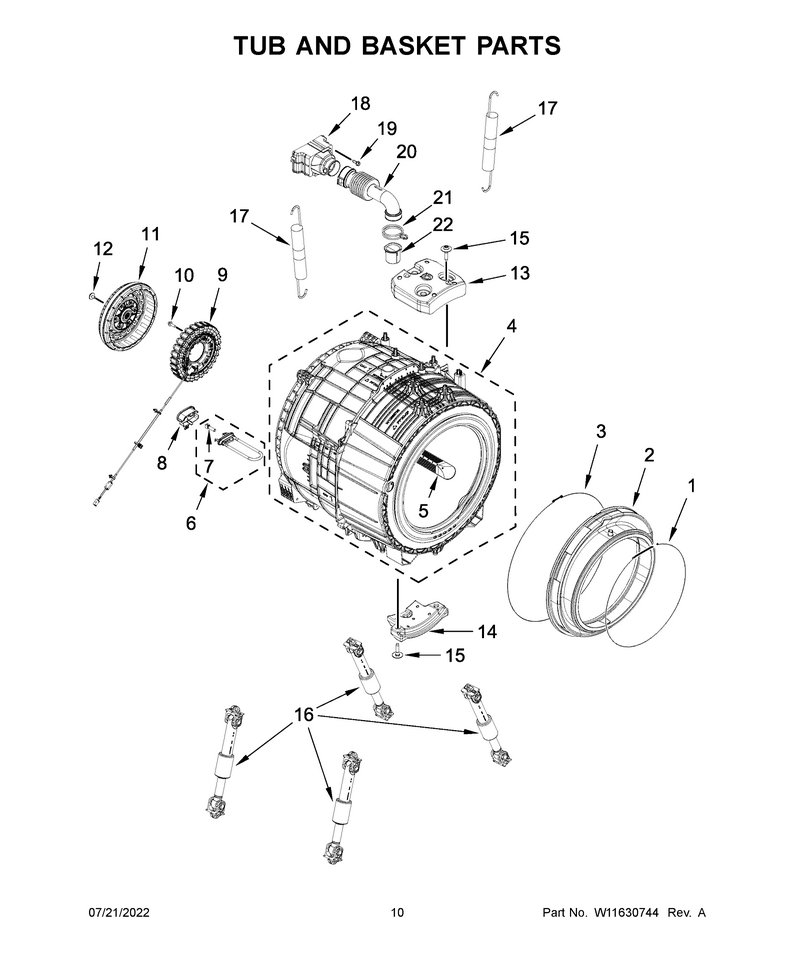

06 - Tub And Basket Parts

...
...
1
Clamp WPL-W11266654
...
2
Bellow WPL-W11314648
...
3
Clamp WPL-W11314649
...
4
Tub-Outer WPL-W11378552
...
5
Baffle WPL-W11460395
...
6
Heater WPL-W11314664
...
7
Heater WPL-W11314664
...
8
Cover WPL-W11314776
...
9
Stator WPL-W11354542
...
10
Screw WPL-W11314661
...
11
Rotor WPL-W11314361
...
12
Screw WPL-W11557803
...
13
Counterwgt WPL-W11316052
...
14
Counterwgt WPL-W11481720
...
15
Screw WPL-W11314651
...
16
Shock-Absr WPL-W11316766
...
17
Spring WPL-W11314394
...
18
Fan WPL-W11752586
...
19
Screw WPL-W11230114
...
20
Hose WPL-W11316274
...
21
Clamp WPL-WP371502
...
22
Ventcoupli WPL-W11557921

...
...
NI
Accessory Other, Kit, Stack WPL-W10869845
