Maytag MHE15MNAZW

Model: MHE15MNAZW

Save Part Not Listed?
product name

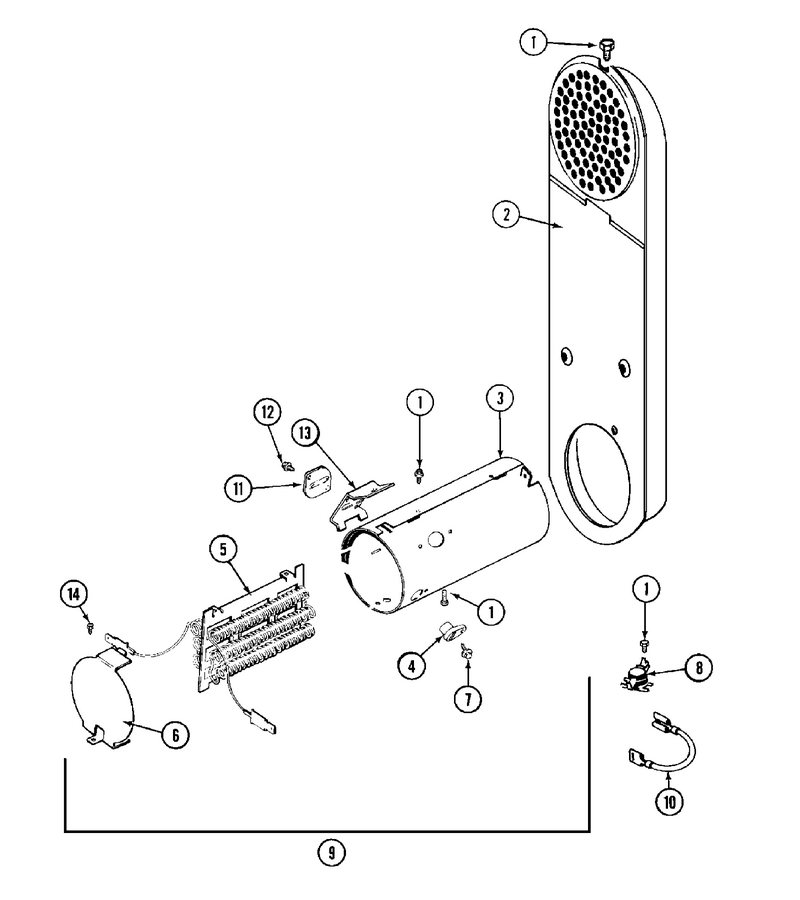

05 - Heater

...
...
001
Screw WPL-WP90767
...
002
Assy,inlet Duct-Elec WPL-33003038
...
003
Heater Enclosure WPL-314995
...
004
Insulator, Terminal WPL-314998
...
005
Element WPL-WP308614
...
006
Shield, Radiant WPL-314999
...
007
Screw WPL-NLA
...
008
Thrmst-Fix WPL-WP303396
...
009
Element WPL-WP308614
...
010
Wire- Jump WPL-WPY307173
...
011
Fuse-Thrml WPL-WP307473
...
012
Screw WPL-NLA
...
013
Bracket, Thermal Fuse WPL-315346
...
014
Screw WPL-WP489128
...
015
Heater WPL-W10116795

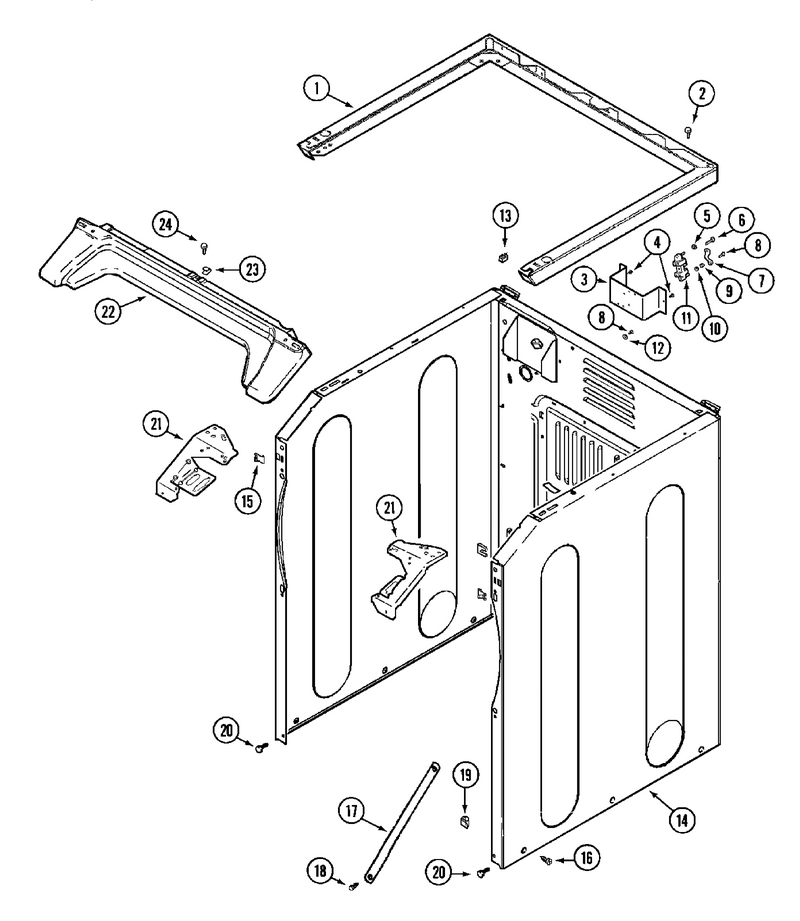

01 - Cabinet-Front (lower)

...
...
001
Support (wht) WPL-33002005
...
002
Screw, Support WPL-22001883
...
003
Bracket, Terminal Block----Na WPL-NLA
...
004
Screw WPL-W11573574
...
005
Washer- Te WPL-WPY311270
...
006
Screw WPL-W11164114
...
007
Strap, Ground WPL-Y312184
...
008
Screw, Ground Strap WPL-NLA
...
009
Nut WPL-WP112432
...
010
Washer- 7 WPL-WP311093
...
011
Block- Ter WPL-W11705611
...
012
Washer, Ground Lug WPL-NLA
...
013
Fastener- WPL-WP22001502
...
014
Cabinet (wht) WPL-NLA
...
015
Clip WPL-WP22002049
...
016
Screw, Cabinet WPL-213007
...
017
Brace, Cross WPL-22002767
...
018
Screw WPL-W11573574
...
019
Clip, Wire Harness WPL-Y310376
...
020
Screw WPL-W11573574
...
021
(rt) WPL-33002096
...
022
Cover, Access (wht) WPL-33002011
...
023
Fastener, Access Cover WPL-33002013
...
024
Screw WPL-W11573574
...
025
Wire Harness, Main (lwr) WPL-NLA
...
026
Retainer- WPL-WP33001989

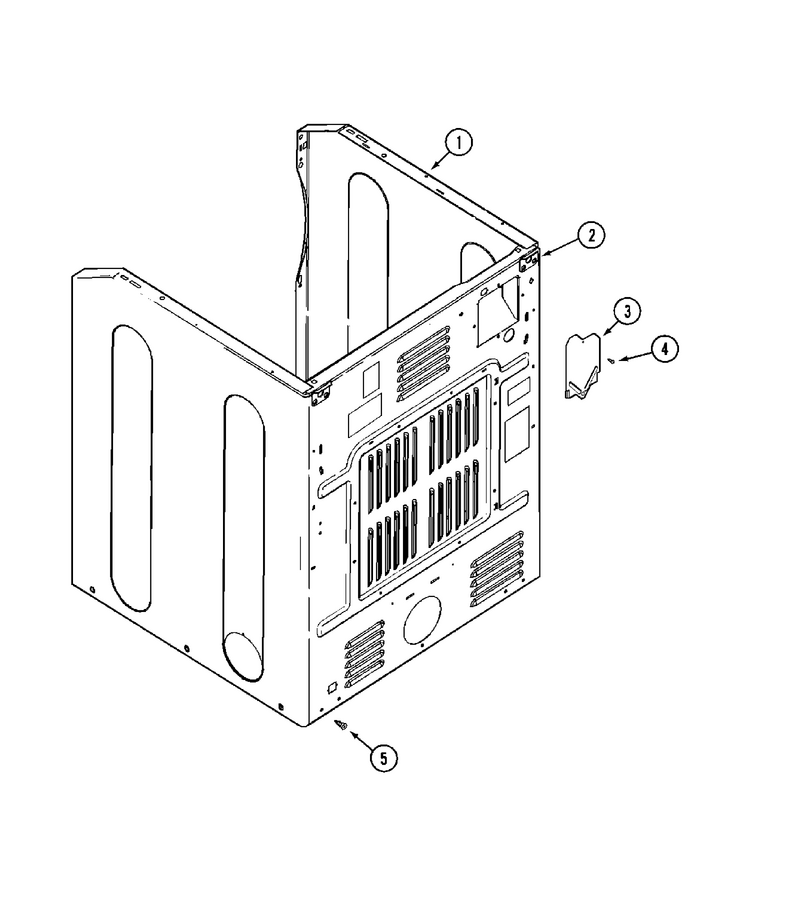

03 - Cabinet-Rear

...
...
001
Cabinet (wht-Lwr) WPL-NLA
...
002
Bracket, Cabinet Hinge WPL-NLA
...
003
Cover, Terminal Block WPL-33001795
...
004
Screw WPL-W11573574
...
005
Screw WPL-W11573574

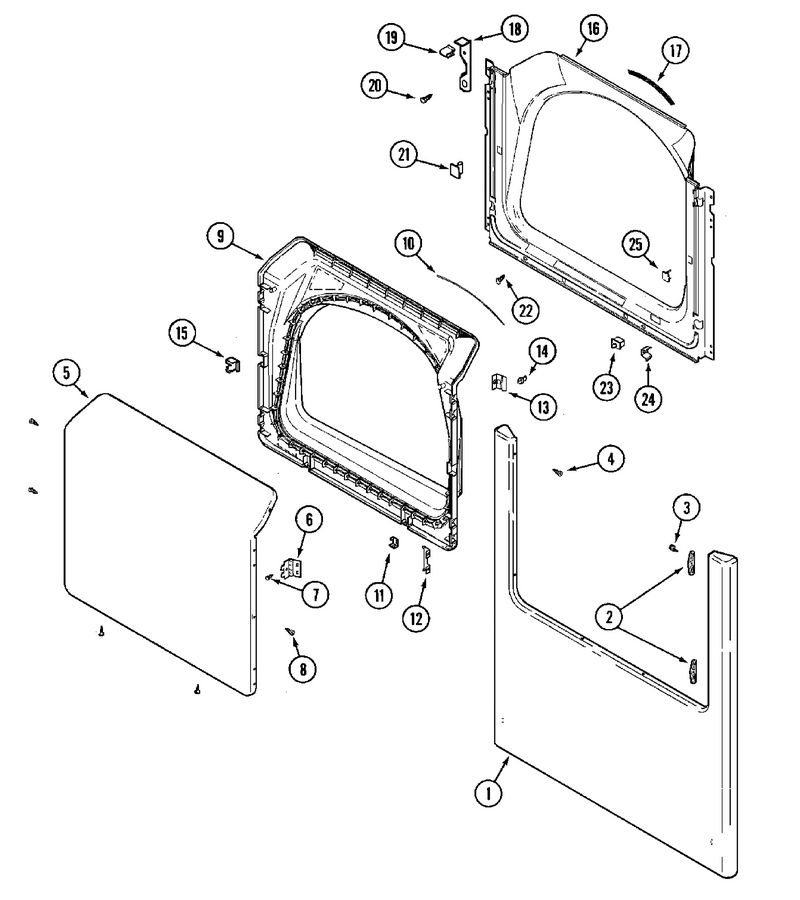

02 - Door (lower)

...
...
001
Panel, Front (wht) WPL-22002836
...
002
Cover WPL-WP33001764
...
003
Screw WPL-WP33001787
...
004
Screw WPL-WP22002012
...
005
Door, Outer (wht-W/damper) WPL-22001979
...
006
Hinge- Doo WPL-WP33001759
...
007
Screw WPL-WP98006631
...
008
Screw WPL-WP22002063
...
009
Door, Inner/ W Seal (wht) WPL-33001750
...
010
Seal-Door WPL-WP33002094
...
011
Clip, Inner Door WPL-22002039
...
012
Clip, Door (double) WPL-22002038
...
013
Bracket- S WPL-WP33001793
...
014
Strike- Do WPL-WP33001761
...
015
Plug, Inner Door WPL-33001763
...
016
Shroud (wht) WPL-33001778
...
017
Seal- Shro WPL-WP33001767
...
018
Kit, Access Cover Hook WPL-22002991
...
019
Fastener, Access Cover Hook WPL-33002037
...
020
Screw WPL-W11573574
...
021
Door Latch Kit WPL-306436
...
022
Screw, Shroud WPL-33001768
...
023
Switch-Dor WPL-W10169313
...
024
Bracket, Hinge WPL-33001760
...
025
Door Catch La-1003 WPL-LA-1003

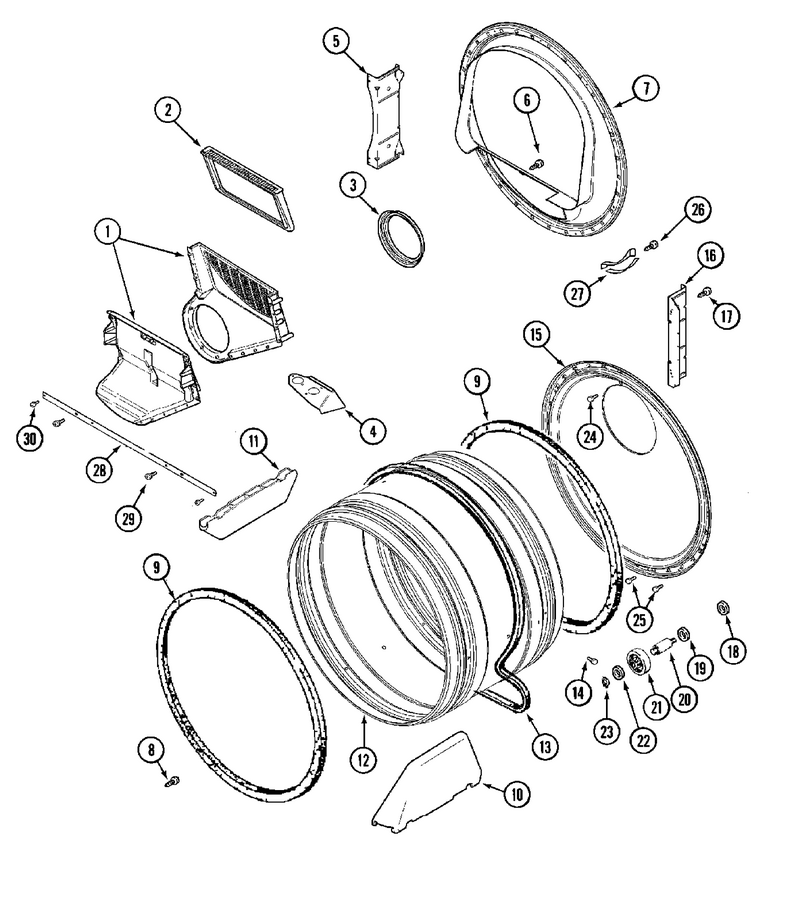

04 - Tumbler

...
...
001
Outlet Duct Assembly WPL-33001799
...
002
Lint Filte WPL-WP33002790
...
003
Seal, Blower WPL-33001758
...
004
Cover, Thermostat (elec Only) WPL-33001837
...
005
Support, Tumbler Front WPL-NLA
...
006
Screw, Outlet Duct WPL-NLA
...
007
Front, Tumbler (w/seal) WPL-33001802
...
008
Screw WPL-WP33002917
...
009
Seal WPL-WP33001807
...
010
Baffle-Drm WPL-WP33002032
...
011
Baffle-Drm WPL-WP33001755
...
012
Tumbler WPL-33001889
...
013
Belt WPL-WP33002535
...
014
Screw, Baffle WPL-33001788
...
015
Back, Tumbler (w/seal) WPL-33001801
...
016
Support, Back WPL-NLA
...
017
Screw WPL-W11573574
...
018
Nut- Hex WPL-WP33001443
...
019
Washer WPL-WP312535
...
020
Shaft WPL-WP6-3129480
...
021
Drum Roller/washer Assy. WPL-12001541
...
022
Washer WPL-WP312535
...
023
Ring-Retnr WPL-WP9703438
...
024
Screw, Inlet Duct WPL-210932
...
025
Screw WPL-WP489128
...
026
Rivet WPL-WP210720
...
027
Tumbler Bearing Kit ----W WPL-306508
...
028
Brace, Tumbler Front WPL-33002039
...
029
Screw, Brace WPL-33001768
...
030
Screw WPL-W11573574

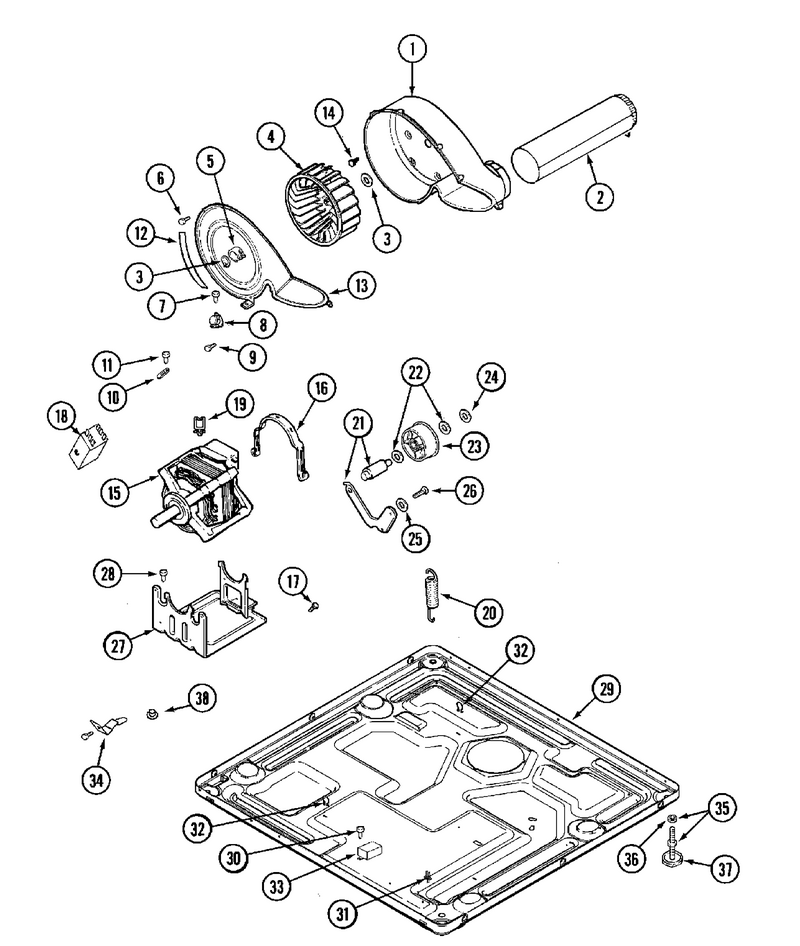

06 - Motor Drive

...
...
001
Housing- B WPL-WP33001789
...
002
Screw WPL-W11573574
...
003
Ring-Retnr WPL-WP9703438
...
004
Wheel, Blower WPL-33001790
...
005
Clamp WPL-WP312967
...
006
Screw WPL-WP33002917
...
007
Screw WPL-WPY313561
...
008
Thrmst-Fix WPL-WP694674
...
009
Screw WPL-WP489128
...
010
Fuse- Ther WPL-WP33001762
...
011
Screw, Thermal Cut-Off WPL-NLA
...
012
Seal, Blower Cover WPL-NLA
...
013
Cover, Blower Housing WPL-33002711
...
014
Screw WPL-WP1163839
...
015
Motor-Drve WPL-W10410997
...
016
Clip- Moto WPL-WPY015825
...
017
Screw WPL-WP488234
...
018
Motor-Drve WPL-W10410997
...
019
Clip, Wire Harness WPL-33002040
...
020
Plug For S WPL-WP33002461
...
021
Idler Arm WPL-WP6-3705180
...
022
Washer WPL-WPY312527
...
023
Bearing WPL-WP6-3700340
...
024
Ring-E WPL-WP354987
...
025
Sleeve WPL-WP315772
...
026
Screw WPL-WPY014874
...
027
Support, Motor WPL-33001752
...
028
Screw WPL-WPY313561
...
029
Base (upr) WPL-33002467
...
030
Screw WPL-WP90767
...
031
Retainer WPL-WP22003298
...
032
Spring, Wire Harness WPL-410490
...
033
Shield, Transformer WPL-315218
...
034
Clip, Grounding WPL-22002244
...
035
Foot WPL-WP8563585
...
036
Nut WPL-WP62739
...
037
Pad WPL-WP210684
...
038
Guide WPL-33002044

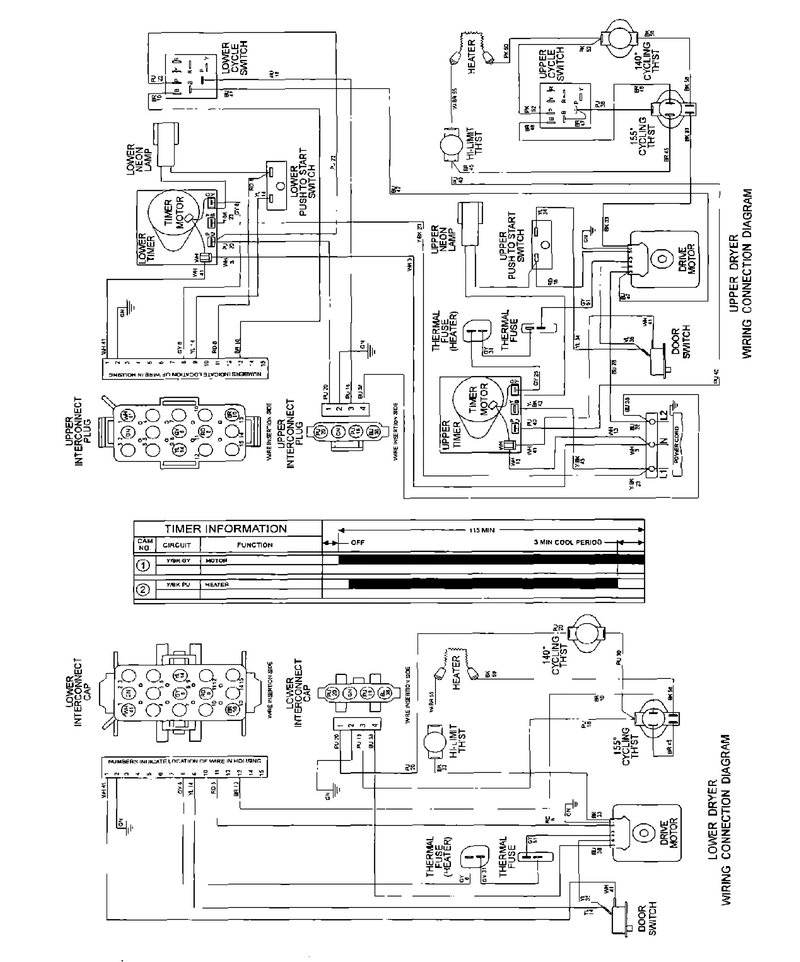

07 - Wiring Information

...
...
001
Wiring Information WPL-NLA
