Maytag MGR6600FW6

Model: MGR6600FW6

Save Part Not Listed?
product name

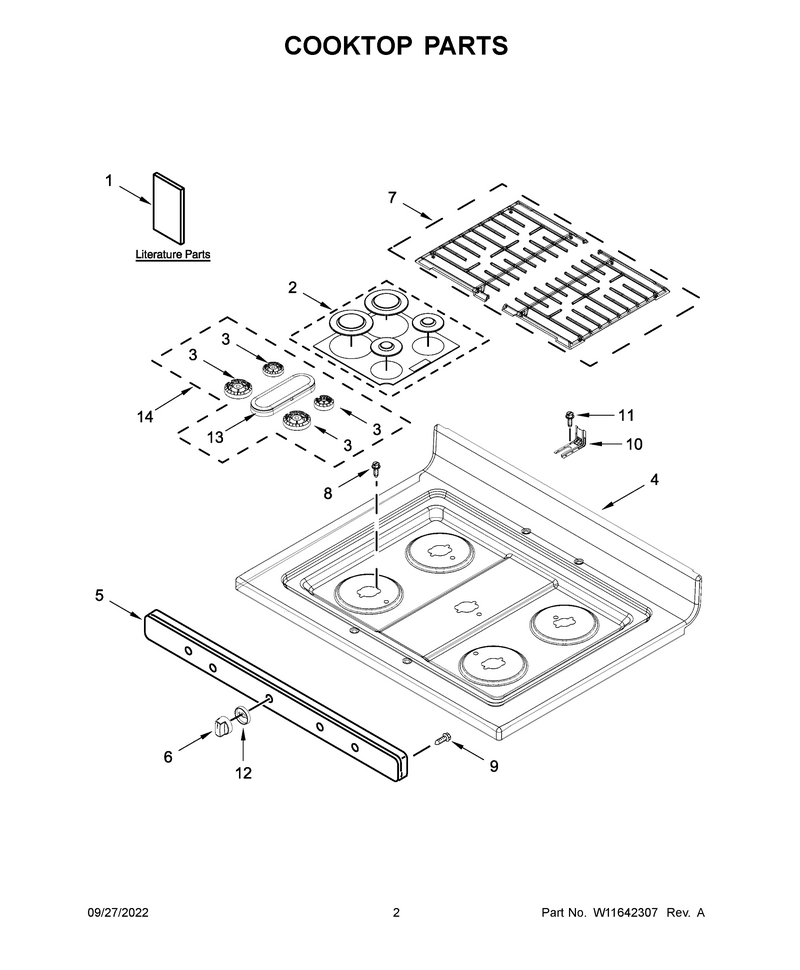

02 - Cooktop Parts

...
...
NI
Clip, Harness WPL-16515
...
1
Quick Start Guide WPL-W11427471
...
1A
Owners Manual WPL-W11450808
...
1B
Tech Sheet WPL-W11326825
...
2
Cap-Burner WPL-W11605759
...
3
Burnr-Head WPL-W11435630
...
3A
Burnr-Head WPL-W11435659
...
3B
Burnr-Head WPL-W11435657
...
4
Cooktop WPL-W11454367
...
4A
Cooktop WPL-W11478143
...
5
Panel, Manifold (Black) WPL-W10724449
...
5A
Panel, Manifold (White) WPL-W10724448
...
6
Knob WPL-W11620731
...
6A
Knob WPL-W11620732
...
7
Grate-Kit WPL-W11101497
...
8
Screw WPL-W11241230
...
9
Screw WPL-WP3196557
...
10
Anchor-Tip WPL-W11447673
...
11
Screw, Anti-Tip Kit WPL-7101P485-
...
12
Bezel (Black) WPL-W10894849
...
12A
Bezel (White) WPL-W10894848
...
13
Burnr-Head WPL-W11435660
...
14
Burnr-Head WPL-W11575584

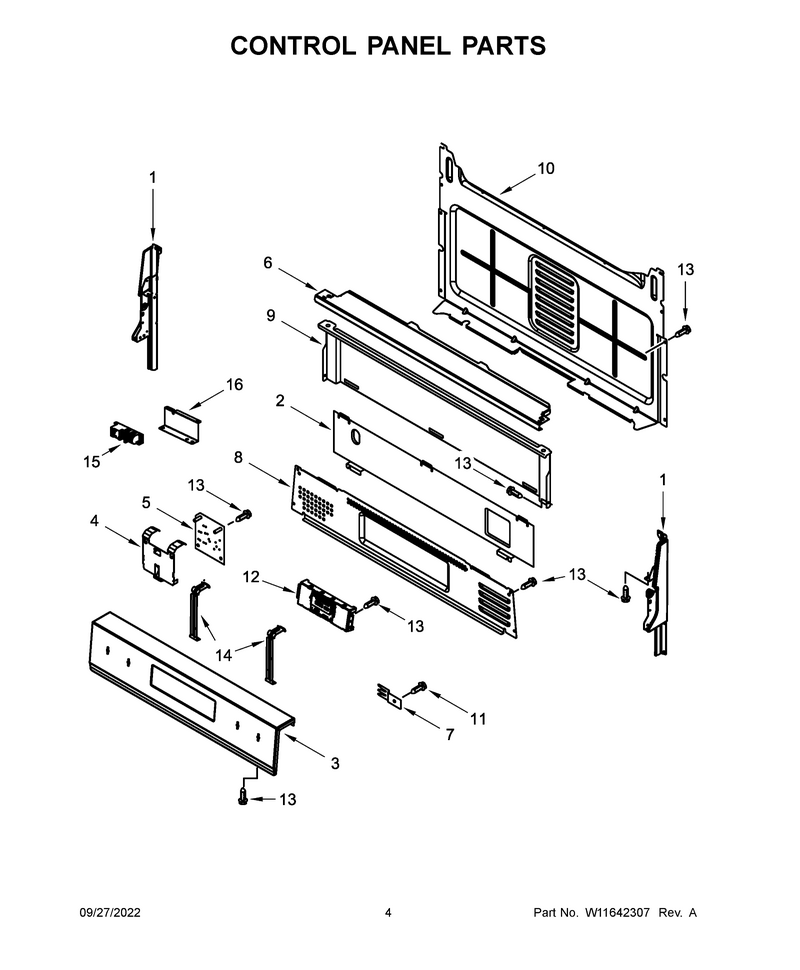

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219664
...
1A
Endcap-Pnl WPL-W11219665
...
1B
Endcap-Pnl WPL-W11219365
...
1C
Endcap-Pnl WPL-W11219370
...
2
Shield, Heat WPL-8053505
...
3
Panl-Cntrl WPL-W11101498
...
3A
Panl-Cntrl WPL-W11101500
...
4
Bracket, Mounting WPL-W10762981
...
5
Module-Spk WPL-W11162730
...
6
Bracket, Console Mounting WPL-W10516123
...
7
Bracket, Rear Cooktop WPL-8523412
...
8
Cover, Upper WPL-W10198745
...
9
Shield, Heat WPL-W10192841
...
10
Cover, Back WPL-W10184370
...
11
Screw WPL-WP3196557
...
12
Cntrl-Elec WPL-W11621746
...
12A
Cntrl-Elec WPL-W11620733
...
13
Screw WPL-W11233072
...
14
Brkt-Mntg WPL-W11230932
...
15
Module-Spk WPL-WPW10475149
...
16
Bracket WPL-W10901176

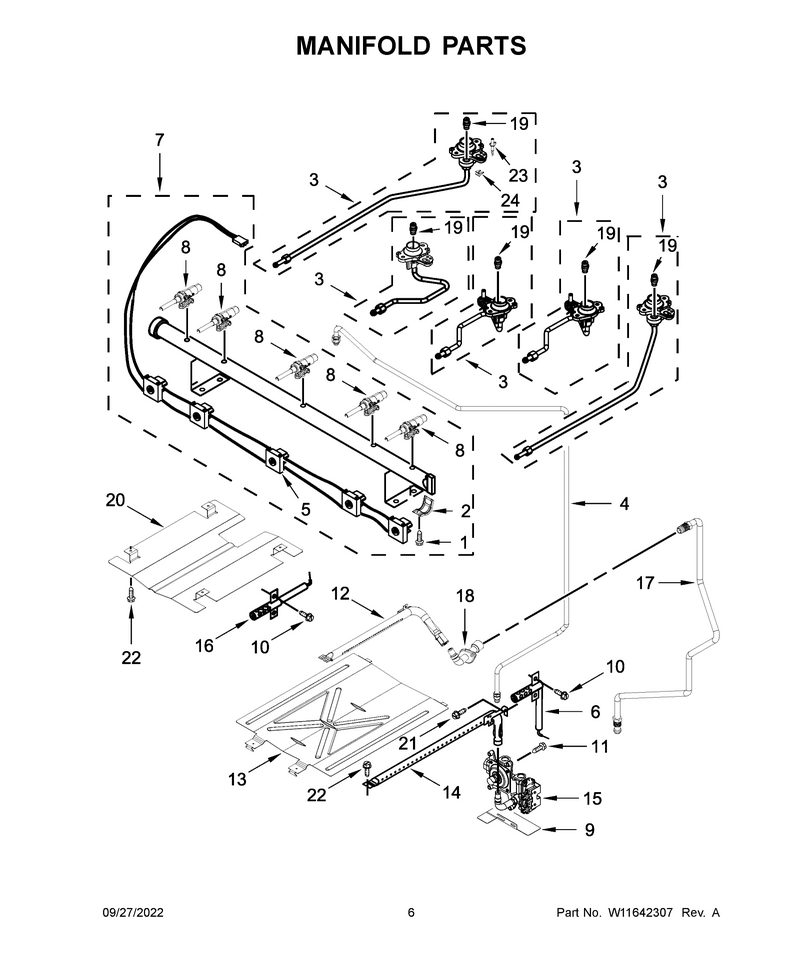

04 - Manifold Parts

...
...
NI
Orifice WPL-W10758273
...
1
Screw, Valve WPL-W11577792
...
2
Bracket, Saddle Valve WPL-W10949105
...
3
Holder-Orf WPL-W11562501
...
3A
Holder-Orf WPL-W11557815
...
3B
Holder-Orf WPL-W11557816
...
3C
Holder-Orf WPL-W11557817
...
3D
Holder-Orf WPL-W11557818
...
4
Tubing-Gas WPL-W11680399
...
5
Harns-Wire WPL-W11701336
...
6
Igntr-Oven WPL-W11524031
...
7
Manifold Assembly WPL-W11510000
...
8
Valve-Brnr WPL-W11759109
...
8A
Valve, Gas (Left Rear And Center) WPL-W11509686
...
8B
Valve,gas (Right Rear) WPL-W11509687
...
9
Bracket, Aegis WPL-W10224921
...
10
Screw WPL-W11684507
...
11
Screw WPL-WP3400016
...
12
Burnr-Brlr WPL-WP8054078
...
13
Baffl-Brnr WPL-WPW10184491
...
14
Burnr-Oven WPL-WP9758078
...
15
Valve-Gas WPL-W11449506
...
16
Igntr-Oven WPL-WPW10333842
...
17
Tube, Broiler Supply WPL-W10420040
...
18
Fitting, Broiler WPL-W11435700
...
19
Orifice WPL-W11700316
...
19A
Orifice (9.5k) (Left Rear) Orifice, Not Serviced WPL-W11485873
...
19B
Orifice WPL-W11712434
...
19C
Orifice (8k) (Center) Orifice, Not Serviced WPL-W11485874
...
20
Spreader, Flame (Broiler) WPL-W10137062
...
21
Screw WPL-3196265
...
22
Screw WPL-W11233072
...
23
Igntr-Surf WPL-W11453940
...
23A
Igntr-Surf WPL-W11453920
...
24
Clip WPL-W11684564

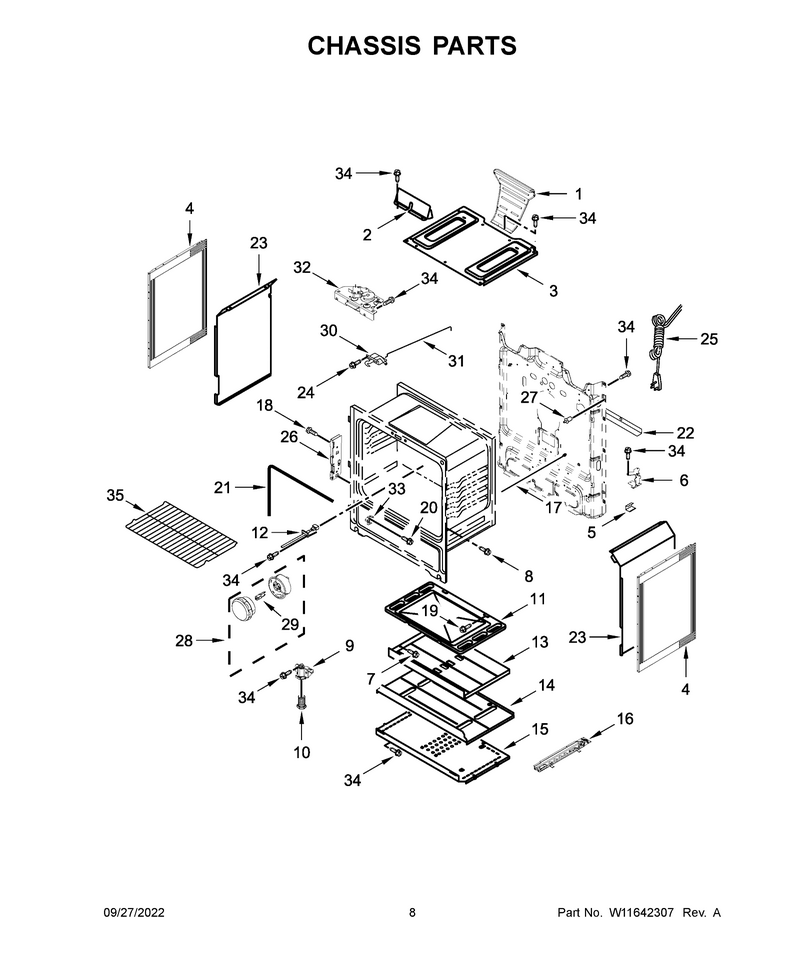

05 - Chassis Parts

...
...
NI
Insulation WPL-W11688737
...
1
Box, Flue WPL-W11457094
...
2
Shield-Ht WPL-WP8272747
...
3
Box-Burner, Gas Sealed WPL-W11379351
...
4
Panel-Side WPL-W11730303
...
4A
Panel-Side WPL-WPW10575396
...
5
Clip, Panel WPL-W10137382
...
6
Bracket, Manifold WPL-8523249
...
7
Screw WPL-W11233072
...
8
Screw WPL-W11169708
...
9
Foot-Level WPL-WPW10341186
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-WP3195097
...
12
Sensor WPL-W10833885
...
13
Baffle, Burner Oven WPL-8053967
...
14
Shield, Heat WPL-8053969
...
15
Shield, Lower WPL-8053968
...
16
Rail-Base WPL-WPW10306546
...
16A
Rail-Base WPL-WPW10306546
...
17
Rod, Door Switch WPL-9757239
...
18
Screw WPL-W10777162
...
19
Screw WPL-W10379120
...
20
Screw WPL-W11684512
...
21
Gaskt-Door WPL-W11542153
...
22
Brace, Main Back WPL-W10435470
...
23
Retainer, Insulation (Left) WPL-W11379353
...
23A
Retainer, Insulation (Right) WPL-W11379943
...
24
Screw WPL-W11169708
...
25
Cord-Power WPL-W11023766
...
26
Hinge-Recv WPL-W10647259
...
27
Swtch-Lite WPL-W11620712
...
28
Sockt-Lite WPL-W11594170
...
29
Bulb-Light WPL-WPW10571723
...
30
Latch-Door WPL-WP9761013
...
31
Rod, Push Latch WPL-W10078370
...
32
Latch-Door WPL-WPW10107820
...
33
Glide-Drwr WPL-W10807823
...
34
Screw WPL-W11233072
...
35
Rack-Oven WPL-W11520287

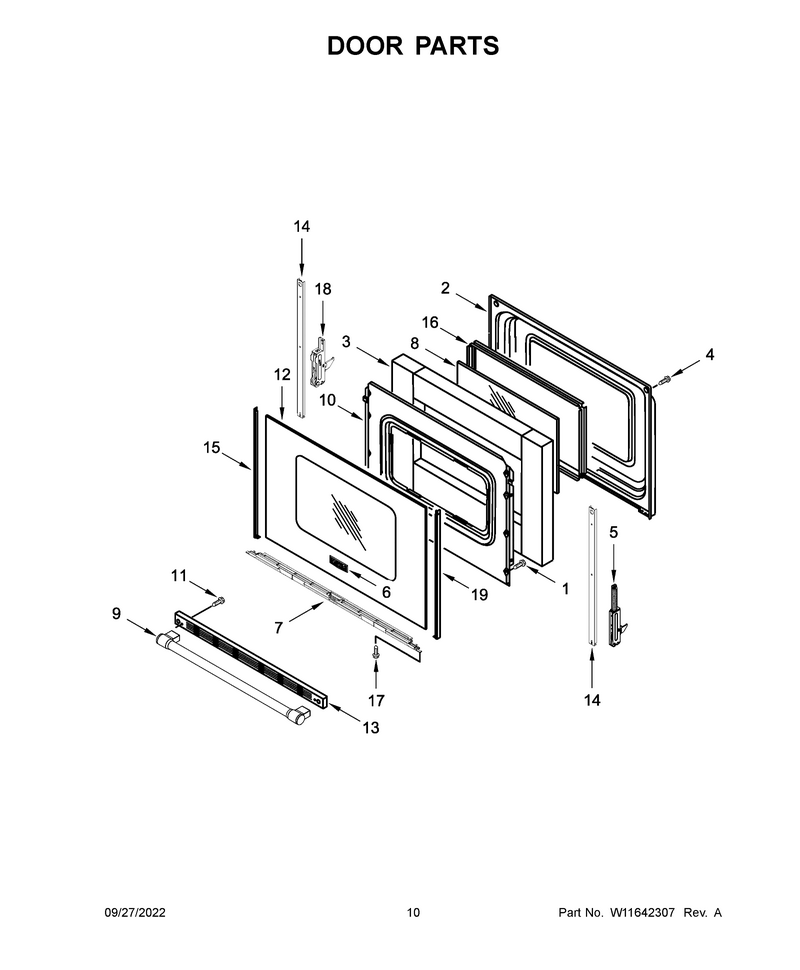

06 - Door Parts

...
...
1
Screw WPL-WPW10031790
...
2
Liner-Door WPL-WP9761344
...
3
Insulation WPL-WPW10278991
...
4
Screw WPL-WPW10200660
...
5
Hinge-Door WPL-WPW10299227
...
6
Nameplate WPL-WPW10612925
...
7
Trim-Door WPL-W11569689
...
7A
Trim-Door WPL-W11594186
...
8
Glass-Door WPL-WP8053948
...
9
Hndle-Door WPL-W10920642
...
9A
Hndle-Door WPL-W10920643
...
10
Retainer WPL-W11539580
...
11
Screw WPL-W10831019
...
12
Glass-Door WPL-W11702167
...
12A
Glass-Door WPL-WPW10409945
...
13
Trim-Vent WPL-W11093902
...
13A
Trim-Vent WPL-W11093912
...
14
Brkt-Suprt WPL-W11502236
...
15
Trim-Door WPL-W10761018
...
15A
Trim-Door WPL-WP8523172
...
16
Frame-Wndw WPL-WPW10316950
...
17
Screw WPL-WP355214
...
18
Hinge-Door WPL-WPW10299226
...
19
Trim-Door WPL-W10761014
...
19A
Trim-Door WPL-WP8523166

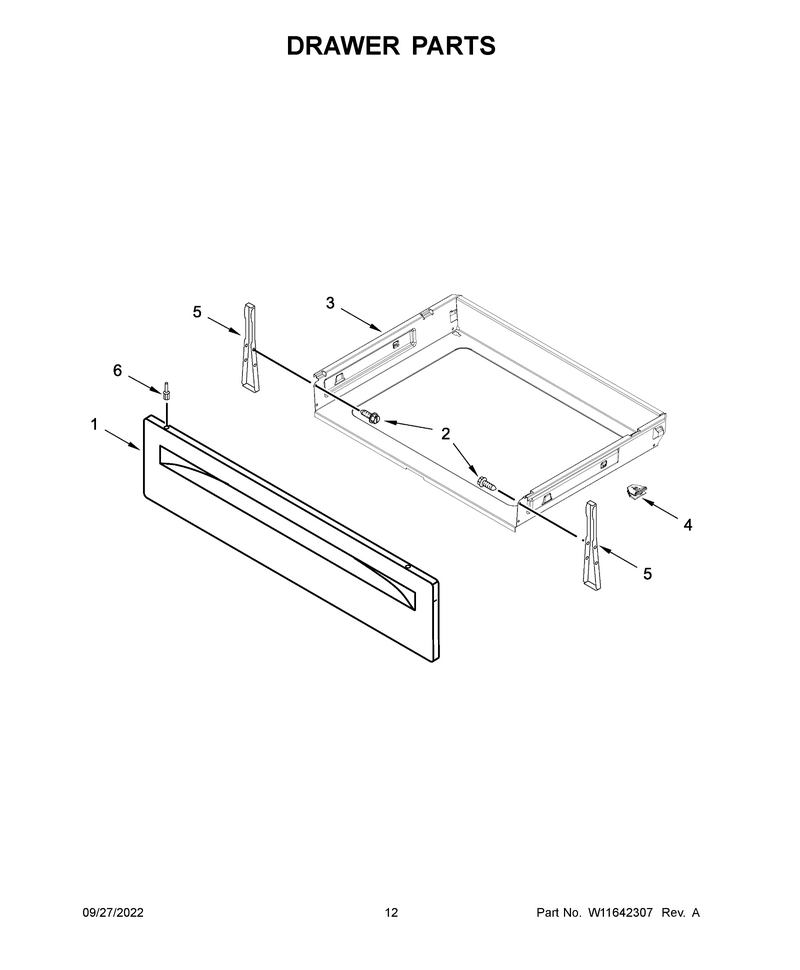

07 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11230490
...
1A
Panel-Drwr WPL-W11230486
...
2
Screw WPL-WP3196175
...
3
Drawr-Util WPL-W10813962
...
4
Glide-Drwr WPL-W10807828
...
5
Bracket, Mounting WPL-W10462911
...
6
Rivet WPL-WP3196813
...
6A
Rivet WPL-WP3196814

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
