Maytag MGDC465HW1

Model: MGDC465HW1

Save Part Not Listed?
product name

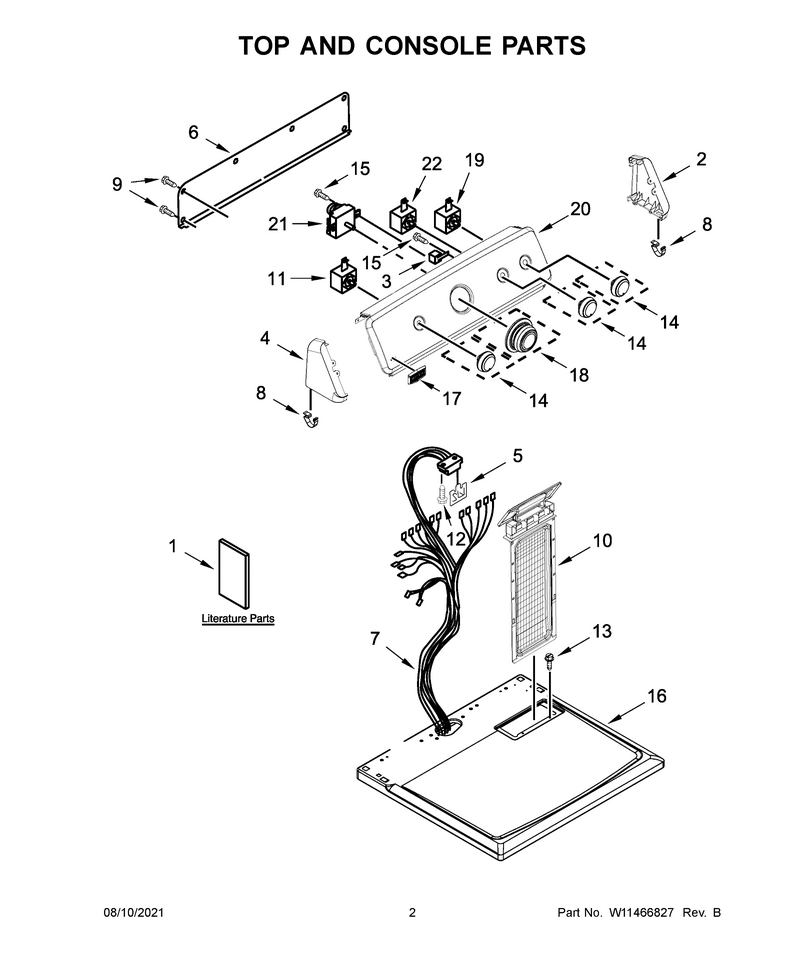

02 - Top And Console Parts

...
...
1
Owners Manual WPL-W11361424
...
1A
Quick Start Guide WPL-W11355745
...
1B
Wiring Diagram WPL-W10876314
...
2
Endcap WPL-WPW10193821
...
3
Buzzer-Adj WPL-WP694419
...
4
Endcap WPL-WPW10193824
...
5
Cntrl-Elec WPL-WPW10476828
...
6
Panel, Rear (Console) WPL-W10103406
...
7
Harness, Wiring WPL-W10865740
...
8
Clip WPL-WP8312709
...
9
Screw WPL-WP693995
...
10
Screen WPL-W11607443
...
11
Switch, Rotary Temperature WPL-8530169
...
12
Screw WPL-WP90767
...
13
Screw WPL-W11693756
...
14
Knob WPL-WPW10562155
...
15
Screw WPL-WP90767
...
16
Top WPL-WP8563663
...
17
Nameplate WPL-WPW10612925
...
18
Knob WPL-WPW10558463
...
19
Relay-Pts WPL-WPW10117655
...
20
Panel-Cntl WPL-W11219540
...
21
Timer WPL-WPW10185992
...
22
Switch WPL-WP3405156

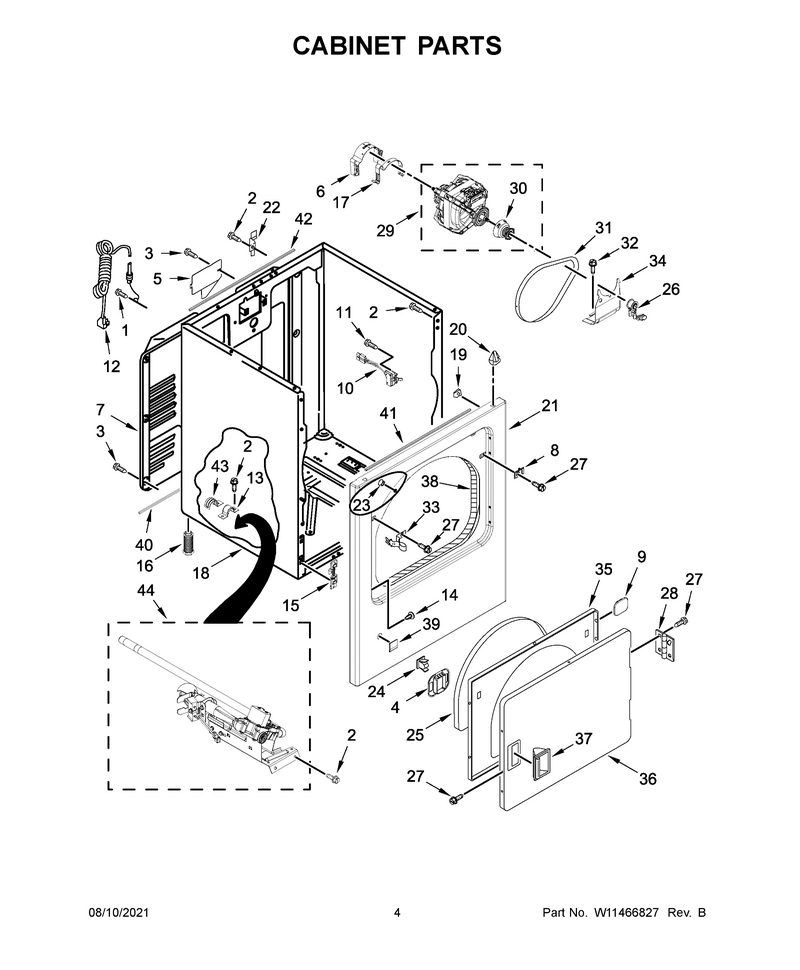

03 - Cabinet Parts

...
...
1
Screw WPL-WP3390631
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
4
Catch WPL-WPW10529197
...
5
Cover WPL-W11736322
...
6
Clamp WPL-WPW10121316
...
7
Panel-Rear WPL-280043
...
8
Plug WPL-W11684591
...
9
Cover WPL-W11173656
...
10
Switch-Dor WPL-WP3406107
...
11
Screw WPL-WP3395530
...
12
Cord-Power WPL-W11222083
...
13
Clamp, Pipe WPL-341029
...
14
Plug WPL-W11481394
...
15
Clip WPL-W10854425
...
16
Feet-Lvlng WPL-W11025920
...
17
Clamp WPL-WP3404162
...
18
Cabinet WPL-8533643
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP8066092
...
21
Panel WPL-W10248059
...
22
Hinge WPL-WP8066217
...
23
Clip WPL-279220
...
24
Catch WPL-W11429587
...
25
Seal-Door WPL-W10861521
...
26
Pulley-Idr WPL-WP691366
...
27
Screw WPL-WP488627
...
28
Hinge WPL-WPW10362431
...
29
Motor-Drve WPL-279827
...
30
Pulley-Mtr WPL-WP8066184
...
31
Belt WPL-WPW10198086
...
32
Bolt WPL-3400500
...
33
Strike WPL-W11429589
...
34
Base WPL-WP348780
...
35
Door WPL-WPW10463967
...
36
Door WPL-W10861224
...
37
Handle WPL-W10861225
...
38
Brng&seal WPL-W11035878
...
39
Plug WPL-W10811916
...
40
Seal-Foam WPL-WPW10157932
...
41
Seal, Spill Guard WPL-W10316619
...
42
Seal WPL-W11596046
...
43
Clamp, Pipe WPL-W10727507
...
44
Burner-Gas WPL-W10823508

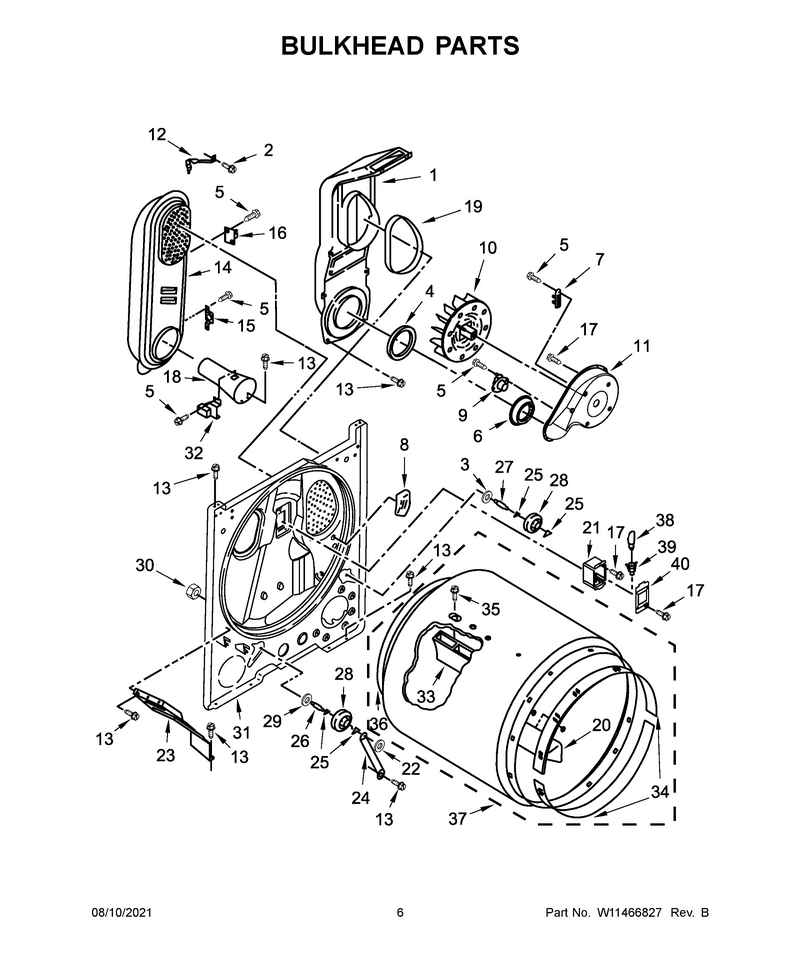

04 - Bulkhead Parts

...
...
1
Chute WPL-W11117429
...
2
Screw WPL-WP489463
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Shield WPL-W11233063
...
7
Fuse-Thrml WPL-WP3392519
...
8
Sensor WPL-W11545746
...
9
Thrmst-Fix WPL-WP8318268
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-279980
...
15
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
16
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
17
Screw WPL-WP488729
...
18
Funnel WPL-WP8066049
...
19
Seal WPL-WP339956
...
20
Baffle-Drm WPL-WP3403636
...
21
Bracket, Drum Light WPL-8578825
...
22
Clip WPL-WP90296
...
23
Bracket, Bulkhead Chute WPL-W11398682
...
24
Bracket WPL-W11684613
...
25
Ring WPL-WPW10512946
...
26
Shaft WPL-WPW10359270
...
27
Shaft WPL-WPW10359269
...
28
Support WPL-WPW10314173
...
29
Washer WPL-WP348197
...
30
Nut WPL-W11229607
...
31
Bulkhead WPL-W10828905
...
32
Sensor WPL-WP338906
...
33
Baffle-Drm WPL-WP692490
...
34
Ring, Bearing WPL-279441
...
35
Screw WPL-W10853898
...
36
Seal WPL-W10612022
...
37
Assembly, Drum (Complete) WPL-W10899578
...
38
Bulb-Light WPL-WP22002263
...
39
Socket WPL-W11222979
...
40
Lens WPL-W11226088

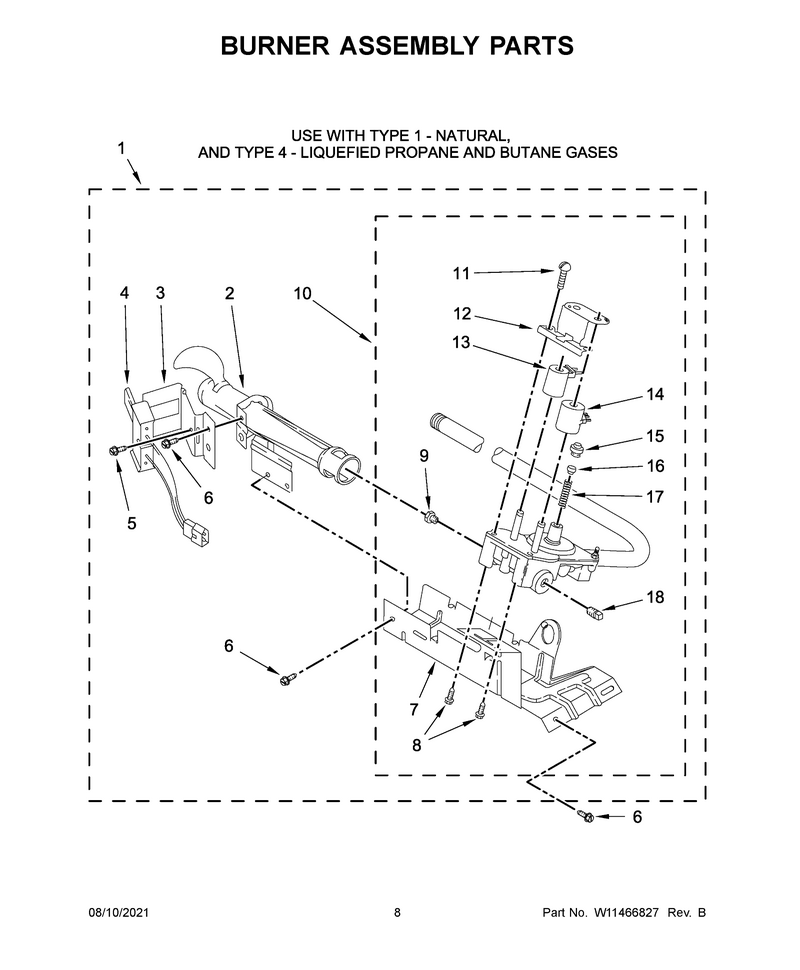

05 - Burner Assembly Parts

...
...
NI
Conversion Kit (Type 1 And 2) To Type (4) L.p.g. WPL-49572A
...
1
Burner-Gas WPL-W10823508
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Base, Burner WPL-693986
...
8
Screw WPL-WP693995
...
9
Orifce-Gas WPL-WP234826
...
9A
Orifce-Gas WPL-WP229742
...
9B
Orifce-Gas WPL-WP234868
...
10
Valve-Gas WPL-WP8318277
...
11
Screw, Coil WPL-694421
...
12
Bracket, Coil WPL-694538
...
13
Coil-Valve WPL-279834
...
14
Coil-Valve WPL-279834
...
15
Limiter WPL-WP694424
...
16
Regulator WPL-WP694423
...
17
Spring WPL-WP694422
...
18
Pipe Plug WPL-W10295523

...
...
NI
Accessory Parts, Kit, Front Load Dryer Vent Testing WPL-W11224254
