Maytag MGD8630HW3

Model: MGD8630HW3

Save Part Not Listed?
product name

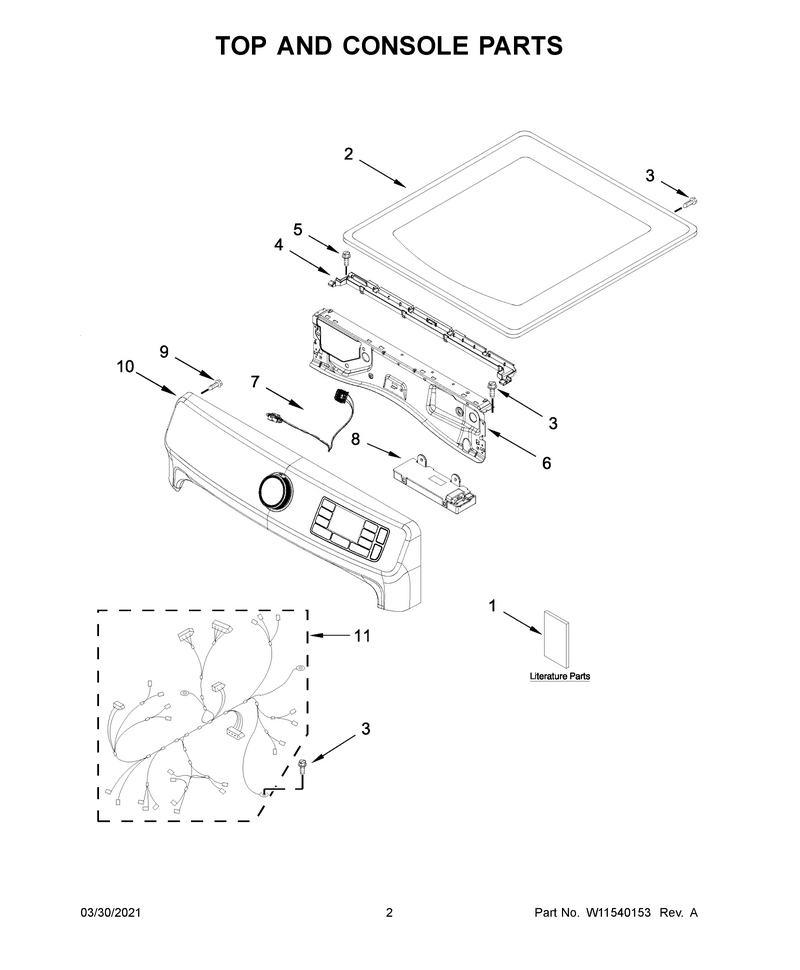

02 - Top And Console Parts

...
...
1
Owners Manual WPL-W11361424
...
1A
Wiring Diagram WPL-W11460669
...
1B
Quick Start Guide WPL-W11356335
...
1C
Tech Sheet WPL-W11459720
...
2
Top WPL-WPW10208383
...
2A
Top WPL-WPW10460919
...
3
Screw WPL-WP693995
...
4
Bracket WPL-W11310027
...
5
Screw WPL-W11686675
...
6
Bracket, Console WPL-W11480682
...
7
Harns-Wire WPL-W11315705
...
8
Cntrl-Elec WPL-W11316276
...
9
Screw WPL-WP8533993
...
10
Console WPL-W11367038
...
10A
Console WPL-W11367320
...
11
Harns-Wire WPL-W11310045

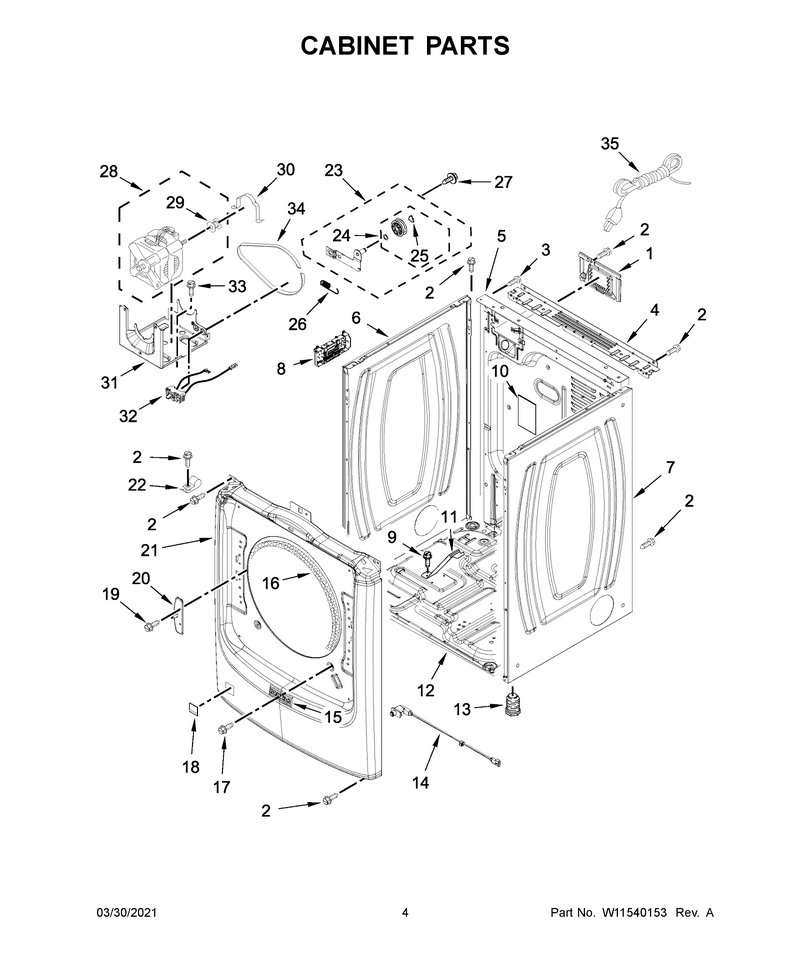

03 - Cabinet Parts

...
...
NI
Dryer Exhaust Kit Not Included, Kit, 4-Way Vent WPL-W10323246
...
1
Cover WPL-W10819767
...
2
Screw WPL-WP488729
...
3
Screw WPL-W10850756
...
4
Bracket WPL-WPW10208382
...
5
Panel, Rear WPL-W10487430
...
6
Panel WPL-W11233548
...
6A
Panel WPL-W11315726
...
7
Panel WPL-W11310043
...
7A
Panel WPL-W11321018
...
8
Cntrl-Elec WPL-W11585683
...
9
Screw WPL-WP693995
...
10
Pad WPL-W11409002
...
11
Bracket, Burner WPL-W10181903
...
12
Base WPL-W11215531
...
13
Feet-Lvlng WPL-49621
...
14
Switch-Dor WPL-W11551763
...
15
Medallion WPL-W10908007
...
16
Seal WPL-WP3387242
...
17
Screw WPL-WP308685
...
18
Plug WPL-W10811916
...
18A
Plug WPL-W11406198
...
19
Screw WPL-W11661566
...
20
Strike WPL-WPW10208250
...
21
Panel WPL-W11491471
...
21A
Panel WPL-W11491749
...
22
Bracket, Gas Pipe WPL-3978776
...
23
Bracket WPL-W10837240
...
24
Pulley-Idr WPL-279640
...
25
Ring WPL-WPW10512946
...
26
Spring WPL-WPW10446781
...
27
Screw WPL-WP3389420
...
28
Motor-Drve WPL-W11364931
...
29
Pulley-Mtr WPL-WP8066184
...
30
Clamp WPL-WPW10121316
...
31
Bracket WPL-W11481730
...
32
Switch WPL-W11662087
...
33
Screw WPL-WP681414
...
34
Belt WPL-661570V
...
35
Cord-Power WPL-W11628810

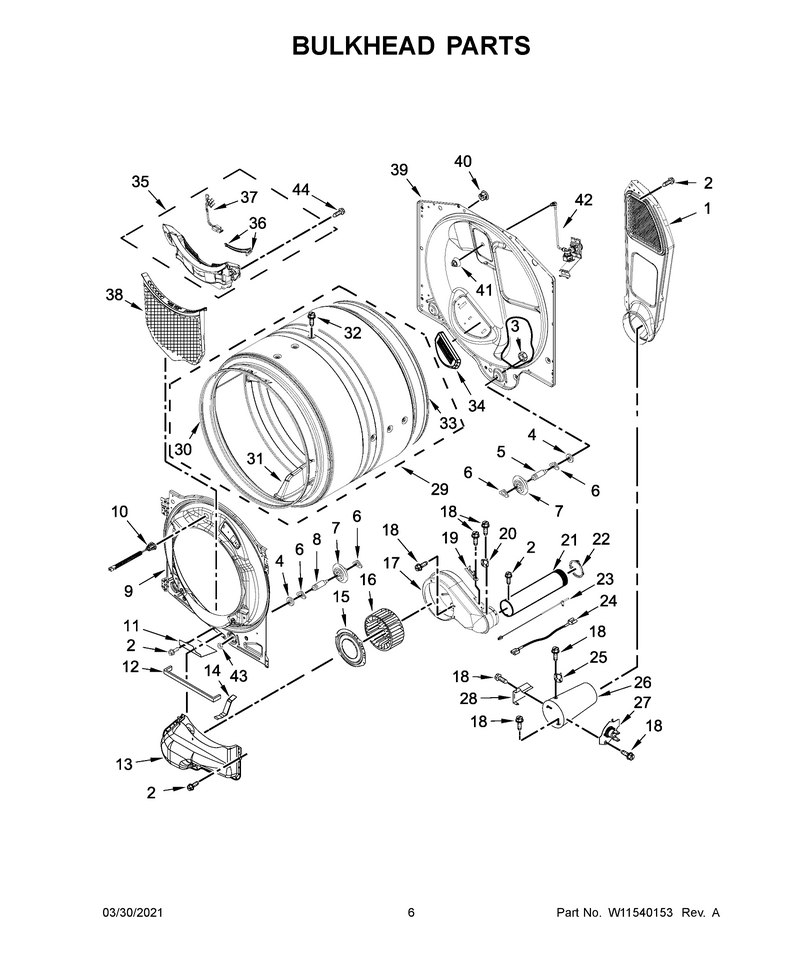

04 - Bulkhead Parts

...
...
1
Duct-Air WPL-WPW10293765
...
2
Screw WPL-WP488729
...
3
Nut WPL-WPW10080190
...
4
Washer WPL-W11236646
...
5
Shaft WPL-WPW10359272
...
6
Ring WPL-WPW10512946
...
7
Support WPL-WPW10314173
...
8
Shaft WPL-WPW10359271
...
9
Bulkhead, Front WPL-W10673491
...
10
Light WPL-W11310048
...
11
Shield, Blower WPL-W11257251
...
12
Seal WPL-W11676493
...
13
Duct-Lint WPL-WPW10211896
...
14
Clip, Lint Duct WPL-W10414388
...
15
Collar WPL-W11688571
...
16
Wheel WPL-WP697772
...
17
Housing WPL-WPW10211911
...
18
Screw WPL-WP693995
...
19
Fuse-Thrml WPL-W10909685
...
20
Thermistor WPL-WP8577274
...
21
Pipe-Exhst WPL-WPW10342188
...
22
Collar WPL-WPW10344699
...
23
Thermistor WPL-W11396709
...
24
Harns-Wire WPL-W11316625
...
25
Thrmst-Fix WPL-WP3391912
...
26
Funnel WPL-WP8573824
...
27
Cutoff-Tml WPL-WP8573713
...
28
Sensor WPL-WP338906
...
29
Assembly, Drum (Complete) WPL-W10541657
...
30
Seal WPL-W11193479
...
31
Baffle, Drum WPL-W10280771
...
32
Screw WPL-W10853898
...
33
Seal WPL-280114
...
34
Sensor WPL-W11702231
...
35
Housng-Out WPL-W10906551
...
36
Electrode WPL-WP3387223
...
37
Harns-Wire WPL-WPW10298258
...
38
Screen WPL-WPW10516085
...
39
Bulkhead WPL-W11310044
...
40
Plug, Rear Bulkhead WPL-8529007
...
41
Nozzle WPL-W11230609
...
42
Valve WPL-W11216837
...
43
Nut WPL-WPW10080210
...
44
Screw WPL-WP3387230

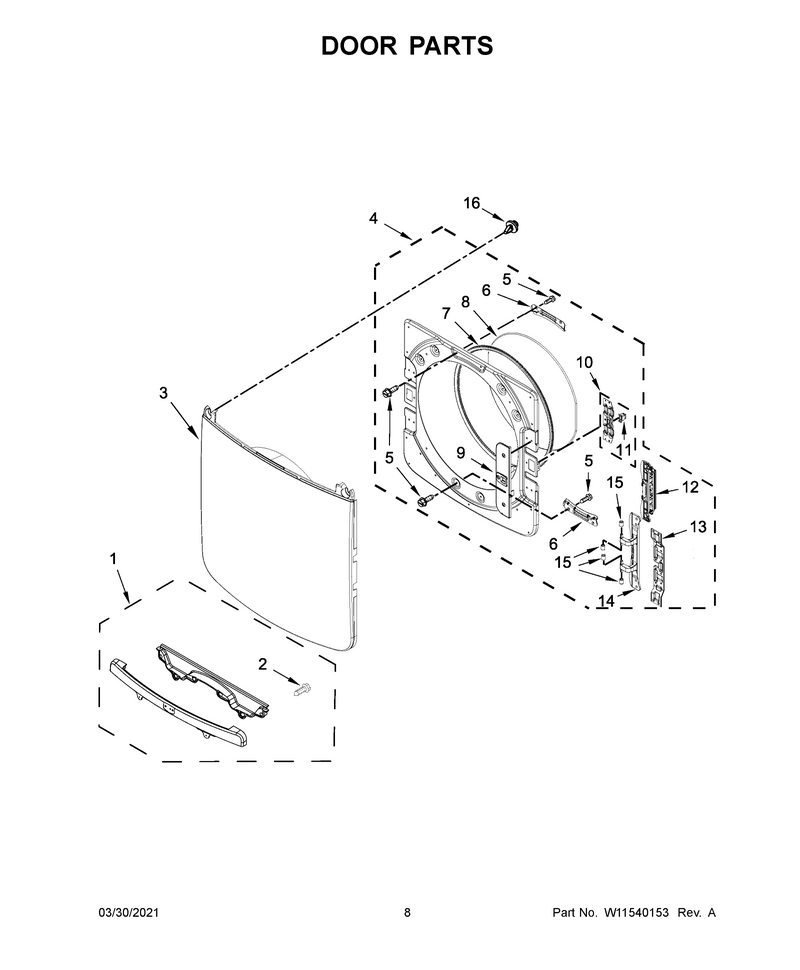

05 - Door Parts

...
...
1
Handle, Door (Chrome) WPL-W10626038
...
2
Screw WPL-W10850046
...
3
Door WPL-W11310052
...
4
Door WPL-W11465962
...
5
Screw WPL-W11661566
...
6
Bracket, Glass WPL-W11096008
...
7
Seal WPL-W11310035
...
8
Window WPL-W11310036
...
9
Cover WPL-W11310050
...
10
Catch WPL-WPW10208254
...
11
Catch WPL-W11240283
...
12
Hinge WPL-W11051465
...
13
Plate WPL-WPW10208419
...
14
Hinge WPL-WPW10208415
...
15
Cap WPL-WPW10208398
...
16
Bumper WPL-W11310051

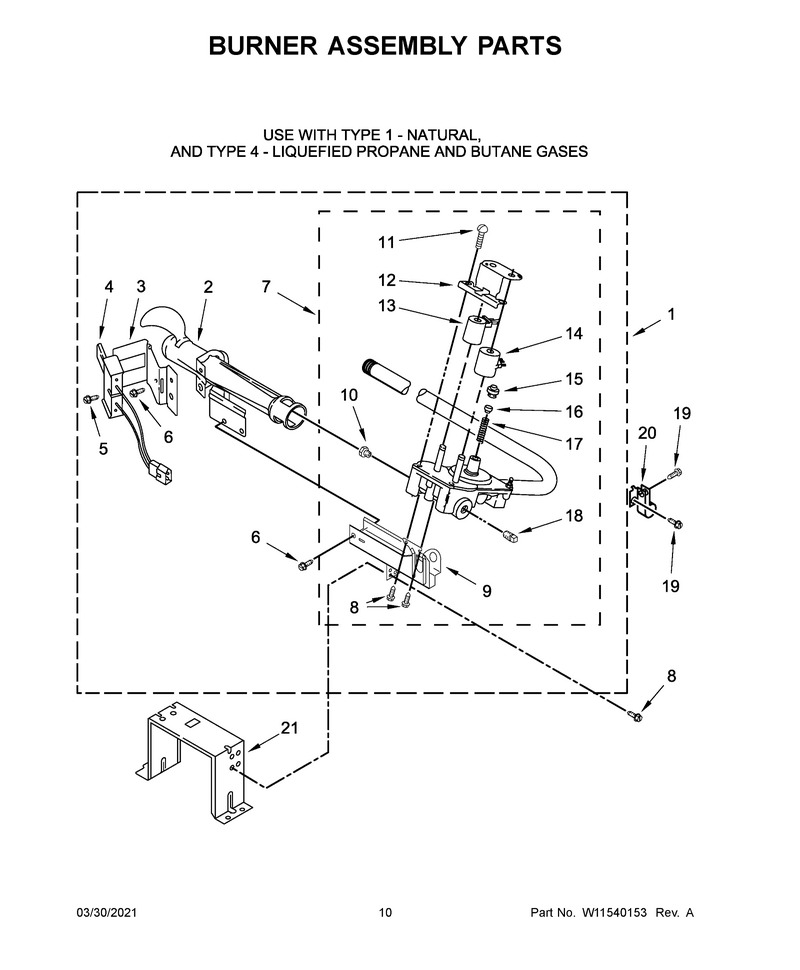

06 - Burner Assembly Parts

...
...
NI
Kit, Lp Gas Dryer Conversion WPL-W11581317
...
1
Burner-Gas WPL-280119
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Valve-Gas WPL-WPW10118347
...
8
Screw WPL-WP693995
...
9
Base, Burner WPL-3389871
...
10
Orifce-Gas WPL-WP15418
...
10A
Orifice, Burner (Type 4 (Propane)) WPL-15422
...
10B
Orifce-Gas WPL-WP229742
...
11
Screw, Coil WPL-694421
...
12
Bracket, Coil WPL-694538
...
13
Coil-Valve WPL-279834
...
14
Coil-Valve WPL-279834
...
15
Limiter WPL-WP694424
...
16
Regulator WPL-WP694423
...
17
Spring WPL-WP694422
...
18
Pipe Plug WPL-W10295523
...
19
Screw WPL-WP488729
...
20
Clamp, Pipe WPL-3387561
...
21
Bracket WPL-3389888

...
...
NI
Washer WPL-WP16123
