Maytag MGD6230HW1

Model: MGD6230HW1

Save Part Not Listed?
product name

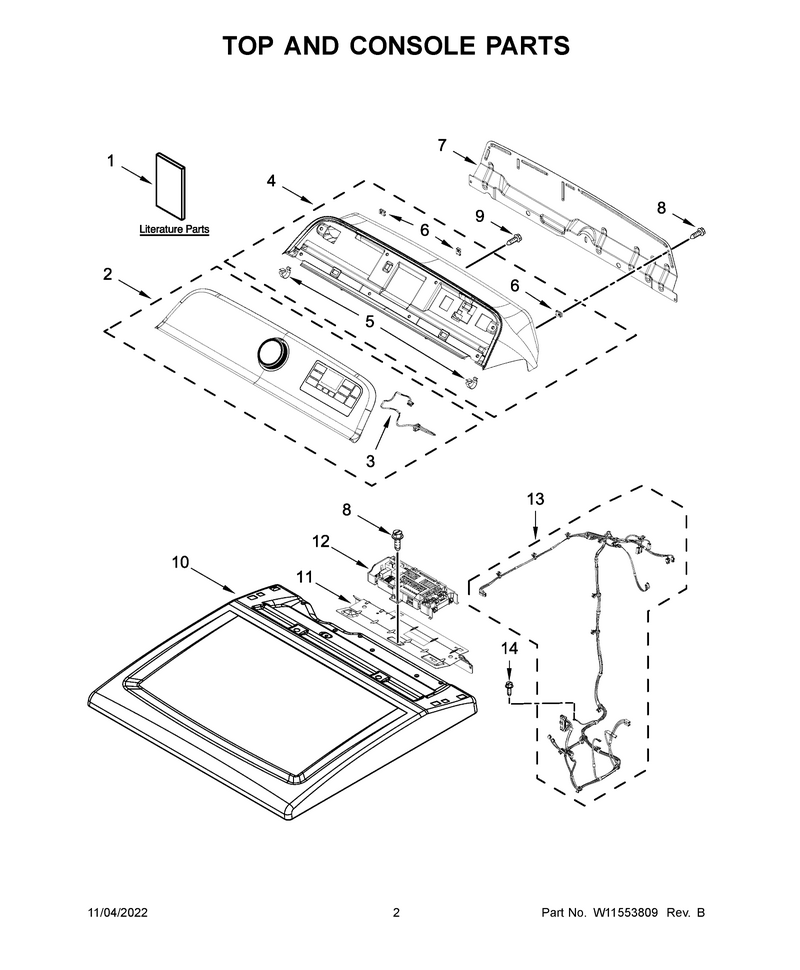

02 - Top And Console Parts

...
...
1
Installation Instructions WPL-W11268643
...
1A
Tech Sheet WPL-W11175222
...
1B
Quick Start Guide WPL-W11175228
...
2
Panel-Cntl WPL-W11413566
...
3
Harns-Wire WPL-W11721377
...
4
Console WPL-W11406678
...
4A
Console WPL-W11406679
...
5
Clip WPL-WP8312709
...
6
Nut WPL-W11213336
...
7
Panel, Rear Console WPL-W11433112
...
8
Screw WPL-WP488729
...
9
Screw WPL-WP9740848
...
10
Top WPL-W11641121
...
10A
Top WPL-W11641122
...
11
Bracket, Electronic Control WPL-W11431865
...
12
Cntrl-Elec WPL-W11525994
...
13
Harness, Main Wiring WPL-W11459154
...
14
Screw WPL-W11693756

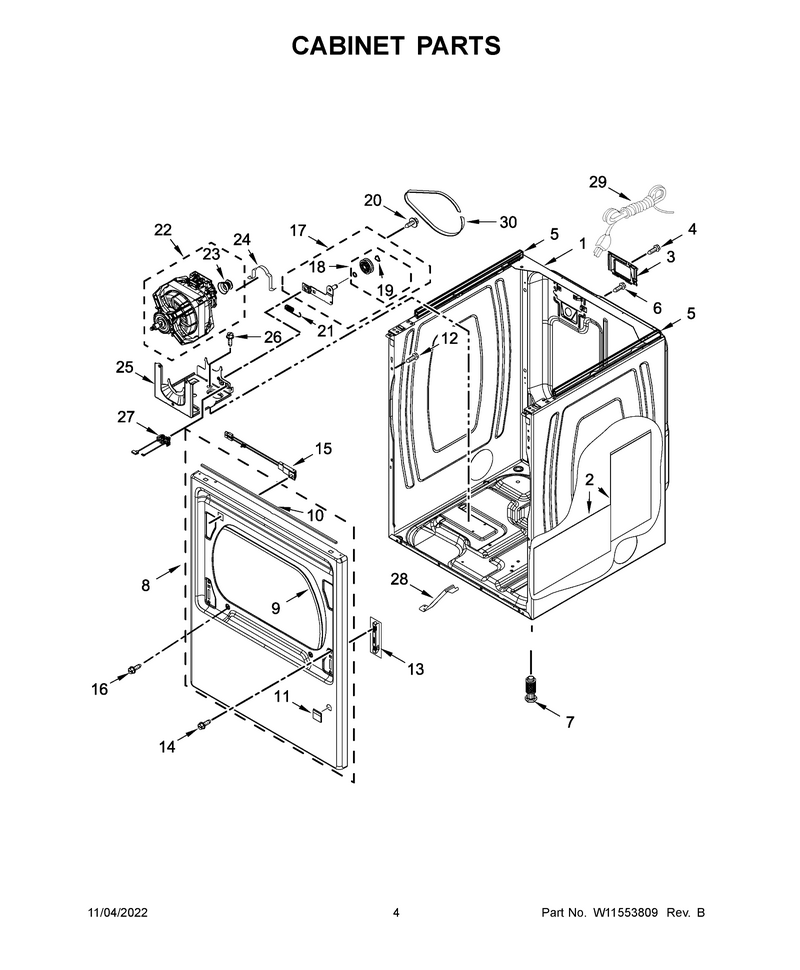

03 - Cabinet Parts

...
...
1
Cabinet WPL-W11417441
...
1A
Cabinet WPL-W11417445
...
2
Pad WPL-W11690850
...
3
Cover WPL-W10819767
...
4
Screw WPL-WP3390631
...
5
Seal WPL-W11352071
...
6
Screw WPL-W10850756
...
7
Feet-Lvlng WPL-W11444912
...
8
Plug WPL-W11402947
...
8A
Plug WPL-W11402953
...
9
Seal WPL-WP3387242
...
10
Seal WPL-W11406199
...
11
Plug WPL-W10811916
...
11A
Plug WPL-W11406198
...
12
Screw WPL-W10891954
...
13
Hinge WPL-W11568982
...
14
Screw WPL-W10916641
...
15
Switch-Dor WPL-W11551763
...
16
Screw WPL-WP308685
...
17
Bracket WPL-W10837240
...
18
Pulley-Idr WPL-279640
...
19
Ring WPL-WPW10512946
...
20
Screw WPL-WP3389420
...
21
Spring WPL-WPW10446781
...
22
Motor-Drve WPL-W11549461
...
23
Pulley-Mtr WPL-W10837625
...
24
Clamp WPL-WPW10121316
...
25
Bracket WPL-W11481730
...
26
Screw WPL-WP681414
...
27
Switch WPL-W11662087
...
28
Bracket, Burner WPL-W10181903
...
29
Cord-Power WPL-W11222083
...
30
Belt WPL-661570V

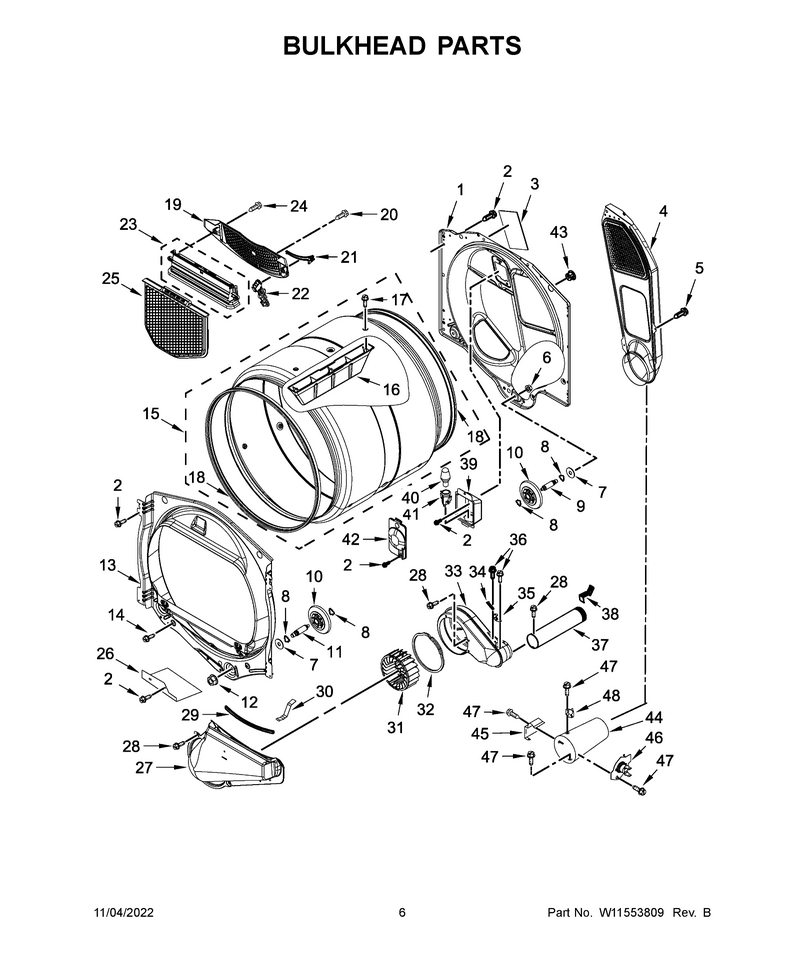

04 - Bulkhead Parts

...
...
1
Bulkhead WPL-W11299301
...
2
Screw WPL-WP488729
...
3
Pad WPL-W11409002
...
4
Duct-Air WPL-WPW10293765
...
5
Screw WPL-WP90767
...
6
Nut WPL-WPW10080190
...
7
Washer WPL-W11236646
...
8
Ring WPL-WPW10512946
...
9
Shaft WPL-WPW10359272
...
10
Support WPL-WPW10314173
...
11
Shaft WPL-WPW10359271
...
12
Nut WPL-WPW10080210
...
13
Bulkhead, Front WPL-W11162467
...
14
Screw WPL-WP308685
...
15
Assembly, Drum WPL-W10545923
...
16
Baffle-Drm WPL-WPW10113136
...
17
Screw WPL-W10853898
...
18
Seal WPL-280114
...
19
Grill-Out WPL-W11086603
...
20
Screw WPL-WP488729
...
21
Electrode WPL-WP3387223
...
22
Harns-Wire WPL-WPW10298258
...
23
Housng-Out WPL-W11129408
...
24
Screw WPL-WP3387230
...
25
Screen WPL-W10120998
...
26
Shield, Blower WPL-W11257251
...
27
Duct-Lint WPL-WPW10128606
...
28
Screw WPL-WP489463
...
29
Seal WPL-WP697813
...
30
Clip WPL-WP8066208
...
31
Wheel WPL-WP697772
...
32
Seal WPL-W11596046
...
33
Housing WPL-W10888146
...
34
Fuse-Thrml WPL-W10909685
...
35
Thermistor WPL-WP8577274
...
36
Screw WPL-WP693995
...
37
Pipe-Exhst WPL-279936
...
38
Clip WPL-W11684573
...
39
Bracket, Drum Light WPL-3977373
...
40
Bulb-Light WPL-WP22002263
...
41
Socket WPL-W11222979
...
42
Lens WPL-W11226088
...
43
Plug, Rear Bulkhead WPL-8529007
...
44
Funnel WPL-WP8573824
...
45
Sensor WPL-WP338906
...
46
Cutoff-Tml WPL-WP8573713
...
47
Screw WPL-WP90767
...
48
Thrmst-Fix WPL-WP3391912

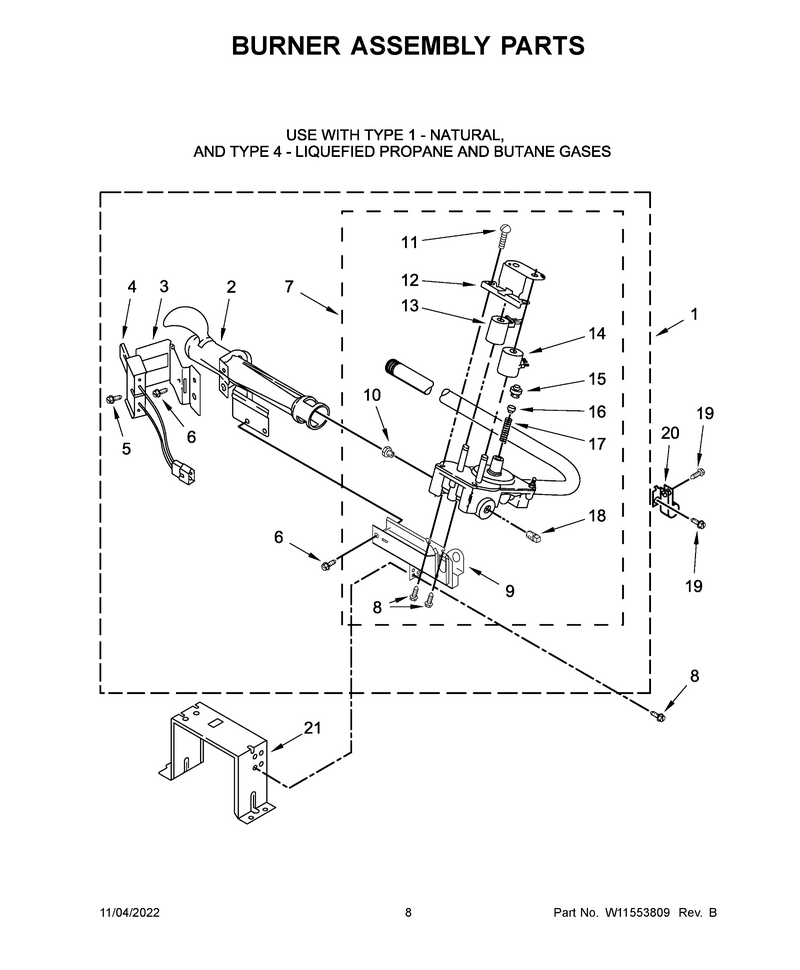

05 - Burner Assembly Parts

...
...
NI
Kit, Lp Gas Dryer Conversion WPL-W11581317
...
1
Burner-Gas WPL-280119
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Valve-Gas WPL-WPW10118347
...
8
Screw WPL-WP693995
...
9
Base, Burner WPL-3389871
...
10
Orifce-Gas WPL-WP15418
...
10A
Orifice, Burner (Type 4 (Propane)) WPL-15422
...
10B
Orifce-Gas WPL-WP229742
...
11
Screw, Coil WPL-694421
...
12
Bracket, Coil WPL-694538
...
13
Coil-Valve WPL-279834
...
14
Coil-Valve WPL-279834
...
15
Limiter WPL-WP694424
...
16
Regulator WPL-WP694423
...
17
Spring WPL-WP694422
...
18
Pipe Plug WPL-W10295523
...
19
Screw WPL-WP488729
...
20
Clamp, Pipe WPL-3387561
...
21
Bracket WPL-3389888

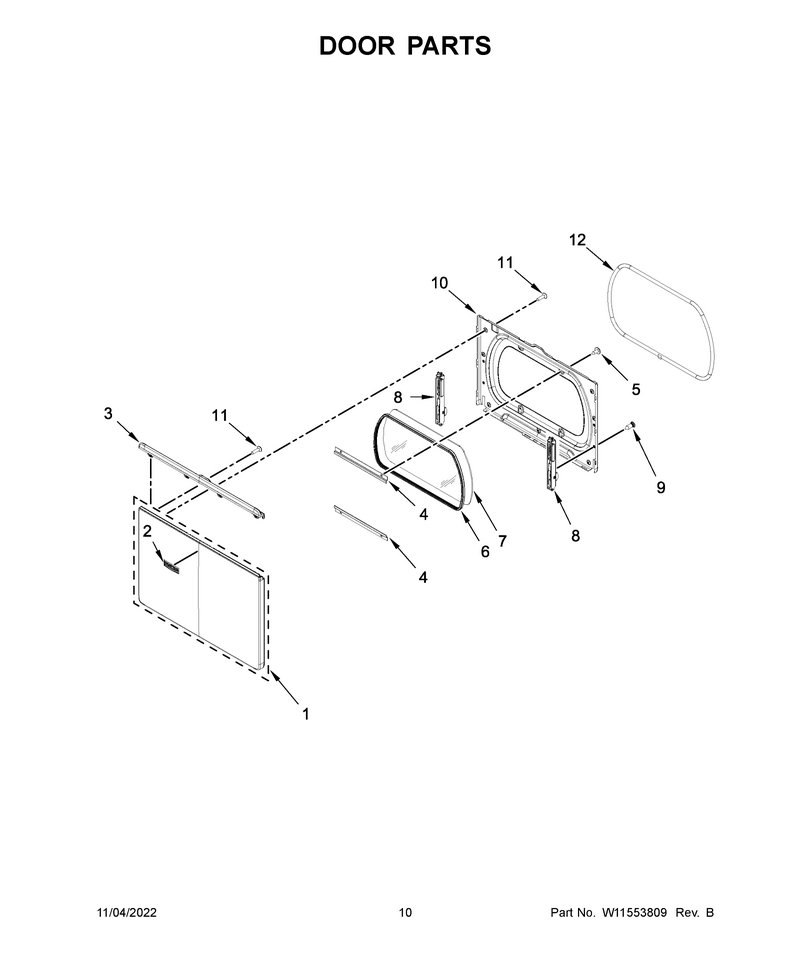

06 - Door Parts

...
...
1
Assembly, Outer Door (Maytag) WPL-W11166841
...
2
Nameplate WPL-WPW10612925
...
3
Handle, Door WPL-W11186769
...
4
Retainer WPL-W10822054
...
5
Screw WPL-WP3373329
...
6
Seal WPL-W11676508
...
7
Glass-Door WPL-W11434304
...
8
Hinge WPL-W11551301
...
9
Screw WPL-WP488627
...
10
Door WPL-W11679613
...
10A
Assembly, Inner Door (Chrome Shadow) WPL-W11176947
...
11
Screw WPL-W10850046
...
12
Seal-Door WPL-W11596131

...
...
NI
Accessory Parts, Dryer Vent - Cap (External Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pipe With Back Dra WPL-4396007RW
