Maytag MFT2772HEZ04

Model: MFT2772HEZ04

Save Part Not Listed?
product name

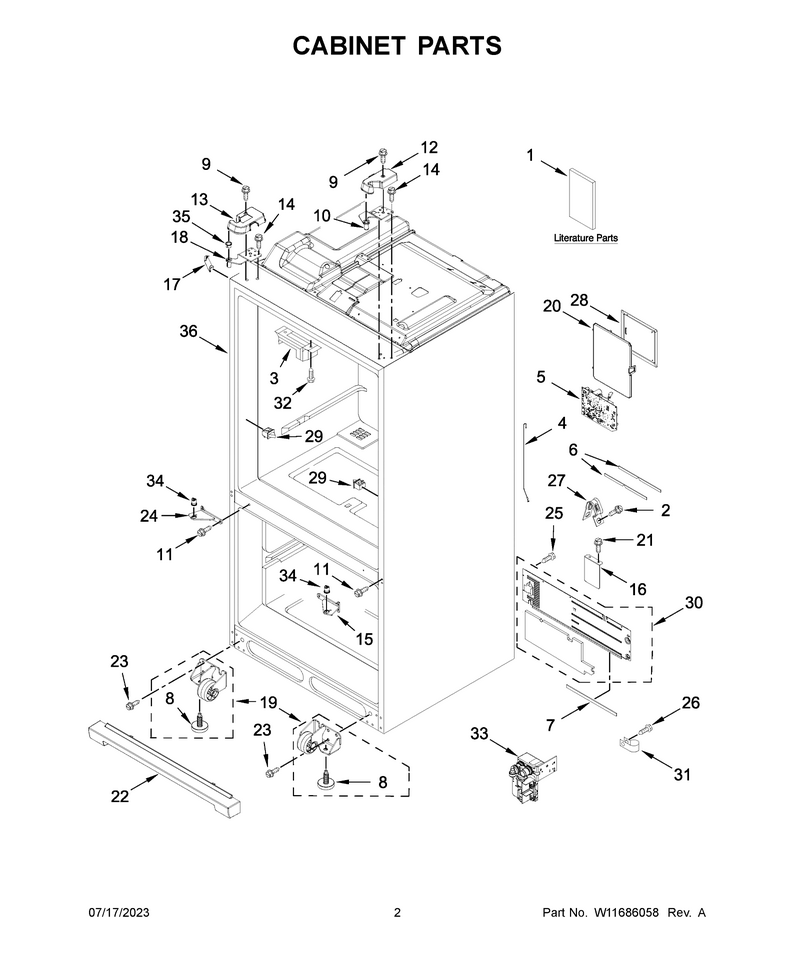

02 - Cabinet Parts

...
...
NI
Harns-Wire WPL-W11483123
...
1
Owners Manual WPL-W11502338
...
1A
Energy Guide WPL-W11227414
...
1B
Tech Sheet WPL-W11662357
...
2
Screw WPL-WPW10141645
...
3
Block-Piv WPL-WPW10344432
...
4
Tube-Water WPL-W11482381
...
5
Cntrl-Elec WPL-W11224256
...
6
Gasket, Hv Box WPL-W10415341
...
7
Gasket WPL-W11534848
...
8
Leveler WPL-WPW10141622
...
9
Screw WPL-WP8281196
...
10
Hinge-Door WPL-W11592404
...
11
Screw WPL-W11573362
...
12
Cover WPL-WPW10407158
...
13
Cover WPL-WPW10471618
...
14
Screw WPL-W11126052
...
15
Hinge-Door WPL-W11240748
...
16
Cover, Roller WPL-W10336736
...
17
Filler WPL-WP12587703AP
...
18
Hinge-Door WPL-W11592405
...
19
Roller-Cab WPL-WPW10515763
...
19A
Roller-Cab WPL-WPW10515762
...
20
Lid, Hv WPL-W10768379
...
21
Screw WPL-W11686675
...
22
Grille-Frt WPL-WPW10637671
...
23
Screw (8) WPL-67006564
...
24
Hinge-Door WPL-W10878115
...
25
Screw WPL-WPW10141645
...
26
Screw (3) WPL-67006425
...
27
Clamp, Power Cord WPL-549193
...
28
Cover, Control Box WPL-W10754144
...
29
Switch WPL-W11396033
...
30
Cover-Back WPL-W11482027
...
31
Clamp WPL-W11456069
...
32
Screw WPL-W10854958
...
33
Valve WPL-W11482025
...
34
Cam-Door WPL-WPW10505294
...
35
Retainer, Door WPL-W10212137
...
36
Following Parts Not Illustrated WPL-N/P

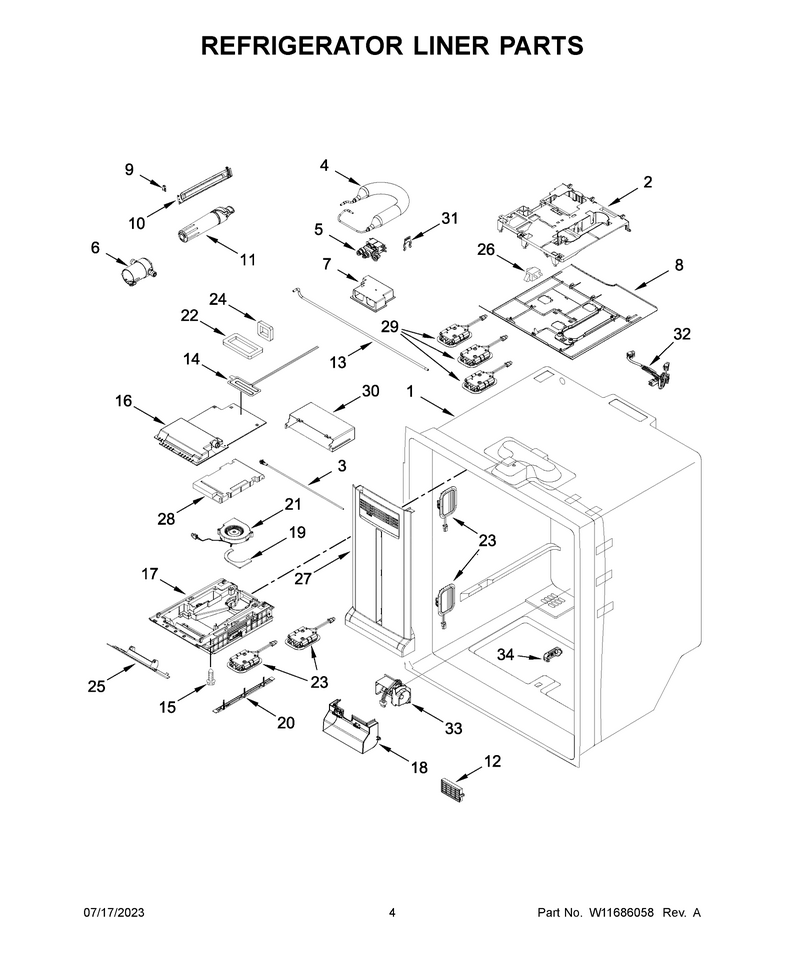

03 - Refrigerator Liner Parts

...
...
NI
Wire Assembly, Ice Box WPL-W11298842
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Housing WPL-W11482035
...
3
Tube-Water WPL-W11686799
...
4
Reservoir WPL-W11482382
...
5
Valve WPL-W11482383
...
6
Housing WPL-W11482384
...
7
Enclosure, Water Valve WPL-W11391457
...
8
Cover WPL-W11190820
...
9
Latch WPL-WP2223877
...
10
Cover-Filt WPL-WPW10277949
...
11
Filter WPL-EDR2RXD1
...
12
Antibacterial Filter WPL-W10311524
...
13
Tube-Water WPL-W11686800
...
14
Heater WPL-W11087201
...
15
Screw WPL-WP67006908
...
16
Cover WPL-WPW10598013
...
17
Box-Ice WPL-W11605504
...
18
Cover WPL-W11695756
...
19
Gasket WPL-WPW10392172
...
20
Trim, Icebox WPL-W10505516
...
21
Fan WPL-W10846539
...
22
Gasket WPL-WPW10280988
...
23
Module WPL-W11483116
...
24
Gasket WPL-WPW10320706
...
25
Heater WPL-W11637688
...
26
Switch WPL-W11384469
...
27
Assembly, Air Tower WPL-W11373854
...
28
Insulation WPL-WPW10280983
...
29
Module WPL-W11484840
...
30
Adapter WPL-WPW10635022
...
31
Ring WPL-W11678575
...
32
Wire Assembly, Jumper WPL-W11369503
...
33
Control WPL-WPW10479155
...
34
Cover WPL-W11238397

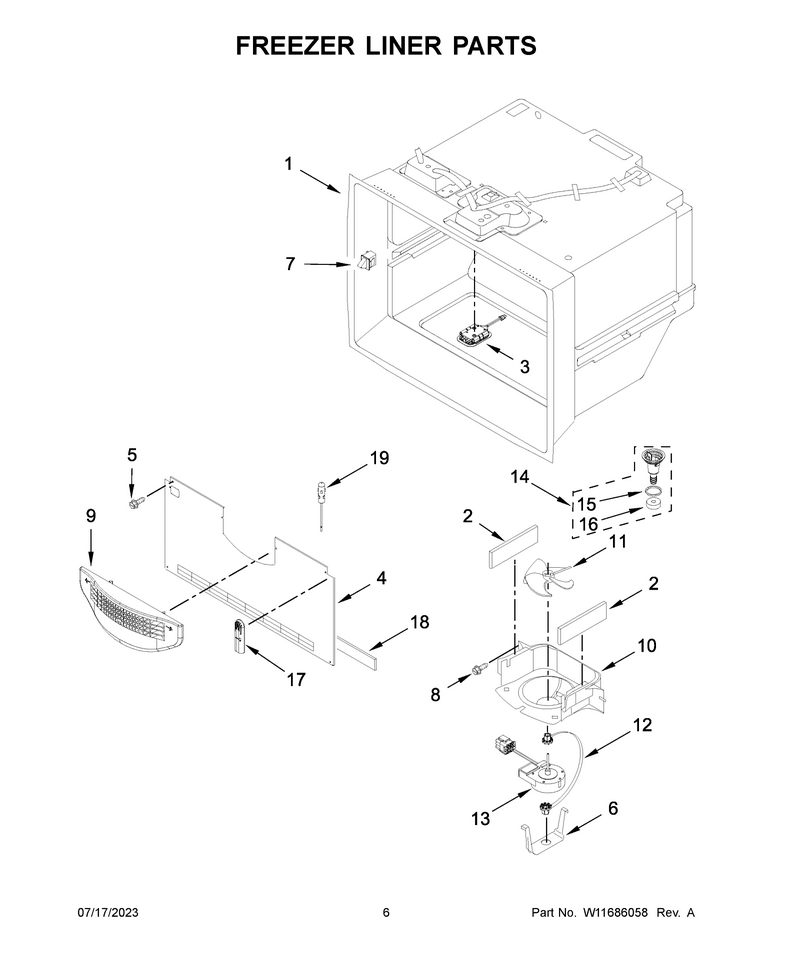

04 - Freezer Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Module WPL-W11483116
...
4
Cover, Evaporator (Freezer) WPL-W11408170
...
5
Screw (3) WPL-67006425
...
6
Clip WPL-W11712696
...
7
Switch WPL-W11384469
...
8
Screw WPL-WP98165
...
9
Grille WPL-W10871842
...
10
Shroud WPL-WPW10363507
...
11
Blade- Fan WPL-WP67006337
...
12
Grommet- F WPL-W11676465
...
13
Motor-Evap WPL-W11578030
...
14
Assembly, Drain Funnel WPL-W10503218
...
15
Seal- O Ri WPL-WPM0500703
...
16
Gasket- Dr WPL-WPB8381501
...
17
Cover WPL-W11661208
...
18
Gasket, Evaporator Cover WPL-W10668165
...
19
Thermistor WPL-W11724692

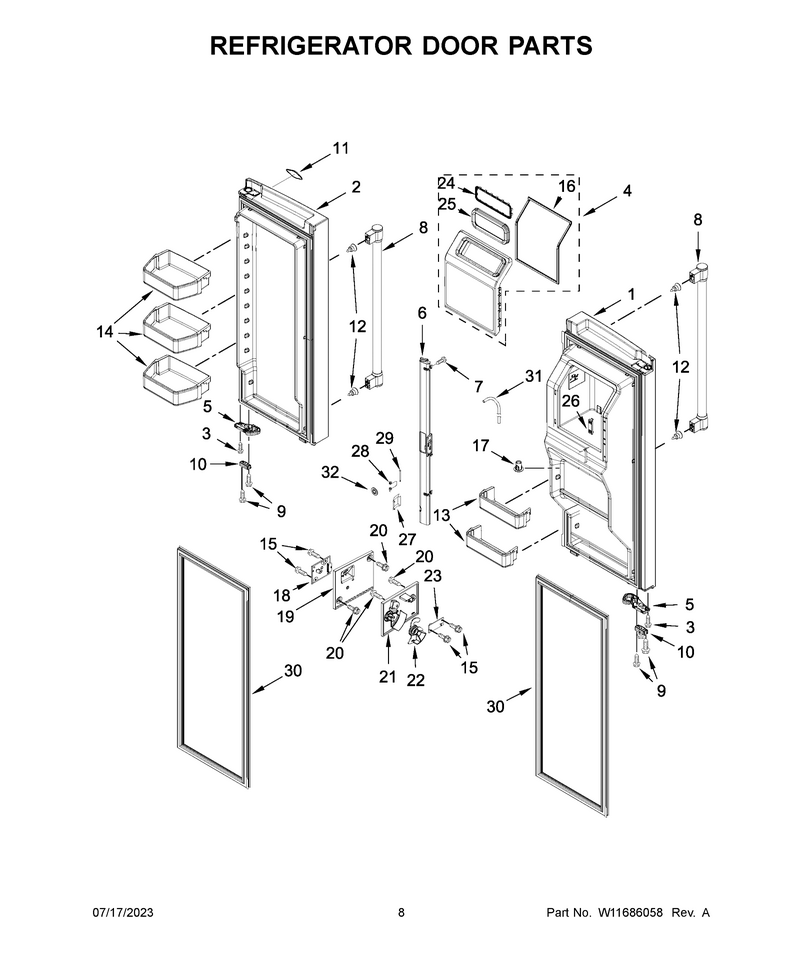

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11518736
...
2
Dor-Fip WPL-W11436604
...
3
Screw WPL-WPW10238319
...
4
Assembly, Ice Door WPL-W10549593
...
5
Closer WPL-W10904595
...
5A
Closer WPL-W11212164
...
6
Rail-Mulln WPL-W10806457
...
7
Screw WPL-W11311945
...
8
Handle WPL-W11024095
...
9
Screw WPL-WP98165
...
10
Bumper-Dor WPL-W11573367
...
11
Nameplate WPL-WPW10612926
...
12
Screw WPL-W11449276
...
13
Trivet WPL-W10849724
...
14
Bin-Cntlvr WPL-W10860198
...
15
Screw, 6-19 X .250 WPL-2006254
...
16
Gasket WPL-W11624997
...
17
Clip, Tube WPL-W11315302
...
18
Cntrl-Elec WPL-W10898445
...
19
Cover, Receiver WPL-W10258510
...
20
Screw WPL-WP3400065
...
21
Cover, Emitter WPL-W10258502
...
22
Slide, Icemaker Shut Off WPL-W10258540
...
23
Cntrl-Elec WPL-W10870822
...
24
Retainer WPL-WPW10400825
...
25
Gasket WPL-WPW10347087
...
26
Vent WPL-W11684620
...
27
Flipper WPL-WPW10258520
...
28
Spring WPL-WP2198635
...
29
Pin, Door WPL-W10331749
...
30
Gasket-Fip WPL-W10407212
...
31
Tube-Water WPL-WPW10499015
...
32
Pin-Door WPL-WP2196195

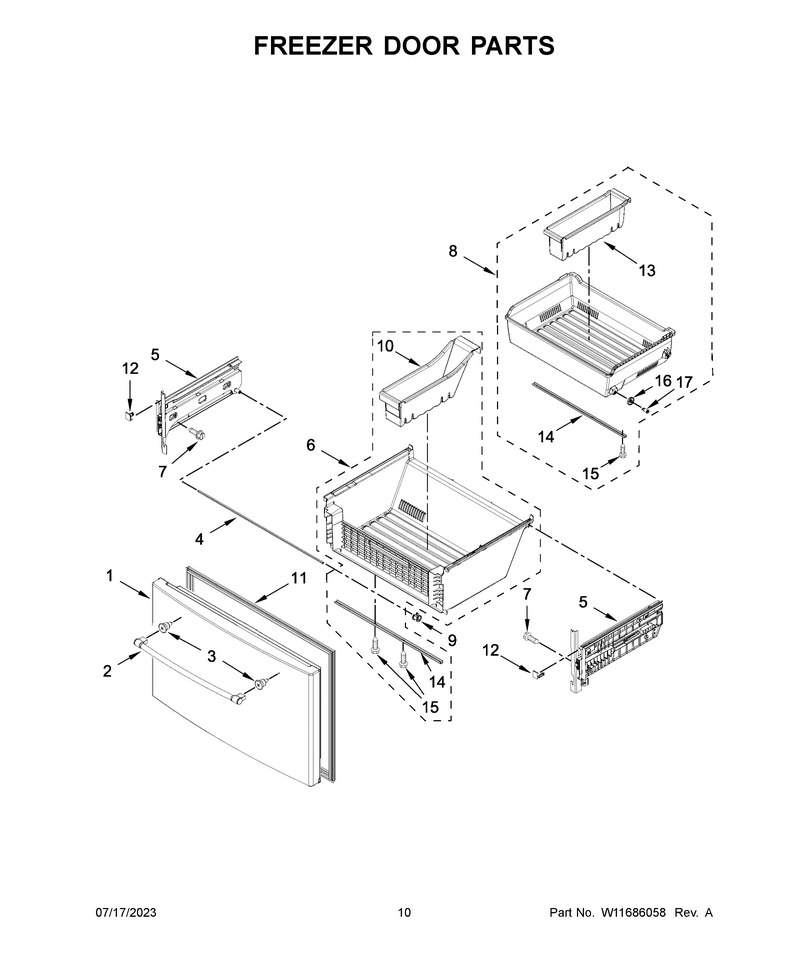

06 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11436967
...
2
Handle, Door (Stainless) WPL-W10886552
...
3
Screw WPL-W11449276
...
4
Shaft WPL-WPW10503522
...
5
Bracket WPL-W11668671
...
5A
Bracket WPL-W11668671
...
6
Assembly, Lower Pan WPL-W10594047
...
7
Screw WPL-WP67006908
...
8
Bin, Upper WPL-W10704090
...
9
Clip WPL-W10852685
...
10
Divider, Lower WPL-W10507444
...
11
Gasket-Fip WPL-W10407216
...
12
Stop-Pan WPL-WPW10485096
...
12A
Stop-Pan WPL-WPW10485089
...
13
Divider WPL-WPW10485654
...
14
Support WPL-W11677723
...
15
Screw WPL-WP489443
...
16
Roller WPL-W11578839
...
17
Axle WPL-W11573594

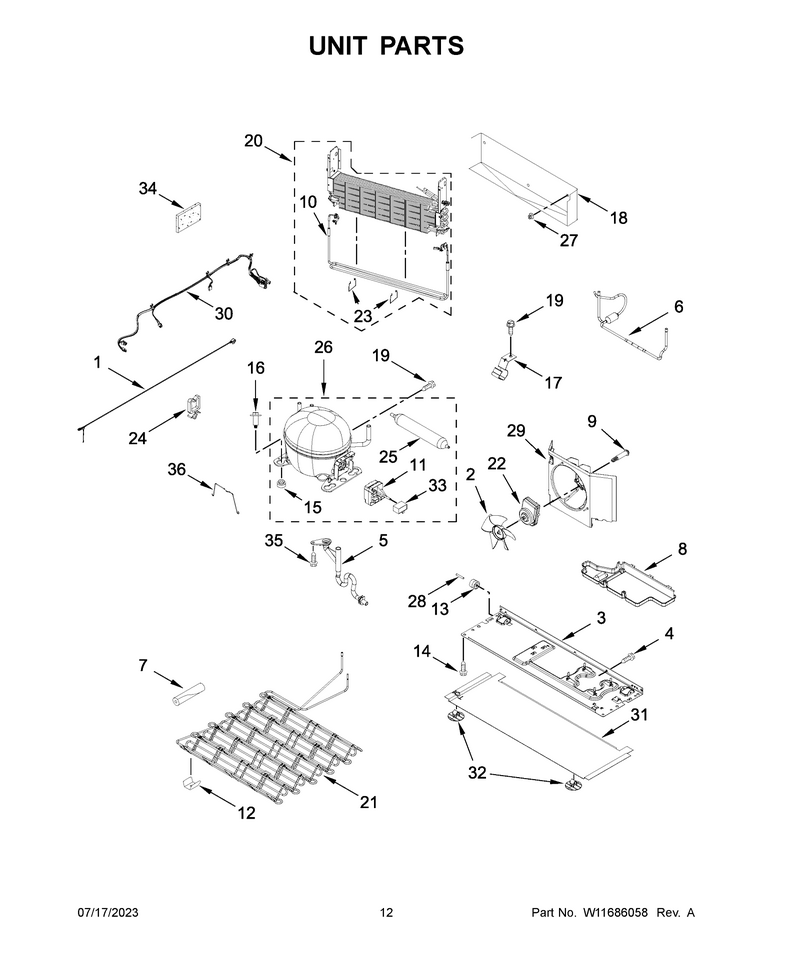

07 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Cord-Power WPL-W11254160
...
2
Blade-Fan WPL-WP2188935
...
3
Baseplate, Compressor WPL-W11411853
...
4
Screw (3) WPL-67006425
...
5
Extension WPL-W11712703
...
6
Tube WPL-W11578047
...
7
Sleeve WPL-W11751592
...
8
Tray-Evap WPL-W11225840
...
9
Screw WPL-W10829281
...
10
Heater WPL-W11575359
...
11
Start-Dev WPL-WPW10197428
...
12
Clip WPL-W10683556
...
13
Roller WPL-WP67005149
...
14
Screw WPL-12992101
...
15
Grommet WPL-WPW10169124
...
16
Screw WPL-W11417341
...
17
Clip, Drier WPL-W10281329
...
18
Tray, Drip WPL-W11408656
...
19
Screw WPL-WPW10141625
...
20
Evap Repar WPL-W11598434
...
20A
4/1.8 Nr Ms 00 (Capillary Tube To Evaporator) WPL-W11504450
...
20B
8 Nk Al 00 (Suction Line To Evaporator) WPL-W11506620
...
21
Condenser (Also Order The Following Lokring Parts) WPL-W11411956
...
21A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
21B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
22
Motor-Cond WPL-W11127829
...
23
Clip, Heater WPL-W11380964
...
24
Clamp WPL-W11233642
...
25
Drier-Tube WPL-W11109499
...
25A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
25B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
26
Compressor WPL-W11574734
...
26A
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
26B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
26C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
26D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
27
Clip, Evaporator WPL-10623002
...
28
Axle, Roller (2) WPL-67006434
...
29
Shroud WPL-WPW10406719
...
30
Harns-Wire WPL-W11614808
...
31
Cover, Condenser (Bottom) WPL-W10278140
...
32
Clip, Bottom Cover WPL-W10815861
...
33
Capacitor WPL-WPW10350564
...
34
Insulation WPL-W11553819
...
35
Screw WPL-W10141518
...
36
Clip WPL-W11661170

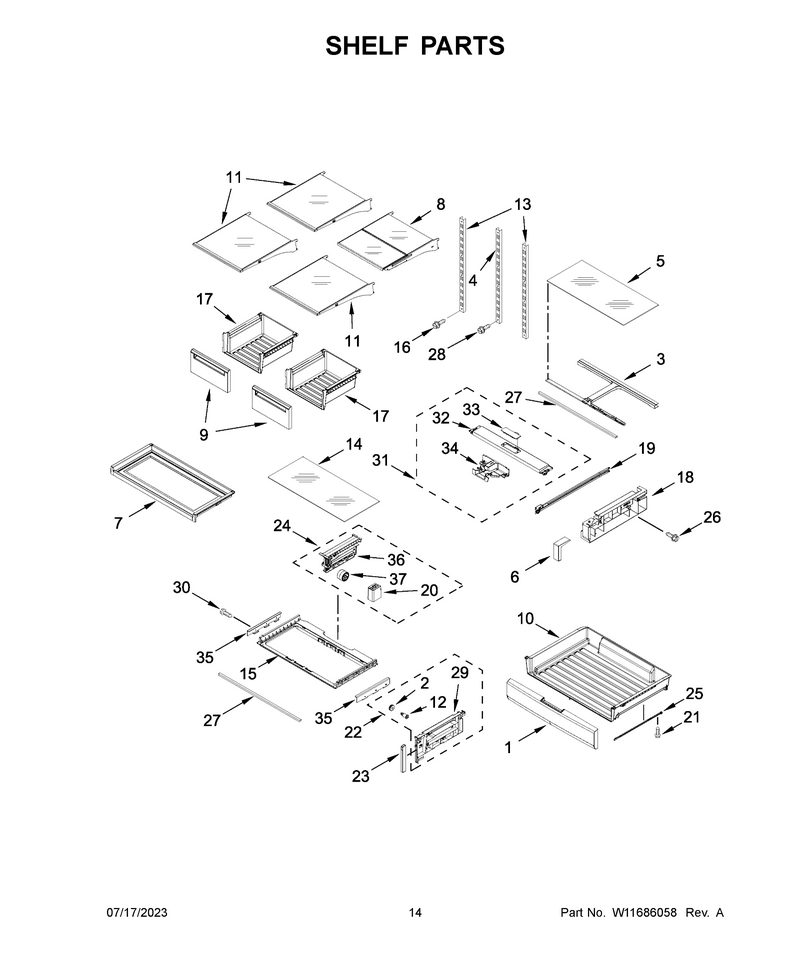

08 - Shelf Parts

...
...
1
Front-Pan WPL-WPW10559660
...
2
Roller WPL-WPW10248544
...
3
Support WPL-W11224265
...
4
Ladder WPL-W11690685
...
5
Shelf-Glas WPL-WPW10248799
...
6
Front, Sideplate (Pantry) (Left Hand) WPL-W10426775
...
6A
Front, Sideplate (Pantry) (Right Hand) WPL-W10356979
...
7
Shelf-Glas WPL-W11552036
...
8
Shelf-Glas WPL-WPW10401836
...
9
Front, Crisper WPL-W10524914
...
10
Pan-Utilty WPL-WPW10654844
...
11
Shelf-Glas WPL-WPW10402687
...
12
Axle WPL-WPW10257246
...
13
Ladder WPL-W11690684
...
14
Shelf-Glas WPL-WPW10248578
...
15
Cover, Crisper WPL-W11133643
...
16
Screw WPL-W11311945
...
17
Pan-Crispr WPL-W10850129
...
18
Plate WPL-WPW10498906
...
18A
Plate WPL-W11225684
...
19
Slide, Pantry (Left Hand) WPL-W10508327
...
19A
Slide, Pantry (Right Hand) WPL-W10508326
...
20
Support, Crisper WPL-W10530315
...
21
Screw WPL-WP8281136
...
22
Sideplate, Crisper (Left Hand) WPL-W11315531
...
22A
Plate WPL-W11759114
...
23
Front, Sideplate (Crisper) WPL-W10488299
...
24
Assembly, Crisper Track WPL-W10549606
...
25
Runner, Roller (Left Hand) WPL-W10508330
...
25A
Runner, Roller (Right Hand) WPL-W10508328
...
26
Screw WPL-W10185612
...
27
Support WPL-WPW10236512
...
28
Screw WPL-W10423560
...
29
Plate, Crisper (Left Hand) WPL-W11315181
...
29A
Plate, Crisper (Right Hand) WPL-W11315180
...
30
Screw WPL-W10847999
...
31
Assembly, Front Pantry Cover WPL-W10554737
...
32
Cover, Pantry Top WPL-W10525200
...
33
Housing, Pantry Temperature Control WPL-W10554281
...
34
Knob, Pantry Temperature Control WPL-W10512596
...
35
Rail, Side (Left Hand) WPL-W11133647
...
35A
Rail, Side (Right Hand) WPL-W11133648
...
36
Track, Center WPL-W10530307
...
37
Roller, Center WPL-W10248789

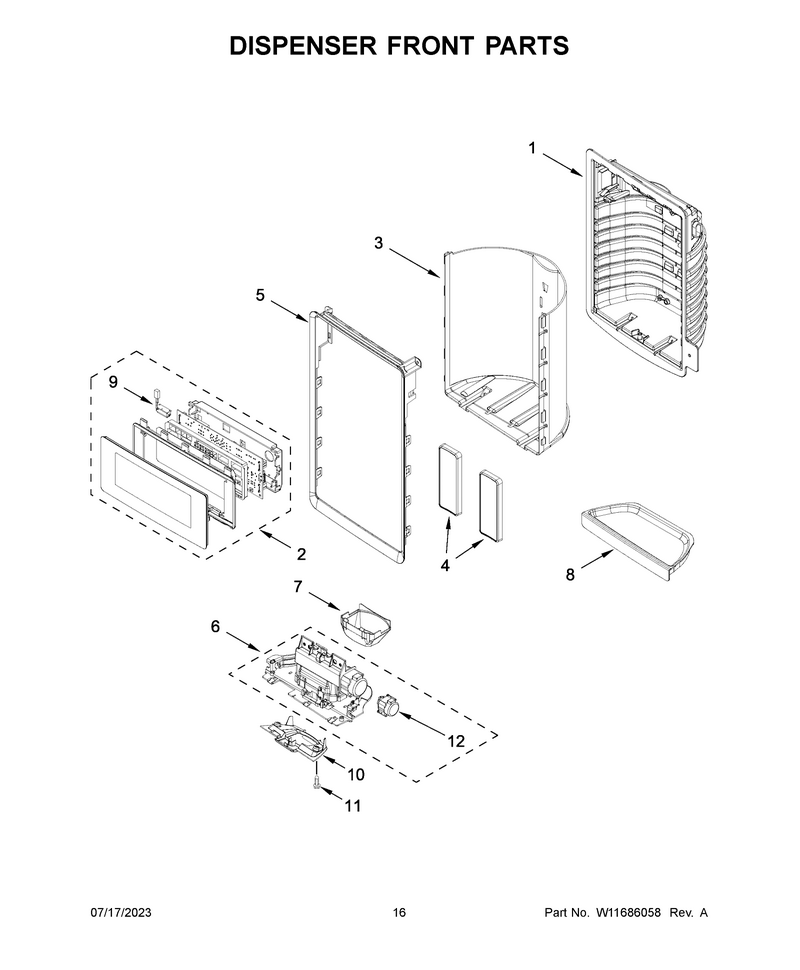

09 - Dispenser Front Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Cntrl-Elec WPL-W11603849
...
3
Housing, Dispenser (Grey) WPL-W10520869
...
4
Assembly, Pad (Stainless) WPL-W10436678
...
5
Ring, Trim (Stainless) WPL-W10587910
...
6
Door-Ice WPL-WPW10577864
...
7
Guide-Ice WPL-WPW10435760
...
8
Grate, Drip Tray (Grey) WPL-W10410105
...
9
Light WPL-W11290115
...
10
Cover, Seperator WPL-W10549235
...
11
Screw (3) WPL-67006425
...
12
Motor WPL-WPW10205979

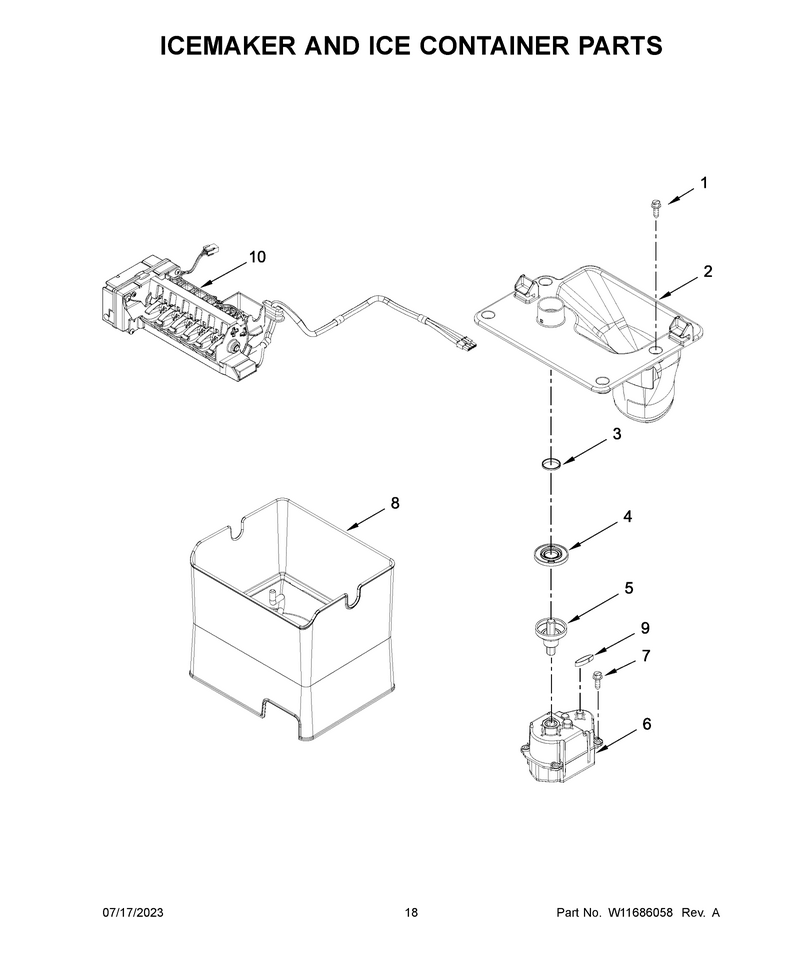

10 - Icemaker And Ice Container Parts

...
...
1
Screw WPL-WPW10272364
...
2
Plate WPL-W10837274
...
3
Seal WPL-WP2198628
...
4
Clip WPL-W10847834
...
5
Shaft WPL-W11509548
...
6
Motor WPL-W10822606
...
7
Screw WPL-WP8281163
...
8
Ice-Contnr WPL-WPW10347093
...
9
Seal WPL-WPW10291905
...
10
Icemaker WPL-W11658802

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
