Maytag MFI2570FEZ11

Model: MFI2570FEZ11

Save Part Not Listed?
product name

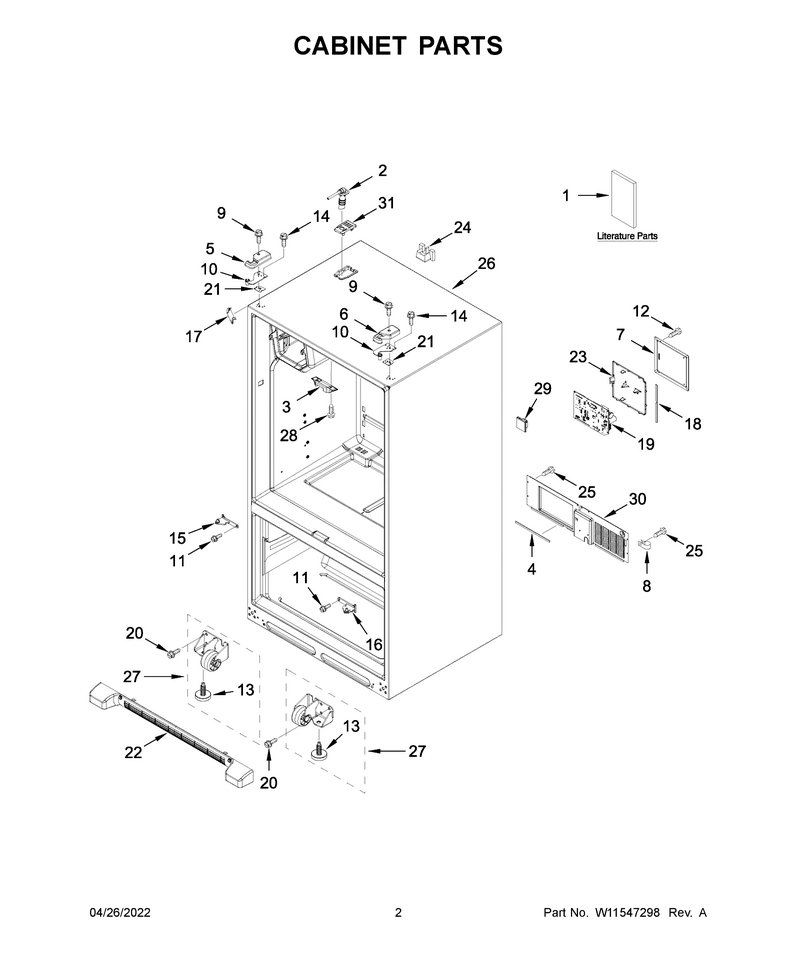

02 - Cabinet Parts

...
...
1
Tech Sheet WPL-W11312538
...
1A
Owners Manual WPL-W11468671
...
1B
Energy Guide WPL-W11308952
...
2
Tube-Water WPL-W11415785
...
3
Block- Piv WPL-WP67003405
...
4
Gasket WPL-W11534848
...
5
Cover WPL-WPW10337648
...
6
Cover WPL-WPW10191117
...
7
Cover, Control Box WPL-12961602
...
8
Clamp WPL-W11456069
...
9
Screw WPL-WP8281196
...
10
Hinge-Door WPL-W11592375
...
10A
Hinge-Door WPL-W11592374
...
11
Screw WPL-W11573362
...
12
Screw WPL-W11686675
...
13
Leveler WPL-WPW10141622
...
14
Screw WPL-WP489349
...
15
Hinge-Door WPL-W10917991
...
16
Hinge-Door WPL-W11747628
...
17
Filler WPL-WP12587703AP
...
18
Gasket, Control Box WPL-W10914798
...
19
Cntrl-Elec WPL-W11548534
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge (Left Hand) WPL-12999501
...
21A
Shim, Hinge (Right Hand) WPL-12999502
...
22
Grille WPL-WPW10534155
...
23
Lid, Hv Control Box WPL-W10296541
...
24
Block WPL-W11686793
...
25
Screw WPL-WPW10141645
...
26
Following Parts Not Illustrated WPL-N/P
...
27
Roller-Cab WPL-WPW10515763
...
27A
Roller-Cab WPL-WPW10515762
...
28
Screw WPL-W11693756
...
29
Clip WPL-WPM0104106
...
30
Cover-Back WPL-WPW10270394
...
31
Cover, Fill Tube (Apollo Grey) WPL-W10191141

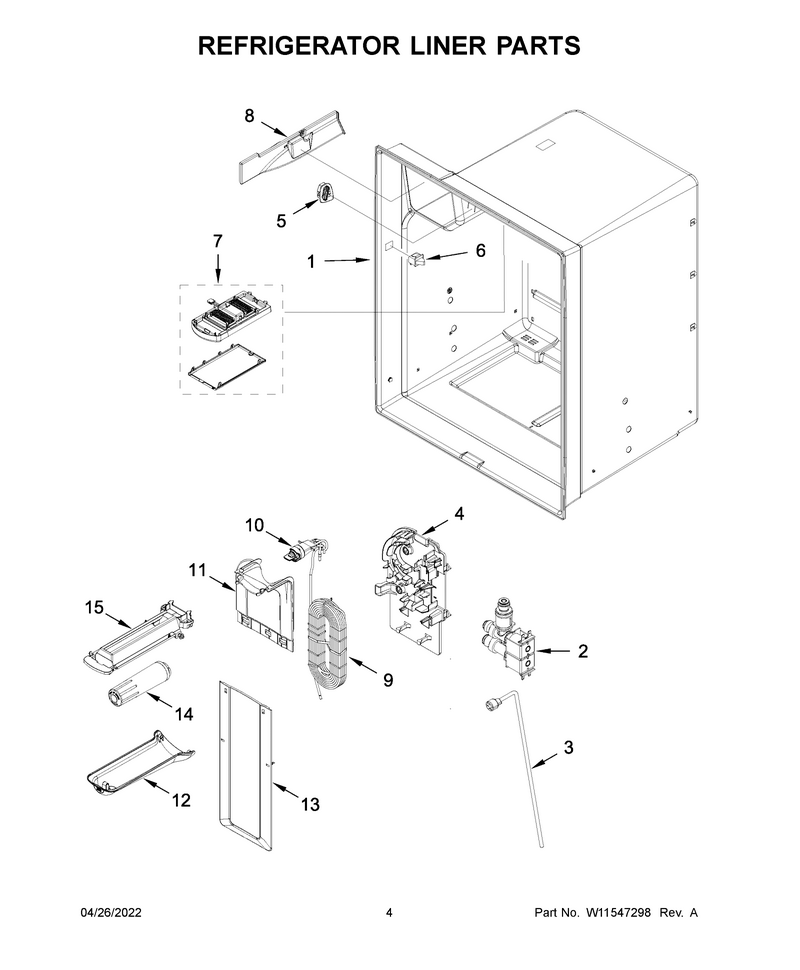

03 - Refrigerator Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Valve WPL-W11548535
...
3
Tube-Water WPL-W11666461
...
4
Bracket WPL-WPW10334463
...
5
Assembly, Air Grille WPL-W10555984
...
6
Switch WPL-W11396033
...
7
Module WPL-W11527432
...
8
Cover WPL-WPW10309869
...
9
Reservoir WPL-W11346622
...
10
Cap-Filter WPL-W11395888
...
11
Cover, Upper Water Tank WPL-12960101
...
12
Cover-Filt WPL-WP67006331
...
13
Cover, Water Tank (Lower) WPL-67006329
...
14
Filter WPL-EDR4RXD1
...
15
Bracket, Filter Base WPL-67006325

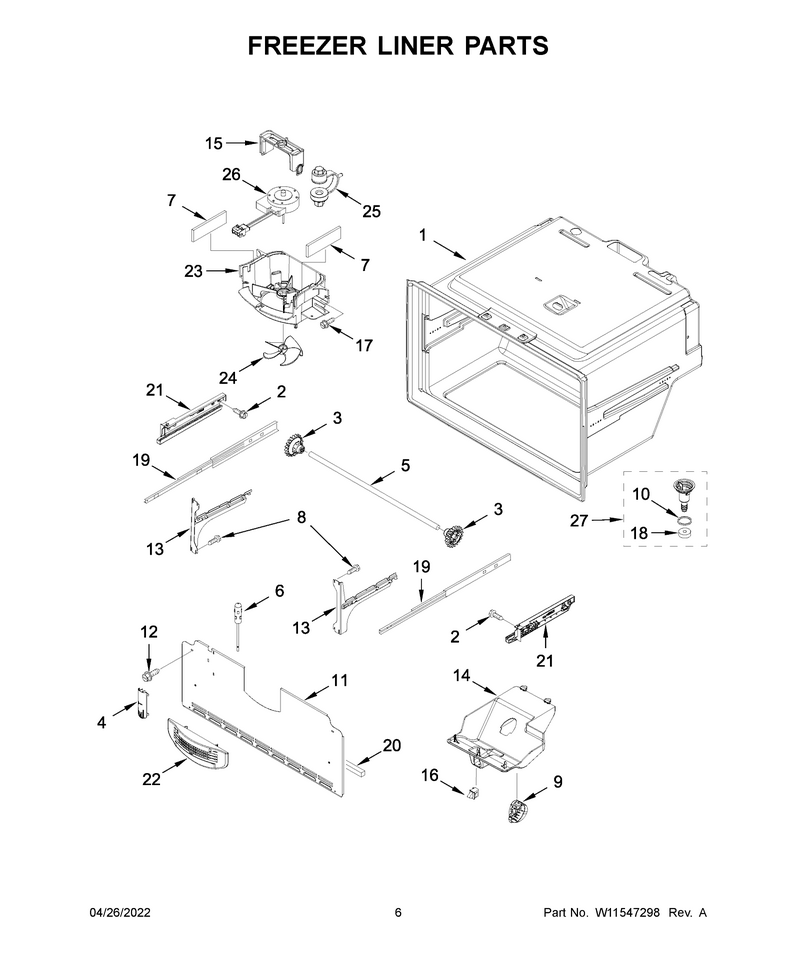

04 - Freezer Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Screw WPL-WP489474
...
3
Gear WPL-12002497
...
4
Cover- Fz WPL-WP67003924
...
5
Shaft WPL-W11028221
...
6
Thermistor WPL-W10316760
...
7
Gasket WPL-W10856123
...
8
Screw WPL-WP98165
...
9
Module WPL-W11602886
...
10
Seal- O Ri WPL-WPM0500703
...
11
Cover, Evaporator WPL-W10308421
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330991
...
13A
Bracket WPL-WPW10330993
...
14
Housing WPL-W11434460
...
15
Clip WPL-W11712696
...
16
Switch WPL-W11445850
...
17
Screw WPL-WP98165
...
18
Gasket- Dr WPL-WPB8381501
...
19
Slide WPL-W11658402
...
20
Gasket WPL-W11159728
...
21
Bracket WPL-WPW10284682
...
21A
Bracket WPL-WPW10284683
...
22
Grille WPL-W11176847
...
23
Shroud- Ev WPL-W11700329
...
24
Blade- Fan WPL-WP67006337
...
25
Grommet WPL-W11249950
...
26
Motor-Evap WPL-W11661931
...
27
Funnel WPL-W10815413

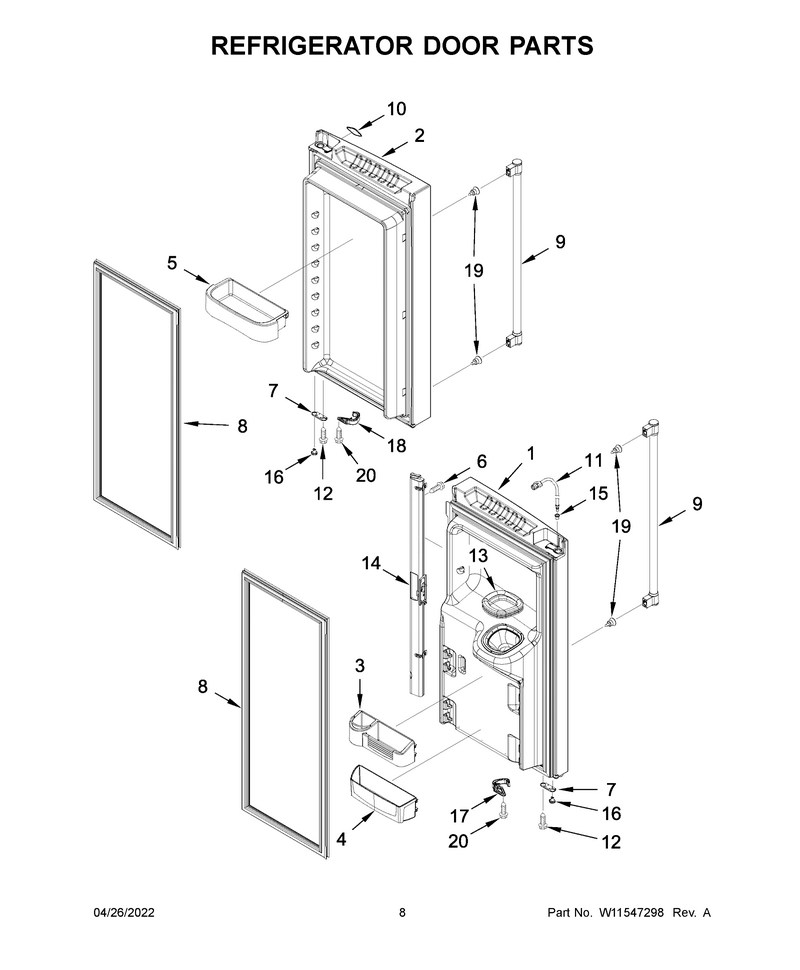

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11435344
...
2
Dor-Fip WPL-W11435343
...
3
Bin-Cntlvr WPL-WPW10323808
...
4
Bin-Cntlvr WPL-WPW10212139
...
5
Bin-Cntlvr WPL-WPW10224961
...
6
Screw WPL-W11311945
...
7
Stop-Door WPL-W11703060
...
8
Gasket, Door (Grey) WPL-W10830055
...
9
Handle WPL-W10879677
...
10
Nameplate WPL-WPW10612926
...
11
Tube-Water WPL-W11677733
...
12
Screw WPL-WP98165
...
13
Seal WPL-WPW10287601
...
14
Rail-Mulln WPL-WP12722815AP
...
15
Clip, Bushing WPL-12996601
...
16
Closer WPL-WP12028505AP
...
17
Closer WPL-W10918008
...
18
Closer WPL-W10918010
...
19
Screw WPL-W11449276
...
20
Screw WPL-WP67006908

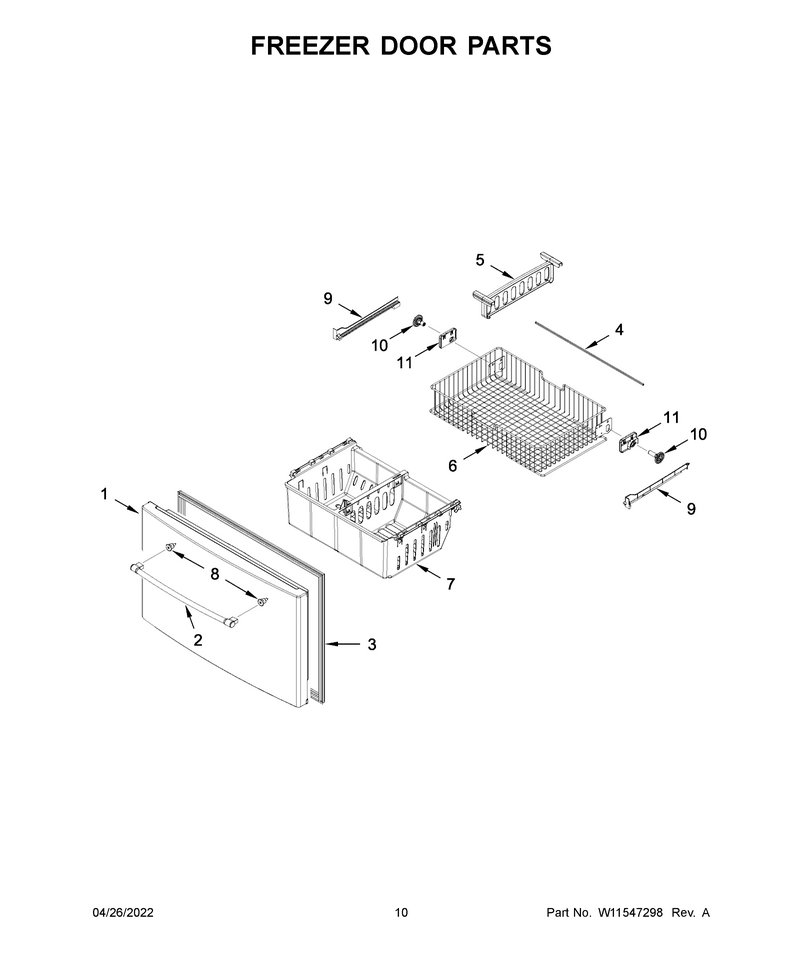

06 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11436981
...
2
Handle WPL-W11102443
...
3
Gasket-Fip WPL-WPW10714545
...
4
Shaft WPL-W11173556
...
5
Divider, Upper Basket WPL-W10146439
...
6
Basket-Fzr WPL-W11218042
...
7
Bin-Freezr WPL-WPW10293682
...
8
Screw WPL-W11449276
...
9
Rail WPL-W11489993
...
9A
Rail WPL-W11489994
...
10
Gear WPL-WPW10474716
...
10A
Gear WPL-WPW10474715
...
11
Mount, Gear (Left Hand) WPL-W10348259
...
11A
Mount, Gear (Right Hand) WPL-W10348260

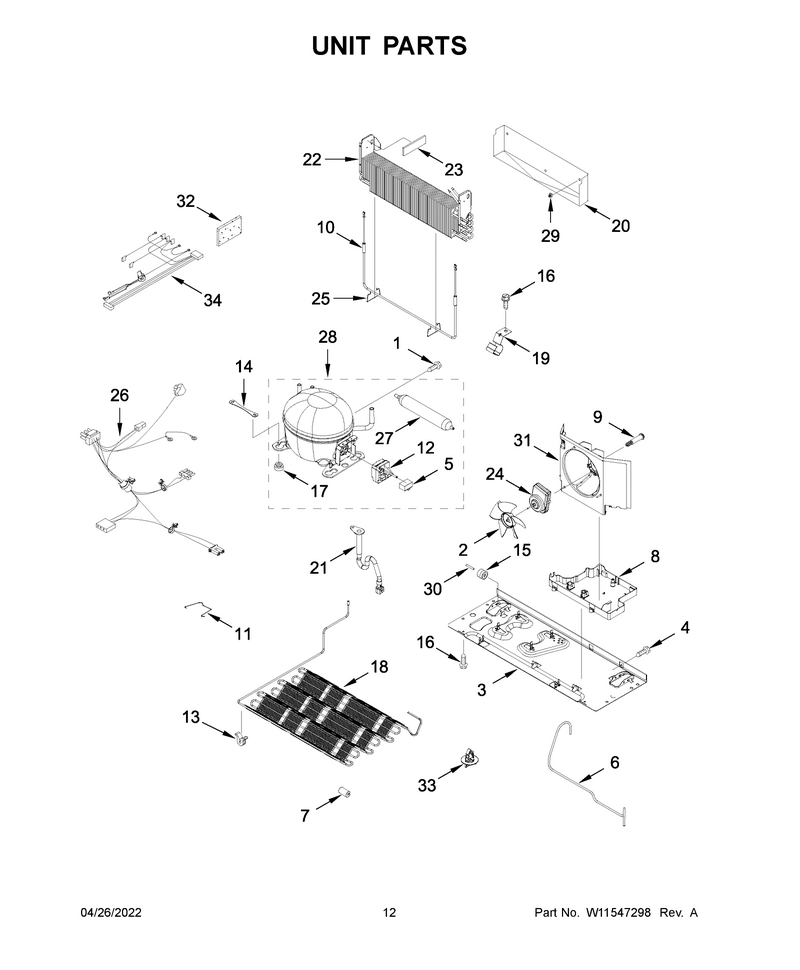

07 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727651
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10350564
...
6
Condenser WPL-W11644420
...
7
Grommet WPL-W10852725
...
8
Pan-Drip WPL-WPW10655368
...
9
Screw WPL-W10829281
...
10
Heater WPL-W11547652
...
11
Clip WPL-W11661170
...
12
Start-Dev WPL-WPW10197428
...
13
Grommet WPL-WPW10137529
...
14
Strap, Compressor WPL-W10236396
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-W11644420
...
18A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
18B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-W11547653
...
21
Tube-Drain WPL-W10619951
...
22
Evaporator WPL-W11550396
...
22A
8/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504423
...
22B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
23
Gasket WPL-W11451451
...
24
Motor-Cond WPL-W11613295
...
25
Clip, Heater WPL-W11380964
...
26
Harns-Wire WPL-W11666013
...
27
Drier-Tube WPL-W11109499
...
27A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
27B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
28
Compressor WPL-W11542830
...
28A
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
28B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
28C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
28D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Insulation WPL-W11553819
...
33
Clip, Condenser WPL-W10815863
...
34
Harns-Wire WPL-W11548536

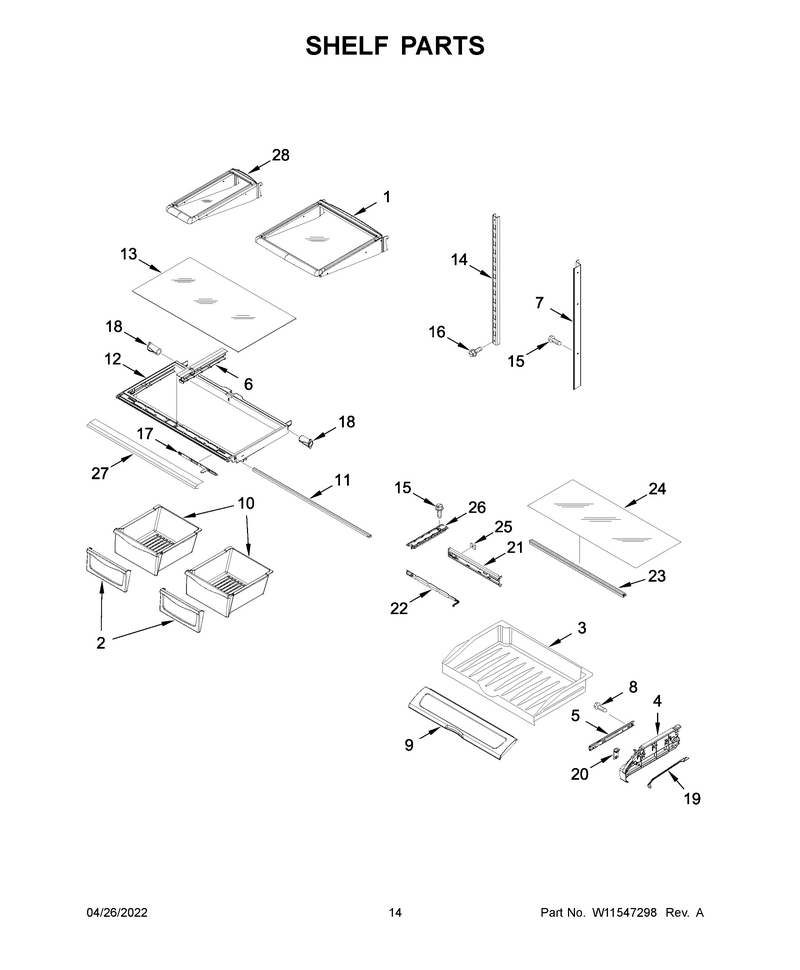

08 - Shelf Parts

...
...
1
Shelf-Glas WPL-W11402525
...
2
Front-Pan WPL-W11206718
...
3
Drawer- Pa WPL-WP67003531
...
4
Endcap WPL-W10874836
...
4A
Endcap WPL-W10874836
...
5
Glide WPL-WPW10235370
...
6
W10326469nrail, Center Crisper WPL-W10326469NRail,
...
7
Ladder, Side (Left Hand) WPL-W10251966
...
7A
Ladder, Side (Right Hand) WPL-W10251965
...
8
Screw WPL-WP98165
...
9
Cover WPL-W10827015
...
10
Pan- Crisp WPL-WP67004515
...
11
Brace- Cri WPL-WP12642303WD
...
12
Frame WPL-WPW10329866
...
13
Glass- Cri WPL-WP67006704
...
14
Ladder, Center WPL-W10273464
...
15
Screw (3) WPL-67006425
...
16
Screw WPL-WP67006415
...
17
Slide WPL-WP67005864
...
18
Support WPL-WP13062602
...
19
Bar- Temp WPL-WP67003795
...
20
Knob WPL-W11498983
...
21
Housing, Control WPL-12656202
...
22
Slide- Tem WPL-WP67003793
...
23
Support, Glass (Includes Pantry Brace) WPL-W10528933
...
24
Shelf-Glas WPL-W11033333
...
25
Gasket, Pantry WPL-67002329
...
26
Track WPL-WP67001719
...
27
Trim-Shelf WPL-W10313178
...
28
Shelf-Cant WPL-W11197490

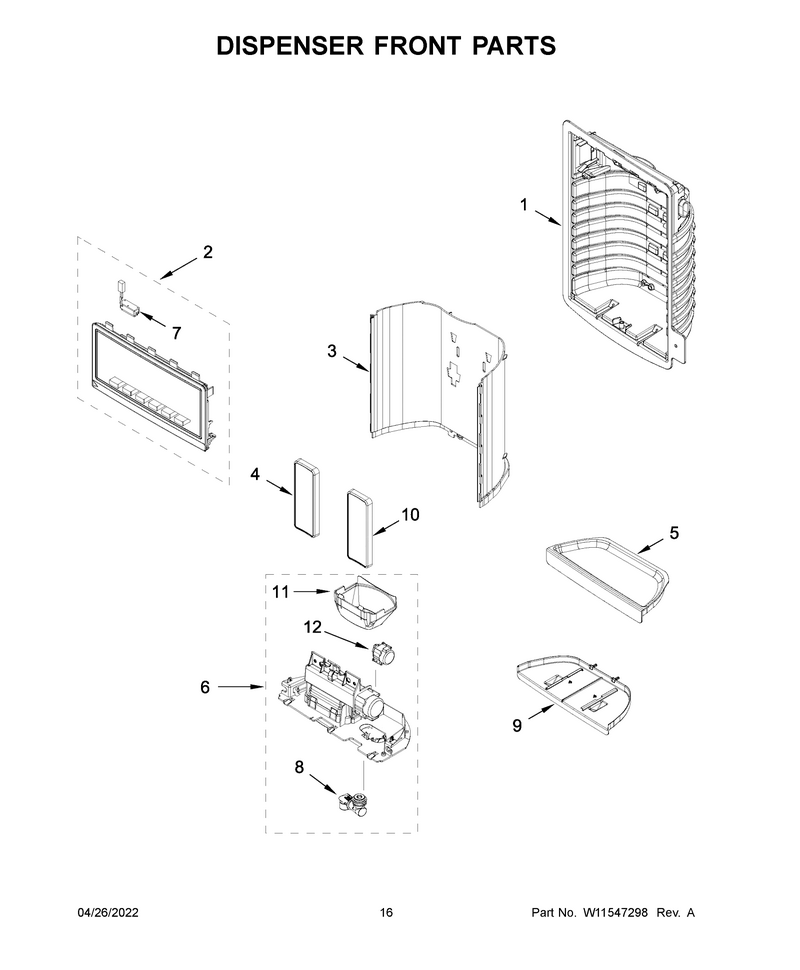

09 - Dispenser Front Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Panel-Ui WPL-W11548537
...
3
Wall, Dispenser False (Nickel) WPL-W11045978
...
4
Pad WPL-WPW10368730
...
5
Tray-Drip WPL-W11192301
...
6
Separator WPL-WPW10353552
...
7
Light WPL-W11290115
...
8
Spigot WPL-W11227371
...
9
Tray-Drip WPL-WPW10267863
...
10
Pad WPL-WPW10368730
...
11
Guide-Ice WPL-WPW10435760
...
12
Motor WPL-WPW10205979

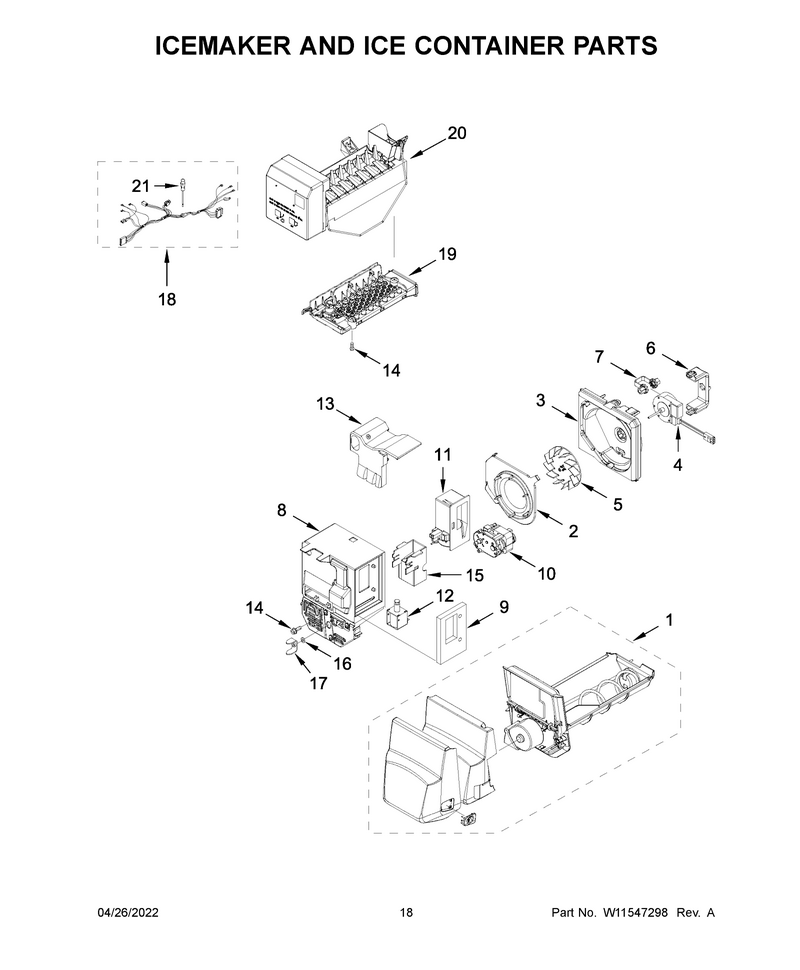

10 - Icemaker And Ice Container Parts

...
...
1
Ice-Contnr WPL-W11185686
...
2
Inlet, Blower WPL-W10121282
...
3
Scroll, Blower WPL-W10309863
...
4
Motor-Evap WPL-W11529245
...
5
Wheel WPL-WPW10123444K
...
6
Clip, Fan Motor WPL-W10165970
...
7
Grommet, Fan Motor WPL-W10151687
...
8
Divider WPL-WPW10309864
...
9
Gasket WPL-WP67006341
...
10
Motor WPL-W11671282
...
11
Control WPL-WPW10196393
...
12
Solenoid WPL-WPW10309866
...
13
Insert WPL-W11676504
...
14
Screw (3) WPL-67006425
...
15
Bracket, Solenoid WPL-W10346971
...
16
Spacer WPL-W11378860
...
17
Impeller WPL-WP63052-2
...
18
Harns-Wire WPL-W11548538
...
19
Air-Baffle WPL-W11548539
...
20
Icemaker WPL-W11548540
...
21
Thermistor WPL-W10316760

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
