Maytag MFI2269FRZ06

Model: MFI2269FRZ06

Save Part Not Listed?
product name

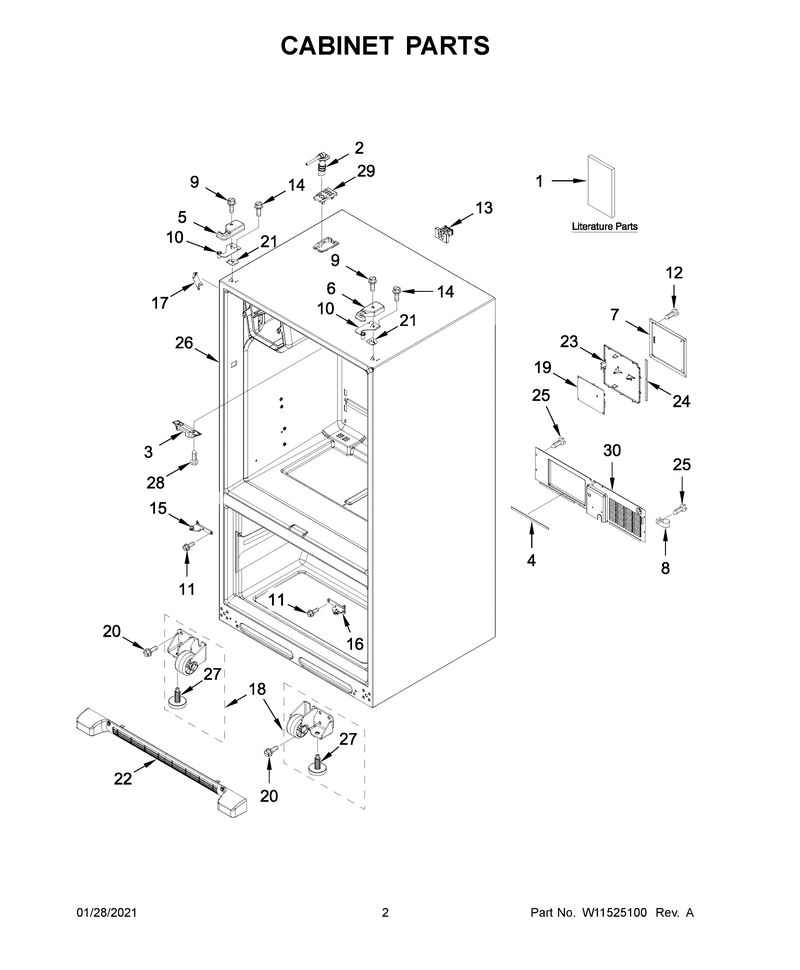

02 - Cabinet Parts

...
...
1
Tech Sheet (English) WPL-W10814258
...
1A
Tech Sheet (French) WPL-W10814260
...
1B
Tech Sheet, Use And Care Guide WPL-W11295727
...
1C
Energy Guide WPL-W11308949
...
2
Tube-Water WPL-W11551552
...
3
Block- Piv WPL-WP67003405
...
4
Gasket WPL-W11250029
...
5
Cover WPL-WPW10337648
...
6
Cover WPL-WPW10191117
...
7
Cover, Control Box WPL-12961602
...
8
Clamp WPL-W11456069
...
9
Screw WPL-WP8281196
...
10
Hinge-Door WPL-W11592375
...
10A
Hinge-Door WPL-W11592374
...
11
Screw WPL-W11573362
...
12
Screw WPL-W11686675
...
13
Block WPL-W11686793
...
14
Screw WPL-WP489349
...
15
Hinge-Door WPL-W10917991
...
16
Hinge-Door WPL-W11747628
...
17
Filler WPL-WP12587703AP
...
18
Roller-Cab WPL-WPW10515763
...
18A
Roller-Cab WPL-WPW10515762
...
19
Cntrl-Elec WPL-WPW10312695
...
20
Screw (8) WPL-67006564
...
21
Shim, Hinge (Left Hand) WPL-12999501
...
21A
Shim, Hinge (Right Hand) WPL-12999502
...
22
Grille-Frt WPL-WPW10534160
...
23
Lid, Hv Control WPL-W10296536
...
24
Gasket, Control Box WPL-12957801
...
25
Screw WPL-WPW10141645
...
26
Following Parts Not Illustrated WPL-N/P
...
27
Leveler WPL-WPW10141622
...
28
Screw WPL-W11693756
...
29
Cover, Fill Tube (Apollo Grey) WPL-W10191141
...
30
Cover, Machine Compartment Back WPL-W10211849

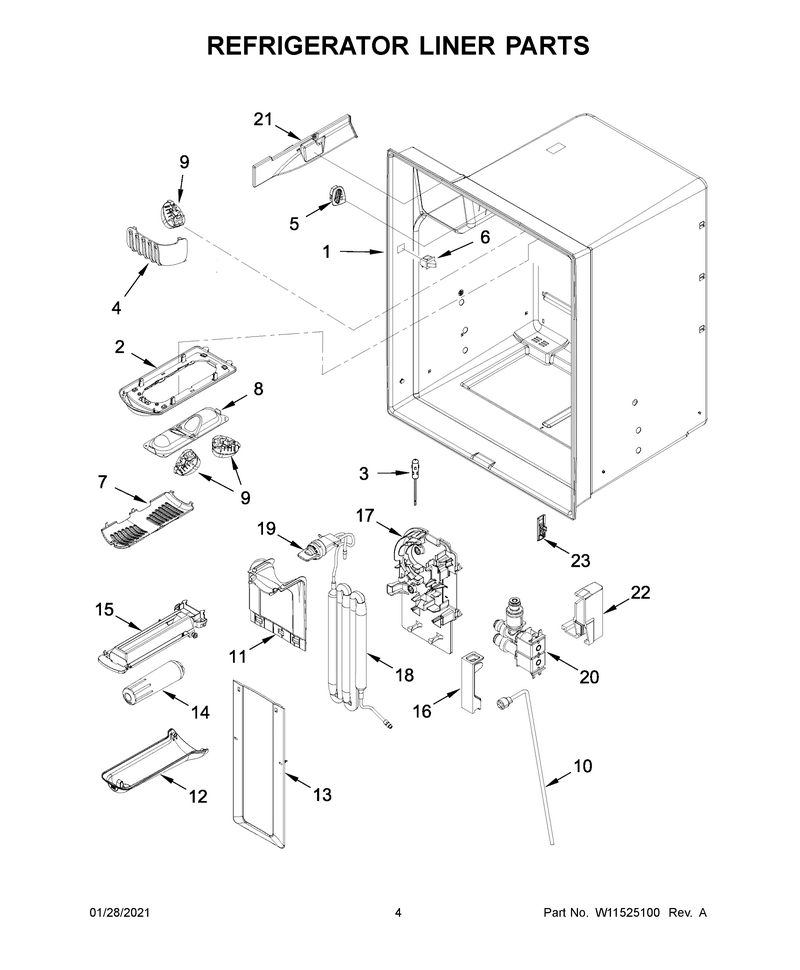

03 - Refrigerator Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Module, Light WPL-W10464777
...
3
Thermistor Kit WPL-12002355
...
4
Cover, Light WPL-12921801
...
5
Assembly, Air Grille WPL-W10555984
...
6
Switch WPL-W11396033
...
7
Cover, Light WPL-12905902
...
8
Housing, Light WPL-W10443023
...
9
Module WPL-W11602886
...
10
Waterline, Cabinet (W/nut) WPL-W11518278
...
11
Cover, Upper Water Tank WPL-12960101
...
12
Cover-Filt WPL-WP67006331
...
13
Cover, Water Tank (Lower) WPL-67006329
...
14
Filter WPL-EDR4RXD1
...
15
Bracket, Filter Base WPL-67006325
...
16
Lid, Enclosure WPL-W10118194
...
17
Bracket WPL-WPW10334463
...
18
Reservoir WPL-W11346622
...
19
Cap-Filter WPL-W11395888
...
20
Valve-Inlt WPL-WPW10312696
...
21
Cover, Ice Box Harness WPL-W10165861
...
22
Enclosure, Water Valve Connector WPL-W10118193
...
23
Cover, Chiller Vent WPL-12987301

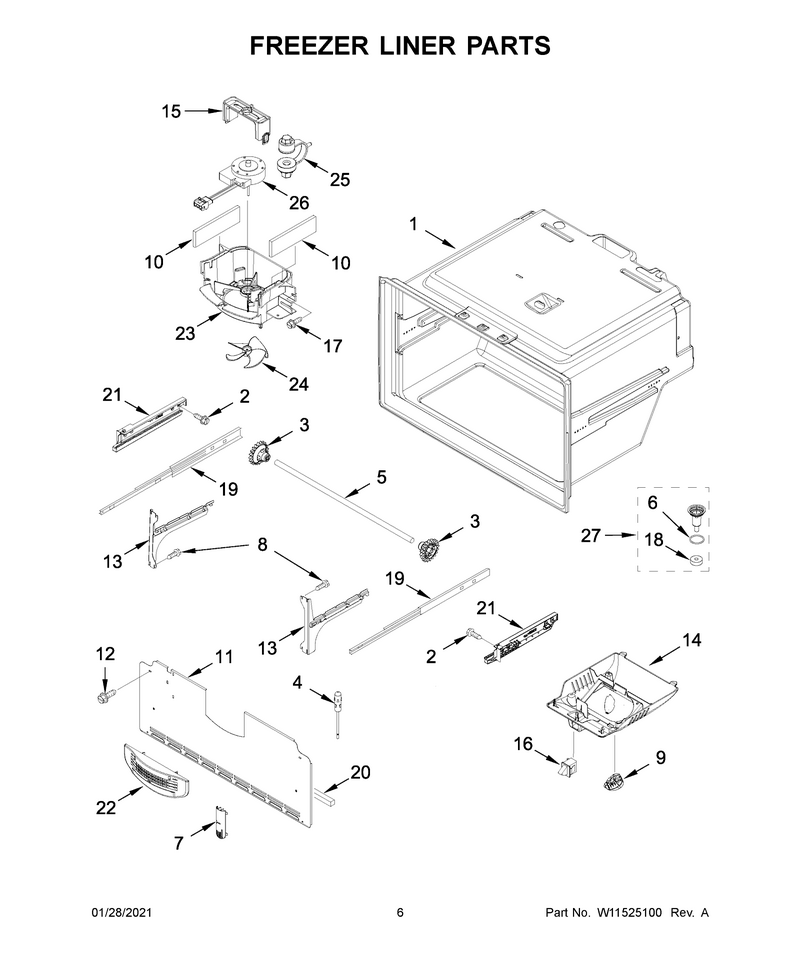

04 - Freezer Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Screw WPL-WP489474
...
3
Gear WPL-12002497
...
4
Thermistor Kit WPL-12002355
...
5
Shaft WPL-W11715937
...
6
Seal- O Ri WPL-WPM0500703
...
7
Cover- Fz WPL-WP67003924
...
8
Screw WPL-WP98165
...
9
Module WPL-W11602886
...
10
Gasket WPL-W10856123
...
11
Cover, Evaporator WPL-W10308422
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330991
...
13A
Bracket WPL-WPW10330993
...
14
Housing WPL-W11434460
...
15
Clip WPL-W11712696
...
16
Switch WPL-W11445850
...
17
Screw WPL-WP98165
...
18
Gasket- Dr WPL-WPB8381501
...
19
Slide WPL-W11658402
...
20
Gasket WPL-W11159742
...
21
Bracket WPL-WPW10284682
...
21A
Bracket WPL-WPW10284683
...
22
Grille WPL-W11176847
...
23
Shroud- Ev WPL-W11700329
...
24
Blade- Fan WPL-WP67006337
...
25
Grommet- F WPL-W11676465
...
26
Motor-Evap WPL-W11368910
...
27
Funnel WPL-W10815413

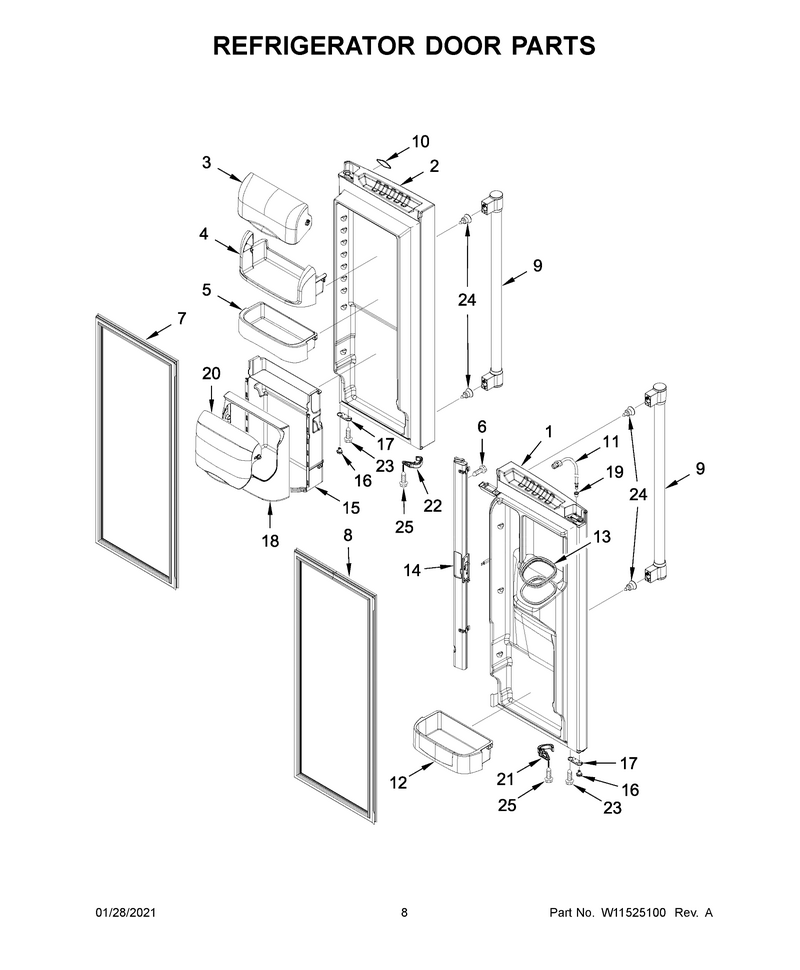

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11435350
...
2
Dor-Fip WPL-W11435348
...
3
Door-Comp WPL-WP67003637
...
4
Tray- Dair WPL-WP67001279
...
5
Bucket- Ch WPL-WP67006313
...
6
Screw WPL-W11311945
...
7
Gasket, Door (Grey) WPL-W10830055
...
8
Gasket, Door Left Hand (Grey) WPL-W10830048
...
9
Handle WPL-W10879677
...
10
Nameplate WPL-WPW10612926
...
11
Tube, Water WPL-W11082078
...
12
Bin-Cntlvr WPL-WP12918704
...
13
Seal WPL-WPW10287601
...
14
Rail-Mulln WPL-WP12722813AP
...
15
Chiller WPL-W11266639
...
16
Closer WPL-WP12028505AP
...
17
Stop-Door WPL-W11703060
...
18
Chiller WPL-W11266639
...
19
Clip, Bushing WPL-12996601
...
20
Door- Chil WPL-WP67006312
...
21
Closer WPL-W10918008
...
22
Closer WPL-W10918010
...
23
Screw WPL-WP98165
...
24
Screw WPL-W11449276
...
25
Screw WPL-WP67006908

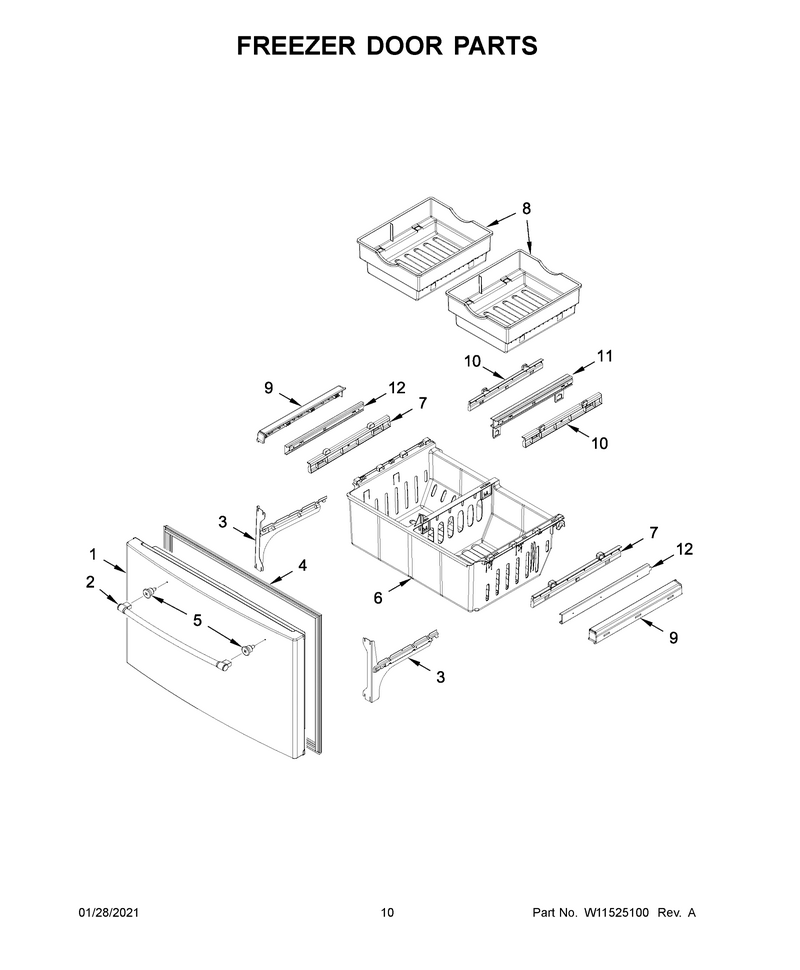

06 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11435347
...
2
Handle WPL-W10879688
...
3
Bracket WPL-WPW10330991
...
3A
Bracket WPL-WPW10330993
...
4
Gasket-Fip WPL-WPW10443324
...
5
Screw WPL-W11449276
...
6
Bin, Lower WPL-W10166235
...
7
Adapter, Bin (Outer) WPL-W10166742
...
8
Bin-Freezr WPL-WP12924903
...
8A
Bin, Upper (Right) WPL-W10166236
...
9
Retainer, Glide (Left Hand) WPL-W10826788
...
9A
Retainer, Glide (Right Hand) WPL-W10826789
...
10
Adapter, Center Bin WPL-12925404SP
...
11
Glide WPL-WPW10235357
...
12
Glide WPL-WPW10235367

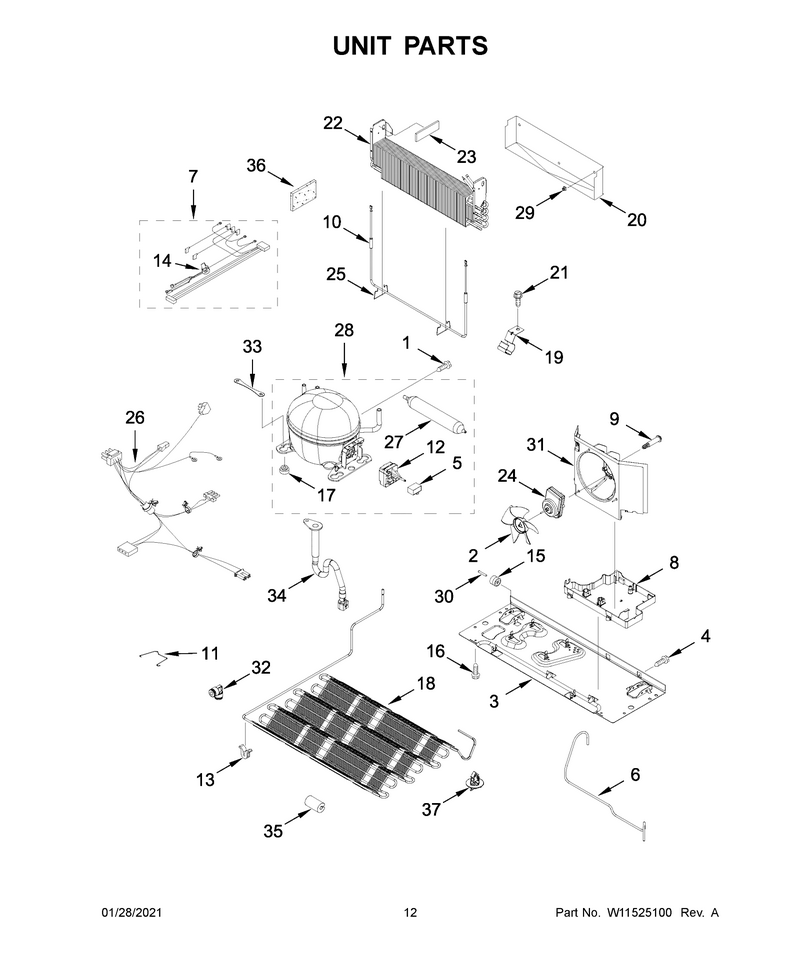

07 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Basepan WPL-W10480110
...
4
Screw (3) WPL-67006425
...
5
Capacitor WPL-WPW10350564
...
6
Tube, Discharge WPL-W11566600
...
7
Harness, Evaporator And Heater Wire (Includes Thermostat) WPL-W11174743
...
8
Pan-Drip WPL-WPW10655367
...
9
Screw WPL-W10829281
...
10
Heater WPL-WP12729128
...
11
Clip WPL-W11092534
...
12
Start-Dev WPL-W10873801
...
13
Grommet WPL-WPW10137529
...
14
Thermostat WPL-WP67006387
...
15
Roller WPL-WP67005149
...
16
Screw WPL-12992101
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-W11482308
...
19
Clip, Drier WPL-W10281329
...
20
Tray-Drip WPL-WPW10292802
...
21
Screw WPL-WP33001882
...
22
Evaporator WPL-W10314606
...
23
Gasket WPL-W11451451
...
24
Motor-Cond WPL-W11613295
...
25
Clip WPL-W11673433
...
26
Harns-Wire WPL-W11666013
...
27
Drier-Uv WPL-WPW10143759
...
28
Compressor WPL-W10233960
...
29
Clip, Evaporator WPL-10623002
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Connector WPL-WPW10334458
...
33
Strap, Compressor WPL-W10236396
...
34
Tube-Drain WPL-W10619951
...
35
Grommet WPL-W10852725
...
36
Insulation WPL-W11553819
...
37
Clip, Condenser WPL-W10815863

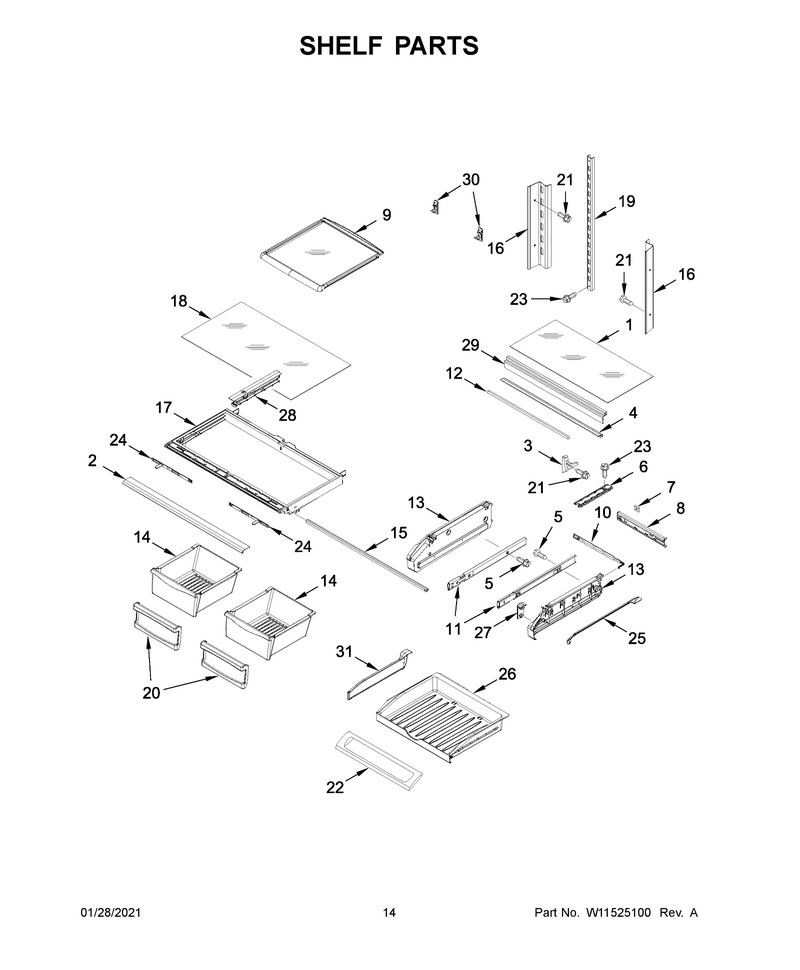

08 - Shelf Parts

...
...
1
Shelf-Glas WPL-WPW10165870
...
2
Trim-Shelf WPL-WPW10231343
...
3
Support- L WPL-WP67001721
...
3A
Support- R WPL-WP67001722
...
4
Support, Glass WPL-W10528936
...
5
Screw WPL-WP98165
...
6
Track WPL-WP67001719
...
7
Gasket, Pantry WPL-12656902
...
8
Housing, Control WPL-W10165876
...
9
Shelf-Glas WPL-W11402524
...
10
Slide, Control WPL-W10165882
...
11
Glide WPL-WPW10235370
...
12
Brace, Crisper Frame WPL-W10783763
...
13
Endcap WPL-W11222065
...
13A
Endcap WPL-W11222066
...
14
Pan-Crispr WPL-WP67002633
...
15
Brace- Cri WPL-WP12227303WD
...
16
Ladder, Side (Left Hand) WPL-W10251968
...
16A
Ladder, Side (Right Hand) WPL-W10251965
...
17
Frame WPL-W10858393
...
18
Glass- Cri WPL-WP67006878
...
19
Ladder, Center WPL-W10273464
...
20
Front- Cri WPL-WP67005920
...
21
Screw (3) WPL-67006425
...
22
Cover WPL-W10827914
...
23
Screw WPL-WP67006415
...
24
Slide WPL-WP67005864
...
25
Bar, Temp Cont. WPL-W10165910
...
26
Pan-Utilty WPL-W11513151
...
27
Knob WPL-W11498983
...
28
Rail-Centr WPL-WPW10671238
...
29
Trim WPL-W11245261
...
30
Hook WPL-W11225839
...
30A
Hook WPL-W10851309
...
31
Divider WPL-WPW10165967

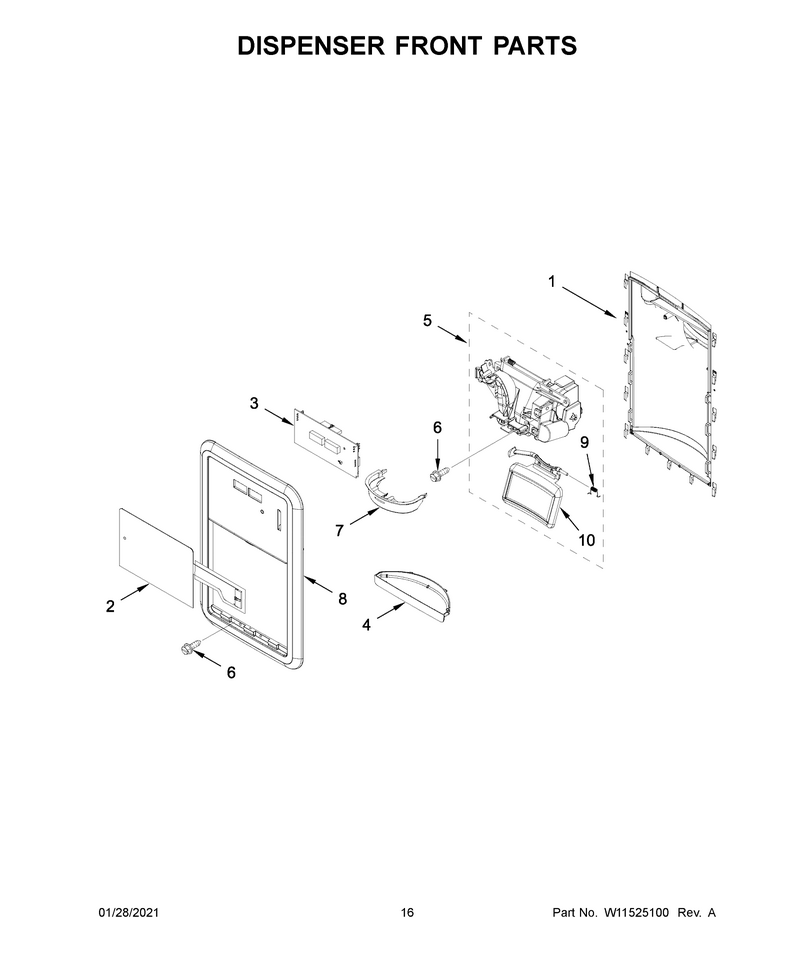

09 - Dispenser Front Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Keyboard (Stainless) WPL-W10731568
...
3
Cntrl-Elec WPL-W10799818
...
4
Tray-Drip WPL-W11167053
...
5
Chute WPL-WP13005705
...
6
Screw (3) WPL-67006425
...
7
Ring, Target WPL-67006295
...
8
Cover WPL-WPW10310688
...
9
Spring- Ch WPL-WP12565502
...
10
Pad WPL-WPW10185233

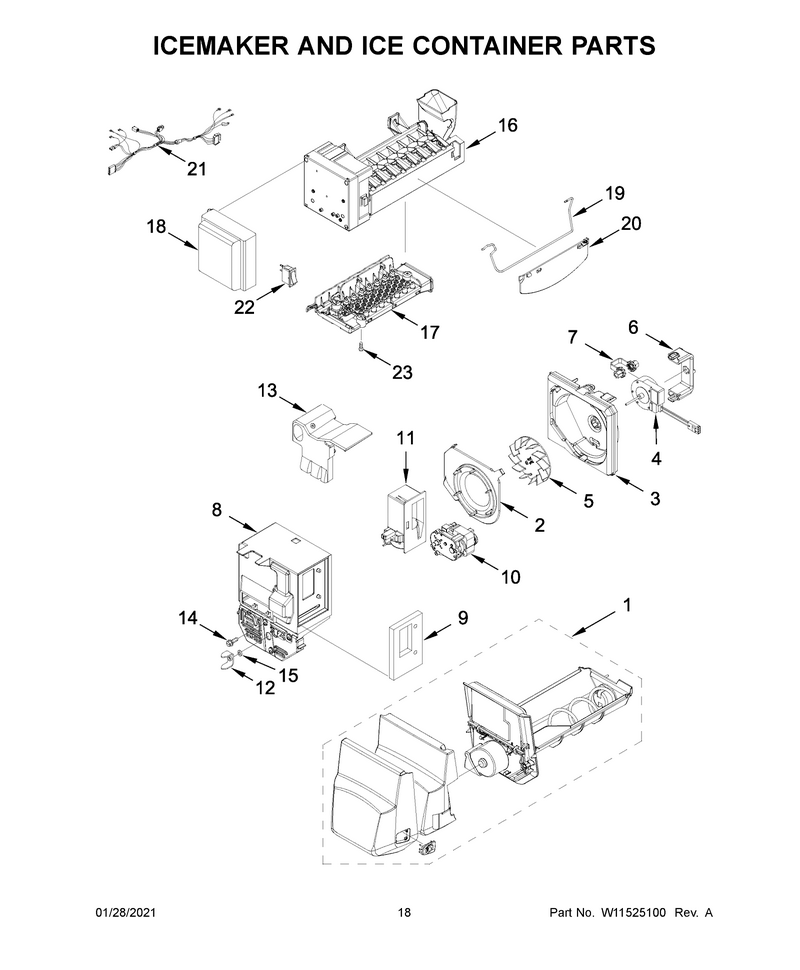

10 - Icemaker And Ice Container Parts

...
...
1
Bin-Ice WPL-WPW10324089
...
2
Inlet, Blower WPL-W10121282
...
3
Scroll, Blower WPL-W10121281
...
4
Motor WPL-WPW10162697
...
5
Wheel WPL-WPW10123444K
...
6
Clip, Fan Motor WPL-W10165970
...
7
Grommet, Fan Motor WPL-W10151687
...
8
Divider, Ice Box WPL-W10356556
...
9
Gasket WPL-WP67006341
...
10
Motor WPL-W11671282
...
11
Control WPL-WPW10127427
...
12
Impeller WPL-WP63052-2
...
13
Insert WPL-W11676504
...
14
Screw (3) WPL-67006425
...
15
Spacer WPL-W11378860
...
16
Icemaker WPL-WPW10300024
...
17
Air-Baffle WPL-WPW10312691
...
18
Cover-Frnt WPL-WPW10121444
...
19
Arm-Shut WPL-W11226459
...
20
Extension WPL-WPW10351019
...
21
Harness, Ice Maker (Includes Thermistor) WPL-W11254854
...
22
Switch WPL-WP2313326
...
23
Screw (3) WPL-67006425

...
...
NI
Torx Screw Wrench, Torx Key WPL-1117510
