Maytag MFGS4030RW0

Model: MFGS4030RW0

Save Part Not Listed?
product name

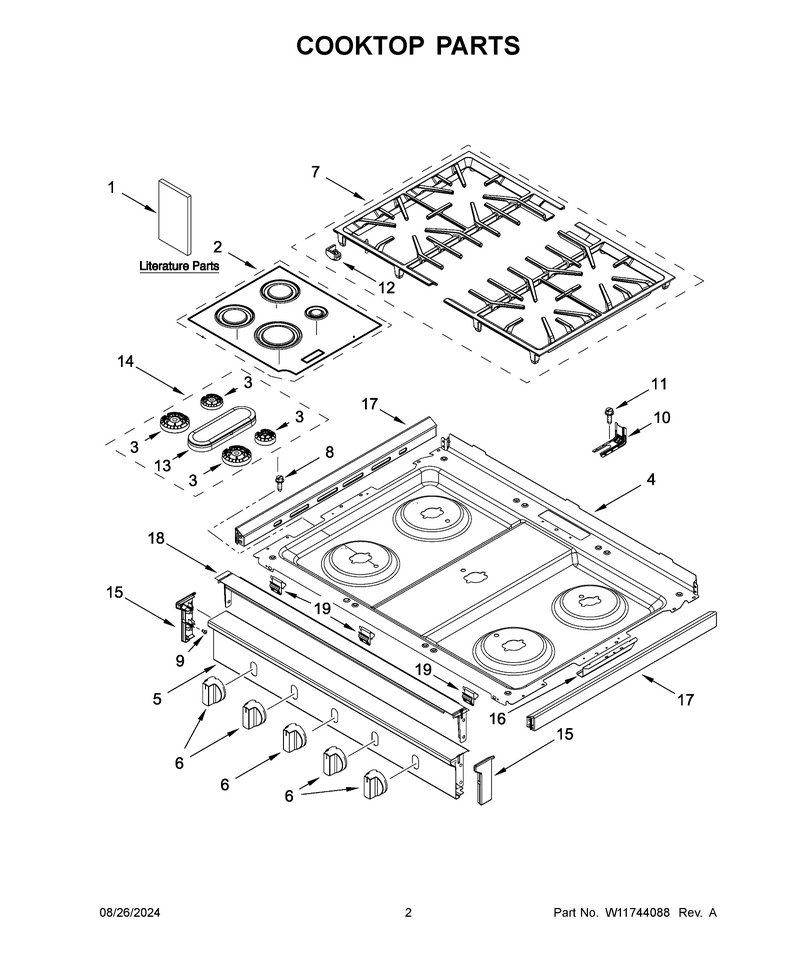

02 - Cooktop Parts

...
...
NI
Clip, Wire WPL-3196896
...
1
Quick Start Guide WPL-W11641830
...
1A
Owners Manual WPL-W11642080
...
1B
Tech Sheet WPL-W11639171
...
2
Cap-Burner WPL-W11747335
...
3
Burnr-Head WPL-W11747336
...
3A
Burnr-Head WPL-W11435657
...
3B
Burnr-Head WPL-W11435630
...
4
Cooktop (Black) WPL-W11279786
...
5
Panl-Mnfld WPL-W11729106
...
5A
Panl-Mnfld WPL-W11729253
...
6
Knob WPL-W11729101
...
7
Grate-Kit WPL-W11729009
...
8
Screw WPL-W11241230
...
9
Screw WPL-W11245710
...
10
Anchor-Tip WPL-W11447673
...
11
Anchor-Tip WPL-WP7101P485-60
...
12
Bumper WPL-W11729100
...
13
Burnr-Top WPL-W11475513
...
14
Burnr-Head WPL-W11728823
...
15
Endcap-Pnl WPL-W11729105
...
15A
Endcap-Pnl WPL-W11729103
...
15B
Endcap-Pnl WPL-W11729252
...
15C
Endcap-Pnl WPL-W11729251
...
16
Bracket WPL-W11728390
...
17
Top-Frame WPL-W11729931
...
18
Brkt-Suprt WPL-W11750421
...
19
Clip WPL-W11728827

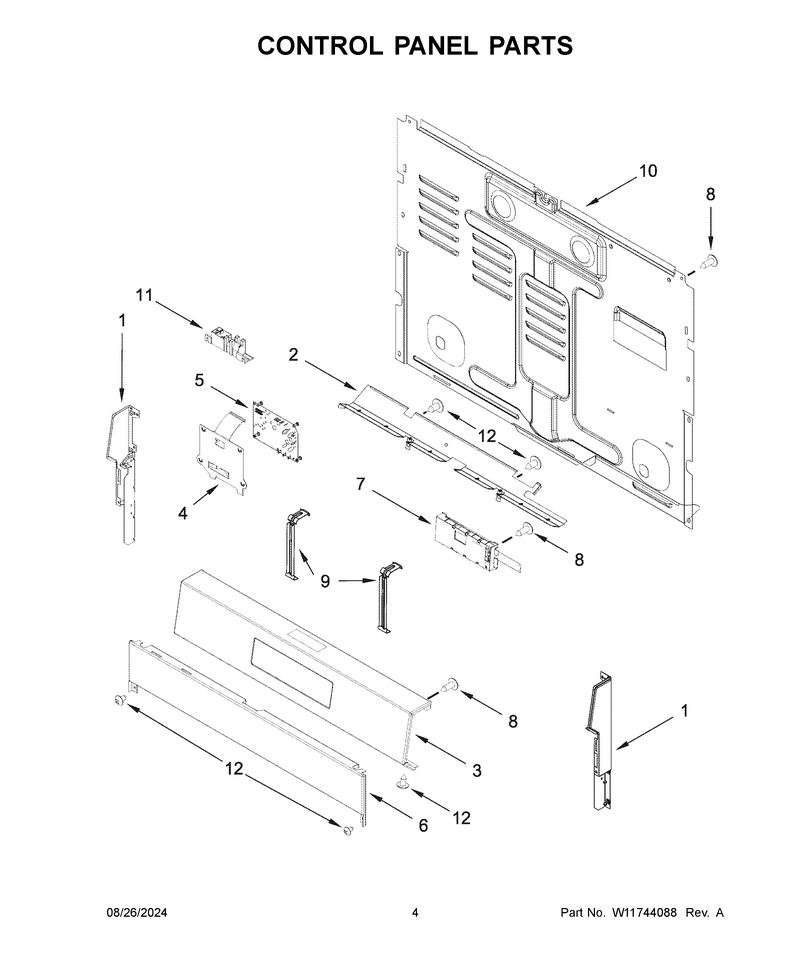

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11728322
...
1A
Endcap-Pnl WPL-W11728320
...
1B
Endcap-Pnl WPL-W11726987
...
1C
Endcap-Pnl WPL-W11726989
...
2
Shield-Ht WPL-W11730262
...
3
Panl-Cntrl WPL-W11745864
...
3A
Panl-Cntrl WPL-W11745865
...
4
Brkt-Mntg WPL-W11730340
...
5
Module-Spk WPL-W10898291
...
6
Trim-Panel WPL-W11730081
...
6A
Brkt-Mntg WPL-W11726990
...
7
Cntrl-Elec WPL-W11729237
...
8
Screw WPL-W11233072
...
9
Brkt-Mntg WPL-W11728256
...
10
Cover-Rear WPL-W11729011
...
11
Module-Spk WPL-W11703692
...
12
Screw WPL-WP3196557

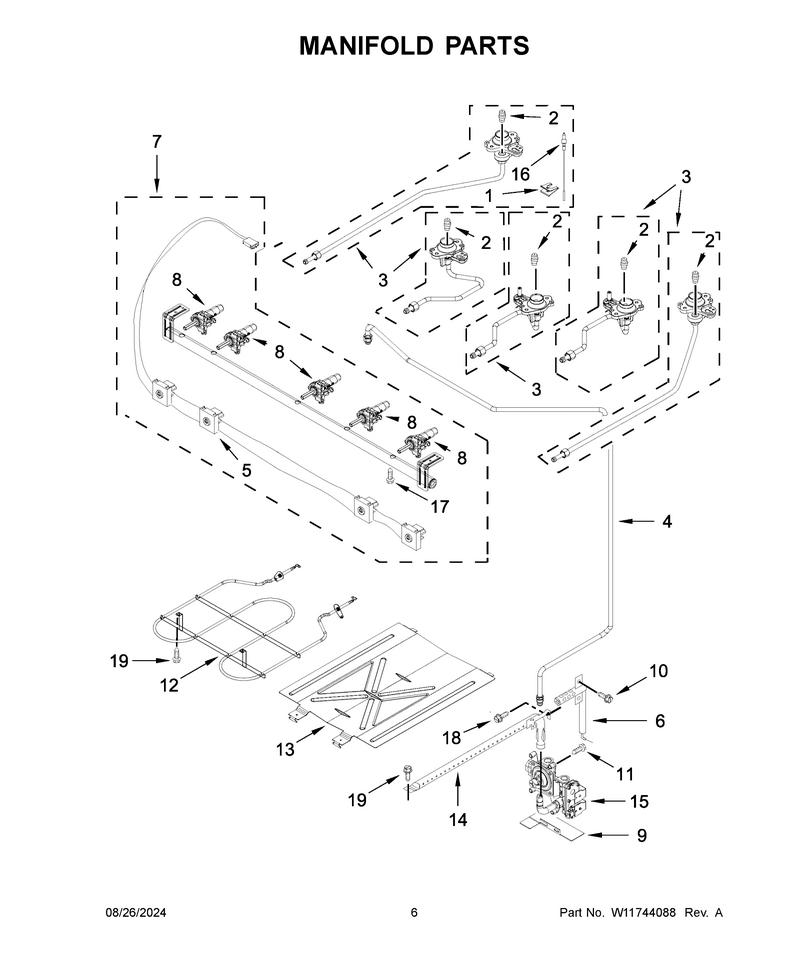

04 - Manifold Parts

...
...
NI
Cnvrsn-Kit WPL-W11729238
...
1
Clip WPL-W11684564
...
2
Orifice WPL-W11730297
...
2A
Orifice (18k) (Left Front) Orifice, Not Serviced WPL-W10849722
...
2B
Spud-Orfce WPL-W11677633
...
2C
Orifice (10k) (Center) Orifice, Not Serviced WPL-W10907868
...
3
Holder-Orf WPL-W11728828
...
3A
Holder-Orf WPL-W11729008
...
3B
Holder-Orf WPL-W11728388
...
3C
Holder-Orf WPL-W11727169
...
3D
Holder-Orf WPL-W11728829
...
4
Tubing-Gas WPL-W11728389
...
5
Harns-Wire WPL-W11727166
...
6
Igntr-Oven WPL-W11524031
...
7
Manifold WPL-W11729007
...
8
Valve-Brnr WPL-W11747337
...
8A
Valve-Brnr WPL-W11728580
...
8B
Valve-Brnr WPL-W11728578
...
9
Bracket, Aegis WPL-W10224921
...
10
Screw WPL-W11684507
...
11
Screw WPL-WP3400016
...
12
Element, Broiler WPL-W10714060
...
13
Baffl-Brnr WPL-WPW10184491
...
14
Burnr-Oven WPL-WP9758078
...
15
Valve-Gas WPL-W10898290
...
16
Igntr-Surf WPL-W11453940
...
16A
Igntr-Surf WPL-W11453920
...
17
Screw WPL-W11402213
...
18
Screw WPL-3196265
...
19
Screw WPL-W11233072

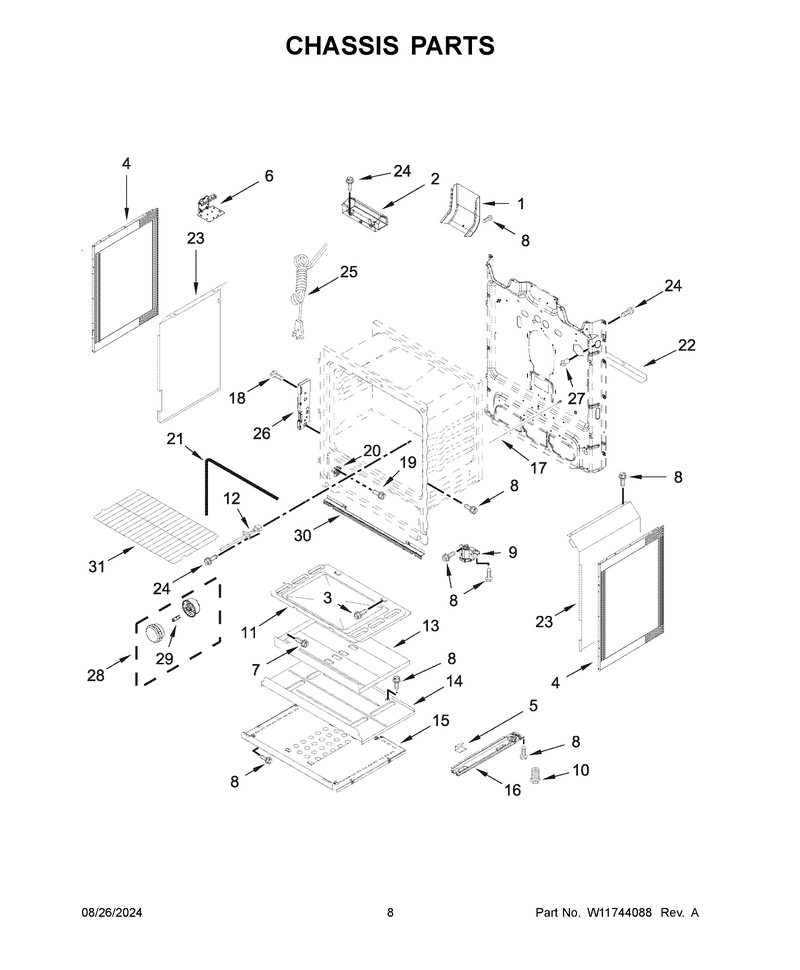

05 - Chassis Parts

...
...
NI
Insulation WPL-W11729010
...
1
Flue-Oven WPL-W11730239
...
2
Shield, Flue WPL-W11279866
...
3
Screw WPL-W10379120
...
4
Panel-Side WPL-W11730303
...
4A
Panel-Side WPL-W11727013
...
5
Clip, Panel WPL-W10137382
...
6
Brkt-Mntg WPL-W11727012
...
7
Screw WPL-W11233072
...
8
Screw WPL-W11233072
...
9
Foot-Level WPL-WPW10341186
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-W11730226
...
12
Sensor WPL-W10833885
...
13
Baffle, Burner Oven WPL-8053967
...
14
Shield, Heat WPL-8053969
...
15
Shield-Ht WPL-W11730232
...
16
Rail-Base WPL-WPW10306546
...
16A
Rail-Base WPL-WPW10306546
...
17
Rod, Door Switch WPL-9757239
...
18
Screw WPL-W10777162
...
19
Screw WPL-W11684512
...
20
Glide-Drwr WPL-W10807823
...
21
Gaskt-Door WPL-W11542153
...
22
Brace, Main Back WPL-W10435470
...
23
Retainer, Insulation (Left) WPL-W11379353
...
23A
Retainer, Insulation (Right) WPL-W11379943
...
24
Screw WPL-WP3196557
...
25
Cord-Power WPL-W11730265
...
26
Hinge-Recv WPL-W10647259
...
27
Swtch-Lite WPL-W11620712
...
28
Light-Oven WPL-W11707255
...
29
Bulb-Light WPL-WPW10571723
...
30
Bracket, Front Frame WPL-W11464547
...
31
Rack-Oven WPL-W11520287

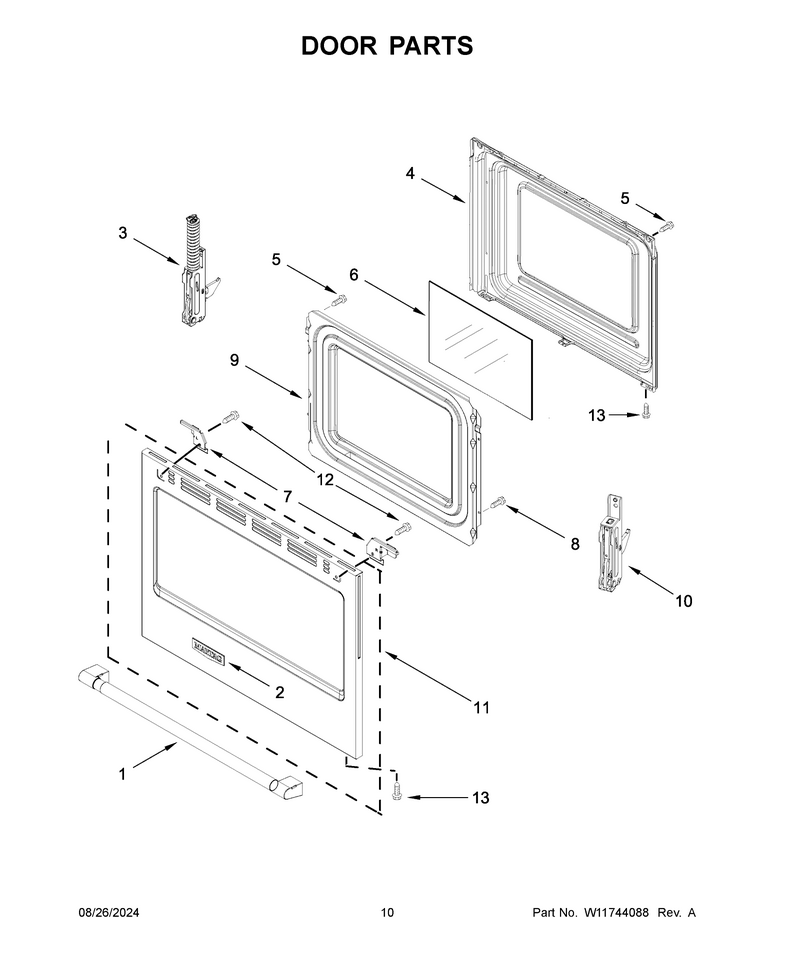

06 - Door Parts

...
...
1
Hndle-Door WPL-W11648982
...
2
Nameplate WPL-W11648754
...
3
Hinge-Door WPL-WPW10299226
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11399628
...
7
Brkt-Mntg WPL-W11726808
...
7A
Brkt-Mntg WPL-W11726809
...
8
Screw WPL-W10777162
...
9
Retainer, Insulation WPL-W11686928
...
10
Hinge-Door WPL-WPW10299227
...
11
Glass-Door WPL-W11750799
...
11A
Glass-Door WPL-W11750798
...
12
Screw WPL-WP3196154
...
13
Screw WPL-WP355214

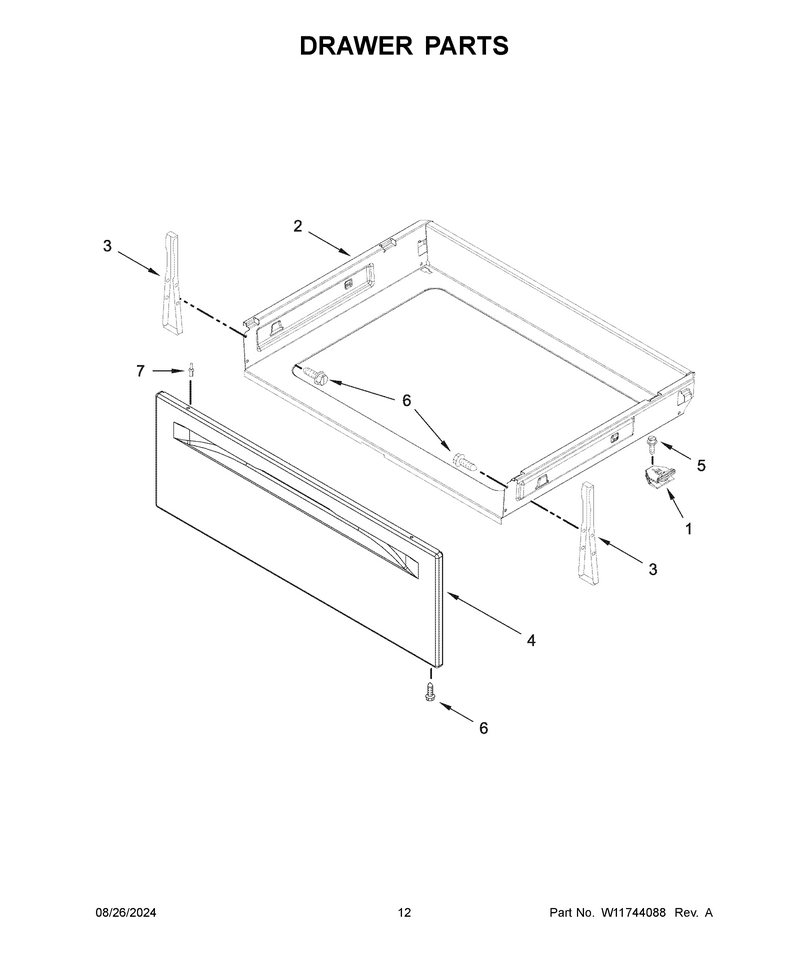

07 - Drawer Parts

...
...
1
Glide-Drwr WPL-W10807828
...
2
Drawr-Util WPL-W10813962
...
3
Bracket, Mounting WPL-W10462911
...
4
Panel-Drwr WPL-W11230490
...
4A
Panel-Drwr WPL-W11230486
...
5
Screw WPL-W11233072
...
6
Screw WPL-WP3196557
...
7
Rivet WPL-WP3196813
...
7A
Rivet WPL-WP3196814

...
...
NI
Accessories, Broiler Pan And Grid WPL-4396923
