Maytag MFES6030RB0

Model: MFES6030RB0

Save Part Not Listed?
product name

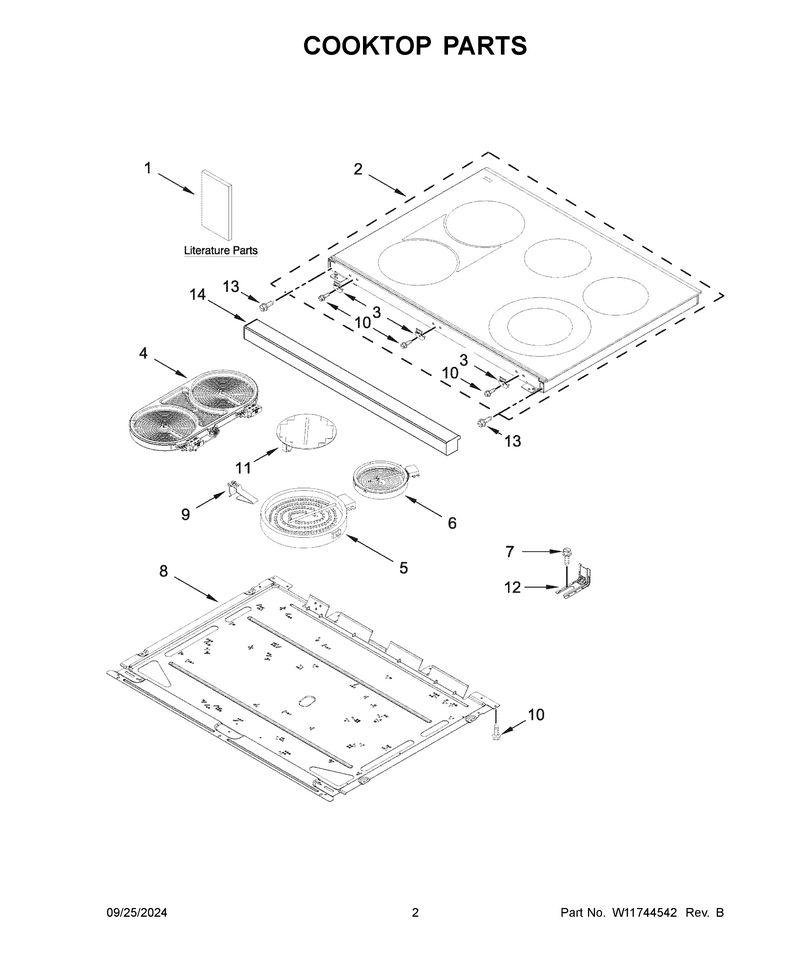

02 - Cooktop Parts

...
...
NI
Harness, Hidden Bake WPL-W11172528
...
1
Owner's Manual WPL-W11640146
...
1A
Quick Start Guide WPL-W11638796
...
1B
Tech Sheet WPL-W11639166
...
2
Cooktop WPL-W11730432
...
3
Clip WPL-W11730543
...
4
Elmnt-Surf WPL-WPW10248259
...
5
Elmnt-Surf WPL-W11517959
...
6
Elmnt-Surf WPL-W11171119
...
7
Anchor-Tip WPL-WP7101P485-60
...
8
Pan WPL-W11728329
...
9
Spring WPL-W11663556
...
10
Screw WPL-WP3196557
...
11
Elmnt-Surf WPL-W11706247
...
12
Anchor-Tip WPL-W11447673
...
13
Screw WPL-W11684512
...
14
Trim WPL-W11729922
...
14A
Trim WPL-W11729921

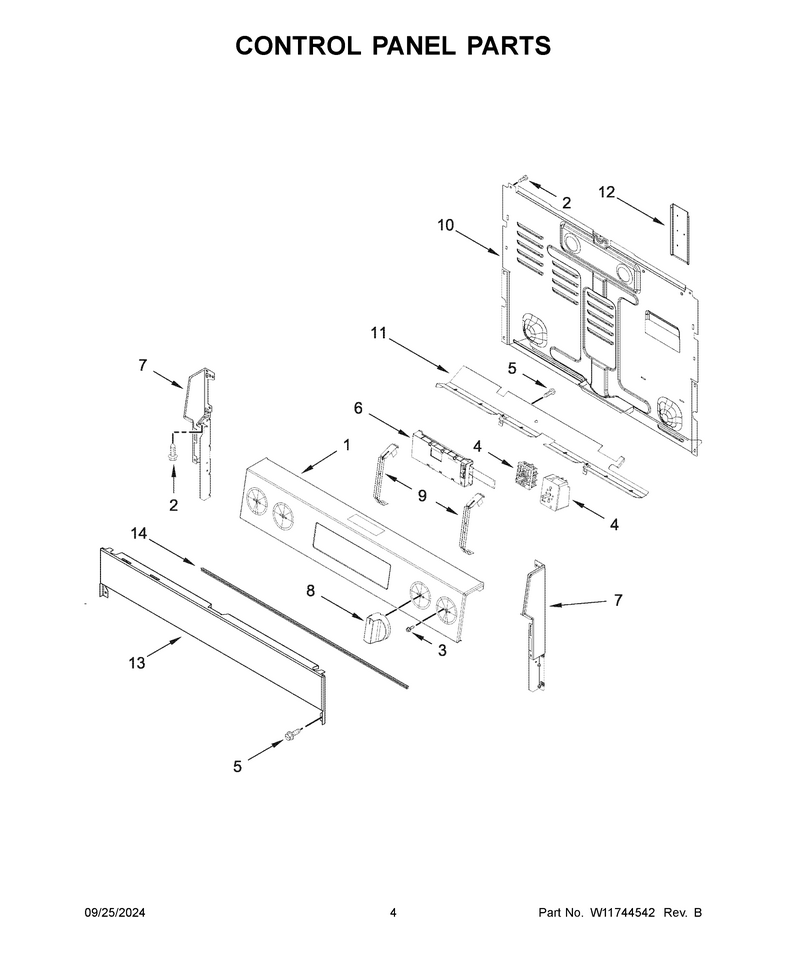

03 - Control Panel Parts

...
...
1
Panl-Cntrl WPL-W11747382
...
1A
Panl-Cntrl WPL-W11747450
...
2
Screw WPL-W11233072
...
3
Screw WPL-WP3400882
...
4
Switch-Inf WPL-W10857622
...
4A
Switch-Inf WPL-W11661906
...
4B
Switch-Inf WPL-W10911303
...
5
Screw WPL-WP3196557
...
6
Cntrl-Elec WPL-W11729982
...
7
Endcap-Pnl WPL-W11728322
...
7A
Endcap-Pnl WPL-W11728320
...
7B
Endcap-Pnl WPL-W11726987
...
7C
Endcap-Pnl WPL-W11726989
...
8
Knob WPL-W11728257
...
9
Brkt-Mntg WPL-W11728256
...
10
Cover-Rear WPL-W11726751
...
11
Shield-Ht WPL-W11730262
...
12
Flue-Oven WPL-W11729912
...
13
Brkt-Mntg WPL-W11728260
...
13A
Brkt-Mntg WPL-W11726812
...
14
Gasket WPL-W11728258

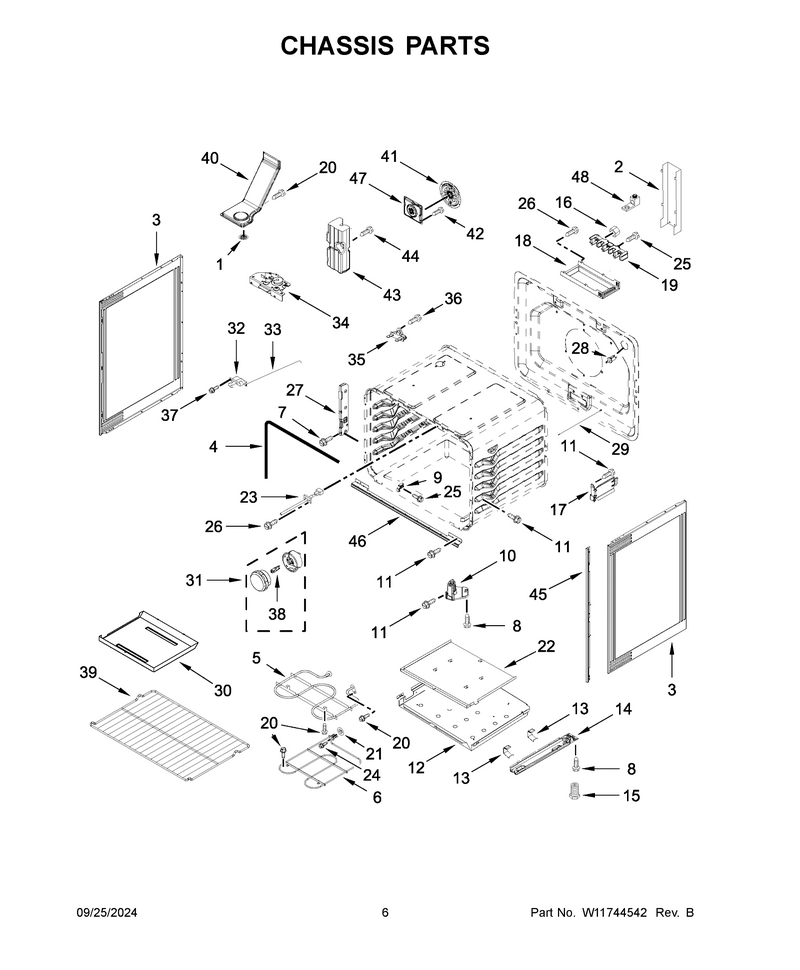

04 - Chassis Parts

...
...
NI
Insulation WPL-W11729932
...
1
Screen WPL-W11268772
...
2
Cover-Blck WPL-WPW10326122
...
3
Panel-Side WPL-W11730303
...
3A
Panel-Side WPL-W11727013
...
4
Gaskt-Door WPL-W11542153
...
5
Elmnt-Brol WPL-W10856603
...
6
Elmnt-Bake WPL-WP9755770
...
7
Screw WPL-W10777162
...
8
Screw WPL-W11233072
...
9
Glide-Drwr WPL-W10807823
...
10
Foot-Level WPL-WPW10341186
...
11
Screw WPL-WPW10067840
...
12
Tray, Insulation WPL-W10134121
...
13
Clip, Panel WPL-W10137382
...
14
Rail-Base WPL-WPW10306546
...
14A
Rail-Base WPL-WPW10306546
...
15
Foot-Level WPL-WPW10058460
...
16
Nut WPL-WP3400029
...
17
Clip, Oven Support WPL-W10404688
...
18
Brkt-Srvce WPL-W11728255
...
19
Block, Terminal (Without Ground Strap) WPL-W11750818
...
20
Screw WPL-W11233072
...
21
Nut WPL-WP3400968
...
22
Shield, Heat WPL-W10134125
...
23
Sensor WPL-W10833885
...
24
Screw WPL-WP3196174
...
25
Screw WPL-W11684512
...
26
Screw WPL-WP3196557
...
27
Hinge-Recv WPL-W10647259
...
28
Swtch-Lite WPL-W11620712
...
29
Rod, Door Switch WPL-9757239
...
30
Tray, Hidden Bake WPL-W10183712
...
31
Light-Oven WPL-W11707255
...
32
Latch-Door WPL-WP9761013
...
33
Rod, Latch WPL-W10078380
...
34
Latch-Door WPL-WPW10107820
...
35
Fuse-Thrml WPL-WP3196548
...
36
Screw WPL-3196172
...
37
Screw WPL-W11169708
...
38
Bulb-Light WPL-WPW10571723
...
39
Rack-Oven WPL-W11520287
...
40
Tube-Vent WPL-W11726807
...
41
Fan-Convct WPL-W11527111
...
42
Screw WPL-W10516115
...
43
Anchor-Tip WPL-W11135752
...
44
Screw-Torx WPL-W11135756
...
45
Rail-Mtg WPL-W11594227
...
46
Bracket, Front Frame WPL-W11464547
...
47
Cover WPL-W11730217
...
48
Connector WPL-WPW10281322

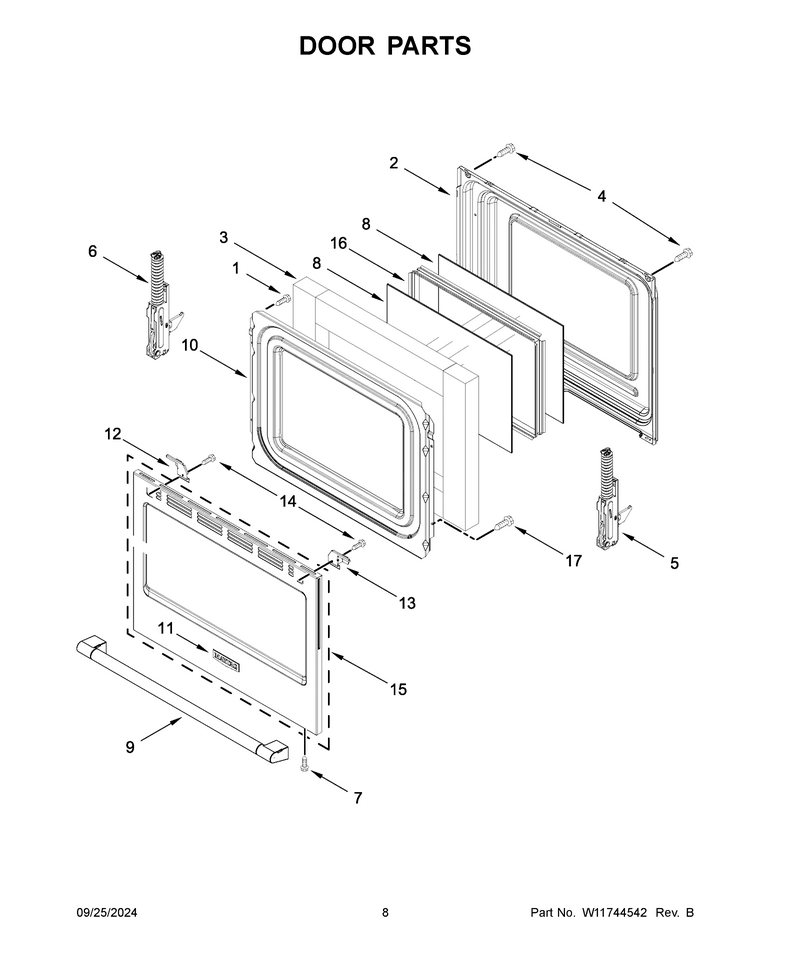

05 - Door Parts

...
...
1
Screw WPL-WPW10031790
...
2
Liner-Door WPL-WP9761344
...
3
Insulation WPL-WPW10278991
...
4
Screw WPL-WPW10200660
...
5
Hinge-Door WPL-WPW10388635
...
6
Hinge-Door WPL-WPW10440013
...
7
Screw WPL-WP355214
...
8
Glass-Door WPL-WP8053948
...
9
Hndle-Door WPL-W11648982
...
10
Retainer WPL-W11539580
...
11
Nameplate WPL-W11648754
...
12
Brkt-Mntg WPL-W11726809
...
13
Brkt-Mntg WPL-W11726808
...
14
Screw WPL-WP3196154
...
15
Glass-Door WPL-W11750807
...
15A
Glass-Door WPL-W11750808
...
16
Frame-Wndw WPL-WPW10316950
...
17
Screw WPL-W10777162

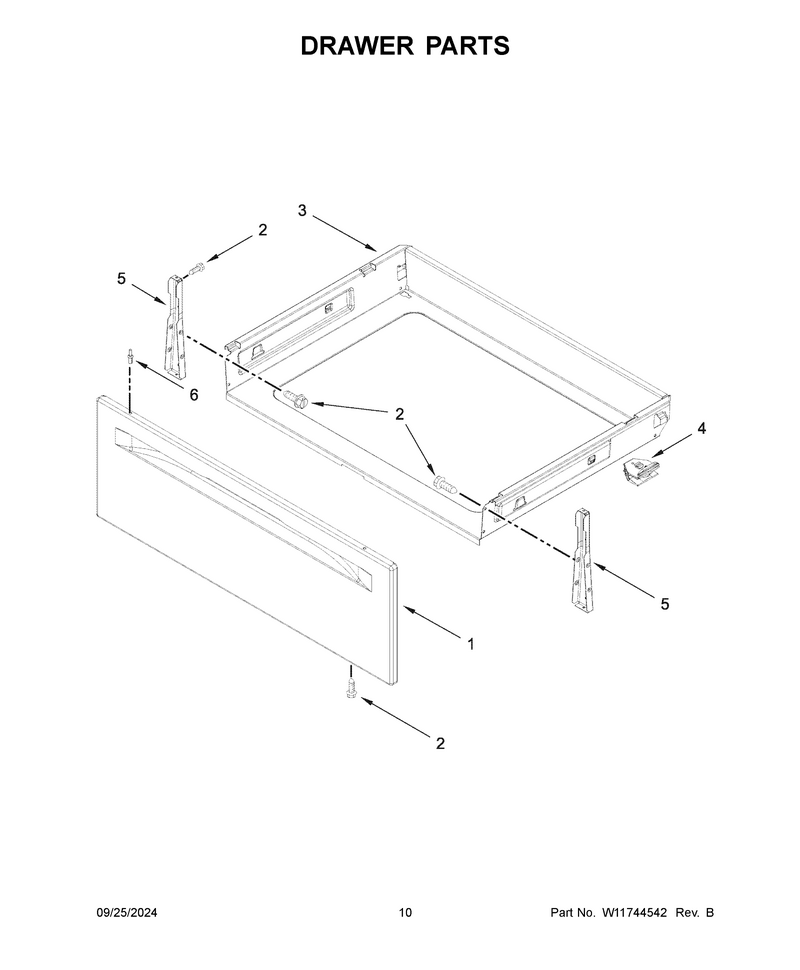

06 - Drawer Parts

...
...
1
Panel-Drwr WPL-W11230488
...
1A
Panel-Drwr WPL-W11219377
...
2
Screw WPL-WP3196557
...
3
Drawr-Util WPL-W10813962
...
4
Glide-Drwr WPL-W10807828
...
5
Brkt-Mntg WPL-WPW10462912
...
6
Rivet WPL-WP3196813
...
6A
Rivet WPL-WP3196814

...
...
NI
Accessory Parts, Basket, Air Fry WPL-W11692811
