Maytag MFES4030RB0

Model: MFES4030RB0

Save Part Not Listed?
product name

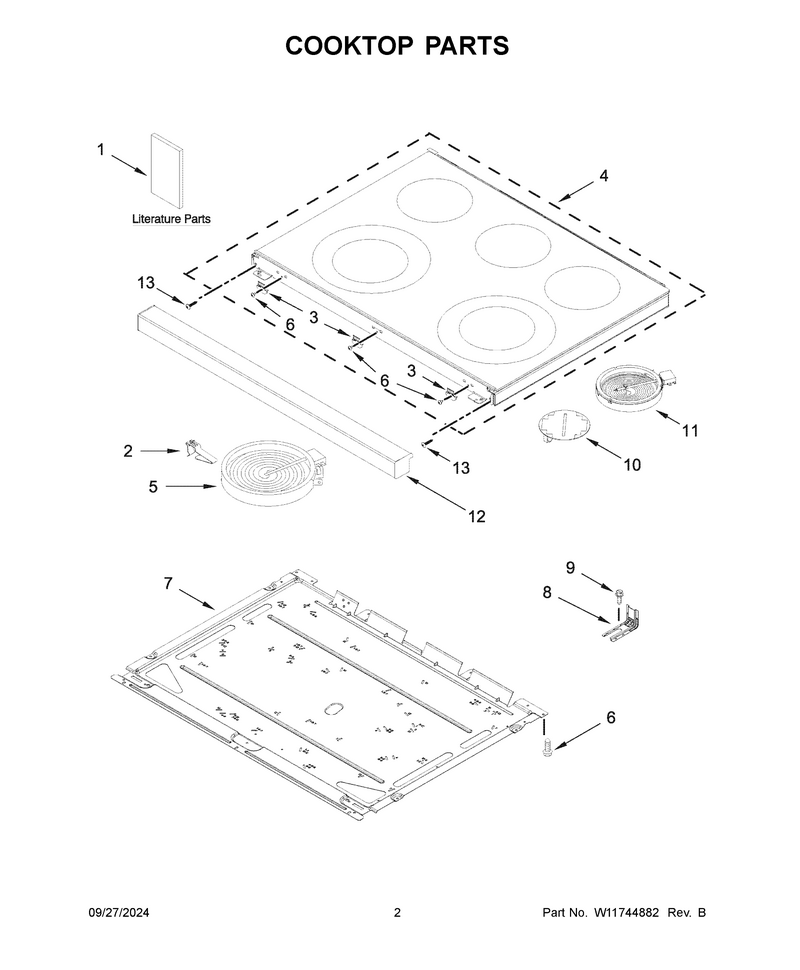

02 - Cooktop Parts

...
...
NI
Harns-Wire WPL-W11737120
...
1
Owner's Manual WPL-W11640146
...
1A
Quick Start Guide WPL-W11638796
...
1B
Tech Sheet WPL-W11639165
...
2
Spring WPL-W11663556
...
3
Clip WPL-W11730543
...
4
Cooktop WPL-W11730413
...
5
Elmnt-Surf WPL-W11517959
...
6
Screw WPL-WP3196557
...
7
Pan WPL-W11728329
...
8
Anchor-Tip WPL-W11447673
...
9
Anchor-Tip WPL-WP7101P485-60
...
10
Elmnt-Surf WPL-W11706247
...
11
Elmnt-Surf WPL-W11171119
...
12
Trim WPL-W11729922
...
12A
Trim WPL-W11729921
...
13
Screw WPL-W11684512

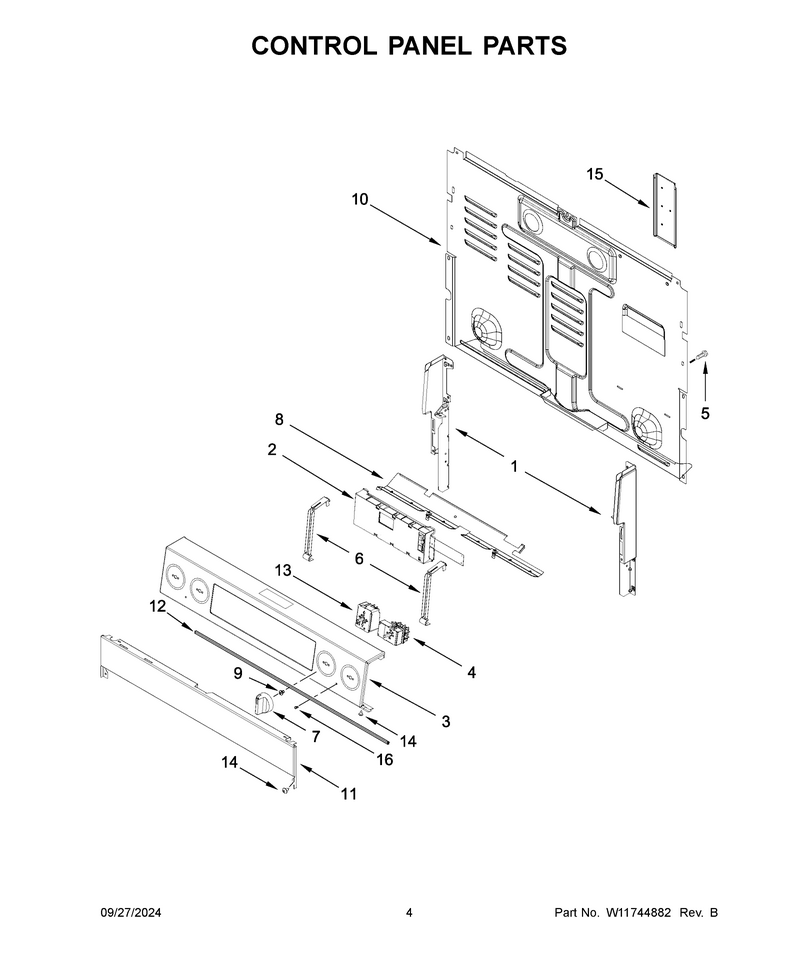

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11728322
...
1A
Endcap-Pnl WPL-W11728320
...
1B
Endcap-Pnl WPL-W11726987
...
1C
Endcap-Pnl WPL-W11726989
...
2
Cntrl-Elec WPL-W11728323
...
3
Panl-Cntrl WPL-W11728259
...
3A
Panl-Cntrl WPL-W11726810
...
4
Switch-Inf WPL-W10857622
...
5
Screw WPL-W11233072
...
6
Brkt-Mntg WPL-W11728256
...
7
Knob WPL-W11728257
...
8
Shield-Ht WPL-W11747326
...
9
Screw WPL-WP3400882
...
10
Cover-Rear WPL-W11726751
...
11
Brkt-Mntg WPL-W11728260
...
11A
Brkt-Mntg WPL-W11726812
...
12
Gasket WPL-W11728258
...
13
Switch-Inf WPL-W10911303
...
14
Screw WPL-WP3196557
...
15
Flue-Oven WPL-W11747327
...
16
Lens-Light WPL-WP3196068

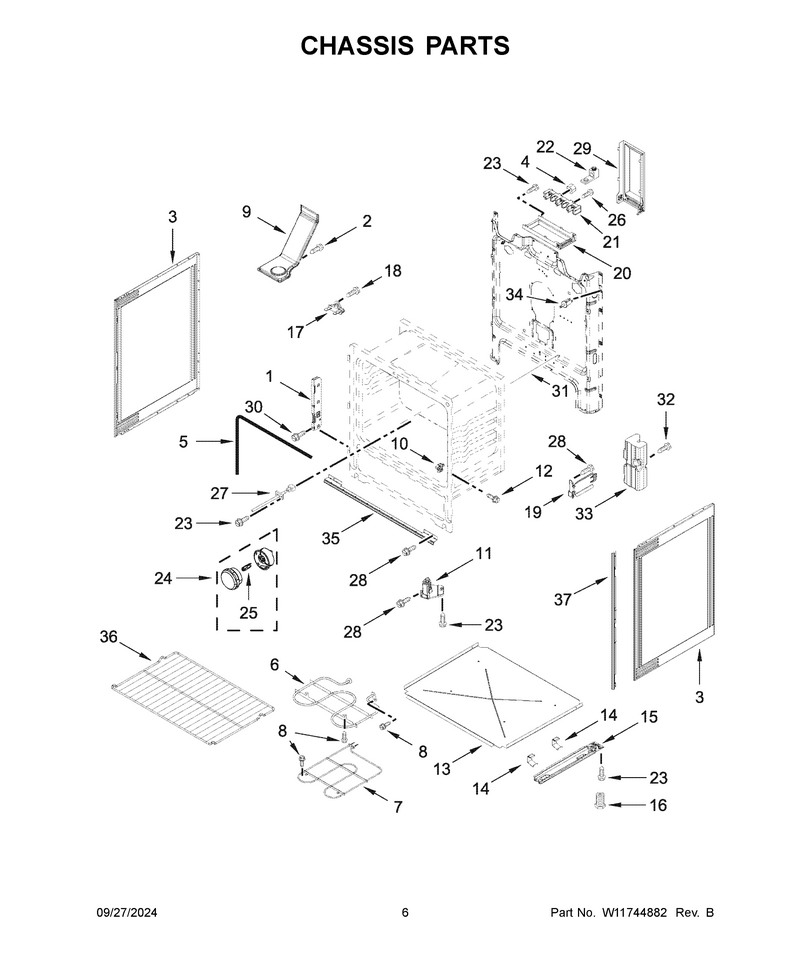

04 - Chassis Parts

...
...
NI
Insulation WPL-W11729932
...
1
Hinge-Recv WPL-W10647259
...
2
Screw WPL-W11233072
...
3
Panel-Side WPL-W11730303
...
3A
Panel-Side WPL-W11727013
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11542153
...
6
Elmnt-Brol WPL-W10856603
...
7
Elmnt-Bake WPL-W11182108
...
8
Screw WPL-WP3196154
...
9
Tube-Vent WPL-W11726807
...
10
Glide-Drwr WPL-W10807823
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Retainer WPL-WP8054068
...
14
Clip, Panel WPL-W10137382
...
15
Rail-Base WPL-WPW10306546
...
15A
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Clip, Oven Support WPL-W10404688
...
20
Brkt-Srvce WPL-W11728255
...
21
Block, Terminal (Without Ground Strap) WPL-W11750818
...
22
Connector WPL-WPW10281322
...
23
Screw WPL-W11233072
...
24
Light-Oven WPL-W11707255
...
25
Bulb-Light WPL-WPW10571723
...
26
Screw WPL-WP3400016
...
27
Sensor WPL-W10833885
...
28
Screw WPL-WP3196557
...
29
Cover-Blck WPL-WPW10326122
...
30
Screw WPL-W10777162
...
31
Rod, Door Switch WPL-9757239
...
32
Screw-Torx WPL-W11135756
...
33
Anchor-Tip WPL-W11135752
...
34
Swtch-Lite WPL-W11620712
...
35
Bracket, Front Frame WPL-W11464547
...
36
Rack-Oven WPL-W11520287
...
37
Rail-Mtg WPL-W11594227

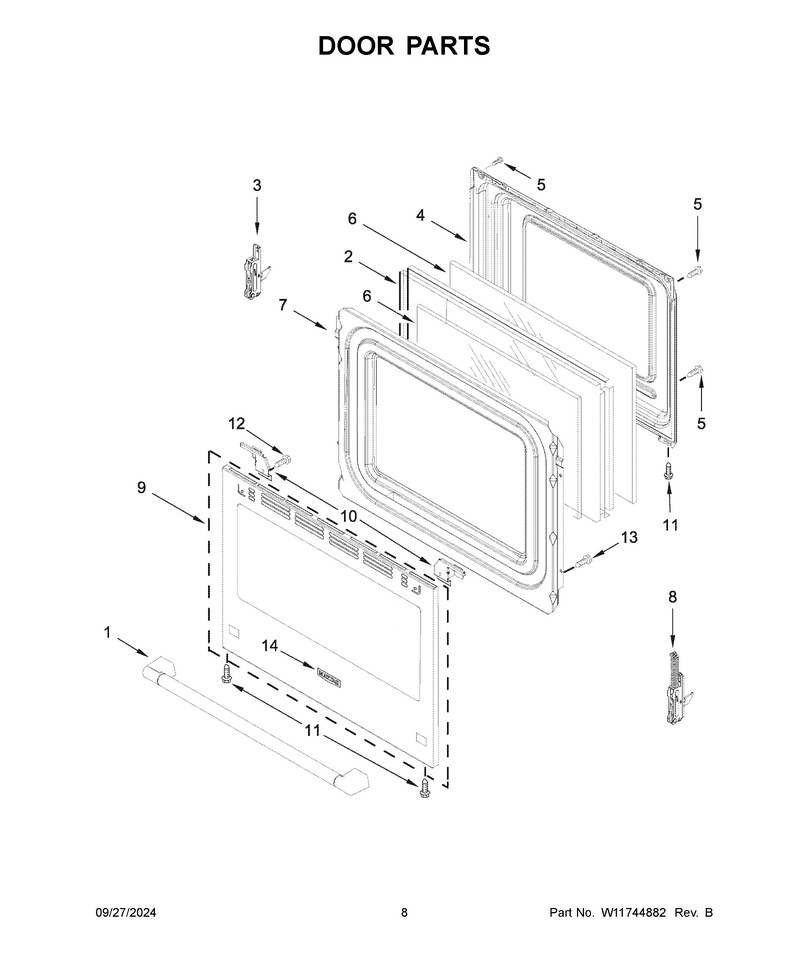

05 - Door Parts

...
...
1
Hndle-Door WPL-W11648982
...
2
Nameplate WPL-W11648754
...
3
Hinge-Door WPL-WPW10299227
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11399628
...
7
Retainer WPL-W11685635
...
8
Hinge-Door WPL-WPW10299226
...
9
Glass-Door WPL-W11750799
...
9A
Glass-Door WPL-W11750798
...
10
Brkt-Mntg WPL-W11726808
...
10A
Brkt-Mntg WPL-W11726809
...
11
Screw WPL-WP355214
...
12
Screw WPL-WP3196154
...
13
Screw WPL-W10777162

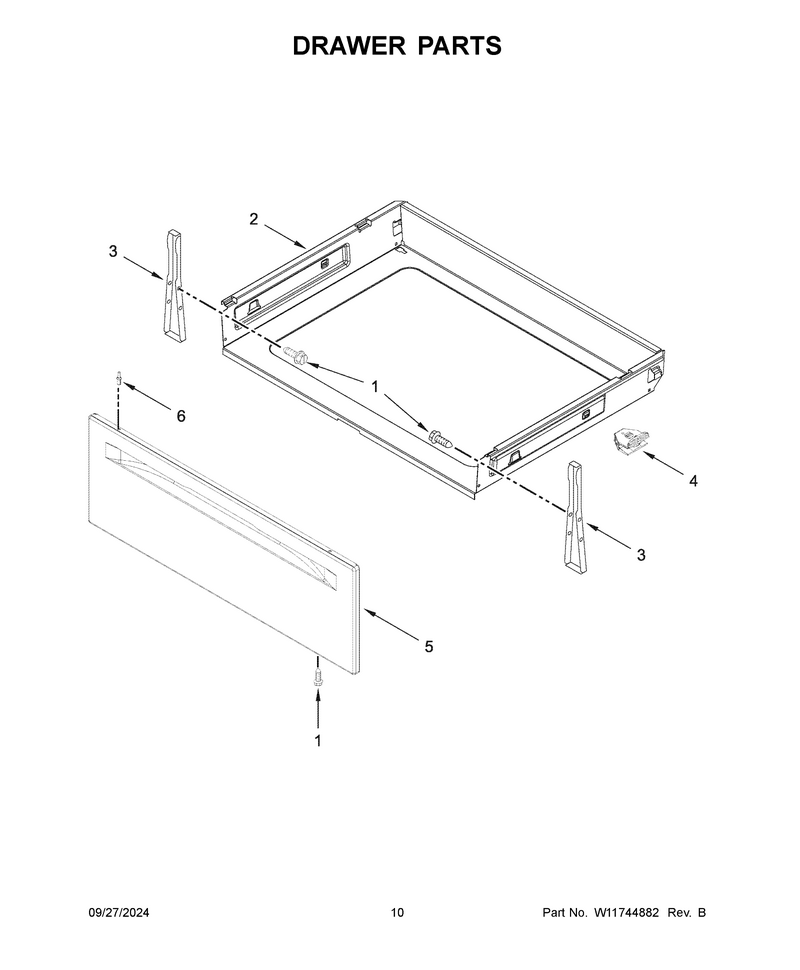

06 - Drawer Parts

...
...
1
Screw WPL-WP3196557
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-WPW10462912
...
4
Glide-Drwr WPL-W10807828
...
5
Panel-Drwr WPL-W11230488
...
5A
Panel-Drwr WPL-W11219377
...
6
Rivet WPL-WP3196813
...
6A
Rivet WPL-WP3196814

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
