Maytag MEW9630FZ04

Model: MEW9630FZ04

Save Part Not Listed?
product name

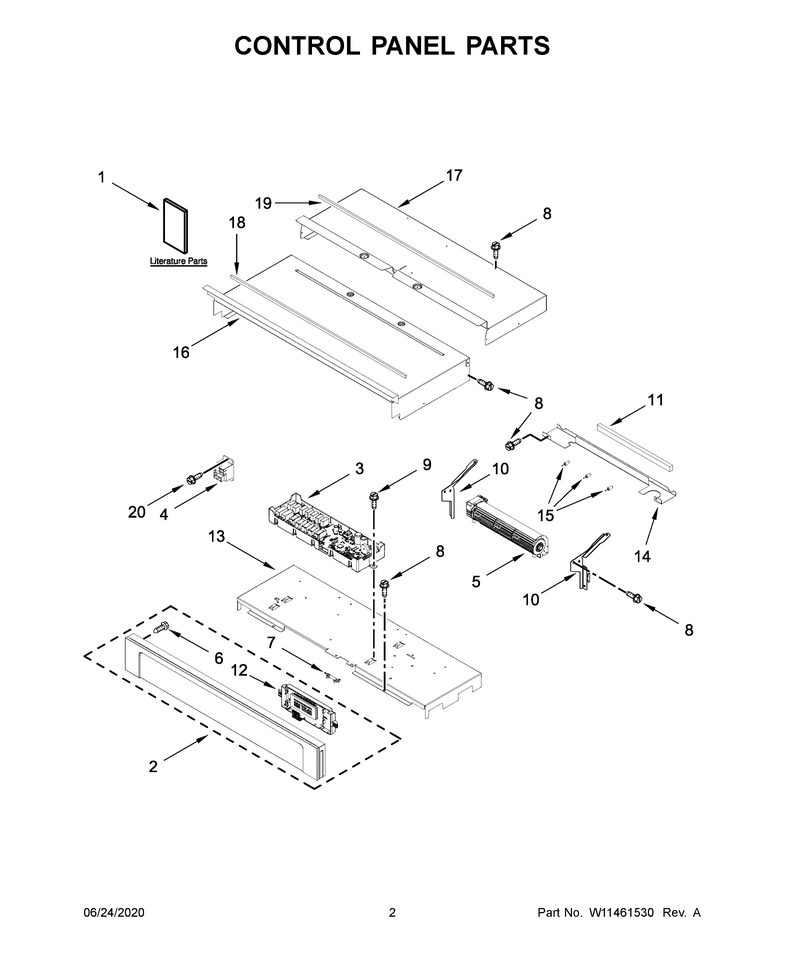

02 - Control Panel Parts

...
...
NI
Hardware WPL-W10760039
...
1
Guide, Use & Care WPL-W10875901
...
1A
Instructions, Installation WPL-W10674133
...
1B
Sheet, Tech WPL-W10886885
...
2
Panl-Cntrl WPL-W10914529
...
3
Cntrl-Elec WPL-W11032469
...
4
Relay, Power (12v Dc Coil) WPL-W10874478
...
5
Blower WPL-W11245567
...
6
Screw WPL-WP12990527
...
7
Fuse-Thrml WPL-WPW10545291
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP7101P434-60
...
10
Bracket, Blower (Left) WPL-W10655463
...
10A
Bracket, Blower (Right) WPL-W10655462
...
11
Seal-Foam WPL-W10491987
...
12
Cntrl-Elec WPL-WPW10752316
...
13
Tray, Electronic WPL-W10347650
...
14
Chassis, Back Divider WPL-W10655465
...
15
Bumper WPL-W10351295
...
16
Chassis, Cover Top Front 30" WPL-W10318192
...
17
Chassis, Cover Top Back 30" WPL-W10904156
...
18
Seal-Foam WPL-W11226314
...
19
Gasket, Rubber WPL-W10728475
...
20
Screw WPL-WP7101P498-60

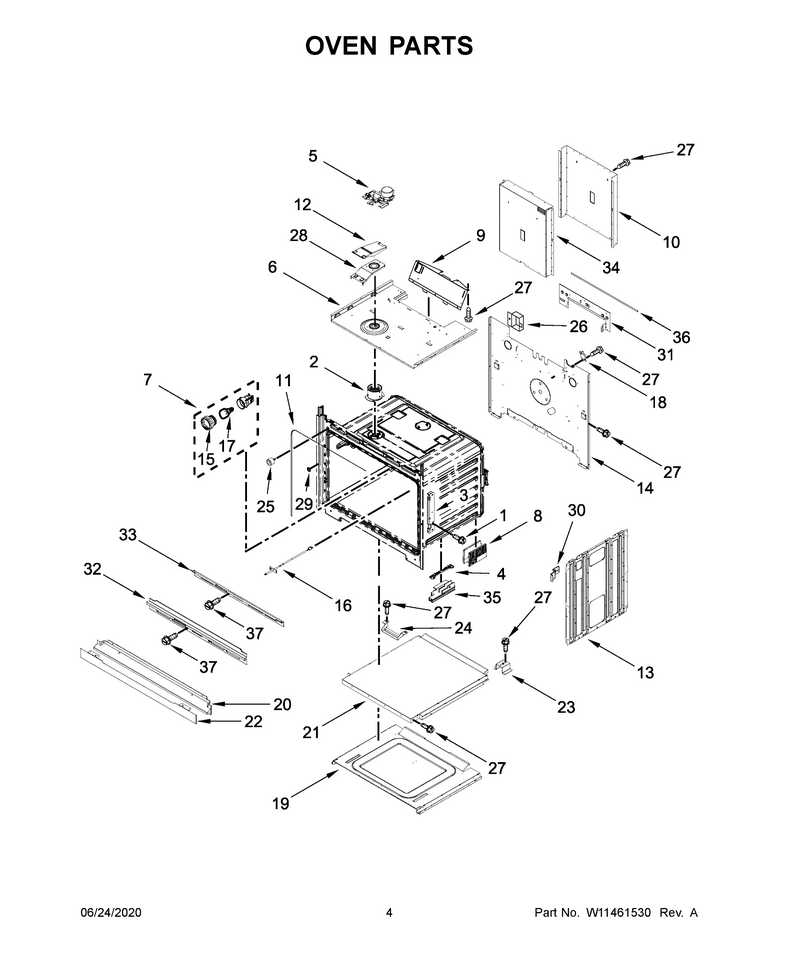

03 - Oven Parts

...
...
NI
Insulation WPL-W11292324
...
1
Screw WPL-WPW10254050
...
2
Tube-Vent WPL-W11240525
...
3
Hinge-Recv WPL-W11613828
...
4
Spacer WPL-W11240831
...
5
Latch-Door WPL-W10883049
...
6
Top, Chassis WPL-W10904158
...
7
Light-Ind WPL-W11325541
...
8
Foot-Level WPL-W10821321
...
9
Deflector, Blower WPL-W10904163
...
10
Duct, Chassis Back (Lower) WPL-W10542857
...
11
Gasket-Ovn WPL-W11623080
...
12
Cover, Vent Exhaust WPL-W10616810
...
13
Side, Chassis WPL-W10318190
...
14
Back, Chassis WPL-W10904160
...
15
Lens-Light WPL-W11450856
...
16
Sensor WPL-W10859573
...
17
Bulb-Light WPL-W11454079
...
18
Thrmst-Fix WPL-WP4449751
...
19
Base, Chassis WPL-W11238787
...
20
Vent-Oven WPL-WPW10351279
...
21
Covr-Acess WPL-WPW10283008
...
22
Trim WPL-WPW10327377
...
23
Support, Air Channel WPL-W10213759
...
24
Spacer, Chassis Bottom Duct WPL-W10351308
...
25
Bumper WPL-WPW10351278
...
26
Cover, Connector WPL-8285593
...
27
Screw WPL-WP90767
...
28
Base, Vent Exhaust WPL-W10616809
...
29
Grommet WPL-W10759525
...
30
Spacers, Front WPL-W10347649
...
31
Bracket, U-Shape WPL-W10588736
...
32
Vent, Center 30" WPL-W10283040
...
33
Trim-Vent WPL-WPW10283036
...
34
Duct, Chassis Back WPL-W10318196
...
35
Foot-Level WPL-W10848812
...
35A
Foot-Level WPL-W10848812
...
36
Gasket, Rubber WPL-W10728475
...
37
Screw WPL-WPY706189

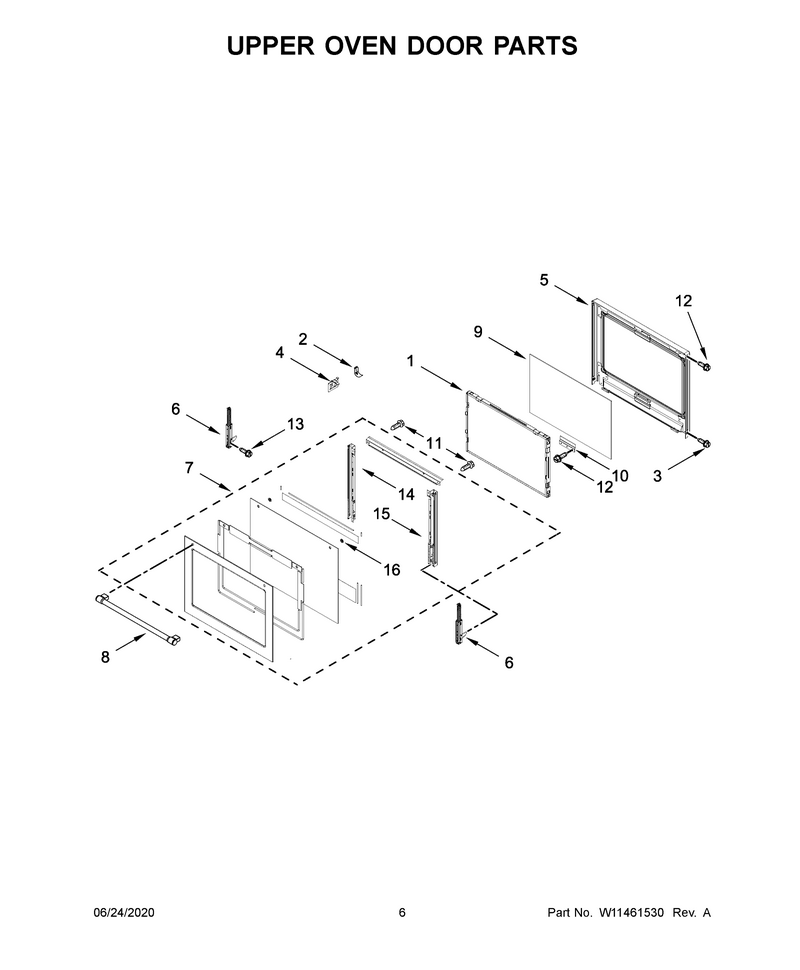

04 - Upper Oven Door Parts

...
...
1
Glass-Door WPL-W11455086
...
2
Brkt-Glass WPL-W10812024
...
3
Screw WPL-W10828565
...
4
Brkt-Glass WPL-W11025615
...
5
Frame-Glas WPL-WPW10709147
...
6
Hinge-Door WPL-W11642291
...
7
Glass-Door WPL-W10914777
...
8
Hndle-Door WPL-W10912640
...
9
Glass-Door WPL-W11455100
...
10
Brkt-Glass WPL-W10853628
...
11
Screw WPL-W10831019
...
12
Screw WPL-WP90767
...
13
Screw WPL-WP3196183
...
14
Rail, Door Side (Left) WPL-W11355410
...
15
Rail, Door Side (Right) WPL-W11355411
...
16
Washer WPL-W11676355

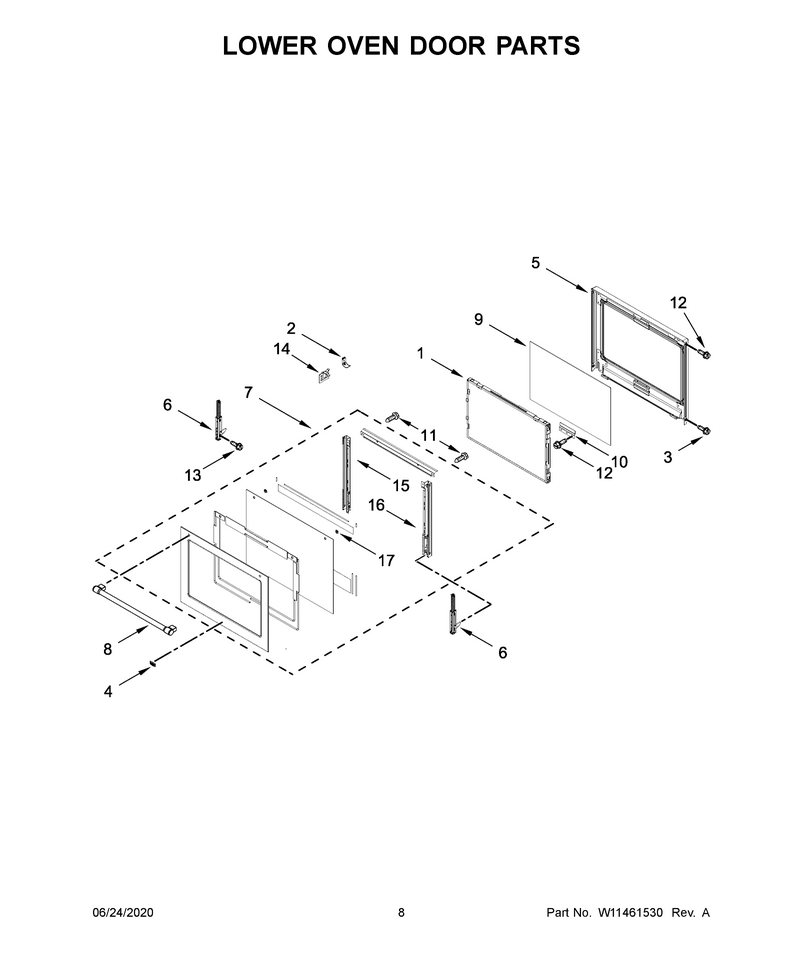

05 - Lower Oven Door Parts

...
...
1
Glass-Door WPL-W11455086
...
2
Brkt-Glass WPL-W10812024
...
3
Screw WPL-W10828565
...
4
Nameplate WPL-WPW10612925
...
5
Frame-Glas WPL-WPW10709147
...
6
Hinge-Door WPL-W11642291
...
7
Glass-Door WPL-W10914777
...
8
Hndle-Door WPL-W10912640
...
9
Glass-Door WPL-W11455100
...
10
Brkt-Glass WPL-W10853628
...
11
Screw WPL-W10831019
...
12
Screw WPL-WP90767
...
13
Screw WPL-WP3196183
...
14
Brkt-Glass WPL-W11025615
...
15
Rail, Door Side (Left) WPL-W11355410
...
16
Rail, Door Side (Right) WPL-W11355411
...
17
Washer WPL-W11676355

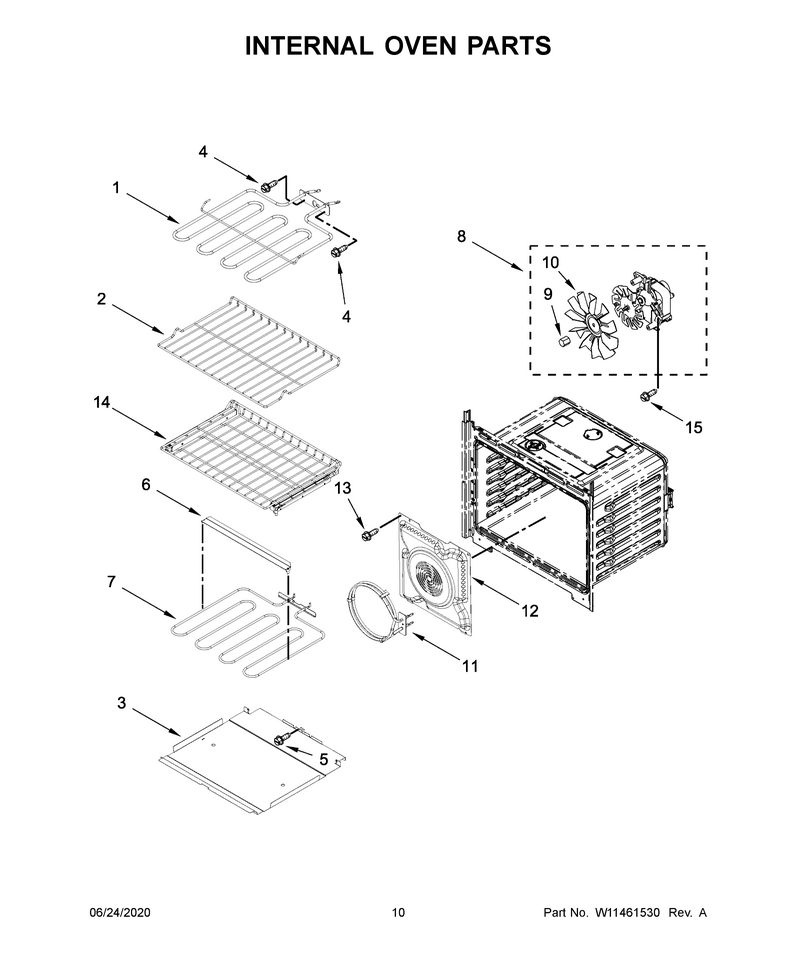

06 - Internal Oven Parts

...
...
1
Elmnt-Brol WPL-WPW10260252
...
2
Rack, Oven WPL-W10282967
...
3
Tray, Hidden Bake WPL-W10318198
...
4
Screw WPL-WP7101P434-60
...
5
Screw WPL-WP90767
...
6
Crossbar, Hidden Bake Tray WPL-W10282957
...
7
Elmnt-Bake WPL-W11545804
...
8
Motor-Fan WPL-W10860984
...
9
Nut WPL-W10794042
...
10
Fan-Convct WPL-W10819914
...
11
Element WPL-WPW10260248
...
12
Baffle, Convection WPL-W10359278
...
13
Screw WPL-WP74003976
...
14
Rack-Oven WPL-W11718046
...
15
Screw WPL-W10850807

...
...
NI
Paint, Touch-Up (1/2oz. Black) WPL-72032
