Maytag MER8700DE1

Model: MER8700DE1

Save Part Not Listed?
product name

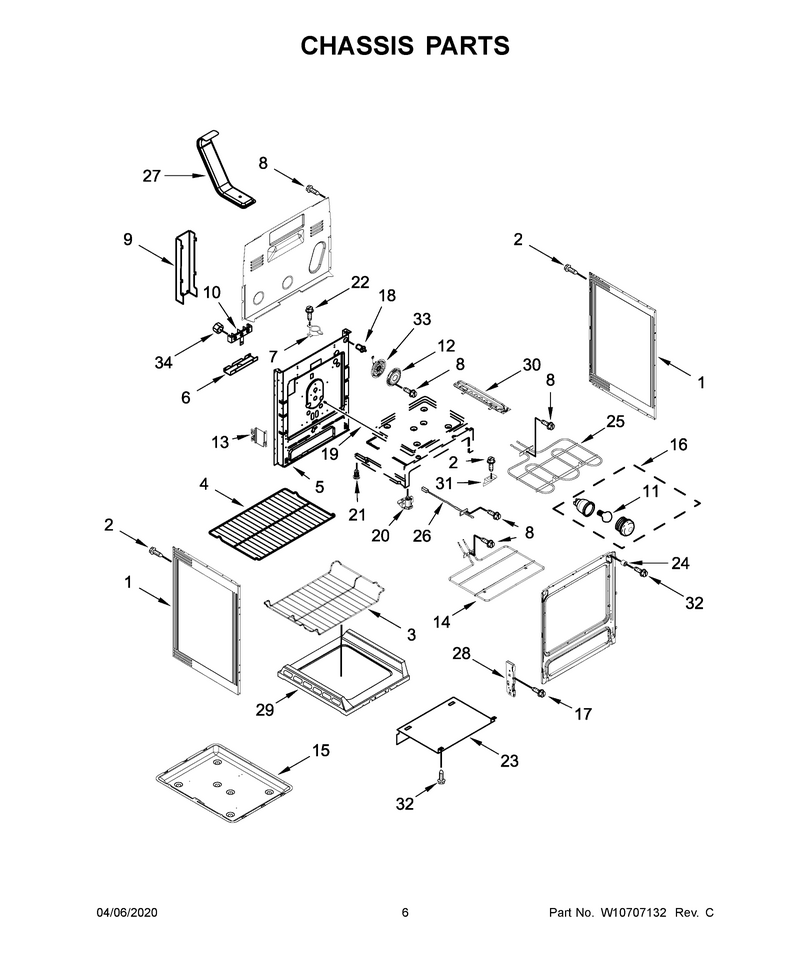

04 - Chassis Parts

...
...
NI
Insulation WPL-WPW10225523
...
1
Panel-Side WPL-WPW10575396
...
1A
Panel-Side WPL-W11730303
...
2
Screw WPL-3196172
...
3
Rack-Oven WPL-WPW10289145
...
4
Rack-Oven WPL-WPW10531060
...
5
Back, Main (not Serviced) WPL-N/P
...
6
Brkt-Srvce WPL-W11728255
...
7
Fuse-Thrml WPL-WP3196548
...
8
Screw WPL-W11233072
...
9
Cover-Blck WPL-WPW10326122
...
10
Block-Term WPL-WPW10245259
...
11
Light Bulb WPL-8009
...
11A
Bulb-Light WPL-WPW10571723
...
12
Cover WPL-WPW10346154
...
13
Bracket, Oven Support WPL-W10273002
...
14
Elmnt-Bake WPL-W10779716
...
15
Bake Pan WPL-W11379357
...
16
Sockt-Lite WPL-W11594027
...
17
Screw WPL-W10777162
...
18
Swtch-Lite WPL-WP9757262
...
19
Rod, Door Switch WPL-W10273192
...
20
Foot-Level WPL-WPW10341186
...
21
Foot-Level WPL-WPW10058460
...
22
Screw WPL-3196172
...
23
Shield, Heat WPL-W10726740
...
24
Spacer WPL-W10877054
...
25
Elmnt-Brol WPL-W11321472
...
26
Sensor WPL-W10833885
...
27
Tube-Vent WPL-WPW10134285
...
28
Hinge-Recv WPL-W10647259
...
29
Bottm-Oven WPL-W10777210
...
30
Rail-Base WPL-WPW10306546
...
30A
Rail-Base WPL-WPW10306546
...
31
Support, Oven Bottom WPL-W10035900
...
32
Screw WPL-WP3196175
...
33
Fan-Convct WPL-W11527111
...
34
Nut WPL-WP3400029

...
...
NI
Accessories, Scraper, Cooktop WPL-WA906B

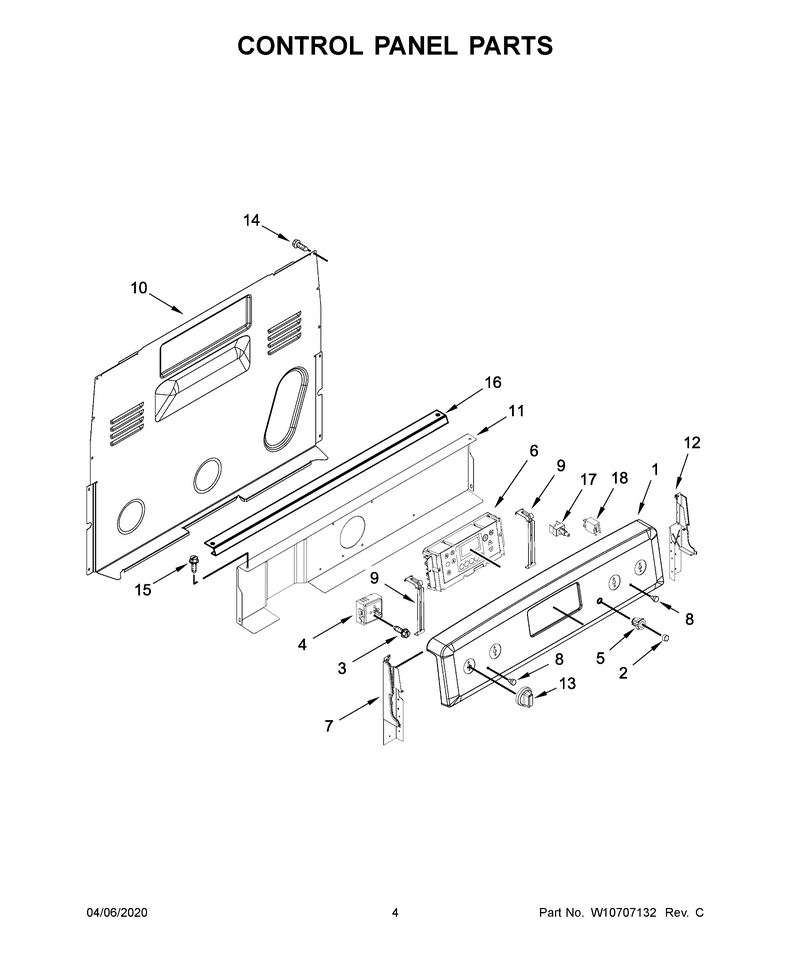

03 - Control Panel Parts

...
...
1
Panl-Cntrl WPL-WPW10655839
...
1A
Panl-Cntrl WPL-WPW10655842
...
1B
Panl-Cntrl WPL-WPW10655844
...
2
Button, Keep Warm (white) WPL-9757492
...
2A
Button, Keep Warm (black) WPL-9758491
...
2B
Buttn-Push WPL-W10918209
...
3
Screw WPL-WP3400882
...
4
Switch-Inf WPL-WP3149404
...
4A
Switch-Inf WPL-WPW10434452
...
4B
Switch-Inf WPL-WPW10411934
...
5
Bezel, Keep Warm (white) WPL-W10217760
...
5A
Bezel, Keep Warm (black) WPL-W10217758
...
5B
Bezel, Keep Warm (stainless) WPL-W10315960
...
6
Cntrl-Elec WPL-WPW10655840
...
6A
Cntrl-Elec WPL-WPW10655843
...
6B
Cntrl-Elec WPL-WPW10655845
...
7
Endcap-Pnl WPL-W11219365
...
7A
Endcap-Pnl WPL-W11219664
...
8
Lens-Light WPL-WP3196068
...
9
Brkt-Mntg WPL-W11230932
...
10
Cover-Rear WPL-WP8272473
...
11
Shield, Heat WPL-W10134247
...
12
Endcap-Pnl WPL-W11219370
...
12A
Endcap-Pnl WPL-W11219665
...
13
Knob WPL-WPW10666901
...
14
Screw WPL-WP3196175
...
15
Screw WPL-W11233072
...
16
Bracket, Console Mounting WPL-W10525121
...
17
Switch-Pb WPL-WP8272820
...
18
Light-Ind WPL-WP8523265

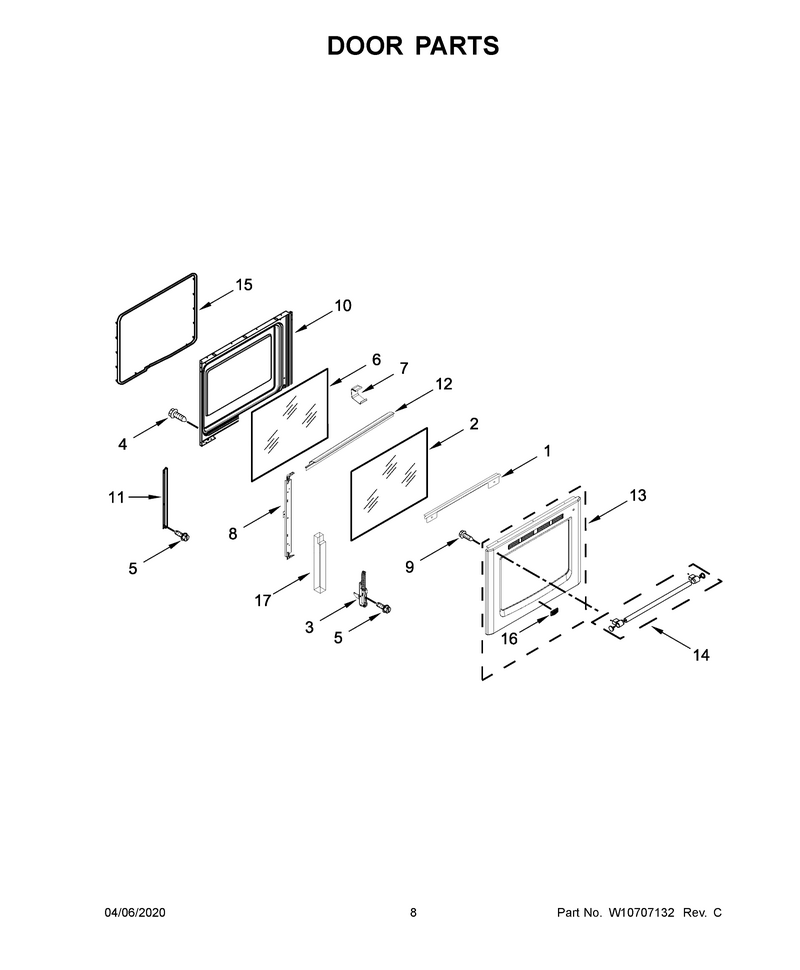

05 - Door Parts

...
...
1
Trim-Door WPL-WPW10330075
...
1A
Trim, Vent (black) WPL-W10339814
...
2
Glass-Door WPL-WPW10615599
...
3
Hinge-Door WPL-WPW10388635
...
4
Screw WPL-WPW10031790
...
5
Screw WPL-W11233072
...
6
Glass-Door WPL-WPW10300487
...
7
Clip, Panel WPL-W10137382
...
8
Brkt-Suprt WPL-W11116956
...
9
Screw WPL-WP8533988
...
10
Liner-Door WPL-WPW10297318
...
11
Bracket, Glass WPL-W10294852
...
12
Bracket, Glass Liner WPL-W10294853
...
13
Panel-Door WPL-WPW10655831
...
13A
Panel-Door WPL-WPW10655834
...
13B
Panel-Door WPL-WPW10655838
...
14
Door Handle, Assembly (white) WPL-W10665830
...
14A
Door Handle, Assembly (black) WPL-W10665829
...
14B
Hndle-Door WPL-WPW10665831
...
15
Gaskt-Door WPL-W11562931
...
16
Nameplate WPL-W10911300
...
17
Insulation WPL-W11688565

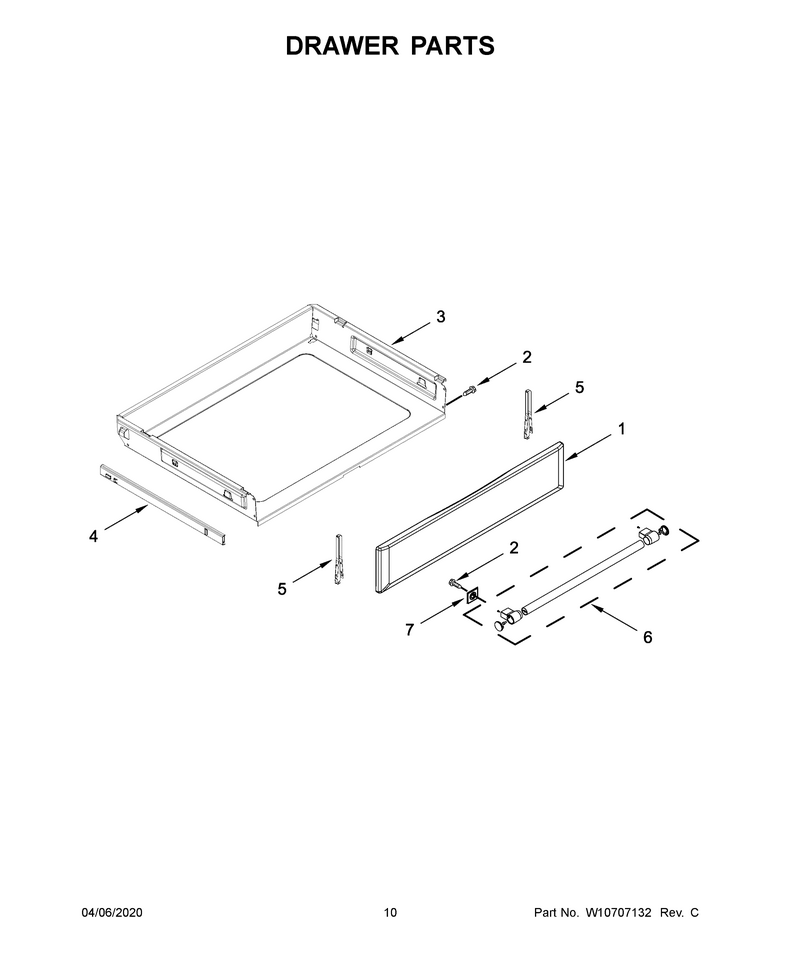

06 - Drawer Parts

...
...
1
Panel, Drawer (white) WPL-W10667934
...
1A
Panel, Drawer (black) WPL-W10667935
...
1B
Panel-Drwr WPL-WPW10432480
...
2
Screw WPL-WP3196175
...
3
Drawr-Util WPL-W10813962
...
4
Slide-Drwr WPL-WPW10441804
...
4A
Slide-Drwr WPL-WPW10441805
...
5
Brkt-Mntg WPL-WPW10318027
...
6
Door Handle, Assembly (white) WPL-W10665830
...
6A
Door Handle, Assembly (black) WPL-W10665829
...
6B
Hndle-Door WPL-WPW10665831
...
7
Spacer WPL-W11190816

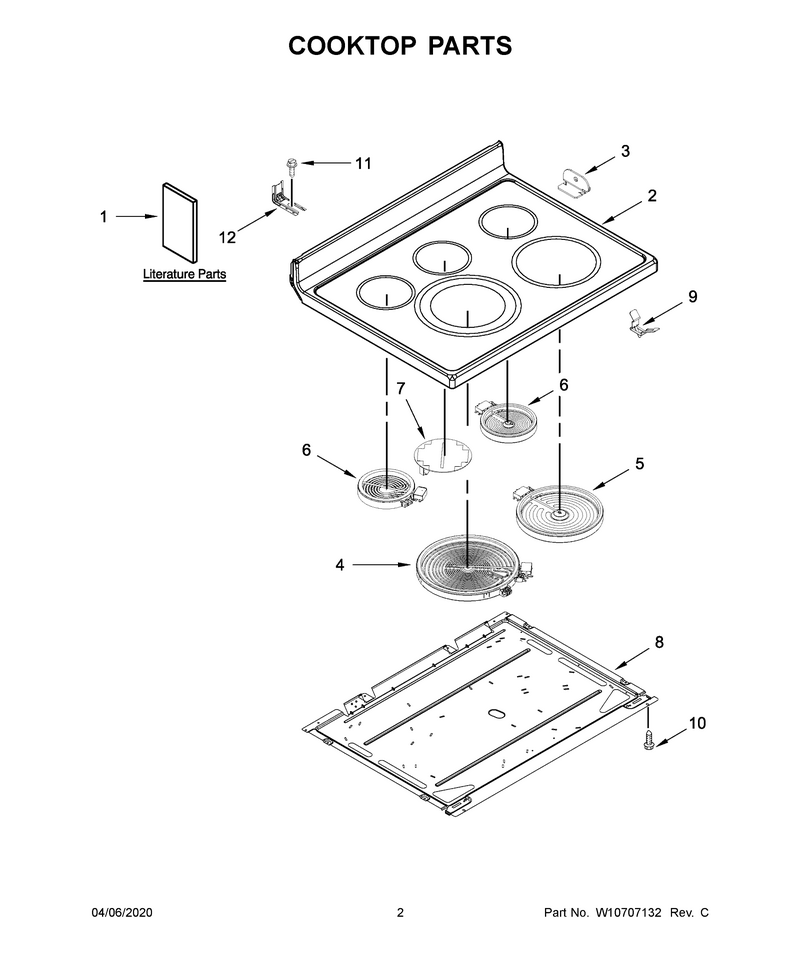

02 - Cooktop Parts

...
...
NI
Harness, Sensor WPL-W11172424
...
1
Installation Instructions WPL-W11047681
...
1A
Use And Care Guide WPL-W10667165
...
1B
Tech Sheet WPL-W10667168
...
1C
Quick Start Guide WPL-W10400064
...
2
Cooktop WPL-W10691695
...
2A
Cooktop WPL-W10691696
...
3
Bracket, Cooktop (left) WPL-W10607641
...
3A
Bracket, Cooktop (right) WPL-W10607642
...
4
Elmnt-Surf WPL-W11517959
...
5
Elmnt-Surf WPL-WPW10251108
...
6
Elmnt-Surf WPL-W11171119
...
7
Elmnt-Surf WPL-W11047668
...
8
Pan WPL-W11244088
...
9
Spring WPL-WPW10225448
...
10
Screw WPL-WP3196175
...
11
Anchor-Tip WPL-WP7101P485-60
...
12
Anchor-Tip WPL-W11447673
