product name

Maytag MED5630HW2

Model: MED5630HW2

Save Part Not Listed?
product name

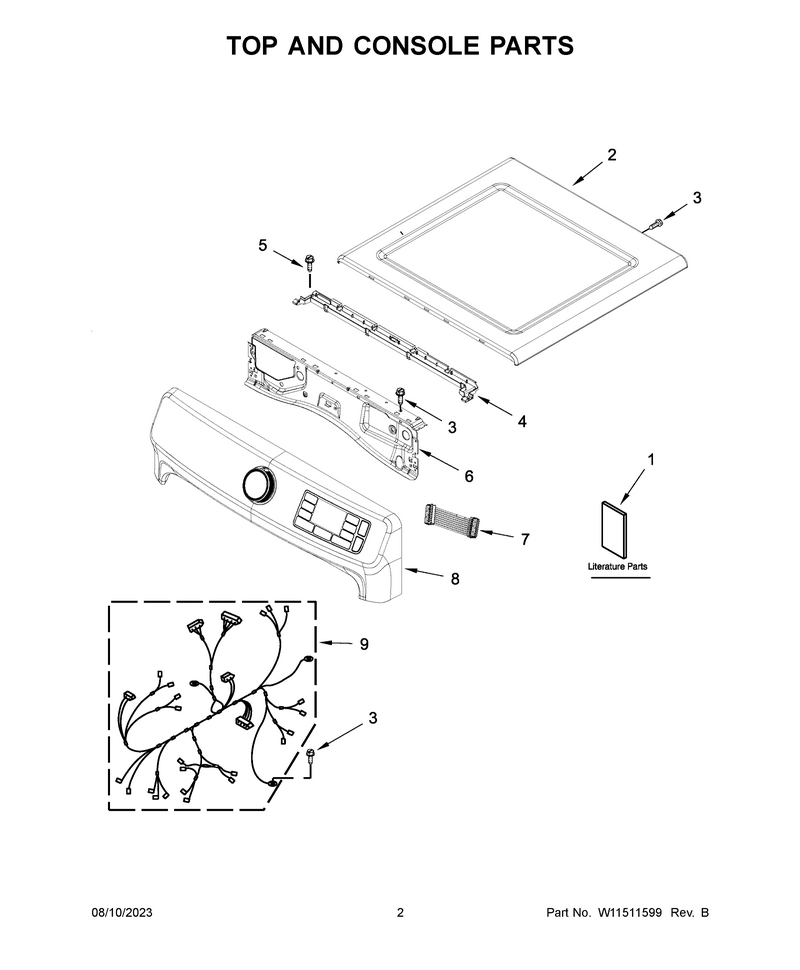

02 - Top And Console Parts

...
...
1
Owners Manual WPL-W11364660
...
1A
Tech Sheet WPL-W11459720
...
1B
Wiring Diagram WPL-W11460669
...
1C
Quick Start Guide WPL-W11356334
...
2
Top WPL-WPW10208383
...
2A
Top WPL-WPW10460919
...
3
Screw WPL-WP488729
...
4
Bracket WPL-W11310027
...
5
Screw WPL-W11686675
...
6
Bracket, Console WPL-W11480682
...
7
Harns-Wire WPL-W11316625
...
8
Console WPL-W11384511
...
8A
Console WPL-W11384512
...
9
Harns-Wire WPL-W11310055

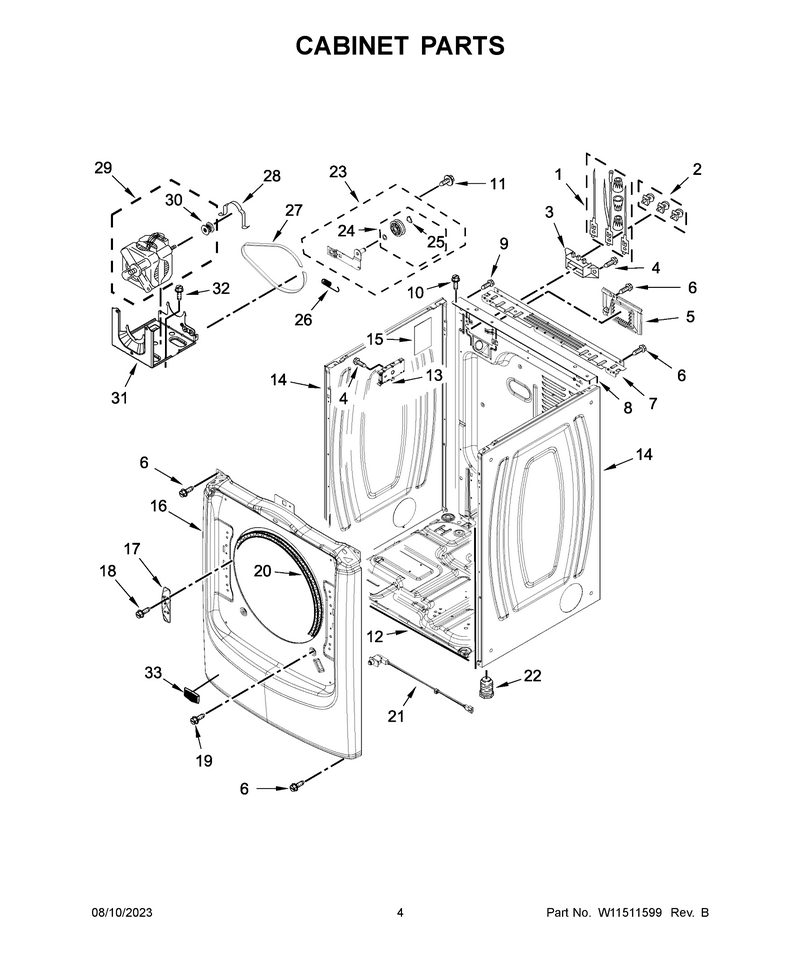

03 - Cabinet Parts

...
...
NI
Dryer Exhaust Kit Not Included, Kit, 4-Way Vent WPL-W10323246
...
1
Terminal, Brass And Tinned (Includes Terminal Block Screw Kit) WPL-279318
...
2
Screw Kit, Terminal Block WPL-279393
...
3
Block-Term WPL-WP3397659
...
4
Screw WPL-WP489463
...
5
Cover WPL-W11662367
...
6
Screw WPL-WP488729
...
7
Bracket WPL-WPW10208382
...
8
Panel, Rear WPL-W10487431
...
9
Screw WPL-W10850756
...
10
Screw WPL-WP308685
...
11
Screw WPL-WP3389420
...
12
Base WPL-W11215531
...
13
Cntrl-Elec WPL-W11741988
...
14
Panel WPL-W11233548
...
14A
Panel WPL-W11315726
...
15
Pad WPL-W11409002
...
16
Panel WPL-W11491471
...
16A
Panel WPL-W11491749
...
17
Strike WPL-WPW10208250
...
18
Screw WPL-W11661566
...
19
Screw WPL-WP308685
...
20
Seal WPL-WP3387242
...
21
Switch-Dor WPL-W11551763
...
22
Feet-Lvlng WPL-49621
...
23
Bracket WPL-W10837240
...
24
Pulley-Idr WPL-279640
...
25
Ring WPL-WPW10512946
...
26
Spring WPL-WPW10446781
...
27
Belt WPL-661570V
...
28
Clamp WPL-WPW10121316
...
29
Motor-Drve WPL-W11364931
...
30
Pulley-Mtr WPL-WP8066184
...
31
Bracket WPL-W11481730
...
32
Screw WPL-WP681414
...
33
Medallion WPL-W10908007

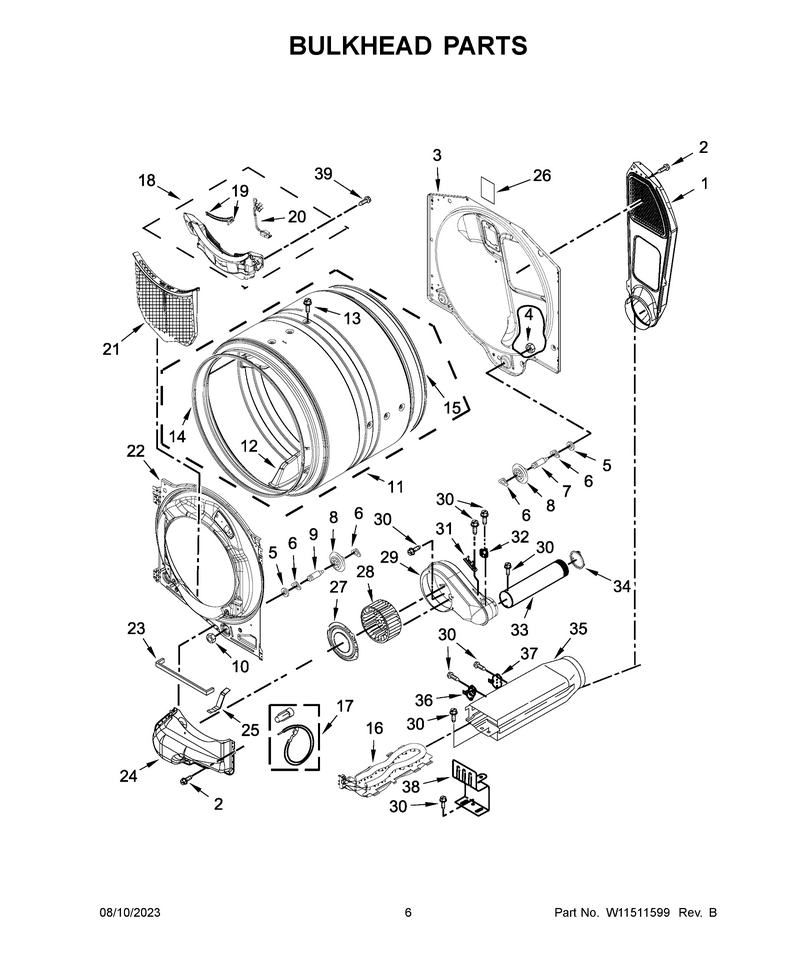

04 - Bulkhead Parts

...
...
1
Duct-Air WPL-W11677720
...
2
Screw WPL-WP488729
...
3
Bulkhead WPL-W11299300
...
4
Nut WPL-WPW10080190
...
5
Washer WPL-W11236646
...
6
Ring WPL-WPW10512946
...
7
Shaft WPL-WPW10359272
...
8
Support WPL-WPW10314173
...
9
Shaft WPL-WPW10359271
...
10
Nut WPL-WPW10080210
...
11
Assembly, Drum (Complete) WPL-W10508188
...
12
Bafffle, Drum WPL-W10416098
...
13
Screw WPL-W10853898
...
14
Seal WPL-W11193479
...
15
Seal WPL-280114
...
16
Element WPL-WP3387747
...
17
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
18
Housng-Out WPL-W10906551
...
19
Electrode WPL-WP3387223
...
20
Harns-Wire WPL-WPW10298258
...
21
Screen WPL-WPW10516085
...
22
Bulkhead WPL-W11712678
...
23
Seal WPL-W11676493
...
24
Duct-Lint WPL-WPW10211896
...
25
Clip, Lint Duct WPL-W10414388
...
26
Pad WPL-W11409002
...
27
Collar WPL-W11688571
...
28
Wheel WPL-WP697772
...
29
Housing WPL-WPW10211911
...
30
Screw WPL-WP693995
...
31
Fuse-Thrml WPL-W10909685
...
32
Thermistor WPL-WP8577274
...
33
Pipe-Exhst WPL-WPW10342188
...
34
Collar WPL-WPW10344699
...
35
Box WPL-W10802681
...
36
Thrmst-Fix WPL-WP8557403
...
37
Kit, Thermal Cut-Off (Includes Thermostat) WPL-280148
...
38
Bracket, Heater Box WPL-8066099
...
39
Screw WPL-WP3387230

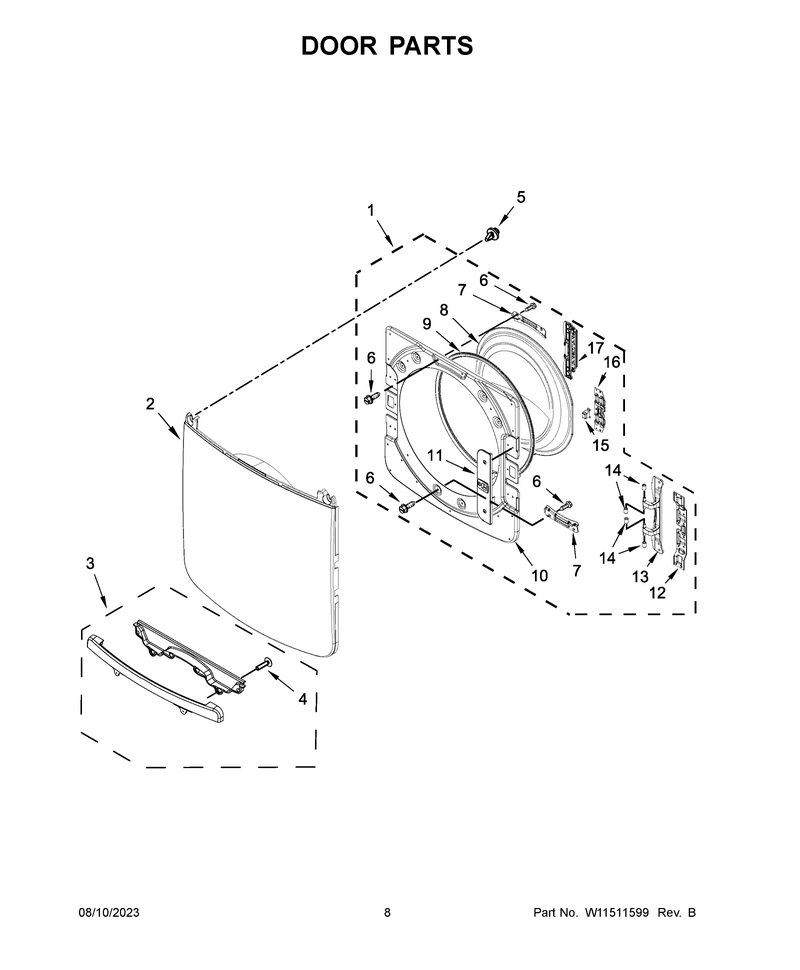

05 - Door Parts

...
...
1
Door WPL-W11465962
...
2
Door WPL-W11310052
...
3
Handle, Door (Black) WPL-W10626039
...
4
Screw WPL-W10850046
...
5
Bumper WPL-W11310051
...
6
Screw WPL-W11661566
...
7
Bracket, Glass WPL-W11096008
...
8
Window WPL-W11310036
...
9
Seal WPL-W11310035
...
10
Door WPL-W11491634
...
11
Cover WPL-W11310050
...
12
Plate WPL-WPW10208419
...
13
Hinge WPL-WPW10208415
...
14
Cap WPL-WPW10208398
...
15
Catch WPL-W11240283
...
16
Catch WPL-WPW10208254
...
17
Hinge WPL-W11051465

...
...
NI
Power Cord, 6', 30 Amp, 4 Wire, Dryer Cord WPL-PT600L
