Maytag MDG16CSBGW (BOM MDG16CSBGW)

Model: MDG16CSBGW (BOM MDG16CSBGW)

Save Part Not Listed?
product name

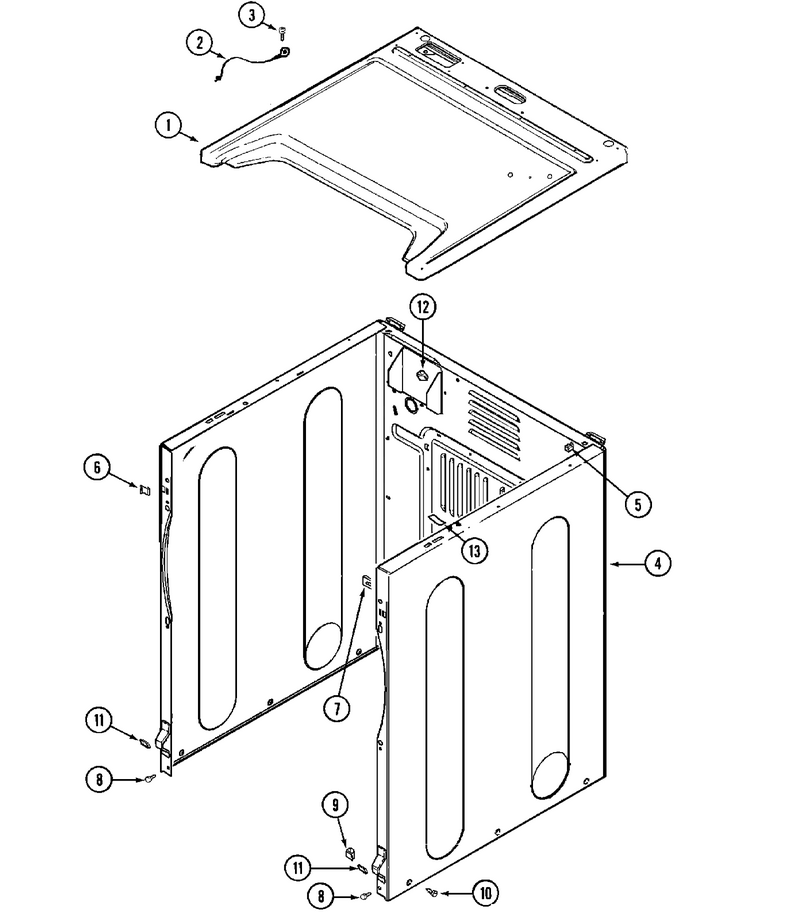

03 - Cabinet-Front

...
...
001
Cover, Top (wht) WPL-33001949
...
002
Wire, Ground WPL-22001959
...
003
Screw WPL-WP489128
...
004
Cabinet Assy (wht-As Pk) WPL-NLA
...
005
Fastener WPL-310933
...
006
Clip WPL-WP22002049
...
007
Front Panel Bracket/fastener WPL-213280
...
008
Screw WPL-W11573574
...
009
Clip, Wire Harness WPL-Y310376
...
010
Screw, Cabinet WPL-213007
...
011
Clip- Lowe WPL-WP22002239
...
012
Clip, Wire Harness WPL-Y310376
...
013
Strap, Top Cover Support WPL-33001836

...
...
001
Wiring Information WPL-NLA

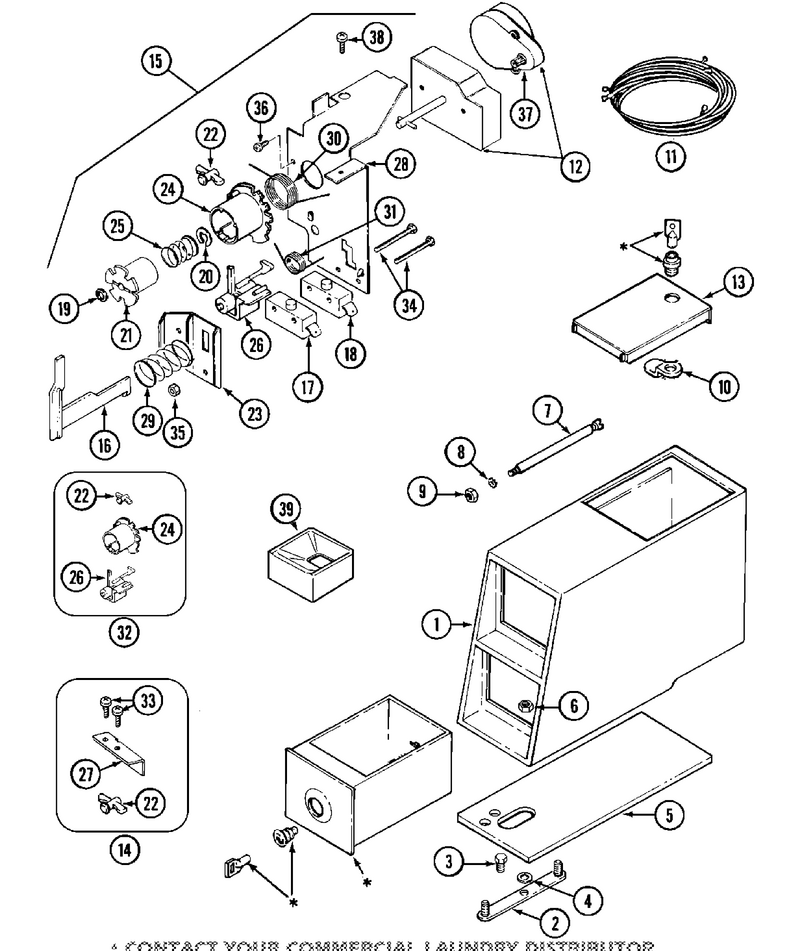

02 - Control Center

...
...
001
Case WPL-WP22002478
...
002
Strap, Mounting WPL-22001810
...
003
Screw WPL-WP90767
...
004
Washer, Strap Screw WPL-910309
...
005
Gasket, Control Center (wht) WPL-22002072
...
006
Nut WPL-WP62739
...
007
Bolt WPL-WP8576635
...
008
Lockwasher, Locking Bolt WPL-910387
...
009
Nut, Locking Bolt WPL-Y052721
...
010
Cam, Locking WPL-NLA
...
011
Wire Harness, Timer WPL-33001195
...
012
Timer (240-50) WPL-33002136
...
013
Grommet, Double WPL-22001881
...
014
Actuator, Dryer Kit WPL-33002598
...
015
Torsion Timer Assembly WPL-33001276
...
016
Slider WPL-33002968
...
017
Switch, By-Pass (motor) WPL-305798
...
018
Switch WPL-WPY305799
...
019
Retainer, Spring WPL-211790
...
020
Ring-E WPL-WP98392
...
021
Driver, Index Wheel WPL-314330
...
022
Actuator Kit WPL-Y308109
...
023
Bracket, Switch & Slider WPL-314339
...
024
Index Whee WPL-WP314546
...
025
Spring- Ti WPL-WP211065
...
026
Actuator, Switch WPL-314548
...
027
Bracket, Coin Slide WPL-33001708
...
028
Timer Bracket WPL-33002702
...
029
Spring, Helical WPL-NLA
...
030
Spring, Torsion Return WPL-314331
...
031
Spring, Actuator WPL-314332
...
032
Actuator Kit WPL-306104
...
033
Screw WPL-W11684507
...
034
Screw, By-Pass Switches WPL-315277
...
035
Nut K WPL-M0282005
...
036
Screw WPL-WP488234
...
037
Not Required Part Or See Note WPL-W10124350
...
038
Screw WPL-WPW10139210
...
039
Weld Assy., Funnel WPL-22002533

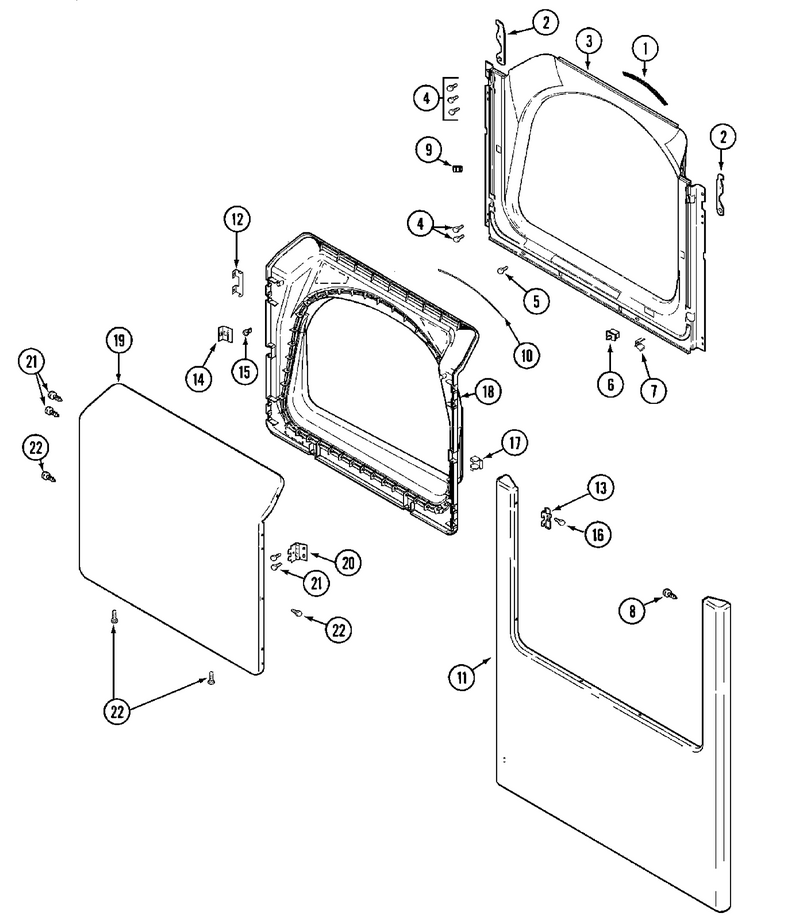

04 - Door

...
...
001
Seal- Shro WPL-WP33001767
...
002
Cap, Knob (bsq) WPL-22002597
...
003
Shroud (wht) WPL-33001900
...
004
Screw WPL-W11573574
...
005
Screw, Shroud & Outlet Duct WPL-33001768
...
006
Switch-Pts WPL-WP33002239
...
007
Bracket, Hinge WPL-33001760
...
008
Screw WPL-WP22002012
...
009
Door Catch La-1003 WPL-LA-1003
...
010
Seal-Door WPL-WP33002094
...
011
Fastener, Front Panel WPL-213280
...
012
Clip, Door (double) WPL-22002038
...
013
Cover WPL-WP33001764
...
014
Bracket- S WPL-WP33001793
...
015
Strike- Do WPL-WP33001761
...
016
Screw WPL-WP33001787
...
017
Plug, Inner Door WPL-33001763
...
018
Door, Inner (wht) WPL-33001899
...
019
Door, Outer (wht) WPL-33001904
...
020
Hinge- Doo WPL-WP33001759
...
021
Screw WPL-WP98006631
...
022
Screw WPL-WP22002063

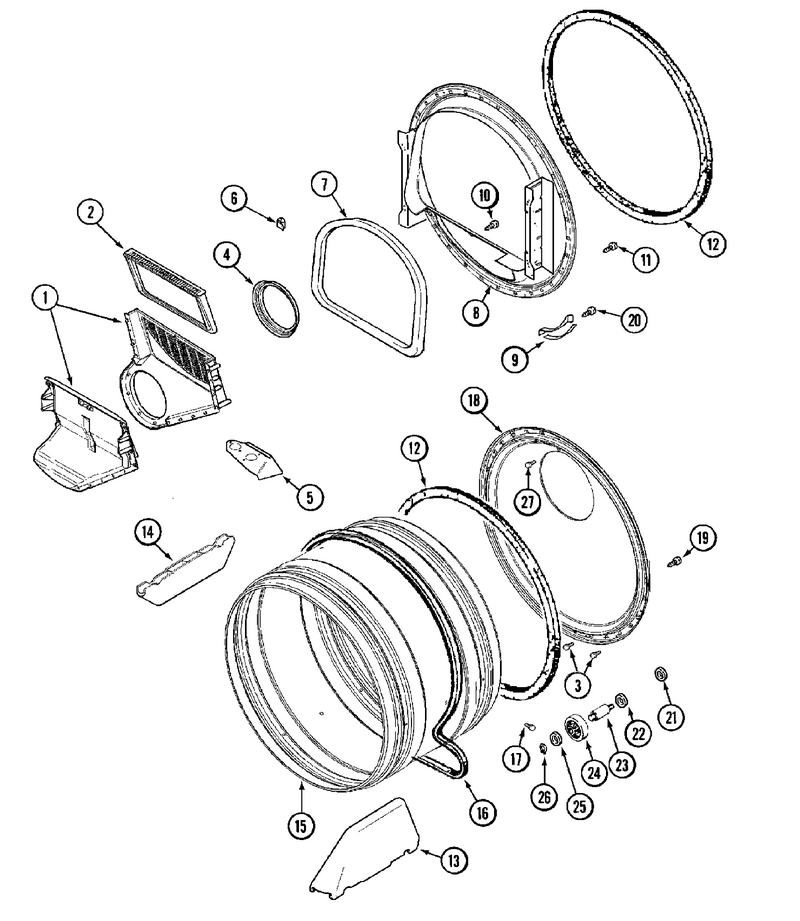

06 - Tumbler

...
...
001
Outlet Duct Assembly WPL-33001799
...
002
Lint Filte WPL-WP33002790
...
003
Screw WPL-WP489128
...
004
Seal, Blower WPL-33002560
...
005
Cover, Thermostat (elec Only) WPL-33001837
...
006
Retainer WPL-WP22003298
...
007
Seal- Shro WPL-WP33001767
...
008
Front, Tumbler (w/seal) WPL-33001802
...
009
Tumbler Bearing Kit ----W WPL-306508
...
010
Screw, Outlet Duct (phillips) WPL-NLA
...
011
Screw WPL-WP33002917
...
012
Seal WPL-WP33001807
...
013
Baffle-Drm WPL-WP33002032
...
014
Baffle-Drm WPL-WP33001755
...
015
Tumbler WPL-33001889
...
016
Belt WPL-WP33002535
...
017
Screw, Baffle WPL-33001788
...
018
Back, Tumbler (w/seal) WPL-33001801
...
019
Screw WPL-WP1163839
...
020
Rivet WPL-WP210720
...
021
Nut- Hex WPL-WP33001443
...
022
Washer WPL-WP312535
...
023
Shaft WPL-WP6-3129480
...
024
Drum Roller/washer Assy. WPL-12001541
...
025
Washer WPL-WP312535
...
026
Ring-Retnr WPL-WP9703438
...
027
Screw, Inlet Duct WPL-210932

...
...
001
Housing- B WPL-WP33001789
...
002
Duct Assy., Exhaust WPL-33001800
...
003
Ring-Retnr WPL-WP9703438
...
004
Wheel, Blower WPL-33001790
...
005
Clamp WPL-WP312967
...
006
Screw WPL-WP33002917
...
007
Screw WPL-WPY313561
...
008
Thermostat WPL-WP306966
...
009
Screw WPL-WP489128
...
010
Fuse- Ther WPL-WP33001762
...
011
Screw, Thermal Cut-Off WPL-NLA
...
012
Foot- Rubb WPL-WPY314137
...
013
Cover, Blower Housing WPL-33002711
...
014
Screw WPL-WP1163839
...
015
Motor-Drve WPL-W10197708
...
016
Clip- Moto WPL-WPY015825
...
017
Transformer WPL-33001948
...
018
Clip, Wire Harness WPL-Y310376
...
019
Assembly, Spring & Plug WPL-33002459
...
020
Idler Arm WPL-WP6-3705180
...
021
Washer WPL-WPY312527
...
022
Bearing WPL-WP6-3700340
...
023
Ring-E WPL-WP354987
...
024
Sleeve WPL-WP315772
...
025
Screw WPL-WPY014874
...
026
Screw WPL-WPY313561
...
027
Screw WPL-WPY313561
...
028
Base, (lwr)----Na WPL-NLA
...
029
Screw WPL-WP3177991
...
030
Retainer WPL-WP22003298
...
031
Spring, Wire Harness WPL-410490
...
032
Feet-Lvlng WPL-W10176519
...
033
Nut WPL-WP62739

...
...
001
Wire Harness, Timer WPL-33001195
...
002
Harness, Wire Main WPL-33002771
...
003
Use & Care Manual WPL-33002671
...
004
Manual, Owners WPL-33002712

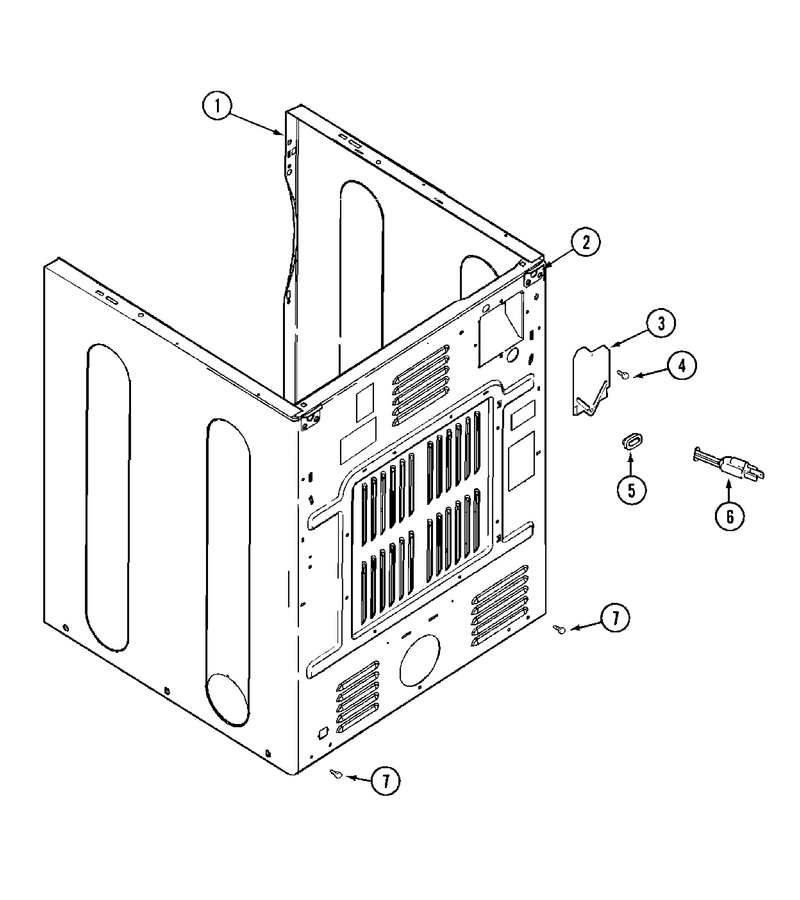

05 - Cabinet-Rear

...
...
001
Cabinet Assy (wht-As Pk) WPL-NLA
...
002
Bracket, Cabinet Hinge WPL-NLA
...
003
Cover, Terminal Block WPL-33001795
...
004
Screw WPL-WP910654
...
005
Grommet, Cord Export WPL-216183
...
006
Cord Adapter Assy WPL-22004405
...
007
Screw WPL-W11573574

...
...
001
Lp Gas Con WPL-W10402145
...
002
Conversion Kit (lp To Natural) WPL-Y308377
...
003
Screw, Igniter WPL-304971
...
004
Ignitor WPL-4391996
...
005
Burner Asy WPL-WP33002793
...
006
Gas Valve WPL-WP307927
...
007
Coil-Valve WPL-279834
...
008
Coil-Valve WPL-279834
...
009
Screw WPL-WPY313561
...
010
Bracket, Gas Control WPL-33002710
...
011
Screw WPL-WP90767
...
012
Screw WPL-W11573574
...
013
Elbow Union Assembly WPL-3406051
...
014
Pipe & Bracket Assy. WPL-33001735
...
015
Screw WPL-WP90767
...
016
Inlet Duct WPL-33002952
...
017
Thermostat WPL-WP303395
...
018
Sensor WPL-WP338906
...
019
Cone Assy., Combustion WPL-33001946
...
020
Cone, Extension (combustion) WPL-NLA
...
021
Retainer, Heater Chamber WPL-Y312890
...
022
Cap, Gas Pipe WPL-33001693
...
023
Screw WPL-WP489128

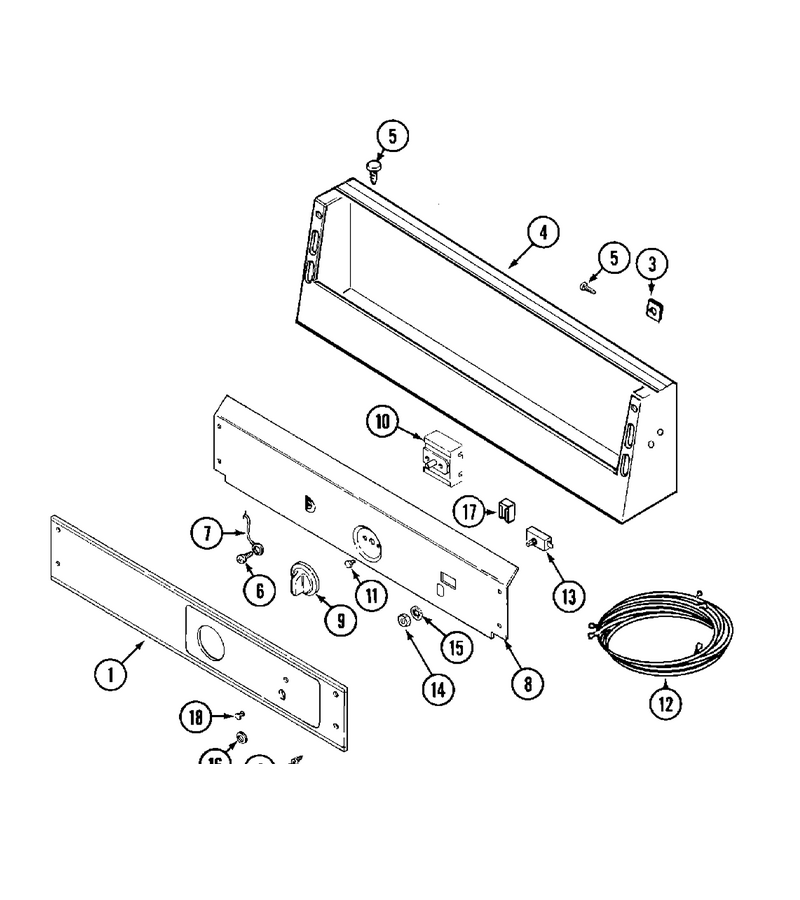

01 - Control Panel

...
...
001
Panel, Control WPL-NLA
...
002
Screw WPL-WPW10131119
...
003
Fastener, Control Panel WPL-215003
...
004
Console (wht) WPL-22003089
...
005
Screw WPL-WP90767
...
006
Screw WPL-WP489399
...
007
Wire, Ground WPL-205810
...
008
Bracket, Back (wht) WPL-33002522
...
009
Knob, Selector Switch WPL-306938
...
010
Switch, Cycle Selector WPL-33002276
...
011
Screw WPL-WP488234
...
012
Harness, Wire Main WPL-33002771
...
013
Switch-Pts WPL-WPW10149462
...
014
Nut, Switch WPL-Y312706
...
015
Washer WPL-WPW10139799
...
016
Knurled Nu WPL-WPY312702
...
017
Lamp-Indicator WPL-W10139459
...
018
Lens- Indi WPL-WP215564
...
019
Manual, Service-No Refund WPL-16009021
