Maytag MDE26CTAEL

Model: MDE26CTAEL

Save Part Not Listed?
product name

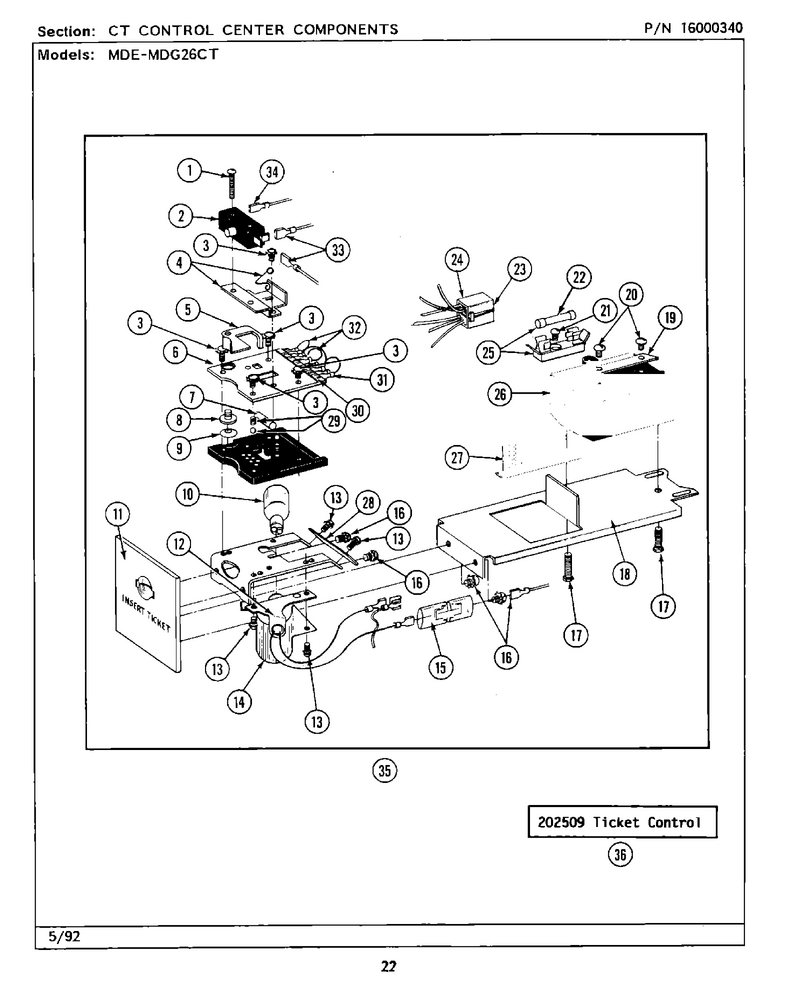

05 - Ct Control Center Components

...
...
001
Screw WPL-NLA
...
002
Switch, Ticket Control WPL-204882
...
003
Sems Screw (no.4-40 X 1/2 Inc) WPL-NLA
...
004
Cam Plate Assembly WPL-204881
...
005
Switch Lever WPL-214218
...
006
Circuit Board WPL-212452
...
007
Roller, Cam WPL-214275
...
008
Adjustment Thumb Wheel WPL-214220
...
009
Spring Washer WPL-NLA
...
010
Bulb-Light WPL-WPA3167501
...
011
Front Plate, Ticket Control WPL-NLA
...
012
Lamp Socket W/bracket WPL-NLA
...
013
Screw, Shield To Control WPL-NLA
...
014
Shield, Heat Lamp WPL-212533
...
015
Connector WPL-WP75614
...
016
Screw WPL-WP488234
...
017
Screw WPL-WP90767
...
018
Bracket, Ticket Assembly WPL-NLA
...
019
Idler Sq. WPL-WFR311612
...
020
Screw WPL-Y311711
...
021
Screw (no.6 X 1/4 Inch) WPL-NLA
...
022
Fuse WPL-WP22001555
...
023
Pin, Plug WPL-NLA
...
024
Harness, Ticket Control WPL-NLA
...
025
Fuse Block W/fuse WPL-NLA
...
026
Control As WPL-22003292
...
027
Shield WPL-NLA
...
028
Ticket Deflector WPL-NLA
...
029
Contact Ball Kit WPL-203140
...
030
Overlay, Circuit Board WPL-NLA
...
031
Spade (miniature) WPL-Y311550
...
032
Jumper Wire (black) WPL-NLA
...
033
Spade Connector WPL-NLA
...
034
Terminal WPL-WP248562
...
035
Ticket Receiver Assembly WPL-NLA
...
036
Ticket Control WPL-202509

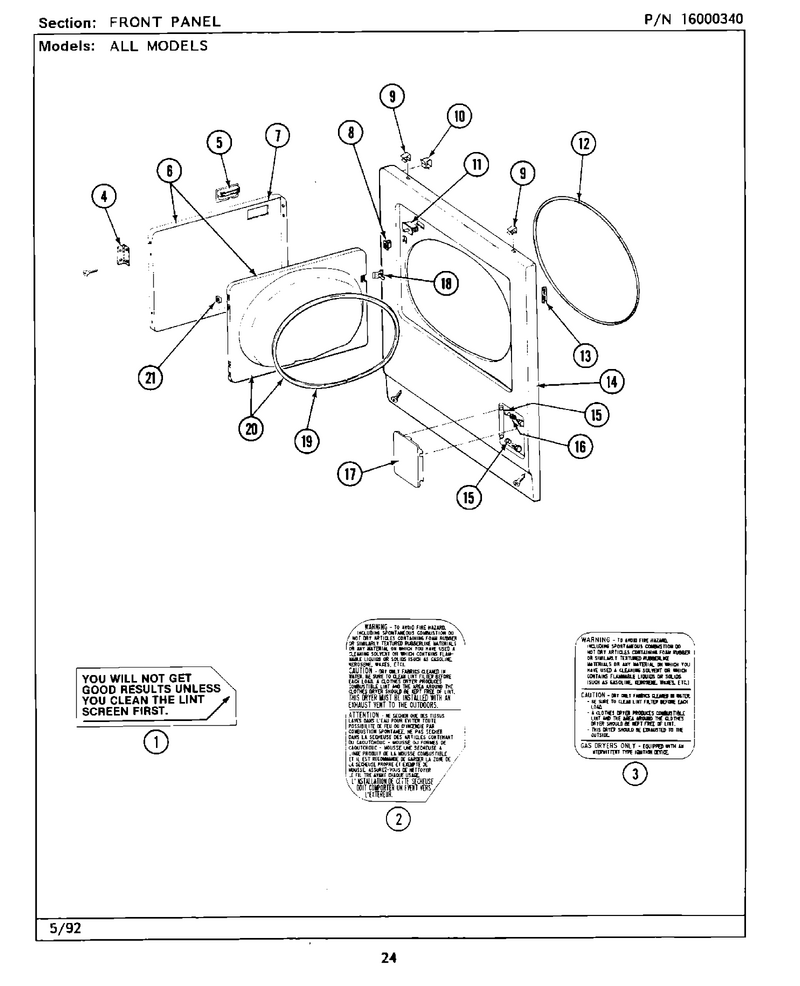

06 - Front Panel

...
...
001
Label, Lint Screen Instr. WPL-Y313340
...
002
Label, Instruction WPL-314941
...
003
Instruction Label WPL-NLA
...
004
Hinge WPL-307099
...
005
Handle (wht) WPL-314946
...
006
(alm) WPL-NLA
...
007
(alm) WPL-NLA
...
008
Door Latch Kit--W WPL-306436
...
009
Fastener- WPL-WP22001650
...
010
Clip, Wire Harness WPL-Y310376
...
011
Switch-Dor WPL-W10169313
...
012
Seal, Front Panel WPL-314937
...
013
Twin Fastener WPL-Y313907
...
014
Panel, Front (wht) WPL-NLA
...
015
Bushing, Access Stud WPL-NLA
...
016
Sleeve, Access Panel Stud Part Not Used WPL-312369
...
017
Access Door (wht) WPL-NLA
...
018
Strike- Do WPL-WP33001305
...
019
Door Seal WPL-314935
...
020
Inner Door WPL-Y308070
...
021
Clip, Door Liner (outer Pnl) WPL-Y313910

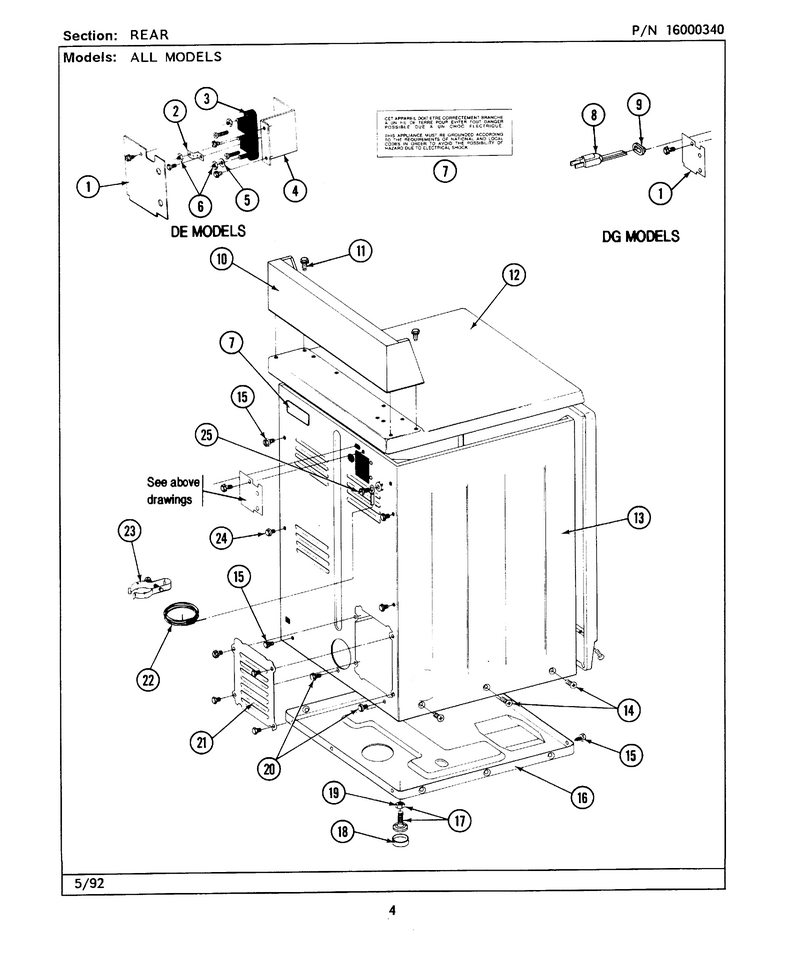

02 - Rear

...
...
001
Cover, Terminal WPL-Y312905
...
002
Screw WPL-WP489483
...
003
Block, Terminal WPL-400008
...
004
Screw WPL-WPY313561
...
005
Washer- Te WPL-WPY311270
...
006
Nut WPL-WP112432
...
007
Label, Electrical Instr. Part Not Used-Gas Models Only WPL-214519
...
008
Cord, Power (canada) WPL-305168
...
009
Grommet, Cord Part Not Used-Gas Models Only WPL-211881
...
010
Control Cover (wht) WPL-NLA
...
011
Screw WPL-WP90767
...
012
(alm) WPL-NLA
...
013
Cabinet (wht) WPL-NLA
...
014
Screw, Cabinet WPL-213007
...
015
Screw WPL-WPY313561
...
016
Base Assy. WPL-Y303361
...
017
Feet-Lvlng WPL-W10176519
...
018
Foot- Rubb WPL-WPY314137
...
019
Nut WPL-WP62739
...
020
Screw WPL-WP1163839
...
021
Screw WPL-WP90767
...
022
Wire WPL-WP311155
...
023
Screw WPL-NLA
...
024
Screw WPL-WP1163839
...
025
Screw & Washer Assy. WPL-NLA

09 - Motor Drive, Blower & Base Frame

...
...
001
Screw WPL-WPW10116751
...
002
Ring-Retnr WPL-WP9703438
...
003
Clamp WPL-WP312967
...
004
Blower Wheel Assembly & Clamp WPL-Y303836
...
005
Housing, Blower WPL-Y312893
...
006
Wire, Ground WPL-901220
...
007
Motor-Drve WPL-W10410999
...
008
Switch, Motor Production No.3-3358-2, 3-3358-4 WPL-Y303877
...
009
Clip- Moto WPL-WPY015825
...
010
Set Screw, Pulley WPL-Y053241
...
011
Pulley, Motor (w/set Screw) WPL-Y305185
...
012
Screw WPL-WP488234
...
013
Idler Spring Assembly WPL-Y303945
...
014
Belt WPL-WPY312959
...
015
Ring-E WPL-WP354987
...
016
Washer WPL-WPY312527
...
017
Pulley WPL-WP6-3037050
...
018
Screw WPL-WPY014874
...
019
Sleeve WPL-WP315772
...
020
Idler Arm WPL-WP6-3033630
...
021
Screw WPL-WP90767
...
022
Spacer WPL-WPW10116756
...
023
Support, Motor WPL-NLA
...
024
Screw WPL-WP1163839
...
025
Screw WPL-WPY313561
...
026
Cover, Blower WPL-314778
...
027
Seal- Blow WPL-WPY312901
...
028
Pad WPL-WP210684
...
029
Leg, Adjustable (w/nut) WPL-22003428
...
030
Nut- Lock WPL-WP210385
...
031
Base Assy. WPL-Y303361
...
032
Clip, Wire Harness WPL-Y310376
...
033
Exhaust Duct Assy. WPL-Y303442
...
034
Spring, Wire Harness WPL-410490
...
035
Retainer- WPL-W10116752
...
036
Relay- Hea WPL-WP306199

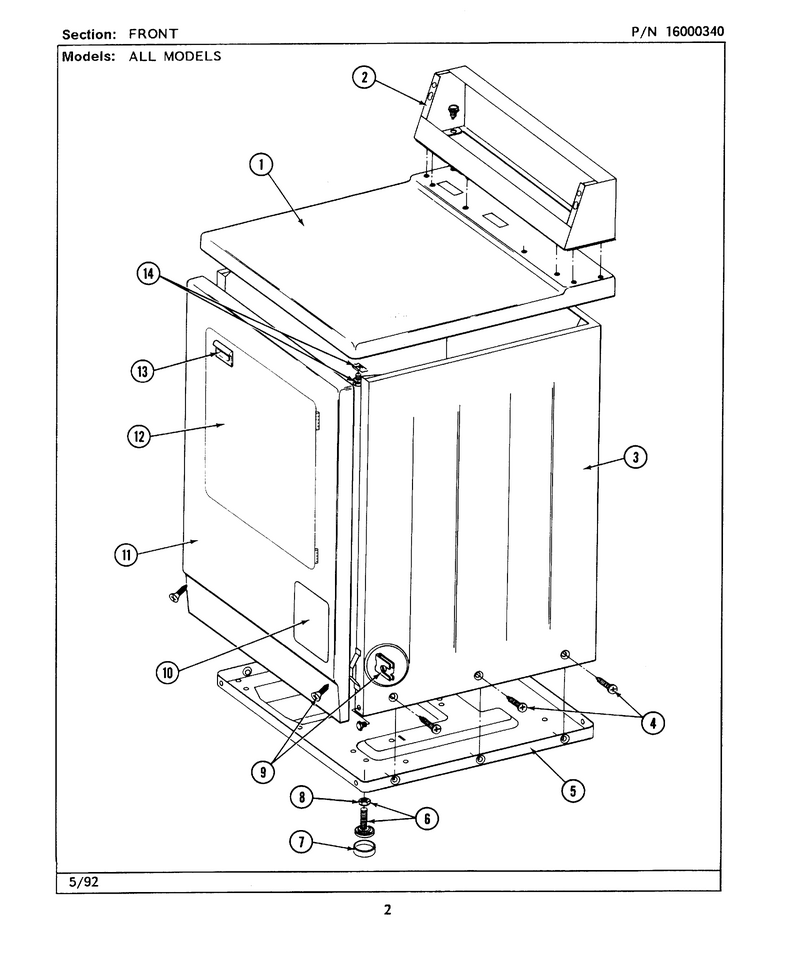

01 - Front

...
...
001
(alm) WPL-NLA
...
002
Control Cover (wht) WPL-NLA
...
003
Cabinet (wht) WPL-NLA
...
004
Screw, Cabinet WPL-213007
...
005
Base Assy. WPL-Y303361
...
006
Feet-Lvlng WPL-W10176519
...
007
Foot- Rubb WPL-WPY314137
...
008
Nut WPL-WP62739
...
009
Screw & Fstner Assy(frt.panel) WPL-204439
...
010
(part Not Used-Gas Only) WPL-302542L
...
011
Front Panel Assy. (wht) WPL-NLA
...
012
(alm) WPL-NLA
...
013
(h. Wheat) WPL-NLA
...
014
Screw & Fastener Asy. WPL-204445

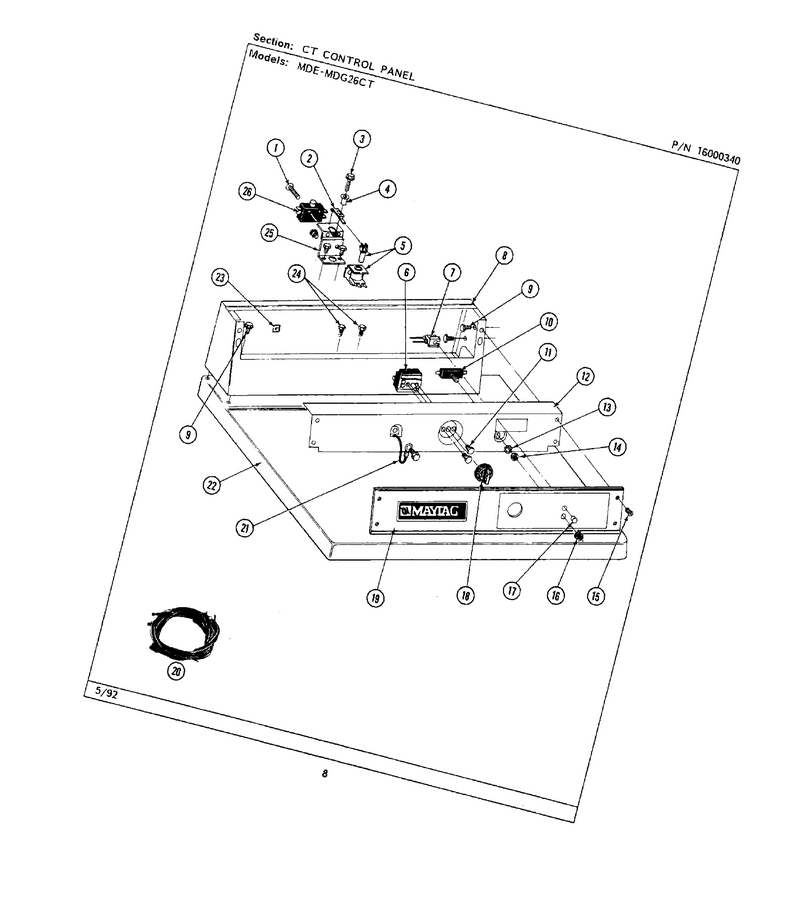

03 - Ct Control Panel

...
...
001
Screw WPL-M0227520
...
002
Spring Lever, Relay WPL-NLA
...
003
Screw WPL-212949
...
004
Spacer, Advance Relay WPL-NLA
...
005
Solenoid, Relay Assembly WPL-305393
...
006
Switch-Cyc WPL-WPW10327105
...
007
Pilot Light WPL-NLA
...
008
Control Cover (wht) WPL-NLA
...
009
Screw WPL-WP90767
...
010
Switch-Pts WPL-WPW10149462
...
011
Screw WPL-WP488234
...
012
(alm) WPL-NLA
...
013
Washer WPL-WPW10139799
...
014
Hex Nut, Switch WPL-Y312706
...
015
Screw WPL-WP1163283
...
016
Knurled Nu WPL-WPY312702
...
017
Lens- Indi WPL-WP215564
...
018
Knob, Selector Switch WPL-306938
...
019
Control Panel WPL-NLA
...
020
Wire Harness WPL-NLA
...
021
Screw WPL-WP489399
...
022
(alm) WPL-NLA
...
023
Fastener WPL-215003
...
024
Screw WPL-WP90767
...
025
Screw WPL-WP90767
...
026
Switch For Relay WPL-Y303787

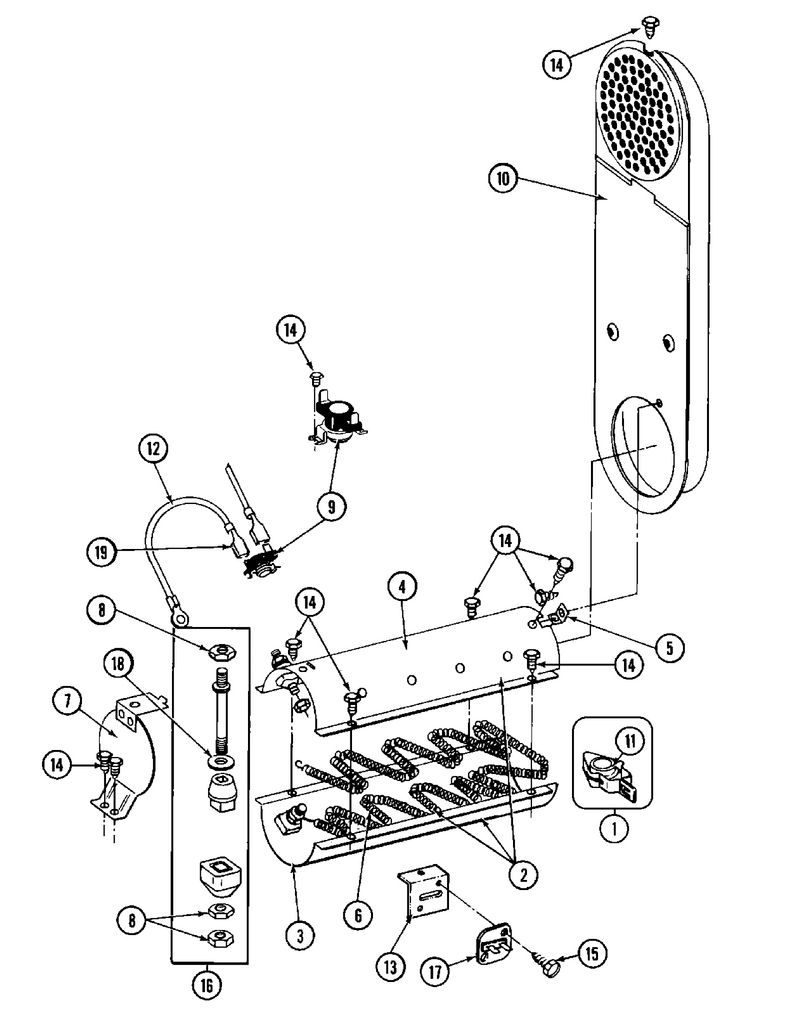

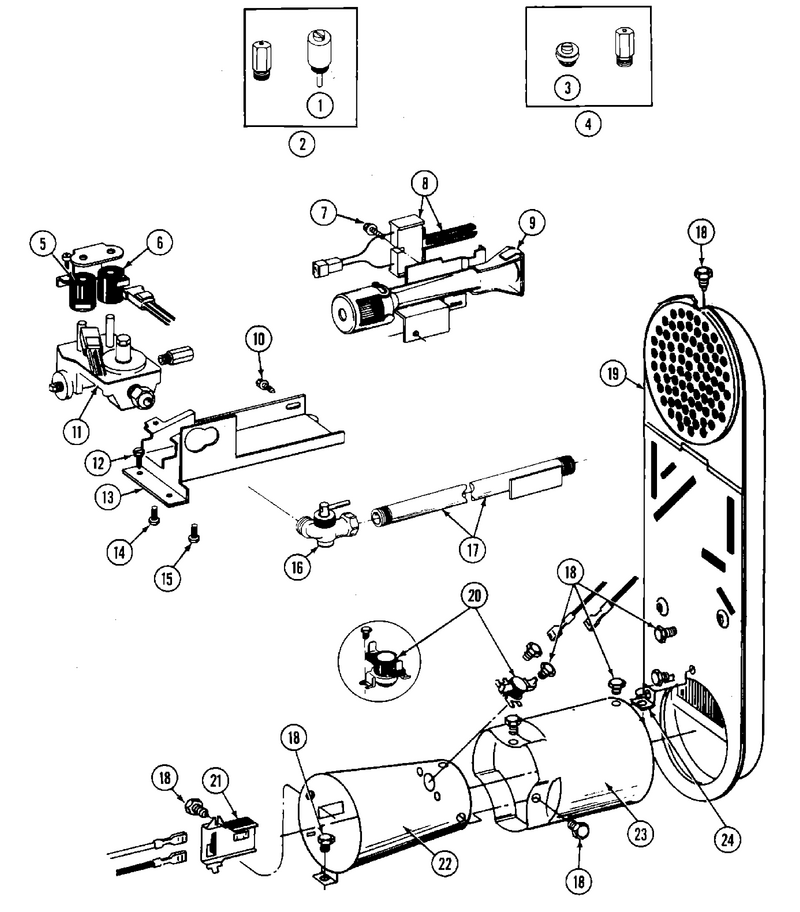

08 - Heater (a3 Series)

...
...
001
Screw WPL-WP90767
...
002
Inlet Duct Assy. WPL-NLA
...
003
Heater Enclosure WPL-314995
...
004
Bracket, Thermal Fuse WPL-315346
...
005
Screw WPL-NLA
...
006
Fuse-Thrml WPL-WP307473
...
007
Insulator, Terminal WPL-314998
...
008
Element WPL-WPW10116747
...
009
Shield, Radiant WPL-314999
...
010
Screw WPL-NLA
...
011
Thrmst-Fix WPL-WP303396
...
012
Heater Assy. Complete (208v) WPL-307471

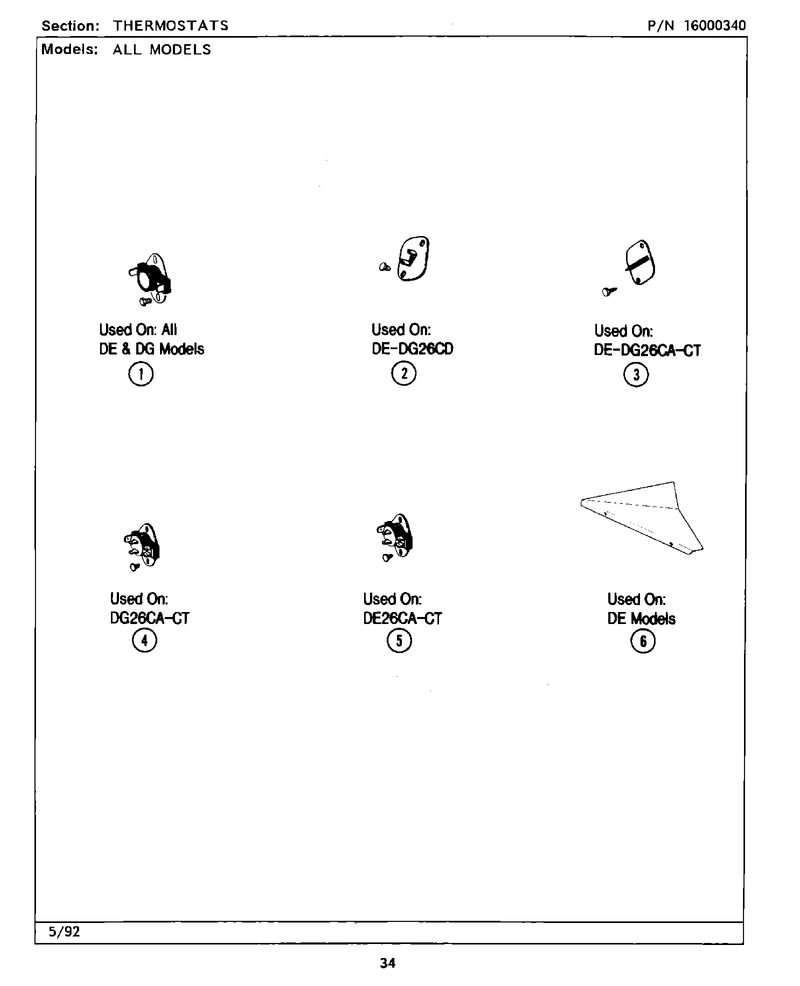

10 - Thermostats

...
...
001
Screw WPL-WP90767
...
002
Screw WPL-WP90767
...
003
Screw WPL-NLA
...
004
Screw WPL-WP90767
...
005
Screw WPL-WP90767
...
006
Screw WPL-WP1163839

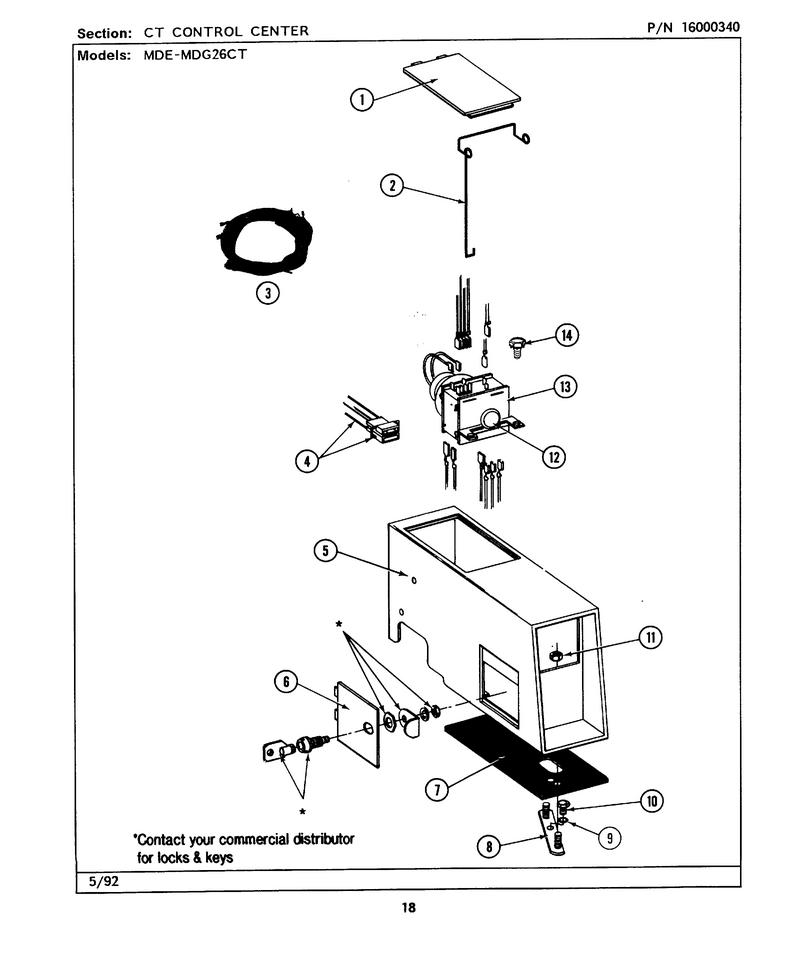

04 - Ct Control Center

...
...
001
Access Door (wht) WPL-NLA
...
002
Latch, Access Door WPL-214878
...
003
Wire Harness WPL-NLA
...
004
Harness, Ticket Control WPL-NLA
...
005
Outer Case (wht) WPL-NLA
...
006
Access Door (wht) WPL-NLA
...
007
Gasket, Meter Case WPL-214660
...
008
Mtg. Strap----Na WPL-NLA
...
009
Washer WPL-910309
...
010
Screw WPL-WP90767
...
011
Nut WPL-WP62739
...
012
Knob, Timer WPL-213089
...
013
(37.5 Mins. For 303799 & 30714 WPL-305868
...
014
Screw WPL-WP90767

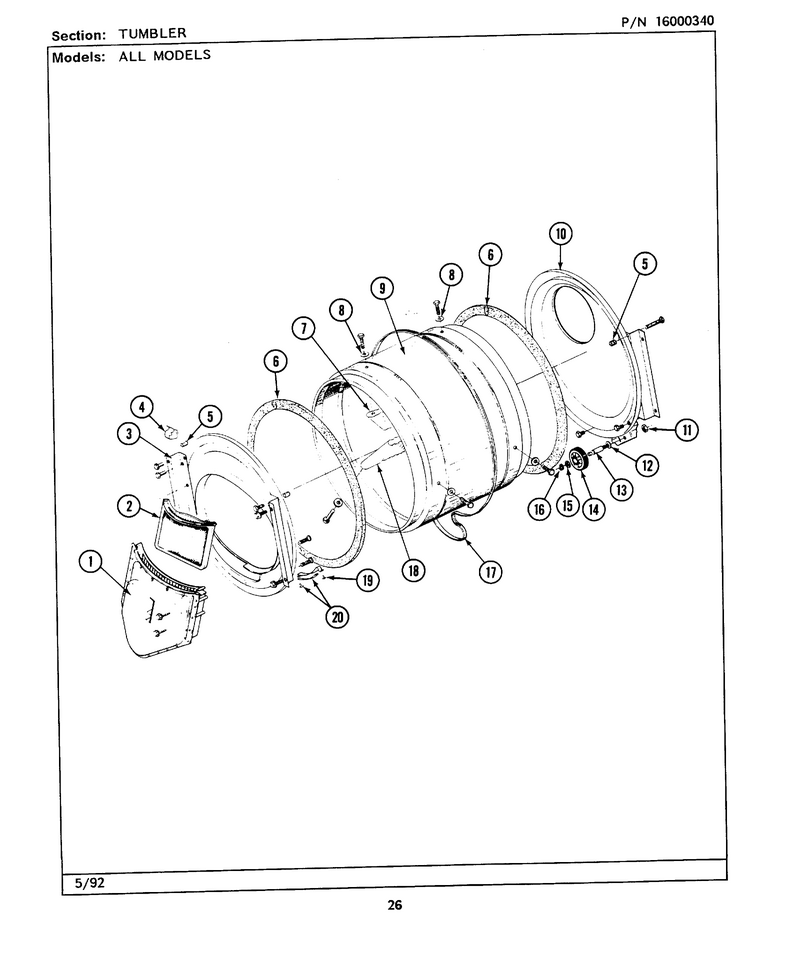

07 - Tumbler

...
...
001
Duct, Outlet Assy. ----S WPL-Y307112
...
002
Screen WPL-WP33002970
...
003
Screw WPL-WP1163839
...
004
Clip, Wire Harness WPL-Y310376
...
005
Cover, Thread WPL-NLA
...
006
Seal- Tumb WPL-WP314820
...
007
Baffle (short) WPL-314803
...
008
Washer WPL-WP314158
...
009
Tumbler WPL-305187
...
010
Back, Tumbler (w/seal) WPL-33001178
...
011
Nut- Hex WPL-WP33001443
...
012
Washer WPL-WP312535
...
013
Shaft WPL-WP6-3129480
...
014
Drum Roller/washer Assy. WPL-12001541
...
015
Washer WPL-WP312535
...
016
Ring-Retnr WPL-WP9703438
...
017
Belt WPL-WPY312959
...
018
Baffle, Tall WPL-33001004
...
019
Rivet WPL-WP210720
...
020
Tumbler Bearing Kit ----W WPL-306508

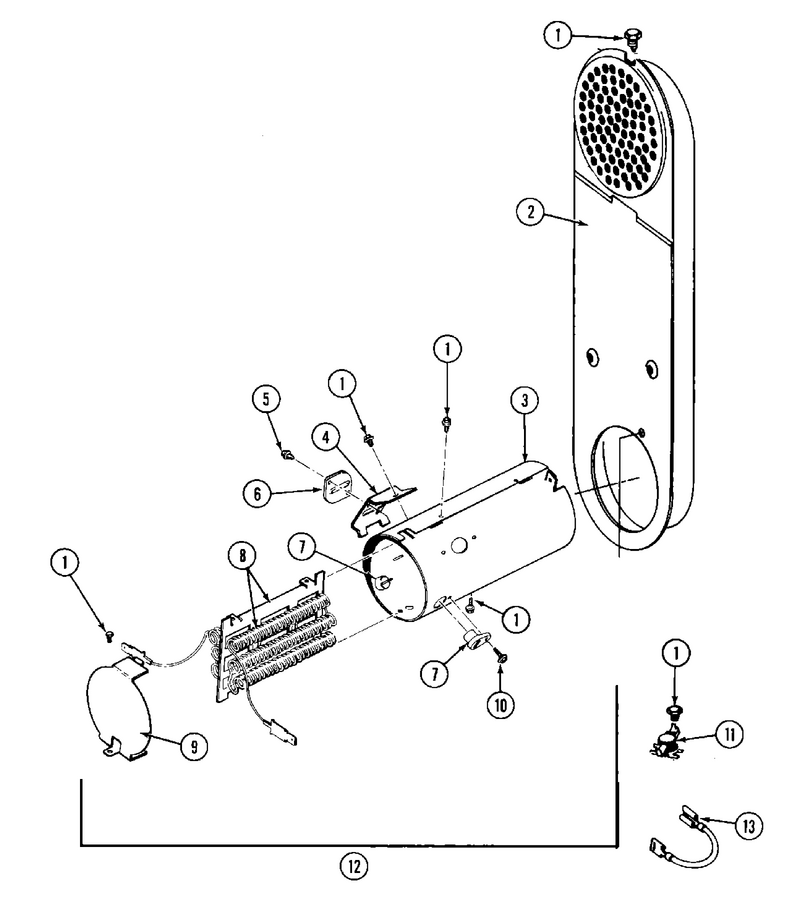

11 - Heater (a0 Series)

...
...
001
Clip And I WPL-WPY303881
...
002
Heater Assy 208v WPL-307471
...
003
Heater Chamber, Bottom WPL-Y313576
...
004
Heater Chamber, Top WPL-Y313575
...
005
Retainer, Heater Chamber WPL-Y312890
...
006
Element WPL-W10116793
...
007
Heater Shield WPL-304124
...
008
Nut WPL-WP112432
...
009
Thrmst-Fix WPL-WP303396
...
010
Inlet Duct Assy. WPL-NLA
...
011
Insulator For Heater Elemen WPL-Y313270
...
012
Harns-Wire WPL-WPY304693
...
013
Mounting Bracket WPL-315046
...
014
Screw WPL-WP90767
...
015
Screw WPL-NLA
...
016
Terminal Insulator Assembly WPL-Y304596
...
017
Fuse-Thrml WPL-WP307473
...
018
Washer- 7 WPL-WP311093
...
019
Wire Terminal WPL-210745
