product name

Maytag MDE25PDAZWO

Model: MDE25PDAZWO

Save Part Not Listed?
product name

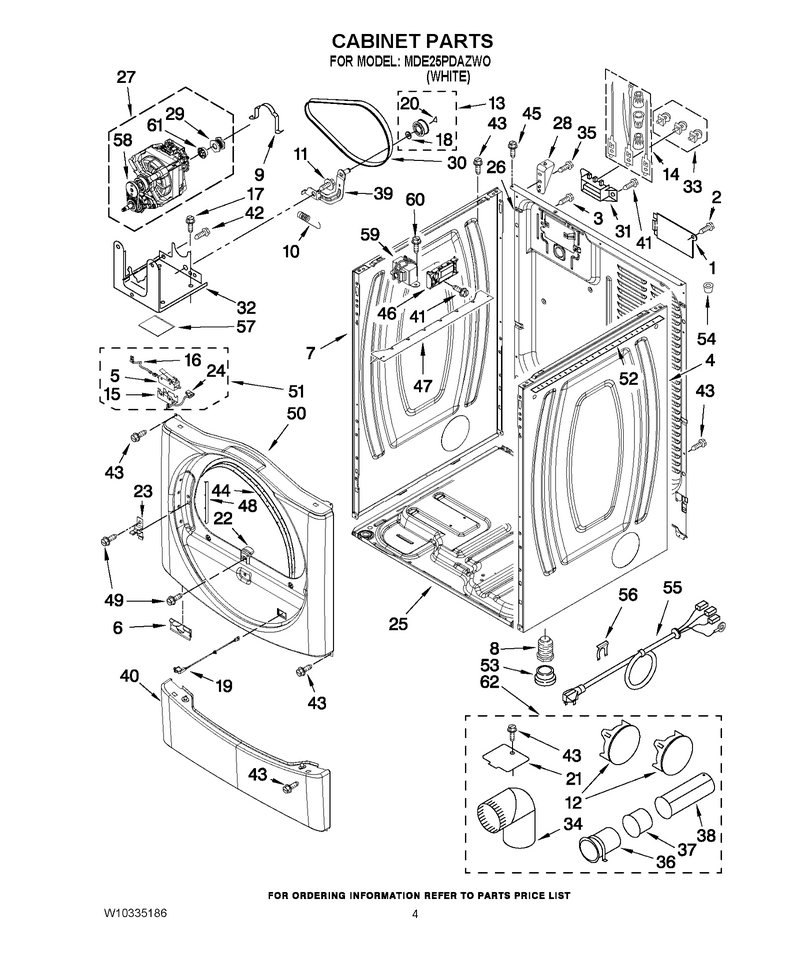

02 - Cabinet Parts

...
...
NI
Vent Kit WPL-W10470674
...
1
Cover-Term WPL-WPW10119283
...
2
Screw WPL-WP90767
...
3
Screw WPL-W10850756
...
4
Panel, Side (white) WPL-W10542714
...
5
Switch-Plg WPL-WP8564010
...
6
Clip WPL-W11295573
...
7
Panel, Side (white) WPL-W10542714
...
8
Feet-Lvlng WPL-49621
...
9
Clamp WPL-WP660658
...
10
Spring WPL-WPW10446781
...
11
Screw WPL-WP3389420
...
12
Vent Kit WPL-W10470674
...
13
Pulley-Idr WPL-279640
...
14
Terminal, Brass & Tinned (3) (includes Item. 33 ) WPL-279318
...
15
Bracket, Switch WPL-8564011
...
16
Wire, Belt Switch WPL-W10167613
...
17
Screw WPL-WP681414
...
18
Washer WPL-WPW10121334
...
19
Assembly, Door Switch WPL-W10128087
...
20
Ring WPL-WPW10512946
...
21
Cover WPL-WPW10354249
...
22
Ramp, Door WPL-8565083
...
23
Strike WPL-WP8565122
...
24
Wire, Motor To Belt Switch WPL-8539892
...
25
Base WPL-W11215531
...
26
Panel, Rear WPL-8565059
...
27
Motor-Drve WPL-W11234001
...
28
Stop, Top Panel WPL-W10137398
...
29
Pulley-Mtr WPL-WP8066184
...
30
Belt WPL-WPW10131172
...
31
Block-Term WPL-WP3397659
...
32
Base WPL-W11676491
...
33
Terminal Block Screw Kit (for Terminal Block WPL-279393
...
34
Elbow WPL-WPW10416072
...
35
Screw WPL-WP488729
...
36
Pipe-Exhst WPL-WP8563747
...
37
Pipe-Exhst WPL-WPW10331278
...
38
Pipe-Exhst WPL-WP8563749
...
39
Pulley-Idr WPL-WPW10344192
...
40
Toepnl WPL-WP8540621
...
41
Screw WPL-WP90767
...
42
Screw, 6-20 X 1.00 WPL-W10002600
...
43
Screw WPL-WP488729
...
44
Seal WPL-WP3387242
...
45
Screw WPL-WP308685
...
46
Cntrl-Elec WPL-WPW10166305
...
47
Bracket WPL-WP8563727
...
48
Plug, Strip Front Panel WPL-8565043
...
49
Screw WPL-WP308685
...
50
Panel WPL-WPW10117421
...
51
Switch WPL-W11247665
...
52
Seal WPL-WP8318396A
...
53
Boot-Foot WPL-WP3391943
...
54
Cone Wedge WPL-356674
...
55
Cord-Power WPL-W11095079
...
56
Clip WPL-W11712577
...
57
Pad WPL-W11113654
...
58
Belt WPL-WP3405160
...
59
Transformr WPL-WPW10131839
...
60
Screw WPL-WP90767
...
61
Rstrnr-Blt WPL-WP3393657

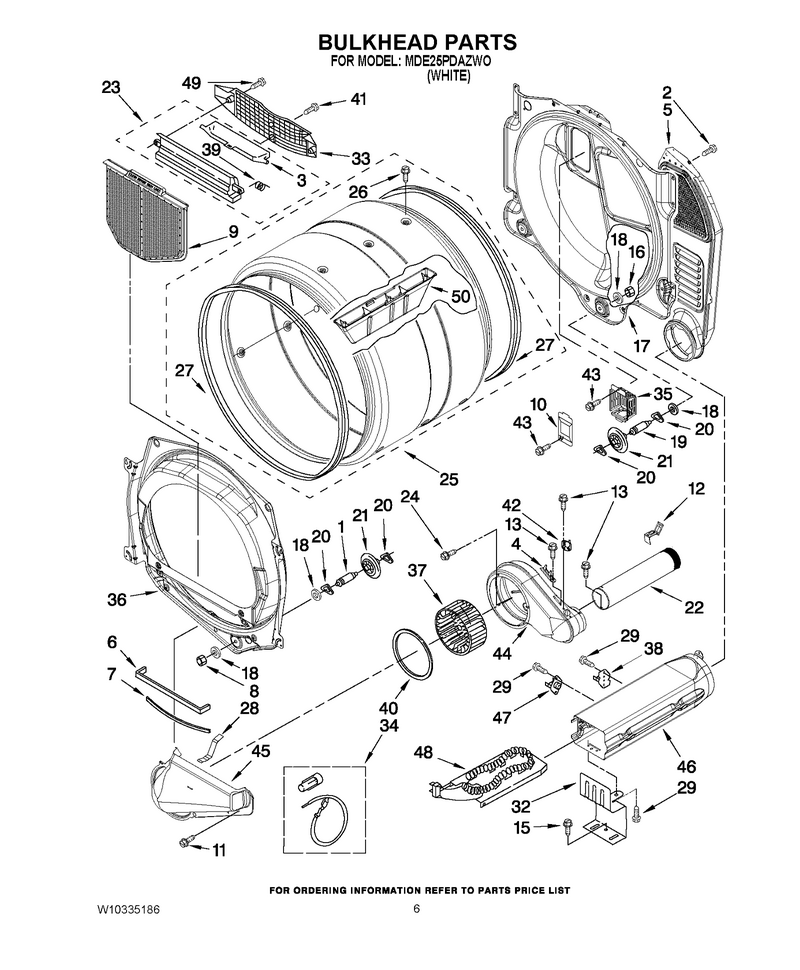

03 - Bulkhead Parts

...
...
1
Shaft WPL-WPW10359271
...
2
Screw WPL-WP488729
...
3
Door WPL-W11222846
...
4
Fuse-Thrml WPL-WP3392519
...
5
Duct-Air WPL-WP3387911
...
6
Seal WPL-WP697813
...
7
Seal WPL-WP697813
...
8
Nut WPL-WPW10080210
...
9
Screen WPL-W10120998
...
10
Lens WPL-W11226088
...
11
Screw WPL-W11693756
...
12
Clip WPL-W11684573
...
13
Screw WPL-WP90767
...
15
Screw WPL-WP693995
...
16
Nut WPL-WPW10080190
...
17
Bulkhead WPL-WPW10080170
...
18
Washer WPL-W11236646
...
19
Shaft WPL-WPW10359272
...
20
Ring WPL-WPW10512946
...
21
Support WPL-WPW10314173
...
22
Pipe-Exhst WPL-WP8563728
...
23
Grill-Out WPL-W11219327
...
24
Screw WPL-WP489463
...
25
Assembly, Drum (complete) WPL-W10865330
...
26
Screw WPL-W10853898
...
27
Seal WPL-280114
...
28
Clip WPL-WP8066208
...
29
Screw WPL-WP90767
...
32
Bracket, Heater Box WPL-8066099
...
33
Grill-Out WPL-W11086603
...
34
Terminal Wire Kit (for Heater Element Wiring Harness Repair) WPL-279457
...
35
Bracket, Drum Light WPL-8578825
...
36
Bulkhead, Front WPL-8565061
...
37
Wheel WPL-WPW10349492
...
38
Kit, Thermal Cut-Off (includes Thermostat) WPL-279973
...
39
Spring WPL-WP3394986
...
40
Seal WPL-WP697770
...
41
Screw WPL-WP488729
...
42
Thermistor WPL-WP8577274
...
43
Screw WPL-WP488729
...
44
Housing WPL-W10888146
...
45
Duct-Lint WPL-WPW10128606
...
46
Box WPL-W10802681
...
47
Thrmst-Fix WPL-WP3391914
...
48
Element WPL-W11676492
...
49
Screw WPL-WP3387230
...
50
Baffle-Drm WPL-W10852390

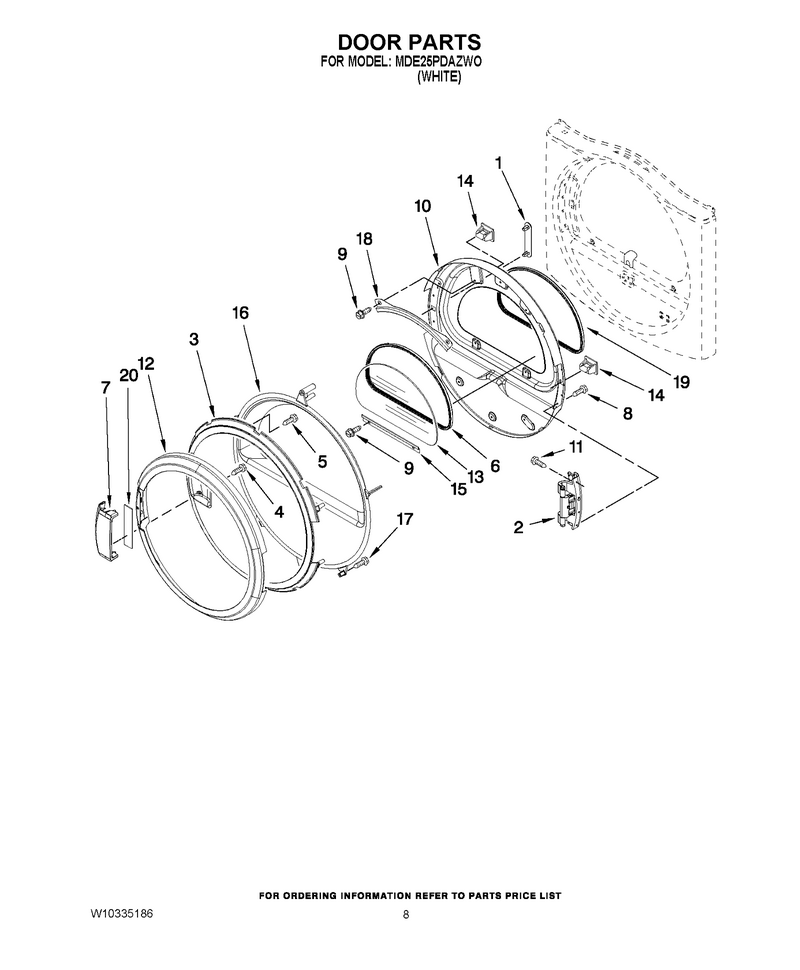

04 - Door Parts

...
...
1
Hinge Hole Cover (inner Door) WPL-8565119
...
2
Hinge WPL-W11628813
...
3
Door WPL-W11700543
...
4
Screw WPL-W10850046
...
5
Screw, 6-32 X 3/8 WPL-3400618
...
6
Seal WPL-W11706993
...
7
Handle WPL-W10850397
...
8
Screw WPL-WPW10159996
...
9
Screw WPL-WP3373329
...
10
Door WPL-WPW10164062
...
11
Screw WPL-WP355515
...
12
Ring-Trim WPL-W11721374
...
13
Window WPL-WPW10286878
...
14
Latch WPL-279570
...
15
Retainer WPL-W10822054
...
16
Window WPL-WP8580059
...
17
Screw WPL-WP8534022
...
18
Retainer, Upper WPL-8519356
...
19
Seal-Door WPL-WPW10163915
...
20
Pad WPL-WPW10112927

...
...
NI
Paint, Bulk (1 Qt.) WPL-799344

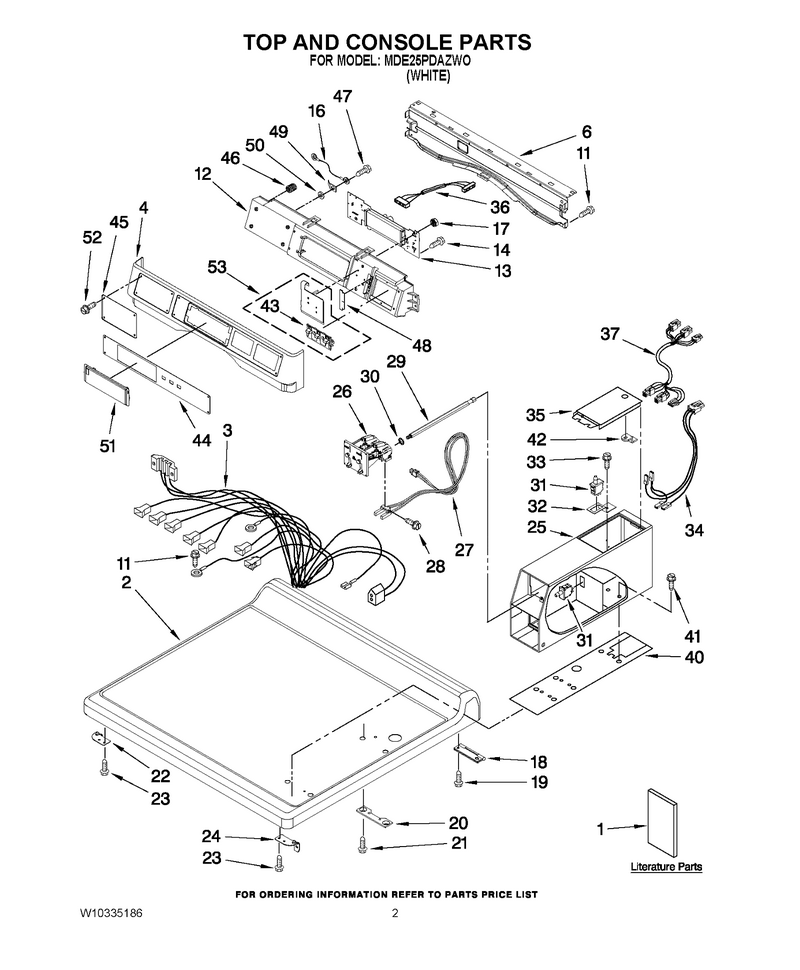

01 - Top And Console Parts

...
...
1
Parts List WPL-W10335186
...
2
Top WPL-WPW10137411
...
3
Harness, Main WPL-W10349748
...
4
Console (outer) WPL-W10779120
...
6
Bracket WPL-WP8565237
...
11
Screw WPL-WP488729
...
12
Console (inner) WPL-W10137427
...
13
Cntrl-Elec WPL-WPW10166385
...
14
Screw, 3-24 X 1/32 WPL-489136
...
16
Ground Wire Assembly WPL-W10188087
...
17
Nut WPL-WPW10139046
...
18
Hinge WPL-WP8565018
...
19
Screw WPL-WP488627
...
20
Plate, Mounting WPL-3347825
...
21
Screw WPL-W10841059
...
22
Bracket, Top Panel (left) WPL-W10137445
...
23
Screw WPL-WP488729
...
24
Bracket, Top Panel (right) WPL-W10137444
...
25
Case WPL-WPW10171128
...
26
Coin Drop WPL-W11643135
...
27
Coin Sensor Assy, Coin 2 (black) WPL-W10247388
...
28
Screw WPL-WP3395530
...
29
Bolt WPL-WPW10137319
...
30
Washer WPL-W11170663
...
31
Switch-Vlt WPL-WPW10131838
...
32
Bracket WPL-W11204533
...
33
Screw WPL-WPW10139210
...
34
Harns-Wire WPL-W11096090
...
35
Door WPL-W11283272
...
36
Harness, Communication WPL-W10166307
...
37
Harness, Meter Case WPL-W10166308
...
40
Cushion, Meter Case WPL-W10137448
...
41
Screw WPL-W11715721
...
42
Cam WPL-W11401086
...
43
Pushbutton WPL-WPW10424308
...
44
Fascia-Console WPL-W10334888
...
45
Fascia-Dispenser WPL-W10137461
...
46
Insert WPL-WPW10189313
...
47
Screw WPL-WP488234
...
48
Seal-Console WPL-W10187276
...
49
Tab-Grounding WPL-3373818
...
50
Washer, Brass WPL-W10189075
...
51
Cover WPL-WPW10267645
...
52
Screw WPL-WPW10137457
...
53
Switch WPL-WPW10135255
