product name

Maytag MDB9959SKZ0

Model: MDB9959SKZ0

Save Part Not Listed?
product name

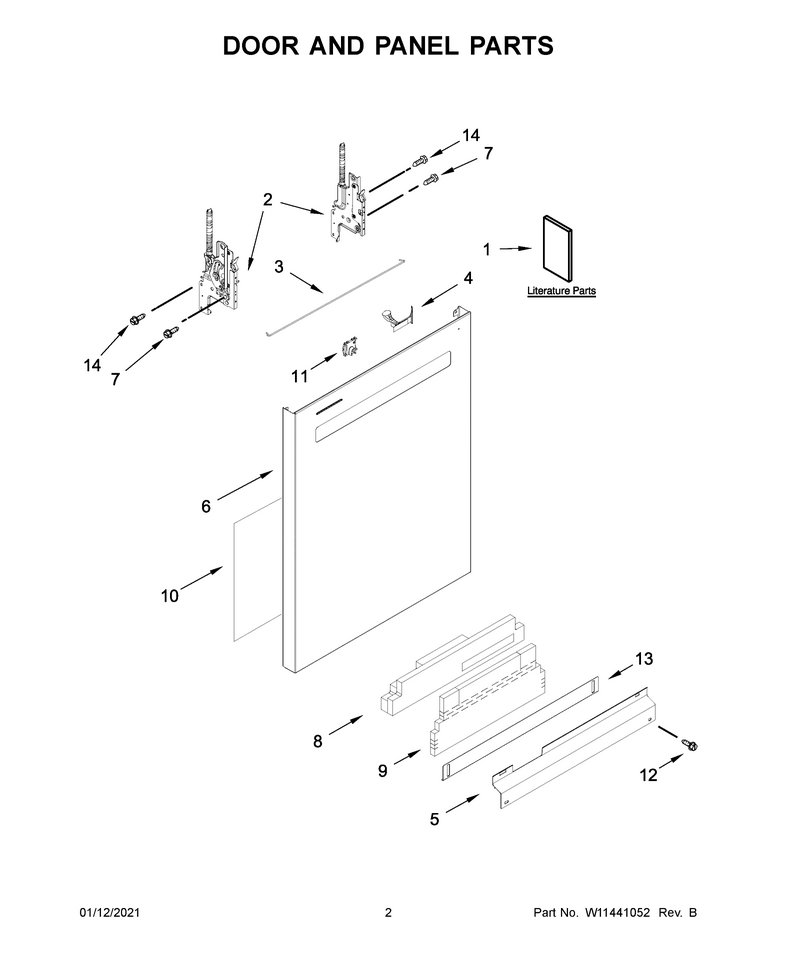

02 - Door And Panel Parts

...
...
1
Owners Manual WPL-W11323304
...
1A
Energy Guide WPL-W11404475
...
1B
Tech Sheet WPL-W11366142
...
2
Hinge-Door WPL-W11712995
...
2A
Hinge-Door WPL-W11712996
...
3
Cross Brace, Door WPL-W11377160
...
4
Light Pipe WPL-W11102920
...
5
Panel WPL-W11545318
...
6
Panel WPL-W11416790
...
7
Screw WPL-W11676450
...
8
Shield WPL-W11573700
...
9
Shield WPL-W11573704
...
10
Insulation, Front Panel WPL-W10919861
...
11
Barrel Nut, Front Panel WPL-W10692757
...
12
Screw WPL-W11545329
...
13
Panel-Toe WPL-W11579528
...
14
Screw WPL-WPW10309090

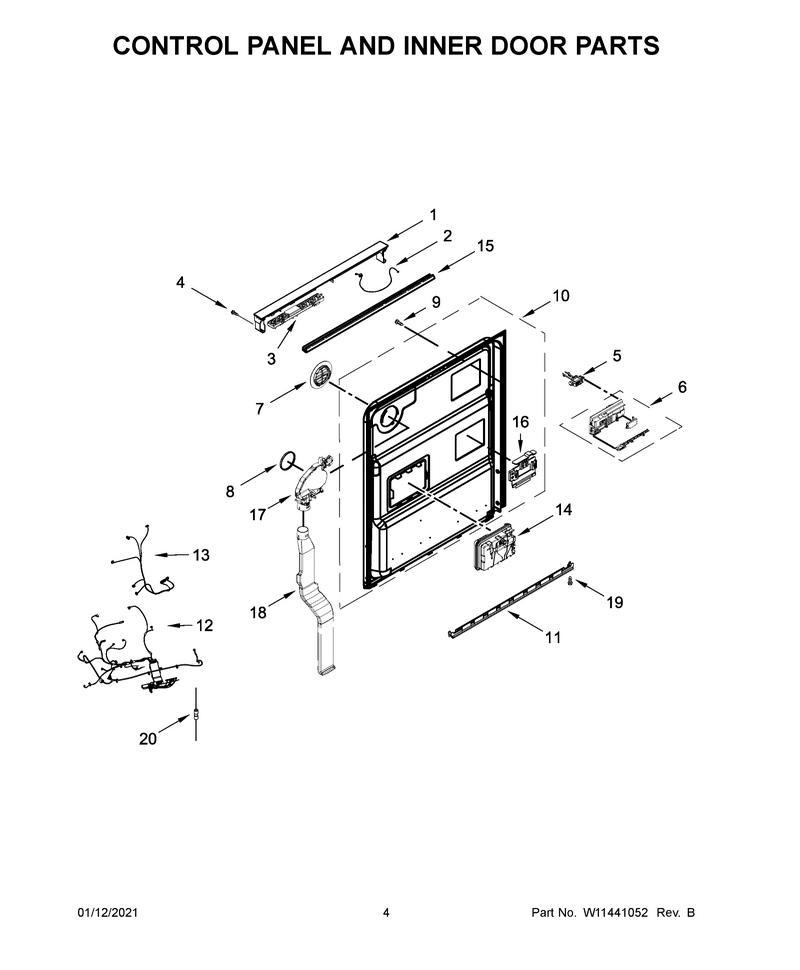

03 - Control Panel And Inner Door Parts

...
...
1
Panel-Cntl WPL-W11413965
...
2
Harns-Wire WPL-W11627526
...
3
Panel-Ui WPL-W11414079
...
4
Screw WPL-WPW10213953
...
5
Latch-Door WPL-W11412299
...
6
Cntrl-Elec WPL-W11410063
...
7
Deflector WPL-W11545290
...
8
Gasket WPL-W11545539
...
9
Screw WPL-WPW10348409
...
10
Door-Inner WPL-W11559689
...
11
Seal WPL-W11664713
...
12
Harns-Wire WPL-W11662347
...
13
Harns-Wire WPL-W11678803
...
14
Dispenser WPL-W11412300
...
15
Seal WPL-W11412696
...
16
Hanger, Control WPL-W11088985
...
17
Vent WPL-W11414073
...
18
Duct, Vent WPL-W11038734
...
19
Screw WPL-W11627527
...
20
Fuse, In-Line WPL-W11397505

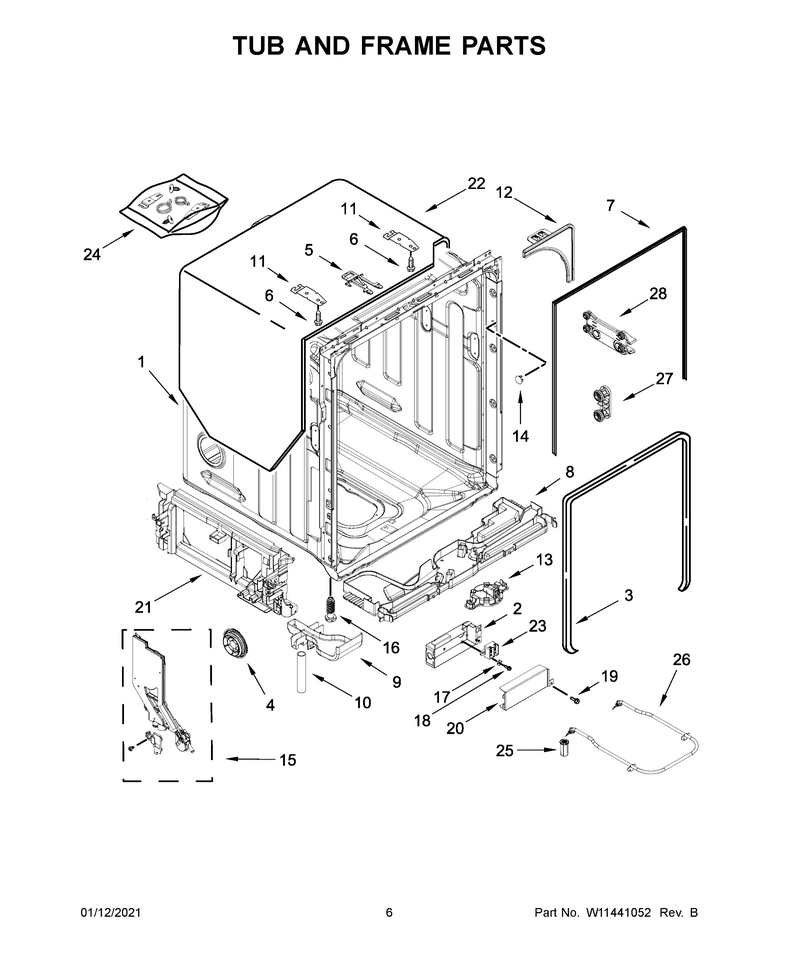

04 - Tub And Frame Parts

...
...
1
Tub-Dishwr WPL-W11409866
...
2
Base, Terminal Box WPL-W11226744
...
3
Gasket WPL-W11483553
...
4
Nut-Tube WPL-W11535081
...
5
Strike WPL-W11545309
...
6
Screw WPL-W11551549
...
7
Seal WPL-W11414078
...
8
Driptray WPL-W11550169
...
9
Funnel, Overfill Protection WPL-W11025986
...
10
Funnel Extension WPL-W11025988
...
11
Brckt-Mtg WPL-WP8269145
...
12
Insert WPL-W11579566
...
13
Switch WPL-W11545764
...
14
Cap WPL-W11573757
...
15
Inlet-Watr WPL-W11535094
...
16
Levler-Leg WPL-W11561254
...
17
Washer WPL-WP3378128
...
18
Screw WPL-WP3400014
...
19
Screw WPL-WPW10277003
...
20
Covr-Box WPL-W11407385
...
21
Support WPL-W11679658
...
21A
Support WPL-W11679657
...
22
Shield WPL-W11553445
...
23
Term-Block WPL-W11573809
...
24
Parts-Misc WPL-W11502191
...
25
Nut-Termnl WPL-W11538351
...
26
Heater WPL-W11537778
...
27
Wheel-Tub WPL-W11561080
...
28
Wheel-Tub WPL-W11553484
...
28A
Wheel-Tub WPL-W11580025

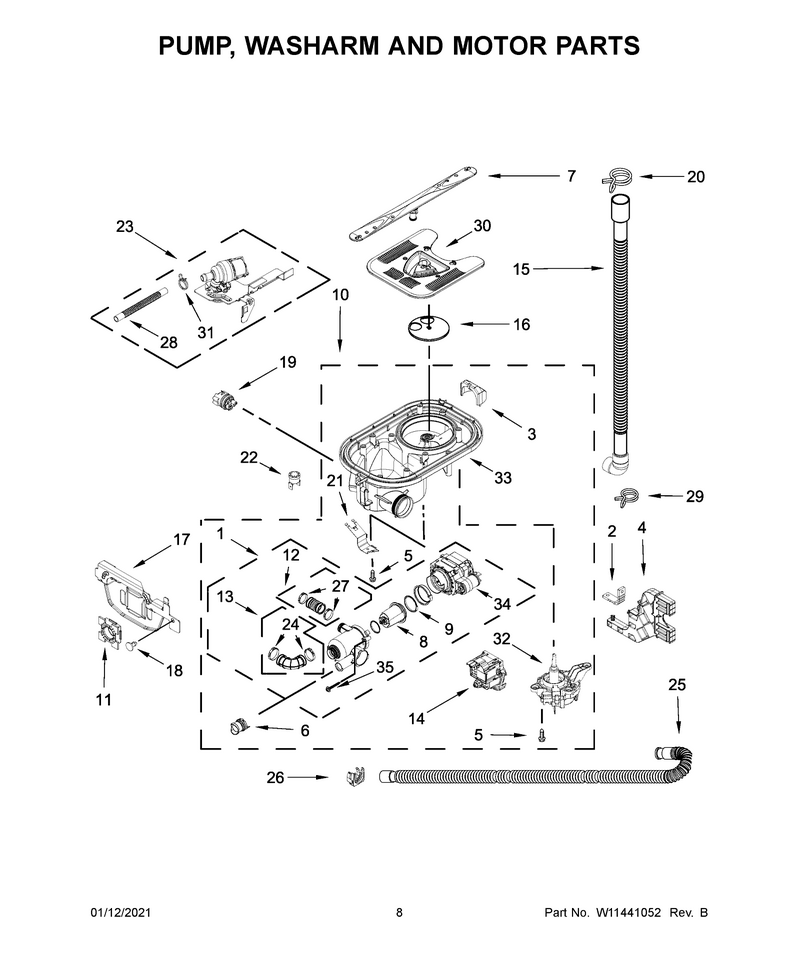

05 - Pump, Washarm And Motor Parts

...
...
1
Base-Pump WPL-W11414076
...
2
Isolator, Front Motor WPL-W11294352
...
3
Diffuser, Inlet WPL-W10891545
...
4
Hanger, Front Motor WPL-W11294350
...
5
Screw WPL-WP9741232
...
6
Valve-Chek WPL-W11622925
...
7
Arm-Spray WPL-W11550888
...
8
Filtr-Pump WPL-W11643383
...
9
Ring, Volute WPL-W10380239
...
10
Pump&motor WPL-W11416363
...
11
Isolator, Rear Motor WPL-W11036663
...
12
Hose WPL-W11419334
...
13
Hose WPL-W11419333
...
14
Pump-Drain WPL-W11497943
...
15
Hose-Drain WPL-W11414944
...
16
Diffuser WPL-W11662107
...
17
Bracket, Rear Motor WPL-W11025963
...
18
Fastener WPL-W11104048
...
19
Sensor WPL-W11410464
...
20
Clamp WPL-WP285655
...
21
Bracket, Thermostat WPL-W11163419
...
22
Thermostat WPL-W11573758
...
23
Valve-Inlt WPL-W11434044
...
24
Clamp WPL-W10783615
...
25
Hose-Drain WPL-W11551233
...
26
Clip WPL-W11596052
...
27
Clamp WPL-W10783615
...
28
Hose-Fill WPL-W11627534
...
29
Clamp WPL-W11545578
...
30
Screen WPL-W11568785
...
31
Clamp WPL-WP596669
...
32
Following Parts Not Illustrated WPL-N/P
...
33
Sump WPL-W11443104
...
34
Capacitor WPL-W11662065
...
35
Screw WPL-W10467002

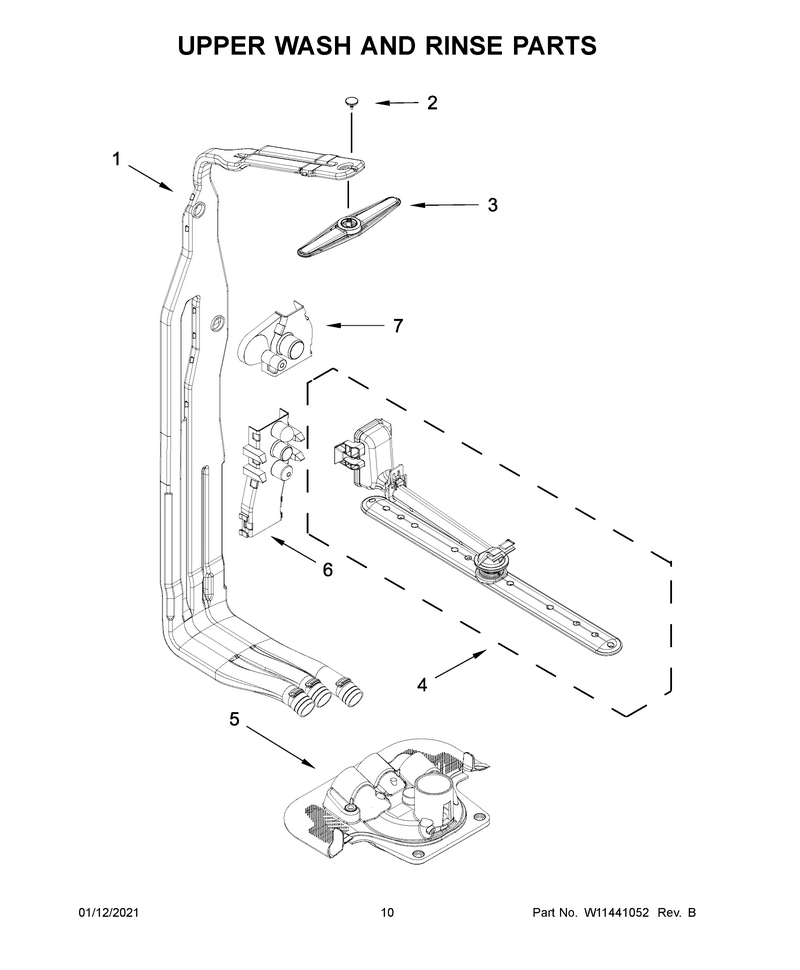

06 - Upper Wash And Rinse Parts

...
...
1
Tube-Feed WPL-W11744286
...
2
Retainer WPL-W11590538
...
3
Arm-Spray WPL-W11573766
...
4
Manifold WPL-W11545334
...
5
Diverter WPL-W11679656
...
6
Retainer WPL-W11690647
...
7
Retainer, Docking (3rd Level) WPL-W10892835

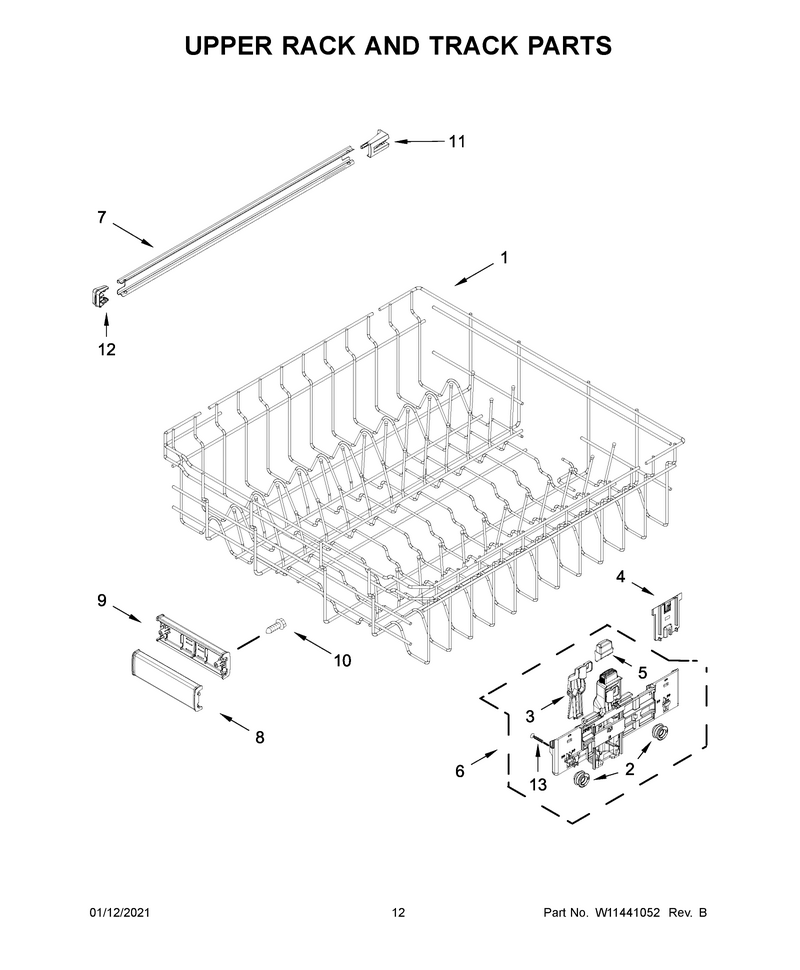

07 - Upper Rack And Track Parts

...
...
1
Dishrack WPL-W11678956
...
2
Wheel WPL-W11545296
...
3
Leveler, Adjuster Arm WPL-W11180178
...
4
Positioner WPL-W11580020
...
5
Button, Adjuster Arm WPL-W11267701
...
6
Adjuster WPL-W11614120
...
6A
Adjuster WPL-W11662341
...
7
Track WPL-W11561204
...
8
Handle, Dishrack Front WPL-W11268683
...
9
Handle, Dishrack Rear WPL-W11291785
...
10
Screw WPL-WP9741232
...
11
Stop WPL-W11579392
...
12
Stop WPL-W11545307
...
13
Screw WPL-W11708397

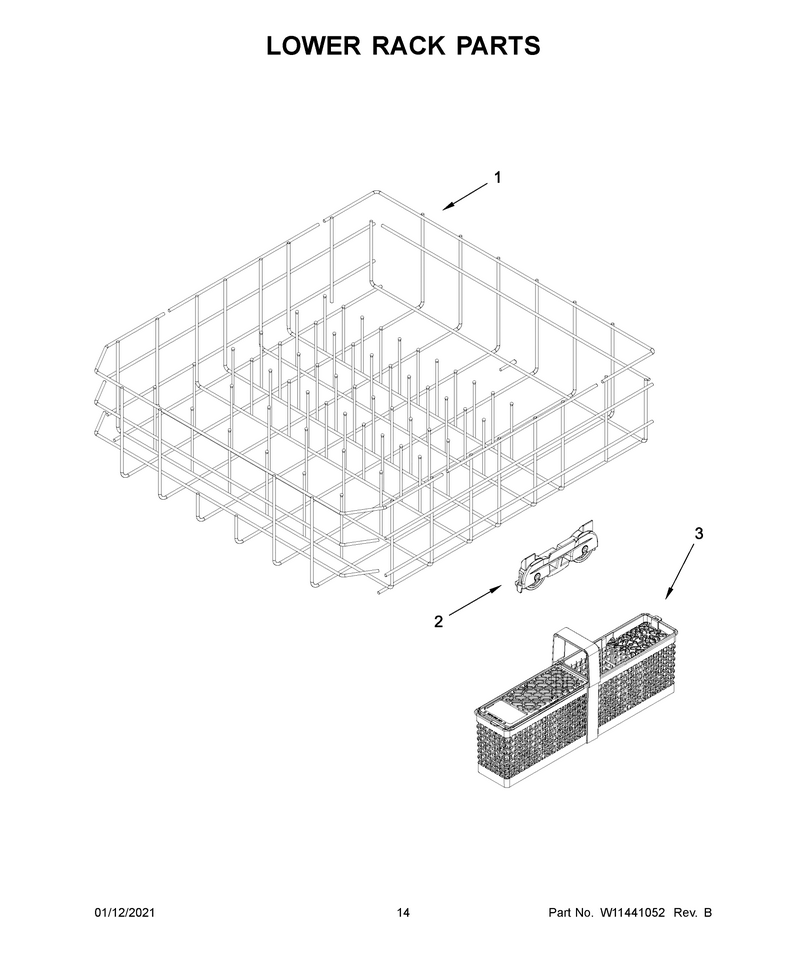

08 - Lower Rack Parts

...
...
1
Dishrack WPL-W11527890
...
2
Wheel WPL-W11551383
...
3
Silverware Basket Assembly WPL-W11281128

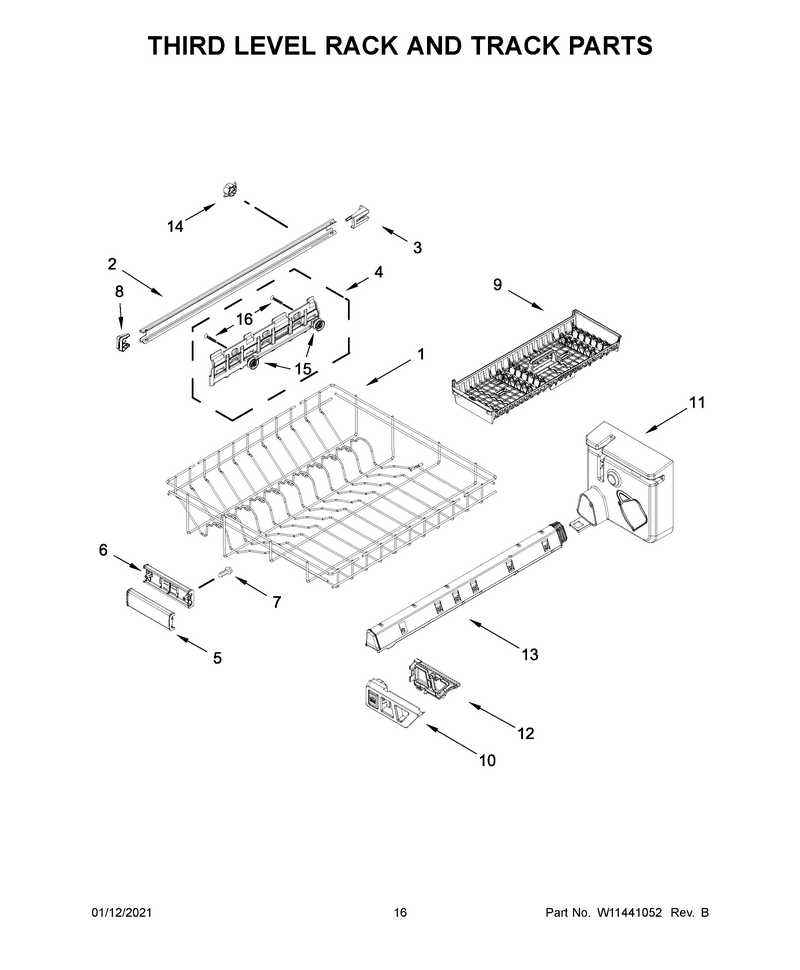

09 - Third Level Rack And Track Parts

...
...
1
Rack, Third Level WPL-W11127770
...
2
Track WPL-W11561204
...
3
Stop WPL-W11579392
...
4
Mount WPL-W11551395
...
4A
Mount WPL-W11569162
...
5
Handle, Dishrack Front WPL-W11268683
...
6
Handle, Dishrack Rear WPL-W11291785
...
7
Screw WPL-WP9741232
...
8
Stop WPL-W11545307
...
9
Baskt-Ware WPL-W11690650
...
10
Bracket, Front Hanger WPL-W11267725
...
11
Drive Box Assembly, Manifold WPL-W11287291
...
12
Cover, Wash Tube WPL-W11267726
...
13
Tube, Wash WPL-W11175552
...
14
Nut WPL-W11545286
...
15
Wheel WPL-W11545296
...
16
Screw WPL-W11708397

...
...
NI
Fill Hose Kit WPL-W10278635RP
