product name

Maytag MBL1957FEZ05

Model: MBL1957FEZ05

Save Part Not Listed?
product name

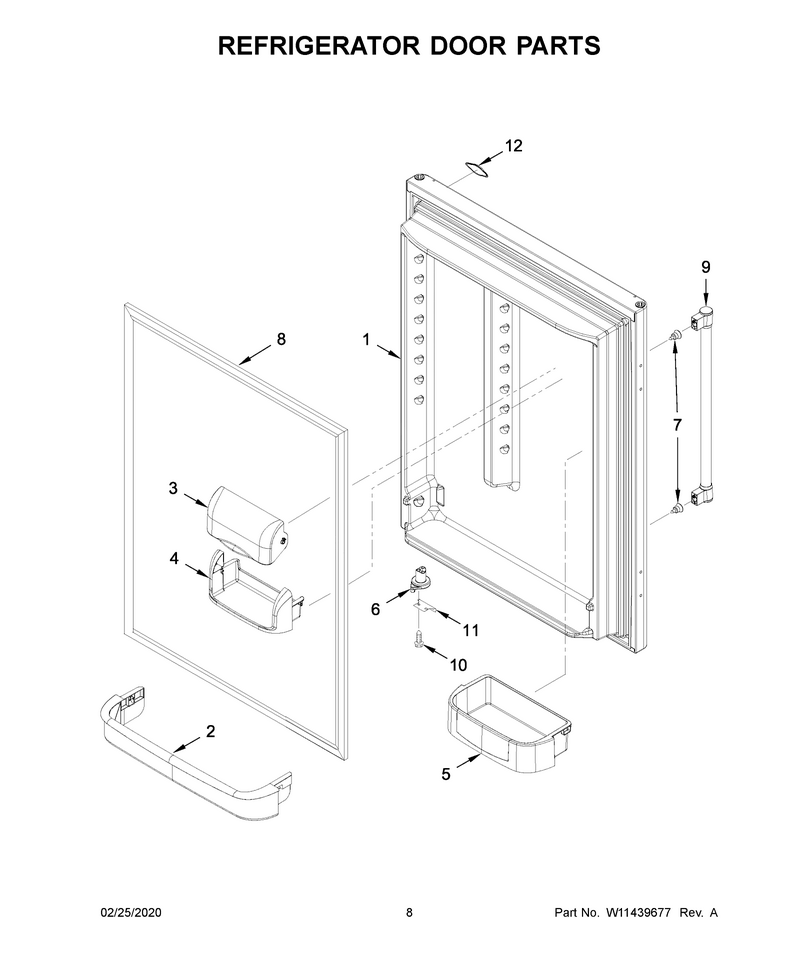

05 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-W11443668
...
2
Retainer, Door WPL-67001139
...
3
Door-Comp WPL-WP67003637
...
4
Tray- Dair WPL-WP67001279
...
5
Bin-Cntlvr WPL-WPW10371194
...
5A
Bin-Cntlvr WPL-WPW10351081
...
6
Closer WPL-WP12028505AP
...
7
Screw WPL-W11449276
...
8
Gasket-Fip WPL-W11676571
...
9
Handle WPL-W11102445
...
10
Screw WPL-WP98165
...
11
Stop-Door WPL-W11401472
...
12
Nameplate WPL-WPW10612926

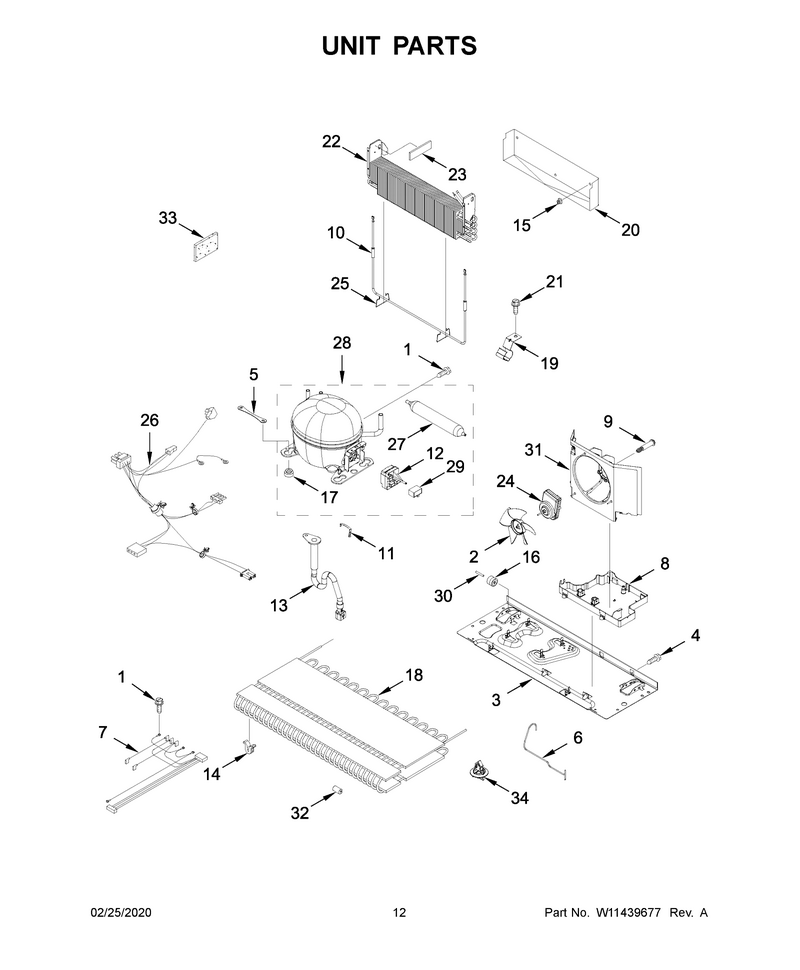

07 - Unit Parts

...
...
NI
Refrigerant Charge 4.25 Oz (r-134a) WPL-N/P
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Basepan WPL-W10480107
...
4
Screw (3) WPL-67006425
...
5
Strap, Compressor WPL-W10236396
...
6
Tube, Discharge WPL-W10294014
...
7
Harns-Wire WPL-W11260592
...
8
Pan-Drip WPL-WPW10655367
...
9
Screw WPL-W10829281
...
10
Heater WPL-WP12729127
...
11
Clip WPL-W11092534
...
12
Start-Dev WPL-W10873801
...
13
Tube-Drain WPL-W10619951
...
14
Grommet WPL-WPW10137529
...
15
Clip, Evaporator WPL-10623002
...
16
Roller WPL-WP67005149
...
17
Grommet WPL-WPW10169124
...
18
Condenser WPL-W10346423
...
19
Clip, Drier WPL-W10281329
...
20
Tray, Drip WPL-W10292801
...
21
Screw WPL-12992101
...
22
Evaporator WPL-W10920993
...
23
Gasket WPL-W11451451
...
24
Motor-Cond WPL-W11613295
...
25
Clip WPL-W11673433
...
26
Harness, Unit (includes Power Cord) WPL-W11218258
...
27
Drier-Uv WPL-WPW10143759
...
28
Compressor WPL-W10233960
...
29
Capacitor WPL-WPW10350564
...
30
Axle, Roller (2) WPL-67006434
...
31
Shroud WPL-W11556315
...
32
Grommet WPL-W10852725
...
33
Insulation WPL-W11553819
...
34
Clip, Condenser WPL-W10815863

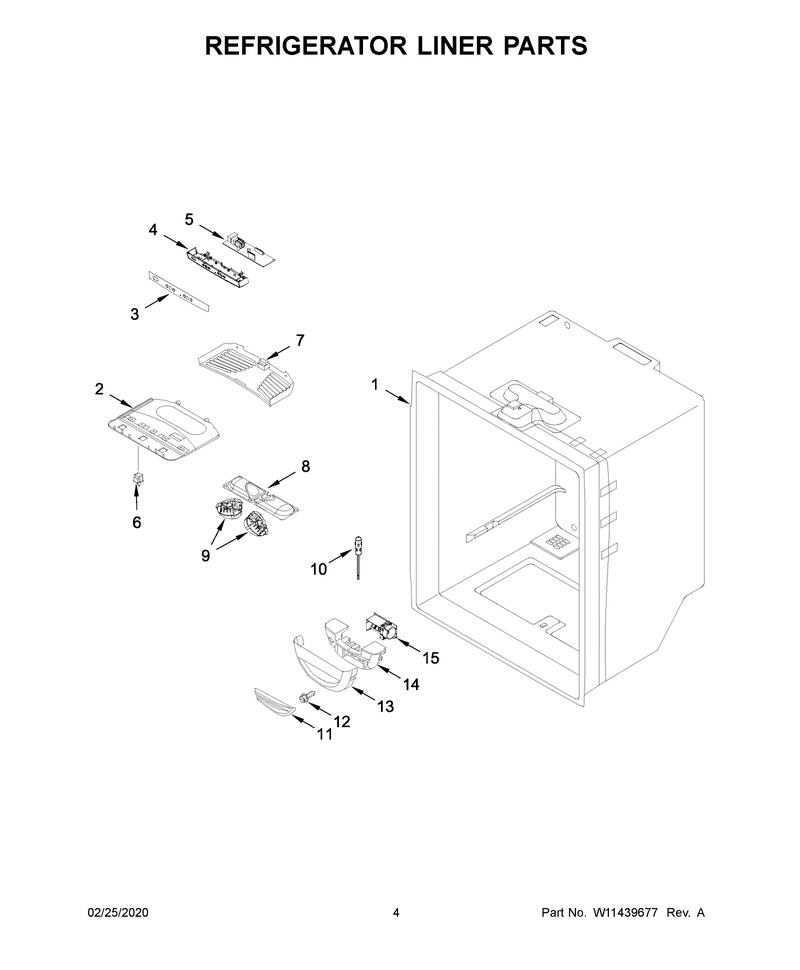

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-WPW10422363
...
1
Liner (not A Serviceable Part) WPL-N/P
...
2
Module, Light WPL-W10464757
...
3
Overlay WPL-W10593588
...
4
Housing WPL-WPW10464769
...
5
Cntrl-Elec WPL-WPW10503278
...
6
Switch WPL-W11384469
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-W10443023
...
9
Module WPL-W11602886
...
10
Thermistor Kit WPL-12002355
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-WP13012402
...
15
Control WPL-WPW10594330

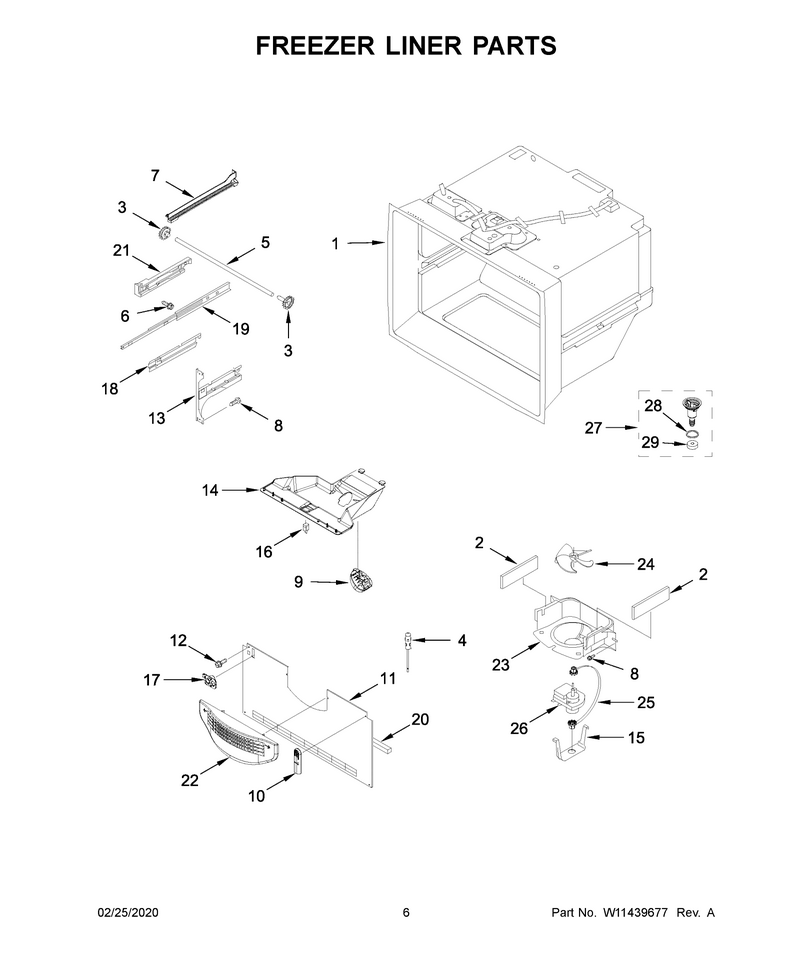

04 - Freezer Liner Parts

...
...
1
Liner (not A Seviceable Part) WPL-N/P
...
2
Gasket WPL-W10856123
...
3
Gear WPL-12002497
...
4
Thermistor Kit WPL-12002355
...
5
Shaft, Rack WPL-W10802329
...
6
Screw WPL-WP489474
...
7
Rail WPL-W11489993
...
7A
Rail WPL-W11489994
...
8
Screw WPL-WP98165
...
9
Module WPL-W11602886
...
10
Cover- Fz WPL-WP67003924
...
11
Cover-Evap WPL-WPW10308414
...
12
Screw WPL-WP489349
...
13
Bracket WPL-WPW10330991
...
13A
Bracket WPL-WPW10330993
...
14
Housing WPL-WPW10277025
...
15
Clip, Evaporator Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Guide, Fill Tube WPL-W11448709
...
18
Bracket WPL-WPW10280608
...
18A
Bracket WPL-WPW10280613
...
19
Slide WPL-W11658402
...
20
Gasket, Bottom WPL-A3189394
...
21
Bracket WPL-WPW10284684
...
21A
Bracket WPL-WPW10284685
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Grommet WPL-W10121318
...
26
Motor-Evap WPL-WPW10128551
...
27
Funnel WPL-W10815413
...
28
Seal- O Ri WPL-WPM0500703
...
29
Gasket- Dr WPL-WPB8381501

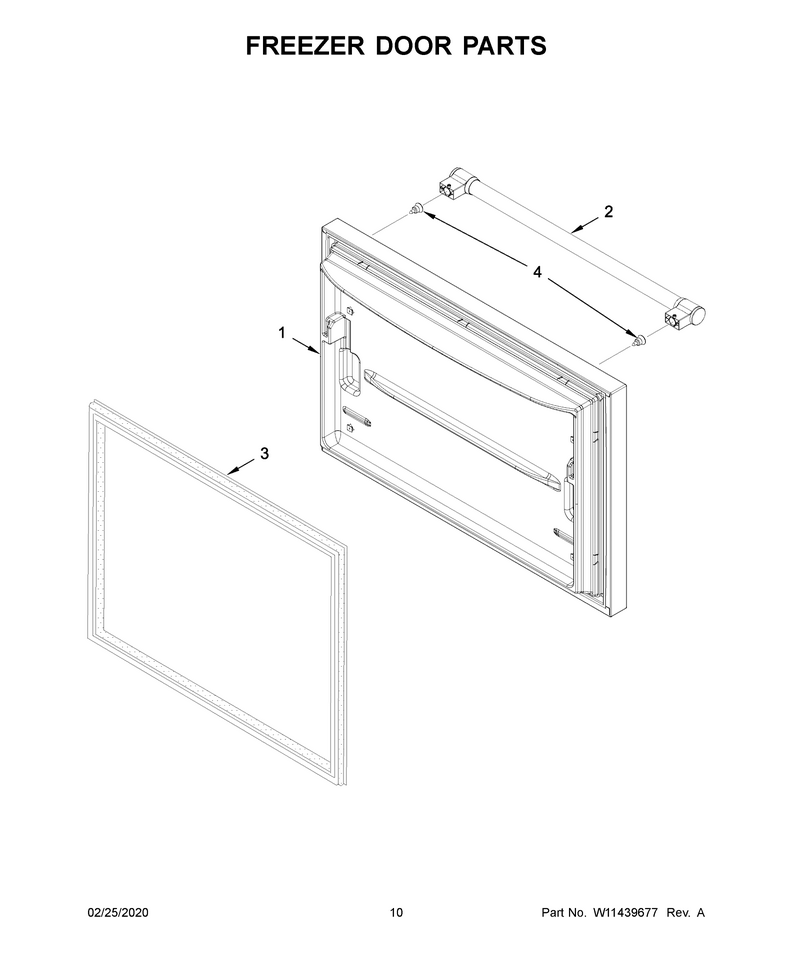

06 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11435341
...
2
Handle WPL-W11102445
...
3
Gasket, Door (grey) WPL-W10443312
...
4
Screw WPL-W11449276

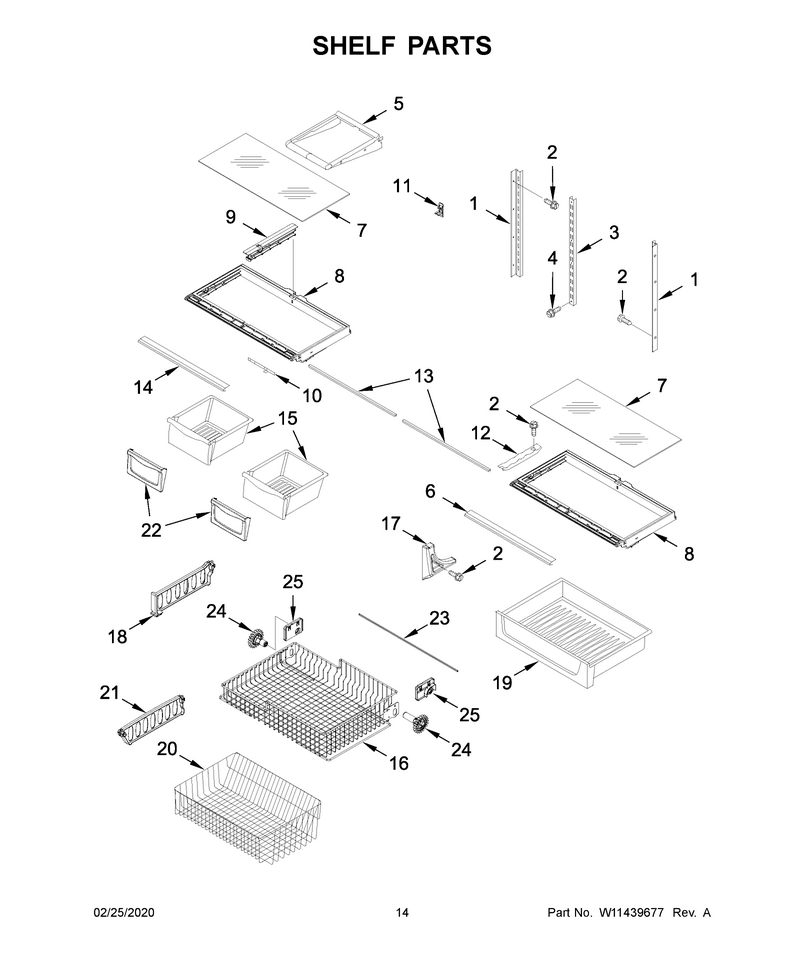

08 - Shelf Parts

...
...
1
Ladder, Side WPL-W10251970
...
2
Screw (3) WPL-67006425
...
3
Ladder, Center WPL-W10273463
...
4
Screw WPL-W10215666
...
5
Shelf-Glas WPL-W11402522
...
6
Trim, Pantry Front WPL-W10656984
...
7
Shelf-Glas WPL-WP67006877
...
8
Frame WPL-WPW10671240
...
9
Rail-Centr WPL-WPW10671238
...
10
Slide WPL-WP67005864
...
11
Hook- Ladd WPL-WP67001716
...
12
Track WPL-WP67001719
...
13
Support WPL-WP12227302WD
...
14
Trim-Shelf WPL-WPW10231481
...
15
Pan-Crispr WPL-W10833530
...
16
Basket-Fzr WPL-W11281077
...
17
Support- L WPL-WP67001721
...
17A
Support- R WPL-WP67001722
...
18
Divider, Basket (upper) WPL-W10241046
...
19
Drawer, Pantry WPL-W10328331
...
20
Basket-Fzr WPL-W11281080
...
21
Divider WPL-W10847995
...
22
Front-Pan WPL-W10833529
...
23
Shaft, Rack WPL-W10802340
...
24
Gear WPL-WPW10474716
...
24A
Gear WPL-WPW10474715
...
25
Mount, Gear (left Hand) WPL-W10348259
...
25A
Mount, Gear (right Hand) WPL-W10348260

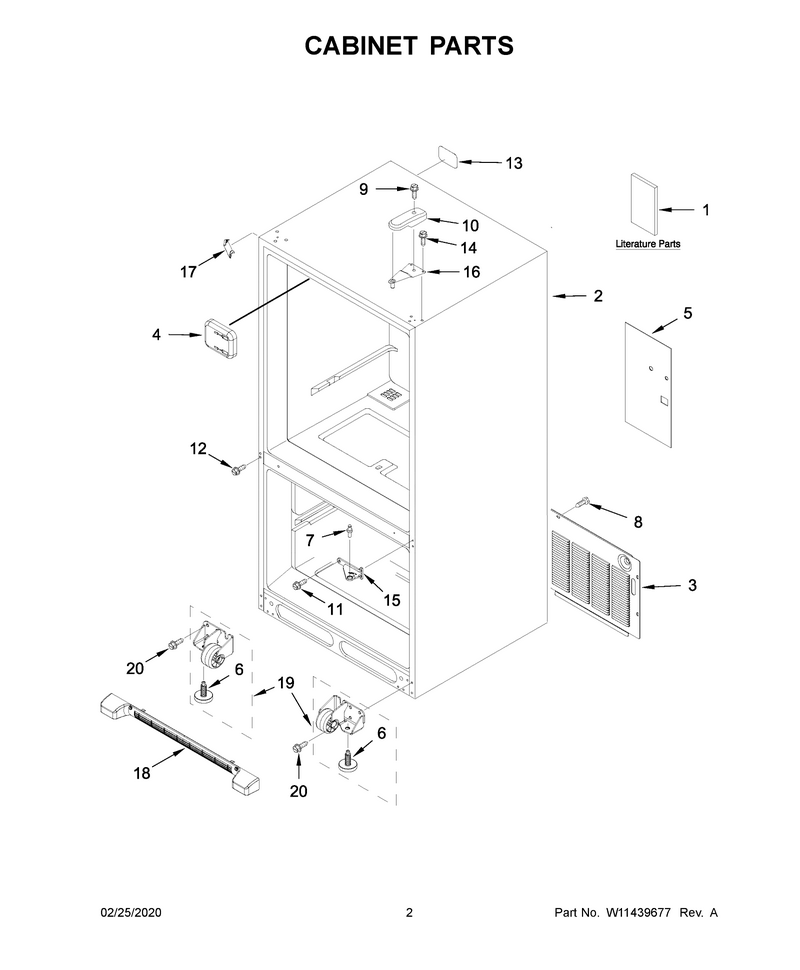

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11296634
...
1A
Energy Guide WPL-W11306936
...
1B
Tech Sheet WPL-W11297588
...
2
Cabinet (not A Servicable Part) WPL-N/P
...
3
Cover, Unit WPL-W10210978
...
4
Cover-Tube WPL-W11281081
...
5
Cover-Valv WPL-W11684617
...
6
Leveler WPL-WPW10141622
...
7
Pin WPL-WP67006642
...
8
Screw (3) WPL-67006425
...
9
Screw WPL-WP8281196
...
10
Hinge-Door WPL-W11106366
...
11
Screw WPL-W11573362
...
12
Screw WPL-WP98165
...
13
Label WPL-W11685757
...
14
Screw WPL-WP489349
...
15
Hinge, Center (grey) WPL-12607103AP
...
16
Hinge-Door WPL-WP12566606ED
...
17
Filler WPL-WP12587703AP
...
18
Grille-Frt WPL-WPW10534165
...
19
Roller-Cab WPL-WPW10515763
...
19A
Roller-Cab WPL-WPW10515762
...
20
Screw (8) WPL-67006564

...
...
NI
Miscellaneous, Cement, Alumilastic (1 1/4 Oz.) WPL-542639
