Maytag LRTD17A (BOM: BH31A)

Model: LRTD17A (BOM: BH31A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

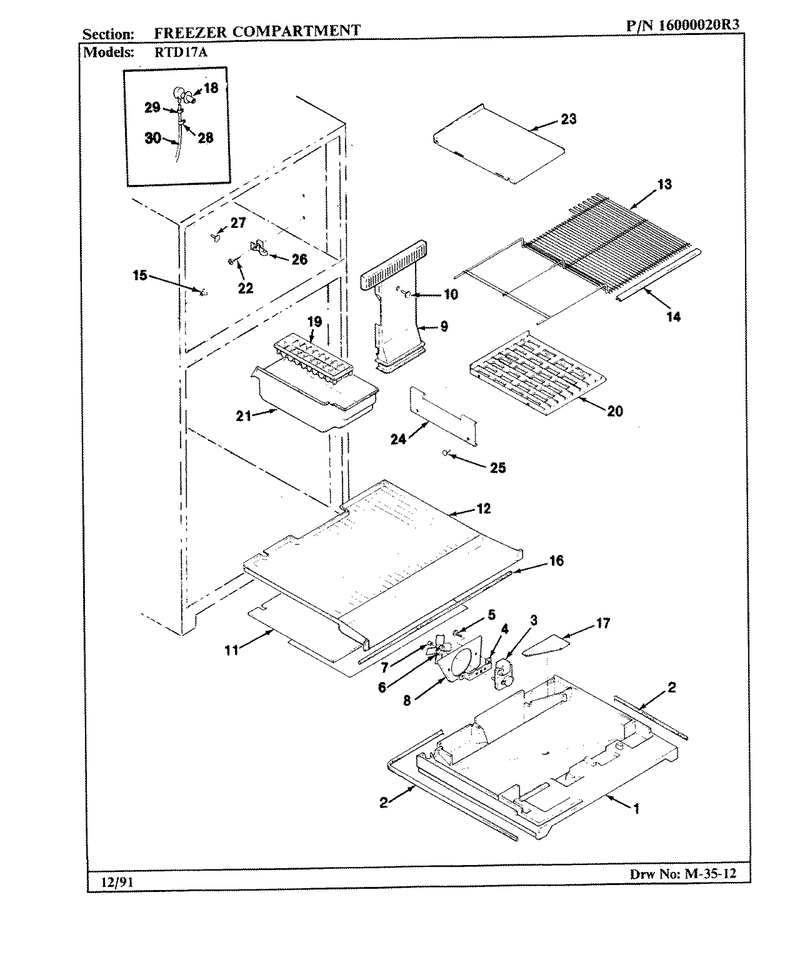

01 - Freezer Compartment

...
...
2
Seal 72`` WPL-68866-5
...
3
Motor, Evaporator Fan WPL-54482-10
...
4
Bracket, Fan Motor WPL-64856-1
...
5
Screw WPL-400015-12
...
6
Blade, Evaporator Fan WPL-64359-1
...
7
Washer, Spring WPL-420092-900
...
8
Orifice, Fan Blade WPL-60608-2
...
9
Seal, Air Tunnel----Na WPL-66325-34
...
12
Bottom, Frz. WPL-66460-1
...
13
Shelf, Frz. (wire) WPL-67348-3
...
14
Trim, Shelf WPL-67176-5
...
15
Cup, Shelf WPL-60313-1
...
16
Seal WPL-68946-1
...
17
Cover, Plenum WPL-66480-4
...
18
Plug, Grommet WPL-67855-1
...
19
Tray WPL-WP841180A
...
20
Shelf, Ice Tray WPL-67114-1
...
21
Pan, Ice WPL-67141-1
...
22
Screw WPL-400019-1
...
23
Shelf, Fill-In WPL-67349-1
...
24
Side, Ice Tray Shelf WPL-67147-1
...
25
Fastener, Divider WPL-67150-1
...
26
Stud, Shelf WPL-66101-1
...
27
Plug Button WPL-67557-1
...
28
Clamp WPL-W10833902
...
29
Clip- Spee WPL-WPM0114003
...
30
Cap, Connector WPL-68187-1

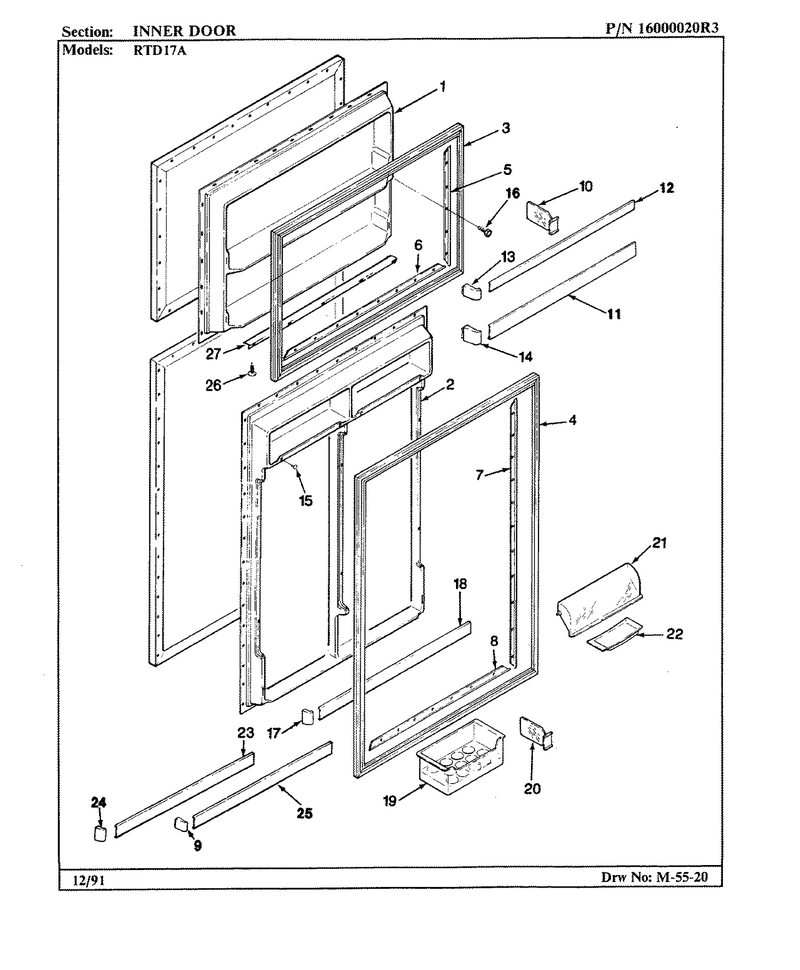

02 - Inner Door

...
...
2
Liner, Door WPL-67004-1
...
3
Gasket WPL-67744-3
...
4
Gasket WPL-67744-4
...
5
Retainer, Door Seal WPL-67033-4
...
6
Retainer, Door Seal WPL-67033-1
...
7
Retainer, F.f. Door Gasket WPL-67033-5
...
8
Retainer, Door Seal WPL-67033-1
...
9
Endcap, Shelf Trim WPL-67208-1
...
10
Organizer WPL-67195-2
...
11
Trim, Door Shelf WPL-67718-11
...
12
Trim, Door Shelf WPL-67718-5
...
13
Endcap, Shelf Trim (sand Beige WPL-67213-1
...
14
Endcap, Shelf Trim WPL-67208-1
...
15
Bumper, Door WPL-28272-6
...
16
Screw WPL-61005388
...
17
Endcap, Shelf Trim WPL-67211-1
...
18
Trim, Door Shelf WPL-67718-16
...
19
Tray, Egg WPL-67215-1
...
20
Organizer WPL-67195-1
...
21
Door, Dairy WPL-67041-1
...
22
Tray, Butter WPL-67216-1
...
23
Trim, Door Shelf WPL-67718-5
...
24
Endcap, Shelf Trim (sand Beige WPL-67213-1
...
25
Trim, Door Shelf WPL-67718-11
