Maytag LRSD20A (BOM: BM05B)

Model: LRSD20A (BOM: BM05B)

Save Part Not Listed?
product name

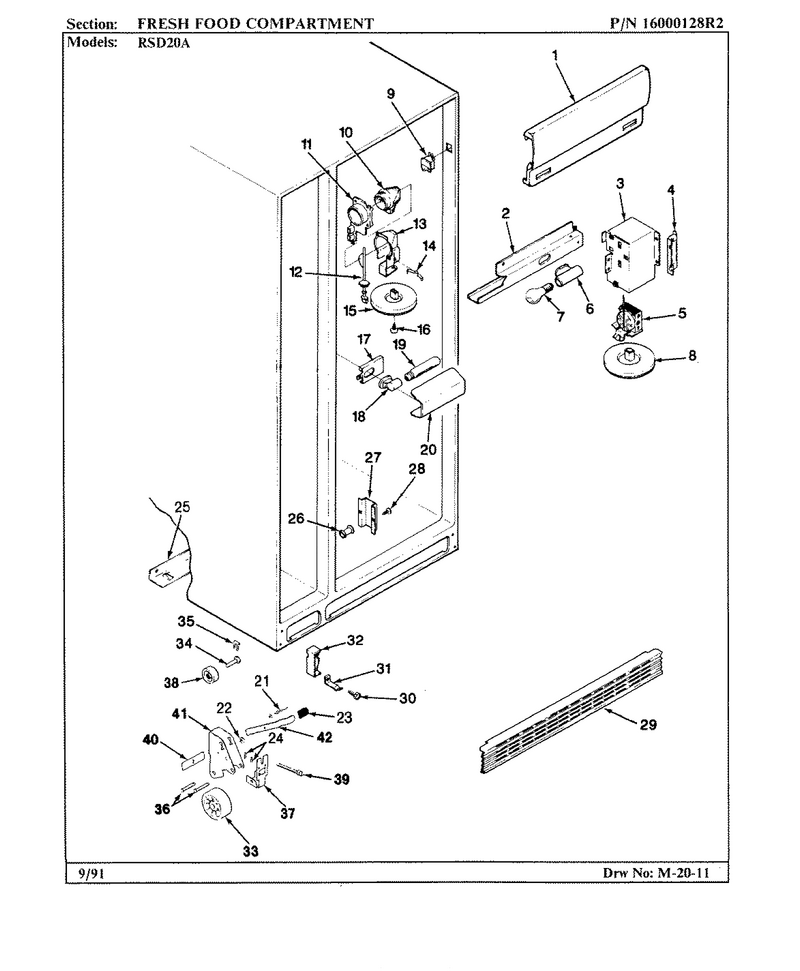

01 - Fresh Food Compartment

...
...
1
Insert, Light Shield WPL-67476-3
...
2
Clip WPL-55042-2
...
3
Housing, Temperature Control WPL-67126-1
...
4
Screw, Control Mounting WPL-401012-1
...
5
Control, Temperature WPL-52884-11
...
6
Socket, Light WPL-29813-1
...
7
Light Bulb WPL-8009
...
8
Knob, Control WPL-67145-1
...
9
Switch WPL-W11384469
...
10
Insulation, Housing WPL-58767-1
...
11
Orifice, Frz. Control (inlet) WPL-67351-1
...
12
Damper, Frz. Control WPL-67609-1
...
13
Housing, Frz. Control WPL-67354-1
...
14
Spring, Baffle WPL-52648-1
...
15
Knob, Control WPL-67145-2
...
16
Screw WPL-400001-1
...
17
Wire Harness, Waist WPL-67408-1
...
18
Receptacle, Light WPL-29814-2
...
19
Screw, Control Mounting WPL-401012-1
...
20
Shield, Light WPL-67242-1
...
21
Rivet WPL-WP210720
...
22
Lockwasher WPL-420003-905
...
23
Handle, Lock Lever WPL-67528-1
...
24
Clip, Retaining Wheel (rear) WPL-62581-1
...
25
Screw WPL-3400518
...
27
Air Deflector WPL-62128-1
...
28
Tub-Outer WPL-W10772617
...
29
Grill, Kickplate WPL-67023-7
...
30
Screw WPL-WP489478
...
31
Clip, Kickplate WPL-67259-1
...
32
End Cap (r) WPL-67854-1
...
33
Wheel Front WPL-67455-1
...
34
Axle WPL-62580-2
...
35
Clip, Retaining Wheel (rear) WPL-62581-1
...
36
Axle Wheel WPL-67529-1
...
37
Screw WPL-WP489478
...
38
Wheel, Roller WPL-67455-2
...
39
Screw, Wheel Adjustment WPL-56487-2
...
40
Tapping Plate, Wheel WPL-59101-1
...
41
Bracket, Wheel WPL-67806-1
...
42
Lever, Wheel Lock WPL-67232-1

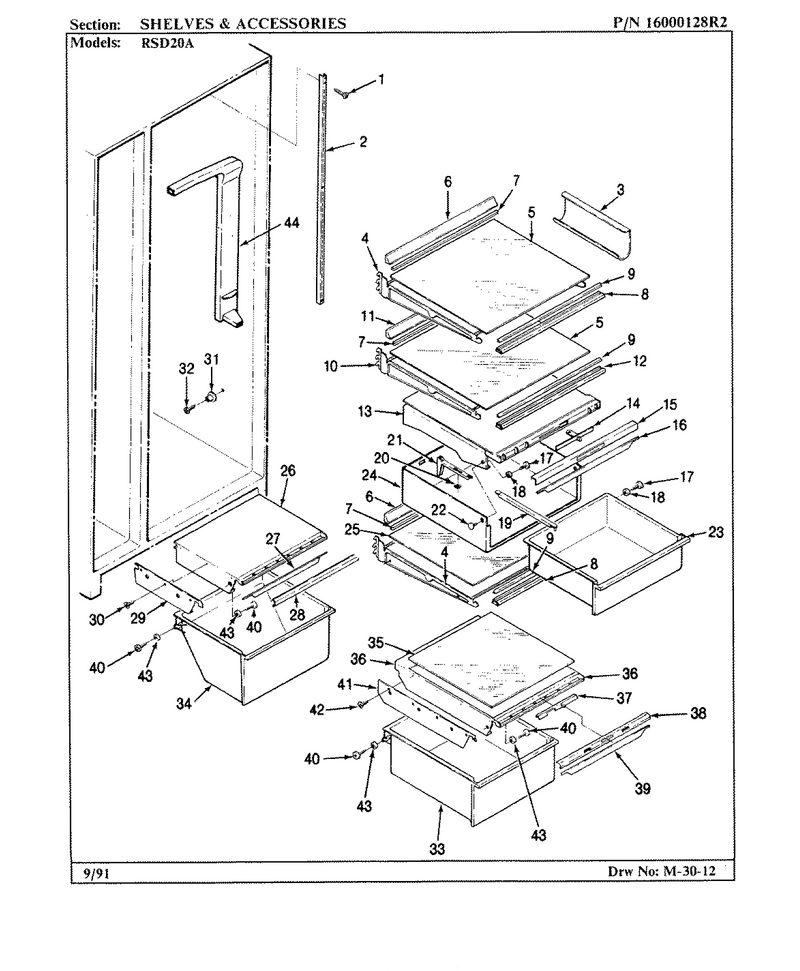

03 - Shelves & Accessories

...
...
1
Screw WPL-400037-28
...
2
Rail, Shelf Support WPL-67311-1
...
3
Holder, Wine Bottle WPL-67308-1
...
4
Frame, Shelf WPL-67273-1
...
5
Glass, Cantilever WPL-67267-5
...
6
Trim, Cantilever WPL-67309-4
...
7
Gasket, Shelf Rear WPL-67266-4
...
8
Trim, Cantilever Shelf WPL-67783-4
...
9
Gasket, Shelf Front WPL-67265-4
...
10
Frame, Cantilever WPL-67274-1
...
11
Trim, Cantilever WPL-67309-6
...
12
Trim, Cantilever Shelf WPL-67783-6
...
13
Shim Lower Hinge WPL-67849-1
...
14
Control, Meat Keeper WPL-67074-1
...
15
Trim, Meat Keeper WPL-67071-2
...
16
Seal, Meat Pan WPL-67677-2
...
17
Screw WPL-WP65275-6
...
18
Roller WPL-WP67423-2
...
19
Linkage, Meat Keeper WPL-67073-1
...
20
Nut WPL-431019-511
...
21
Actuator, Meat Keeper WPL-67072-3
...
22
Plug Button WPL-67688-1
...
23
Meat Pan Assy. WPL-67650-1
...
24
Housing, Meat Pan WPL-67069-1
...
25
Glass, Cantilever WPL-67267-5
...
27
Seal WPL-67731-4
...
28
Trim WPL-67204-6
...
29
Support, Crisper Shelf (lt) WPL-67895-1
...
31
Support- C WPL-WP67764-1
...
32
Screw WPL-W11233072
...
33
Meat Pan Assy. WPL-67650-10
...
34
Pan, Crisper WPL-67650-12
...
35
Glass, Crisper Shelf WPL-67489-5
...
37
Humidity Control WPL-67491-1
...
38
Trim, Crisper WPL-67204-1
...
39
Seal WPL-67731-4
...
40
Screw WPL-WP65275-6
...
41
Support, Crisper Shelf (lt) WPL-67895-1
...
42
Screw WPL-65275-28
...
43
Roller WPL-WP67423-2
...
44
Tub-Outer WPL-W10772617

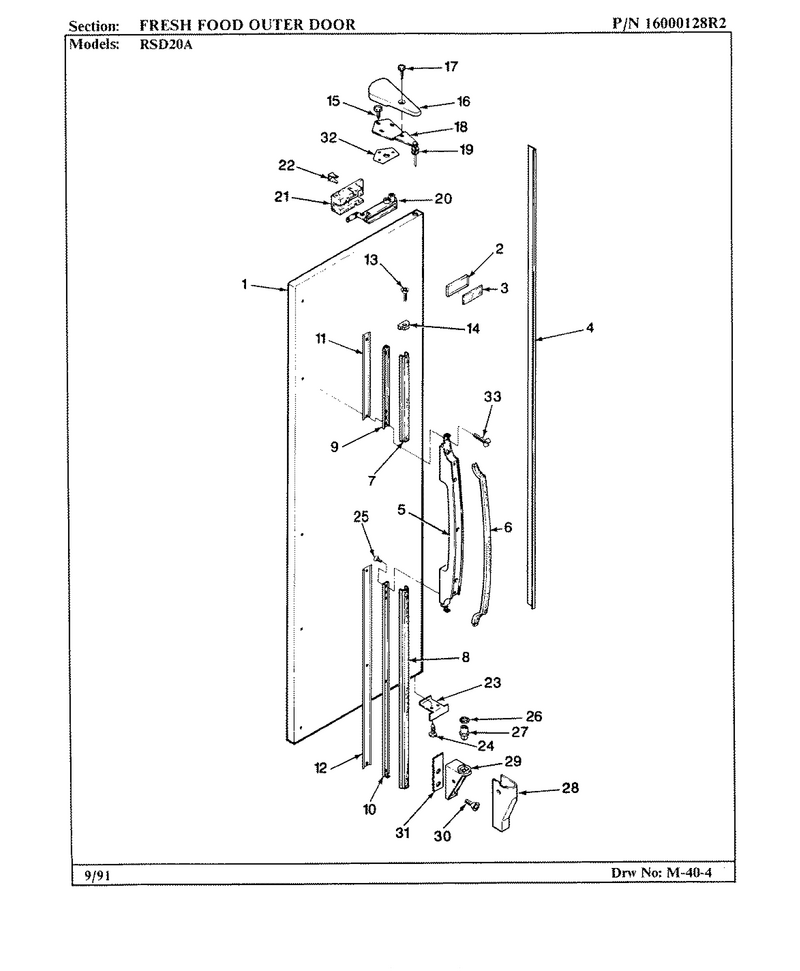

02 - Fresh Food Outer Door

...
...
0
Stop, Door WPL-69022-1
...
2
Bezel, Nameplate WPL-67673-1
...
3
Insert, Nameplate WPL-67194-1
...
4
Trim, Door WPL-66651-4
...
5
Shim, Handle WPL-67385-1
...
6
Screw WPL-65275-44
...
7
Trim, Extension Upper WPL-67155-6
...
8
Trim, Extension Lower WPL-67155-7
...
9
Bracket, Handle Upper WPL-67156-1
...
10
Bracket, Handle Lower WPL-67156-2
...
11
Shim, Trim Lock WPL-67299-6
...
12
Shim, Trim Lock WPL-67299-7
...
13
Screw WPL-414004-1
...
14
Endcap, Handle WPL-67380-3
...
15
Screw WPL-WP3-24838-048
...
16
Cover, Upper Hinge (alm.) WPL-67229-3
...
17
Screw, Hinge Cover WPL-403060-1
...
18
Hinge, Top WPL-67456-4
...
19
Washer WPL-WP52185-1
...
20
Door Closure WPL-54485-2
...
21
Insulation, Closer WPL-52613-1
...
22
Bracket, Closer WPL-52614-1
...
25
Screw, Bracket To Handle WPL-65275-31
...
26
Washer, Door Spacer WPL-67483-3
...
31
Screw, Tapping Plate WPL-65275-10
...
32
Shim, Upper Hinge WPL-65031-1
...
33
Screw,handle Bottom (hex Head) WPL-65275-29

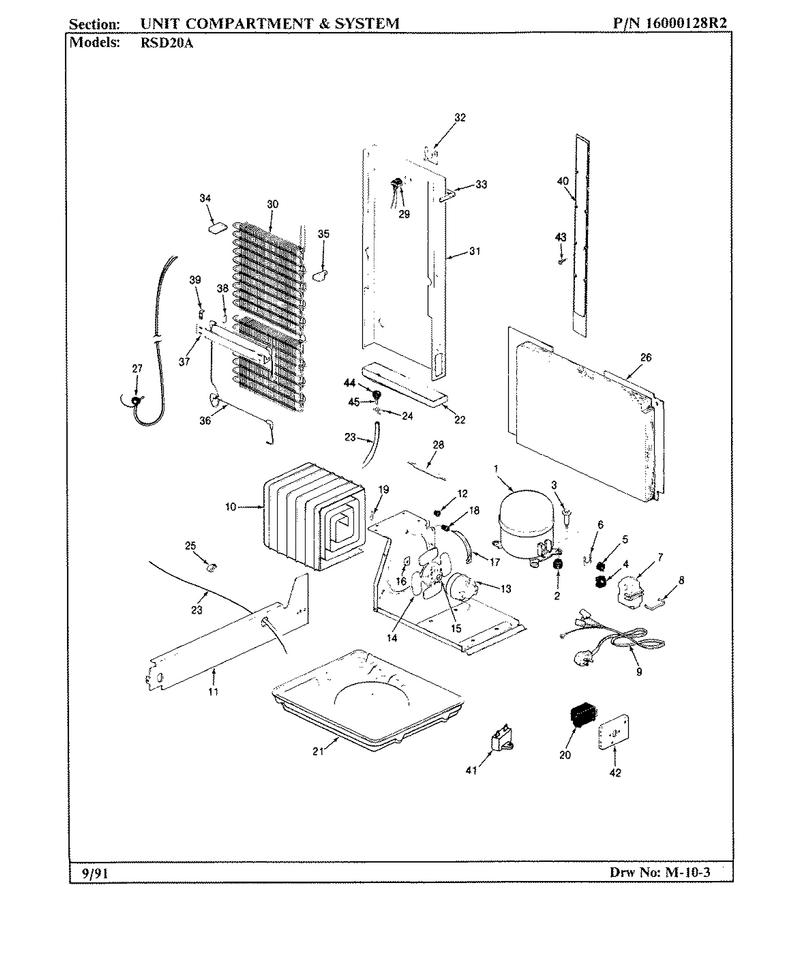

04 - Unit Compartment & System

...
...
1
Compressor WPL-W10619807
...
2
Grommet, Compressor WPL-17245-4
...
3
Screw, Compressor Mounting WPL-65275-9
...
4
Relay, Start WPL-66588-3
...
5
Overload WPL-63294-18
...
6
Clip, Overload WPL-65887-1
...
7
Cover, Terminal WPL-66589-2
...
8
Clip, Terminal Cover WPL-65886-1
...
9
Cord, Power WPL-52890-3
...
10
Condenser WPL-RA43644-1
...
11
Screw WPL-WP488729
...
12
Grommet, Condenser Tubing WPL-53351-1
...
13
Screw WPL-65275-33
...
14
Blade- Con WPL-WP12587601
...
15
Washer, Fan Blade WPL-19913-2
...
16
Nut WPL-WP486692
...
17
Bracket, Fan Motor WPL-56936-1
...
18
Grommet- B WPL-WP61004743
...
19
Clip, Motor Bracket WPL-57051-1
...
20
Timer- Def WPL-WP68233-2
...
21
Pan- Drain WPL-WP68236-1
...
22
Rivet WPL-440015-300
...
23
Hose, Drain WPL-26911-18
...
24
Clamp WPL-WP596669
...
25
Clamp, Drain Hose WPL-53516-5
...
26
Cover, Unit Compartment WPL-67786-1
...
27
Cover, Heat Exchanger WPL-26088-22
...
28
Drier-Uv WPL-WPW10143759
...
30
Evaporator WPL-RA43643-1
...
31
Housing, Evaporator WPL-68834-1
...
32
Board, Terminal WPL-55878-1
...
33
Seal WPL-66325-17
...
34
Seal, Styrofoam-(left) WPL-65063-1
...
35
Seal, Styrofoam-(right) WPL-65064-1
...
36
Heater- De WPL-WP61001846
...
37
Reflector WPL-29915-12
...
38
Clip, Defrost Heater WPL-52067-1
...
39
Bracket, Heater Shield WPL-52561-1
...
40
Cover, Back Wire WPL-67094-1
...
41
Capacitor, Run WPL-65889-2
...
42
Bracket, Mounting Timer WPL-29282-2
...
43
Screw WPL-WP489478
...
44
Grommet WPL-52526-1
...
45
Drain Tube WPL-26527-9
