Maytag LDG25CS

Model: LDG25CS

Save Part Not Listed?
product name

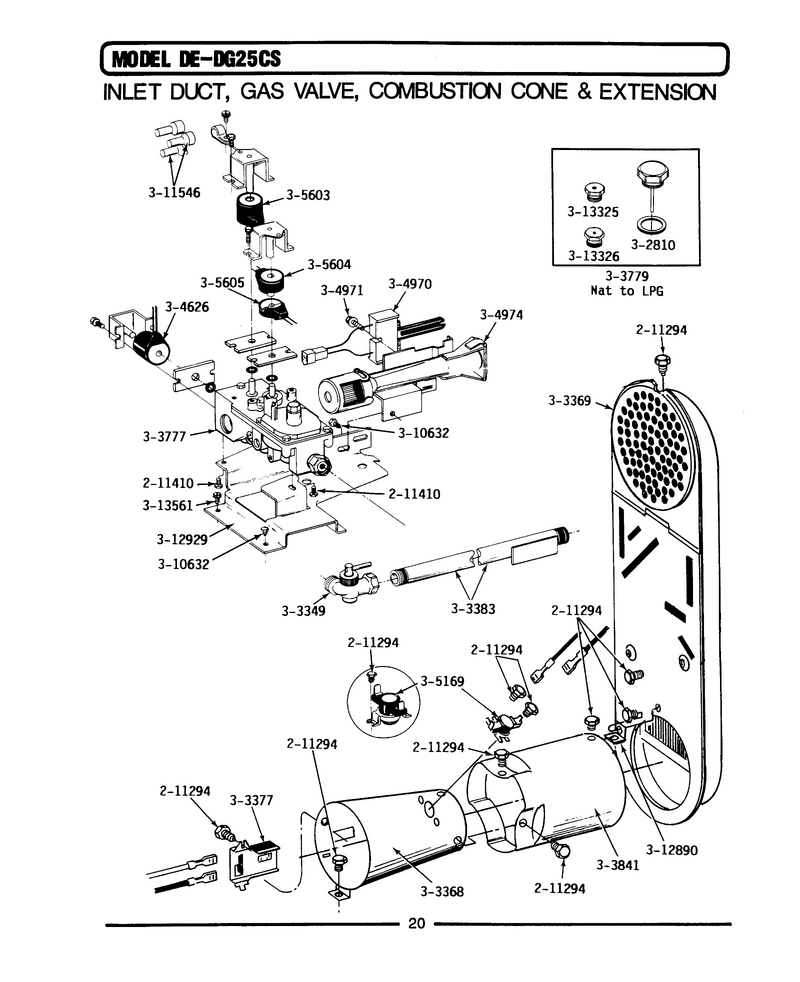

09 - Inlet Duct, Gas Valve & Combustion Cone

...
...
001
Screw WPL-WP90767
...
002
Screw, Hex Hd No.8 X 3/8 Inch WPL-NLA
...
003
Screw Assm - Blue Block Ope WPL-NLA
...
004
Shut-Off, Gas Valve WPL-Y303349
...
005
Cone, Combustion WPL-Y303368
...
006
Inlet Duct Assembly (dg) WPL-Y303369
...
007
Sensor WPL-WP338906
...
008
Pipe & Bracket Assy. WPL-Y303383
...
009
Gas Valve Assembly WPL-Y303777
...
010
Conversion Kit-Nat. To Lpg WPL-Y303779
...
011
Cone, Extension (combustion) WPL-Y303841
...
012
Side Coil WPL-Y304626
...
013
Ignitor WPL-4391996
...
014
Screw WPL-304971
...
015
Burner Asy WPL-WP33002793
...
016
Thermostat WPL-WP305169
...
017
Coil WPL-12001348
...
018
Coil WPL-WP305604
...
019
Coil WPL-WP305605
...
020
Orifice Kit, Nat (high Alt.) WPL-NLA
...
021
Orifice Kit, Lp (high Alt.) WPL-NLA
...
022
Screw WPL-WP1163839
...
023
Closed Connector WPL-311546
...
024
Retainer, Heater Chamber WPL-Y312890
...
025
Gas Valve Bracket WPL-312929
...
026
Main Burner Orifice - Lpg WPL-NLA
...
027
Internal Orifice - Lpg WPL-NLA
...
028
Main Burner Orifice (mfg) WPL-NLA
...
029
Screw WPL-WPY313561

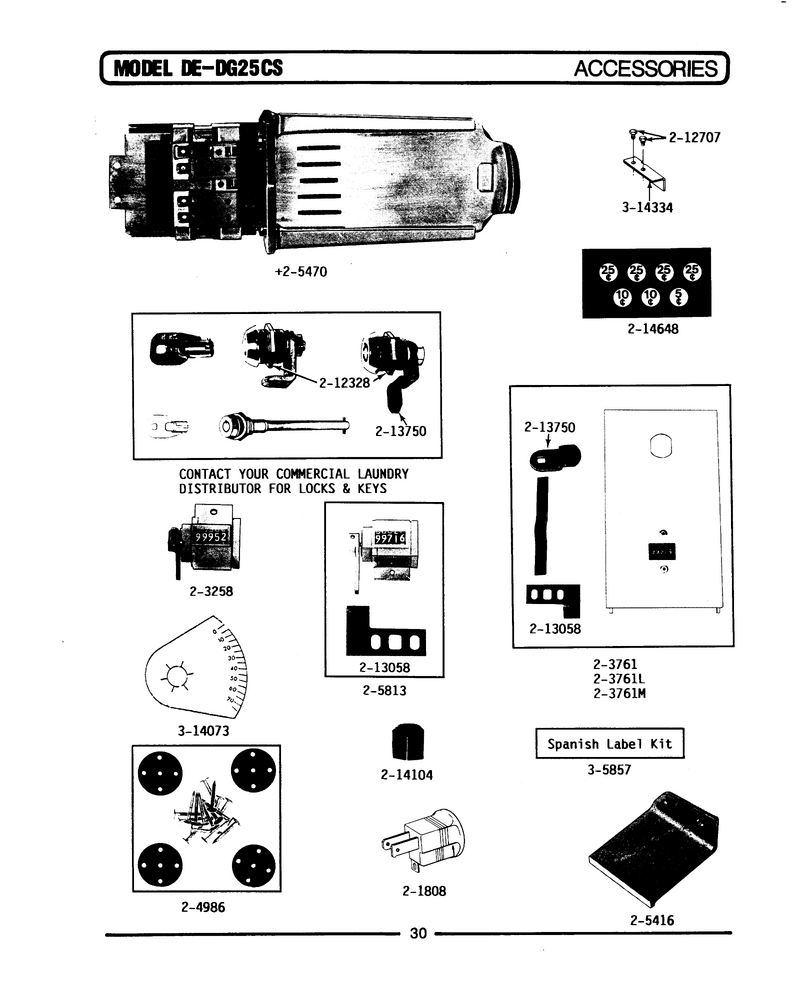

11 - Installation Accessories

...
...
001
Blade, Saw WPL-NLA
...
002
Replacement Drill WPL-NLA
...
003
Hole Saw W/drill Bit WPL-NLA
...
004
Extension Chuck, Drill WPL-NLA
...
005
Accessory Parts, Dryer Vent - Hardware & Misc Cap (external Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pi WPL-4396007RW
...
006
Pipe, Venting WPL-Y059130
...
007
Elbow, Venting (4``) WPL-Y059131
...
008
Plate, Alum. Window (15``x20``) WPL-Y059134
...
009
Vent Duct Assy. WPL-Y059135
...
010
Flexible Vent Kit WPL-Y059143
...
011
Rectangular Vent Kit WPL-NLA
...
012
Damper, Back Draft WPL-NLA
...
013
Screw WPL-WP90767
...
014
Fastener, Exhaust Duct Kit WPL-213323
...
015
Exhaust Deflector Kit WPL-NLA
...
016
Accessory Parts, Dryer Vent - Flex Pipe Systems 6' (one End With Snap-Lock Male Fitting And Other End With Snap-Lock Fem WPL-4396010RP
...
017
Clamp, Flexible Duct WPL-Y304630
...
018
Exhaust Duct Kit WPL-Y304652
...
019
Bag, Lint (dacron) WPL-311353
...
020
Insulation, Exhaust Duct Kit WPL-312302
...
021
Bracket, Exhaust Deflector WPL-NLA

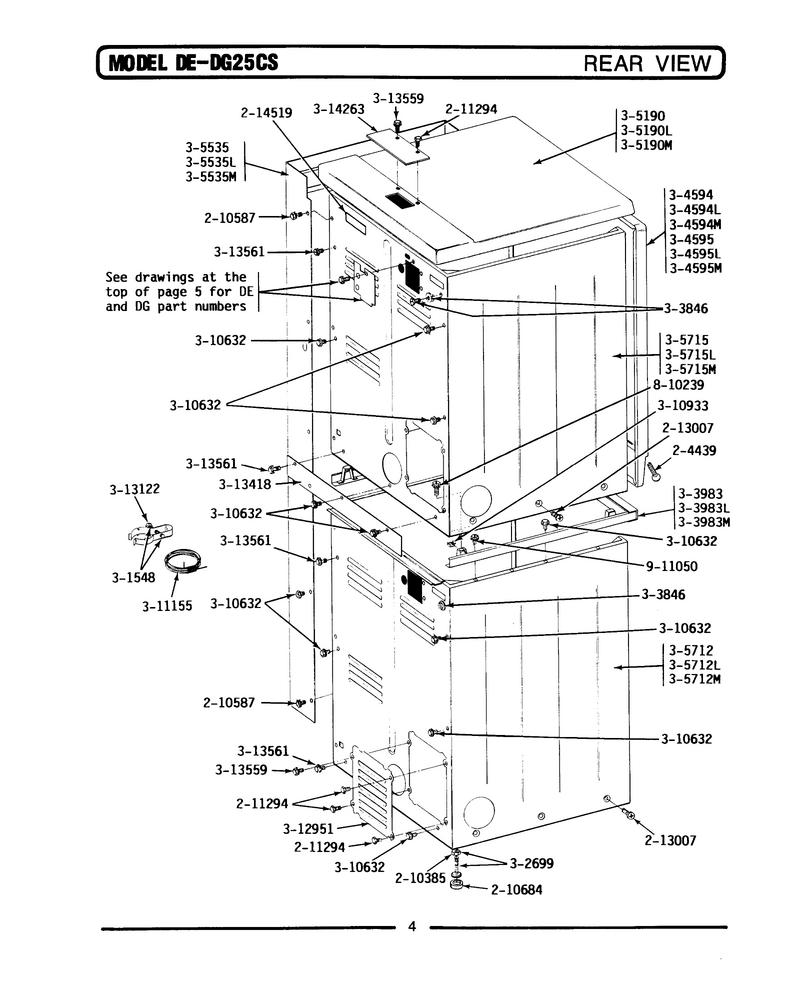

02 - Rear View

...
...
001
Screw & Fstner Assy(frt.panel) WPL-204439
...
002
Nut- Lock WPL-WP210385
...
003
Screw WPL-NLA
...
004
Pad WPL-WP210684
...
005
Screw WPL-WP90767
...
006
Grommet, Cord WPL-211881
...
007
Screw, Cabinet WPL-213007
...
008
Label, Electrical Instruction WPL-214519
...
009
Clamp, Ground (w/screw) WPL-301548
...
010
Wall Bracket WPL-NLA
...
011
Leg, Adjustable (w/nut) WPL-22003428
...
012
Screw & Washer Assy. WPL-NLA
...
013
Spacer Assm-White WPL-NLA
...
014
Front Panel-White WPL-NLA
...
015
Top Cover-Almond WPL-NLA
...
016
Control Shroud-White WPL-NLA
...
017
Cabinet-White WPL-NLA
...
018
Cabinet-White WPL-NLA
...
019
Screw WPL-WP1163839
...
020
Fastener WPL-310933
...
021
Wire WPL-WP311155
...
022
Washer- Te WPL-WPY311270
...
023
Screw WPL-WP489483
...
024
Nut WPL-WP112432
...
025
Strap, Ground WPL-Y312184
...
026
Screw WPL-W11164114
...
027
Cover, Terminal WPL-Y312905
...
028
Cover, Access WPL-Y312951
...
029
Screw - Baffle To Tumbler WPL-313122
...
030
Filler Strip WPL-NLA
...
031
Screw WPL-WP90767
...
032
Screw WPL-WPY313561
...
033
Top Cover Plate WPL-NLA
...
034
Screw WPL-NLA
...
035
Screw WPL-WP4312464

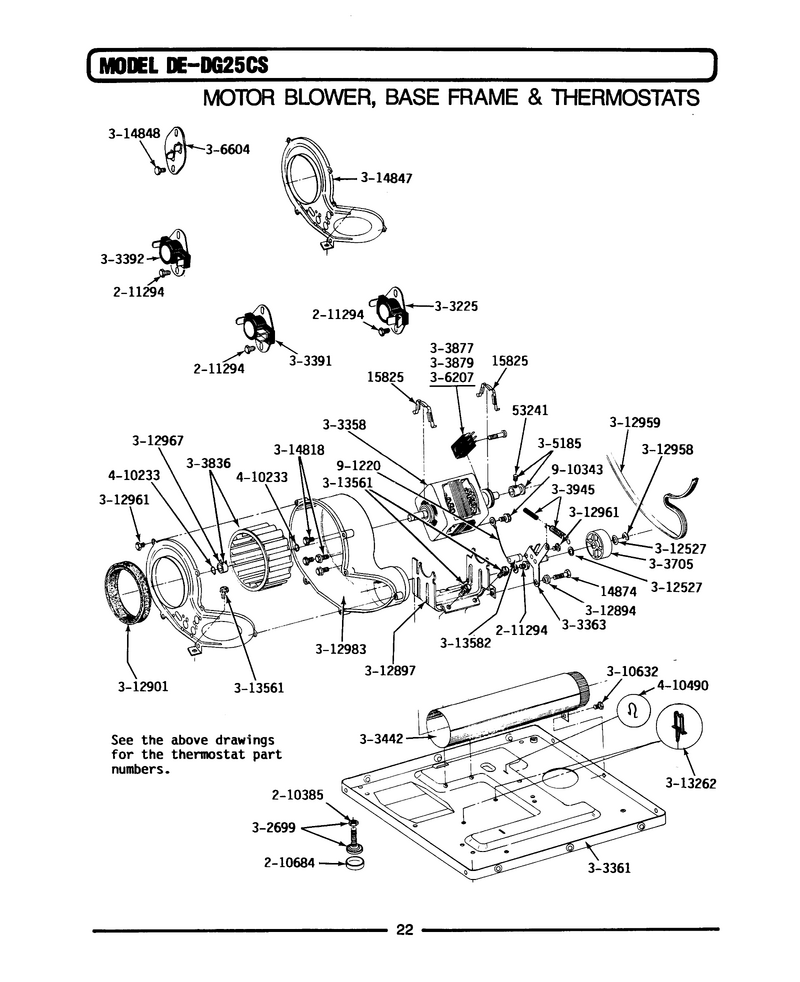

10 - Motor, Blower, Base Frame & Thermostats

...
...
001
Screw WPL-WPY014874
...
002
Clip- Moto WPL-WPY015825
...
003
Set Screw, Pulley WPL-Y053241
...
004
Nut- Lock WPL-WP210385
...
005
Pad WPL-WP210684
...
006
Screw WPL-WP90767
...
007
Leg, Adjustable (w/nut) WPL-22003428
...
008
Thermostat, Permanent Press WPL-Y303225
...
009
Motor-Drve WPL-W10410999
...
010
Base Assy. WPL-Y303361
...
011
Idler Arm WPL-WP6-3033630
...
012
Thermostat WPL-WP33303391
...
013
Thrmst-Fix WPL-WP694674
...
014
Exhaust Duct Assy. WPL-Y303442
...
015
Pulley WPL-WP6-3037050
...
016
Blower Wheel Assembly & Clamp WPL-Y303836
...
017
Switch, Motor WPL-Y303877
...
018
Switch, Motor Start-Prod. WPL-Y303879
...
019
Idler Spring Assembly WPL-Y303945
...
020
Pulley, Motor (w/set Screw) WPL-Y305185
...
021
Switch, Motor Start-Prod. WPL-NLA
...
022
Wire WPL-NLA
...
023
Cut-Off- T WPL-WP306604
...
024
Screw WPL-WP1163839
...
025
Washer WPL-WPY312527
...
026
Housing, Blower WPL-Y312893
...
027
Sleeve WPL-WP315772
...
028
Support, Motor WPL-NLA
...
029
Seal- Blow WPL-WPY312901
...
030
Ring-E WPL-WP354987
...
031
Belt WPL-WPY312959
...
032
Screw WPL-WPW10116751
...
033
Clamp WPL-WP312967
...
034
Retainer- WPL-W10116752
...
035
Screw WPL-WPY313561
...
036
Spacer WPL-WPW10116756
...
037
Screw WPL-WP1163839
...
038
Cover, Blower Housing WPL-314847
...
039
Screw WPL-NLA
...
040
Ring-Retnr WPL-WP9703438
...
041
Spring, Wire Harness WPL-410490
...
042
Wire, Ground WPL-901220
...
043
Screw WPL-WP488234

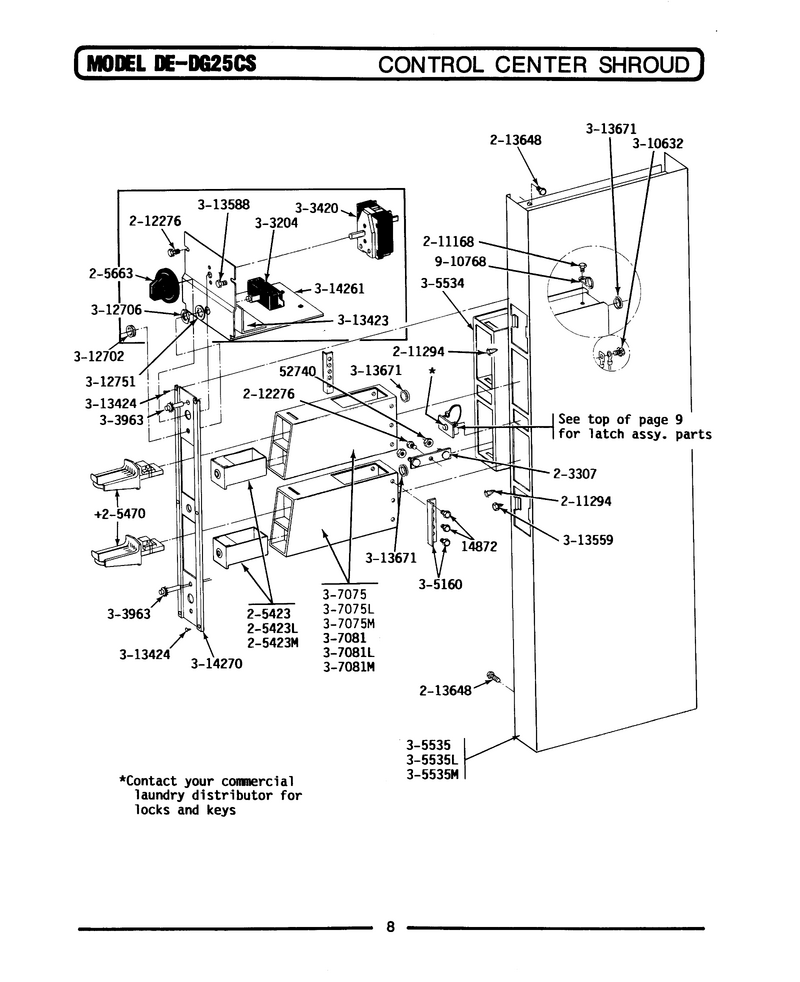

04 - Control Center Shroud

...
...
001
Screw, No.10 X 3/8 WPL-Y014872
...
002
Nut WPL-WP62739
...
003
Mtg. Strap----Na WPL-NLA
...
004
Coin Box-White WPL-205423
...
005
Maytag Coin Slide WPL-NLA
...
006
Knob For Selector Switch WPL-205663
...
007
Screw WPL-WPW10139210
...
008
Screw WPL-WP90767
...
009
Screw WPL-WP90767
...
010
Nut WPL-W11395752
...
011
Spring Washer For Lock WPL-NLA
...
012
Screw WPL-WP98165
...
013
Start Switch With Nuts WPL-Y303204
...
014
Selector Switch WPL-Y303420
...
015
Indicator Light WPL-303963
...
016
Ground Wire For Latch WPL-Y303981
...
017
Coin Meter Stop With Screws WPL-NLA
...
018
Vault Assembly WPL-305534
...
019
Control Shroud-White WPL-NLA
...
020
Coin Meter Box Assembly - D25c WPL-NLA
...
021
Coin Meter Weld Assy-Alm----Na WPL-NLA
...
022
Screw WPL-WP1163839
...
023
Knurled Nu WPL-WPY312702
...
024
Hex Nut On Switch WPL-Y312706
...
025
Washer WPL-WPW10139799
...
026
Insulator WPL-NLA
...
027
Screw WPL-W10837674
...
028
Lock Kit WPL-206637
...
029
Plate For Latch WPL-313428
...
030
Screw WPL-WP90767
...
031
Screw WPL-WP488234
...
032
Grommet For Control Center WPL-Y313671
...
033
Switch And Relay Bracket WPL-Y314261
...
034
Vault Panel WPL-315037
...
035
Cable Strap-Harness To Base WPL-910768

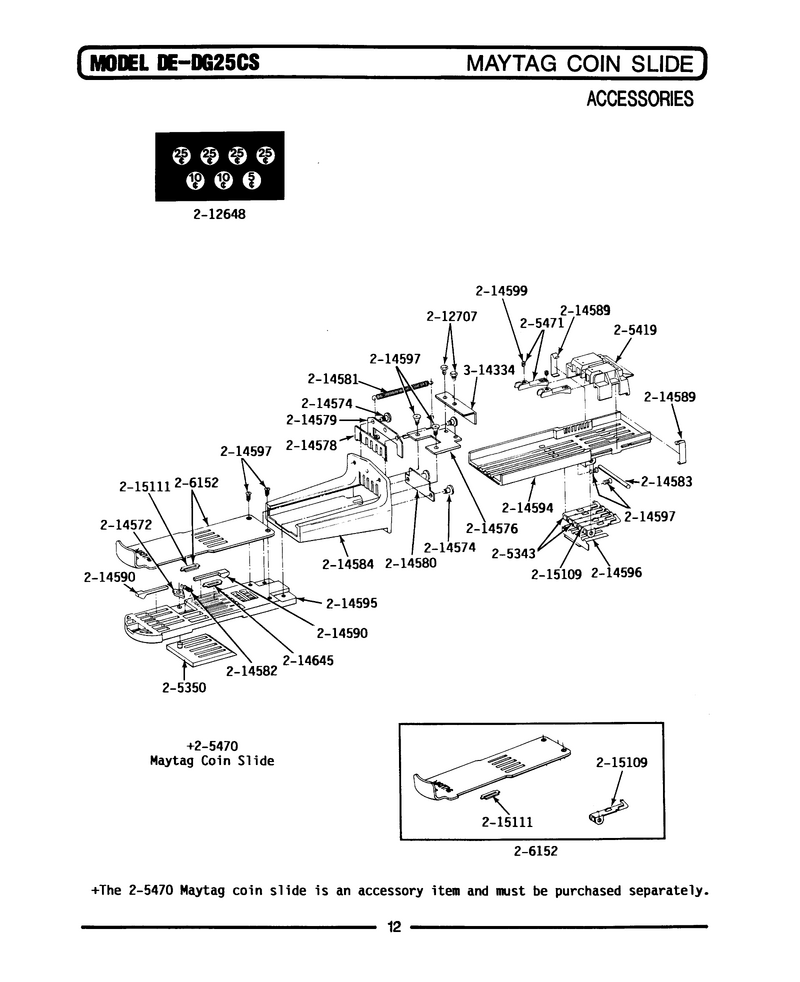

06 - Maytag Coin Slide

...
...
001
Lower Gage Arm Assembly WPL-205343
...
002
Stop Block Assembly WPL-205350
...
003
Measuring Block Assembly WPL-NLA
...
004
Maytag Coin Slide WPL-NLA
...
005
Movable Coin Gage WPL-NLA
...
006
Slide Plate W/nickel Insert WPL-NLA
...
007
Screw WPL-W11684507
...
008
Ratchet Arm WPL-214572
...
009
Stud For Coin Slide WPL-NLA
...
010
End Bracket For Slide WPL-NLA
...
011
Gate For Coin Opening WPL-214578
...
012
Retainer For Gate WPL-NLA
...
013
Retainer For Gage Spring WPL-NLA
...
014
Return Spring WPL-214581
...
015
Spring For Ratchet Arm WPL-214582
...
016
Pin For Lower Gage Arm WPL-NLA
...
017
Housing For Coin Slide WPL-214584
...
018
Spring Clip WPL-214589
...
019
Plug For Coin Opening WPL-NLA
...
020
Base Insert For Housing WPL-214594
...
021
Slide Body WPL-NLA
...
022
Spring For Lower Gage Arm WPL-214596
...
023
Screw WPL-214597
...
024
Set Screw For Gage WPL-NLA
...
025
Dime Insert WPL-NLA
...
026
Coinage Decal WPL-214648
...
027
Lower Gage Arm WPL-NLA
...
028
Nickel Insert WPL-NLA
...
029
Washer WPL-214334

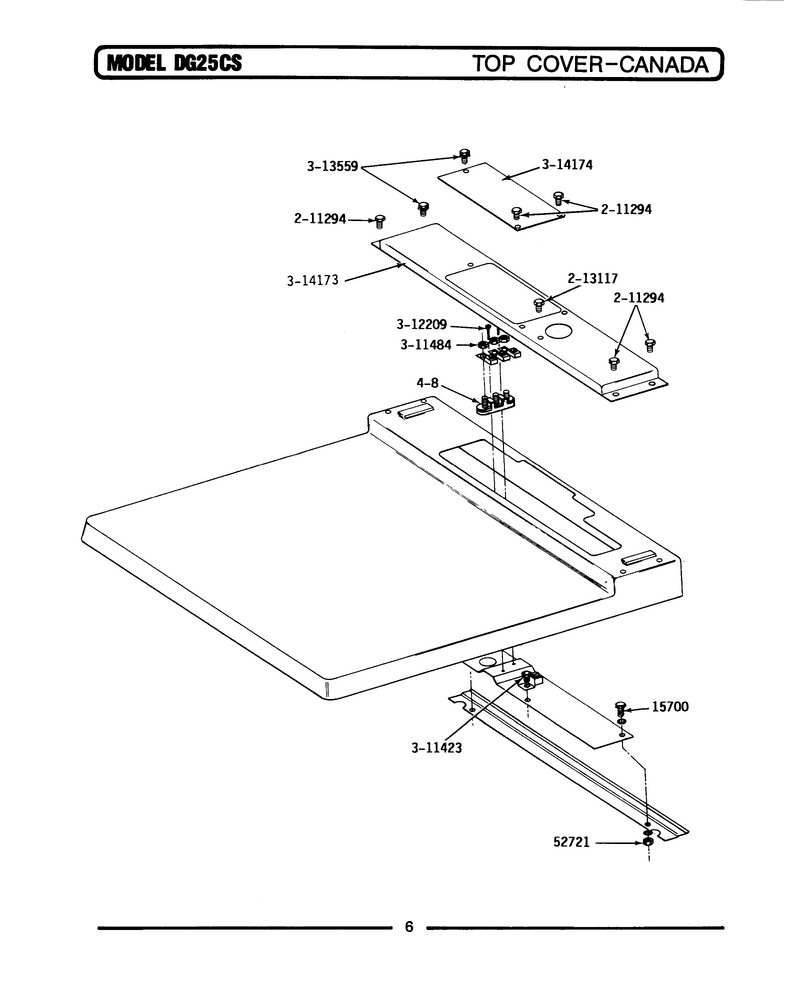

03 - Top Cover-Canada

...
...
001
Cap Screw, 1/4-20 X 1/2 WPL-NLA
...
002
Nut WPL-Y052721
...
003
Screw WPL-WP90767
...
004
Screw WPL-WP67006908
...
005
Screw WPL-WP489483
...
006
Nut WPL-WP112432
...
007
Screw WPL-W11164114
...
008
Screw WPL-WP90767
...
009
Conduit Entrance WPL-NLA
...
010
Terminal Cover - Canada WPL-Y314174
...
011
Block, Terminal WPL-400008

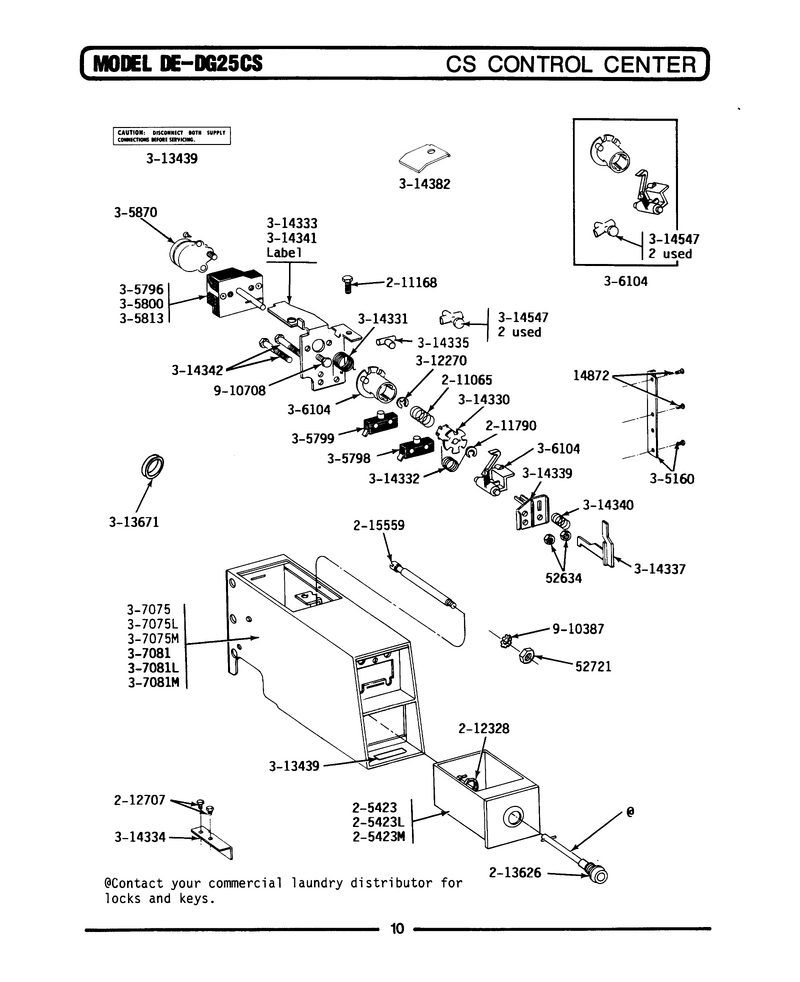

05 - Control Center

...
...
001
Screw, No.10 X 3/8 WPL-Y014872
...
002
Nut K WPL-M0282005
...
003
Nut WPL-Y052721
...
004
Coin Box-White WPL-205423
...
005
Spring- Ti WPL-WP211065
...
006
Screw WPL-WPW10139210
...
007
Lock Ring For Timer Shaft WPL-211790
...
008
Nut WPL-W11395752
...
009
Screw WPL-W11684507
...
010
Spring Washer For Lock WPL-NLA
...
011
Bolt, Locking WPL-215559
...
012
Coin Meter Stop With Screws WPL-NLA
...
013
Timer WPL-305796
...
014
Bypass Switch For Motor WPL-305798
...
015
Switch WPL-WPY305799
...
016
Wire Harness For Timer WPL-305800
...
017
Timer - Canada Rpr WPL-305813
...
018
Timer Motor Rpr WPL-305870
...
019
Torsion-Timer Kit WPL-306104
...
020
Wire Harness Upper Dg WPL-NLA
...
021
Wire Harness Lower Dg WPL-NLA
...
022
Coin Meter Box Assembly - D25c WPL-NLA
...
023
Coin Meter Weld Assy-Alm----Na WPL-NLA
...
024
Ring-E WPL-WP98392
...
025
Instruction Label WPL-Y313439
...
026
Grommet For Control Center WPL-Y313671
...
027
Driver For Index Wheel WPL-314330
...
028
Return Spring WPL-314331
...
029
Actuator Spring WPL-314332
...
030
Timer Mounting Bracket WPL-314333
...
031
Bracket For Coin Slide WPL-314334
...
032
Time Adjustment Peg WPL-314335
...
033
Slider WPL-33002968
...
034
Switch And Slider Bracket WPL-314339
...
035
Helical Spring ----N WPL-NLA
...
036
Instruction Label WPL-NLA
...
037
Screw WPL-NLA
...
038
Stop For Timer Mechanism WPL-NLA
...
039
Actuator Kit WPL-Y308109
...
040
Lock Washer WPL-910387
...
041
Screw WPL-WP488234

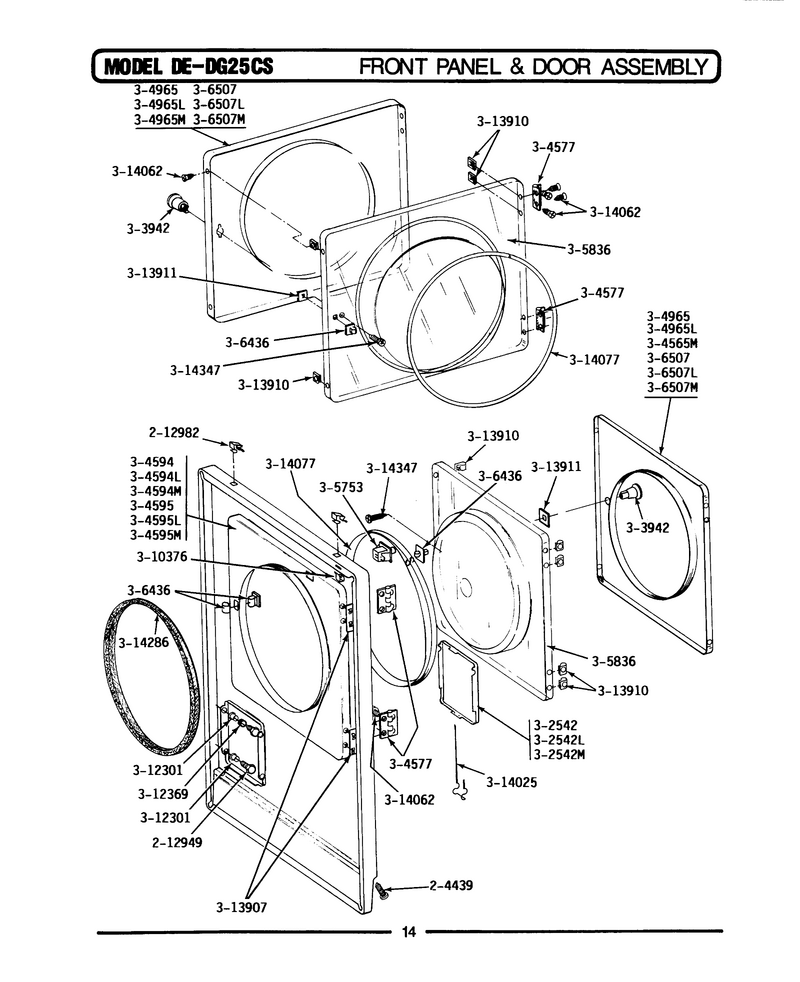

07 - Front Panel & Door Assembly

...
...
001
Screw & Fstner Assy(frt.panel) WPL-204439
...
002
Screw WPL-212949
...
003
Fastener- WPL-WP22001650
...
004
Access Door (white) WPL-NLA
...
005
Knob And Screw WPL-NLA
...
006
Door Hinge ----S WPL-Y304577
...
007
Front Panel-White WPL-NLA
...
008
Door Complete, Almond WPL-NLA
...
009
Switch-Dor WPL-W10169313
...
010
Inner Door With Knob & Scre WPL-NLA
...
011
Door Latch Kit--W WPL-306436
...
012
Door Panel-White----Na WPL-NLA
...
013
Clip, Wire Harness WPL-Y310376
...
014
Bushing For Access Stud WPL-NLA
...
015
Sleeve-Access Panel Stud WPL-312369
...
016
Label, Lint Screen Instruction WPL-Y313340
...
017
Twin Fastener WPL-Y313907
...
018
Clip, Door Liner To Outer Pnl WPL-Y313910
...
019
Door Strike Retainer WPL-Y313911
...
020
Instruction Label WPL-Y313927
...
021
Latch For Access Door WPL-Y314025
...
022
Screw WPL-Y314062
...
023
Door Seal WPL-314077
...
024
Gas Ignition Label WPL-NLA
...
025
Seal For Front Panel WPL-314286
...
026
Screw For Door Knob----Na WPL-NLA

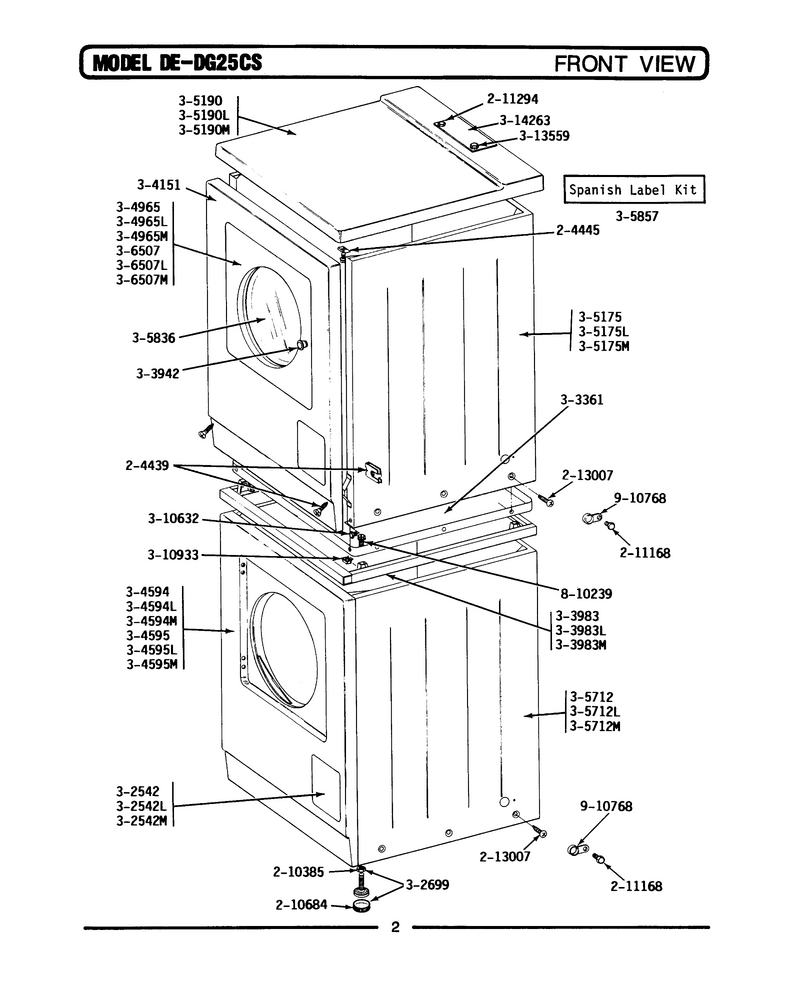

01 - Front View

...
...
001
Screw & Fstner Assy(frt.panel) WPL-204439
...
002
Screw & Fastener Asy. WPL-204445
...
003
Nut- Lock WPL-WP210385
...
004
Pad WPL-WP210684
...
005
Screw WPL-WPW10139210
...
006
Screw WPL-WP90767
...
007
Screw, Cabinet WPL-213007
...
008
Access Door (white) WPL-NLA
...
009
Leg, Adjustable (w/nut) WPL-22003428
...
010
Base Assy. WPL-Y303361
...
011
Knob And Screw WPL-NLA
...
012
Spacer Assm-White WPL-NLA
...
013
Name Plate On Control Panel WPL-NLA
...
014
Front Panel-White WPL-NLA
...
015
Door Complete, Almond WPL-NLA
...
016
Top Cover-Almond WPL-NLA
...
017
Cabinet-White WPL-NLA
...
018
Cabinet-White WPL-NLA
...
019
Inner Door With Knob & Scre WPL-NLA
...
020
Spanish Label Kit WPL-NLA
...
021
Door Panel-White----Na WPL-NLA
...
022
Screw WPL-WP1163839
...
023
Fastener WPL-310933
...
024
Screw WPL-WP90767
...
025
Top Cover Plate WPL-NLA
...
026
Screw WPL-NLA
...
027
Cable Strap-Harness To Base WPL-910768

08 - Lint Screen, Tumbler (front & Back)

...
...
001
Wire, Ground WPL-205810
...
002
Rivet WPL-WP210720
...
003
Screw WPL-WP90767
...
004
Drum Roller/washer Assy. WPL-12001541
...
005
Tumbler Bearing Kit ----W WPL-306508
...
006
Outlet Duct & Grid WPL-306657
...
007
Outlet Duct & Grid WPL-306657
...
008
Back, Tumbler (w/seal) WPL-33001106
...
009
Tumbler WPL-305187
...
010
Screen WPL-WP33001003
...
011
Tumbler Front----Na WPL-NLA
...
012
Clip, Wire Harness WPL-Y310376
...
013
Washer WPL-310557
...
014
Screw WPL-WP1163839
...
015
Screw WPL-WPY310759
...
016
Washer WPL-WP312535
...
017
Nut- Hex WPL-WP33001443
...
018
Shaft WPL-WP6-3129480
...
019
Belt WPL-WPY312959
...
020
Screw WPL-WPW10116751
...
021
Outlet Duct - Outer Half WPL-Y312964
...
022
Washer WPL-WP312535
...
023
Screw WPL-WPY313561
...
024
Screw WPL-NLA
...
025
Guide For Lint Screen WPL-Y313795
...
026
Lint Seal WPL-Y313796
...
027
Cover, Thread WPL-NLA
...
028
Screw WPL-WP33002917
...
029
Washer WPL-WP314158
...
030
Dryer Tumbler, W/o Baffles WPL-33001108
...
031
Baffle (short) WPL-314803
...
032
Baffle, Tall WPL-33001004
...
033
Seal- Tumb WPL-WP314820
...
034
Ring-Retnr WPL-WP9703438
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
