Maytag LDG22CT

Model: LDG22CT

Save Part Not Listed?
product name

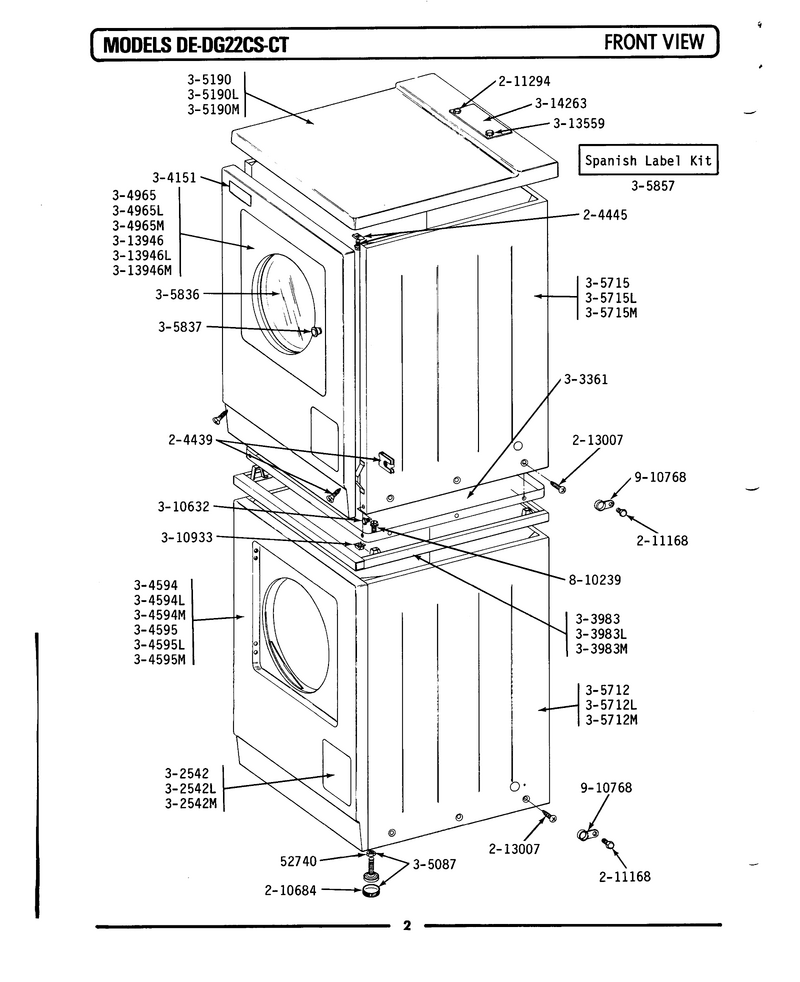

01 - Front View

...
...
001
Nut WPL-WP62739
...
002
Screw & Fstner Assy (ft. Pnl) WPL-204439
...
003
Screw & Fastener Asy. WPL-204445
...
004
Pad WPL-WP210684
...
005
Screw WPL-WPW10139210
...
006
Screw WPL-WP90767
...
007
Screw, Cabinet WPL-213007
...
008
Access Door (wht) WPL-NLA
...
009
Base Assy. WPL-Y303361
...
010
Spacer Assy (wht) WPL-NLA
...
011
Name Plate, Control Panel WPL-NLA
...
012
Front Panel (wht) WPL-NLA
...
013
(alm) WPL-NLA
...
014
Foot WPL-WP8563585
...
015
(alm) WPL-NLA
...
016
Cabinet (wht) WPL-NLA
...
017
Cabinet (wht) WPL-NLA
...
018
Inner Door W/knob & Screw WPL-NLA
...
019
Knob & Screw WPL-NLA
...
020
Screw WPL-WP1163839
...
021
Fastener WPL-310933
...
022
Screw WPL-WP90767
...
023
(alm) WPL-NLA
...
024
Top Cover Plate WPL-NLA
...
025
Screw WPL-NLA
...
026
Cable Strap, Harness (base) WPL-910768

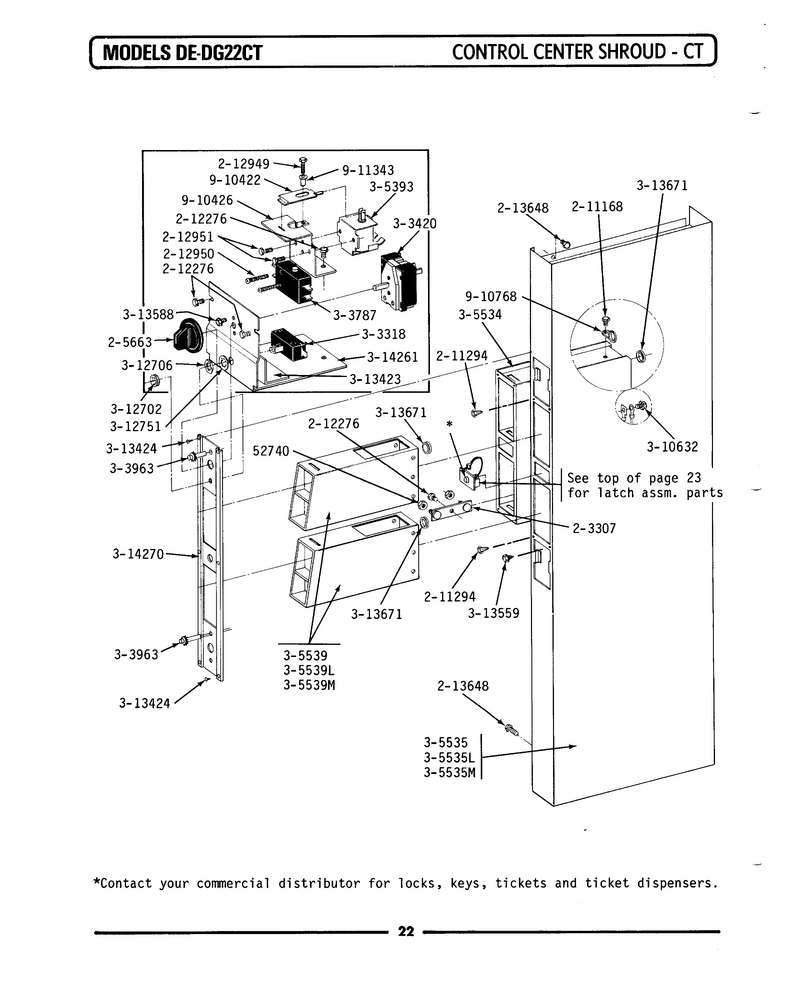

03 - Control Center Shroud

...
...
001
Nut WPL-WP62739
...
002
Mtg. Strap----Na WPL-NLA
...
003
Knob, Selector Switch WPL-205663
...
004
Screw WPL-WPW10139210
...
005
Screw WPL-WP90767
...
006
Screw WPL-WP90767
...
007
Nut WPL-W11395752
...
008
Screw WPL-212949
...
009
Screw WPL-M0227520
...
010
Screw, No.6-32 X 1/4 Inch WPL-212951
...
011
Spring Washer, Lock WPL-NLA
...
012
Screw WPL-WP98165
...
013
Switch Assembly W/hex Nut WPL-Y303318
...
014
Selector Switch WPL-Y303420
...
015
Switch, Relay WPL-Y303787
...
016
Indicator Light WPL-303963
...
017
Ground Wire, Latch WPL-Y303981
...
018
Solenoid, Relay Assembly WPL-305393
...
019
Vault Assembly WPL-305534
...
020
Control Shroud (wht) WPL-NLA
...
021
Outer Case (wht) WPL-NLA
...
022
Screw WPL-WP1163839
...
023
Knurled Nu WPL-WPY312702
...
024
Hex Nut On Switch WPL-Y312706
...
025
Washer WPL-WPW10139799
...
026
Insulator WPL-NLA
...
027
Screw WPL-W10837674
...
028
Lock Kit WPL-206637
...
029
Plate, Latch WPL-313428
...
030
Screw WPL-WP90767
...
031
Screw WPL-WP488234
...
032
Grommet, Control Center WPL-Y313671
...
033
Switch & Relay Bracket WPL-Y314261
...
034
Vault Panel WPL-315037
...
035
Spring Lever, Relay WPL-NLA
...
036
Relay Bracket WPL-NLA
...
037
Cable Strap, Harness (base) WPL-910768
...
038
Spacer, Advance Relay WPL-NLA

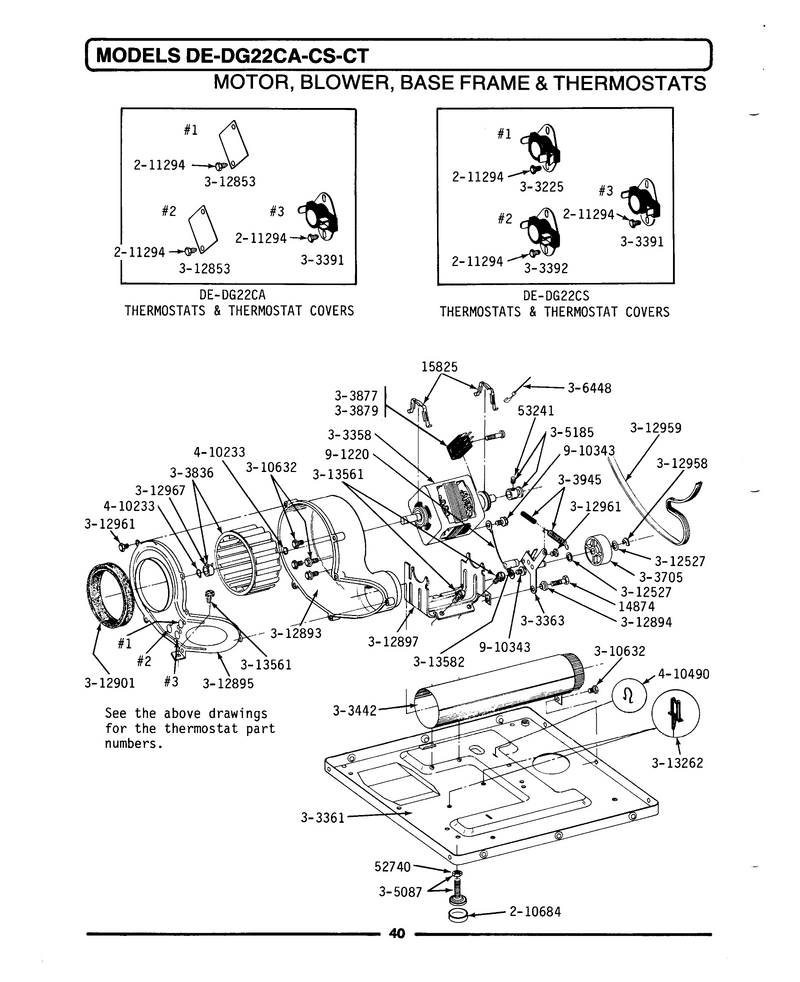

10 - Motor, Blower, Base Frame & Thermostats

...
...
001
Screw WPL-WPY014874
...
002
Clip- Moto WPL-WPY015825
...
003
Nut WPL-WP62739
...
004
Set Screw, Pulley WPL-Y053241
...
005
Pad WPL-WP210684
...
006
Screw WPL-WP90767
...
007
Motor-Drve WPL-W10410999
...
008
Base Assy. WPL-Y303361
...
009
Idler Arm WPL-WP6-3033630
...
010
Thermostat WPL-WP33303391
...
011
Thrmst-Fix WPL-WP694674
...
012
Exhaust Duct Assy. WPL-Y303442
...
013
Pulley WPL-WP6-3037050
...
014
Blower Wheel Assembly & Clamp WPL-Y303836
...
015
Switch, Motor WPL-Y303877
...
016
Switch, Motor Start-Prod. WPL-Y303879
...
017
Idler Spring Assembly WPL-Y303945
...
018
Foot WPL-WP8563585
...
019
Pulley, Motor (w/set Screw) WPL-Y305185
...
020
Wire WPL-NLA
...
021
Screw WPL-WP1163839
...
022
Washer WPL-WPY312527
...
023
Cover,thermostat Opening WPL-Y312853
...
024
Housing, Blower WPL-Y312893
...
025
Sleeve WPL-WP315772
...
026
Cover, Blower WPL-Y312895
...
027
Support, Motor WPL-NLA
...
028
Seal- Blow WPL-WPY312901
...
029
Ring-E WPL-WP354987
...
030
Belt WPL-WPY312959
...
031
Screw WPL-WPW10116751
...
032
Clamp WPL-WP312967
...
033
Retainer- WPL-W10116752
...
034
Screw WPL-WPY313561
...
035
Spacer WPL-WPW10116756
...
036
Ring-Retnr WPL-WP9703438
...
037
Spring, Wire Harness WPL-410490
...
038
Wire, Ground WPL-901220
...
039
Screw WPL-WP488234

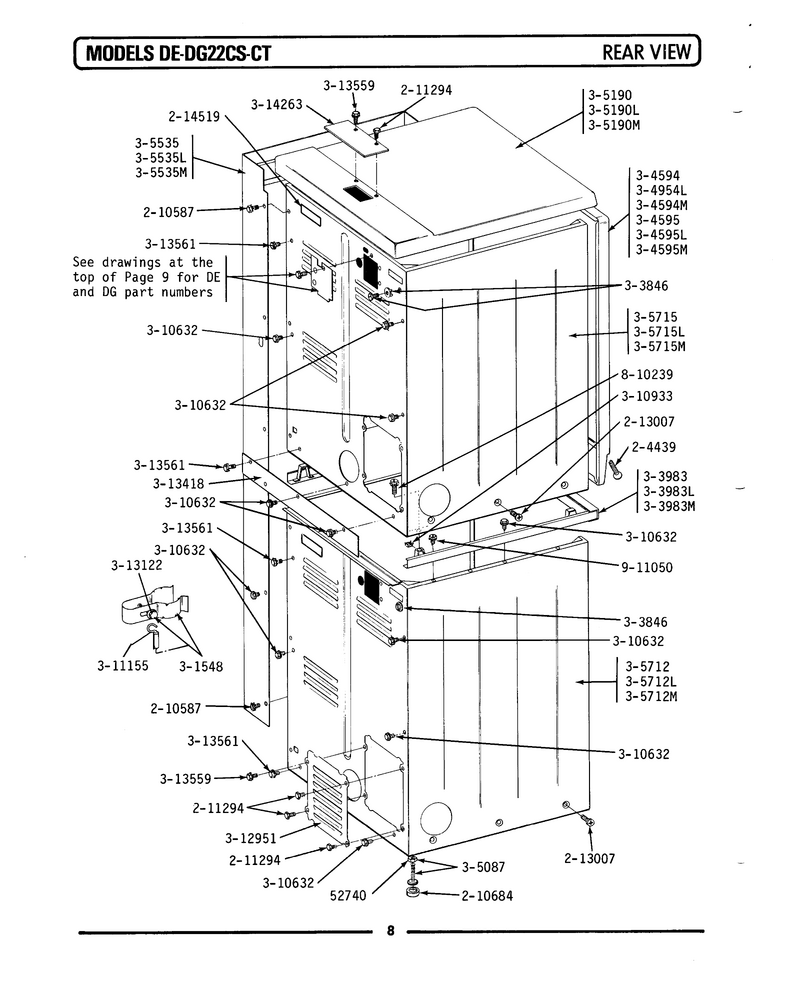

02 - Rear View

...
...
001
Nut WPL-WP62739
...
002
Screw & Fstner Assy (ft. Pnl) WPL-204439
...
003
Screw WPL-NLA
...
004
Pad WPL-WP210684
...
005
Screw WPL-WP90767
...
006
Grommet, Cord WPL-211881
...
007
Screw, Cabinet WPL-213007
...
008
Label, Electrical Instr. WPL-214519
...
009
Clamp, Ground (w/screw) WPL-301548
...
010
Power Cord WPL-302521
...
011
Screw & Washer Assy. WPL-NLA
...
012
Spacer Assy (wht) WPL-NLA
...
013
Front Panel (wht) WPL-NLA
...
014
Foot WPL-WP8563585
...
015
(alm) WPL-NLA
...
016
Control Shroud (wht) WPL-NLA
...
017
Cabinet (wht) WPL-NLA
...
018
Cabinet (wht) WPL-NLA
...
019
Screw WPL-WP1163839
...
020
Fastener WPL-310933
...
021
Wire WPL-WP311155
...
022
Washer- Te WPL-WPY311270
...
023
Screw WPL-WP489483
...
024
Nut WPL-WP112432
...
025
Strap, Ground WPL-Y312184
...
026
Screw WPL-W11164114
...
027
Cover, Terminal WPL-Y312905
...
028
Cover, Access WPL-Y312951
...
029
Screw, Baffle (tumbler) WPL-313122
...
030
Filler Strip WPL-NLA
...
031
Screw WPL-WP90767
...
032
Screw WPL-WPY313561
...
033
Top Cover Plate WPL-NLA
...
034
Screw WPL-NLA
...
035
Screw WPL-WP4312464

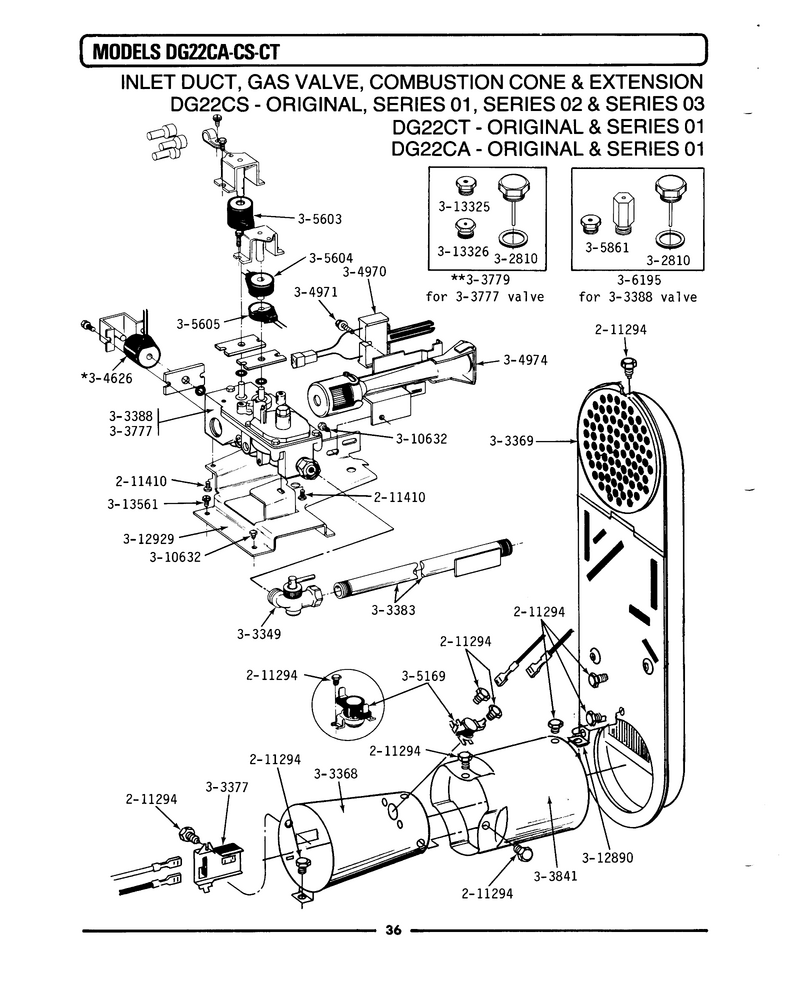

09 - Inlet Duct, Gas Valve & Combustion Cone

...
...
001
Screw WPL-WP90767
...
002
Screw, Hex Hd No.8 X 3/8 Inch WPL-NLA
...
003
Screw Assembly, Leak Limit WPL-NLA
...
004
Screw Assy - Blue Block Ope WPL-NLA
...
005
Shut-Off, Gas Valve WPL-Y303349
...
006
Cone, Combustion WPL-Y303368
...
007
Inlet Duct Assembly (dg) WPL-Y303369
...
008
Sensor WPL-WP338906
...
009
Pipe & Bracket Assy. WPL-Y303383
...
010
Gas Valve Assembly WPL-Y303777
...
011
Conversion Kit (nat.to Lp) WPL-Y303779
...
012
Cone, Extension (combustion) WPL-Y303841
...
013
Side Coil WPL-Y304626
...
014
Conversion Kit-Lpg To Nat. WPL-Y304672
...
015
Ignitor WPL-4391996
...
016
Screw WPL-304971
...
017
Burner Asy WPL-WP33002793
...
018
Thermostat WPL-WP305169
...
019
Coil WPL-12001348
...
020
Coil WPL-WP305604
...
021
Coil WPL-WP305605
...
022
Main Burner Orifice Kit-Nat WPL-305860
...
023
Main Burner Orifice Kit (lp) WPL-NLA
...
024
Main Burner Orifice Kit-Mix WPL-NLA
...
025
Main Burner Orifice Kit-Mfg WPL-NLA
...
026
Lp Gas Con WPL-MAL9000AXX
...
027
Screw WPL-WP1163839
...
028
Retainer, Heater Chamber WPL-Y312890
...
029
Gas Valve Bracket WPL-312929
...
030
Main Burner Orifice (lp) WPL-NLA
...
031
Internal Orifice (lp) WPL-NLA
...
032
Main Burner Orifice (mfg) WPL-NLA
...
033
Screw WPL-WPY313561

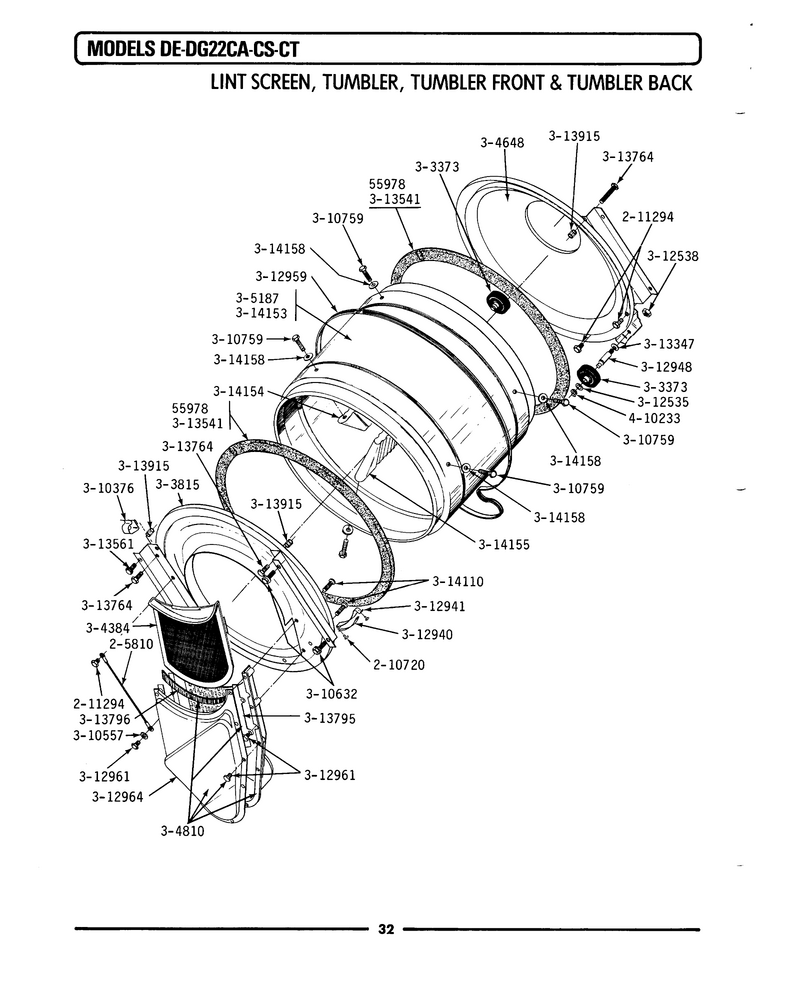

07 - Lint Screen, Tumbler (front & Back)

...
...
001
Rubber Adh WPL-WPY055978
...
002
Wire, Ground WPL-205810
...
003
Rivet WPL-WP210720
...
004
Screw WPL-WP90767
...
005
Drum Roller/washer Assy. WPL-12001541
...
006
Front- Tum WPL-33001231
...
007
Screen WPL-WP33001003
...
008
Back, Tumbler (w/seal) WPL-33001106
...
009
Outlet Duct & Grid WPL-306657
...
010
Tumbler W/baffles WPL-305187
...
011
Clip, Wire Harness WPL-Y310376
...
012
Washer WPL-310557
...
013
Screw WPL-WP1163839
...
014
Screw WPL-WPY310759
...
015
Washer WPL-WP312535
...
016
Nut- Hex WPL-WP33001443
...
017
Pad WPL-WP312940
...
018
Tumbler Bearing Kit WPL-306508
...
019
Shaft WPL-WP6-3129480
...
020
Belt WPL-WPY312959
...
021
Screw WPL-WPW10116751
...
022
Outlet Duct - Outer Half WPL-Y312964
...
023
Washer WPL-WP312535
...
024
Seal- Tumb WPL-WP33313541
...
025
Screw WPL-WPY313561
...
026
Screw WPL-NLA
...
027
Guide, Lint Screen WPL-Y313795
...
028
Lint Seal WPL-Y313796
...
029
Cover, Thread WPL-NLA
...
030
Screw WPL-WP33002917
...
031
Dryer Tumbler, W/o Baffles WPL-33001108
...
032
Tumbler Baffle - Short WPL-NLA
...
033
Baffle, Tall WPL-33001004
...
034
Washer WPL-WP314158
...
035
Ring-Retnr WPL-WP9703438

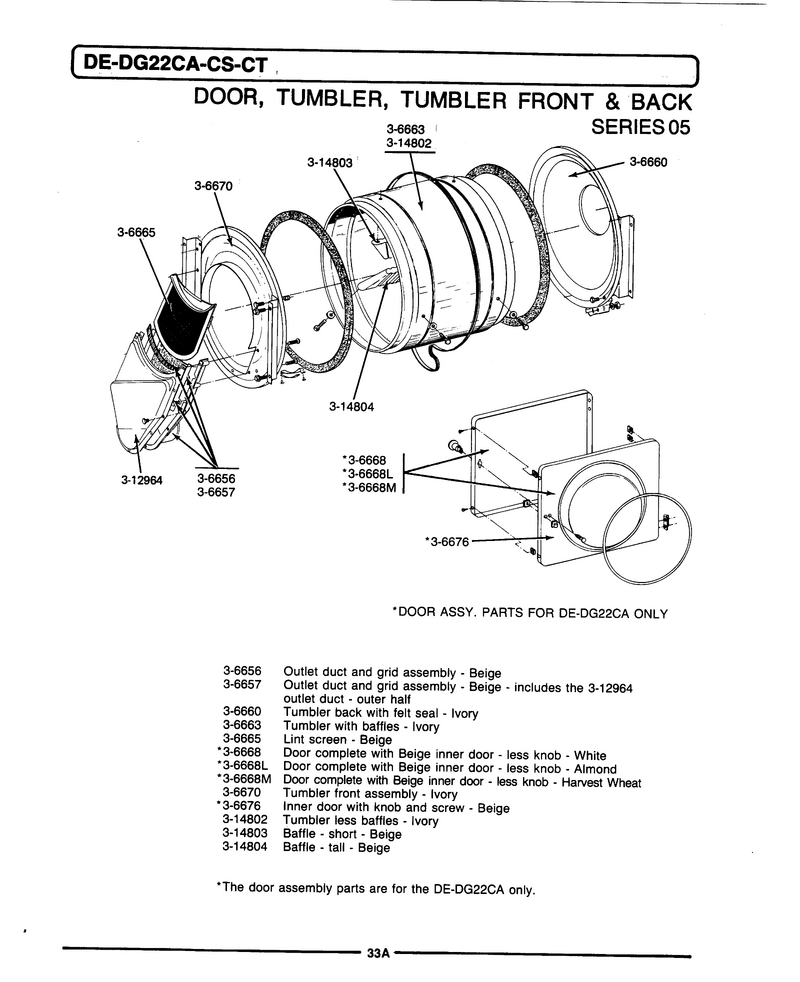

08 - Door, Tumbler, Tumbler Front & Back

...
...
001
Outlet Duct & Grid WPL-306657
...
002
Outlet Duct & Grid WPL-306657
...
003
Back, Tumbler (w/seal) WPL-33001106
...
004
Tumbler WPL-305187
...
005
Screen WPL-WP33001003
...
006
Door WPL-Y306668
...
007
Tumbler Front----Na WPL-NLA
...
008
Inner Door W/knob WPL-NLA
...
009
Dryer Tumbler, W/o Baffles WPL-33001108
...
010
Baffle (short) WPL-314803
...
011
Baffle, Tall WPL-33001004

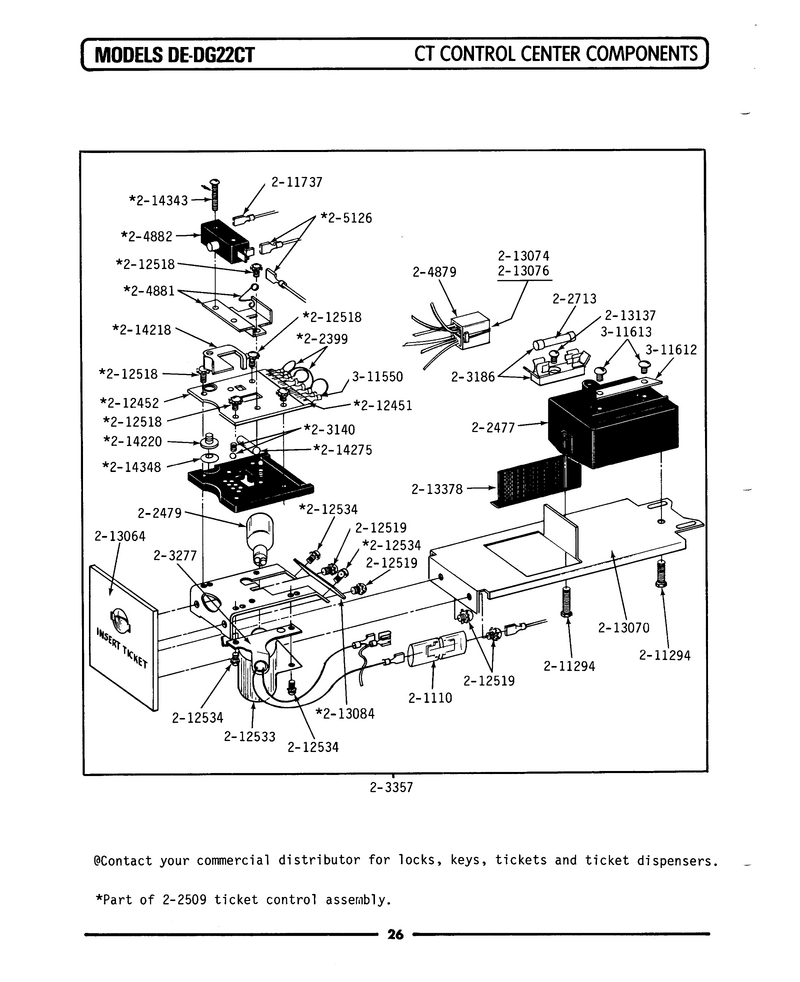

05 - Control Center Components

...
...
001
Connector WPL-WP75614
...
002
Jumper Wire (black) WPL-NLA
...
003
Control As WPL-22003292
...
004
Bulb-Light WPL-WPA3167501
...
005
Ticket Control WPL-202509
...
006
Fuse WPL-WP22001555
...
007
Contact Ball Kit WPL-203140
...
008
Fuse Block W/fuse WPL-NLA
...
009
Lamp Socket W/bracket WPL-NLA
...
010
Ticket Receiver Assembly WPL-NLA
...
011
Harness, Ticket Control WPL-NLA
...
012
Cam Plate Assembly WPL-204881
...
013
Switch, Ticket Control WPL-204882
...
014
Spade Connector WPL-NLA
...
015
Screw WPL-WP90767
...
016
Terminal WPL-WP248562
...
017
Overlay, Circuit Board WPL-NLA
...
018
Circuit Board WPL-212452
...
019
Sems Screw (no.4-40 X 1/2 Inc) WPL-NLA
...
020
Screw WPL-WP488234
...
021
Shield, Heat Lamp WPL-212533
...
022
Screw, Control Shield WPL-NLA
...
023
Front Plate, Ticket Control WPL-NLA
...
024
Bracket, Ticket Assembly WPL-NLA
...
025
Pin Receptacle, Plug WPL-213074
...
026
Pin, Plug WPL-NLA
...
027
Ticket Deflector WPL-NLA
...
028
Screw (no.6 X 1/4 Inch) WPL-NLA
...
029
Shield WPL-NLA
...
030
Switch Lever WPL-214218
...
031
Adjustment Thumb Wheel WPL-214220
...
032
Roller, Cam WPL-214275
...
033
Screw WPL-NLA
...
034
Spring Washer WPL-NLA
...
035
Spade (miniature) WPL-Y311550
...
036
Idler Sq. WPL-WFR311612
...
037
Screw WPL-Y311711

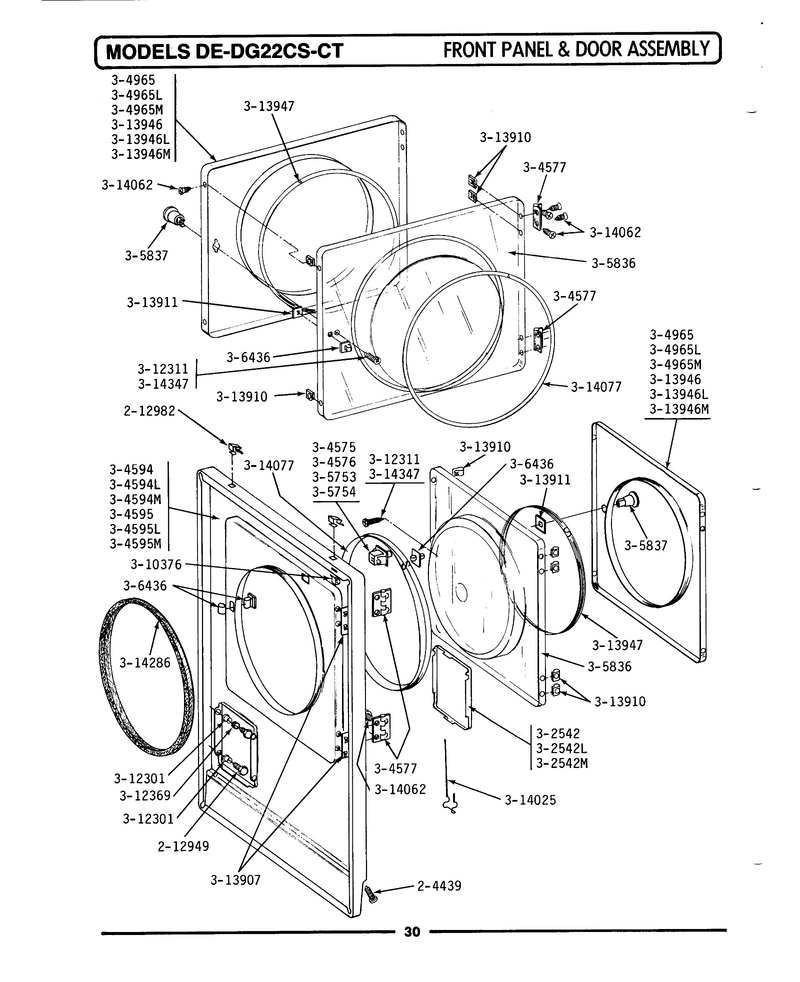

06 - Front Panel & Door Assembly

...
...
001
Screw & Fstner Assy (ft. Pnl) WPL-204439
...
002
Screw WPL-212949
...
003
Fastener- WPL-WP22001650
...
004
Access Door (wht) WPL-NLA
...
005
Switch-Dor WPL-W10169313
...
006
Door Hinge ----S WPL-Y304577
...
007
Front Panel (wht) WPL-NLA
...
008
(alm) WPL-NLA
...
009
Switch-Dor WPL-W10169313
...
010
Inner Door W/knob & Screw WPL-NLA
...
011
Knob & Screw WPL-NLA
...
012
Door Latch Kit--W WPL-306436
...
013
Clip, Wire Harness WPL-Y310376
...
014
Bushing, Access Stud WPL-NLA
...
015
Screw, Knob (door) WPL-NLA
...
016
Sleeve-Access Panel Stud WPL-312369
...
017
Label, Lint Screen Instr. WPL-Y313340
...
018
Twin Fastener WPL-Y313907
...
019
Clip, Door Liner (outer Pnl) WPL-Y313910
...
020
Door Strike Retainer WPL-Y313911
...
021
Instruction Label WPL-Y313927
...
022
Door Panel-White----Na WPL-306507
...
023
Gasket, Window WPL-Y313947
...
024
Latch, Access Door WPL-Y314025
...
025
Screw WPL-Y314062
...
026
Door Seal WPL-314077

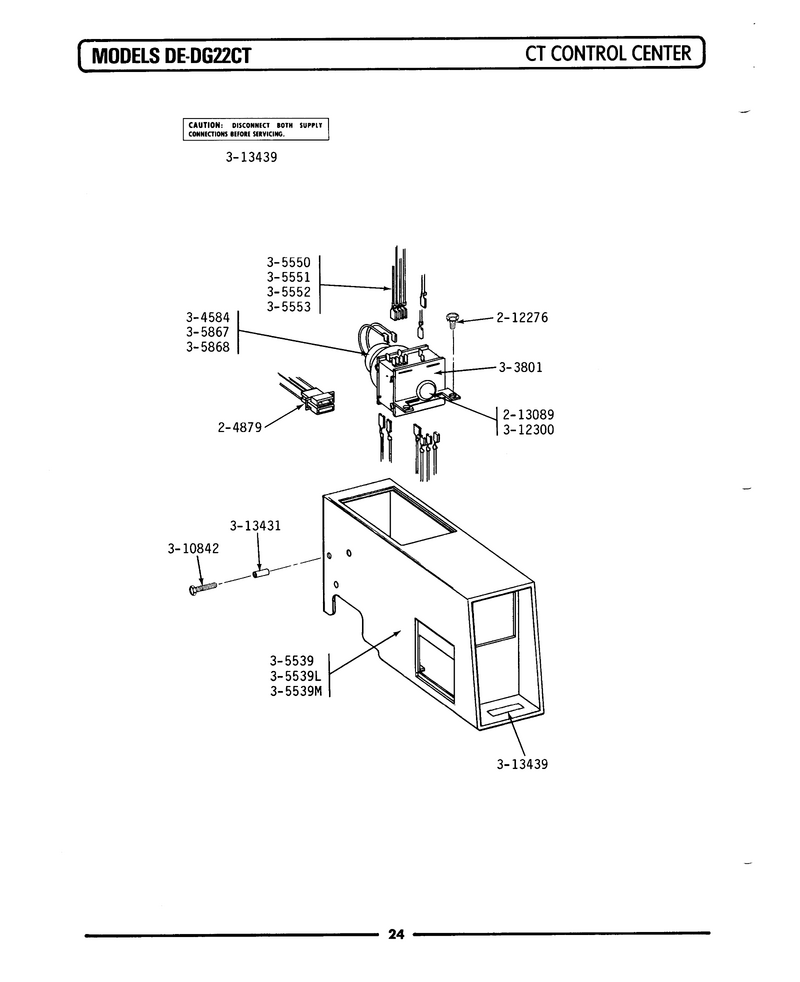

04 - Control Center

...
...
001
Harness, Ticket Control WPL-NLA
...
002
Screw WPL-WP90767
...
003
Knob, Timer WPL-213089
...
004
Timer W/knob & Pin WPL-Y303801
...
005
Timer Motor WPL-NLA
...
006
Outer Case (wht) WPL-NLA
...
007
Wire Harness-Upper WPL-NLA
...
008
Wire Harness-Lower WPL-NLA
...
009
Timer Motor WPL-NLA
...
010
Timer Motor WPL-NLA
...
011
Screw WPL-Y310842
...
012
Groov-Pin WPL-Y312300
...
013
Spacer, Vault WPL-NLA
...
014
Instruction Label WPL-Y313439

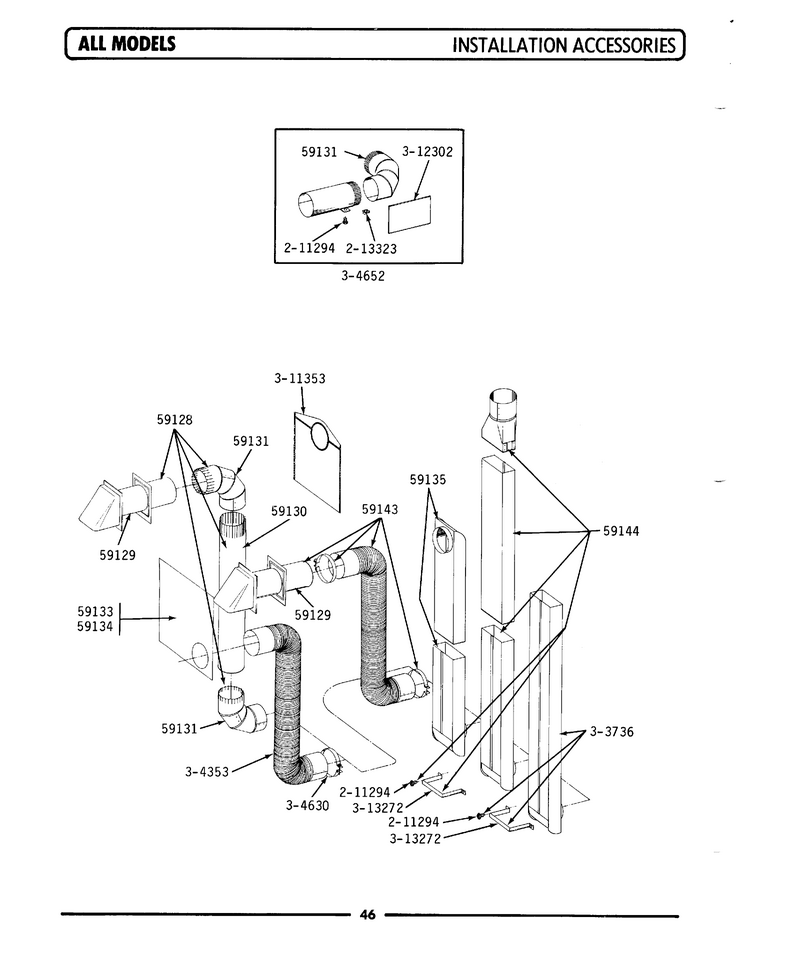

11 - Installation Accessories

...
...
001
Blade, Saw WPL-NLA
...
002
Replacement Drill WPL-NLA
...
003
Hole Saw W/drill Bit WPL-NLA
...
004
Extension Chuck, Drill WPL-NLA
...
005
Standard 4`` Vent Kit WPL-Y059128
...
006
Accessory Parts, Dryer Vent - Hardware & Misc Cap (external Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pi WPL-4396007RW
...
007
Pipe, Venting WPL-Y059130
...
008
Elbow, Venting (4``) WPL-Y059131
...
009
Aluminum Window 4x12x18 WPL-NLA
...
010
Plate, Alum. Window (15``x20``) WPL-Y059134
...
011
Vent Duct Assy. WPL-Y059135
...
012
Flexible Vent Kit WPL-Y059143
...
013
Rectangular Vent Kit WPL-NLA
...
014
Screw WPL-WP90767
...
015
Fastener, Exhaust Duct Kit WPL-213323
...
016
Exhaust Deflector Kit WPL-NLA
...
017
Accessory Parts, Dryer Vent - Flex Pipe Systems 6' (one End With Snap-Lock Male Fitting And Other End With Snap-Lock Fem WPL-4396010RP
...
018
Clamp, Flexible Duct WPL-Y304630
...
019
Exhaust Duct Kit WPL-Y304652
...
020
Bag, Lint (dacron) WPL-311353
...
021
Insulation, Exhaust Duct Kit WPL-312302
...
022
Bracket, Exhaust Deflector WPL-NLA
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
