Maytag LDG22CS

Model: LDG22CS

Save Part Not Listed?
product name

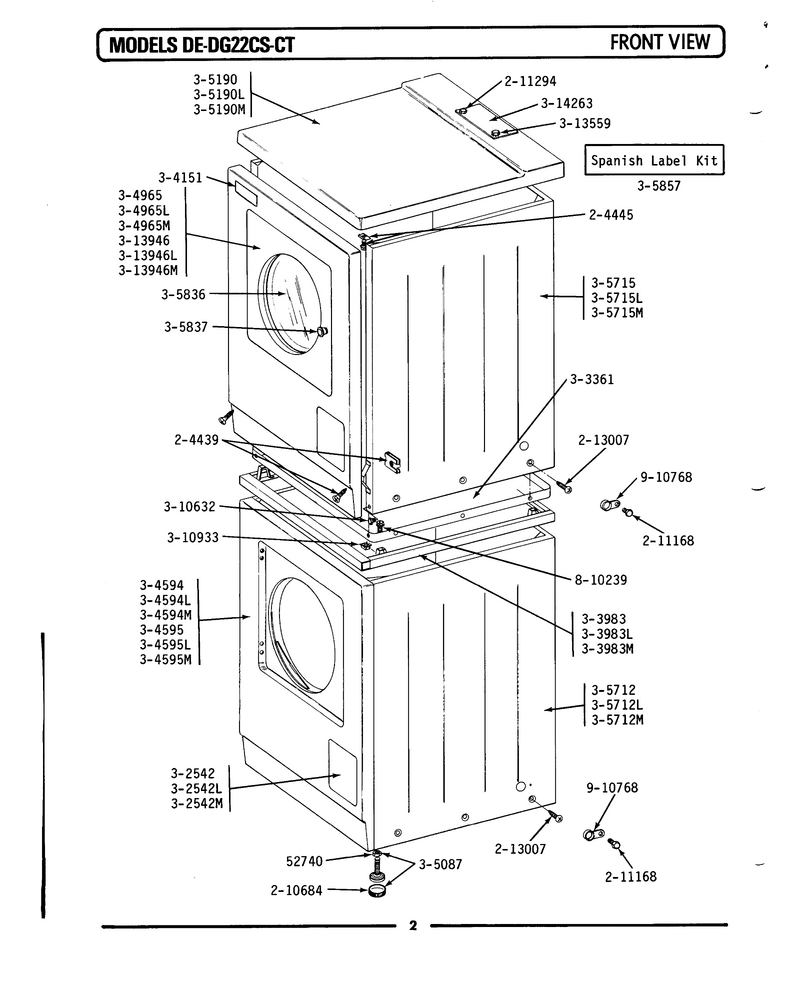

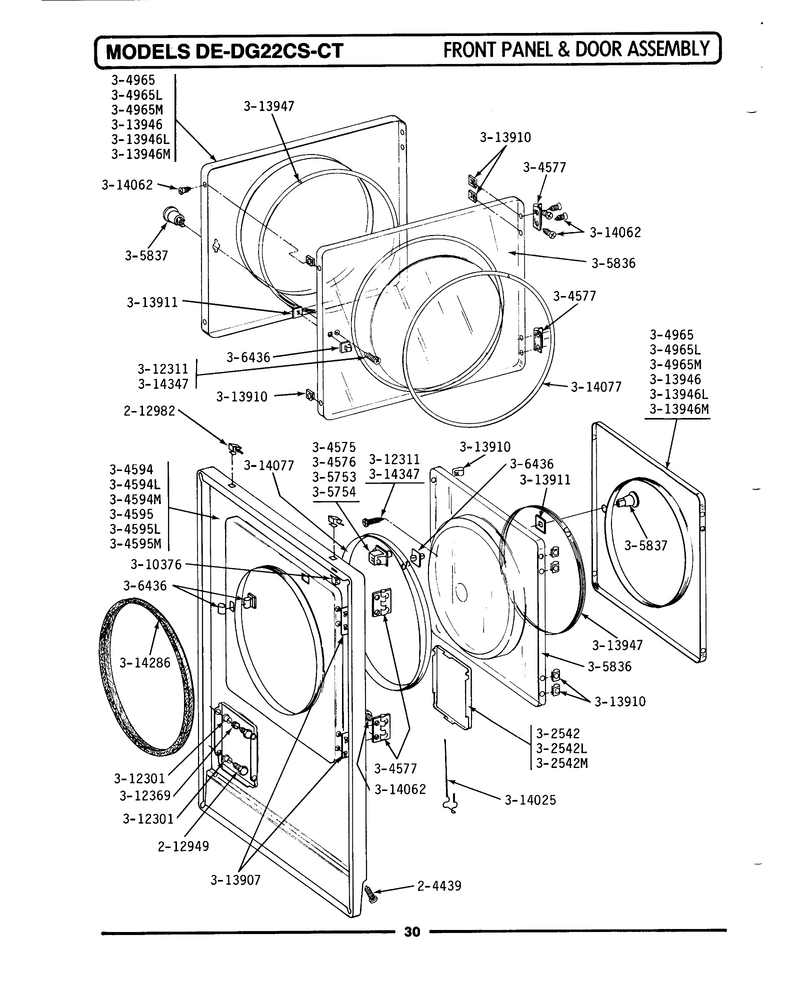

01 - Front View

...
...
001
Nut WPL-WP62739
...
002
Screw & Fstner Assy(frt.panel) WPL-204439
...
003
Screw & Fastener Asy. WPL-204445
...
004
Pad WPL-WP210684
...
005
Screw WPL-WPW10139210
...
006
Screw WPL-WP90767
...
007
Screw, Cabinet WPL-213007
...
008
Access Door (white) WPL-NLA
...
009
Base Assy. WPL-Y303361
...
010
Spacer Assm-White WPL-NLA
...
011
Name Plate On Control Panel WPL-NLA
...
012
Front Panel-White WPL-NLA
...
013
Door Complete, Almond WPL-NLA
...
014
Foot WPL-WP8563585
...
015
Top Cover-Almond WPL-NLA
...
016
Cabinet-White WPL-NLA
...
017
Cabinet-White WPL-NLA
...
018
Inner Door With Knob & Scre WPL-NLA
...
019
Knob And Screw WPL-NLA
...
020
Spanish Label Kit WPL-NLA
...
021
Screw WPL-WP1163839
...
022
Fastener WPL-310933
...
023
Screw WPL-WP90767
...
024
Door Panel-Almond WPL-NLA
...
025
Top Cover Plate WPL-NLA
...
026
Screw WPL-NLA
...
027
Cable Strap-Harness To Base WPL-910768

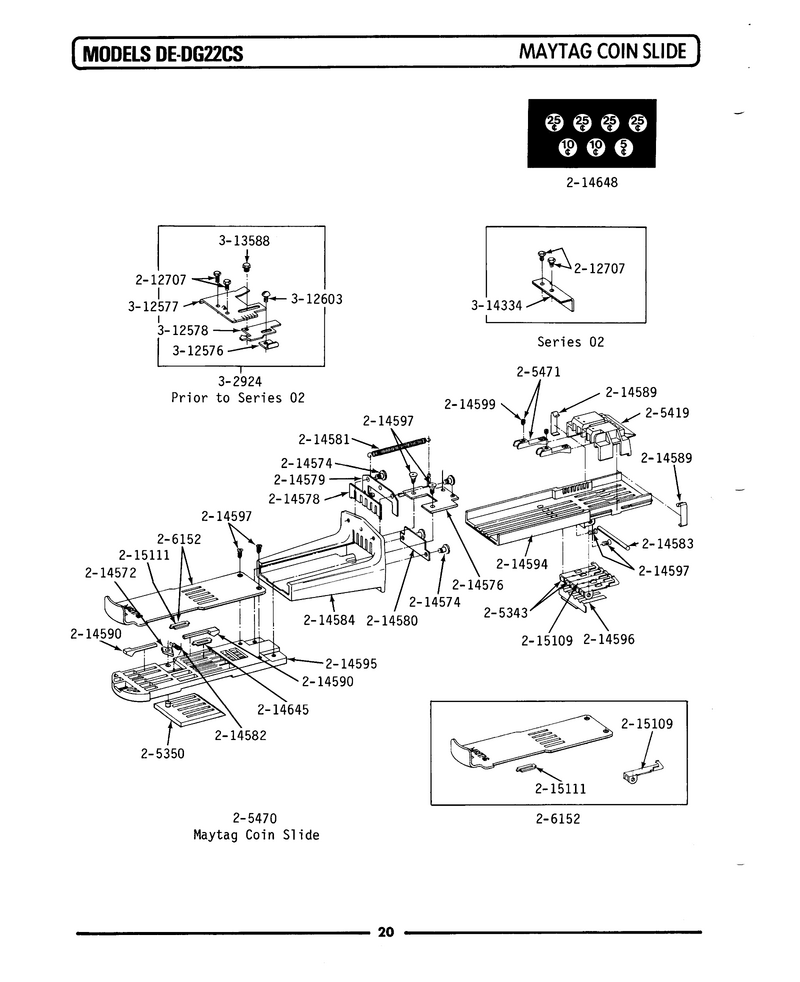

06 - Maytag Coin Slide

...
...
001
Lower Gage Arm Assembly WPL-205343
...
002
Stop Block Assembly WPL-205350
...
003
Measuring Block Assembly WPL-NLA
...
004
Maytag Coin Slide WPL-NLA
...
005
Movable Coin Gage WPL-NLA
...
006
Slide Plate W/nickel Insert WPL-NLA
...
007
Screw WPL-W11684507
...
008
Ratchet Arm WPL-214572
...
009
Stud For Coin Slide WPL-NLA
...
010
End Bracket For Slide WPL-NLA
...
011
Gate For Coin Opening WPL-214578
...
012
Retainer For Gate WPL-NLA
...
013
Retainer For Gage Spring WPL-NLA
...
014
Return Spring WPL-214581
...
015
Spring For Ratchet Arm WPL-214582
...
016
Pin For Lower Gage Arm WPL-NLA
...
017
Housing For Coin Slide WPL-214584
...
018
Spring Clip WPL-214589
...
019
Plug For Coin Opening WPL-NLA
...
020
Base Insert For Housing WPL-214594
...
021
Slide Body WPL-NLA
...
022
Spring For Lower Gage Arm WPL-214596
...
023
Screw WPL-214597
...
024
Set Screw For Gage WPL-NLA
...
025
Dime Insert WPL-NLA
...
026
Coinage Decal WPL-214648
...
027
Lower Gage Arm WPL-NLA
...
028
Nickel Insert WPL-NLA
...
029
Actuator Kit-Dryer Slides WPL-Y302924
...
030
Zero Slide Adjustment WPL-Y312576
...
031
Bracket For Slide WPL-Y312577
...
032
Slide Adjustment WPL-Y312578
...
033
Screw Adjustment Assembly WPL-NLA
...
034
Screw WPL-WP488234
...
035
Bracket For Coin Slide WPL-314334

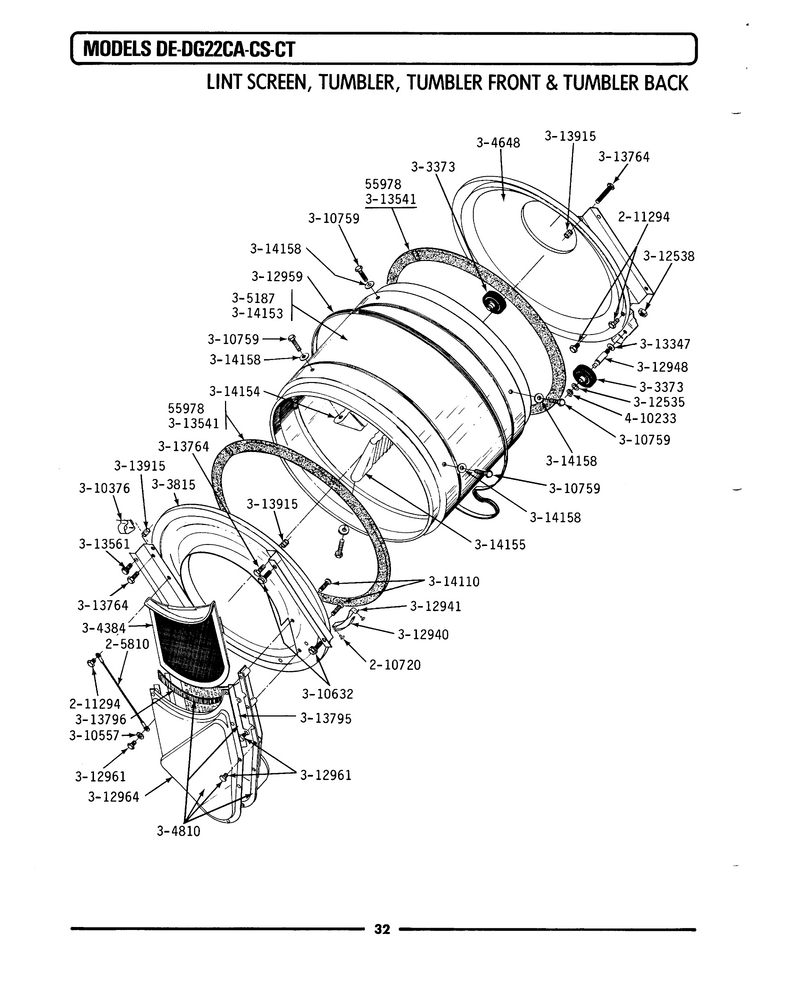

08 - Lint Screen, Tumbler (front & Back)

...
...
001
Rubber Adh WPL-WPY055978
...
002
Wire, Ground WPL-205810
...
003
Rivet WPL-WP210720
...
004
Screw WPL-WP90767
...
005
Drum Roller/washer Assy. WPL-12001541
...
006
Front- Tum WPL-33001231
...
007
Screen WPL-WP33001003
...
008
Back, Tumbler (w/seal) WPL-33001106
...
009
Outlet Duct & Grid WPL-306657
...
010
Tumbler WPL-305187
...
011
Clip, Wire Harness WPL-Y310376
...
012
Washer WPL-310557
...
013
Screw WPL-WP1163839
...
014
Screw WPL-WPY310759
...
015
Washer WPL-WP312535
...
016
Nut- Hex WPL-WP33001443
...
017
Pad WPL-WP312940
...
018
Tumbler Bearing Kit WPL-306508
...
019
Shaft WPL-WP6-3129480
...
020
Belt WPL-WPY312959
...
021
Screw WPL-WPW10116751
...
022
Outlet Duct - Outer Half WPL-Y312964
...
023
Washer WPL-WP312535
...
024
Seal- Tumb WPL-WP33313541
...
025
Screw WPL-WPY313561
...
026
Screw WPL-NLA
...
027
Guide For Lint Screen WPL-Y313795
...
028
Lint Seal WPL-Y313796
...
029
Cover, Thread WPL-NLA
...
030
Screw WPL-WP33002917
...
031
Dryer Tumbler, W/o Baffles WPL-33001108
...
032
Tumbler Baffle - Short WPL-NLA
...
033
Baffle, Tall WPL-33001004
...
034
Washer WPL-WP314158
...
035
Ring-Retnr WPL-WP9703438

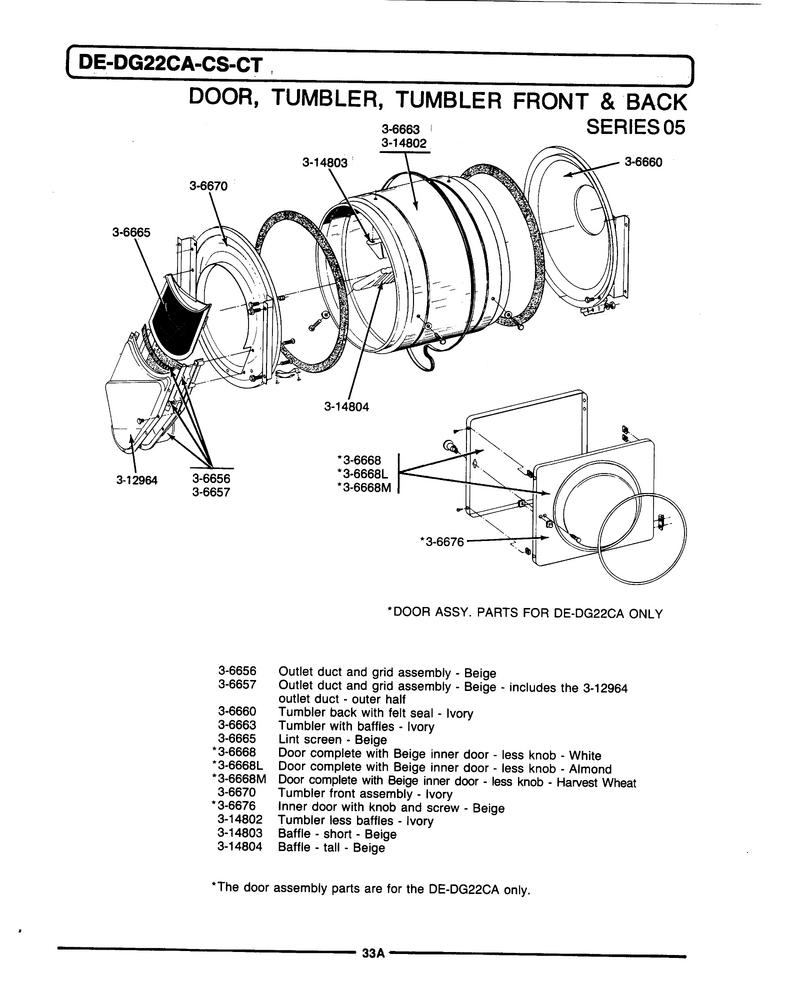

09 - Door, Tumbler, Tumbler Front & Back

...
...
001
Outlet Duct & Grid WPL-306657
...
002
Outlet Duct & Grid WPL-306657
...
003
Back, Tumbler (w/seal) WPL-33001106
...
004
Tumbler WPL-305187
...
005
Screen WPL-WP33001003
...
006
Door WPL-Y306668
...
007
Tumbler Front----Na WPL-NLA
...
008
Inner Door With Knob WPL-NLA
...
009
Dryer Tumbler, W/o Baffles WPL-33001108
...
010
Baffle (short) WPL-314803
...
011
Baffle, Tall WPL-33001004

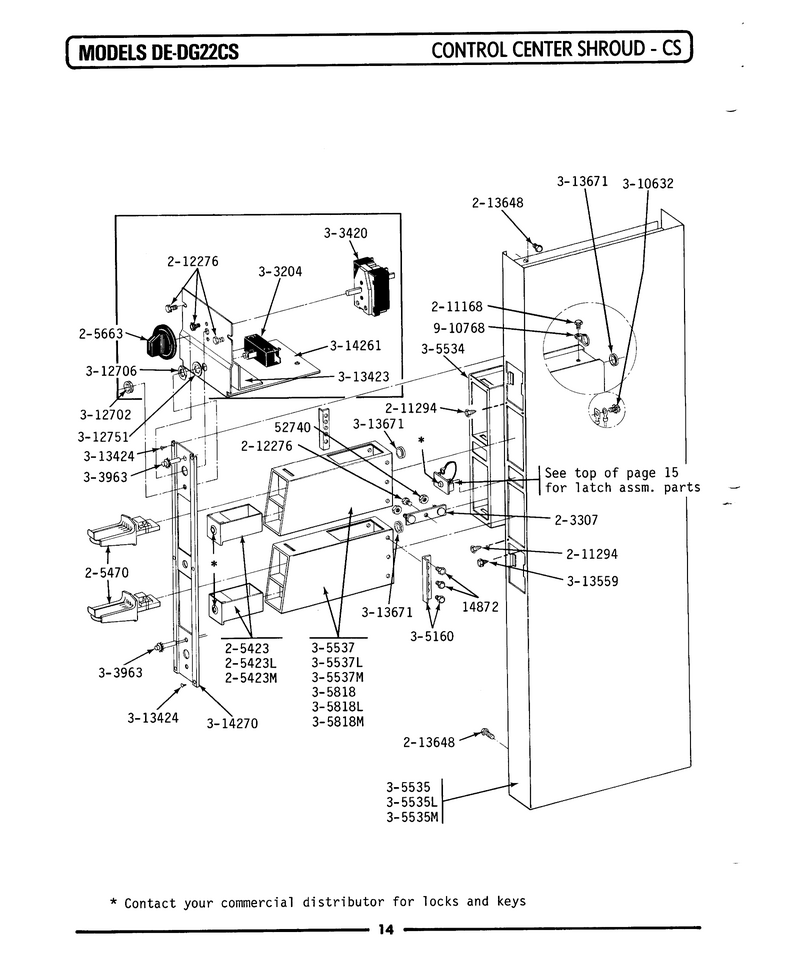

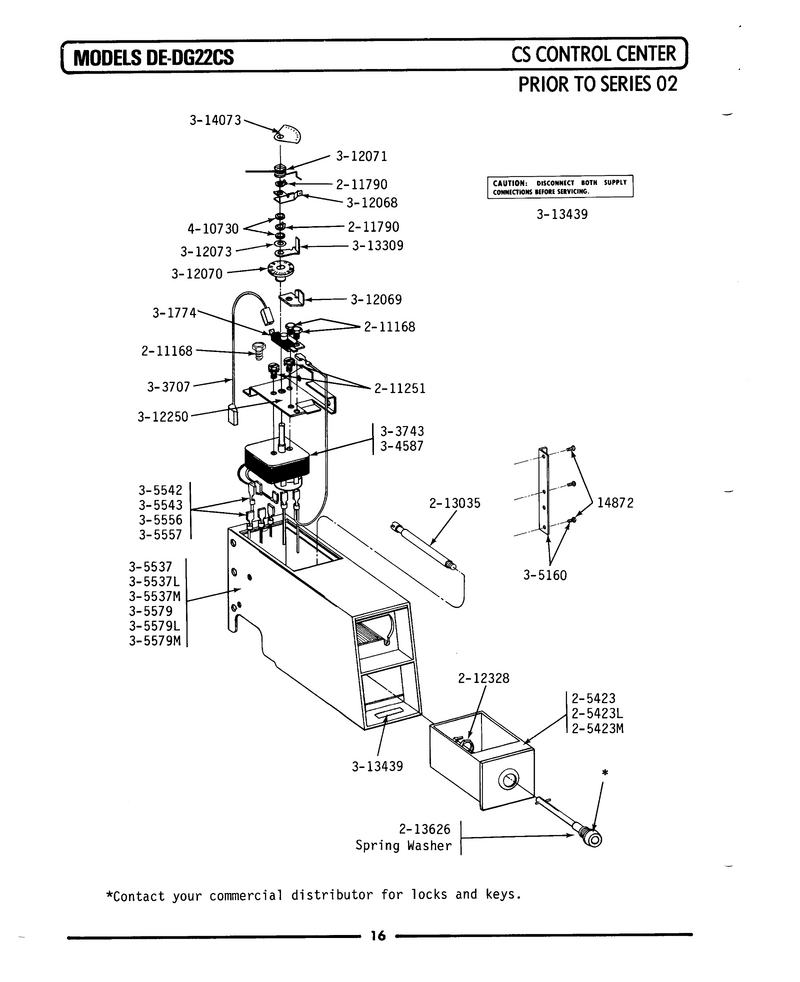

03 - Control Center Shroud

...
...
001
Screw, No.10 X 3/8 WPL-Y014872
...
002
Nut WPL-WP62739
...
003
Mtg. Strap----Na WPL-NLA
...
004
Coin Box-White WPL-205423
...
005
Maytag Coin Slide WPL-NLA
...
006
Knob For Selector Switch WPL-205663
...
007
Screw WPL-WPW10139210
...
008
Screw WPL-WP90767
...
009
Screw WPL-WP90767
...
010
Nut WPL-W11395752
...
011
Spring Washer For Lock WPL-NLA
...
012
Screw WPL-WP98165
...
013
Start Switch With Nuts WPL-Y303204
...
014
Selector Switch WPL-Y303420
...
015
Indicator Light WPL-303963
...
016
Ground Wire For Latch WPL-Y303981
...
017
Coin Meter Stop With Screws WPL-NLA
...
018
Vault Assembly WPL-305534
...
019
Control Shroud-White WPL-NLA
...
020
Outer Case-White WPL-305537
...
021
Outer Case-Almond WPL-NLA
...
022
Outer Case (wht) WPL-NLA
...
023
Spanish Label Kit WPL-NLA
...
024
Screw WPL-WP1163839
...
025
Knurled Nu WPL-WPY312702
...
026
Hex Nut On Switch WPL-Y312706
...
027
Washer WPL-WPW10139799
...
028
Insulator WPL-NLA
...
029
Screw WPL-W10837674
...
030
Lock Kit WPL-206637
...
031
Plate For Latch WPL-313428
...
032
Screw WPL-WP90767
...
033
Grommet For Control Center WPL-Y313671
...
034
Switch And Relay Bracket WPL-Y314261
...
035
Vault Panel WPL-315037
...
036
Cable Strap-Harness To Base WPL-910768

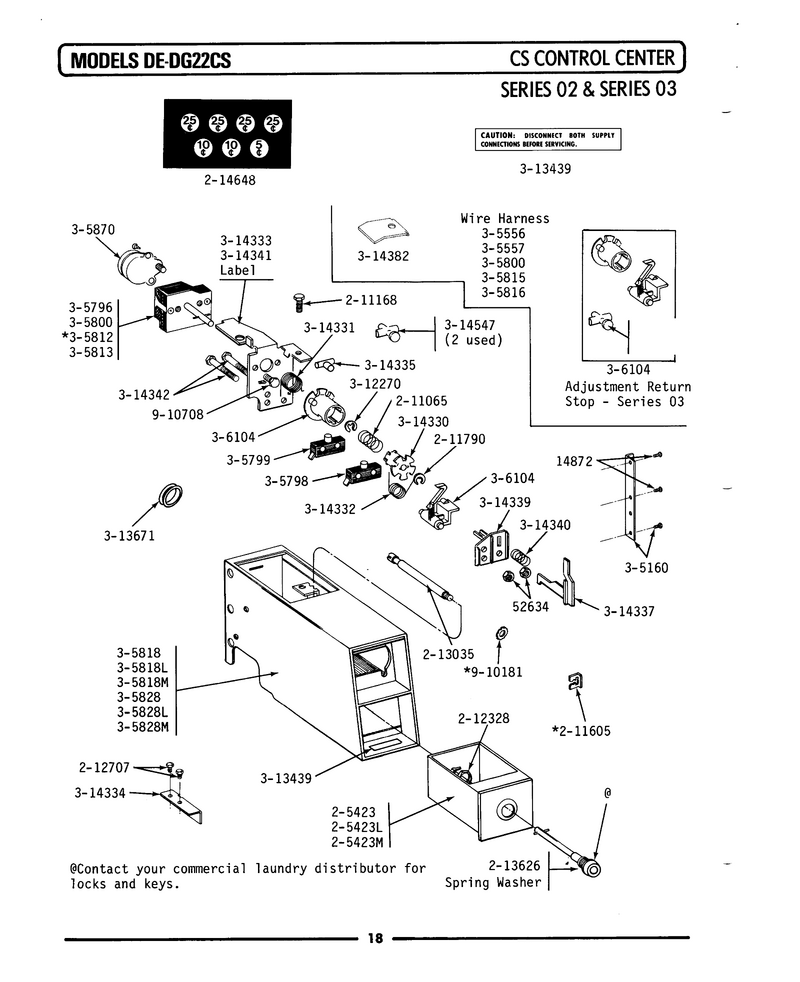

04 - Control Center (series 02 & Series 03)

...
...
001
Screw, No.10 X 3/8 WPL-Y014872
...
002
Nut K WPL-M0282005
...
003
Coin Box-White WPL-205423
...
004
Spring- Ti WPL-WP211065
...
005
Screw WPL-WPW10139210
...
006
Retainer, Timer Knob WPL-211605
...
007
Lock Ring For Timer Shaft WPL-211790
...
008
Nut WPL-W11395752
...
009
Screw WPL-W11684507
...
010
Bolt- Lock WPL-WP213035
...
011
Spring Washer For Lock WPL-NLA
...
012
Coinage Decal WPL-214648
...
013
Coin Meter Stop With Screws WPL-NLA
...
014
Timer WPL-305796
...
015
Bypass Switch For Motor WPL-305798
...
016
Switch WPL-WPY305799
...
017
Wire Harness For Timer WPL-305800
...
018
Timer 240-50 WPL-305812
...
019
Timer - Canada Rpr WPL-305813
...
020
Wire Harness - Lower WPL-305815
...
021
Wire Harness-Upper WPL-NLA
...
022
Outer Case (wht) WPL-NLA
...
023
Control Center-White WPL-NLA
...
024
Timer Motor Rpr WPL-305870
...
025
Torsion-Timer Kit WPL-306104
...
026
Ring-E WPL-WP98392
...
027
Instruction Label WPL-Y313439
...
028
Grommet For Control Center WPL-Y313671
...
029
Driver For Index Wheel WPL-314330
...
030
Return Spring WPL-314331
...
031
Actuator Spring WPL-314332
...
032
Timer Mounting Bracket WPL-314333
...
033
Bracket For Coin Slide WPL-314334
...
034
Time Adjustment Peg WPL-314335
...
035
Slider WPL-33002968
...
036
Switch And Slider Bracket WPL-314339
...
037
Helical Spring ----N WPL-NLA
...
038
Instruction Label WPL-NLA
...
039
Screw WPL-NLA
...
040
Stop For Timer Mechanism WPL-NLA
...
041
Actuator Kit WPL-Y308109
...
042
Lock Washer WPL-910181
...
043
Screw WPL-WP488234

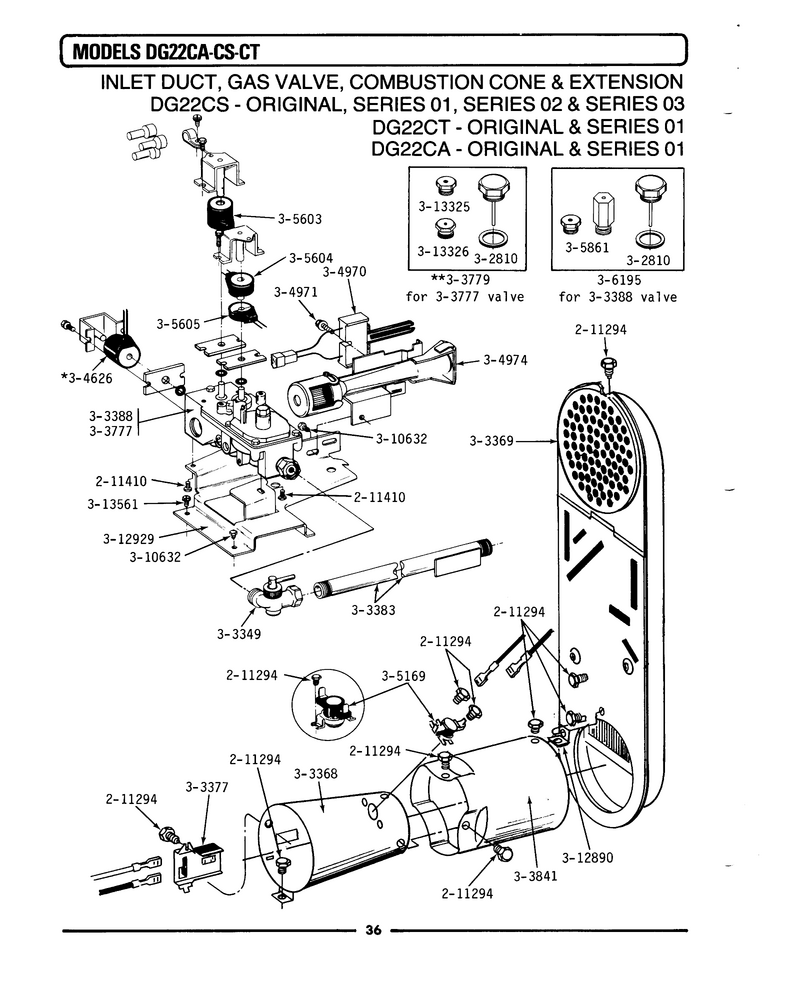

10 - Inlet Duct, Gas Valve & Combustion Cone

...
...
001
Screw WPL-WP90767
...
002
Screw, Hex Hd No.8 X 3/8 Inch WPL-NLA
...
003
Screw Assembly, Leak Limit WPL-NLA
...
004
Screw Assm - Blue Block Ope WPL-NLA
...
005
Shut-Off, Gas Valve WPL-Y303349
...
006
Cone, Combustion WPL-Y303368
...
007
Inlet Duct Assembly (dg) WPL-Y303369
...
008
Sensor WPL-WP338906
...
009
Pipe & Bracket Assy. WPL-Y303383
...
010
Gas Valve Assembly WPL-Y303777
...
011
Conversion Kit-Nat. To Lpg WPL-Y303779
...
012
Cone, Extension (combustion) WPL-Y303841
...
013
Side Coil WPL-Y304626
...
014
Conversion Kit-Lpg To Nat. WPL-Y304672
...
015
Ignitor WPL-4391996
...
016
Screw WPL-304971
...
017
Burner Asy WPL-WP33002793
...
018
Thermostat WPL-WP305169
...
019
Coil WPL-12001348
...
020
Coil WPL-WP305604
...
021
Coil WPL-WP305605
...
022
Main Burner Orifice Kit-Nat WPL-305860
...
023
Main Burner Orifice Kit-Lpg WPL-NLA
...
024
Main Burner Orifice Kit-Mix WPL-NLA
...
025
Main Burner Orifice Kit-Mfg WPL-NLA
...
026
Lp Gas Con WPL-MAL9000AXX
...
027
Screw WPL-WP1163839
...
028
Retainer, Heater Chamber WPL-Y312890
...
029
Gas Valve Bracket WPL-312929
...
030
Main Burner Orifice - Lpg WPL-NLA
...
031
Internal Orifice - Lpg WPL-NLA
...
032
Main Burner Orifice (mfg) WPL-NLA
...
033
Screw WPL-WPY313561

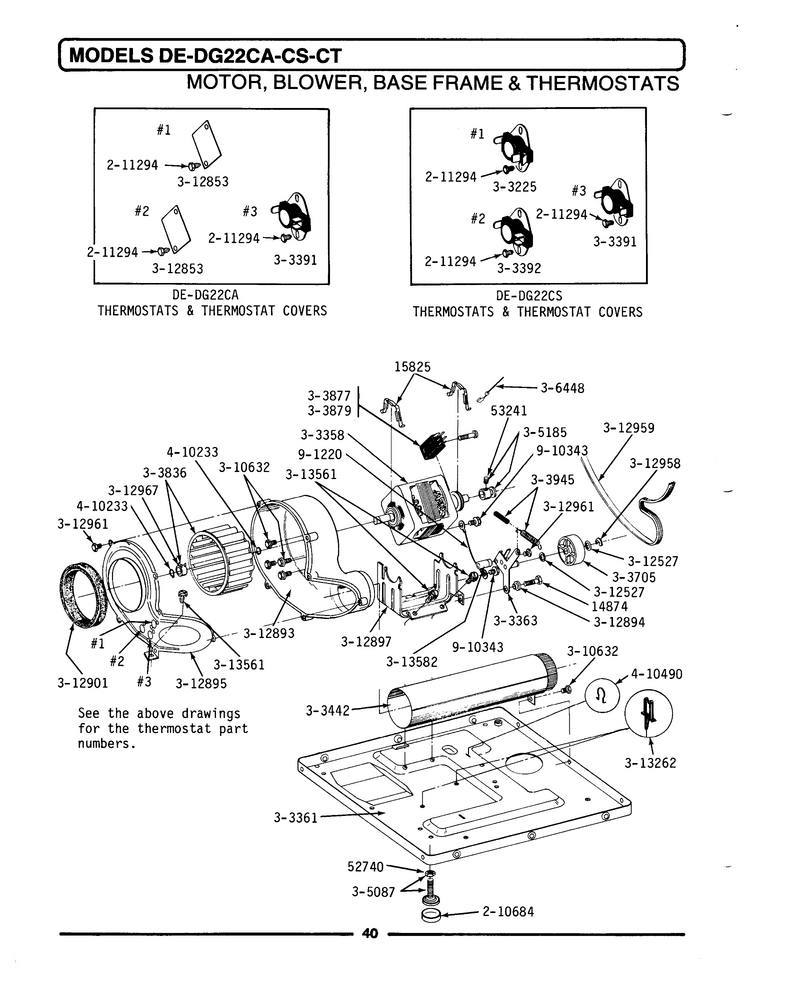

11 - Motor, Blower, Base Frame & Thermostats

...
...
001
Screw WPL-WPY014874
...
002
Clip- Moto WPL-WPY015825
...
003
Nut WPL-WP62739
...
004
Set Screw, Pulley WPL-Y053241
...
005
Pad WPL-WP210684
...
006
Screw WPL-WP90767
...
007
Thermostat, Permanent Press WPL-Y303225
...
008
Motor-Drve WPL-W10410999
...
009
Base Assy. WPL-Y303361
...
010
Idler Arm WPL-WP6-3033630
...
011
Thermostat WPL-WP33303391
...
012
Thrmst-Fix WPL-WP694674
...
013
Exhaust Duct Assy. WPL-Y303442
...
014
Pulley WPL-WP6-3037050
...
015
Blower Wheel Assembly & Clamp WPL-Y303836
...
016
Switch, Motor WPL-Y303877
...
017
Switch, Motor Start-Prod. WPL-Y303879
...
018
Idler Spring Assembly WPL-Y303945
...
019
Foot WPL-WP8563585
...
020
Pulley, Motor (w/set Screw) WPL-Y305185
...
021
Wire WPL-NLA
...
022
Screw WPL-WP1163839
...
023
Washer WPL-WPY312527
...
024
Cover For Thermostat Openin WPL-Y312853
...
025
Housing, Blower WPL-Y312893
...
026
Sleeve WPL-WP315772
...
027
Cover For Blower----Na WPL-Y312895
...
028
Support, Motor WPL-NLA
...
029
Seal- Blow WPL-WPY312901
...
030
Ring-E WPL-WP354987
...
031
Belt WPL-WPY312959
...
032
Screw WPL-WPW10116751
...
033
Clamp WPL-WP312967
...
034
Retainer- WPL-W10116752
...
035
Screw WPL-WPY313561
...
036
Spacer WPL-WPW10116756
...
037
Ring-Retnr WPL-WP9703438
...
038
Spring, Wire Harness WPL-410490
...
039
Wire, Ground WPL-901220
...
040
Screw WPL-WP488234

...
...
001
Screw, No.10 X 3/8 WPL-Y014872
...
002
Coin Drop Assembly WPL-NLA
...
003
Screw WPL-WP90767
...
004
Retainer, Timer Knob WPL-211605
...
005
Timer (240-50) WPL-NLA
...
006
Motor 240-50 WPL-Y304656
...
007
Burner Assembly WPL-Y304697
...
008
Gas Valve (240-50) WPL-Y304698
...
009
Pilot Shield Assembly WPL-NLA
...
010
Combustion Cone WPL-NLA
...
011
Indicator Light 240-50 WPL-NLA
...
012
Motor Pulley - 50 Cycle WPL-305186
...
013
Outer Case-White WPL-NLA
...
014
Wire Harness - Upper 240-50 WPL-NLA
...
015
Wire Harness - Lower 240-50 WPL-NLA
...
016
Timer 240-50 WPL-305812
...
017
Compression Nut WPL-310692
...
018
Compression Sleeve WPL-Y310693
...
019
Screw WPL-Y311711
...
020
Air Shutter WPL-NLA
...
021
Pilot Tube WPL-Y312483
...
022
Gas Control Bracket WPL-NLA
...
023
Gas Burner Instruct Label WPL-NLA

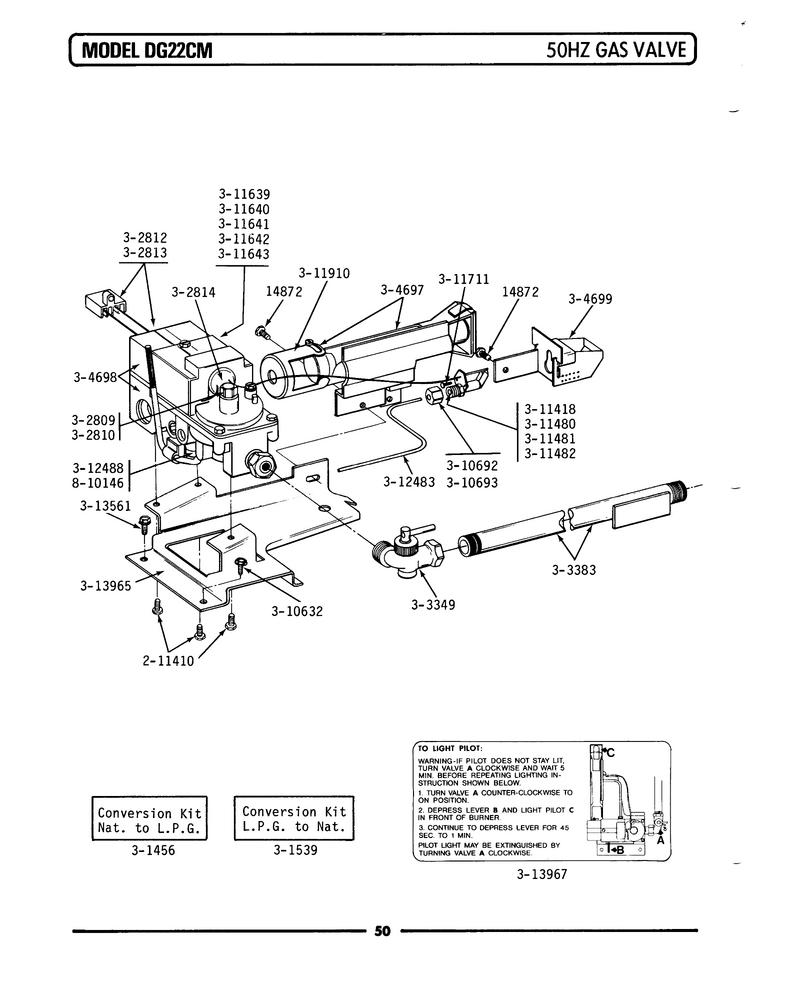

12 - 50hz Gas Valve

...
...
001
Screw, No.10 X 3/8 WPL-Y014872
...
002
Screw, Hex Hd No.8 X 3/8 Inch WPL-NLA
...
003
Conversion Kit (nat.to Lpg) WPL-NLA
...
004
Conversion Kit-Lpg To Nat. WPL-301539
...
005
Screw Assembly, Leak Limit WPL-NLA
...
006
Screw Assm - Blue Block Ope WPL-NLA
...
007
Main Burner Solenoid WPL-Y302812
...
008
Main Burn. Solenoid 230-50 WPL-Y302813
...
009
Pilot With Pressure Switch WPL-NLA
...
010
Shut-Off, Gas Valve WPL-Y303349
...
011
Pipe & Bracket Assy. WPL-Y303383
...
012
Burner Assembly WPL-Y304697
...
013
Gas Valve (240-50) WPL-Y304698
...
014
Pilot Shield Assembly WPL-NLA
...
015
Screw WPL-WP1163839
...
016
Compression Nut WPL-310692
...
017
Compression Sleeve WPL-Y310693
...
018
Pilot Orifice WPL-Y311418
...
019
Pilot Orifice (lp) WPL-Y311480
...
020
Pilot Orifice (mfg.) WPL-NLA
...
021
Pilot Orifice-Lpg WPL-Y311482
...
022
Orifice For Main Burner WPL-Y311639
...
023
Orifice For Main Burner WPL-NLA
...
024
Orifice For Main Burner WPL-NLA
...
025
Orifice, Main Burner (mfg) WPL-NLA
...
026
Orifice For Main Burner WPL-NLA
...
027
Screw WPL-Y311711
...
028
Air Shutter WPL-NLA
...
029
Pilot Tube WPL-Y312483
...
030
Gasket For Pilot WPL-NLA
...
031
Screw WPL-WPY313561
...
032
Gas Control Bracket WPL-NLA
...
033
Gas Burner Instruct Label WPL-NLA
...
034
Screw WPL-NLA

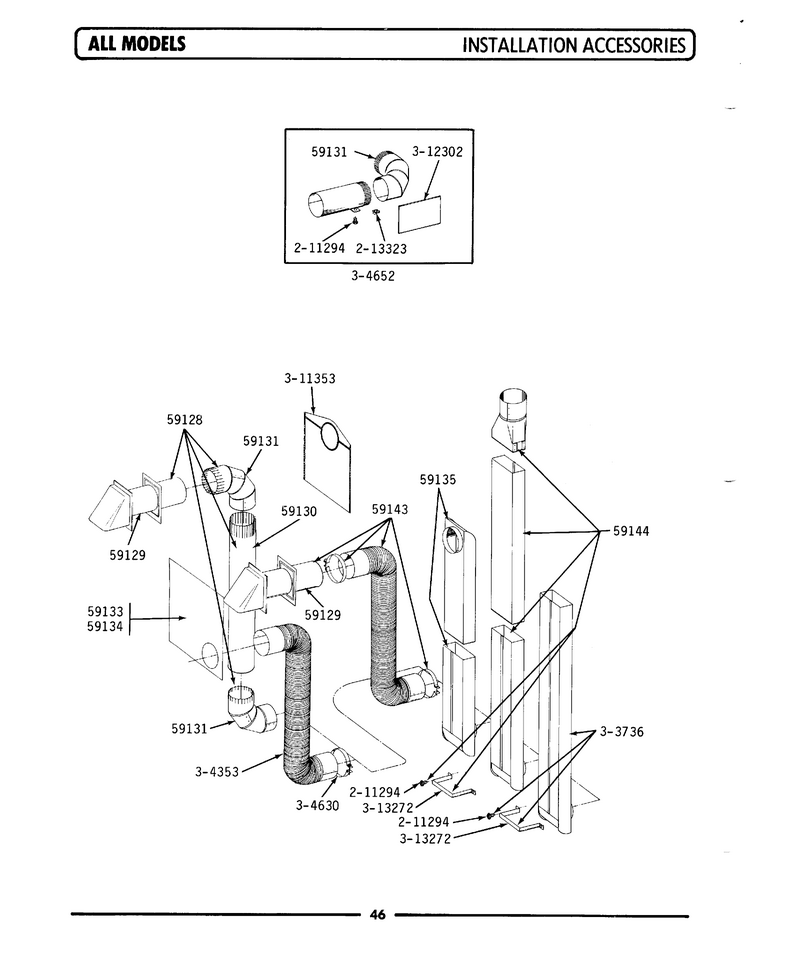

14 - Installation Accessories

...
...
001
Blade, Saw WPL-NLA
...
002
Replacement Drill WPL-NLA
...
003
Hole Saw W/drill Bit WPL-NLA
...
004
Extension Chuck, Drill WPL-NLA
...
005
Standard 4`` Vent Kit WPL-Y059128
...
006
Accessory Parts, Dryer Vent - Hardware & Misc Cap (external Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pi WPL-4396007RW
...
007
Pipe, Venting WPL-Y059130
...
008
Elbow, Venting (4``) WPL-Y059131
...
009
Aluminum Window 4x12x18 WPL-NLA
...
010
Plate, Alum. Window (15``x20``) WPL-Y059134
...
011
Vent Duct Assy. WPL-Y059135
...
012
Flexible Vent Kit WPL-Y059143
...
013
Rectangular Vent Kit WPL-NLA
...
014
Screw WPL-WP90767
...
015
Fastener, Exhaust Duct Kit WPL-213323
...
016
Exhaust Deflector Kit WPL-NLA
...
017
Accessory Parts, Dryer Vent - Flex Pipe Systems 6' (one End With Snap-Lock Male Fitting And Other End With Snap-Lock Fem WPL-4396010RP
...
018
Clamp, Flexible Duct WPL-Y304630
...
019
Exhaust Duct Kit WPL-Y304652
...
020
Bag, Lint (dacron) WPL-311353
...
021
Insulation, Exhaust Duct Kit WPL-312302
...
022
Bracket, Exhaust Deflector WPL-NLA

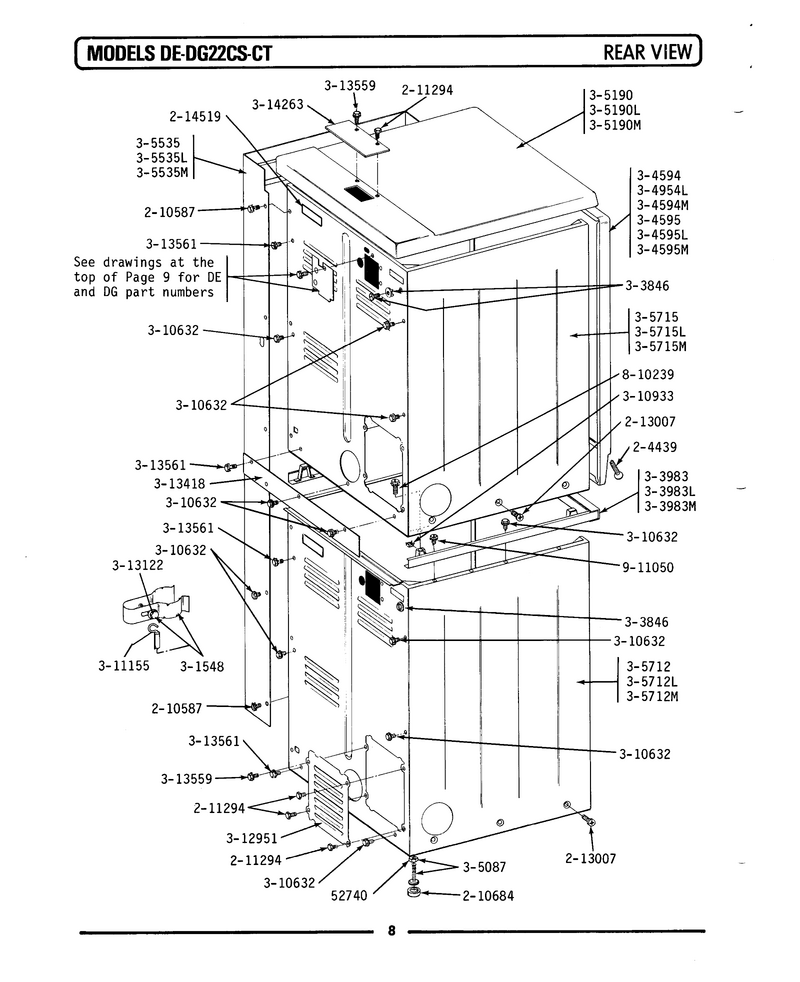

02 - Rear View

...
...
001
Nut WPL-WP62739
...
002
Screw & Fstner Assy(frt.panel) WPL-204439
...
003
Screw WPL-NLA
...
004
Pad WPL-WP210684
...
005
Screw WPL-WP90767
...
006
Grommet, Cord WPL-211881
...
007
Screw, Cabinet WPL-213007
...
008
Label, Electrical Instruction WPL-214519
...
009
Clamp, Ground (w/screw) WPL-301548
...
010
Power Cord WPL-302521
...
011
Screw & Washer Assy. WPL-NLA
...
012
Spacer Assm-White WPL-NLA
...
013
Front Panel-White WPL-NLA
...
014
Foot WPL-WP8563585
...
015
Top Cover-Almond WPL-NLA
...
016
Control Shroud-White WPL-NLA
...
017
Cabinet-White WPL-NLA
...
018
Cabinet-White WPL-NLA
...
019
Screw WPL-WP1163839
...
020
Fastener WPL-310933
...
021
Wire WPL-WP311155
...
022
Washer- Te WPL-WPY311270
...
023
Screw WPL-WP489483
...
024
Nut WPL-WP112432
...
025
Strap, Ground WPL-Y312184
...
026
Screw WPL-W11164114
...
027
Cover, Terminal WPL-Y312905
...
028
Cover, Access WPL-Y312951
...
029
Screw - Baffle To Tumbler WPL-313122
...
030
Filler Strip WPL-NLA
...
031
Screw WPL-WP90767
...
032
Screw WPL-WPY313561
...
033
Top Cover Plate WPL-NLA
...
034
Screw WPL-NLA
...
035
Screw WPL-WP4312464

05 - Control Center (series 00)

...
...
001
Screw, No.10 X 3/8 WPL-Y014872
...
002
Coin Box-Almond WPL-205423L
...
003
Screw WPL-WPW10139210
...
004
Screw WPL-211251
...
005
Lock Ring For Timer Shaft WPL-211790
...
006
Nut WPL-W11395752
...
007
Bolt- Lock WPL-WP213035
...
008
Spring Washer For Lock WPL-NLA
...
009
Switch For Coin Slide WPL-Y301774
...
010
Wire Assembly WPL-Y303707
...
011
Timer WPL-Y303743
...
012
Timer Motor WPL-NLA
...
013
Coin Meter Stop With Screws WPL-NLA
...
014
Outer Case-Almond WPL-NLA
...
015
Wire Harness-Lower WPL-NLA
...
016
Wire Harness-Upper WPL-NLA
...
017
Control Center-White WPL-NLA
...
018
Return Lever WPL-Y312068
...
019
Stop For Actuator WPL-Y312069
...
020
Ratchet For Timer WPL-NLA
...
021
Return Spring For Actuator WPL-Y312071
...
022
Spring Washer WPL-312073
...
023
Timer Support Bracket WPL-312250
...
024
Timer Actuator Lever WPL-Y313309
...
025
Instruction Label WPL-Y313439
...
026
Time Indicator Gage WPL-314073
...
027
Washer WPL-410730

07 - Front Panel & Door Assembly

...
...
001
Screw & Fstner Assy(frt.panel) WPL-204439
...
002
Screw WPL-212949
...
003
Fastener- WPL-WP22001650
...
004
Access Door (white) WPL-NLA
...
005
Switch-Dor WPL-W10169313
...
006
Door Hinge ----S WPL-Y304577
...
007
Front Panel-White WPL-NLA
...
008
Door Complete-White WPL-304965
...
009
Door Complete, Almond WPL-NLA
...
010
Switch-Dor WPL-W10169313
...
011
Inner Door With Knob & Scre WPL-NLA
...
012
Knob And Screw WPL-NLA
...
013
Door Latch Kit--W WPL-306436
...
014
Clip, Wire Harness WPL-Y310376
...
015
Bushing For Access Stud WPL-NLA
...
016
Screw----Na WPL-NLA
...
017
Sleeve-Access Panel Stud WPL-312369
...
018
Label, Lint Screen Instruction WPL-Y313340
...
019
Twin Fastener WPL-Y313907
...
020
Clip, Door Liner To Outer Pnl WPL-Y313910
...
021
Door Strike Retainer WPL-Y313911
...
022
Instruction Label WPL-Y313927
...
023
Door Panel-White----Na WPL-306507
...
024
Door Panel-Almond WPL-NLA
...
025
Gasket For Window WPL-Y313947
...
026
Latch For Access Door WPL-Y314025
...
027
Screw WPL-Y314062
...
028
Door Seal WPL-314077
...
029
Gas Ignition Label WPL-NLA
...
030
Seal For Front Panel WPL-314286
...
031
Screw For Door Knob----Na WPL-NLA
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
