Maytag LDG19CT

Model: LDG19CT

Save Part Not Listed?
product name

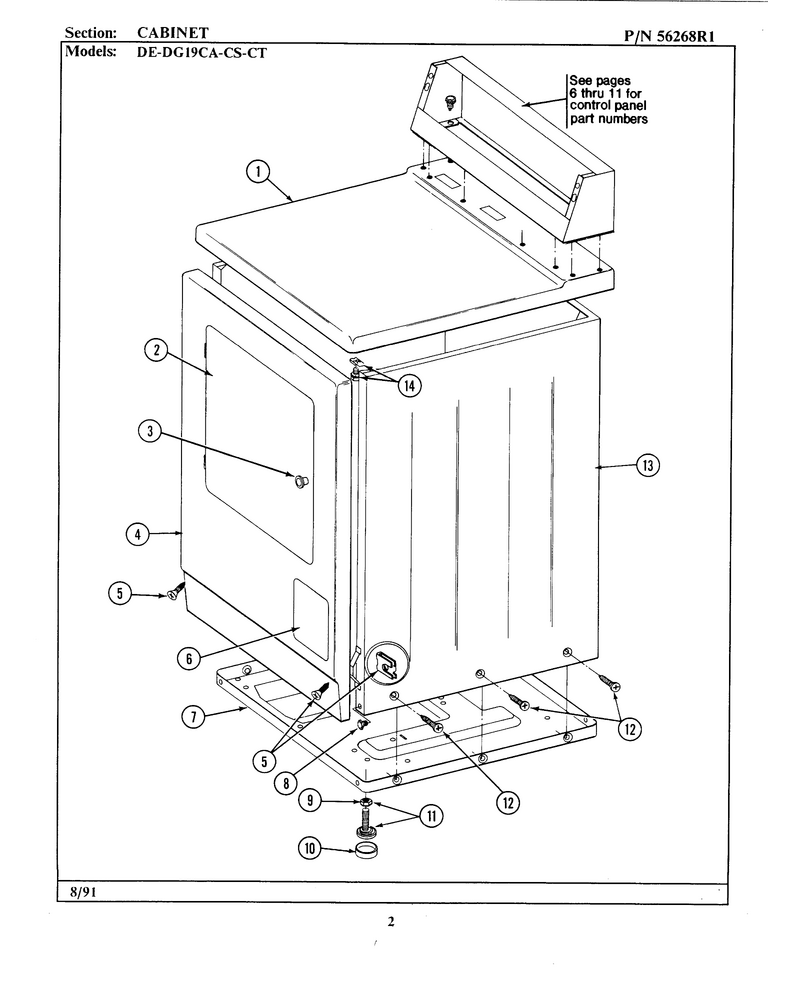

01 - Cabinet-Front

...
...
001
(alm) WPL-NLA
...
002
(alm) WPL-NLA
...
003
Knob & Screw WPL-NLA
...
004
Front Panel (wht) WPL-NLA
...
005
Screw & Fstner Assy (ft. Pnl) WPL-204439
...
006
Access Door (wht) WPL-NLA
...
007
Base Assy. WPL-Y303361
...
008
Screw WPL-WP1163839
...
009
Nut WPL-WP62739
...
010
Foot- Rubb WPL-WPY314137
...
011
Feet-Lvlng WPL-W10176519
...
012
Screw, Cabinet WPL-213007
...
013
Cabinet (wht) WPL-NLA
...
014
Screw & Fastener Assy. WPL-204445

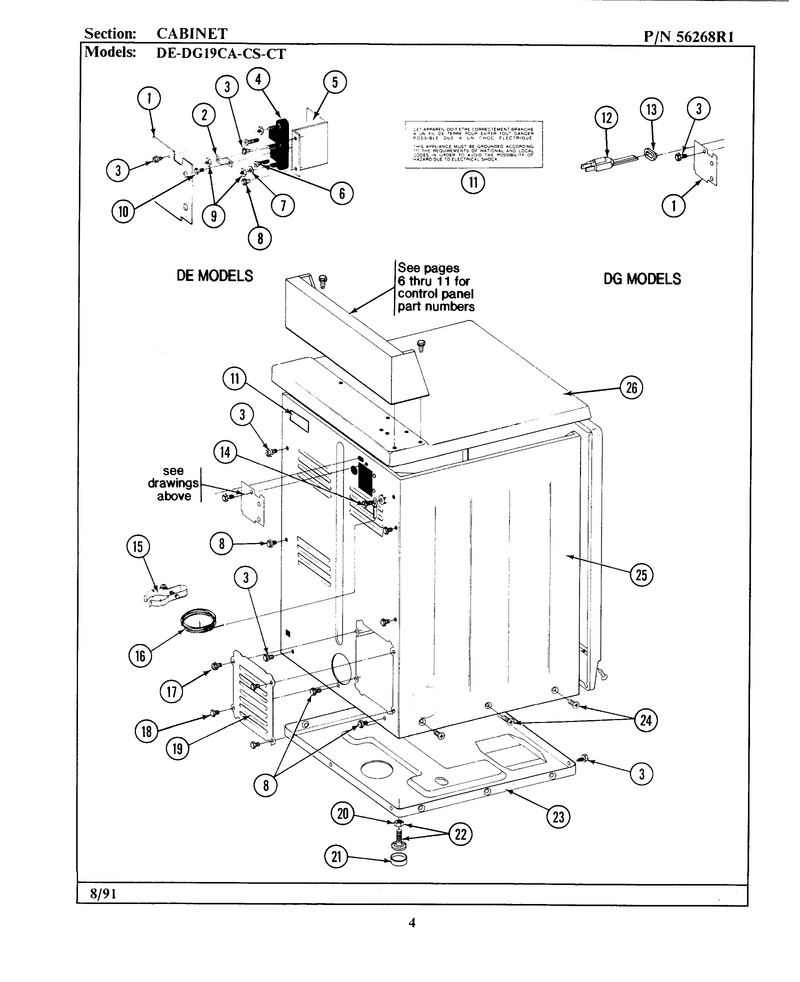

02 - Cabinet-Rear

...
...
001
Cover, Terminal WPL-Y312905
...
002
Screw WPL-WPY313561
...
003
Screw WPL-WP1163839
...
004
Electircal Instruct. Label WPL-214519
...
005
Power Cord WPL-302521
...
006
Cord Grommett WPL-211881
...
007
Screw & Washer Assy. WPL-NLA
...
008
Clamp, Ground (w/screw) WPL-301548
...
009
Wire WPL-WP311155
...
010
Screw WPL-WP90767
...
011
Screw WPL-WP90767
...
012
Cover, Access WPL-Y312951
...
013
Nut WPL-WP62739
...
014
Foot- Rubb WPL-WPY314137
...
015
Feet-Lvlng WPL-W10176519
...
016
Base Assy. WPL-Y303361
...
017
Screw, Cabinet WPL-213007
...
018
Cabinet (wht) WPL-NLA
...
019
(alm) WPL-NLA
...
020
(h. Wheat) WPL-NLA
...
021
(wht) WPL-307105
...
022
(alm) WPL-NLA
...
023
(h. Wheat) WPL-NLA

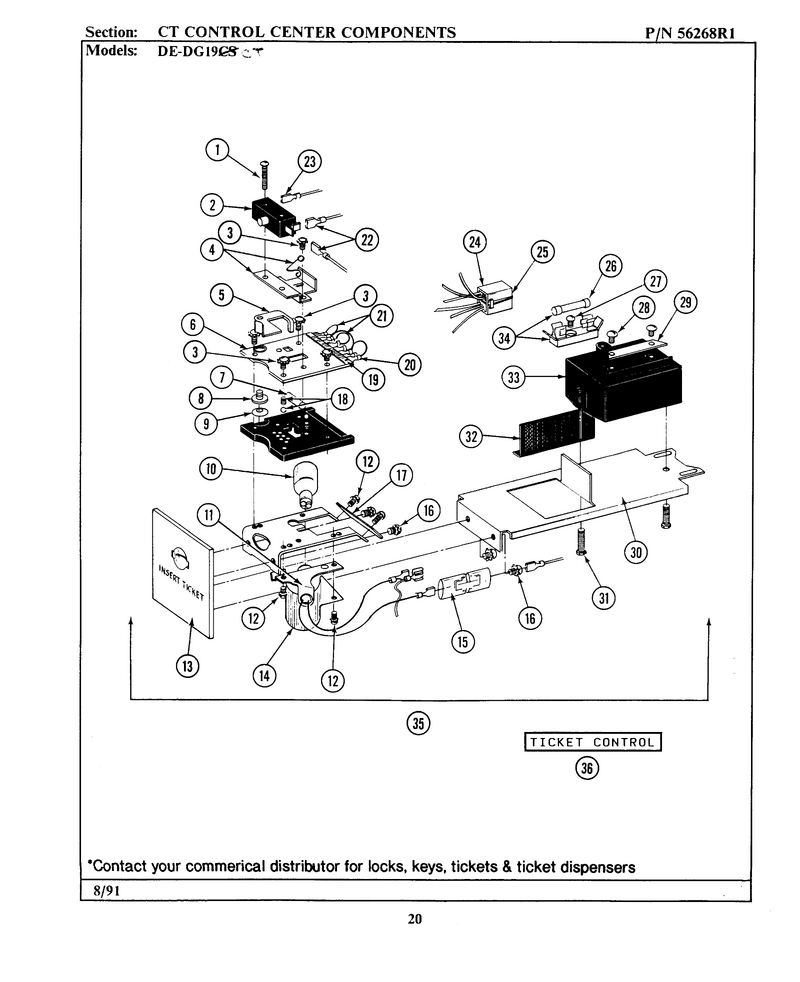

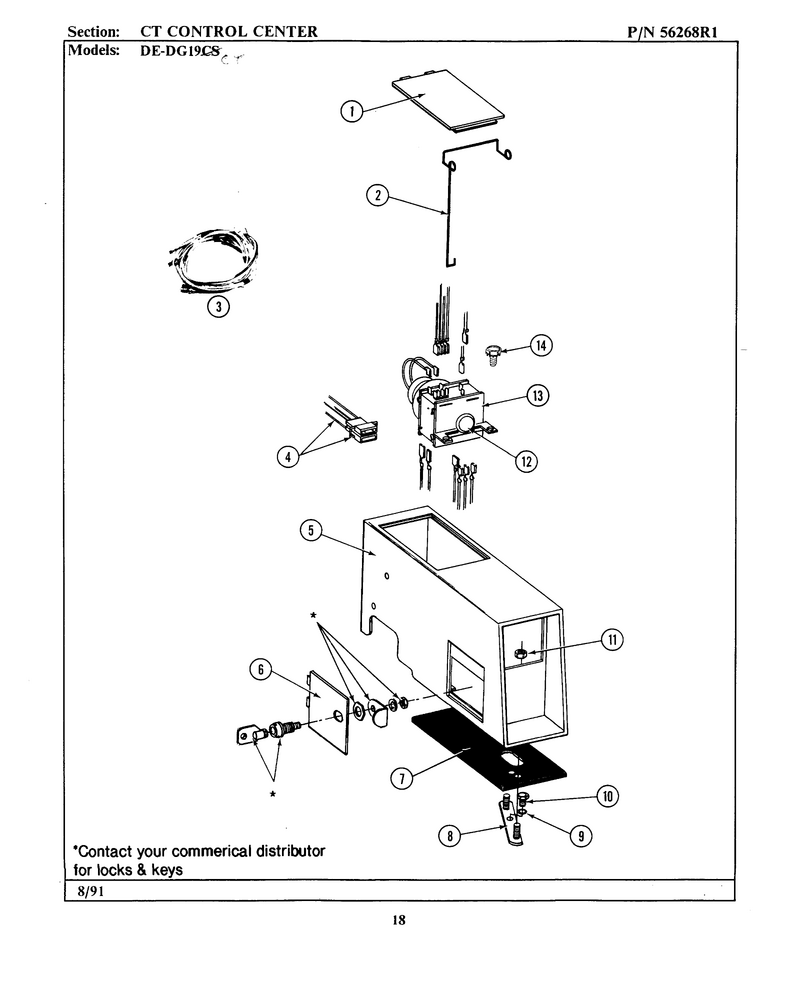

09 - Control Center Components

...
...
001
Screw WPL-NLA
...
002
Switch, Ticket Control WPL-204882
...
003
Sems Screw (no.4-40 X 1/2 Inc) WPL-NLA
...
004
Cam Plate Assembly WPL-204881
...
005
Switch Lever WPL-214218
...
006
Circuit Board WPL-212452
...
007
Roller, Cam WPL-214275
...
008
Adjustment Thumb Wheel WPL-214220
...
009
Spring Washer WPL-NLA
...
010
Bulb-Light WPL-WPA3167501
...
011
Lamp Socket W/bracket WPL-NLA
...
012
Screw, Shield (control) WPL-NLA
...
013
Front Plate, Ticket Control WPL-NLA
...
014
Shield, Heat Lamp WPL-212533
...
015
Connector WPL-WP75614
...
016
Screw WPL-WP488234
...
017
Ticket Deflector WPL-NLA
...
018
Contact Ball Kit WPL-203140
...
019
Overlay, Circuit Board WPL-NLA
...
020
Spade (miniature) WPL-Y311550
...
021
Jumper Wire (black) WPL-NLA
...
022
Spade Connector WPL-NLA
...
023
Terminal WPL-WP248562
...
024
Harness, Ticket Control WPL-NLA
...
025
Pin, Plug WPL-NLA
...
026
Fuse WPL-WP22001555
...
027
Screw (no.6 X 1/4 Inch) WPL-NLA
...
028
Screw WPL-Y311711
...
029
Idler Sq. WPL-WFR311612
...
030
Bracket, Ticket Assembly WPL-NLA
...
031
Screw WPL-WP90767
...
032
Shield WPL-NLA
...
033
Control As WPL-22003292
...
034
Fuse Block W/fuse WPL-NLA
...
035
Ticket Receiver Assembly WPL-NLA
...
036
Ticket Control WPL-202509

08 - Control Center

...
...
001
Access Door (wht) WPL-NLA
...
002
Latch, Access Door WPL-214878
...
003
Main Wire Harness WPL-NLA
...
004
Harness, Ticket Control WPL-NLA
...
005
Outer Case (wht) WPL-NLA
...
006
Access Door (wht) WPL-NLA
...
007
Gasket, Meter Case WPL-214660
...
008
Mtg. Strap----Na WPL-NLA
...
009
Washer WPL-910309
...
010
Screw WPL-WP90767
...
011
Nut WPL-WP62739
...
012
Knob, Timer WPL-213089
...
013
Timer Motor WPL-NLA
...
014
Screw WPL-WP90767

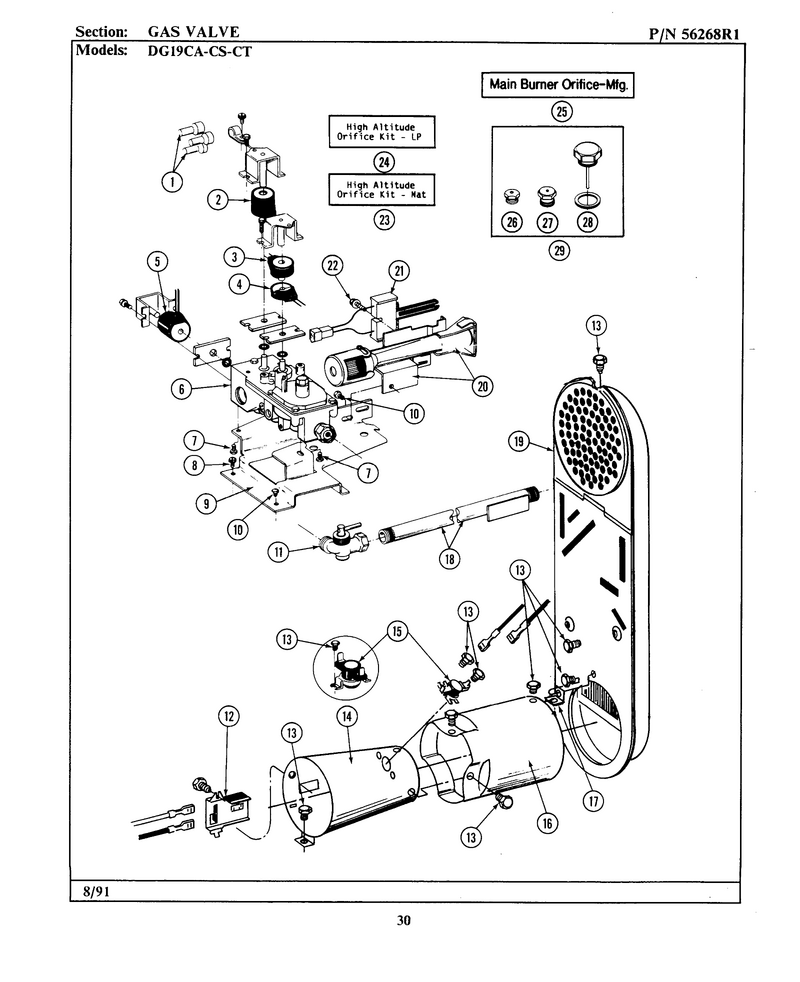

10 - Gas Valve

...
...
001
Closed Connector WPL-311546
...
002
Coil WPL-12001348
...
003
Coil WPL-WP305604
...
004
Coil WPL-WP305605
...
005
Side Coil WPL-Y304626
...
006
Gas Valve Assembly WPL-Y303777
...
007
Screw, Hex Hd No.8 X 3/8 Inch WPL-NLA
...
008
Screw WPL-WPY313561
...
009
Gas Valve Bracket WPL-312929
...
010
Screw WPL-WP1163839
...
011
Shut-Off, Gas Valve WPL-Y303349
...
012
Sensor WPL-WP338906
...
013
Screw WPL-WP90767
...
014
Cone, Combustion WPL-Y303368
...
015
Thermostat WPL-WP305169
...
016
Cone, Extension (combustion) WPL-Y303841
...
017
Retainer, Heater Chamber WPL-Y312890
...
018
Pipe & Bracket Assy. WPL-Y303383
...
019
Inlet Duct Assembly (dg) WPL-Y303369
...
020
Burner Asy WPL-WP33002793
...
021
Ignitor WPL-4391996
...
022
Screw WPL-304971
...
023
Orifice Kit, Lp (high Alt.) WPL-NLA
...
024
Orifice Kit, Nat (high Alt.) WPL-NLA
...
025
Main Burner Orifice (mfg) WPL-NLA
...
026
Main Burner Orifice (lp) WPL-NLA
...
027
Internal Orifice (lp) WPL-NLA
...
028
Screw Assy - Blue Block Ope WPL-NLA
...
029
Conversion Kit (nat.to Lp) WPL-Y303779

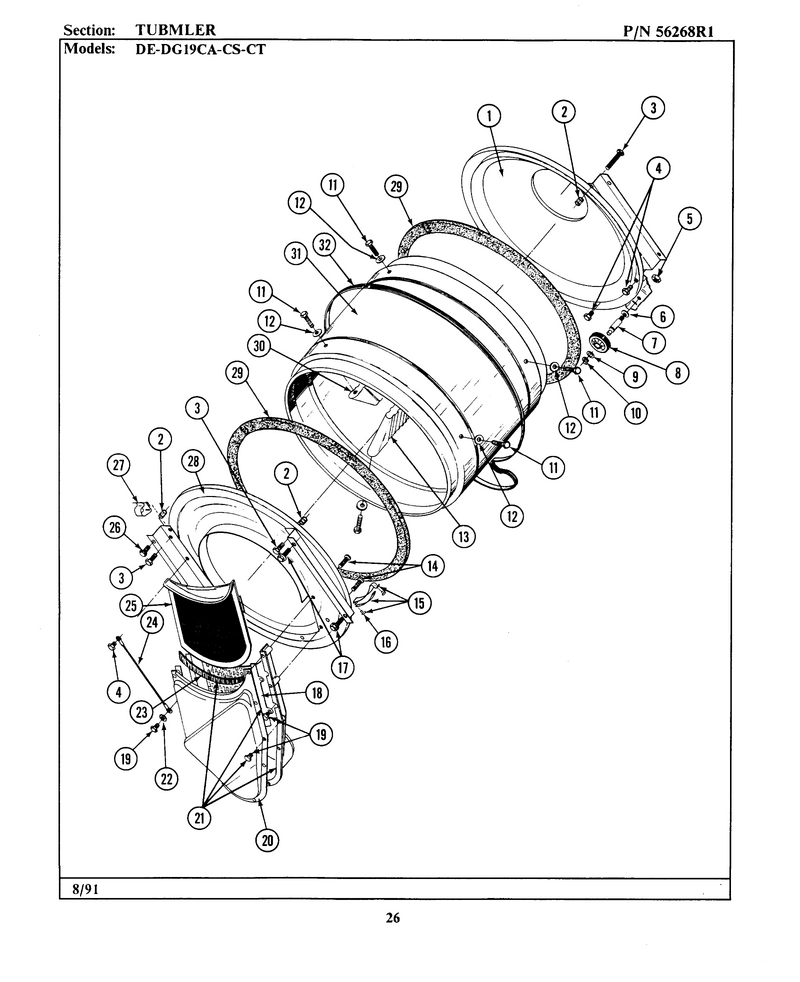

04 - Tumbler

...
...
001
Back, Tumbler (w/seal) WPL-33001106
...
002
Cover, Thread WPL-NLA
...
003
Screw WPL-NLA
...
004
Screw WPL-WP90767
...
005
Nut- Hex WPL-WP33001443
...
006
Washer WPL-WP312535
...
007
Shaft WPL-WP6-3129480
...
008
Drum Roller/washer Assy. WPL-12001541
...
009
Washer WPL-WP312535
...
010
Ring-Retnr WPL-WP9703438
...
011
Screw WPL-WPY310759
...
012
Washer WPL-WP314158
...
013
Baffle, Tall WPL-33001004
...
014
Screw WPL-WP33002917
...
015
Tumbler Bearing Kit ----W WPL-306508
...
016
Rivet WPL-WP210720
...
017
Screw WPL-WP1163839
...
018
Guide, Lint Screen WPL-Y313795
...
019
Screw WPL-WPW10116751
...
020
Outlet Duct - Outer Half WPL-Y312964
...
021
Outlet Duct & Grid WPL-306657
...
022
Washer WPL-310557
...
023
Lint Seal WPL-Y313796
...
024
Tickets (1000) 2-14146 WPL-NLA
...
025
Screen WPL-WP33001003
...
026
Screw WPL-WPY313561
...
027
Clip, Wire Harness WPL-Y310376
...
028
Tumbler Front----Na WPL-NLA
...
029
Rubber Adh WPL-WPY055978
...
030
Part Not Used WPL-NLA
...
031
Tumbler WPL-305187
...
032
Belt WPL-WPY312959

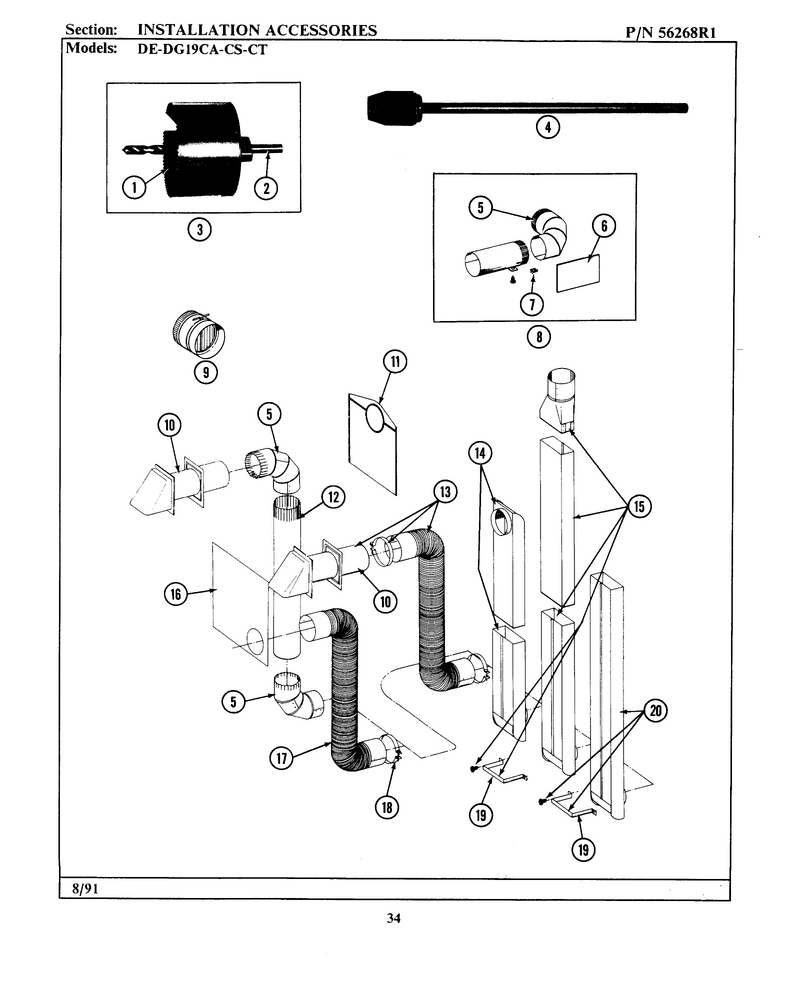

06 - Installation Accessories

...
...
001
Blade, Saw WPL-NLA
...
002
Replacement Drill WPL-NLA
...
003
Hole Saw W/drill Bit WPL-NLA
...
004
Extension Chuck, Drill WPL-NLA
...
005
Elbow, Venting (4``) WPL-Y059131
...
006
Insulation, Exhaust Duct Kit WPL-312302
...
007
Fastener, Exhaust Duct Kit WPL-213323
...
008
Screw WPL-WP90767
...
009
Damper, Back Draft WPL-NLA
...
010
Accessory Parts, Dryer Vent - Hardware & Misc Cap (external Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pi WPL-4396007RW
...
011
Bag, Lint (dacron) WPL-311353
...
012
Pipe, Venting WPL-Y059130
...
013
Flexible Vent Kit WPL-Y059143
...
014
Vent Duct Assy. WPL-Y059135
...
015
Rectangular Vent Kit WPL-NLA
...
016
Plate, Alum. Window (15``x20``) WPL-Y059134
...
017
Accessory Parts, Dryer Vent - Flex Pipe Systems 6' (one End With Snap-Lock Male Fitting And Other End With Snap-Lock Fem WPL-4396010RP
...
018
Clamp, Flexible Duct WPL-Y304630
...
019
Screw WPL-WP90767
...
020
Exhaust Deflector Kit WPL-NLA

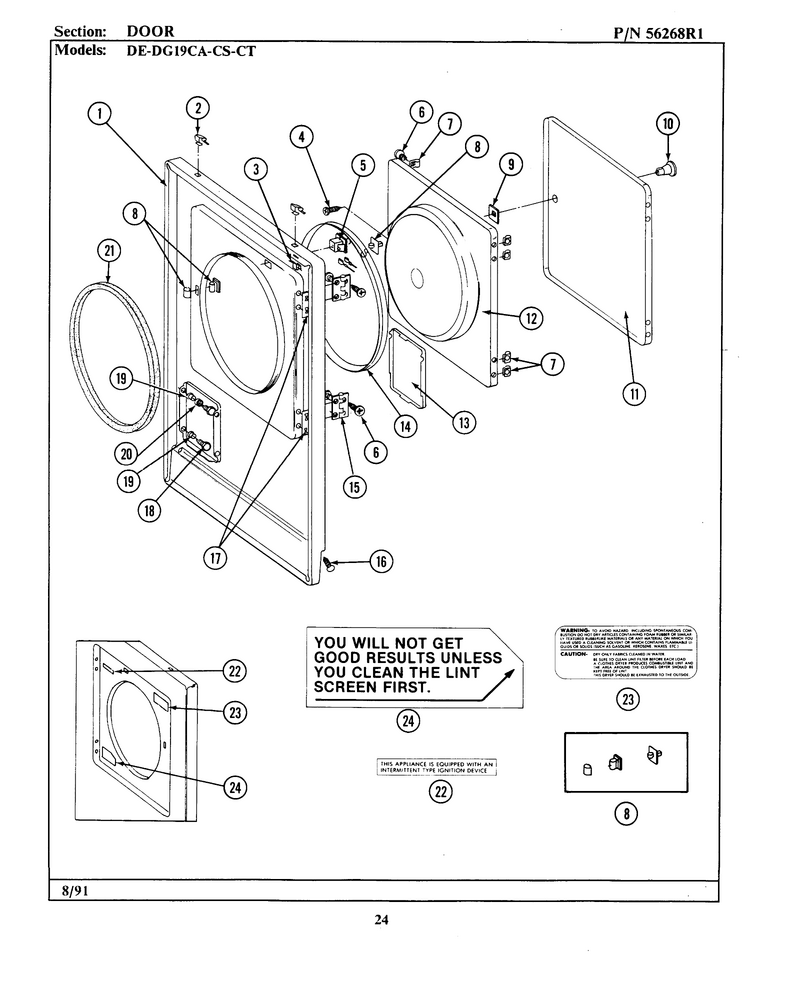

03 - Door

...
...
001
Front Panel (wht) WPL-NLA
...
002
Fastener- WPL-WP22001650
...
003
Clip, Wire Harness WPL-Y310376
...
004
Screw, Door Knob WPL-NLA
...
005
Switch-Dor WPL-W10169313
...
006
Screw WPL-Y314062
...
007
Clip, Door Liner (outer Pnl) WPL-Y313910
...
008
Door Latch Kit--W WPL-306436
...
009
Door Strike Retainer WPL-Y313911
...
010
Knob & Screw WPL-NLA
...
011
(alm) WPL-NLA
...
012
Inner Door W/knob WPL-NLA
...
013
Access Door (wht) WPL-NLA
...
014
Door Seal WPL-314077
...
015
Door Hinge WPL-Y304577
...
016
Screw & Fstner Assy (ft. Pnl) WPL-204439
...
017
Twin Fastener WPL-Y313907
...
018
Screw WPL-212949
...
019
Bushing, Access Stud WPL-NLA
...
020
Sleeve-Access Panel Stud WPL-312369
...
021
Seal, Front Panel WPL-314286
...
022
Gas Ignition Label WPL-NLA
...
023
Instruction Label WPL-Y313927
...
024
Label, Lint Screen Instr. WPL-Y313340

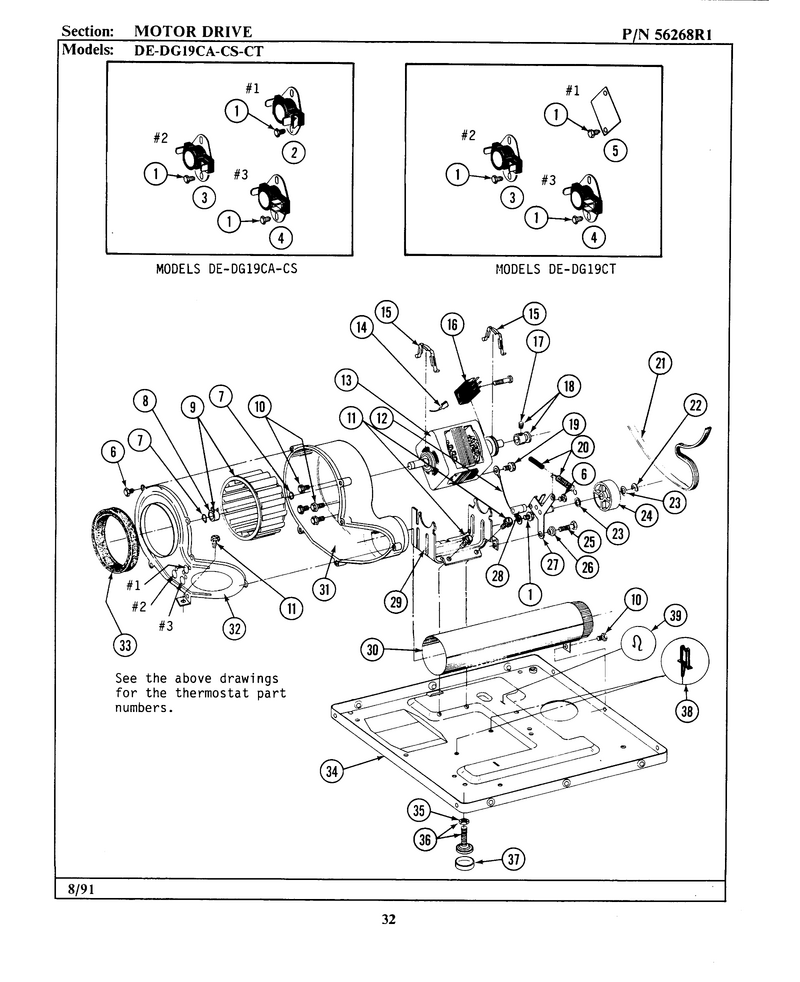

05 - Motor Drive

...
...
001
Screw WPL-WP90767
...
002
Part Not Used WPL-Y303225
...
003
Thrmst-Fix WPL-WP694674
...
004
Thermostat WPL-WP33303391
...
005
Cover (thermostat) WPL-Y312853
...
006
Screw WPL-WPW10116751
...
007
Ring-Retnr WPL-WP9703438
...
008
Clamp WPL-WP312967
...
009
Blower Wheel Assembly & Clamp WPL-Y303836
...
010
Screw WPL-WP1163839
...
011
Screw WPL-WPY313561
...
012
Wire, Ground WPL-901220
...
013
Motor-Drve WPL-W10410999
...
014
Wire WPL-NLA
...
015
Clip- Moto WPL-WPY015825
...
016
Switch, Motor Start WPL-NLA
...
017
Set Screw, Pulley WPL-Y053241
...
018
Pulley, Motor (w/set Screw) WPL-Y305185
...
019
Screw WPL-WP488234
...
020
Idler Spring Assembly WPL-Y303945
...
021
Belt WPL-WPY312959
...
022
Ring-E WPL-WP354987
...
023
Washer WPL-WPY312527
...
024
Pulley WPL-WP6-3037050
...
025
Screw WPL-WPY014874
...
026
Sleeve WPL-WP315772
...
027
Idler Arm WPL-WP6-3033630
...
028
Spacer WPL-WPW10116756
...
029
Support, Motor WPL-NLA
...
030
Exhaust Duct Assy. WPL-Y303442
...
031
Housing, Blower WPL-Y312893
...
032
Cover, Blower Housing WPL-Y313770
...
033
Seal- Blow WPL-WPY312901
...
034
Base Assy. WPL-Y303361
...
035
Nut WPL-WP62739
...
036
Feet-Lvlng WPL-W10176519
...
037
Foot- Rubb WPL-WPY314137
...
038
Retainer- WPL-W10116752
...
039
Spring, Wire Harness WPL-410490

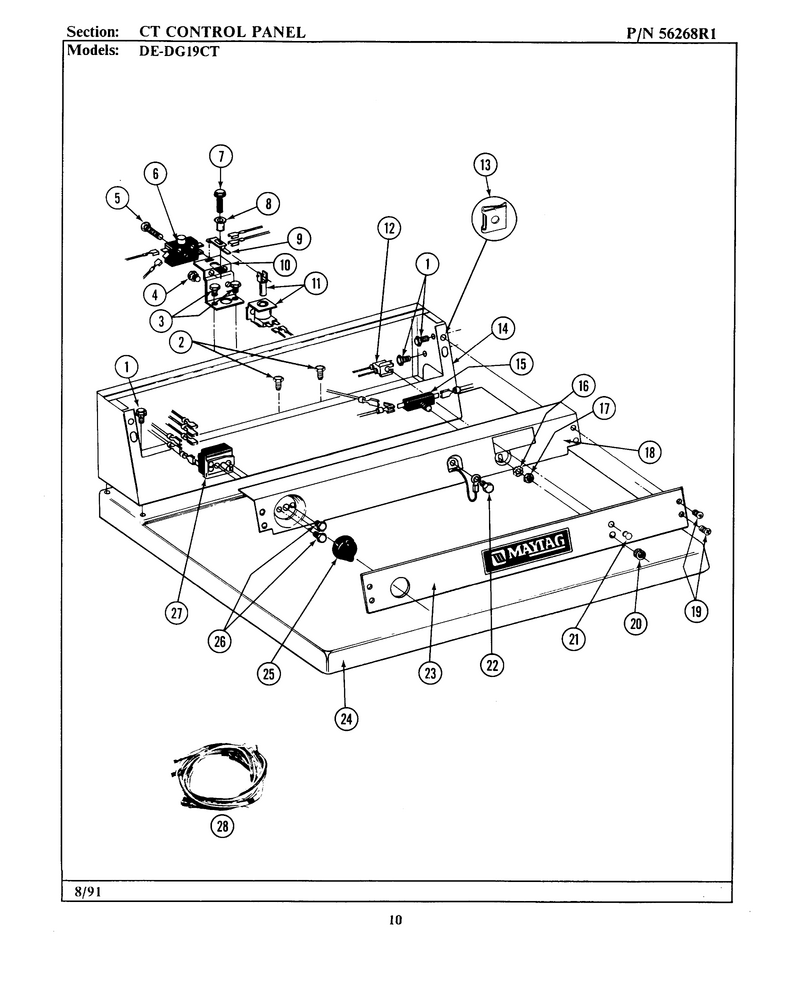

07 - Control Panel

...
...
001
Screw WPL-WP90767
...
002
Screw WPL-WP90767
...
003
Screw WPL-WP90767
...
004
Screw, No.6-32 X 1/4 Inch WPL-212951
...
005
Screw WPL-M0227520
...
006
Switch, Relay WPL-Y303787
...
007
Screw WPL-212949
...
008
Spacer, Advance Relay WPL-NLA
...
009
Spring Lever, Relay WPL-NLA
...
010
Relay Bracket WPL-NLA
...
011
Solenoid, Relay Assembly WPL-305393
...
012
Pilot Light WPL-NLA
...
013
Fastener WPL-215003
...
014
Console (wht) WPL-305213
...
015
Switch Assembly W/hex Nut WPL-Y303318
...
016
Washer WPL-WPW10139799
...
017
Hex Nut On Switch WPL-Y312706
...
018
Back Up Plate (wht) WPL-NLA
...
019
Screw WPL-WP1163283
...
020
Knurled Nu WPL-WPY312702
...
021
Lens, Control Panel WPL-213099
...
022
Screw WPL-WP489399
...
023
Control Panel WPL-NLA
...
024
(alm) WPL-NLA
...
025
Knob, Selector Switch WPL-205663
...
026
Screw WPL-WP488234
...
027
Selector Switch WPL-Y303420
...
028
Main Wire Harness WPL-NLA

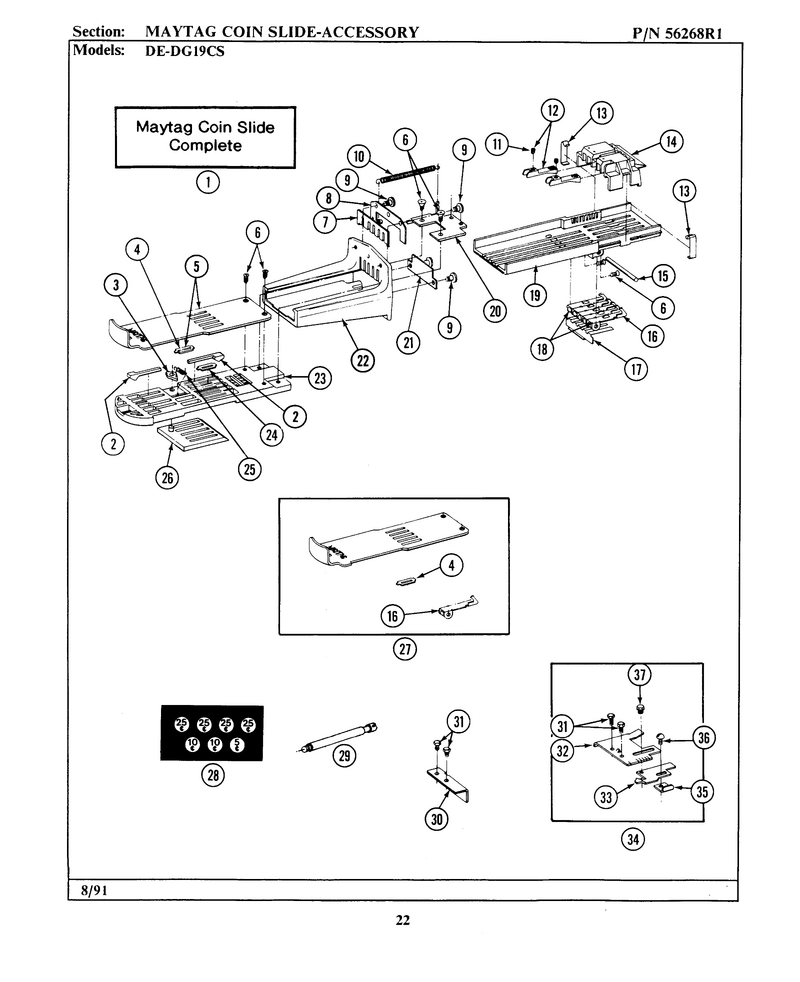

11 - Maytag Coin Slide-Accessory

...
...
001
Maytag Coin Slide WPL-NLA
...
002
Plug, Coin Opening WPL-NLA
...
003
Ratchet Arm WPL-214572
...
004
Nickel Insert WPL-NLA
...
005
Slide Plate W/nickel Insert WPL-NLA
...
006
Screw WPL-214597
...
007
Gate, Coin Opening WPL-214578
...
008
Retainer, Gate WPL-NLA
...
009
Stud, Coin Slide WPL-NLA
...
010
Return Spring WPL-214581
...
011
Set Screw, Gage WPL-NLA
...
012
Movable Coin Gage WPL-NLA
...
013
Spring Clip WPL-214589
...
014
Measuring Block Assembly WPL-NLA
...
015
Pin, Lower Gage Arm WPL-NLA
...
016
Lower Gage Arm WPL-NLA
...
017
Spring, Lower Gage Arm WPL-214596
...
018
Lower Gage Arm Assembly WPL-205343
...
019
Base Insert, Housing WPL-214594
...
020
End Bracket, Slide WPL-NLA
...
021
Retainer, Gage Spring WPL-NLA
...
022
Housing, Coin Slide WPL-214584
...
023
Slide Body WPL-NLA
...
024
Dime Insert WPL-NLA
...
025
Spring, Ratchet Arm WPL-214582
...
026
Stop Block Assembly WPL-205350
...
027
Slide Plate W/nickel Insert WPL-NLA
...
028
Coinage Decal WPL-214648
...
029
Bolt- Lock WPL-WP213035
...
030
Bracket, Coin Slide WPL-314334
...
031
Screw WPL-W11684507
...
032
Part Not Used WPL-Y312577
...
033
Part Not Used WPL-Y312578
...
034
Part Not Used WPL-Y302924
...
035
Part Not Used WPL-Y312576
...
036
Part Not Used WPL-NLA
...
037
Screw WPL-WP488234
